If you notice any of the following:
•the engine coolant temperature gauge moves fully into the red (hot)
area
•the coolant temperature warning light illuminates
•the service engine soon indicator illuminates
1. Pull off the road as soon as safely possible and place the vehicle in P
(Park).
2. Leave the engine running until the coolant temperature gauge needle
moves away from the H range. After several minutes, if this does not
happen, follow the remaining steps.
3. Turn the engine off and wait for it to cool before checking the coolant
level.
WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
4. If the coolant level is normal, you may restart your engine and
continue on.
5. If the coolant is low, add coolant, restart the engine and take your
vehicle to an authorized dealer. SeeAdding engine coolantin this
chapter for more information.
Refer to fail-safe cooling for additional information.
What you should know about fail-safe cooling
If the engine coolant supply is depleted, this feature allows the vehicle to
be driven temporarily before incremental component damage is incurred.
The “fail-safe” distance depends on ambient temperatures, vehicle load
and terrain.
How fail-safe cooling works
If the engine begins to overheat:
•The engine coolant temperature gauge will move to the red (hot)
area.
•The service engine soon
symbol will illuminate.
If the engine reaches a preset over-temperature condition, the engine
will automatically switch to alternating cylinder operation. Each disabled
cylinder acts as an air pump and cools the engine.
Maintenance and Specifications
335
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

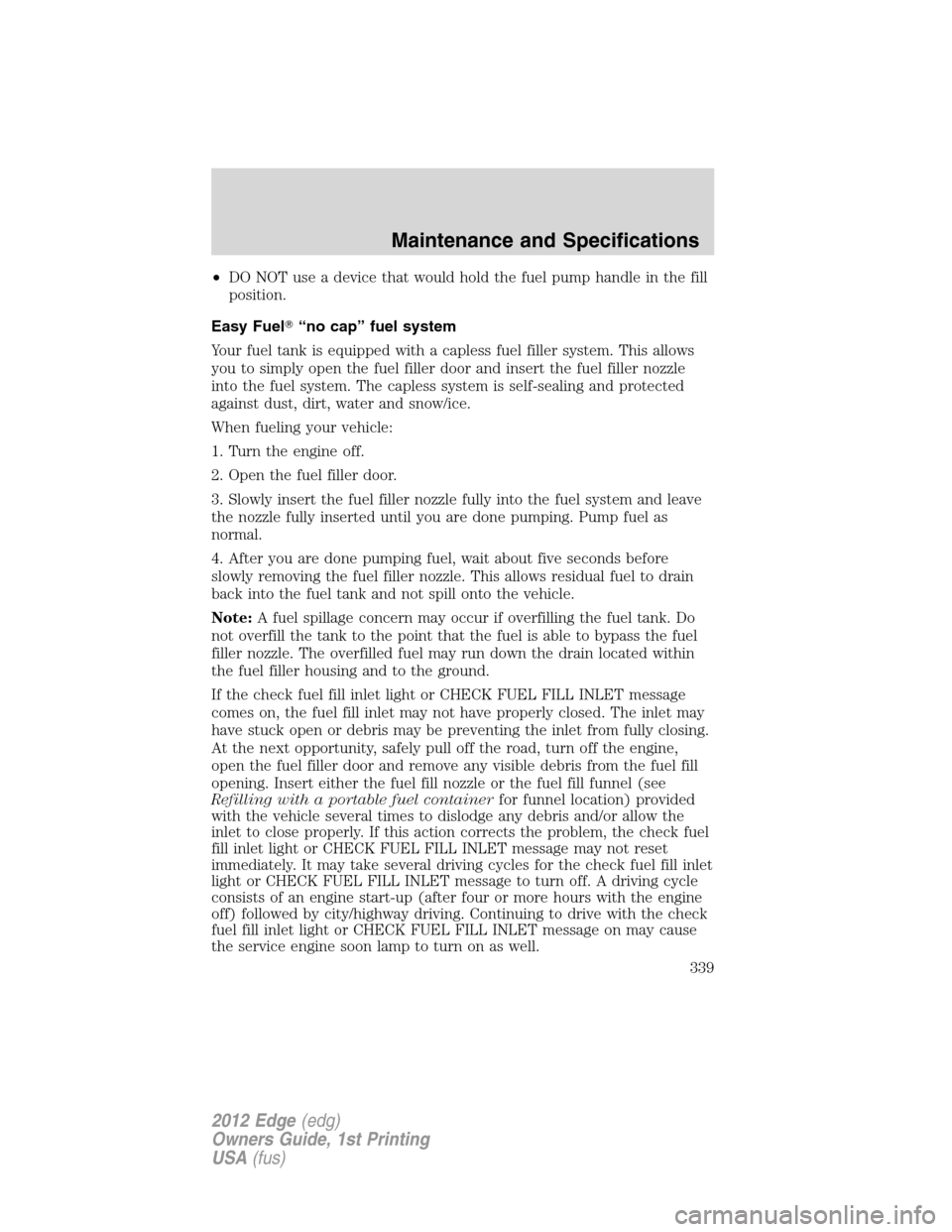

•DO NOT use a device that would hold the fuel pump handle in the fill
position.
Easy Fuel“no cap” fuel system
Your fuel tank is equipped with a capless fuel filler system. This allows
you to simply open the fuel filler door and insert the fuel filler nozzle
into the fuel system. The capless system is self-sealing and protected
against dust, dirt, water and snow/ice.
When fueling your vehicle:
1. Turn the engine off.
2. Open the fuel filler door.
3. Slowly insert the fuel filler nozzle fully into the fuel system and leave
the nozzle fully inserted until you are done pumping. Pump fuel as
normal.
4. After you are done pumping fuel, wait about five seconds before
slowly removing the fuel filler nozzle. This allows residual fuel to drain
back into the fuel tank and not spill onto the vehicle.
Note:A fuel spillage concern may occur if overfilling the fuel tank. Do
not overfill the tank to the point that the fuel is able to bypass the fuel
filler nozzle. The overfilled fuel may run down the drain located within
the fuel filler housing and to the ground.
If the check fuel fill inlet light or CHECK FUEL FILL INLET message
comes on, the fuel fill inlet may not have properly closed. The inlet may
have stuck open or debris may be preventing the inlet from fully closing.
At the next opportunity, safely pull off the road, turn off the engine,
open the fuel filler door and remove any visible debris from the fuel fill
opening. Insert either the fuel fill nozzle or the fuel fill funnel (see
Refilling with a portable fuel containerfor funnel location) provided
with the vehicle several times to dislodge any debris and/or allow the
inlet to close properly. If this action corrects the problem, the check fuel
fill inlet light or CHECK FUEL FILL INLET message may not reset
immediately. It may take several driving cycles for the check fuel fill inlet
light or CHECK FUEL FILL INLET message to turn off. A driving cycle
consists of an engine start-up (after four or more hours with the engine
off) followed by city/highway driving. Continuing to drive with the check
fuel fill inlet light or CHECK FUEL FILL INLET message on may cause
the service engine soon lamp to turn on as well.
Maintenance and Specifications
339
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

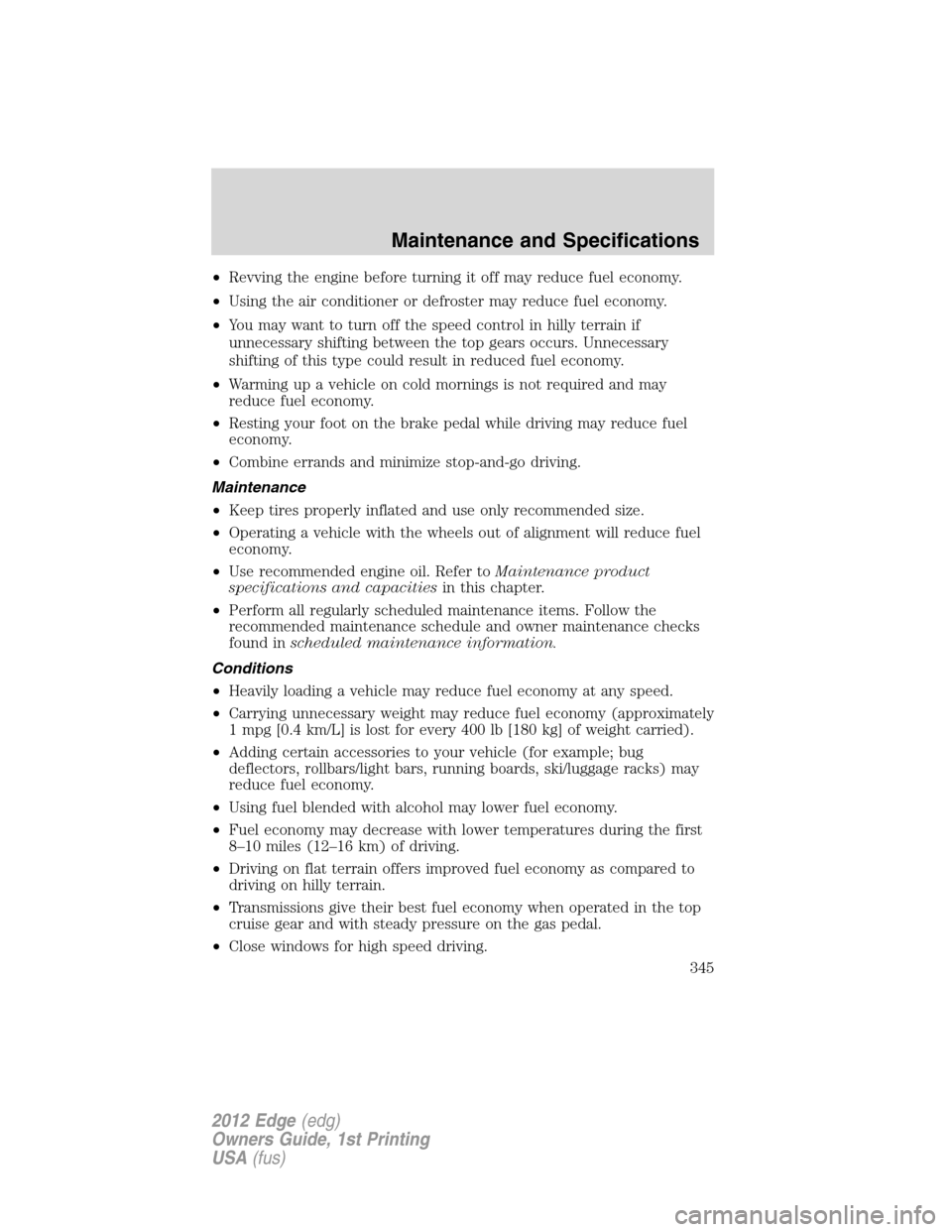

•Revving the engine before turning it off may reduce fuel economy.
•Using the air conditioner or defroster may reduce fuel economy.
•You may want to turn off the speed control in hilly terrain if
unnecessary shifting between the top gears occurs. Unnecessary
shifting of this type could result in reduced fuel economy.
•Warming up a vehicle on cold mornings is not required and may
reduce fuel economy.
•Resting your foot on the brake pedal while driving may reduce fuel
economy.
•Combine errands and minimize stop-and-go driving.
Maintenance
•Keep tires properly inflated and use only recommended size.
•Operating a vehicle with the wheels out of alignment will reduce fuel
economy.
•Use recommended engine oil. Refer toMaintenance product
specifications and capacitiesin this chapter.
•Perform all regularly scheduled maintenance items. Follow the
recommended maintenance schedule and owner maintenance checks
found inscheduled maintenance information.
Conditions
•Heavily loading a vehicle may reduce fuel economy at any speed.
•Carrying unnecessary weight may reduce fuel economy (approximately
1 mpg [0.4 km/L] is lost for every 400 lb [180 kg] of weight carried).
•Adding certain accessories to your vehicle (for example; bug
deflectors, rollbars/light bars, running boards, ski/luggage racks) may
reduce fuel economy.
•Using fuel blended with alcohol may lower fuel economy.
•Fuel economy may decrease with lower temperatures during the first
8–10 miles (12–16 km) of driving.
•Driving on flat terrain offers improved fuel economy as compared to
driving on hilly terrain.
•Transmissions give their best fuel economy when operated in the top
cruise gear and with steady pressure on the gas pedal.
•Close windows for high speed driving.
Maintenance and Specifications
345
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

•Lubricate all hood, door and trunk lid hinges, and latches with a light
grade oil. See theCleaningchapter for more information.
•Cover interior trim to prevent fading.
•Keep all rubber parts free from oil and solvents.
Engine
•The engine oil and filter should be changed prior to storage, as used
engine oil contain contaminates that may cause engine damage.
•Start the engine every 15 days. Run at fast idle until it reaches normal
operating temperature.
•With your foot on the brake, shift through all the gears while the
engine is running.
Fuel system
•Fill the fuel tank with high-quality fuel until the first automatic shutoff
of the fuel pump nozzle.
Note:During extended periods of vehicle storage (30 days or more),
fuel may deteriorate due to oxidation. Add a quality gas stabilizer
product to the vehicle fuel system whenever actual or expected storage
periods exceed 30 days. Follow the instructions on the additive label.
The vehicle should then be operated at idle speed to circulate the
additive throughout the fuel system.
Cooling system
•Protect against freezing temperatures.
•When removing vehicle from storage, check coolant fluid level.
Confirm there are no cooling system leaks, and fluid is at the
recommended level.
Battery
•Check and recharge as necessary. Keep connections clean.
•If storing your vehicle for more than 30 days without recharging the
battery, it may be advisable to disconnect the battery cables to ensure
battery charge is maintained for quick starting.
Note:If battery cables are disconnected, it will be necessary to reset
memory features.
Maintenance and Specifications
354
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

Any adverse condition should be brought to the attention of your dealer
or qualified service technician as soon as possible for the proper service
advice. The owner maintenance service checks are generally not covered
by warranties so you may be charged for labor, parts or fluids used.
Engine oil/coolant change intervals
Engine oilAs indicated by the message center: do not
exceed one year or 10,000 miles (16,000 km)
Engine coolant,
initial change6 years or 100,000 miles (160,000 km)
(whichever comes first)
Engine coolant, after
initial changeEvery 3 years or 50,000 miles (80,000 km)
Check every month
Engine oil level
Function of all interior and exterior lights
Tires for wear and proper pressure, including spare
Windshield washer fluid level
Check every six months
Battery connections; clean if necessary
Body and door drain holes for obstructions; clean if necessary
Cooling system fluid level and coolant strength
Door weatherstrips for wear; lubricate if necessary
Hinges/latches/outside locks for proper operation; lubricate if necessary
Parking brake for proper operation
Safety belts and seat latches for wear and function
Safety warning lamps (brake, ABS, airbag, safety belt) for operation
Washer spray/wiper operation; clean or replace blades as necessary
Scheduled Maintenance
374
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

A
Accessory delay ..........................86
Adaptive Cruise Control .............90
AdvanceTrac ..............................244
Airbag supplemental restraint
system ........................169, 177, 180
and child safety seats ............171
description ..............169, 177, 180
disposal ....................................183
driver airbag ............171, 178, 181
indicator light .........177, 179, 182
operation .................171, 178, 181
passenger airbag .....171, 178, 181
side airbag ...............................177
Air cleaner filter ...............352, 355
Air conditioning ........57, 59, 61, 63
manual heating and air
conditioning system .................57
All Wheel Drive (AWD),
driving off road .........................273
Antifreeze
(see Engine coolant) ................330
Anti-lock brake system
(see Brakes) ......................241–242
Anti-theft system ..............136, 140
arming the system ..........136, 140
disarming a triggered
system .....................................140
Automatic transmission
driving an automatic
overdrive .................................252
fluid, adding ....................349, 352
fluid, checking ................349, 352
fluid, refill capacities ..............356
fluid, specification ..................356
Selectshift (SST) ....................254
Auxiliary input jack (Line in) ....53Auxiliary powerpoint ..................84
Axle
lubricant specifications ..........356
B
Battery .......................................328
acid, treating emergencies .....328
jumping a disabled battery ....298
maintenance-free ....................328
replacement, specifications ...355
servicing ..................................328
Belt-Minder.............................164
Blind Spot Information
System .......................................267
Blind spot mirror ......................266
Booster seats .............................197
Brakes ........................................241
anti-lock ...........................241–242
anti-lock brake system (ABS)
warning light ...........................242
fluid, checking and adding ....349
fluid, refill capacities ..............356
fluid, specifications .................356
lubricant specifications ..........356
parking ....................................243
shift interlock ..........................250
Bulbs ............................................75
C
Capacities for refilling fluids ....356
Cargo management system ......110
Cargo net ...................................111
Cell phone use ..............................9
Changing a tire .................291, 294
Child safety seats ......................188
Index
390
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

refill capacities ........................356
service points ..................321, 323
Engine block heater .................240
Engine oil ..................................324
checking and adding ..............324
dipstick ....................................324
filter, specifications ................355
refill capacities ........................356
specifications ..........................356
Event data recording ....................7
Exhaust fumes ..........................239
F
Fail safe cooling ........................335
Fleet MyKey programming ......115
Floor mats .........................105–106
Fluid capacities .........................356
Four-Wheel Drive vehicles
driving off road .......................274
Fuel ............................................337
calculating fuel economy .......343
cap ...........................................339
capacity ...................................356
choosing the right fuel ...........340
detergent in fuel .....................341
filler funnel .............................341
filling your vehicle with
fuel ...........................337, 339, 343
filter, specifications ........336, 355
fuel pump shut-off ..................282
improving fuel economy ........343
octane rating ...................340, 360
quality ......................................341
running out of fuel .........298, 341
safety information relating to
automotive fuels .....................337
Fuses ..................................282–283G
Garage door opener ..................101
Gas cap (see Fuel cap) ............339
Gas mileage
(see Fuel economy) .................343
Gauges ...................................18–19
H
Hazard flashers .........................281
Headlamps ...................................69
aiming ..................................71–72
autolamp system .......................69
bulb specifications ....................75
daytime running lights .............70
flash to pass ..............................70
high beam .................................70
replacing bulbs .........................76
turning on and off ....................69
Head restraints .................142, 150
Heating
heating and air conditioning
system .....................57, 59, 61, 63
Hill start assist ..........................255
Homelink wireless control
system ........................................101
Hood ..........................................320
I
Ignition ...............................234, 360
Illuminated visor mirror .............83
Infant seats
(see Safety seats) .....................188
Inspection/maintenance (I/M)
testing ........................................348
Index
392
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)
