Table of Contents
3
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

Vehicle Symbol Glossary
Power Windows
Front/Rear
Power Window Lockout
Child Safety Door
Lock/UnlockInterior Luggage
Compartment Release
Panic AlarmEngine Oil
Engine CoolantEngine Coolant
Temperature
Do Not Open When HotBattery
Avoid Smoking, Flames,
or SparksBattery Acid
Explosive GasFan Warning
Power Steering FluidMaintain Correct Fluid
LevelMAX
MIN
Service Engine SoonEngine Air Filter
Passenger Compartment
Air FilterJack
Check Fuel CapLow Tire Pressure
Warning
Introduction
11
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

Grade assist (RTT) (if
equipped):Illuminates when grade
assist is turned on.
Speed control (RTT):The speed
control system indicator light
changes color to indicate what mode
the system is in:
•On (gray light):Illuminates
when the speed control system is turned on. Turns off when the speed
control system is turned off.
•Engaged (green light):Illuminates when the speed control system is
engaged. Turns off when the speed control system is disengaged.
Adaptive cruise control (RTT)
(if equipped):The speed control
system indicator light changes color
to indicate what mode the system is
in:
•On (gray light):Illuminates when the adaptive cruise control system
is turned on. Turns off when the speed control system is turned off.
•Engaged (green light):Illuminates when the adaptive cruise control
system is engaged. Turns off when the speed control system is
disengaged.
Door ajar (RTT):Displays when
the ignition is on and any door is
not completely closed.
Low washer fluid (RTT):
Illuminates when the windshield
washer fluid is low.
Engine coolant temperature
(RTT):Illuminates when the engine
coolant temperature is high. Stop
the vehicle as soon as possible, switch off the engine and let cool. Refer
toEngine coolantin theMaintenance and Specificationschapter.
Instrument Cluster
16
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

WARNING:Never remove the coolant reservoir cap while the
engine is running or hot.
Turn signal:Illuminates when the
left or right turn signal or the
hazard lights are turned on. If the
indicators flash faster, check for a burned out bulb.
High beams:Illuminates when the
high beam headlamps are turned on.
Heads up display (if equipped):
A red beam of lights will illuminate
on the windshield in certain
instances when using adaptive
cruise control and/or the collision
warning system. It will also
illuminate momentarily when you start your vehicle to make sure the
display works. SeeUsing adaptive cruise controlin theDriving
chapter for more information.
Key-in-ignition warning chime:Sounds when the key is left in the
ignition in the off or accessory position and the driver’s door is opened.
Headlamps on warning chime:Sounds when the headlamps or parking
lamps are on, the ignition is off (the key is not in the ignition) and the
driver’s door is opened.
Parking brake on chime:Sounds when the parking brake is left on and
the vehicle is driven. If the warning stays on after the park brake is off,
contact your authorized dealer as soon as possible.
Instrument Cluster
17
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

GAUGES
Base cluster shown in standard measure – metric similar
1.Tachometer:Indicates the engine speed in revolutions per minute.
Driving with your tachometer pointer continuously at the top of the scale
may damage the engine.
2.Multifunction display:This displays the engine coolant temperature,
AWD display (if equipped), odometer and trip meter. This is also used to
configure different vehicle personalization options and display the status
of various vehicle functions and vehicle status information. SeeBase
message centerin this chapter for more information.
•Engine coolant temperature
gauge (if enabled):Indicates
engine coolant temperature. At
normal operating temperature,
the level indicator will be in the
normal range. The indicator will
change colors indicating blue for
cool, gray for normal and red for
hot. If the engine coolant
temperature exceeds the normal
range, stop the vehicle as soon as
safely possible, switch off the engine and let the engine cool.
km/h
5
4
3
2
1
07
F
E
80
60
40
20
0
20
0 40 60 80
100120140160180
200
220
1001201406
MPH
132
4
H
C
Instrument Cluster
18
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

The engine coolant temperature gauge can be enabled or disabled. See
Base message centerin this chapter for information on changing the
display settings.
•AWD gauge (if equipped and
enabled):displays power
distribution between the front
and rear wheels. More power to
either front or rear wheels will be
displayed by more area filled in.
SeeAll-Wheel Drive (Awd) system
in theDrivingchapter for
information.
3.Speedometer:Indicates the current vehicle speed.
4.Fuel gauge:Indicates approximately how much fuel is left in the fuel
tank (when the ignition is in the on position). The fuel gauge may vary
slightly when the vehicle is in motion or on a grade. The fuel icon and
arrow indicates which side of the vehicle the fuel filler door is located.
Optional cluster shown in standard measure– metric similar
1.Multifunction display:This displays the fuel gauge, tachometer,
engine coolant temperature, odometer/trip meter and other vehicle
features. This is also used to configure different vehicle personalization
options and display the status of various vehicle functions. SeeOptional
message centerin this chapter for more information.
km/h
80
60
40
20
0
20
0 40 60 80
100120140160180
200
220
100120140
MPH
132
Instrument Cluster
19
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

Main menu
Scroll up/down to highlight one of the options, then press the right arrow
key or OK to enter into that menu option. Press the left arrow key as
needed to exit back to the main menu.
*Trip1or2
Trip Odometer — shows the accumulated trip distance.
Trip Timer — shows the elapsed trip time. This timer will stop when
the vehicle is turned off and will restart when the vehicle is restarted.
Distance to E — shows the approximate distance the vehicle can travel
before running out of fuel.
Inst Fuel Econ — shows instantaneous fuel usage.
Average Fuel — shows the average distance traveled per unit of fuel
used for a given trip.
Fuel Used — shows the amount of fuel used for a given trip.
Press and hold OK to reset the current trip, distance time, average MPG,
and fuel used.
*Note:Some items are optional and may not appear.
*Information
AWD Gauge. Displays power distribution between the front and rear
wheels. More power to either front or rear wheels will be displayed by
more area filled in. Refer toAll-Wheel Drive (AWD) systemin the
Drivingchapter.
MyKeyDistance (if MyKeyis programmed)
MyKeyInformation (number of MyKeys and admin keys programmed)
Coolant Temperature. The indicator will change colors indicating: blue
for cool, gray for normal and red for hot. If the engine coolant
temperature exceeds the normal range, stop the vehicle as soon as
safely possible, switch off the engine and let the engine cool.
*Note:Some items are optional and may not appear.
Instrument Cluster
21
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

Round analog tachometer +
Fuel gauge
For descriptions of the tachometer and fuel gauge, see the description
listed previously.
Round analog tachometer +
Fuel gauge + Engine coolant
temperature gauge
For descriptions of the tachometer
and fuel gauge, see the description
listed previously.
•Engine coolant temperature
gauge: Indicates engine coolant
temperature. At normal operating
temperature, the level indicator
will be in the normal range. If the engine coolant temperature exceeds
the normal range, stop the vehicle as soon as safely possible, switch
off the engine and let the engine cool.
Intelligent AWD (if equipped) +
other gauges
For a description of the other
gauges, see the descriptions listed
previously.
•Intelligent AWD: displays power
distribution between the front
and rear wheels. More power to
either front or rear wheels will be
displayed by more area filled in.
Refer toAll-Wheel Drive (AWD) systemin theDrivingchapter.
i01234.5mi
F
E
01234.5mi
FH
C E
F6
4
RPM
1000+2
0
01234.5mi Intelligent AWD
E
Instrument Cluster
28
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

Keys and Intelligent
Access MessagesAction / Description
RESTART NOW OR
KEY IS NEEDEDDisplayed when the start/stop button is
pressed to shut off the engine and a Intelligent
Access Key is not detected inside the vehicle.
Refer toPush button start systemin the
Drivingchapter for more information.
ACCESSORY
POWER ACTIVEDisplayed when the vehicle is in the accessory
ignition state.
Maintenance
MessagesAction / Description
LOW ENGINE OIL
PRESSUREStop the vehicle as soon as safely possible,
turn off the engine. Check the oil level. See
Checking the engine oilin theMaintenance
and Specificationschapter. If the warning
stays on or continues to come on with your
engine running, contact your authorized dealer
as soon as possible.
CHANGE ENGINE
OIL SOONDisplayed when the engine oil life remaining is
10% or less.
OIL CHANGE
REQUIREDDisplayed when the oil life left reaches 0%.
ENGINE COOLANT
OVER TEMPDisplayed when the engine coolant
temperature is excessively high.
WASHER FLUID
LEVEL LOWIndicates the washer fluid reservoir is less than
one quarter full. Check the washer fluid level.
Refer toWindshield washer fluidin the
Maintenance and Specificationschapter.
MyKeyMessages Action / Description
MYKEY ACTIVE
DRIVE SAFELYDisplayed when MyKeyis active.
MYKEY NOT
CREATEDDisplayed during key programming when
MyKeycannot be programmed.
SPEED LIMITED TO
80 MPHDisplayed when starting the vehicle and
MyKeyis in use and the MyKey speed limit is
on. Refer toMyKeyin theLocks and
Securitychapter for more information.
Instrument Cluster
42
2012 Edge(edg)
Owners Guide, 1st Printing
USA(fus)

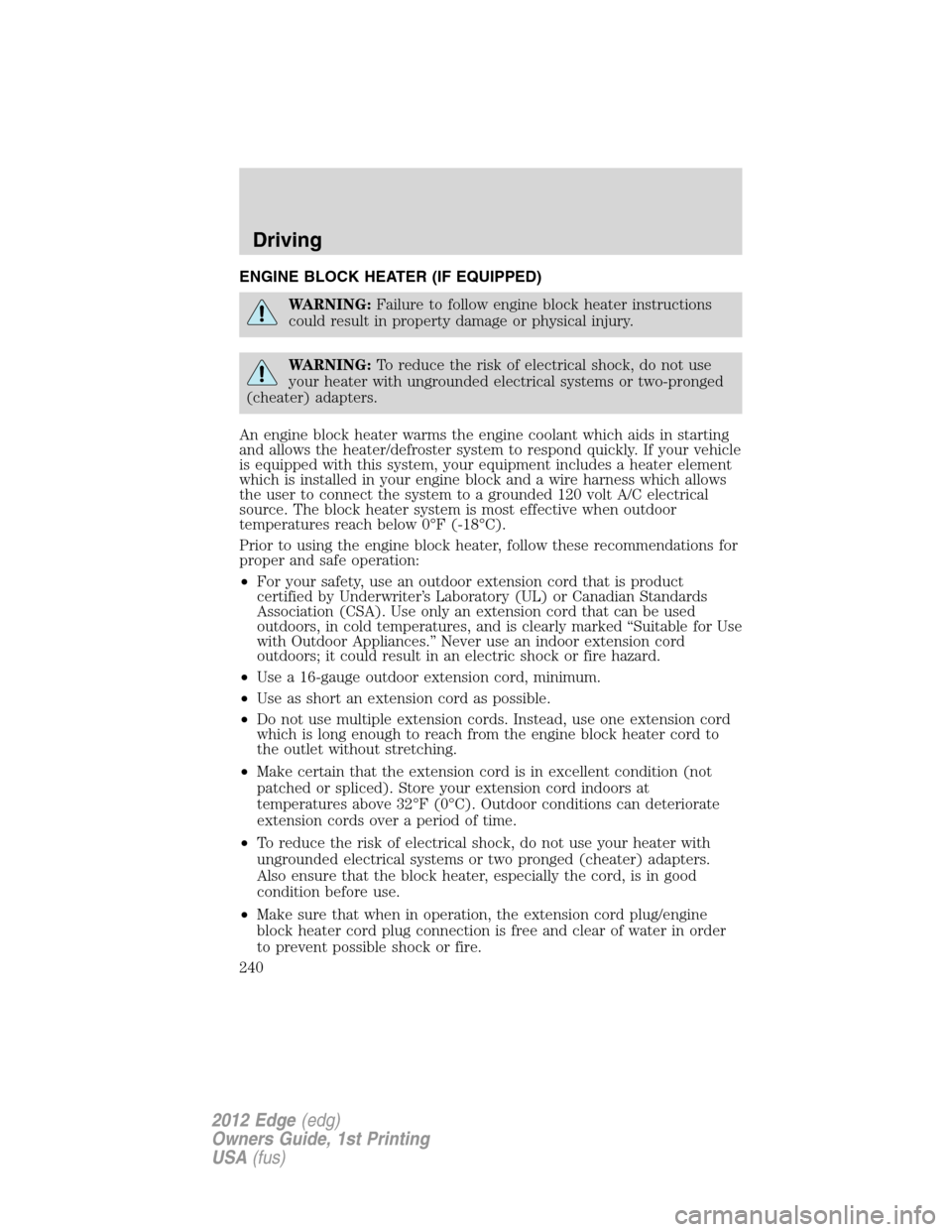

ENGINE BLOCK HEATER (IF EQUIPPED)
WARNING:Failure to follow engine block heater instructions
could result in property damage or physical injury.
WARNING:To reduce the risk of electrical shock, do not use
your heater with ungrounded electrical systems or two-pronged
(cheater) adapters.
An engine block heater warms the engine coolant which aids in starting
and allows the heater/defroster system to respond quickly. If your vehicle
is equipped with this system, your equipment includes a heater element
which is installed in your engine block and a wire harness which allows
the user to connect the system to a grounded 120 volt A/C electrical
source. The block heater system is most effective when outdoor
temperatures reach below 0°F (-18°C).
Prior to using the engine block heater, follow these recommendations for
proper and safe operation:
•For your safety, use an outdoor extension cord that is product
certified by Underwriter’s Laboratory (UL) or Canadian Standards
Association (CSA). Use only an extension cord that can be used
outdoors, in cold temperatures, and is clearly marked “Suitable for Use
with Outdoor Appliances.” Never use an indoor extension cord
outdoors; it could result in an electric shock or fire hazard.
•Use a 16-gauge outdoor extension cord, minimum.
•Use as short an extension cord as possible.
•Do not use multiple extension cords. Instead, use one extension cord
which is long enough to reach from the engine block heater cord to
the outlet without stretching.
•Make certain that the extension cord is in excellent condition (not
patched or spliced). Store your extension cord indoors at
temperatures above 32°F (0°C). Outdoor conditions can deteriorate
extension cords over a period of time.
•To reduce the risk of electrical shock, do not use your heater with
ungrounded electrical systems or two pronged (cheater) adapters.
Also ensure that the block heater, especially the cord, is in good
condition before use.
•Make sure that when in operation, the extension cord plug/engine
block heater cord plug connection is free and clear of water in order
to prevent possible shock or fire.
