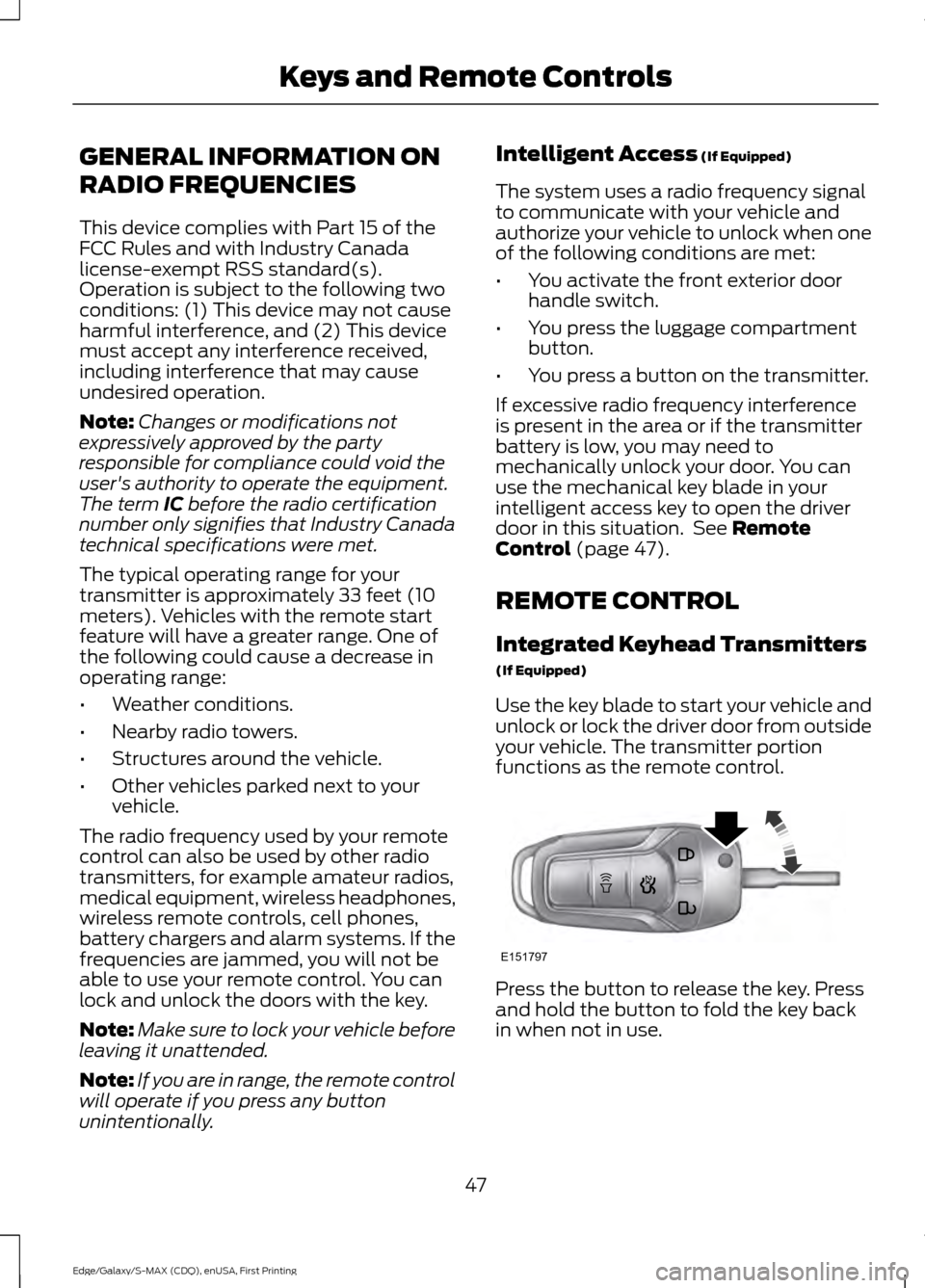

GENERAL INFORMATION ON
RADIO FREQUENCIES
This device complies with Part 15 of the
FCC Rules and with Industry Canada
license-exempt RSS standard(s).
Operation is subject to the following two
conditions: (1) This device may not cause
harmful interference, and (2) This device
must accept any interference received,
including interference that may cause
undesired operation.
Note:
Changes or modifications not
expressively approved by the party
responsible for compliance could void the
user's authority to operate the equipment.
The term IC before the radio certification
number only signifies that Industry Canada
technical specifications were met.
The typical operating range for your
transmitter is approximately 33 feet (10
meters). Vehicles with the remote start
feature will have a greater range. One of
the following could cause a decrease in
operating range:
• Weather conditions.
• Nearby radio towers.
• Structures around the vehicle.
• Other vehicles parked next to your
vehicle.
The radio frequency used by your remote
control can also be used by other radio
transmitters, for example amateur radios,
medical equipment, wireless headphones,
wireless remote controls, cell phones,
battery chargers and alarm systems. If the
frequencies are jammed, you will not be
able to use your remote control. You can
lock and unlock the doors with the key.
Note: Make sure to lock your vehicle before
leaving it unattended.
Note: If you are in range, the remote control
will operate if you press any button
unintentionally. Intelligent Access
(If Equipped)
The system uses a radio frequency signal
to communicate with your vehicle and
authorize your vehicle to unlock when one
of the following conditions are met:
• You activate the front exterior door
handle switch.
• You press the luggage compartment
button.
• You press a button on the transmitter.
If excessive radio frequency interference
is present in the area or if the transmitter
battery is low, you may need to
mechanically unlock your door. You can
use the mechanical key blade in your
intelligent access key to open the driver
door in this situation. See
Remote
Control (page 47).
REMOTE CONTROL
Integrated Keyhead Transmitters
(If Equipped)
Use the key blade to start your vehicle and
unlock or lock the driver door from outside
your vehicle. The transmitter portion
functions as the remote control. Press the button to release the key. Press
and hold the button to fold the key back
in when not in use.
47
Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing Keys and Remote ControlsE151797

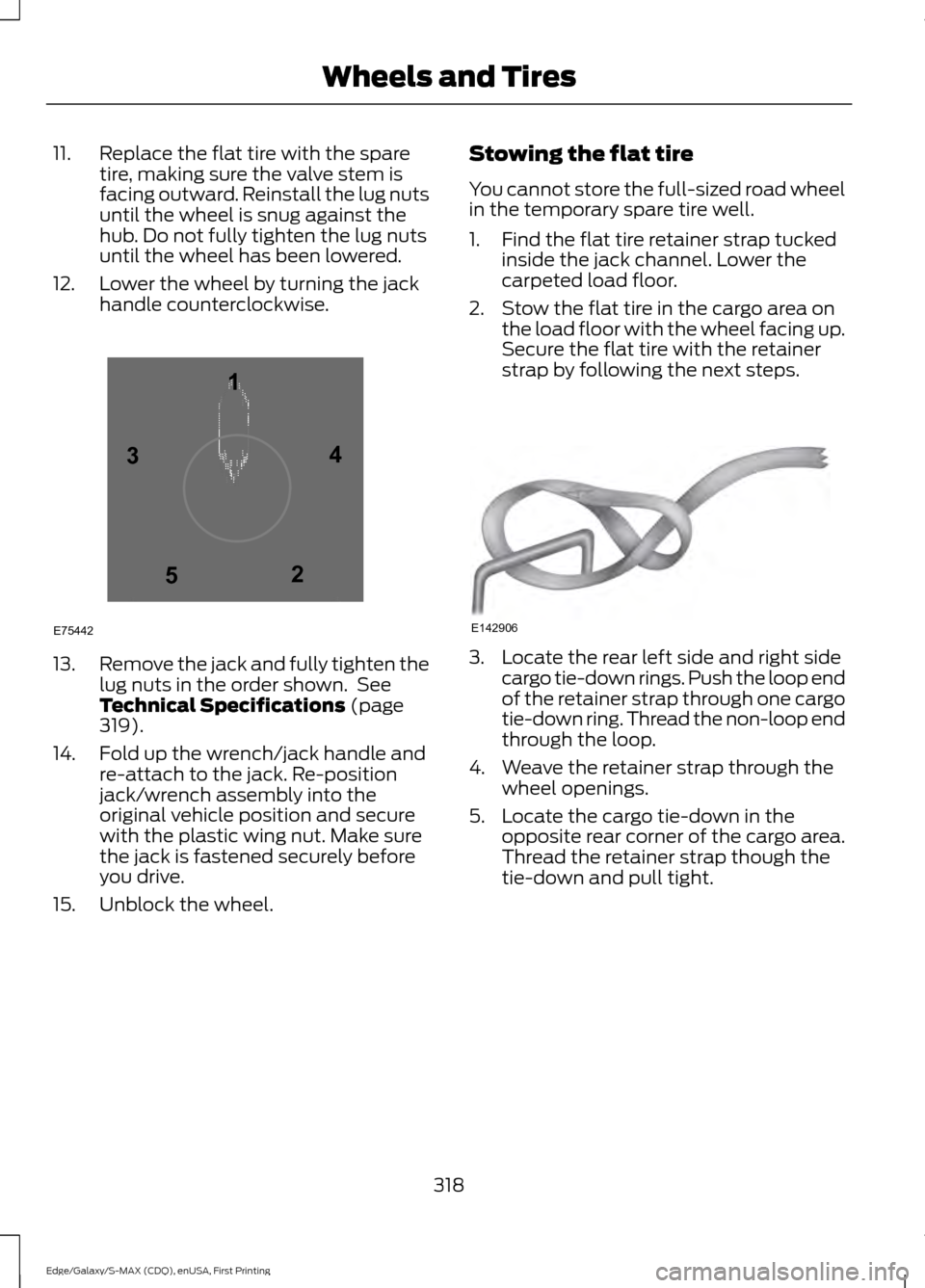

11. Replace the flat tire with the spare
tire, making sure the valve stem is
facing outward. Reinstall the lug nuts
until the wheel is snug against the
hub. Do not fully tighten the lug nuts
until the wheel has been lowered.
12. Lower the wheel by turning the jack handle counterclockwise.13.
Remove the jack and fully tighten the
lug nuts in the order shown. See
Technical Specifications (page
319).
14. Fold up the wrench/jack handle and re-attach to the jack. Re-position
jack/wrench assembly into the
original vehicle position and secure
with the plastic wing nut. Make sure
the jack is fastened securely before
you drive.
15. Unblock the wheel. Stowing the flat tire
You cannot store the full-sized road wheel
in the temporary spare tire well.
1. Find the flat tire retainer strap tucked
inside the jack channel. Lower the
carpeted load floor.
2. Stow the flat tire in the cargo area on the load floor with the wheel facing up.
Secure the flat tire with the retainer
strap by following the next steps. 3. Locate the rear left side and right side
cargo tie-down rings. Push the loop end
of the retainer strap through one cargo
tie-down ring. Thread the non-loop end
through the loop.
4. Weave the retainer strap through the wheel openings.
5. Locate the cargo tie-down in the opposite rear corner of the cargo area.
Thread the retainer strap though the
tie-down and pull tight.
318
Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing Wheels and Tires12
3
4
5
E75442 E142906

6. Secure the flat tire by tying a 2-half
hitch knot.

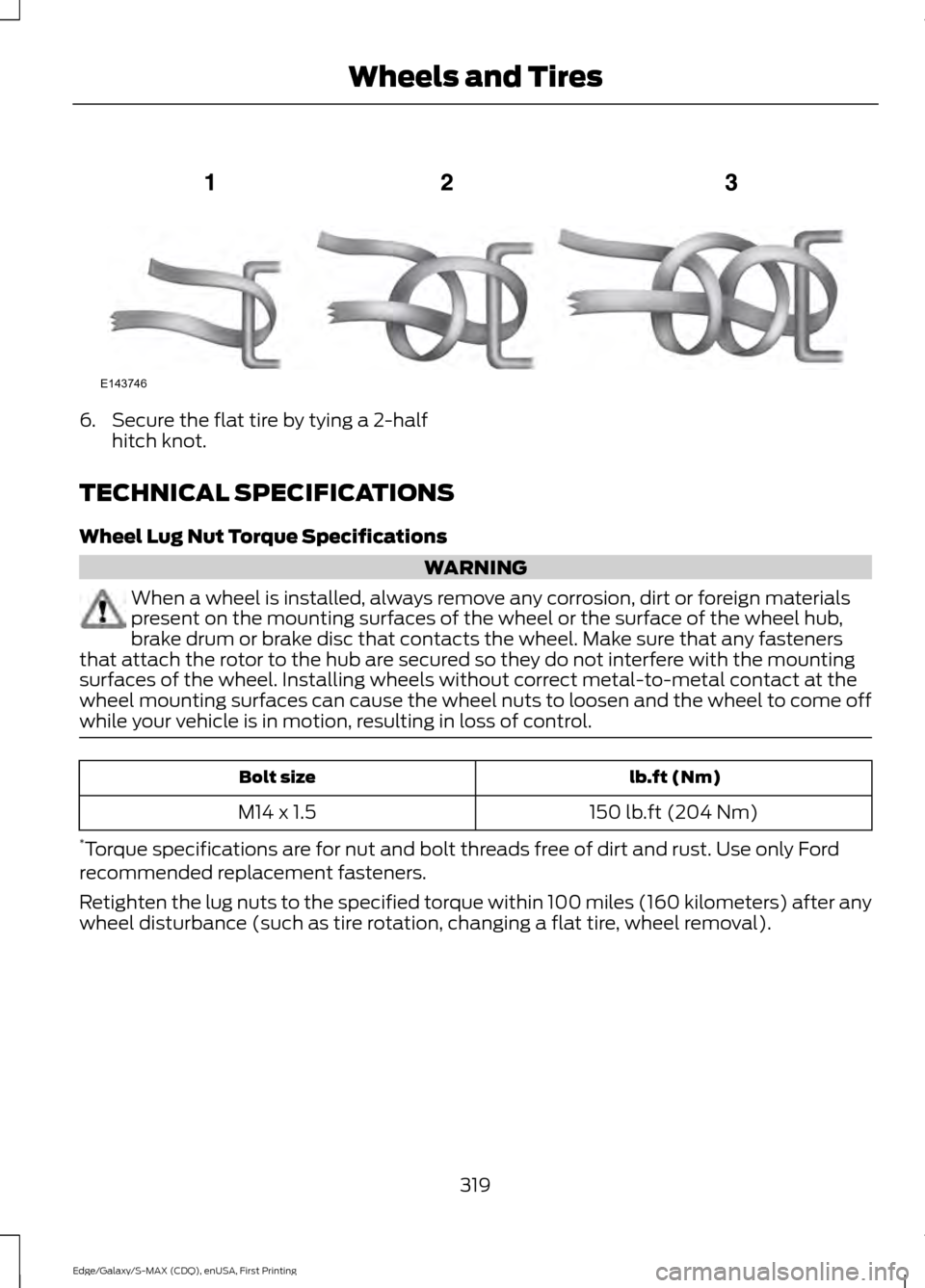

TECHNICAL SPECIFICATIONS
Wheel Lug Nut Torque Specifications WARNING
When a wheel is installed, always remove any corrosion, dirt or foreign materials
present on the mounting surfaces of the wheel or the surface of the wheel hub,
brake drum or brake disc that contacts the wheel. Make sure that any fasteners
that attach the rotor to the hub are secured so they do not interfere with the mounting
surfaces of the wheel. Installing wheels without correct metal-to-metal contact at the
wheel mounting surfaces can cause the wheel nuts to loosen and the wheel to come off
while your vehicle is in motion, resulting in loss of control. lb.ft (Nm)
Bolt size
150 lb.ft (204 Nm)
M14 x 1.5
* Torque specifications are for nut and bolt threads free of dirt and rust. Use only Ford
recommended replacement fasteners.
Retighten the lug nuts to the specified torque within 100 miles (160 kilometers) after any
wheel disturbance (such as tire rotation, changing a flat tire, wheel removal).
319
Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing Wheels and TiresE143746

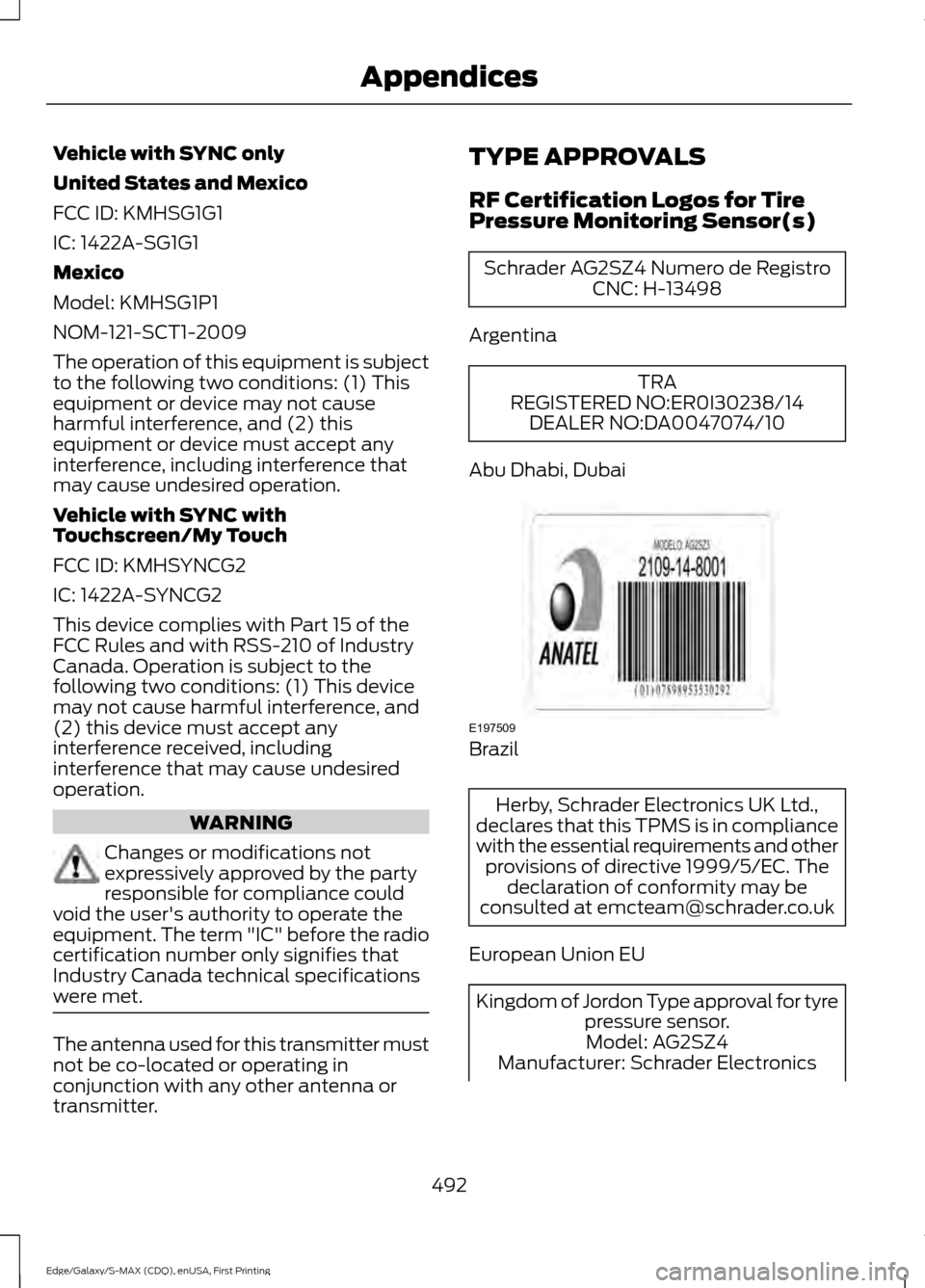

Vehicle with SYNC only
United States and Mexico
FCC ID: KMHSG1G1
IC: 1422A-SG1G1
Mexico
Model: KMHSG1P1
NOM-121-SCT1-2009
The operation of this equipment is subject
to the following two conditions: (1) This
equipment or device may not cause
harmful interference, and (2) this
equipment or device must accept any
interference, including interference that
may cause undesired operation.
Vehicle with SYNC with
Touchscreen/My Touch
FCC ID: KMHSYNCG2
IC: 1422A-SYNCG2
This device complies with Part 15 of the
FCC Rules and with RSS-210 of Industry
Canada. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2) this device must accept any
interference received, including
interference that may cause undesired
operation.
WARNING
Changes or modifications not
expressively approved by the party
responsible for compliance could
void the user's authority to operate the
equipment. The term "IC" before the radio
certification number only signifies that
Industry Canada technical specifications
were met. The antenna used for this transmitter must
not be co-located or operating in
conjunction with any other antenna or
transmitter. TYPE APPROVALS
RF Certification Logos for Tire
Pressure Monitoring Sensor(s) Schrader AG2SZ4 Numero de Registro
CNC: H-13498
Argentina TRA
REGISTERED NO:ER0I30238/14 DEALER NO:DA0047074/10
Abu Dhabi, Dubai Brazil
Herby, Schrader Electronics UK Ltd.,
declares that this TPMS is in compliance
with the essential requirements and other provisions of directive 1999/5/EC. The declaration of conformity may be
consulted at [email protected]
European Union EU Kingdom of Jordon Type approval for tyre
pressure sensor.Model: AG2SZ4
Manufacturer: Schrader Electronics
492
Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing AppendicesE197509

Starting a Gasoline Engine.........................151
Automatic Engine Shutdown......................... 153
Failure to Start..................................................... 153
Guarding Against Exhaust Fumes................154
Important Ventilating Information...............154
Stopping the Engine When Your Vehicle is Moving............................................................... 154
Stopping the Engine When Your Vehicle is Stationary......................................................... 153
Vehicles with an Ignition Key........................... 151
Vehicles with Keyless Start............................. 152
Starting and Stopping the Engine.........150 General Information.......................................... 150
Steering.............................................................212 Electric Power Steering..................................... 212
Steering Wheel................................................74
Storage Compartments.............................149
Sunroof See: Moonroof........................................................ 91
Sun Visors
..........................................................91
Illuminated Vanity Mirror.................................... 91
Supplementary Restraints System.........38 Principle of Operation........................................ 38
Symbols Glossary
.............................................7
SYNC™ Applications and Services
........................................................368
911 Assist............................................................... 368
SYNC Mobile Apps............................................ 370
SYNC™...........................................................354 General Information......................................... 354
SYNC™ Troubleshooting
..........................379
T
Tailgate See: Manual Liftgate........................................... 64
See: Power Liftgate............................................. 65
Technical Specifications See: Capacities and Specifications.............321 Temporary Mobility Kit..............................288
First Stage: Inflating the Tire with Sealing
Compound and Air...................................... 290
General Information......................................... 289
Second Stage: Checking Tire Pressure............................................................ 292
Tips for Use of the Kit...................................... 289
What to Do After the Tire has Been Sealed............................................................... 293
What to do When a Tire Is Punctured........................................................ 290
The Better Business Bureau (BBB) Auto Line Program (U.S. Only)
.......................244
Tire Care..........................................................294
Glossary of Tire Terminology........................ 298
Important Information About Low-Profile Tires................................................................... 294
Important Information About Sport Tires and Wheels..................................................... 295
Information About Uniform Tire Quality Grading............................................................. 296
Information Contained on the Tire Sidewall........................................................... 299
Notice to Crossover Vehicle Owners..........296
Temperature A B C............................................ 297
Tire Rotation......................................................... 310
Traction AA A B C............................................... 297
Treadwear............................................................. 297
Tire Inflation When Punctured See: Temporary Mobility Kit.......................... 288
Tire Pressure Monitoring System............312 Changing Tires With a Tire Pressure
Monitoring System........................................ 313
Understanding Your Tire Pressure Monitoring System ....................................... 313
Tire Repair Kit See: Temporary Mobility Kit.......................... 288
Tires See: Wheels and Tires..................................... 286
Towing a Trailer
............................................226
Load Placement................................................. 226
Towing the Vehicle on Four Wheels - 6-Speed Automatic Transmission -
6F35
................................................................231
Emergency Towing............................................. 231
Recreational Towing......................................... 232
503
Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing Index

Using Voice Recognition...........................356
Initiating a Voice Session................................ 356
System Interaction and Feedback...............357
Utilizing the Mediation/Arbitration Program (Canada Only)........................244
V
Vehicle Care
...................................................279
General Information.......................................... 279
Vehicle Certification Label.......................326
Vehicle Identification Number................326
Vehicle Storage
............................................283
Battery................................................................... 284
Body....................................................................... 284
Brakes.................................................................... 285
Cooling system................................................... 284
Engine.................................................................... 284
Fuel system......................................................... 284
General.................................................................. 284
Miscellaneous..................................................... 285
Removing Vehicle From Storage.................285
Tires........................................................................\
285
Ventilation See: Climate Control......................................... 124
VIN See: Vehicle Identification Number............326
Voice Control
....................................................76 W
Warning Lamps and Indicators
................95
Adaptive Cruise Control.................................... 96
Anti-Lock Braking System................................ 96
Battery..................................................................... 96
Blind Spot Monitor.............................................. 96
Brake System........................................................ 96
Cruise Control....................................................... 96
Direction Indicator............................................... 96
Door Ajar................................................................. 96
Electric Park Brake............................................... 97
Engine Coolant Temperature........................... 97
Engine Oil................................................................. 97
Fasten Safety Belt................................................ 97
Front Airbag............................................................ 97
Heads Up Display................................................. 97
High Beam............................................................... 97
Hood Ajar................................................................. 97
Low Fuel Level....................................................... 97
Low Tire Pressure Warning............................... 97
Low Washer Fluid................................................ 98
Parking Lamps...................................................... 98
Powertrain Fault................................................... 98
Service Engine Soon........................................... 98
Stability Control................................................... 98
Stability Control Off............................................ 98
Washer Fluid Check....................................269
Washers See: Cleaning the Exterior............................... 279
See: Wipers and Washers................................. 78
Waxing............................................................280
Wheel Nuts See: Changing a Road Wheel......................... 315
Wheels and Tires.........................................286 General Information......................................... 286
Technical Specifications.................................. 319
Windows and Mirrors...................................88
Windshield Washers
.....................................79
Front Camera Washer........................................ 80
Windshield Wipers
.........................................78
Intermittent Wipe................................................. 78
Speed Dependent Wipers................................. 78
Wipers and Washers.....................................78
505
Edge/Galaxy/S-MAX (CDQ), enUSA, First Printing Index
