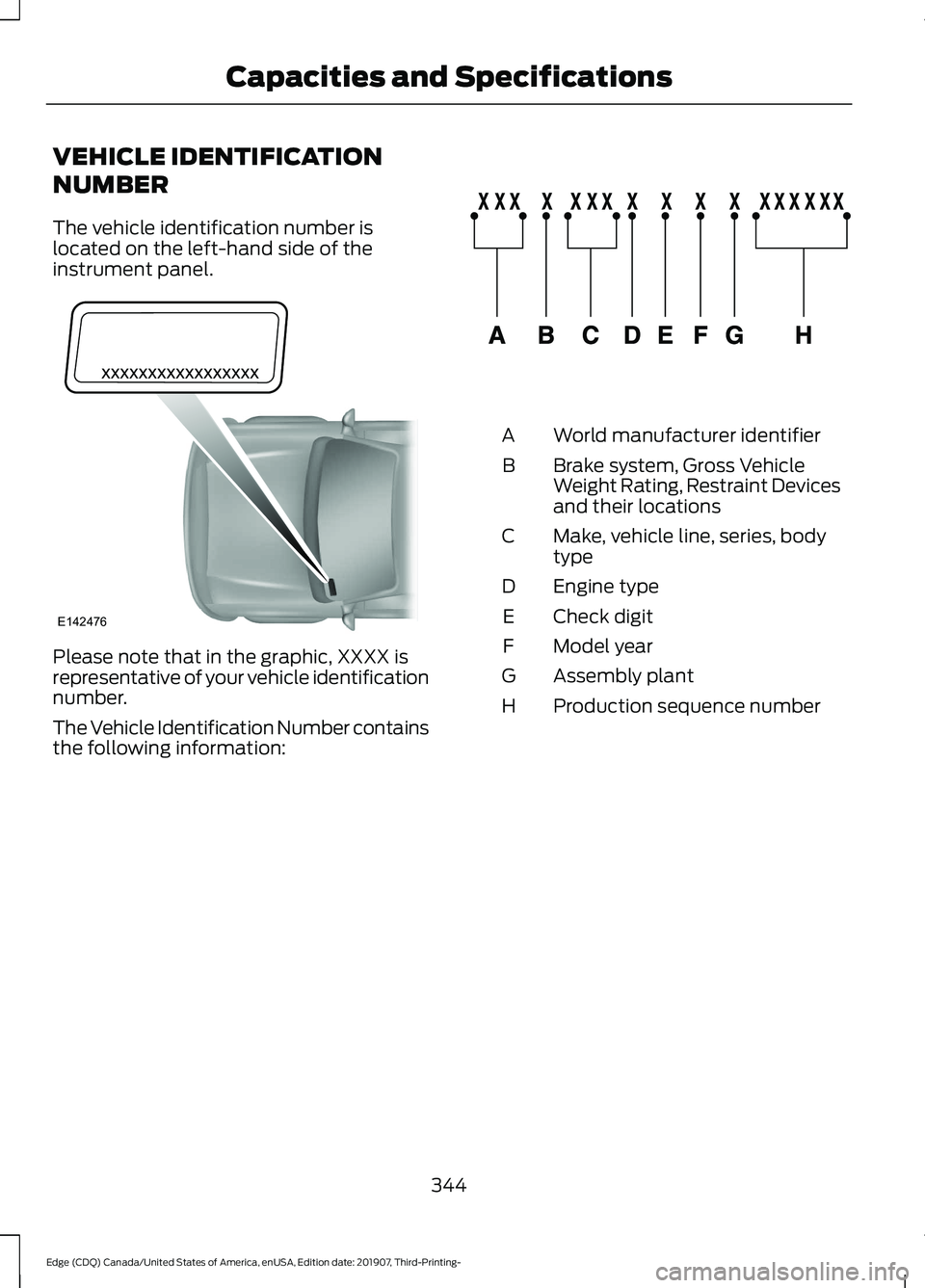

VEHICLE IDENTIFICATION
NUMBER
The vehicle identification number is
located on the left-hand side of the
instrument panel.
Please note that in the graphic, XXXX is
representative of your vehicle identification
number.
The Vehicle Identification Number contains
the following information: World manufacturer identifier
A
Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations
B
Make, vehicle line, series, body
type
C
Engine type
D
Check digit
E
Model year
F
Assembly plant
G
Production sequence number
H
344
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- Capacities and SpecificationsE142476 E142477

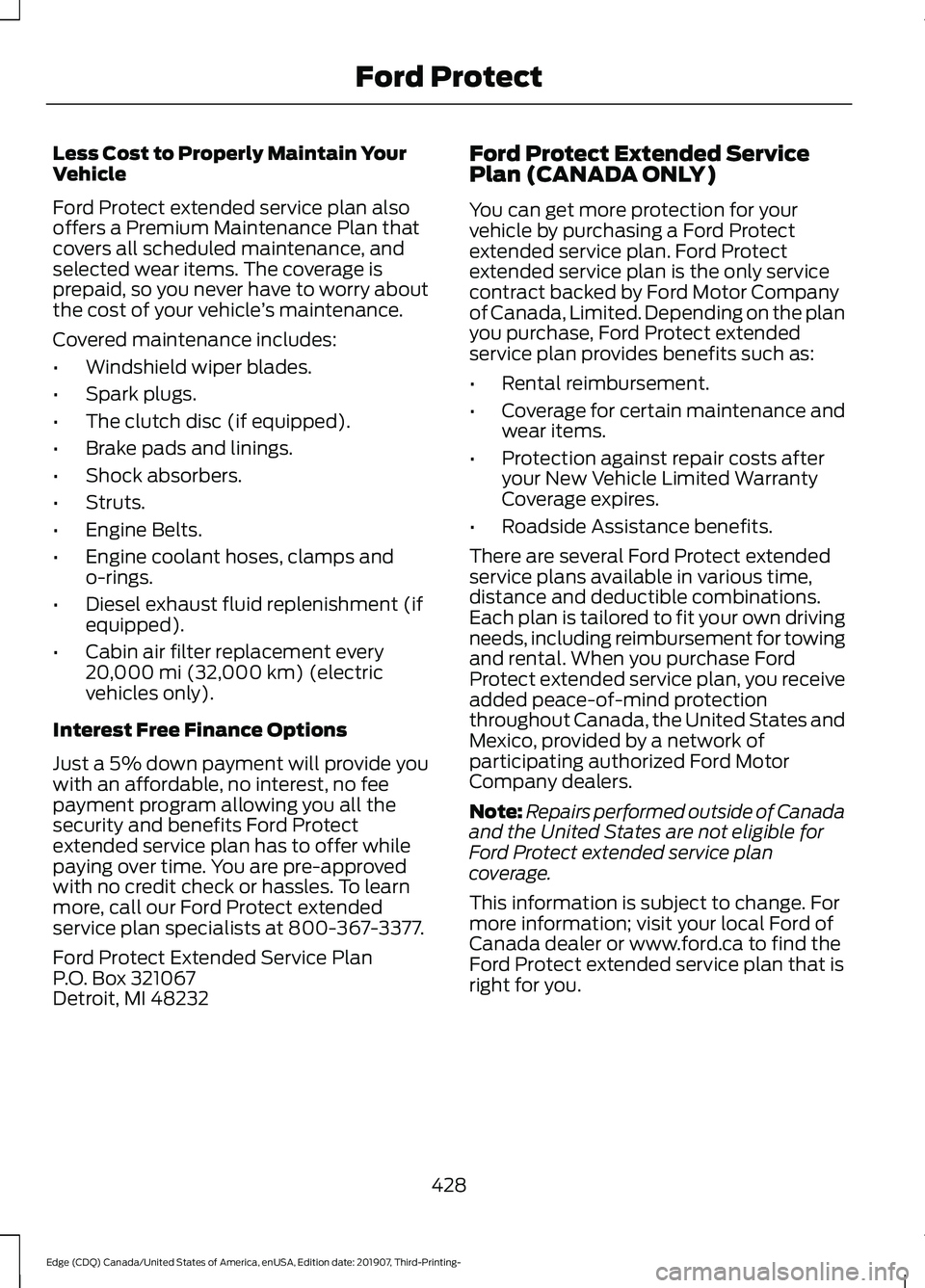

Less Cost to Properly Maintain Your
Vehicle
Ford Protect extended service plan also
offers a Premium Maintenance Plan that
covers all scheduled maintenance, and
selected wear items. The coverage is
prepaid, so you never have to worry about
the cost of your vehicle
’s maintenance.
Covered maintenance includes:
• Windshield wiper blades.
• Spark plugs.
• The clutch disc (if equipped).
• Brake pads and linings.
• Shock absorbers.
• Struts.
• Engine Belts.
• Engine coolant hoses, clamps and
o-rings.
• Diesel exhaust fluid replenishment (if
equipped).
• Cabin air filter replacement every
20,000 mi (32,000 km) (electric
vehicles only).
Interest Free Finance Options
Just a 5% down payment will provide you
with an affordable, no interest, no fee
payment program allowing you all the
security and benefits Ford Protect
extended service plan has to offer while
paying over time. You are pre-approved
with no credit check or hassles. To learn
more, call our Ford Protect extended
service plan specialists at 800-367-3377.
Ford Protect Extended Service Plan
P.O. Box 321067
Detroit, MI 48232 Ford Protect Extended Service
Plan (CANADA ONLY)
You can get more protection for your
vehicle by purchasing a Ford Protect
extended service plan. Ford Protect
extended service plan is the only service
contract backed by Ford Motor Company
of Canada, Limited. Depending on the plan
you purchase, Ford Protect extended
service plan provides benefits such as:
•
Rental reimbursement.
• Coverage for certain maintenance and
wear items.
• Protection against repair costs after
your New Vehicle Limited Warranty
Coverage expires.
• Roadside Assistance benefits.
There are several Ford Protect extended
service plans available in various time,
distance and deductible combinations.
Each plan is tailored to fit your own driving
needs, including reimbursement for towing
and rental. When you purchase Ford
Protect extended service plan, you receive
added peace-of-mind protection
throughout Canada, the United States and
Mexico, provided by a network of
participating authorized Ford Motor
Company dealers.
Note: Repairs performed outside of Canada
and the United States are not eligible for
Ford Protect extended service plan
coverage.
This information is subject to change. For
more information; visit your local Ford of
Canada dealer or www.ford.ca to find the
Ford Protect extended service plan that is
right for you.
428
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- Ford Protect

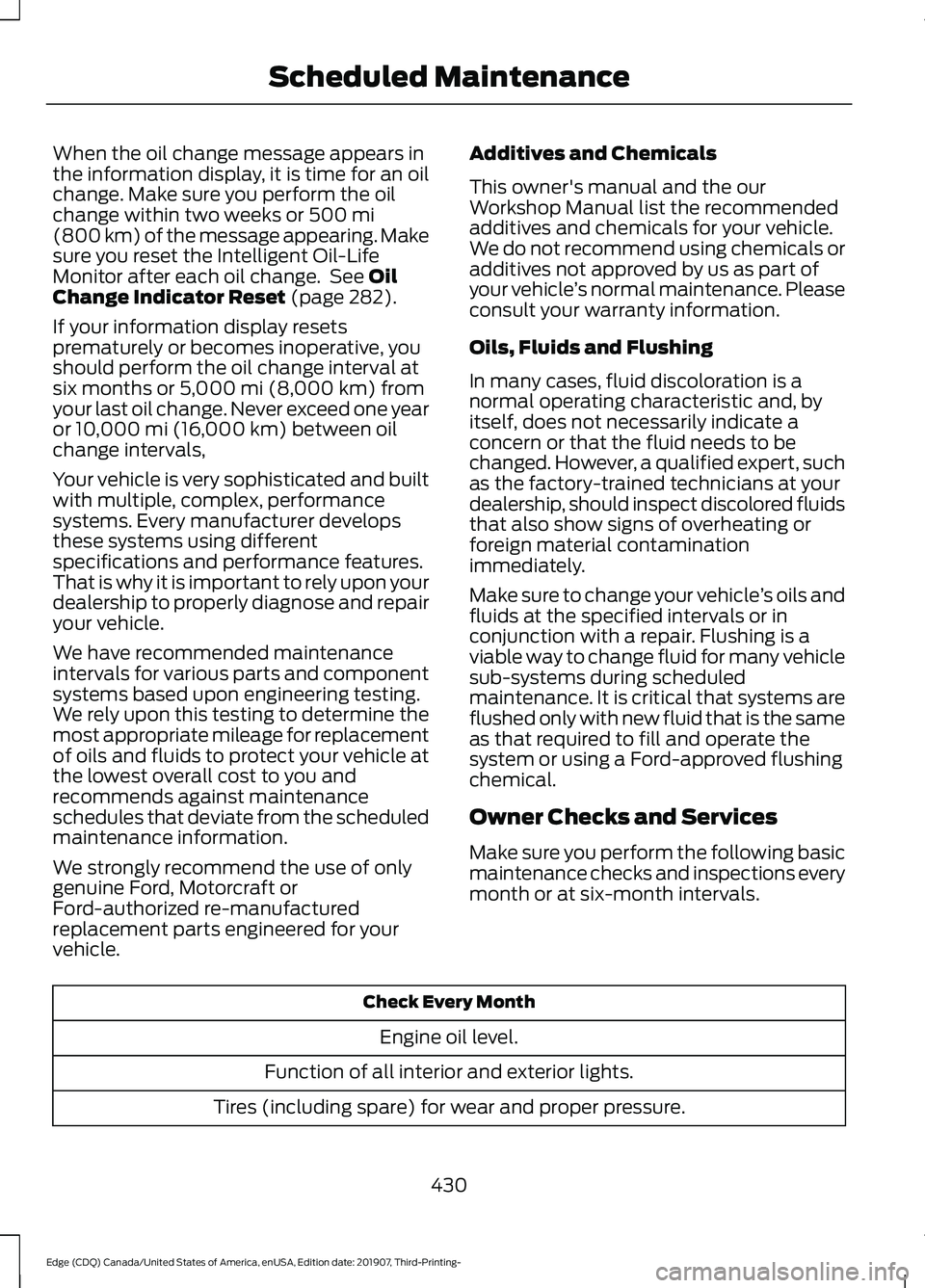

When the oil change message appears in
the information display, it is time for an oil
change. Make sure you perform the oil
change within two weeks or 500 mi
(800 km) of the message appearing. Make
sure you reset the Intelligent Oil-Life
Monitor after each oil change. See
Oil
Change Indicator Reset (page 282).
If your information display resets
prematurely or becomes inoperative, you
should perform the oil change interval at
six months or
5,000 mi (8,000 km) from
your last oil change. Never exceed one year
or
10,000 mi (16,000 km) between oil
change intervals,
Your vehicle is very sophisticated and built
with multiple, complex, performance
systems. Every manufacturer develops
these systems using different
specifications and performance features.
That is why it is important to rely upon your
dealership to properly diagnose and repair
your vehicle.
We have recommended maintenance
intervals for various parts and component
systems based upon engineering testing.
We rely upon this testing to determine the
most appropriate mileage for replacement
of oils and fluids to protect your vehicle at
the lowest overall cost to you and
recommends against maintenance
schedules that deviate from the scheduled
maintenance information.
We strongly recommend the use of only
genuine Ford, Motorcraft or
Ford-authorized re-manufactured
replacement parts engineered for your
vehicle. Additives and Chemicals
This owner's manual and the our
Workshop Manual list the recommended
additives and chemicals for your vehicle.
We do not recommend using chemicals or
additives not approved by us as part of
your vehicle
’s normal maintenance. Please
consult your warranty information.
Oils, Fluids and Flushing
In many cases, fluid discoloration is a
normal operating characteristic and, by
itself, does not necessarily indicate a
concern or that the fluid needs to be
changed. However, a qualified expert, such
as the factory-trained technicians at your
dealership, should inspect discolored fluids
that also show signs of overheating or
foreign material contamination
immediately.
Make sure to change your vehicle ’s oils and
fluids at the specified intervals or in
conjunction with a repair. Flushing is a
viable way to change fluid for many vehicle
sub-systems during scheduled
maintenance. It is critical that systems are
flushed only with new fluid that is the same
as that required to fill and operate the
system or using a Ford-approved flushing
chemical.
Owner Checks and Services
Make sure you perform the following basic
maintenance checks and inspections every
month or at six-month intervals. Check Every Month
Engine oil level.
Function of all interior and exterior lights.
Tires (including spare) for wear and proper pressure.
430
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- Scheduled Maintenance

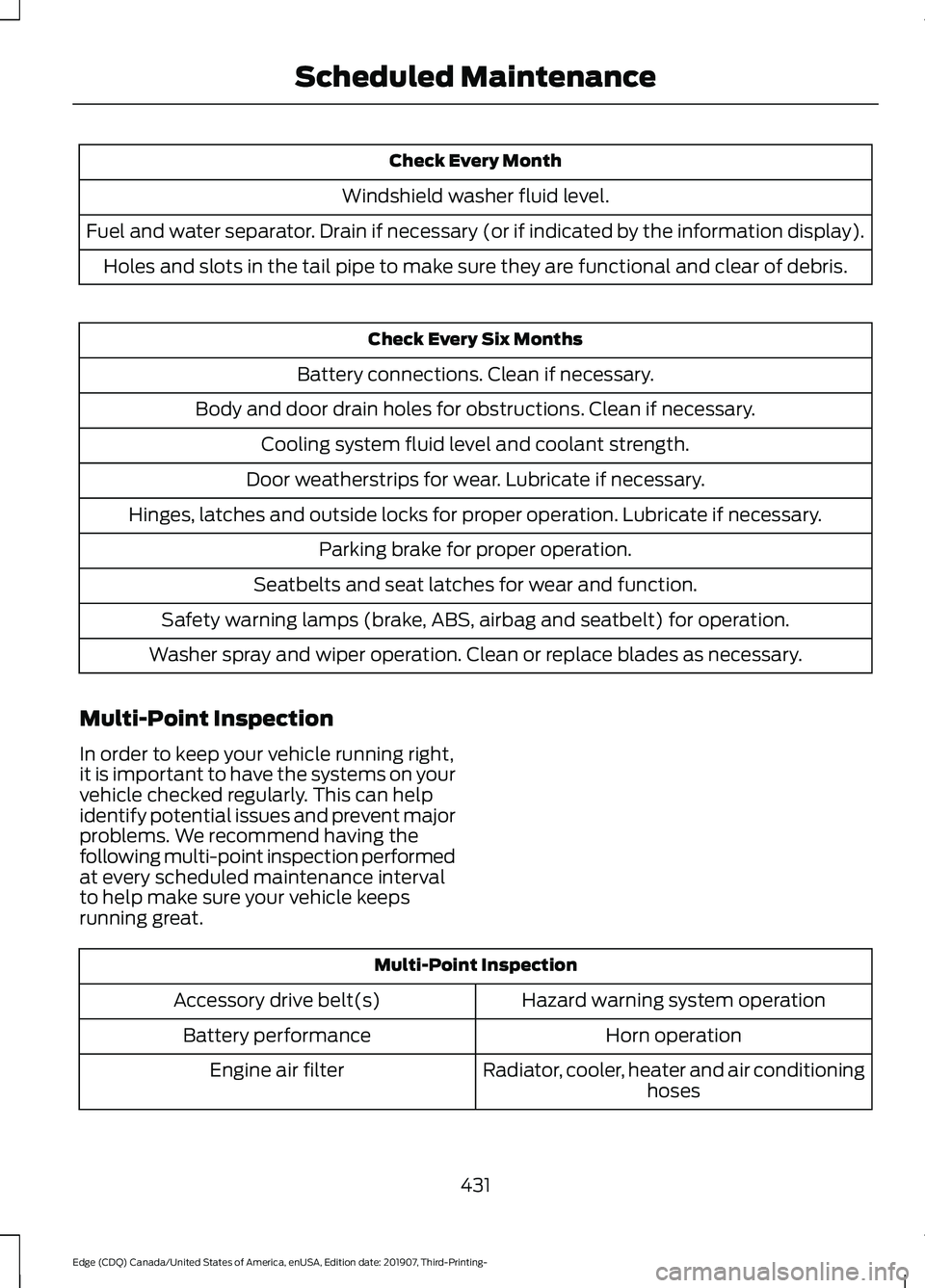

Check Every Month
Windshield washer fluid level.
Fuel and water separator. Drain if necessary (or if indicated by the information display). Holes and slots in the tail pipe to make sure they are functional and clear of debris. Check Every Six Months
Battery connections. Clean if necessary.
Body and door drain holes for obstructions. Clean if necessary. Cooling system fluid level and coolant strength.
Door weatherstrips for wear. Lubricate if necessary.
Hinges, latches and outside locks for proper operation. Lubricate if necessary. Parking brake for proper operation.
Seatbelts and seat latches for wear and function.
Safety warning lamps (brake, ABS, airbag and seatbelt) for operation.
Washer spray and wiper operation. Clean or replace blades as necessary.
Multi-Point Inspection
In order to keep your vehicle running right,
it is important to have the systems on your
vehicle checked regularly. This can help
identify potential issues and prevent major
problems. We recommend having the
following multi-point inspection performed
at every scheduled maintenance interval
to help make sure your vehicle keeps
running great. Multi-Point Inspection
Hazard warning system operation
Accessory drive belt(s)
Horn operation
Battery performance
Radiator, cooler, heater and air conditioninghoses
Engine air filter
431
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- Scheduled Maintenance

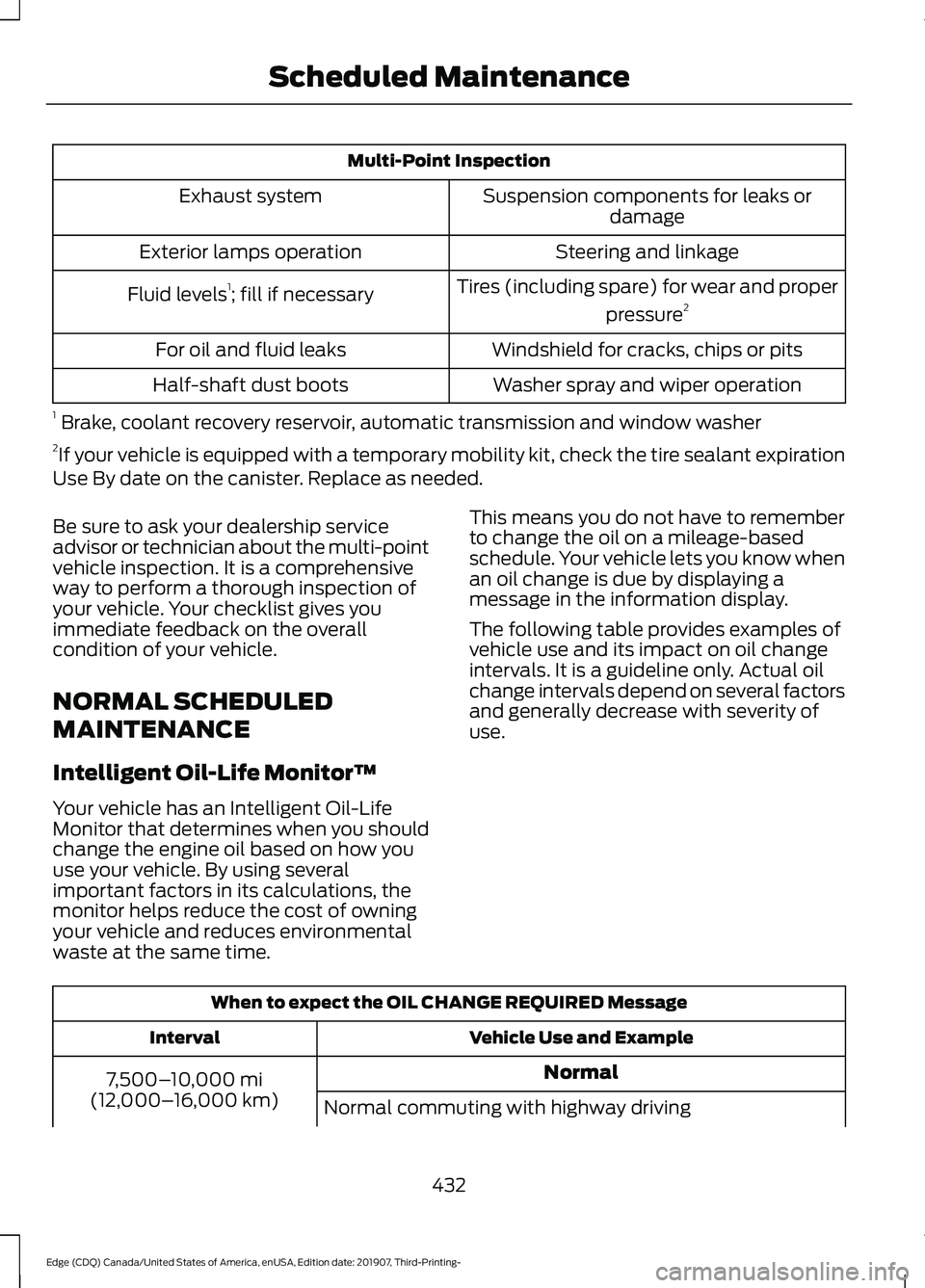

Multi-Point Inspection
Suspension components for leaks ordamage
Exhaust system
Steering and linkage
Exterior lamps operation
Tires (including spare) for wear and properpressure2
Fluid levels 1
; fill if necessary
Windshield for cracks, chips or pits
For oil and fluid leaks
Washer spray and wiper operation
Half-shaft dust boots
1 Brake, coolant recovery reservoir, automatic transmission and window washer
2 If your vehicle is equipped with a temporary mobility kit, check the tire sealant expiration
Use By date on the canister. Replace as needed.
Be sure to ask your dealership service
advisor or technician about the multi-point
vehicle inspection. It is a comprehensive
way to perform a thorough inspection of
your vehicle. Your checklist gives you
immediate feedback on the overall
condition of your vehicle.
NORMAL SCHEDULED
MAINTENANCE
Intelligent Oil-Life Monitor™
Your vehicle has an Intelligent Oil-Life
Monitor that determines when you should
change the engine oil based on how you
use your vehicle. By using several
important factors in its calculations, the
monitor helps reduce the cost of owning
your vehicle and reduces environmental
waste at the same time. This means you do not have to remember
to change the oil on a mileage-based
schedule. Your vehicle lets you know when
an oil change is due by displaying a
message in the information display.
The following table provides examples of
vehicle use and its impact on oil change
intervals. It is a guideline only. Actual oil
change intervals depend on several factors
and generally decrease with severity of
use.
When to expect the OIL CHANGE REQUIRED Message
Vehicle Use and Example
Interval
Normal
7,500– 10,000 mi
(12,000– 16,000 km)
Normal commuting with highway driving
432
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- Scheduled Maintenance

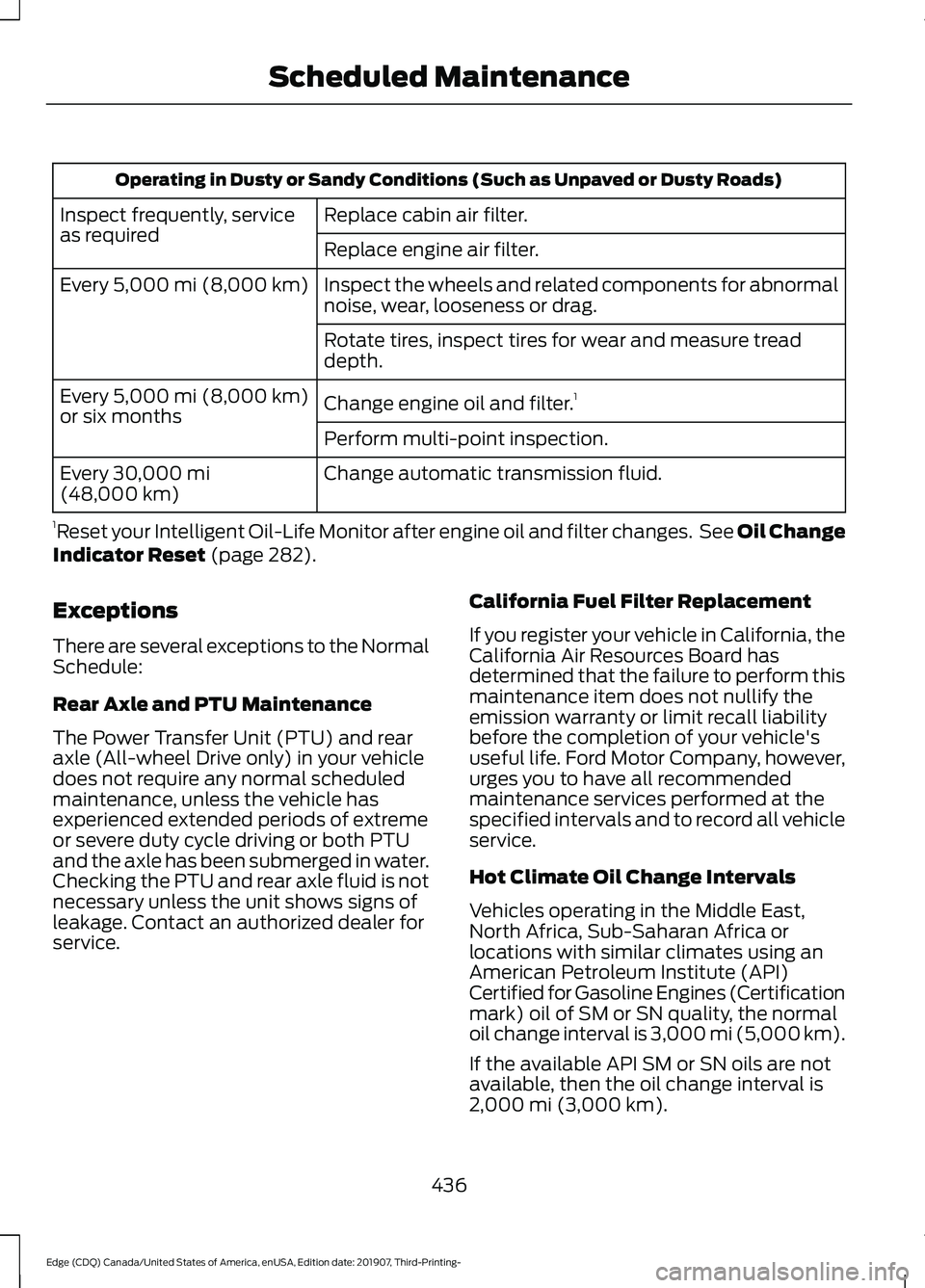

Operating in Dusty or Sandy Conditions (Such as Unpaved or Dusty Roads)
Replace cabin air filter.
Inspect frequently, service
as required
Replace engine air filter.
Inspect the wheels and related components for abnormal
noise, wear, looseness or drag.
Every 5,000 mi (8,000 km)
Rotate tires, inspect tires for wear and measure tread
depth.
Change engine oil and filter. 1
Every
5,000 mi (8,000 km)
or six months
Perform multi-point inspection.
Change automatic transmission fluid.
Every
30,000 mi
(48,000 km)
1 Reset your Intelligent Oil-Life Monitor after engine oil and filter changes. See Oil Change
Indicator Reset
(page 282).
Exceptions
There are several exceptions to the Normal
Schedule:
Rear Axle and PTU Maintenance
The Power Transfer Unit (PTU) and rear
axle (All-wheel Drive only) in your vehicle
does not require any normal scheduled
maintenance, unless the vehicle has
experienced extended periods of extreme
or severe duty cycle driving or both PTU
and the axle has been submerged in water.
Checking the PTU and rear axle fluid is not
necessary unless the unit shows signs of
leakage. Contact an authorized dealer for
service. California Fuel Filter Replacement
If you register your vehicle in California, the
California Air Resources Board has
determined that the failure to perform this
maintenance item does not nullify the
emission warranty or limit recall liability
before the completion of your vehicle's
useful life. Ford Motor Company, however,
urges you to have all recommended
maintenance services performed at the
specified intervals and to record all vehicle
service.
Hot Climate Oil Change Intervals
Vehicles operating in the Middle East,
North Africa, Sub-Saharan Africa or
locations with similar climates using an
American Petroleum Institute (API)
Certified for Gasoline Engines (Certification
mark) oil of SM or SN quality, the normal
oil change interval is 3,000 mi (5,000 km).
If the available API SM or SN oils are not
available, then the oil change interval is
2,000 mi (3,000 km)
.
436
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- Scheduled Maintenance

1
180 Degree Camera...................................209
Camera Views.................................................... 209
Using the Front 180 Degree Camera System............................................................. 209
A
A/C See: Climate Control.......................................... 131
About This Manual
...........................................7
ABS See: Brakes........................................................... 186
ABS driving hints See: Hints on Driving With Anti-Lock
Brakes................................................................ 186
Accessories....................................................426
Accessories See: Replacement Parts
Recommendation............................................ 14
ACC See: Using Adaptive Cruise Control..............211
Active Park Assist.........................................199 Using Active Park Assist................................. 200
Adaptive Headlamps...................................88 System Check....................................................... 88
Adjusting the Headlamps..........................291 Vertical Aim Adjustment.................................. 291
Adjusting the Steering Wheel - Vehicles With: Manual Adjustable Steering
Column
............................................................79
Adjusting the Steering Wheel - Vehicles With: Power Adjustable Steering
Column............................................................78
End of Travel Position......................................... 78
Memory Feature.................................................... 78
AFS See: Adaptive Headlamps............................... 88
Airbag Disposal................................................51
Air Conditioning See: Climate Control.......................................... 131
Air Filter See: Changing the Engine Air Filter.............283
Alarm See: Anti-Theft Alarm........................................ 76
All-Wheel Drive
..............................................181 Ambient Lighting...........................................89
Adjusting the Brightness................................... 90
Changing the Color............................................. 90
Switching Ambient Lighting Off.................... 90
Switching Ambient Lighting On..................... 90
Anti-Theft Alarm
............................................76
Arming the Alarm................................................. 76
Disarming the Alarm........................................... 76
Appendices....................................................447
Apps.................................................................408 SiriusXM Traffic and Travel Link................... 410
Using Apps on an Android Device..............409
Using Apps on an iOS Device....................... 409
Using Mobile Navigation on an Android Device............................................................... 409
At a Glance........................................................18
At a Glance - ST...............................................18 Engine Specifications.......................................... 18
Suspension Specifications................................ 19
Audible Warnings and Indicators
...........104
Headlamps On Warning Chime.................... 104
Keyless Warning Alert....................................... 104
Parking Brake On Warning Chime................104
Audio Control
...................................................79
You can operate the following functions
with the control:............................................... 79
Audio System.................................................372 General Information.......................................... 372
Audio Unit - Vehicles With: SYNC 3/Bang and Olufsen Audio System....................374
Accessing the Sound Settings...................... 374
Adjusting the Volume....................................... 374
Changing Radio Stations................................ 374
Ejecting the CD.................................................... 374
Inserting a CD...................................................... 374
Switching the Audio Unit On and Off.........375
Using Seek, Fast Forward and Reverse.............................................................. 375
Audio Unit - Vehicles With: SYNC 3
.......................................................................372
Adjusting the Volume....................................... 373
Changing Radio Stations................................ 373
Ejecting the CD.................................................... 373
Inserting a CD...................................................... 373
Switching the Audio Unit On and Off.........373
Using Seek, Fast Forward and Reverse.............................................................. 373
479
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- Index

Alternative Engine Oil for Extremely Cold
Climates........................................................... 349
Automatic Transmission................................ 346
Engine Coolant.................................................... 347
Engine Oil............................................................. 348
Fuel Tank.............................................................. 349
Grease.................................................................... 349
Hydraulic Brake System.................................. 350
Locks...................................................................... 350
Power Transfer Unit.......................................... 350
Rear Axle................................................................ 351
Washer Reservoir................................................ 351
Capacities and Specifications - 2.7L EcoBoost™, ST..........................................352
Air Conditioning System.................................. 352
Alternative Engine Oil for Extremely Cold Climates........................................................... 355
Automatic Transmission................................. 353
Engine Coolant................................................... 354
Engine Oil.............................................................. 354
Fuel Tank.............................................................. 356
Grease.................................................................... 356
Hydraulic Brake System................................... 357
Locks....................................................................... 357
Power Transfer Unit........................................... 357
Rear Axle............................................................... 358
Washer Reservoir............................................... 358
Capacities and Specifications - 2.7L EcoBoost™.................................................359
Air Conditioning System................................. 359
Alternative Engine Oil for Extremely Cold Climates........................................................... 362
Automatic Transmission................................ 360
Engine Coolant.................................................... 361
Engine Oil............................................................... 361
Fuel Tank............................................................... 363
Grease.................................................................... 363
Hydraulic Brake System.................................. 364
Locks...................................................................... 364
Power Transfer Unit.......................................... 364
Rear Axle............................................................... 365
Washer Reservoir............................................... 365
Capacities and Specifications
.................341
Cargo Nets......................................................237
Car Wash See: Cleaning the Exterior.............................. 298
Catalytic Converter.......................................172 On-Board Diagnostics (OBD-II).................... 173Readiness for Inspection and Maintenance
(I/M) Testing.................................................... 173
Center Console..............................................156
Changing a Bulb...........................................294 Headlamp............................................................. 295
LED Lamps........................................................... 295
License Plate Lamp.......................................... 296
Changing a Fuse
...........................................275
Fuses....................................................................... 275
Changing a Road Wheel...........................333 Dissimilar Spare Wheel and Tire Assembly
Information...................................................... 333
Stowing the flat tire ......................................... 338
Tire Change Procedure.................................... 335
Changing the 12V Battery.........................289
Changing the Engine Air Filter................283
Changing the Vehicle Wi-Fi Hotspot Name or Password
....................................371
Changing the Wiper Blades.....................293 Front Wiper Blades........................................... 293
Rear Window Wiper Blade............................. 293
Checking MyKey System Status................61 MyKey Distance..................................................... 61
Number of Admin Keys....................................... 61
Number of MyKeys............................................... 61
Checking the Wiper Blades......................293
Child Restraint and Seatbelt Maintenance..................................................41
Child Restraint Positioning
..........................31
Child Safety......................................................22
General Information............................................ 22
Child Safety Locks..........................................33 Left-Hand Side...................................................... 34
Right-Hand Side................................................... 34
Cleaning Leather Seats..............................301
Cleaning Products
.......................................297
Materials................................................................ 297
Cleaning the Engine...................................299
Cleaning the Exterior..................................298 Cleaning the Exterior Lamps......................... 298
Cleaning the Exterior Precautions..............298
Exterior Chrome Parts..................................... 298
Exterior Plastic Parts........................................ 298
Stripes or Graphics........................................... 298
Underbody........................................................... 299
Under Hood......................................................... 299
Cleaning the Instrument Panel and Instrument Cluster Lens.........................301
481
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- Index

Cleaning the Interior..................................300
Mirrors................................................................... 300
Cleaning the Wheels..................................302
Cleaning the Windows and Wiper Blades..........................................................300
Clearing All MyKeys
........................................61
Climate............................................................399 Accessing Rear Climate Controls.................401
Accessing the Climate Control Menu........399
Directing the Airflow........................................ 399
Rear Climate Control Lock Indicator...........401
Setting the Blower Motor Speed.................399
Setting the Temperature................................ 399
Switching Auto Mode On and Off...............399
Switching Dual Zone Mode On and Off...................................................................... 400
Switching Maximum Air Conditioning On and Off............................................................. 400
Switching Maximum Defrost On and Off...................................................................... 400
Switching Rear Auto Mode On and Off....................................................................... 401
Switching Recirculated Air On and Off....................................................................... 401
Switching the Air Conditioning On and Off...................................................................... 399
Switching the Climate Controlled Seats On and Off............................................................. 400
Switching the Climate Control On and Off...................................................................... 400
Switching the Heated Exterior Mirrors On and Off............................................................. 400
Switching the Heated Rear Window On and Off...................................................................... 400
Switching the Heated Seats On and Off...................................................................... 400
Switching the Heated Steering Wheel On and Off............................................................. 400
Switching the Heated Windshield On and Off...................................................................... 400
Switching the Rear Climate Controlled Seats On and Off.......................................... 401
Switching the Rear Heated Seats On and Off....................................................................... 401
Switching the Rear Ventilated Seats On and Off.............................................................. 401
Switching the Ventilated Seats On and Off....................................................................... 401Climate Control..............................................131
Climate Controlled Seats..........................146
Cooled Seats......................................................... 147
Cold Weather Precautions........................251
Connected Vehicle......................................368
Connecting the Vehicle to a Mobile
Network........................................................... 368
Connected Vehicle Limitations
..............368
Connected Vehicle Requirements........368
Connected Vehicle – Troubleshooting........................................369
Connecting the Vehicle to a Mobile Network.......................................................368
Connecting FordPass to the Modem.........368
Enabling and Disabling the Modem...........368
What Is the Modem.......................................... 368
Connecting the Vehicle to a Wi-Fi Network.......................................................368
Coolant Check See: Engine Coolant Check........................... 284
Crash Sensors and Airbag Indicator
.......50
Creating a MyKey...........................................60 Programming and Changing Configurable
Settings.............................................................. 60
Creating a Vehicle Wi-Fi Hotspot............371 Connecting a Device to the Wi-Fi
Hotspot.............................................................. 371
Finding the Wi-Fi Hotspot Name and Password........................................................... 371
Cross Traffic Alert........................................228 Cross Traffic Alert Behavior When Trailer
is Attached...................................................... 230
Cross Traffic Alert Indicator........................... 230
Cross Traffic Alert Information Messages.......................................................... 231
Cross Traffic Alert System Limitations...................................................... 230
Cross Traffic Alert System Sensors............230
Switching the System On and Off..............230
Using Cross Traffic Alert.................................. 228
Cruise Control
................................................210
Cruise Control Indicators.............................211
Cruise Control - Vehicles With: Adaptive Cruise Control
..............................................80
Cruise Control - Vehicles With: Cruise Control............................................................80
Customer Assistance
.................................258
482
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- Index

D
Data Recording..................................................9
Comfort, Convenience and Entertainment
Data........................................................................\
11
Event Data................................................................. 11
Service Data............................................................ 10
Services That Third Parties Provide...............12
Services That We Provide.................................. 12
Vehicles With a Modem...................................... 12
Vehicles With an Emergency Call System.................................................................. 13
Vehicles With SYNC............................................. 12
Daytime Running Lamps - Vehicles With: Configurable Daytime Running
Lamps..............................................................87
Daytime Running Lamps - Vehicles With: Daytime Running Lamps (DRL)
............87
Declaration of Conformity........................475
Declaration of Conformity - Vehicles With: SYNC 3
..............................................475
Radio Frequency Statement......................... 475
Digital Radio
...................................................375
HD Radio Reception and Station
Troubleshooting............................................ 376
Direction Indicators
.......................................88
Doors and Locks.............................................63
Drive Control
..................................................236
Adaptive Steering.............................................. 236
Driver Alert
.......................................................221
Principle of Operation....................................... 221
Using Driver Alert................................................ 221
Driver and Passenger Airbags...................44 Children and Airbags...........................................45
Proper Driver and Front Passenger Seating
Adjustment........................................................ 44
Driver and Passenger Knee Airbags
........48
Driving Aids......................................................221
Driving Hints....................................................251
Driving Through Water
................................251
DRL See: Daytime Running Lamps - Vehicles With:
Configurable Daytime Running Lamps....87
See: Daytime Running Lamps - Vehicles With: Daytime Running Lamps (DRL)................87 E
Economical Driving
......................................251
Electric Parking Brake.................................187 Applying the Electric Parking Brake.............187
Automatically Releasing the Electric
Parking Brake.................................................. 188
Manually Releasing the Electric Parking Brake................................................................... 187
Releasing the Electric Parking Brake if the Vehicle Battery is Running Out of
Charge............................................................... 188
Electromagnetic Compatibility
..............447
Emission Law...................................................171
Noise Emissions Warranty, Prohibited
Tampering Acts and Maintenance...........172
Tampering With a Noise Control System................................................................ 171
End User License Agreement
.................450
VEHICLE SOFTWARE END USER LICENSE
AGREEMENT (EULA) ................................ 450
Engine Block Heater
....................................160
Using the Engine Block Heater....................... 161
Engine Coolant Check
...............................284
Adding Coolant.................................................. 284
Coolant Change................................................. 286
Engine Coolant Temperature Management.................................................. 287
Fail-Safe Cooling............................................... 286
Recycled Coolant.............................................. 285
Severe Climates................................................. 286
Engine Emission Control.............................171
Engine Immobilizer See: Passive Anti-Theft System..................... 75
Engine Oil Check...........................................281 Adding Engine Oil.............................................. 282
Engine Oil Dipstick - 2.0L EcoBoost™..................................................281
Engine Oil Dipstick - 2.7L EcoBoost™..................................................281
Engine Specifications - 2.0L EcoBoost™..................................................341
Drivebelt Routing................................................ 341
Engine Specifications - 2.7L EcoBoost™..................................................341
Drivebelt Routing............................................... 342
Entertainment..............................................389 AM/FM Radio...................................................... 390
483
Edge (CDQ) Canada/United States of America, enUSA, Edition date: 201907, Third-Printing- Index
