run flat FORD EDGE 2021 Owners Manual

WHAT IS THE ELECTRIC
PARKING BRAKE
El
e c tric P arking Br ak e
The electric parking brake is used to hold
your vehicle on slopes and flat roads.
APPLYING THE ELECTRIC
PARKING BRAKE
WARNING: Always fully apply the
parking brake and make sure you shift
into park (P). Failure to follow this
instruction could result in personal injury
or death. WARNING:
If you drive extended
distances with the parking brake applied,
you could cause damage to the brake
system. WARNING:
The electric parking
brake does not operate if the vehicle
battery has run out of charge. The electronic parking brake
switch is on the center console.
1. Pull the switch up.
The red warning lamp flashes during
operation and illuminates when the parking
brake is applied.
Note: You can apply the electric parking
brake when the power is off.
Note: The electric parking brake could
apply when you shift into park (P).
See Park
(P) (page 177). APPLYING THE ELECTRIC
PARKING BRAKE IN AN
EMERGENCY
You can use the electric parking brake to
slow or stop your vehicle in an emergency.
1. Pull the switch up and hold it.
The electric parking brake continues to
slow your vehicle down unless you release
the switch.
The red warning lamp illuminates, a tone
sounds and the stoplamps turn on when
you use the electric parking brake in an
emergency.
Note:
Do not apply the electric parking
brake when your vehicle is moving, except
in an emergency.
MANUALLY RELEASING THE
ELECTRIC PARKING BRAKE
1. Switch the ignition on.
2. Press and hold the brake pedal.
3. Push the switch down.
The red warning lamp turns off.
Pulling Away on a Hill When Towing a
Trailer
1. Press and hold the brake pedal.
2. Pull the switch upward and hold it.
3. Shift into gear.
4. Press the accelerator pedal until engine
has developed sufficient torque to
prevent your vehicle from rolling down
the hill.
5. Release the switch and pull away in a normal manner.
190
2021 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Electric Parking BrakeE267156

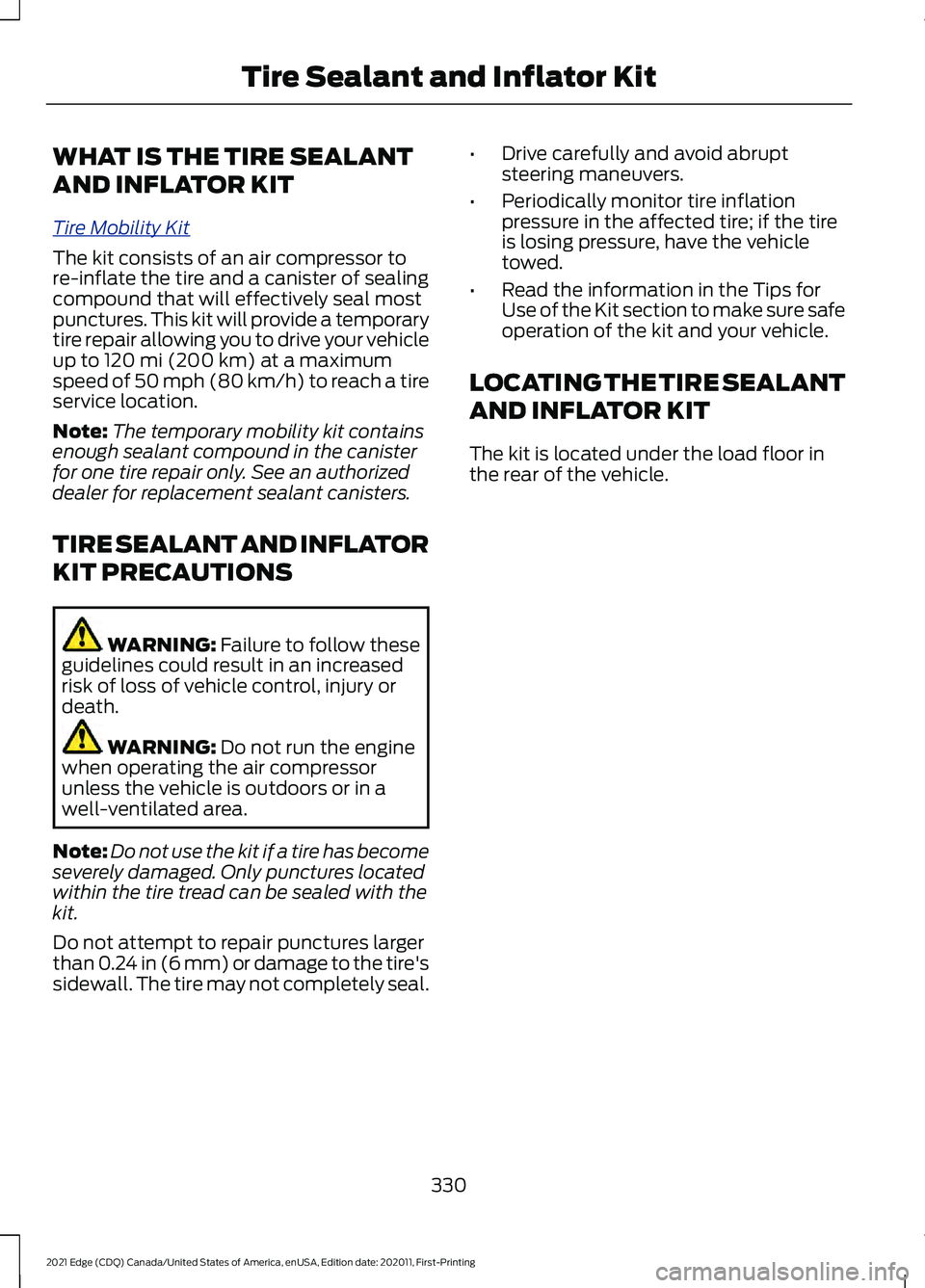

WHAT IS THE TIRE SEALANT
AND INFLATOR KIT
T
ir e Mobilit y K it
The kit consists of an air compressor to
re-inflate the tire and a canister of sealing
compound that will effectively seal most
punctures. This kit will provide a temporary
tire repair allowing you to drive your vehicle
up to 120 mi (200 km) at a maximum
speed of 50 mph (80 km/h) to reach a tire
service location.
Note: The temporary mobility kit contains
enough sealant compound in the canister
for one tire repair only. See an authorized
dealer for replacement sealant canisters.
TIRE SEALANT AND INFLATOR
KIT PRECAUTIONS WARNING:
Failure to follow these
guidelines could result in an increased
risk of loss of vehicle control, injury or
death. WARNING:
Do not run the engine
when operating the air compressor
unless the vehicle is outdoors or in a
well-ventilated area.
Note: Do not use the kit if a tire has become
severely damaged. Only punctures located
within the tire tread can be sealed with the
kit.
Do not attempt to repair punctures larger
than 0.24 in (6 mm) or damage to the tire's
sidewall. The tire may not completely seal. •
Drive carefully and avoid abrupt
steering maneuvers.
• Periodically monitor tire inflation
pressure in the affected tire; if the tire
is losing pressure, have the vehicle
towed.
• Read the information in the Tips for
Use of the Kit section to make sure safe
operation of the kit and your vehicle.
LOCATING THE TIRE SEALANT
AND INFLATOR KIT
The kit is located under the load floor in
the rear of the vehicle.
330
2021 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Tire Sealant and Inflator Kit

Exterior Lamps..............................................100
Exterior Lamp Indicators.................................. 101
Switching the Daytime Running Lamps On and Off.............................................................. 100
Switching the Front Fog Lamps On and Off....................................................................... 100
Switching the Turn Signal Lamps On and Off....................................................................... 100
Exterior Lighting Control.............................98
Exterior Lighting.............................................98 Adaptive Front Lighting................................... 103
Autolamps.............................................................. 99
Automatic High Beam Control....................... 101
Automatic High Beam Control – Troubleshooting............................................. 103
Exterior Lamps.................................................... 100
Headlamps............................................................. 98
Headlamps – Troubleshooting....................... 99
Exterior Mirrors
...............................................110
Auto-Dimming Exterior Mirror........................ 110
F
Fastening and Unfastening the Seatbelts........................................................43
Unfastening the Seatbelts................................ 43
Using a Sliding Clip.............................................. 44
Flat Tire See: Changing a Flat Tire................................. 341
Floor Mats......................................................264
Folding the Exterior Mirrors.......................110
Ford Protect..................................................389
Front Exterior...................................................29
Front Parking Aid
..........................................199
Front Parking Aid Audible Warnings..........200
Front Parking Aid Limitations....................... 200
Locating the Front Parking Aid Sensors............................................................ 200
What is the Front Parking Aid........................ 199
Front Passenger Sensing System............54 Front Passenger Sensing System
Indicators............................................................ 56
Front Passenger Sensing System Precautions....................................................... 56
How Does the Front Passenger Sensing System Work..................................................... 54
What Is the Front Passenger Sensing System................................................................ 54Front Seat Precautions...............................133
Front Seats......................................................133
Cooled Seats........................................................ 140
Heated Seats........................................................ 139
Manual Seats....................................................... 134
Power Seats.......................................................... 136
Fuel and Refueling
.......................................170
Fuel and Refueling –
Troubleshooting.............................................. 175
Fuel Quality............................................................ 171
Refueling................................................................ 173
Running Out of Fuel............................................ 171
Fuel and Refueling Precautions..............170
Fuel and Refueling – Troubleshooting.........................................175
Fuel and Refueling – Information Messages........................................................... 175
Fuel and Refueling – Warning Lamps.........175
Fuel Gauge.......................................................113 Fuel Gauge Limitations..................................... 114
Locating the Fuel Filler Door........................... 114
What Is Distance to Empty.............................. 114
What Is the Fuel Gauge..................................... 113
What Is the Low Fuel Reminder..................... 114
Fuel Quality
......................................................171
Selecting the Correct Fuel................................ 171
Fuel Tank Capacity
.......................................175
Advertised Capacity........................................... 175
Fuse Precautions
.........................................279
Fuses.................................................................279 Body Control Module Fuse Box................... 286
Fuses – Troubleshooting................................ 289
Under Hood Fuse Box...................................... 279
Fuses – Troubleshooting
..........................289
Fuses – Frequently Asked Questions........289
G
Garage Door Opener...................................148
Garage Door Opener Limitations...........149
Garage Door Opener Precautions
..........149
Garage Door Opener Radio Frequencies..................................................152
FCC and RSS-210 Industry Canada Compliance...................................................... 152
General Maintenance Information........391 Multi-Point Inspection..................................... 393
Owner Checks and Services.......................... 392
480
2021 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202011, First-Printing Index
