compression ratio FORD EDGE 2023 Owners Manual

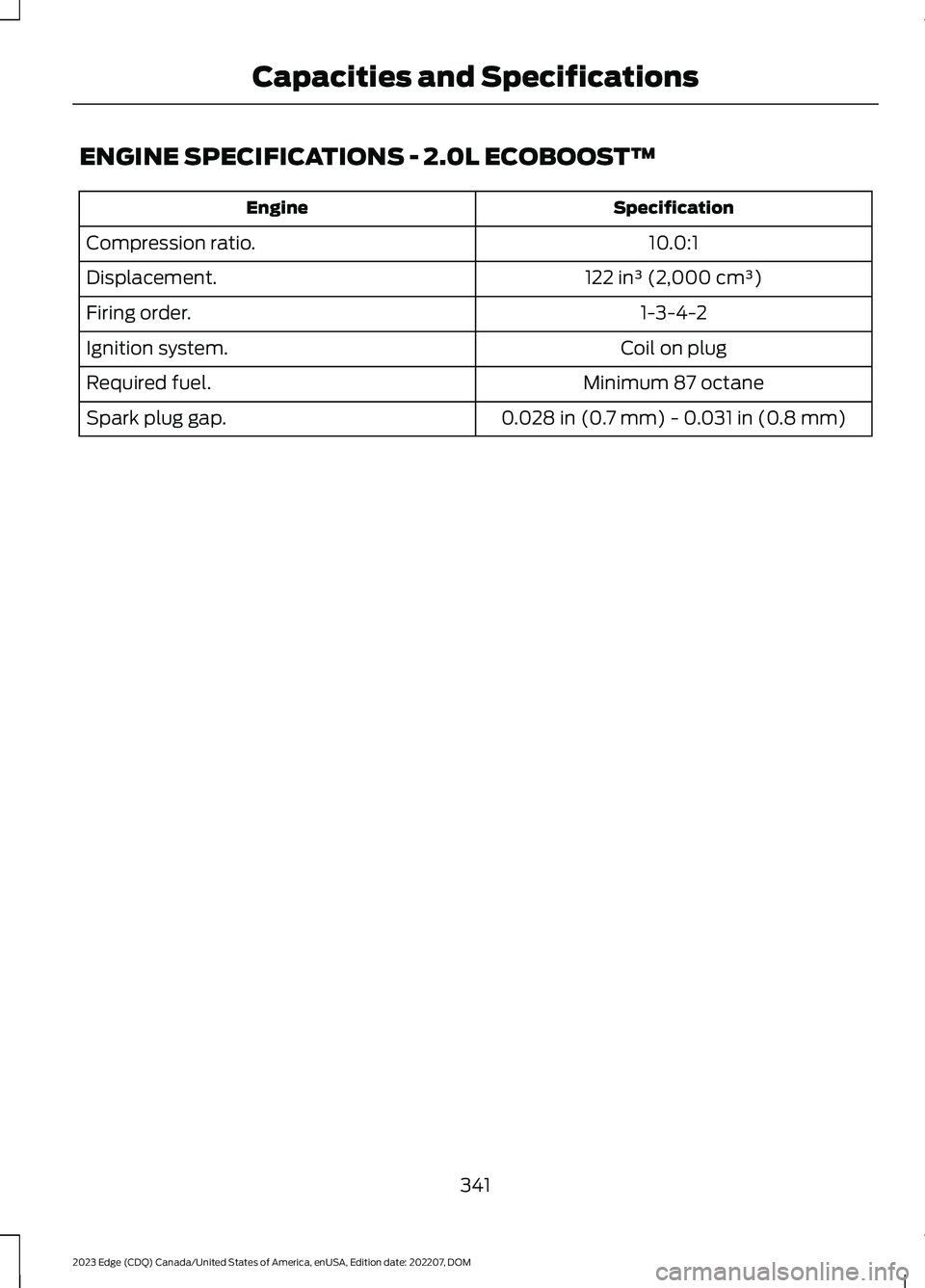

ENGINE SPECIFICATIONS - 2.0L ECOBOOST™
SpecificationEngine
10.0:1Compression ratio.
122 in³ (2,000 cm³)Displacement.
1-3-4-2Firing order.
Coil on plugIgnition system.
Minimum 87 octaneRequired fuel.
0.028 in (0.7 mm) - 0.031 in (0.8 mm)Spark plug gap.
341
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMCapacities and Specifications

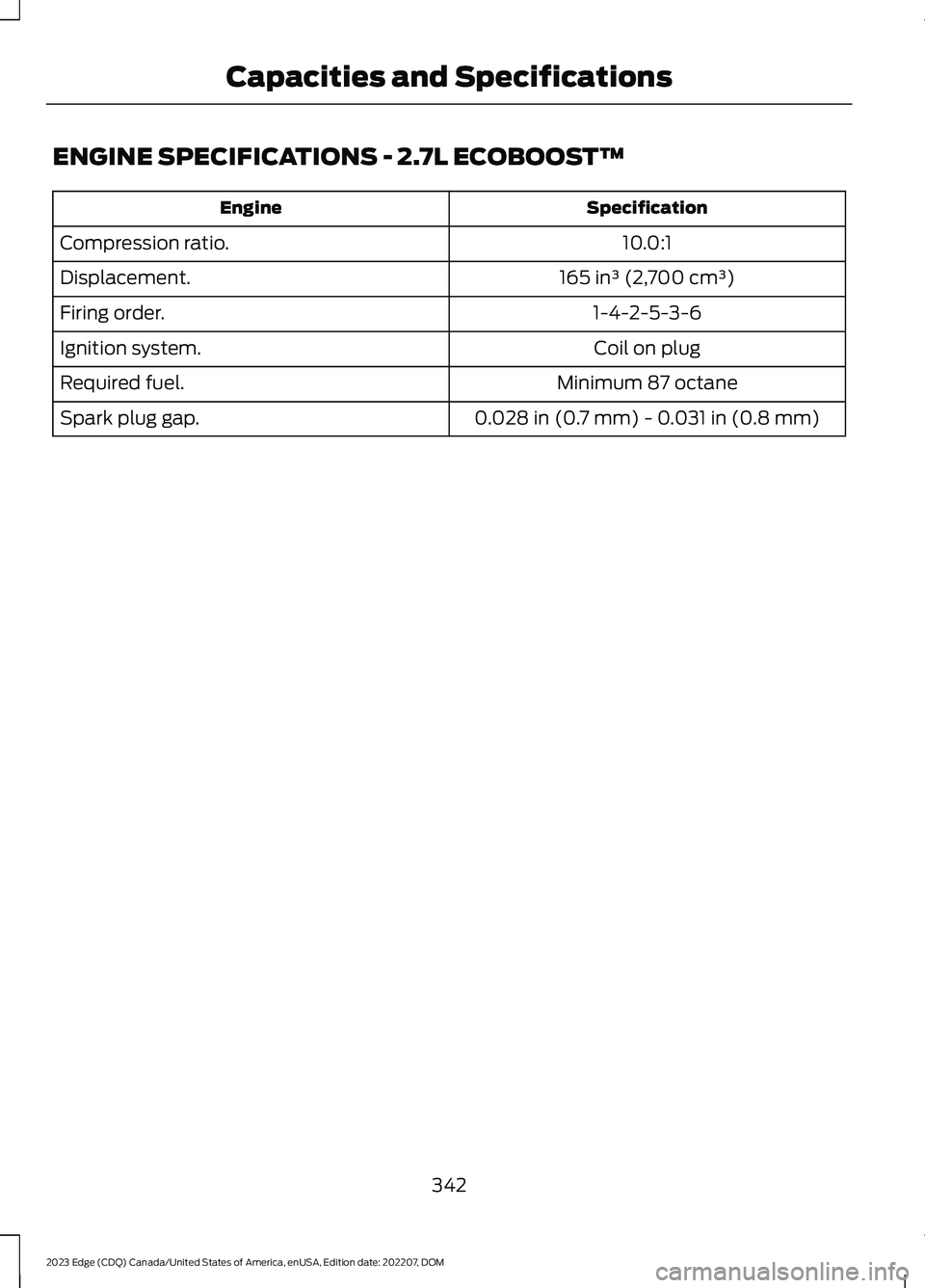

ENGINE SPECIFICATIONS - 2.7L ECOBOOST™
SpecificationEngine
10.0:1Compression ratio.
165 in³ (2,700 cm³)Displacement.
1-4-2-5-3-6Firing order.
Coil on plugIgnition system.
Minimum 87 octaneRequired fuel.
0.028 in (0.7 mm) - 0.031 in (0.8 mm)Spark plug gap.
342
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMCapacities and Specifications
