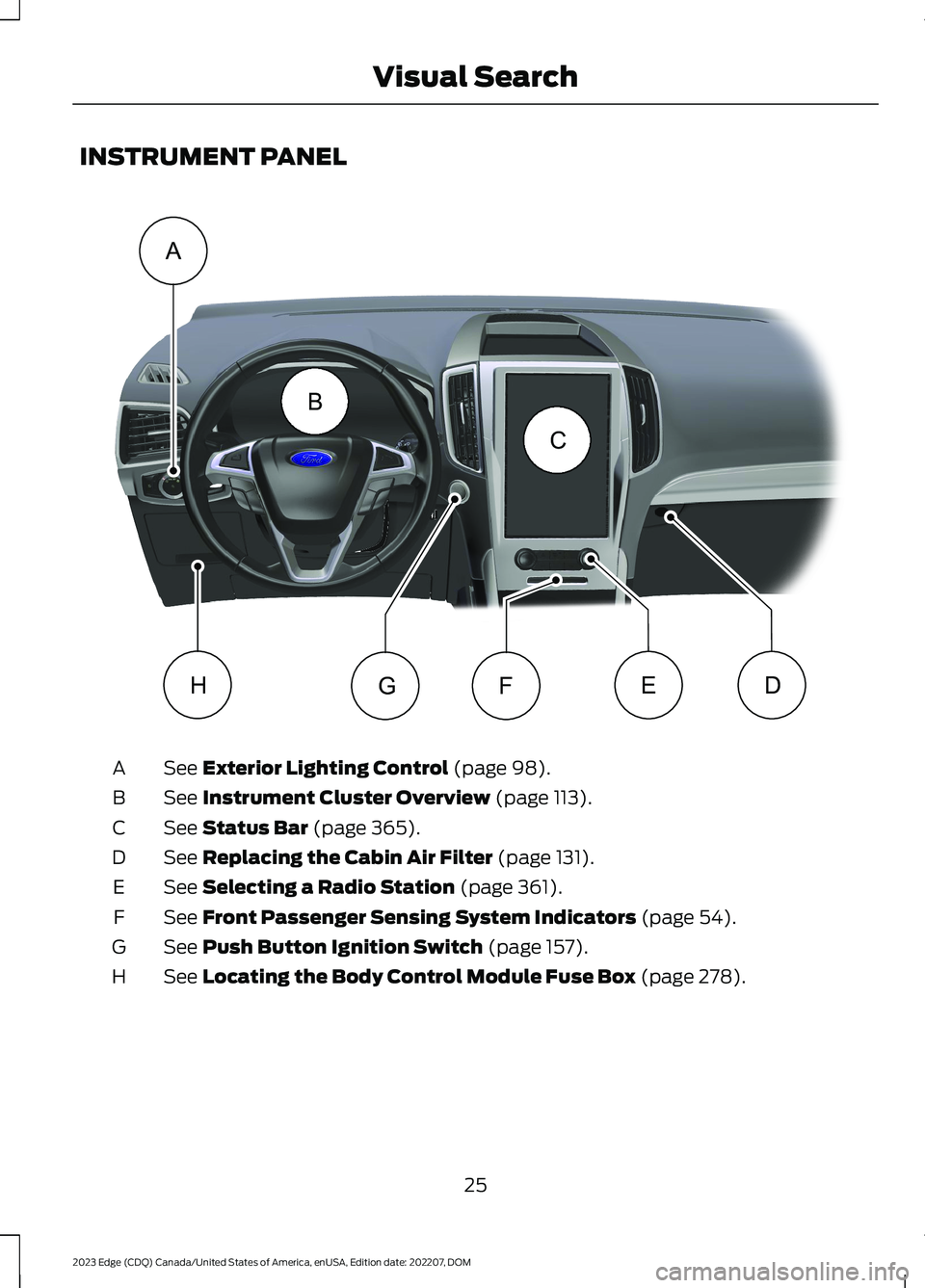

INSTRUMENT PANEL
See Exterior Lighting Control (page 98).A
See Instrument Cluster Overview (page 113).B
See Status Bar (page 365).C
See Replacing the Cabin Air Filter (page 131).D
See Selecting a Radio Station (page 361).E
See Front Passenger Sensing System Indicators (page 54).F
See Push Button Ignition Switch (page 157).G
See Locating the Body Control Module Fuse Box (page 278).H
25
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMVisual SearchABCDEFGHE332331

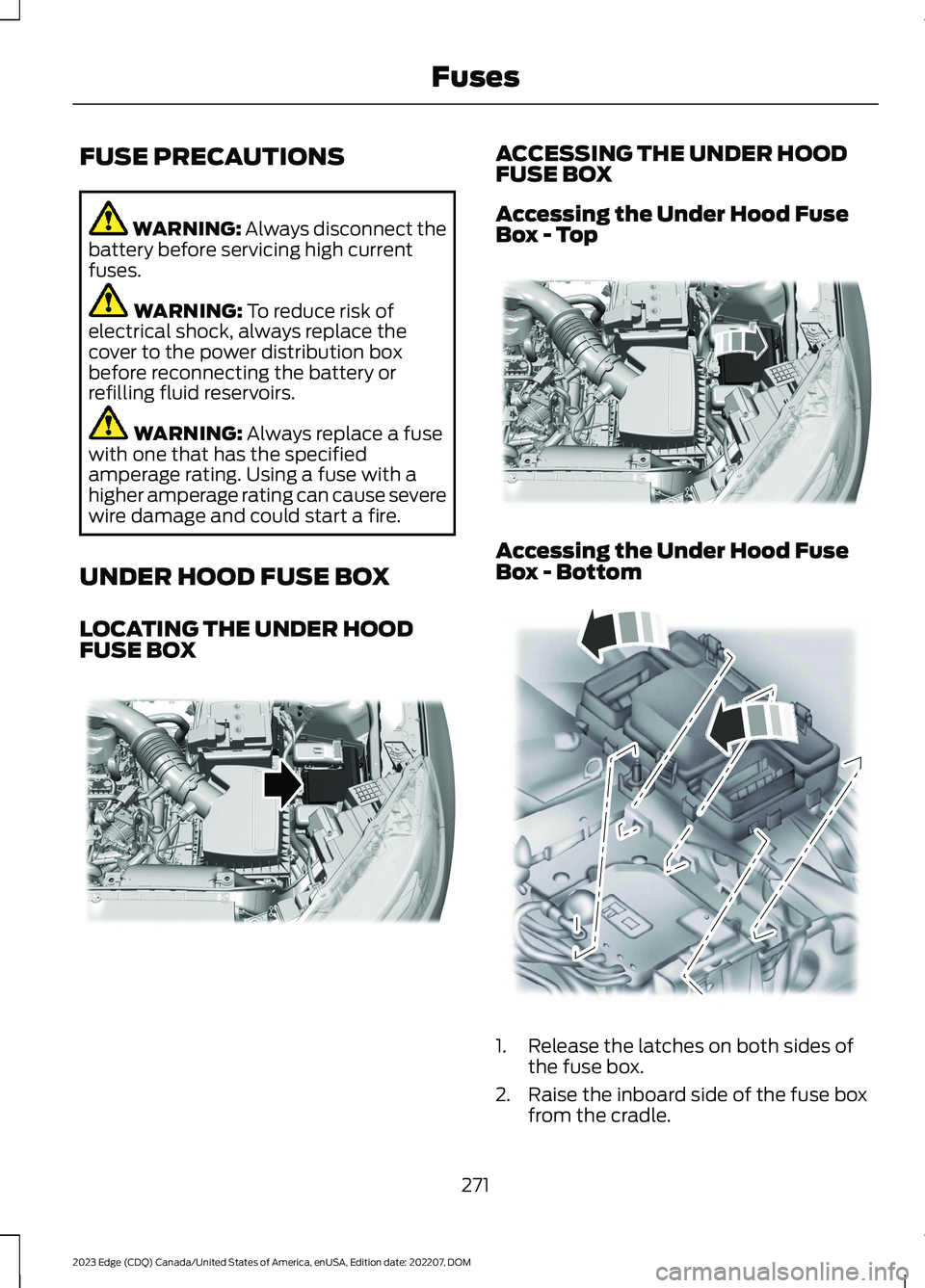

FUSE PRECAUTIONS
WARNING: Always disconnect thebattery before servicing high currentfuses.
WARNING: To reduce risk ofelectrical shock, always replace thecover to the power distribution boxbefore reconnecting the battery orrefilling fluid reservoirs.
WARNING: Always replace a fusewith one that has the specifiedamperage rating. Using a fuse with ahigher amperage rating can cause severewire damage and could start a fire.
UNDER HOOD FUSE BOX
LOCATING THE UNDER HOODFUSE BOX
ACCESSING THE UNDER HOODFUSE BOX
Accessing the Under Hood FuseBox - Top
Accessing the Under Hood FuseBox - Bottom
1.Release the latches on both sides ofthe fuse box.
2.Raise the inboard side of the fuse boxfrom the cradle.
271
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMFusesE327062 E330178 E145983

3.Move the fuse box toward the centerof the engine compartment.4.Pivot the outboard side of the fuse boxto access the bottom side.

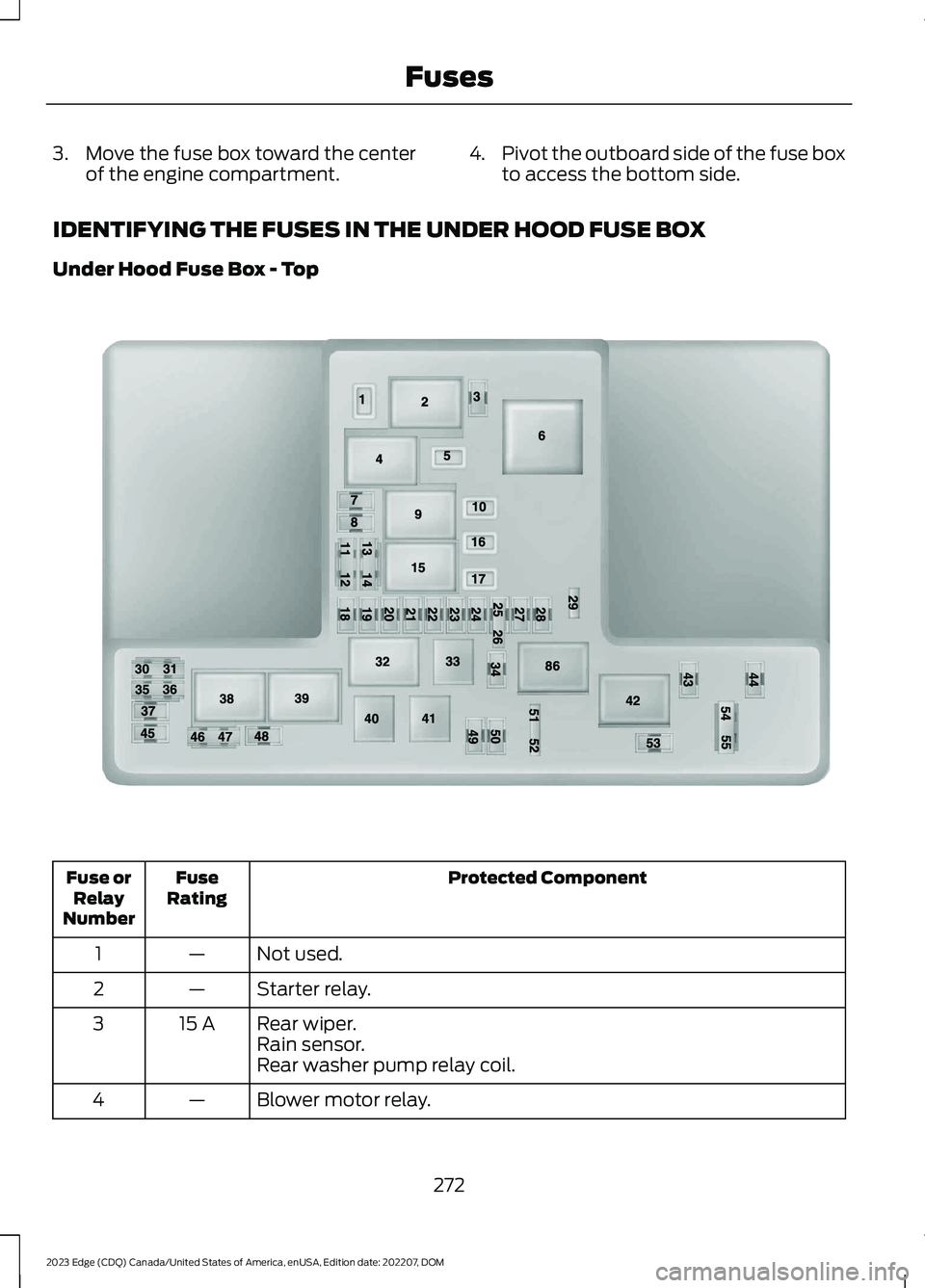

IDENTIFYING THE FUSES IN THE UNDER HOOD FUSE BOX
Under Hood Fuse Box - Top
Protected ComponentFuseRatingFuse orRelayNumber
Not used.—1
Starter relay.—2
Rear wiper.15 A3Rain sensor.Rear washer pump relay coil.
Blower motor relay.—4
272
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMFusesE190797

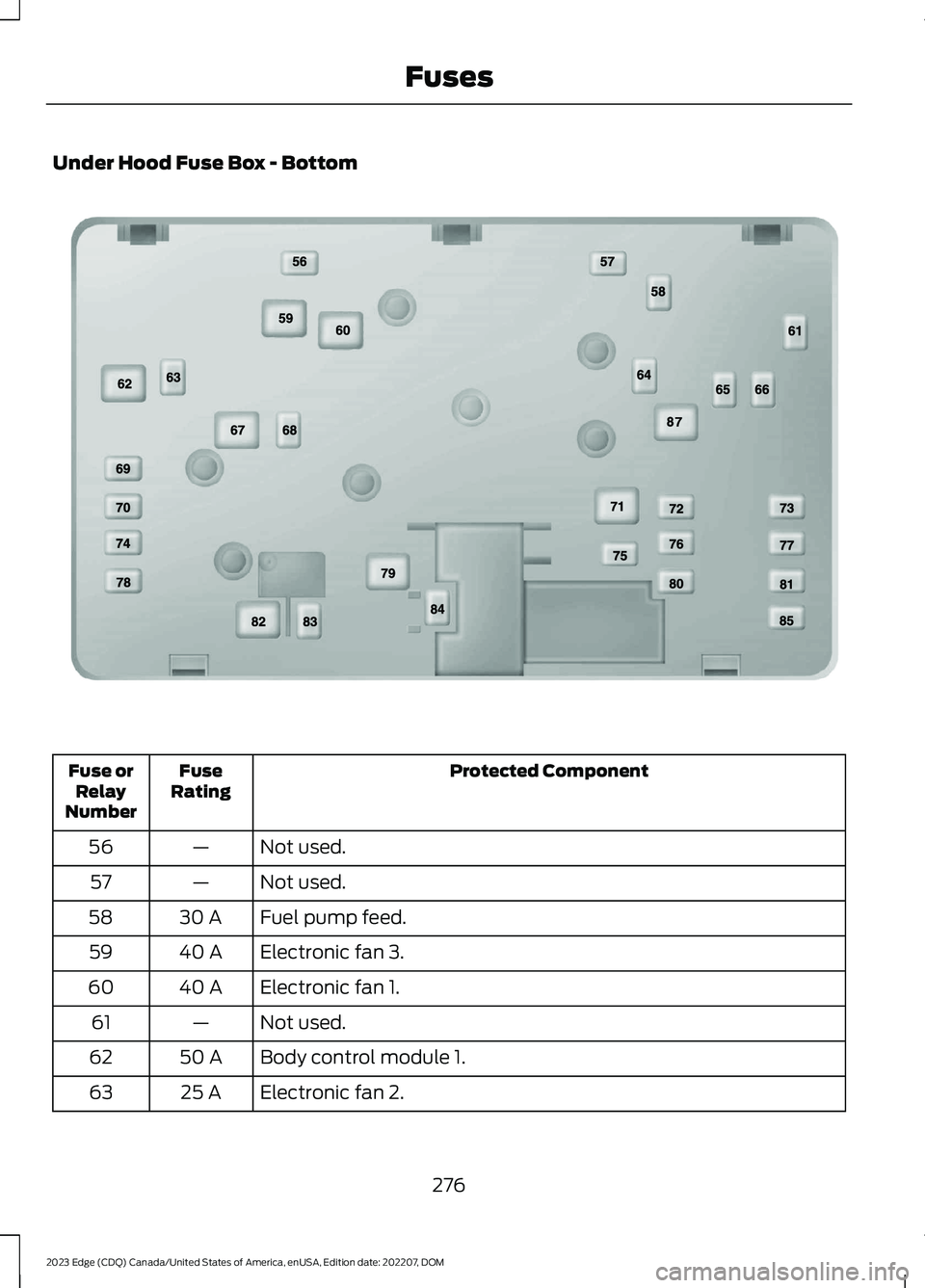

Under Hood Fuse Box - Bottom
Protected ComponentFuseRatingFuse orRelayNumber
Not used.—56
Not used.—57
Fuel pump feed.30 A58
Electronic fan 3.40 A59
Electronic fan 1.40 A60
Not used.—61
Body control module 1.50 A62
Electronic fan 2.25 A63
276
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMFusesE190798

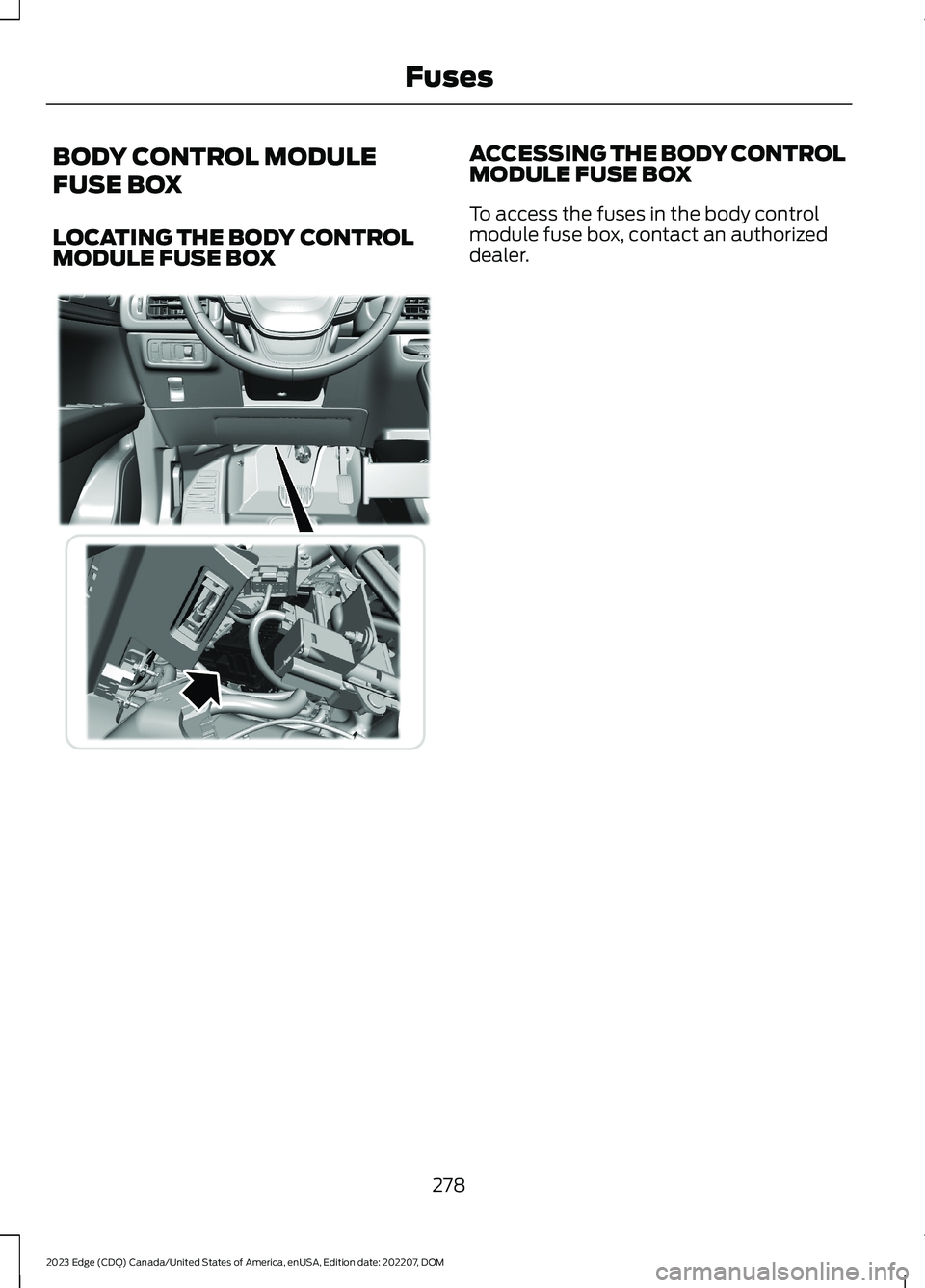

BODY CONTROL MODULE
FUSE BOX
LOCATING THE BODY CONTROLMODULE FUSE BOX
ACCESSING THE BODY CONTROLMODULE FUSE BOX
To access the fuses in the body controlmodule fuse box, contact an authorizeddealer.
278
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMFusesE331712

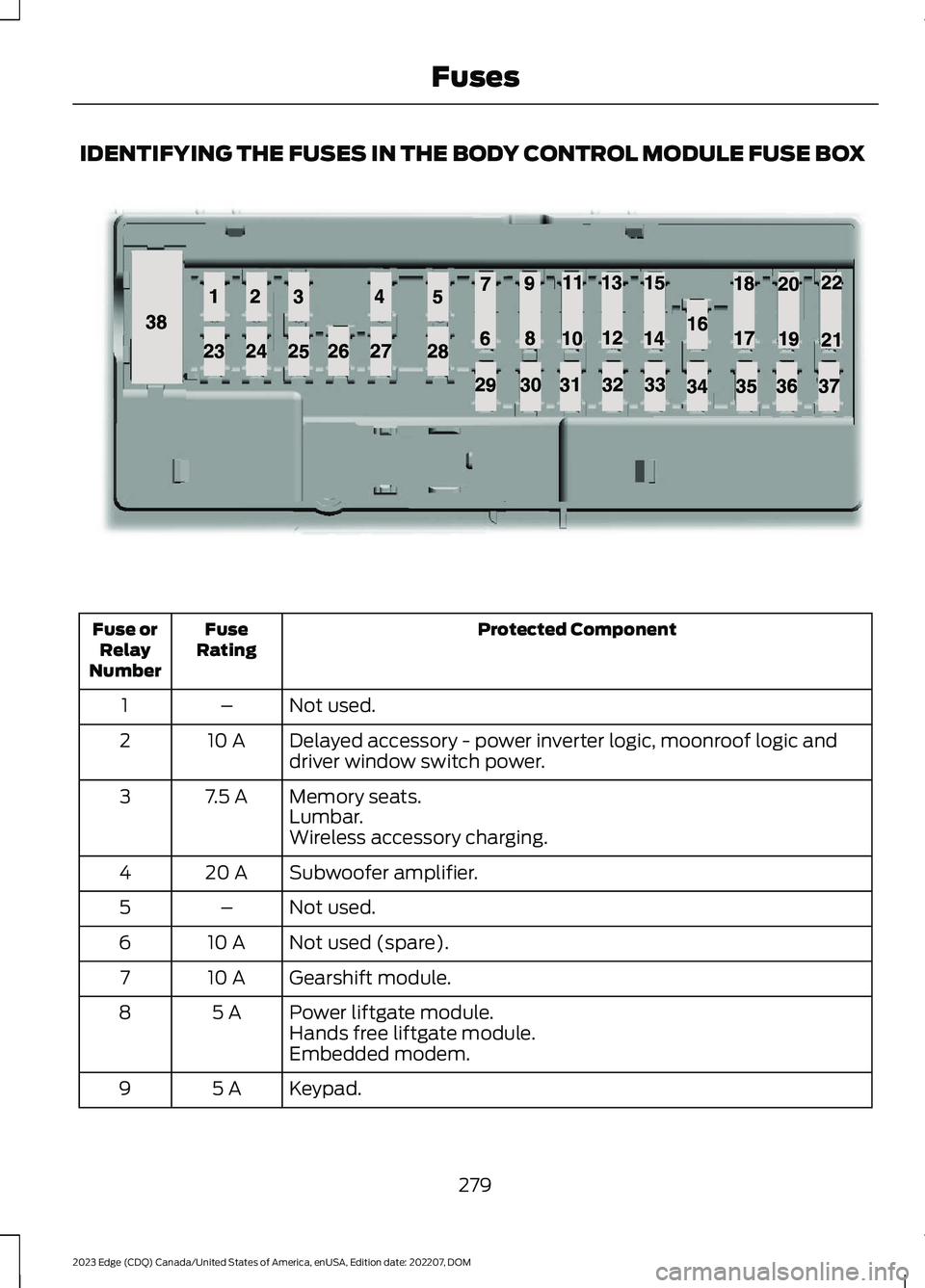

IDENTIFYING THE FUSES IN THE BODY CONTROL MODULE FUSE BOX
Protected ComponentFuseRatingFuse orRelayNumber
Not used.–1
Delayed accessory - power inverter logic, moonroof logic anddriver window switch power.10 A2
Memory seats.7.5 A3Lumbar.Wireless accessory charging.
Subwoofer amplifier.20 A4
Not used.–5
Not used (spare).10 A6
Gearshift module.10 A7
Power liftgate module.5 A8Hands free liftgate module.Embedded modem.
Keypad.5 A9
279
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMFusesE145984

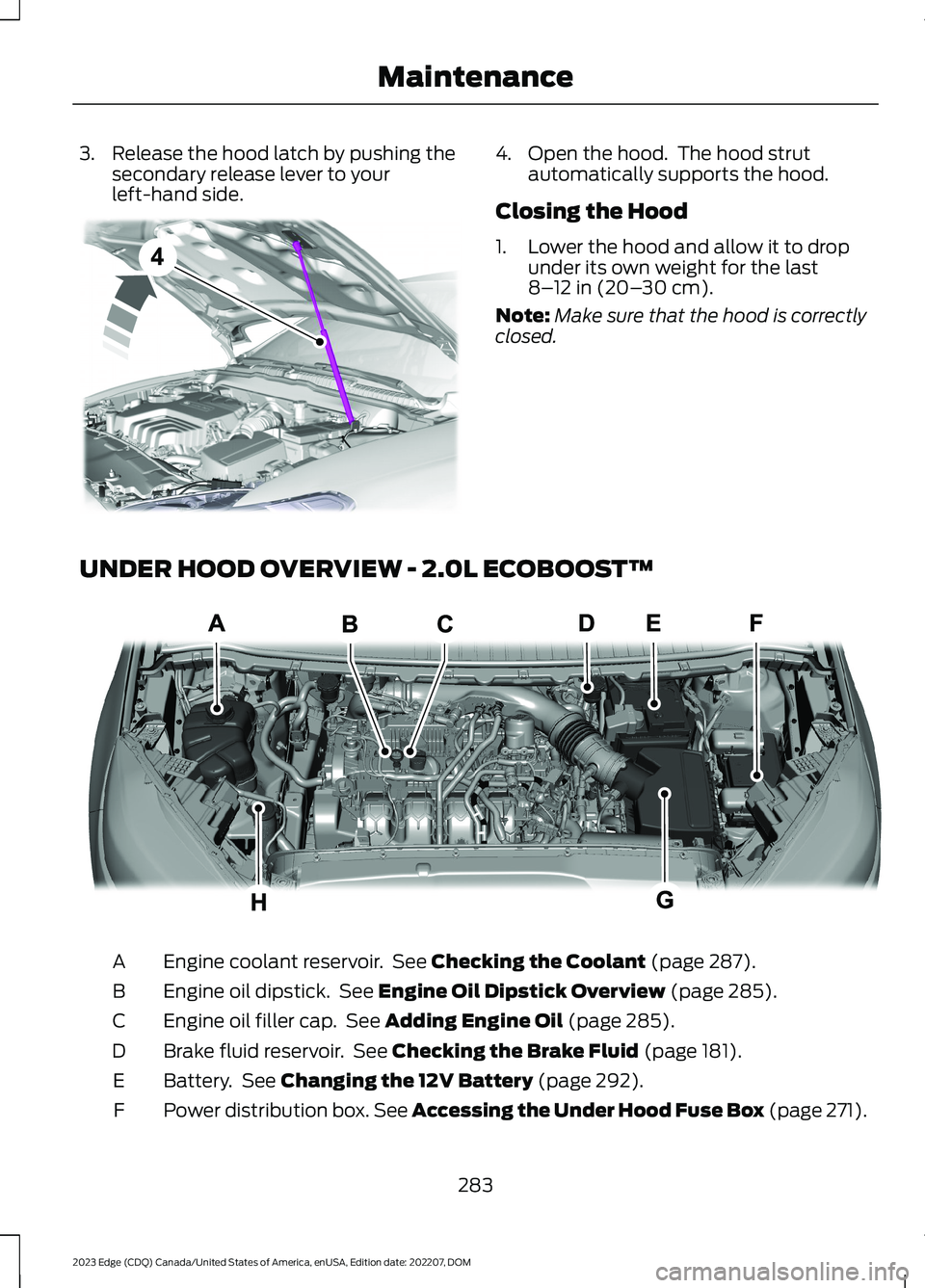

3.Release the hood latch by pushing thesecondary release lever to yourleft-hand side.
4.Open the hood. The hood strutautomatically supports the hood.
Closing the Hood
1.Lower the hood and allow it to dropunder its own weight for the last8–12 in (20–30 cm).
Note:Make sure that the hood is correctlyclosed.
UNDER HOOD OVERVIEW - 2.0L ECOBOOST™
Engine coolant reservoir. See Checking the Coolant (page 287).A
Engine oil dipstick. See Engine Oil Dipstick Overview (page 285).B
Engine oil filler cap. See Adding Engine Oil (page 285).C
Brake fluid reservoir. See Checking the Brake Fluid (page 181).D
Battery. See Changing the 12V Battery (page 292).E
Power distribution box. See Accessing the Under Hood Fuse Box (page 271).F
283
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMMaintenance4 E191432 E294775

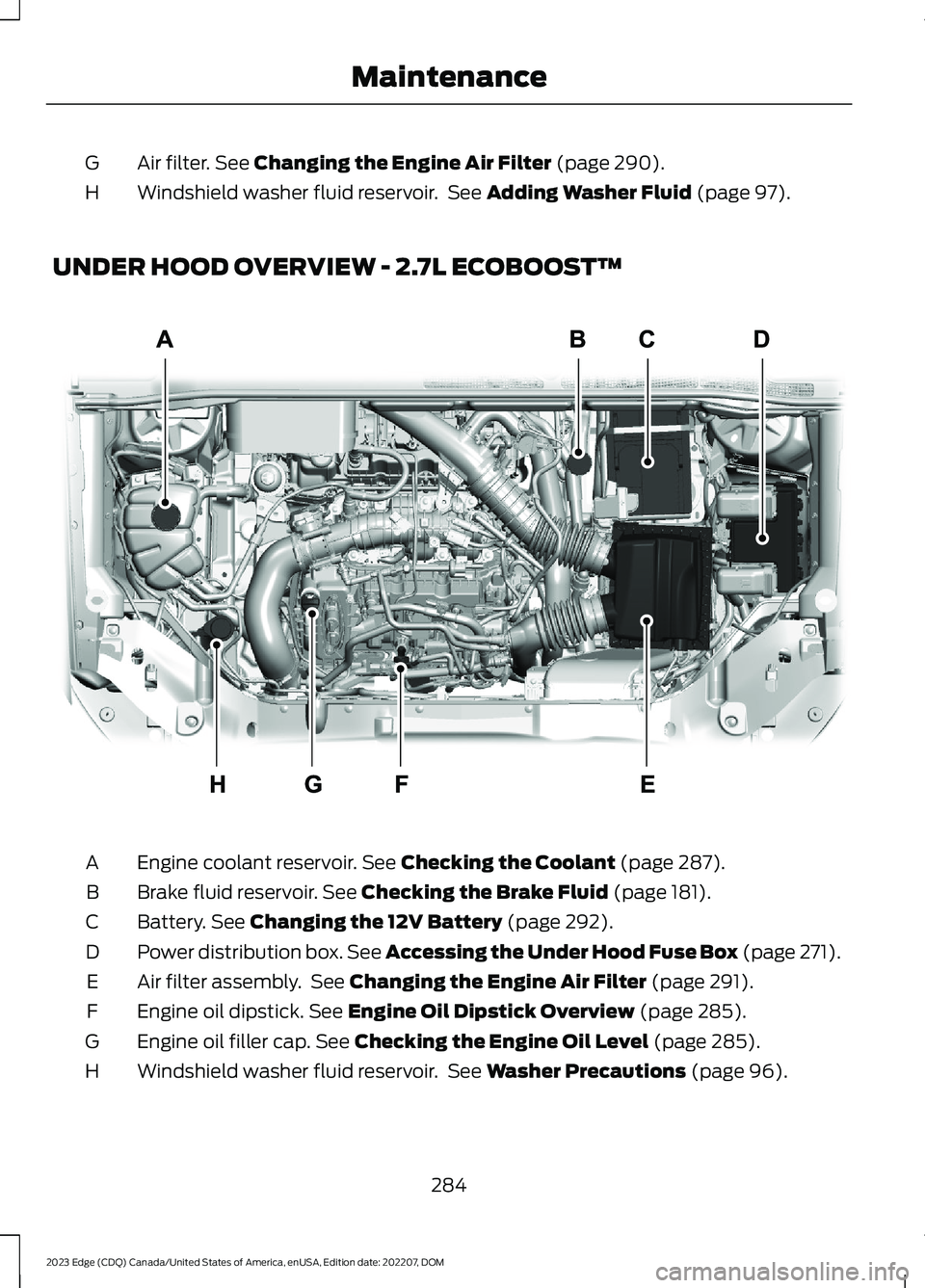

Air filter. See Changing the Engine Air Filter (page 290).G
Windshield washer fluid reservoir. See Adding Washer Fluid (page 97).H
UNDER HOOD OVERVIEW - 2.7L ECOBOOST™
Engine coolant reservoir. See Checking the Coolant (page 287).A
Brake fluid reservoir. See Checking the Brake Fluid (page 181).B
Battery. See Changing the 12V Battery (page 292).C
Power distribution box. See Accessing the Under Hood Fuse Box (page 271).D
Air filter assembly. See Changing the Engine Air Filter (page 291).E
Engine oil dipstick. See Engine Oil Dipstick Overview (page 285).F
Engine oil filler cap. See Checking the Engine Oil Level (page 285).G
Windshield washer fluid reservoir. See Washer Precautions (page 96).H
284
2023 Edge (CDQ) Canada/United States of America, enUSA, Edition date: 202207, DOMMaintenanceE341585

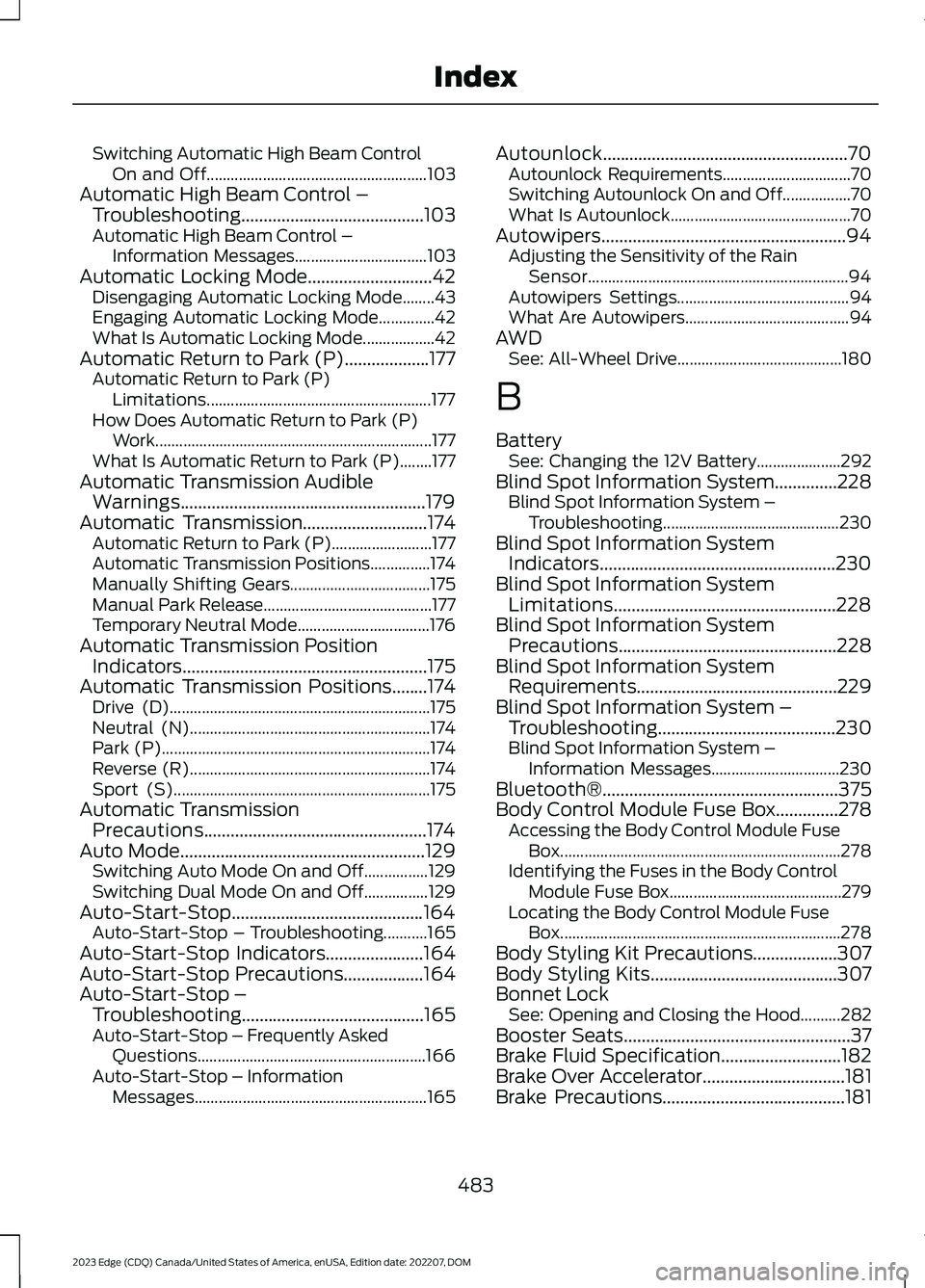

Switching Automatic High Beam ControlOn and Off.......................................................103Automatic High Beam Control –Troubleshooting.........................................103Automatic High Beam Control –Information Messages.................................103Automatic Locking Mode............................42Disengaging Automatic Locking Mode........43Engaging Automatic Locking Mode..............42What Is Automatic Locking Mode..................42Automatic Return to Park (P)...................177Automatic Return to Park (P)Limitations........................................................177How Does Automatic Return to Park (P)Work.....................................................................177What Is Automatic Return to Park (P)........177Automatic Transmission AudibleWarnings.......................................................179Automatic Transmission............................174Automatic Return to Park (P).........................177Automatic Transmission Positions...............174Manually Shifting Gears...................................175Manual Park Release..........................................177Temporary Neutral Mode.................................176Automatic Transmission PositionIndicators.......................................................175Automatic Transmission Positions........174Drive (D).................................................................175Neutral (N)............................................................174Park (P)...................................................................174Reverse (R)............................................................174Sport (S)................................................................175Automatic TransmissionPrecautions..................................................174Auto Mode.......................................................129Switching Auto Mode On and Off................129Switching Dual Mode On and Off................129Auto-Start-Stop...........................................164Auto-Start-Stop – Troubleshooting...........165Auto-Start-Stop Indicators......................164Auto-Start-Stop Precautions..................164Auto-Start-Stop –Troubleshooting.........................................165Auto-Start-Stop – Frequently AskedQuestions.........................................................166Auto-Start-Stop – InformationMessages..........................................................165
