FORD ESCAPE HYBRID 2009 2.G Quick Reference Guide

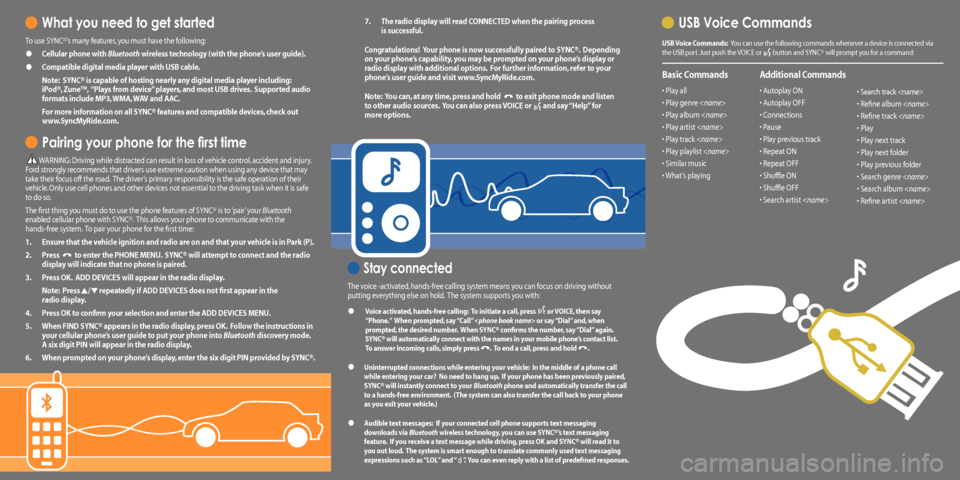

What you need to get started
To use SYNC®’s many features, you must have the following:
• Cellular phone with Bluetooth wireless technology (with the phone’s user guide).
• Compatible digital media player with USB cable.
Note: SYNC® is capable of hosting nearly any digital media player including: iPod®, Zune™, “Plays from device” players, and most USB drives. Supported audio formats include MP3, WMA, WAV and AAC.
For more information on all SYNC® features and compatible devices, check out www.SyncMyRide.com.
Pairing your phone for the first time

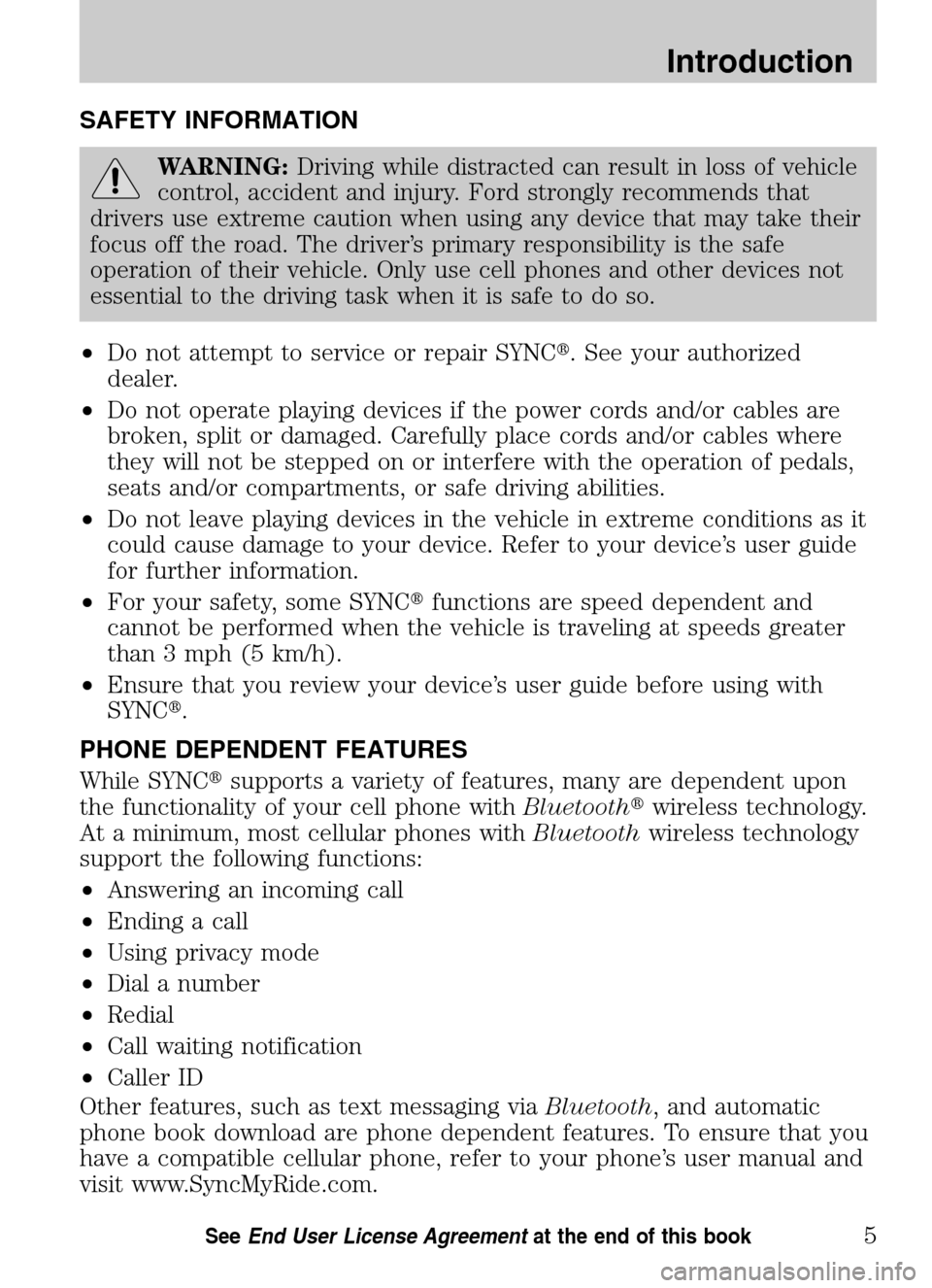

WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.
The first thing you must do to use the phone features of SYNC® is to ‘pair’ your Bluetooth enabled cellular phone with SYNC®. This allows your phone to communicate with the hands-free system. To pair your phone for the first time:
1. Ensure that the vehicle ignition and radio are on and that your vehicle is in Park (P).
2. Press to enter the PHONE MENU. SYNC® will attempt to connect and the radio display will indicate that no phone is paired.
3. Press OK. ADD DEVICES will appear in the radio display.
Note: Press / repeatedly if ADD DEVICES does not first appear in the radio display.
4. Press OK to confirm your selection and enter the ADD DEVICES MENU.
5. When FIND SYNC® appears in the radio display, press OK. Follow the instructions in your cellular phone’s user guide to put your phone into Bluetooth discovery mode. A six digit PIN will appear in the radio display.
6. When prompted on your phone’s display, enter the six digit PIN provided by SYNC®.


7. The radio display will read CONNECTED when the pairing process is successful.
Congratulations! Your phone is now successfully paired to SYNC®. Depending on your phone’s capability, you may be prompted on your phone’s display or radio display with additional options. For further information, refer to your phone’s user guide and visit www.SyncMyRide.com.
Note: You can, at any time, press and hold to exit phone mode and listen to other audio sources. You can also press VOICE or and say “Help” for more options.
Stay connected
The voice -activated, hands-free calling system means you can focus on driving without
putting everything else on hold. The system supports you with:
•
Voice activated, hands-free calling: To initiate a call, press or VOICE, then say “Phone.” When prompted, say “Call” or say “Dial” and, when prompted, the desired number. When SYNC® confirms the number, say “Dial” again. SYNC® will automatically connect with the names in your mobile phone’s contact list. To answer incoming calls, simply press . To end a call, press and hold .
• Uninterrupted connections while entering your vehicle: In the middle of a phone call while entering your car? No need to hang up. If your phone has been previously paired, SYNC® will instantly connect to your Bluetooth phone and automatically transfer the call to a hands-free environment. (The system can also transfer the call back to your phone as you exit your vehicle.)
• Audible text messages: If your connected cell phone supports text messaging downloads via Bluetooth wireless technology, you can use SYNC®’s text messaging feature. If you receive a text message while driving, press OK and SYNC® will read it to you out loud. The system is smart enough to translate commonly used text messaging expressions such as “LOL” and “ :) ”. You can even reply with a list of predefined responses.

USB Voice Commands
USB Voice Commands: You can use the following commands whenever a device is connected via the USB port. Just push the VOICE or button and SYNC® will prompt you for a command:
Basic Commands
• Play all
• Play genre
• Play album
• Play artist
• Play track
• Play playlist
• Similar music
• What’s playing

Additional Commands
• Autoplay ON
• Autoplay OFF
• Connections
• Pause
• Play previous track
• Repeat ON
• Repeat OFF
• Shuffle ON
• Shuffle OFF
• Search artist
• Search track
• Refine album
• Refine track
• Play
• Play next track
• Play next folder
• Play previous folder
• Search genre
• Search album
• Refine artist

Get ready for an intelligent conversation with your car.
The last time you stepped out without your cell phone or digital media player, did you feel
out of sync with the world? We don’t blame you. Our personal devices have become
indispensable extensions of our lives.
Ford ingenuity now brings you a better, more sensible way to remain connected to your
world while behind the wheel. Introducing SYNC® - Powered by Microsoft®. SYNC® offers
voice activated calling and voice activated music selection while allowing you to maintain
your focus on the road.
SYNC® Features
• Send and receive hands-free calls
• Play your digital music through voice activated commands
• Use voice recognition to access your cell phone’s contact list
• Transfer an active phone conversation to a hands-free environment
• Play music stored on your digital media player
• Use your device while charging through the USB port
• Listen to music streaming from your Bluetooth® enabled phone
• Advanced voice recognition system fluent in English, French and Spanish
Congratulations on the purchase of your new
vehicle equipped with SYNC®.

www.SyncMyRide.com
Exclusively available on Ford, Mercury and Lincoln vehicles. Connecting your digital media player
WARNING: Driving while distracted can result in loss of vehicle control, accident and injury. Ford strongly recommends that drivers use extreme caution when using any device that may take their focus off the road. The driver’s primary responsibility is the safe operation of their vehicle. Only use cell phones and other devices not essential to the driving task when it is safe to do so.
1. Ensure that the vehicle ignition and radio are ON.
2. Plug the device into the USB port. Refer to your Owner’s Guide for exact location.
Note: If your digital media player has an ON/OFF switch, ensure that the device
is ON.
3. Press or VOICE.
Note: If your digital media player contains many media files, INDEXING may
appear in the radio display. When the indexing process is complete, you may
access the media content in your digital media player using voice commands.
4. When prompted, say “USB”.
5 . Play music by saying any of the following commands, “Play All”,
“Play Artist ”, “Play Album ”, “ Play Genre ”,
“Play Playlist ” or “Play track ”.
Note: At any time, you may press VOICE or and say “Help” for more options.
A new way to rock while you roll
SYNC® can shift your digital music into overdrive with voice-activated access to songs on
your digital media player.
• Voice activated music: Browse your music collection by genre, album, artist and
song title using simple voice commands.
• USB device charging: Long trip? You may run out of gas but you’ll never run out
of music. That’s because if your digital media player supports, SYNC® will
automatically charge your digital media player when plugged into the USB port.

For more information, visit www.SyncMyRide.com

Mobile Phone Voice Commands
Mobile Phone Voice Commands: You can use any of the following commands whenever SYNC® is in phone mode:
Basic Commands
• Call
• Dial
(then follow dialog with
SYNC® to speak a number)
• Call history incoming
• Call history outgoing
• Call history missed
• Go to privacy

Additional Commands
• Call at home
OR mobile
• Call at work
OR in office
• Phone book
• Phone book
at home
• Phone book
on mobile
• Phone book
at work OR in office
• Phone book
on other
• Connections
• Menu
• Join
• Hold

HELPFUL HINT: When using voice commands, remember SYNC® is expecting to hear exactly what is listed in your phone book or music device.
For the latest information on features and device compatibility, refer to SyncMyRide.com.
Phone Settings & Bluetooth Commands
Mobile Phone Settings “Additional Commands” Voice Commands: When in phone mode, you can press the VOICE or button and say ”Menu“ to use the following commands:
•
(Phone) settings
(message) notification ON
• (Phone) settings
(message) notification OFF
• (Phone) connections
• Phone name
• Signal
• (Phone) settings (set)
phone ringer
• (Phone) settings (set)
ringer one
• (Phone) settings (set)
ringer two
• (Phone) settings (set)
ringer three
• Text message inbox
• (Phone) settings (set)
ringer OFF

HELPFUL HINT: The words in parentheses ( ) here are optional, the system understands the command with or without them.
Bluetooth Audio Voice Commands: You can use the following commands whenever music is being provided from your mobile phone via Bluetooth streaming audio:
• Pause
• Connections
• Play previous track
• Play
• Play next track
© Copyright August 2008 by Ford Motor Company. Specifications and descriptions contained within are based upon current information available at the time of release.
