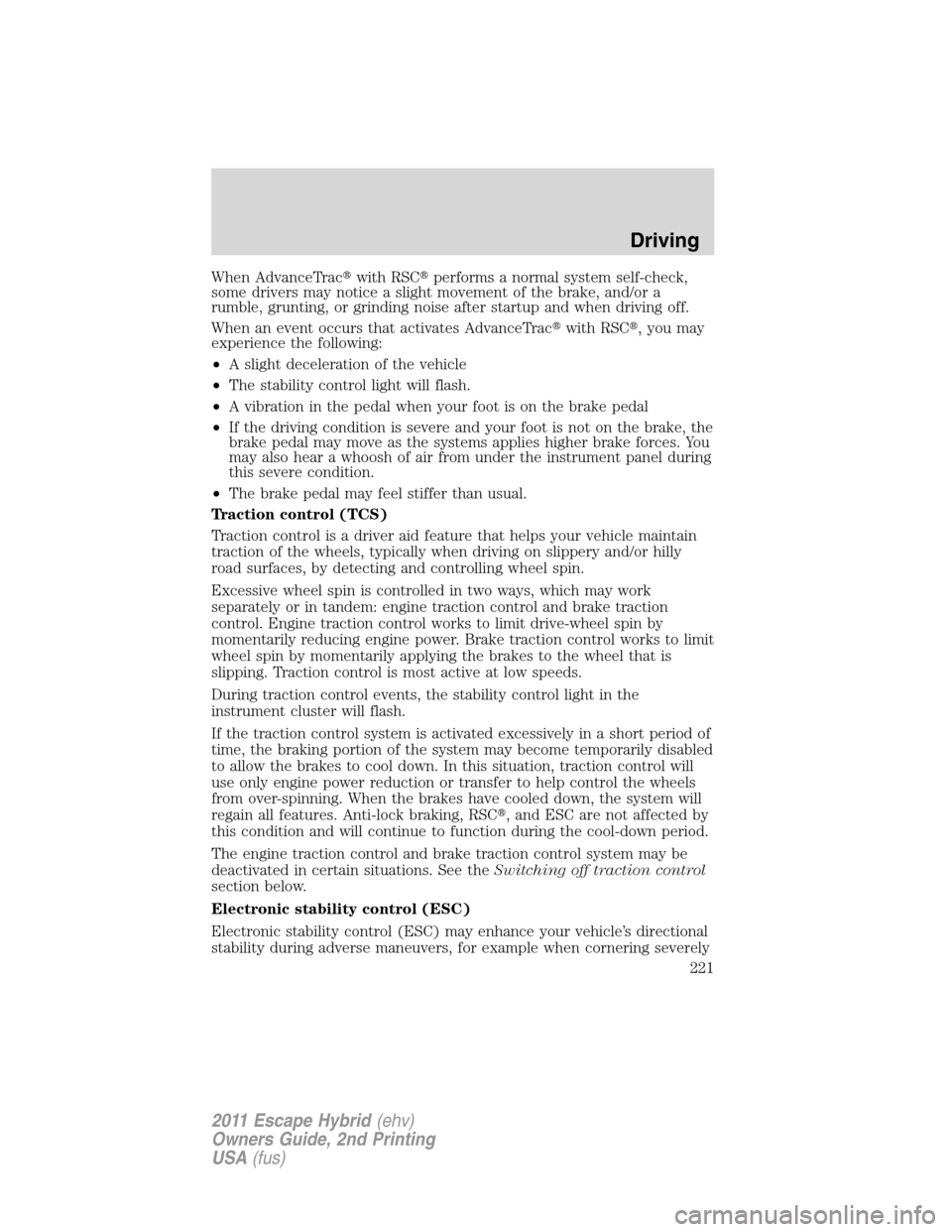

When AdvanceTracwith RSCperforms a normal system self-check,
some drivers may notice a slight movement of the brake, and/or a
rumble, grunting, or grinding noise after startup and when driving off.
When an event occurs that activates AdvanceTracwith RSC, you may
experience the following:
•A slight deceleration of the vehicle
•The stability control light will flash.
•A vibration in the pedal when your foot is on the brake pedal
•If the driving condition is severe and your foot is not on the brake, the
brake pedal may move as the systems applies higher brake forces. You
may also hear a whoosh of air from under the instrument panel during
this severe condition.
•The brake pedal may feel stiffer than usual.
Traction control (TCS)
Traction control is a driver aid feature that helps your vehicle maintain
traction of the wheels, typically when driving on slippery and/or hilly
road surfaces, by detecting and controlling wheel spin.
Excessive wheel spin is controlled in two ways, which may work
separately or in tandem: engine traction control and brake traction
control. Engine traction control works to limit drive-wheel spin by
momentarily reducing engine power. Brake traction control works to limit
wheel spin by momentarily applying the brakes to the wheel that is
slipping. Traction control is most active at low speeds.
During traction control events, the stability control light in the
instrument cluster will flash.
If the traction control system is activated excessively in a short period of
time, the braking portion of the system may become temporarily disabled
to allow the brakes to cool down. In this situation, traction control will
use only engine power reduction or transfer to help control the wheels
from over-spinning. When the brakes have cooled down, the system will
regain all features. Anti-lock braking, RSC, and ESC are not affected by
this condition and will continue to function during the cool-down period.
The engine traction control and brake traction control system may be
deactivated in certain situations. See theSwitching off traction control
section below.
Electronic stability control (ESC)
Electronic stability control (ESC) may enhance your vehicle’s directional
stability during adverse maneuvers, for example when cornering severely
Driving
221
2011 Escape Hybrid(ehv)
Owners Guide, 2nd Printing
USA(fus)

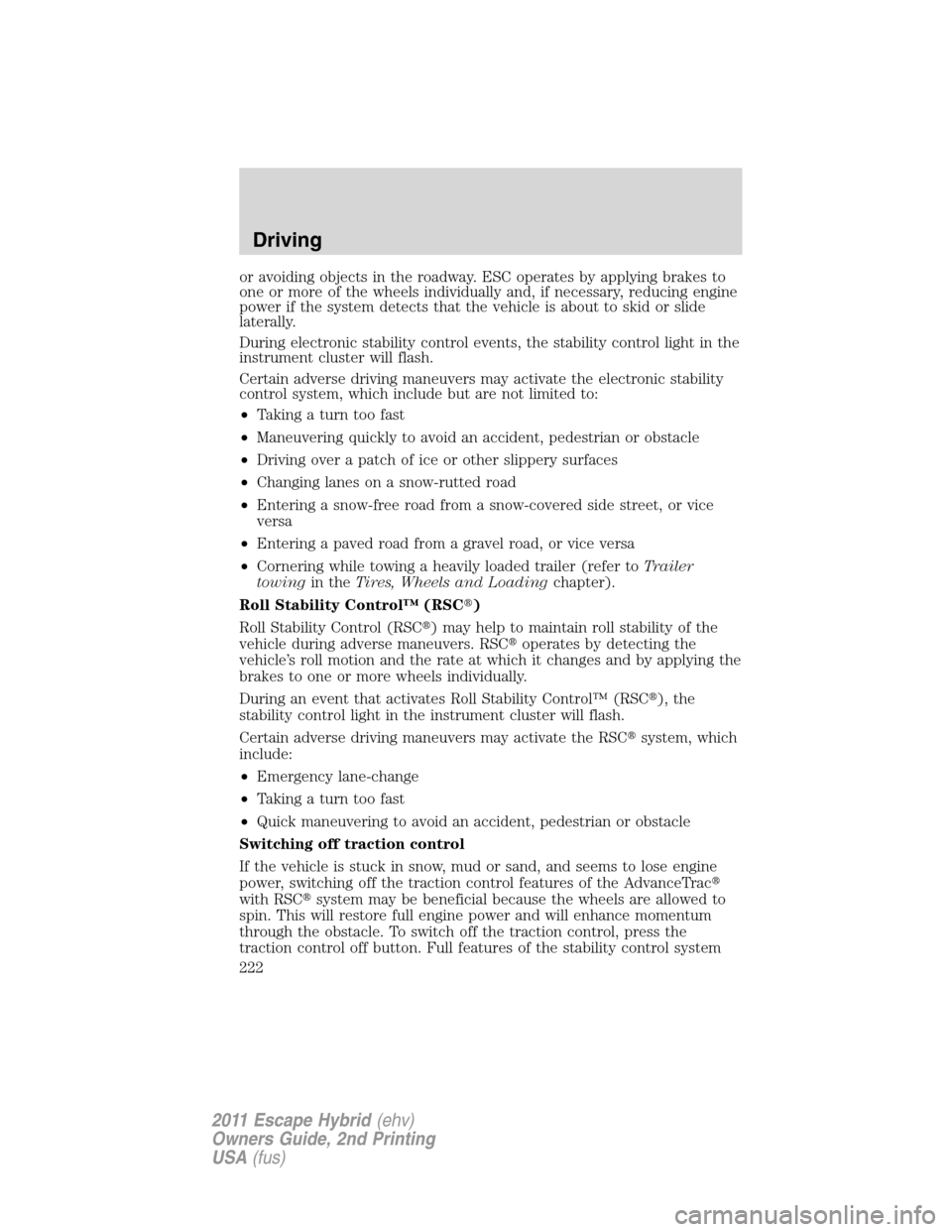

or avoiding objects in the roadway. ESC operates by applying brakes to
one or more of the wheels individually and, if necessary, reducing engine
power if the system detects that the vehicle is about to skid or slide
laterally.
During electronic stability control events, the stability control light in the
instrument cluster will flash.
Certain adverse driving maneuvers may activate the electronic stability
control system, which include but are not limited to:
•Taking a turn too fast
•Maneuvering quickly to avoid an accident, pedestrian or obstacle
•Driving over a patch of ice or other slippery surfaces
•Changing lanes on a snow-rutted road
•Entering a snow-free road from a snow-covered side street, or vice
versa
•Entering a paved road from a gravel road, or vice versa
•Cornering while towing a heavily loaded trailer (refer toTrailer
towingin theTires, Wheels and Loadingchapter).
Roll Stability Control™ (RSC)
Roll Stability Control (RSC) may help to maintain roll stability of the
vehicle during adverse maneuvers. RSCoperates by detecting the
vehicle’s roll motion and the rate at which it changes and by applying the
brakes to one or more wheels individually.
During an event that activates Roll Stability Control™ (RSC), the
stability control light in the instrument cluster will flash.
Certain adverse driving maneuvers may activate the RSCsystem, which
include:
•Emergency lane-change
•Taking a turn too fast
•Quick maneuvering to avoid an accident, pedestrian or obstacle
Switching off traction control
If the vehicle is stuck in snow, mud or sand, and seems to lose engine
power, switching off the traction control features of the AdvanceTrac
with RSCsystem may be beneficial because the wheels are allowed to
spin. This will restore full engine power and will enhance momentum
through the obstacle. To switch off the traction control, press the
traction control off button. Full features of the stability control system
Driving
222
2011 Escape Hybrid(ehv)
Owners Guide, 2nd Printing
USA(fus)

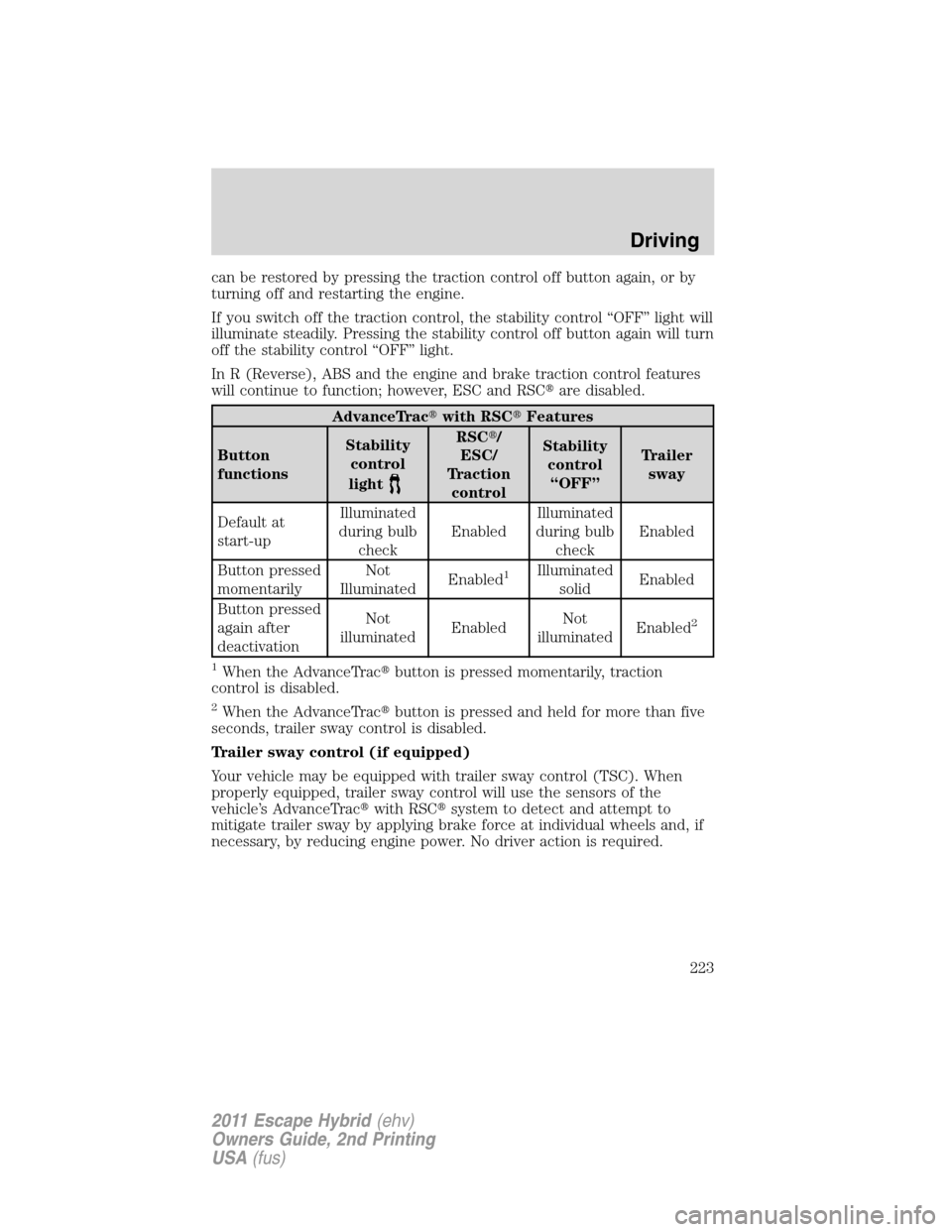

can be restored by pressing the traction control off button again, or by
turning off and restarting the engine.
If you switch off the traction control, the stability control “OFF” light will
illuminate steadily. Pressing the stability control off button again will turn
off the stability control “OFF” light.
In R (Reverse), ABS and the engine and brake traction control features
will continue to function; however, ESC and RSCare disabled.
AdvanceTracwith RSCFeatures
Button
functionsStability
control
light
RSC/
ESC/
Traction
controlStability
control
“OFF”Trailer
sway
Default at
start-upIlluminated
during bulb
checkEnabledIlluminated
during bulb
checkEnabled
Button pressed
momentarilyNot
IlluminatedEnabled
1Illuminated
solidEnabled
Button pressed
again after
deactivationNot
illuminatedEnabledNot
illuminatedEnabled
2
1
When the AdvanceTracbutton is pressed momentarily, traction
control is disabled.
2When the AdvanceTracbutton is pressed and held for more than five
seconds, trailer sway control is disabled.
Trailer sway control (if equipped)
Your vehicle may be equipped with trailer sway control (TSC). When
properly equipped, trailer sway control will use the sensors of the
vehicle’s AdvanceTracwith RSCsystem to detect and attempt to
mitigate trailer sway by applying brake force at individual wheels and, if
necessary, by reducing engine power. No driver action is required.
Driving
223
2011 Escape Hybrid(ehv)
Owners Guide, 2nd Printing
USA(fus)

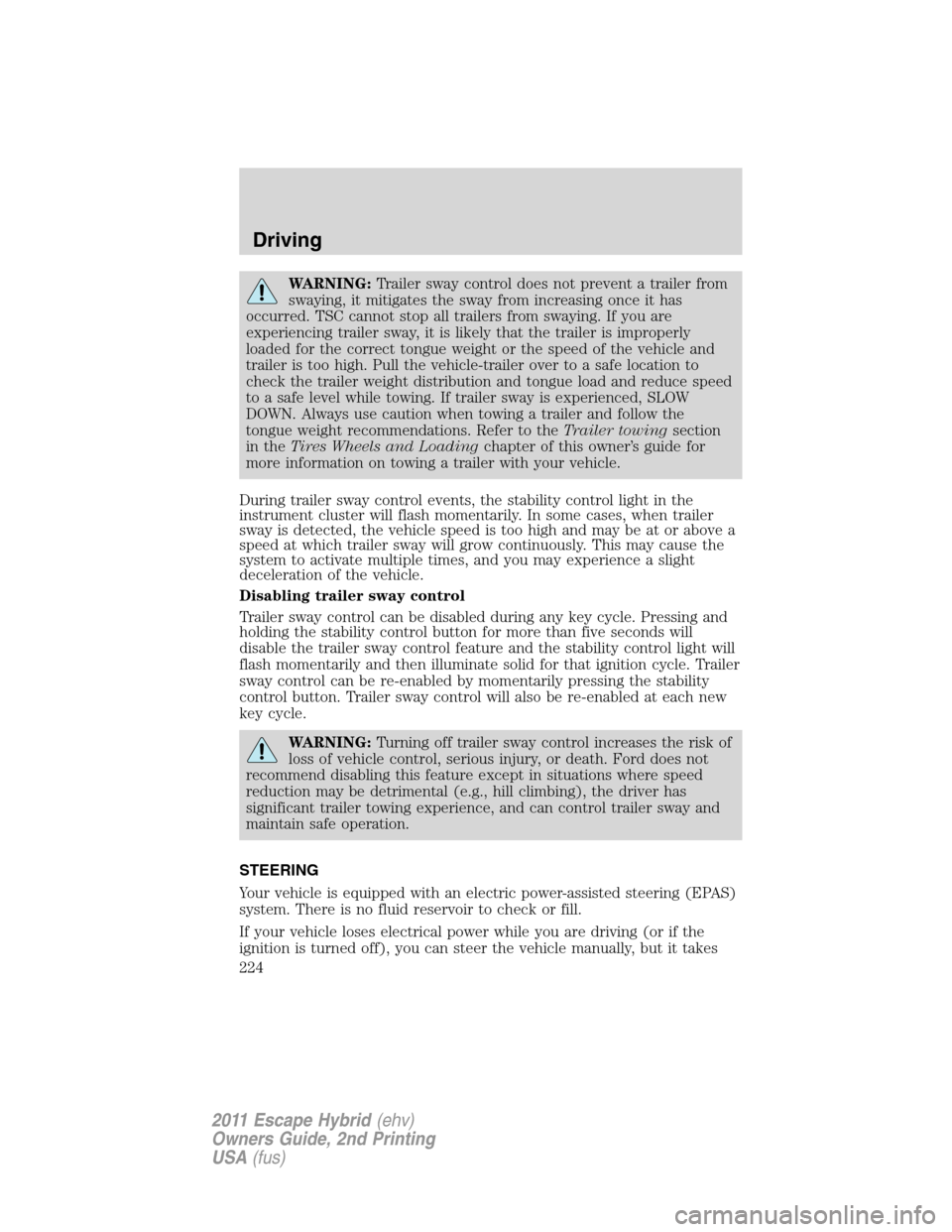

WARNING:Trailer sway control does not prevent a trailer from
swaying, it mitigates the sway from increasing once it has
occurred. TSC cannot stop all trailers from swaying. If you are
experiencing trailer sway, it is likely that the trailer is improperly
loaded for the correct tongue weight or the speed of the vehicle and
trailer is too high. Pull the vehicle-trailer over to a safe location to
check the trailer weight distribution and tongue load and reduce speed
to a safe level while towing. If trailer sway is experienced, SLOW
DOWN. Always use caution when towing a trailer and follow the
tongue weight recommendations. Refer to theTrailer towingsection
in theTires Wheels and Loadingchapter of this owner’s guide for
more information on towing a trailer with your vehicle.
During trailer sway control events, the stability control light in the
instrument cluster will flash momentarily. In some cases, when trailer
sway is detected, the vehicle speed is too high and may be at or above a
speed at which trailer sway will grow continuously. This may cause the
system to activate multiple times, and you may experience a slight
deceleration of the vehicle.
Disabling trailer sway control
Trailer sway control can be disabled during any key cycle. Pressing and
holding the stability control button for more than five seconds will
disable the trailer sway control feature and the stability control light will
flash momentarily and then illuminate solid for that ignition cycle. Trailer
sway control can be re-enabled by momentarily pressing the stability
control button. Trailer sway control will also be re-enabled at each new
key cycle.
WARNING:Turning off trailer sway control increases the risk of
loss of vehicle control, serious injury, or death. Ford does not
recommend disabling this feature except in situations where speed
reduction may be detrimental (e.g., hill climbing), the driver has
significant trailer towing experience, and can control trailer sway and
maintain safe operation.
STEERING
Your vehicle is equipped with an electric power-assisted steering (EPAS)
system. There is no fluid reservoir to check or fill.
If your vehicle loses electrical power while you are driving (or if the
ignition is turned off), you can steer the vehicle manually, but it takes
Driving
224
2011 Escape Hybrid(ehv)
Owners Guide, 2nd Printing
USA(fus)

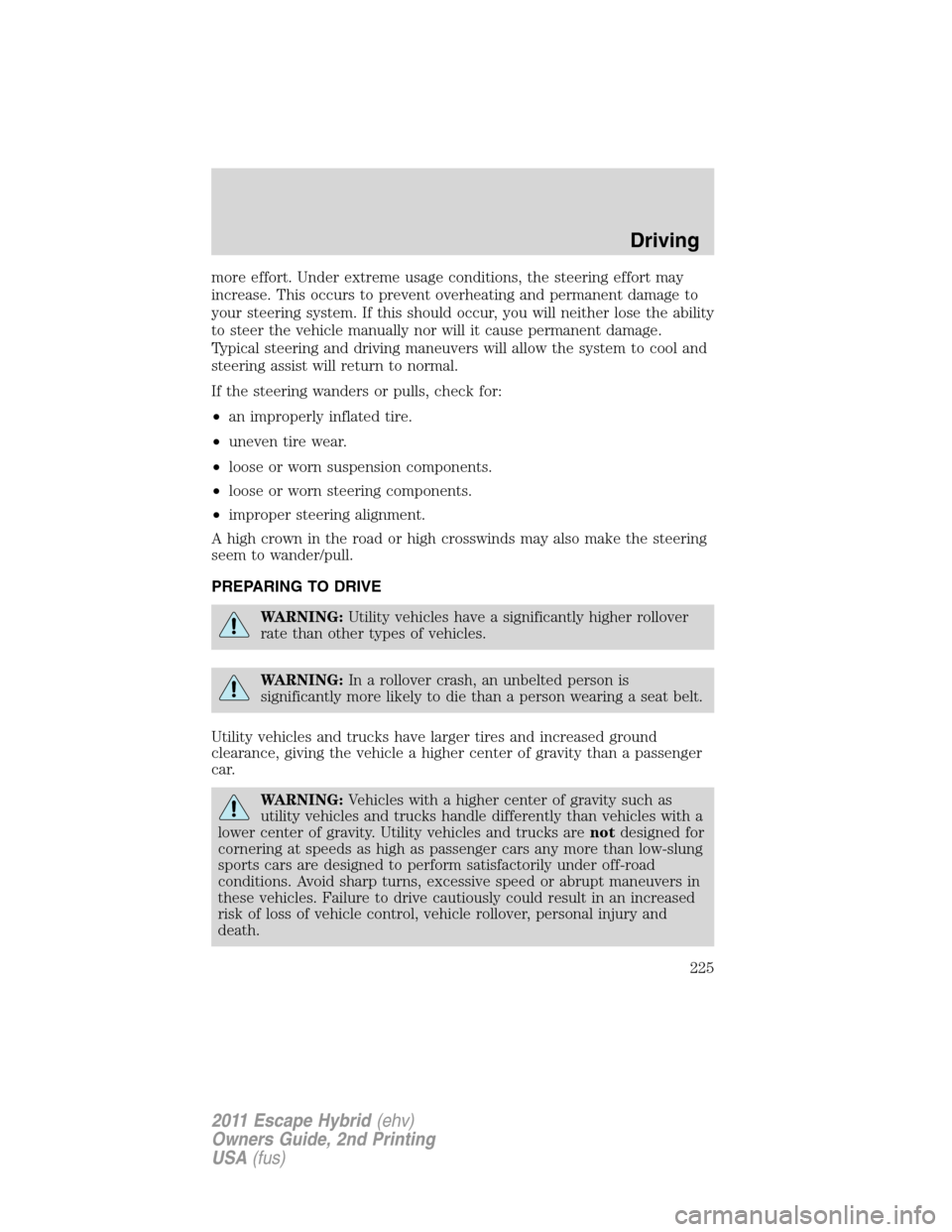

more effort. Under extreme usage conditions, the steering effort may
increase. This occurs to prevent overheating and permanent damage to
your steering system. If this should occur, you will neither lose the ability
to steer the vehicle manually nor will it cause permanent damage.
Typical steering and driving maneuvers will allow the system to cool and
steering assist will return to normal.
If the steering wanders or pulls, check for:
•an improperly inflated tire.
•uneven tire wear.
•loose or worn suspension components.
•loose or worn steering components.
•improper steering alignment.
A high crown in the road or high crosswinds may also make the steering
seem to wander/pull.
PREPARING TO DRIVE
WARNING:Utility vehicles have a significantly higher rollover
rate than other types of vehicles.
WARNING:In a rollover crash, an unbelted person is
significantly more likely to die than a person wearing a seat belt.
Utility vehicles and trucks have larger tires and increased ground
clearance, giving the vehicle a higher center of gravity than a passenger
car.
WARNING:Vehicles with a higher center of gravity such as
utility vehicles and trucks handle differently than vehicles with a
lower center of gravity. Utility vehicles and trucks arenotdesigned for
cornering at speeds as high as passenger cars any more than low-slung
sports cars are designed to perform satisfactorily under off-road
conditions. Avoid sharp turns, excessive speed or abrupt maneuvers in
these vehicles. Failure to drive cautiously could result in an increased
risk of loss of vehicle control, vehicle rollover, personal injury and
death.
Driving
225
2011 Escape Hybrid(ehv)
Owners Guide, 2nd Printing
USA(fus)

WARNING:Loaded vehicles, with a higher center of gravity,
may handle differently than unloaded vehicles. Do not overload
your vehicle and use extra precautions, such as driving at slower
speeds, avoiding abrupt steering changes and allowing for increased
stopping distance, when driving a heavily loaded vehicle. Over-loading
or loading the vehicle improperly can deteriorate handling capability
and contribute to loss of vehicle control and vehicle rollover.

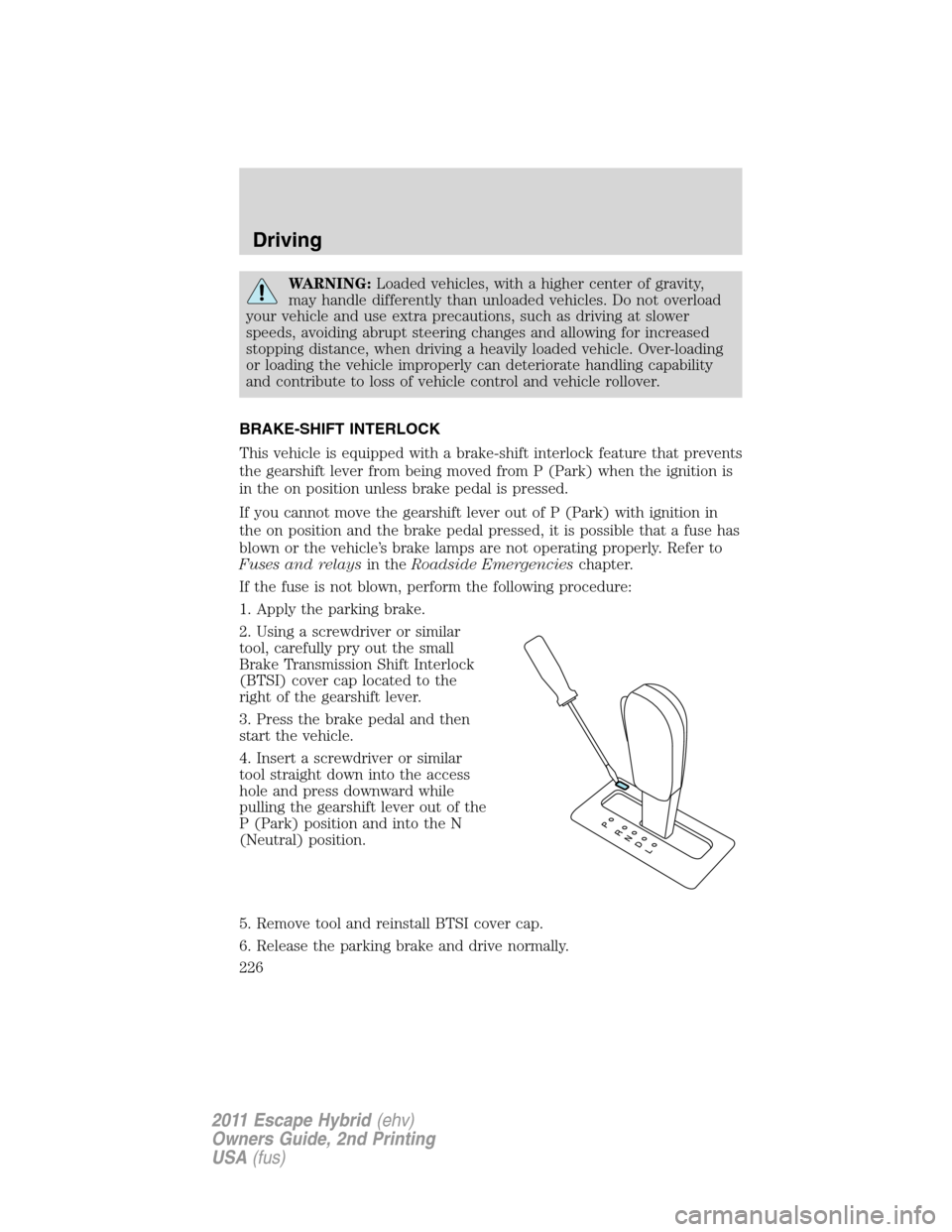

BRAKE-SHIFT INTERLOCK
This vehicle is equipped with a brake-shift interlock feature that prevents
the gearshift lever from being moved from P (Park) when the ignition is
in the on position unless brake pedal is pressed.
If you cannot move the gearshift lever out of P (Park) with ignition in
the on position and the brake pedal pressed, it is possible that a fuse has
blown or the vehicle’s brake lamps are not operating properly. Refer to
Fuses and relaysin theRoadside Emergencieschapter.
If the fuse is not blown, perform the following procedure:
1. Apply the parking brake.
2. Using a screwdriver or similar
tool, carefully pry out the small
Brake Transmission Shift Interlock
(BTSI) cover cap located to the
right of the gearshift lever.
3. Press the brake pedal and then
start the vehicle.
4. Insert a screwdriver or similar
tool straight down into the access
hole and press downward while
pulling the gearshift lever out of the
P (Park) position and into the N
(Neutral) position.
5. Remove tool and reinstall BTSI cover cap.
6. Release the parking brake and drive normally.
Driving
226
2011 Escape Hybrid(ehv)
Owners Guide, 2nd Printing
USA(fus)

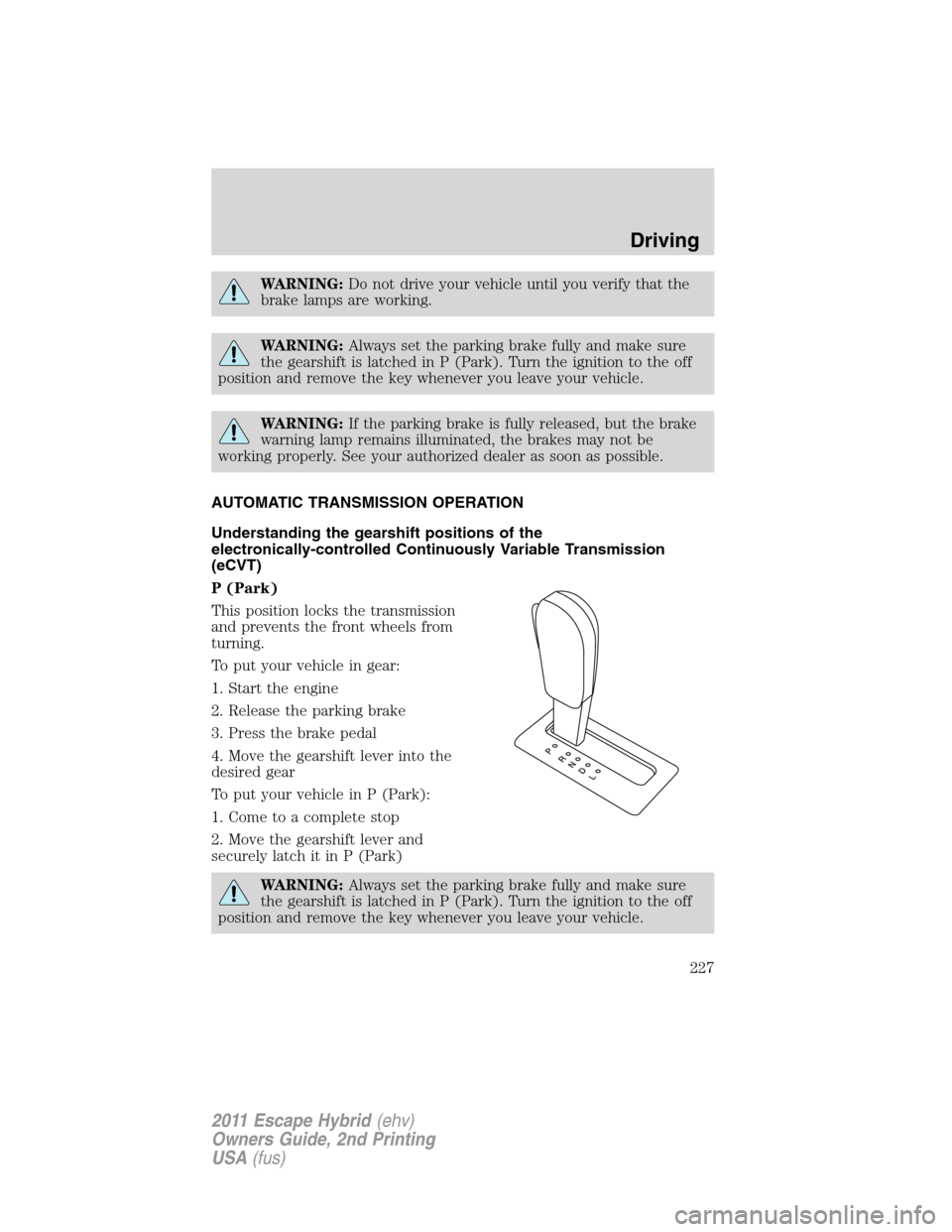

WARNING:Do not drive your vehicle until you verify that the
brake lamps are working.
WARNING:Always set the parking brake fully and make sure
the gearshift is latched in P (Park). Turn the ignition to the off
position and remove the key whenever you leave your vehicle.
WARNING:If the parking brake is fully released, but the brake
warning lamp remains illuminated, the brakes may not be
working properly. See your authorized dealer as soon as possible.
AUTOMATIC TRANSMISSION OPERATION
Understanding the gearshift positions of the
electronically-controlled Continuously Variable Transmission
(eCVT)
P (Park)
This position locks the transmission
and prevents the front wheels from
turning.
To put your vehicle in gear:
1. Start the engine
2. Release the parking brake
3. Press the brake pedal
4. Move the gearshift lever into the
desired gear
To put your vehicle in P (Park):
1. Come to a complete stop
2. Move the gearshift lever and
securely latch it in P (Park)
WARNING:Always set the parking brake fully and make sure
the gearshift is latched in P (Park). Turn the ignition to the off
position and remove the key whenever you leave your vehicle.
Driving
227
2011 Escape Hybrid(ehv)
Owners Guide, 2nd Printing
USA(fus)

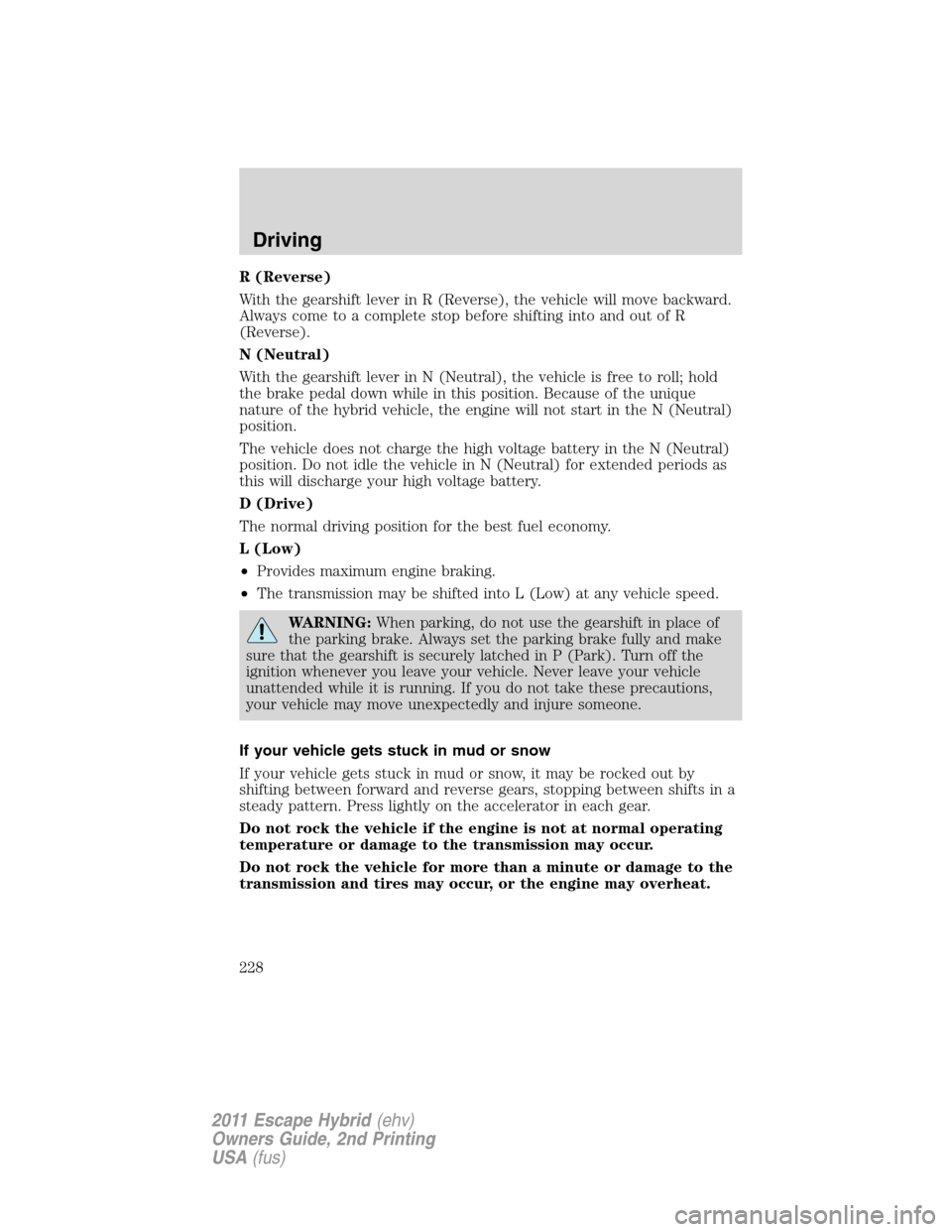

R (Reverse)
With the gearshift lever in R (Reverse), the vehicle will move backward.
Always come to a complete stop before shifting into and out of R
(Reverse).
N (Neutral)
With the gearshift lever in N (Neutral), the vehicle is free to roll; hold
the brake pedal down while in this position. Because of the unique
nature of the hybrid vehicle, the engine will not start in the N (Neutral)
position.
The vehicle does not charge the high voltage battery in the N (Neutral)
position. Do not idle the vehicle in N (Neutral) for extended periods as
this will discharge your high voltage battery.
D (Drive)
The normal driving position for the best fuel economy.
L (Low)
•Provides maximum engine braking.
•The transmission may be shifted into L (Low) at any vehicle speed.
WARNING:When parking, do not use the gearshift in place of
the parking brake. Always set the parking brake fully and make
sure that the gearshift is securely latched in P (Park). Turn off the
ignition whenever you leave your vehicle. Never leave your vehicle
unattended while it is running. If you do not take these precautions,
your vehicle may move unexpectedly and injure someone.
If your vehicle gets stuck in mud or snow
If your vehicle gets stuck in mud or snow, it may be rocked out by
shifting between forward and reverse gears, stopping between shifts in a
steady pattern. Press lightly on the accelerator in each gear.
Do not rock the vehicle if the engine is not at normal operating
temperature or damage to the transmission may occur.
Do not rock the vehicle for more than a minute or damage to the
transmission and tires may occur, or the engine may overheat.
Driving
228
2011 Escape Hybrid(ehv)
Owners Guide, 2nd Printing
USA(fus)

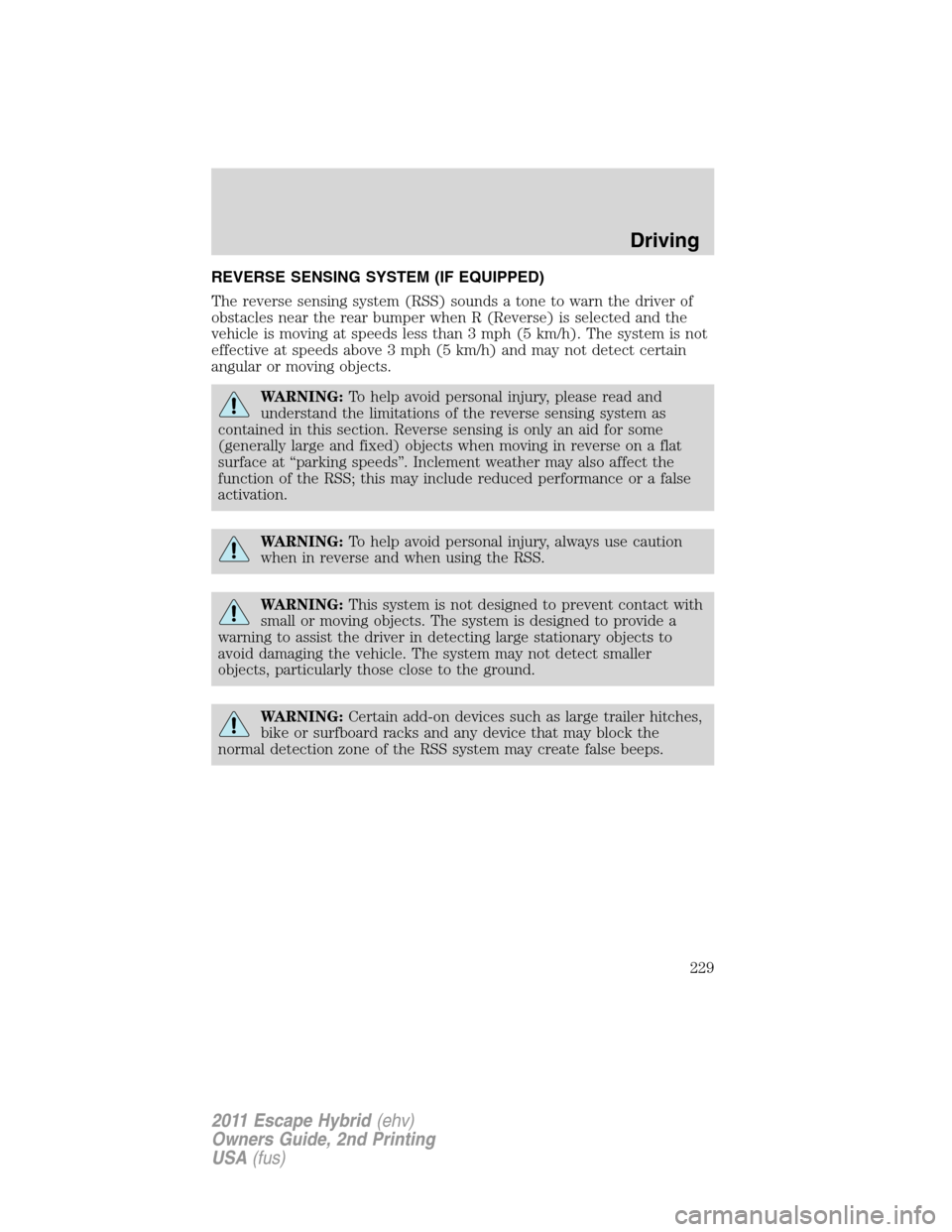

REVERSE SENSING SYSTEM (IF EQUIPPED)
The reverse sensing system (RSS) sounds a tone to warn the driver of
obstacles near the rear bumper when R (Reverse) is selected and the
vehicle is moving at speeds less than 3 mph (5 km/h). The system is not
effective at speeds above 3 mph (5 km/h) and may not detect certain
angular or moving objects.
WARNING:To help avoid personal injury, please read and
understand the limitations of the reverse sensing system as
contained in this section. Reverse sensing is only an aid for some
(generally large and fixed) objects when moving in reverse on a flat
surface at “parking speeds”. Inclement weather may also affect the
function of the RSS; this may include reduced performance or a false
activation.
WARNING:To help avoid personal injury, always use caution
when in reverse and when using the RSS.
WARNING:This system is not designed to prevent contact with
small or moving objects. The system is designed to provide a
warning to assist the driver in detecting large stationary objects to
avoid damaging the vehicle. The system may not detect smaller
objects, particularly those close to the ground.
WARNING:Certain add-on devices such as large trailer hitches,
bike or surfboard racks and any device that may block the
normal detection zone of the RSS system may create false beeps.
Driving
229
2011 Escape Hybrid(ehv)
Owners Guide, 2nd Printing
USA(fus)

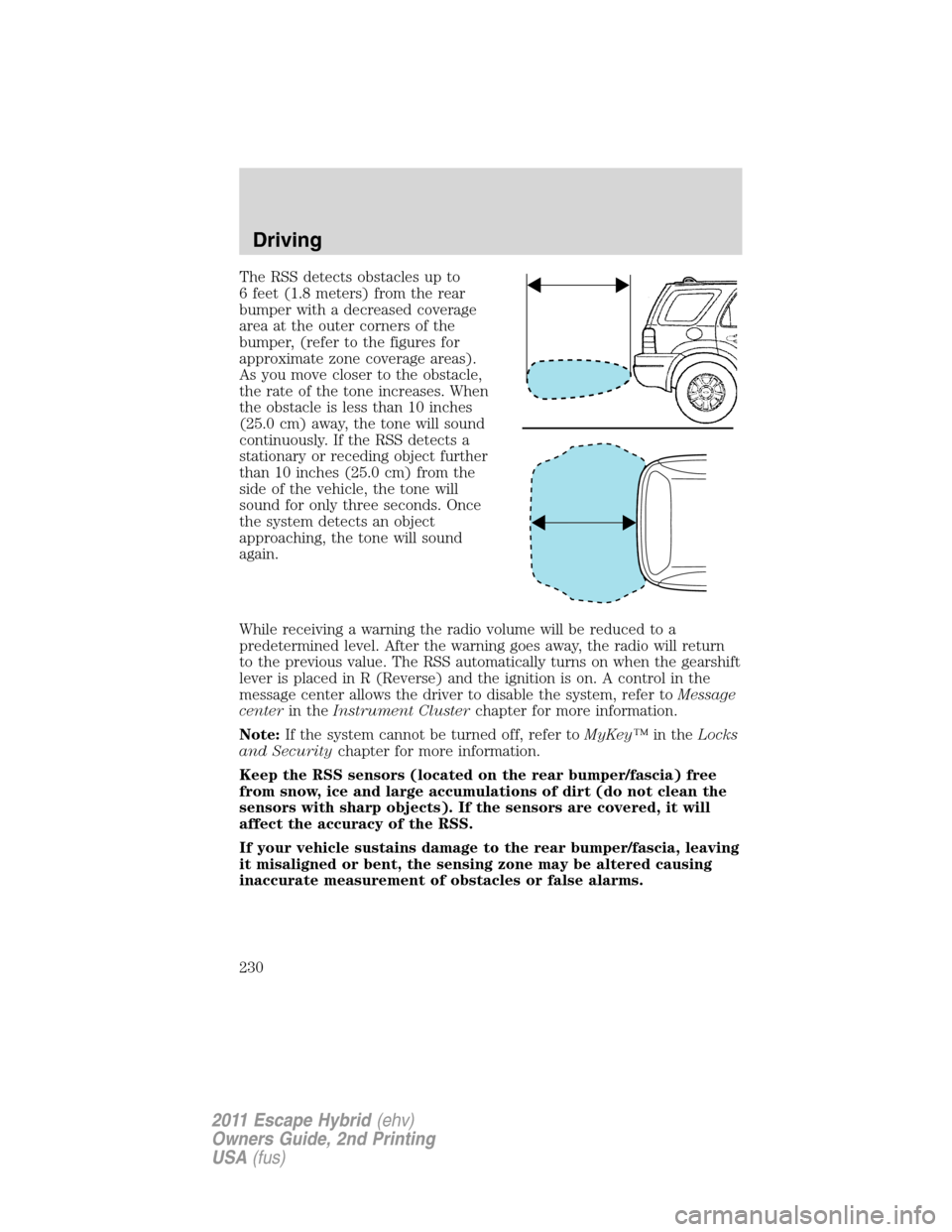

The RSS detects obstacles up to
6 feet (1.8 meters) from the rear
bumper with a decreased coverage
area at the outer corners of the
bumper, (refer to the figures for
approximate zone coverage areas).
As you move closer to the obstacle,
the rate of the tone increases. When
the obstacle is less than 10 inches
(25.0 cm) away, the tone will sound
continuously. If the RSS detects a
stationary or receding object further
than 10 inches (25.0 cm) from the
side of the vehicle, the tone will
sound for only three seconds. Once
the system detects an object
approaching, the tone will sound
again.
While receiving a warning the radio volume will be reduced to a
predetermined level. After the warning goes away, the radio will return
to the previous value. The RSS automatically turns on when the gearshift
lever is placed in R (Reverse) and the ignition is on. A control in the
message center allows the driver to disable the system, refer toMessage
centerin theInstrument Clusterchapter for more information.
Note:If the system cannot be turned off, refer toMyKey™in theLocks
and Securitychapter for more information.
Keep the RSS sensors (located on the rear bumper/fascia) free
from snow, ice and large accumulations of dirt (do not clean the
sensors with sharp objects). If the sensors are covered, it will
affect the accuracy of the RSS.
If your vehicle sustains damage to the rear bumper/fascia, leaving
it misaligned or bent, the sensing zone may be altered causing
inaccurate measurement of obstacles or false alarms.
Driving
230
2011 Escape Hybrid(ehv)
Owners Guide, 2nd Printing
USA(fus)
