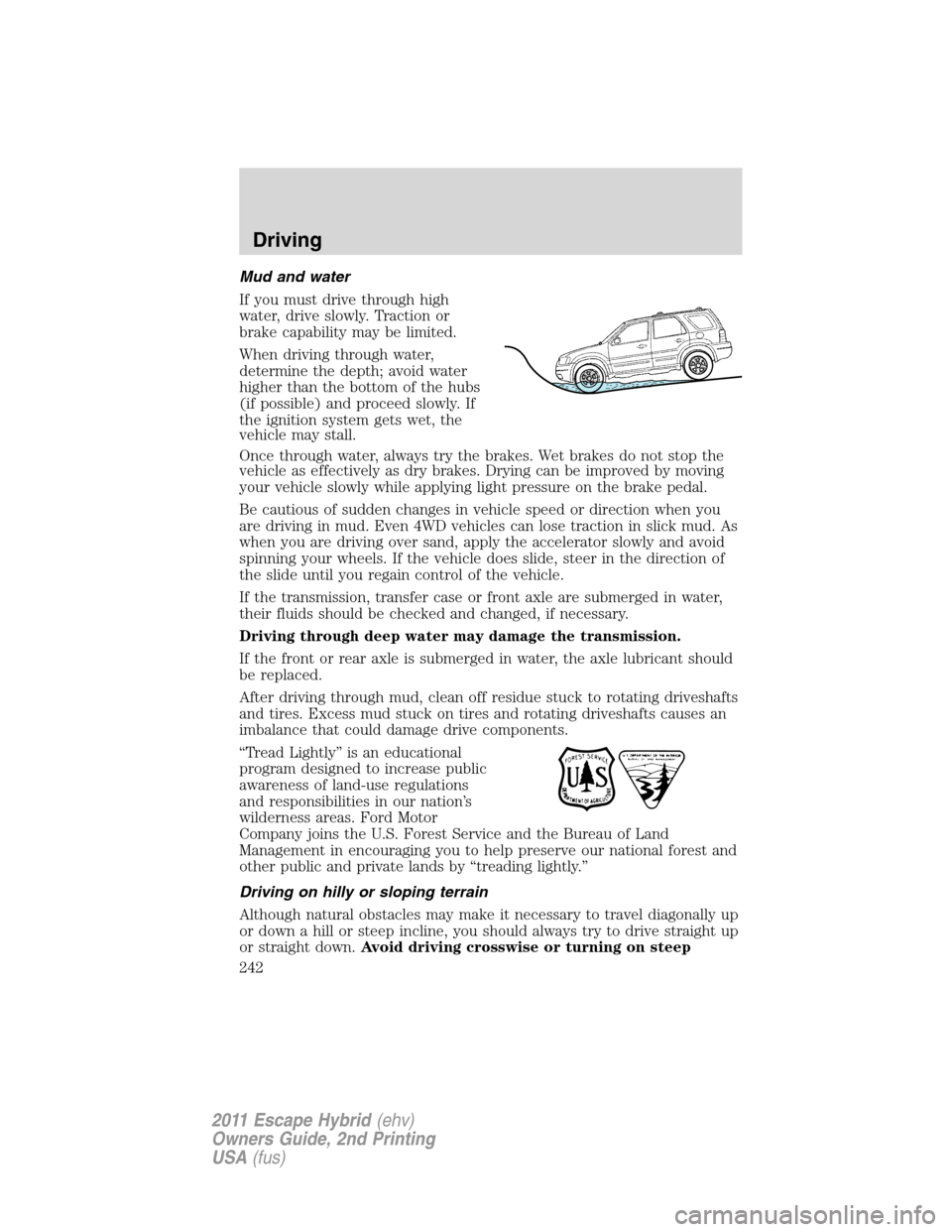

Mud and water
If you must drive through high
water, drive slowly. Traction or
brake capability may be limited.
When driving through water,
determine the depth; avoid water
higher than the bottom of the hubs
(if possible) and proceed slowly. If
the ignition system gets wet, the
vehicle may stall.
Once through water, always try the brakes. Wet brakes do not stop the
vehicle as effectively as dry brakes. Drying can be improved by moving
your vehicle slowly while applying light pressure on the brake pedal.
Be cautious of sudden changes in vehicle speed or direction when you
are driving in mud. Even 4WD vehicles can lose traction in slick mud. As
when you are driving over sand, apply the accelerator slowly and avoid
spinning your wheels. If the vehicle does slide, steer in the direction of
the slide until you regain control of the vehicle.
If the transmission, transfer case or front axle are submerged in water,
their fluids should be checked and changed, if necessary.
Driving through deep water may damage the transmission.
If the front or rear axle is submerged in water, the axle lubricant should
be replaced.
After driving through mud, clean off residue stuck to rotating driveshafts
and tires. Excess mud stuck on tires and rotating driveshafts causes an
imbalance that could damage drive components.
“Tread Lightly” is an educational
program designed to increase public
awareness of land-use regulations
and responsibilities in our nation’s
wilderness areas. Ford Motor
Company joins the U.S. Forest Service and the Bureau of Land
Management in encouraging you to help preserve our national forest and
other public and private lands by “treading lightly.”
Driving on hilly or sloping terrain
Although natural obstacles may make it necessary to travel diagonally up
or down a hill or steep incline, you should always try to drive straight up
or straight down.Avoid driving crosswise or turning on steep
Driving
242
2011 Escape Hybrid(ehv)
Owners Guide, 2nd Printing
USA(fus)

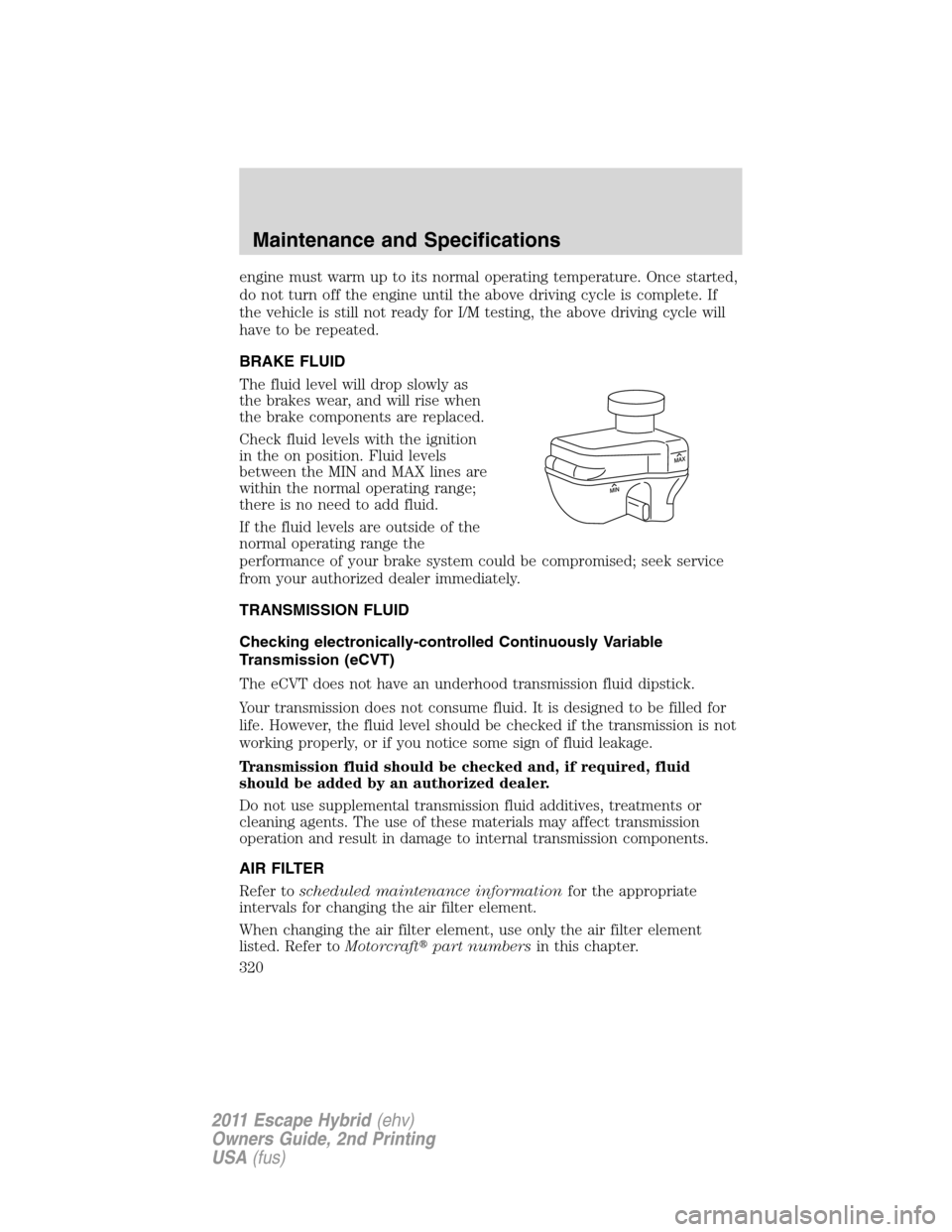

engine must warm up to its normal operating temperature. Once started,
do not turn off the engine until the above driving cycle is complete. If
the vehicle is still not ready for I/M testing, the above driving cycle will
have to be repeated.
BRAKE FLUID
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Check fluid levels with the ignition
in the on position. Fluid levels
between the MIN and MAX lines are
within the normal operating range;
there is no need to add fluid.
If the fluid levels are outside of the
normal operating range the
performance of your brake system could be compromised; seek service
from your authorized dealer immediately.
TRANSMISSION FLUID
Checking electronically-controlled Continuously Variable
Transmission (eCVT)
The eCVT does not have an underhood transmission fluid dipstick.
Your transmission does not consume fluid. It is designed to be filled for
life. However, the fluid level should be checked if the transmission is not
working properly, or if you notice some sign of fluid leakage.
Transmission fluid should be checked and, if required, fluid
should be added by an authorized dealer.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
AIR FILTER
Refer toscheduled maintenance informationfor the appropriate
intervals for changing the air filter element.
When changing the air filter element, use only the air filter element
listed. Refer toMotorcraftpart numbersin this chapter.
Maintenance and Specifications
320
2011 Escape Hybrid(ehv)
Owners Guide, 2nd Printing
USA(fus)

Item CapacityFord Part Name or
equivalentFord Part Number / Ford
Specification
Windshield washer
fluidFill as requiredMotorcraftPremium
Windshield Washer
Concentrate (US)
Premium Quality
Windshield Washer
Fluid (Canada)ZC-32-A (US)
CXC-37-(A, B, D, and F)
(Canada) /
WSB-M8B16-A2/- -
Fuel tank15 gallons
(56.8L)——
1Add the coolant type originally equipped in your vehicle. Check the coolant reservoir bottle
labeling for the correct fluid to use. Refer toAdding engine coolantin this chapter.2Use of synthetic or synthetic blend motor oil is not mandatory. Engine oil need only meet the
requirements of Ford specification WSS-M2C930-A and the API Certification mark.3Indicates only approximate dry-fill capacity.4Using any transmission fluid other than those that meet the recommended specification may cause
internal transmission damage. Do not use MotorcraftContinuously Variable Chain Type
Transmission Fluid (blue). This vehicle uses only MotorcraftMERCONLV AT F.5Fill to 1/4 inch to 9/16 inch (6 mm to 14 mm) below bottom of fill hole.64WD vehicles exposed for prolonged periods to temperatures less than -40°C (-40°F) should
change out the rear axle fluid to MotorcraftSAE 75W-140 Rear Axle Lubricant, Ford part number
XY-75W140-QL meeting Ford specification WSL-M2C192-A.7The power transfer unit is lubricated for life with synthetic lube. Lubricant levels are not to be
checked or changed unless a leak is suspected or repair required. Replace power transfer unit
lubricant with specified synthetic lubricant anytime the unit is submerged in water.
Maintenance and Specifications
327
2011 Escape Hybrid(ehv)
Owners Guide, 2nd Printing
USA(fus)

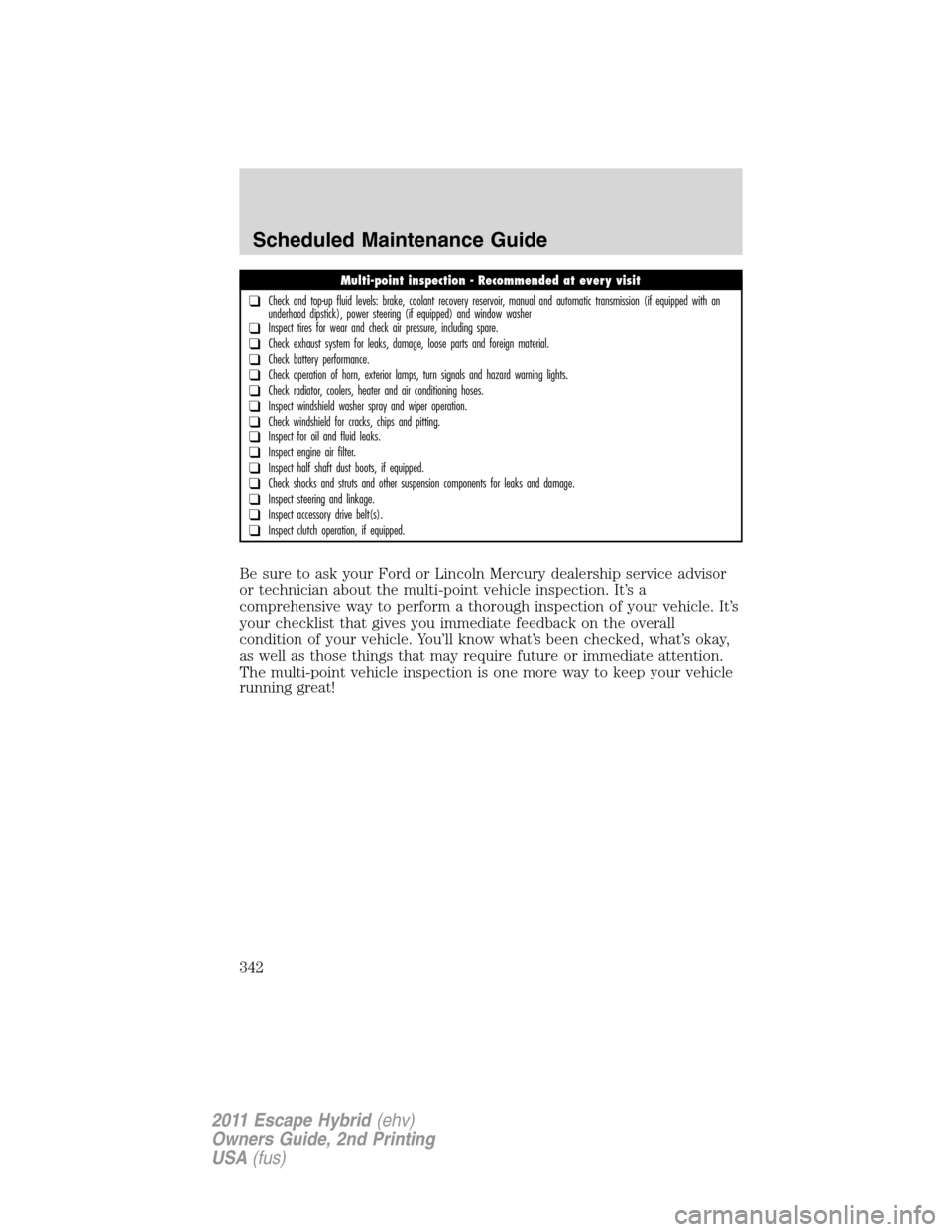

Be sure to ask your Ford or Lincoln Mercury dealership service advisor
or technician about the multi-point vehicle inspection. It’s a
comprehensive way to perform a thorough inspection of your vehicle. It’s
your checklist that gives you immediate feedback on the overall
condition of your vehicle. You’ll know what’s been checked, what’s okay,
as well as those things that may require future or immediate attention.
The multi-point vehicle inspection is one more way to keep your vehicle
running great!
Multi-point inspection - Recommended at every visit
❑Check and top-up fluid levels: brake, coolant recovery reservoir, manual and automatic transmission (if equipped with an
underhood dipstick), power steering (if equipped) and window washer
❑Inspect tires for wear and check air pressure, including spare.
❑Check exhaust system for leaks, damage, loose parts and foreign material.
❑Check battery performance.
❑Check operation of horn, exterior lamps, turn signals and hazard warning lights.
❑Check radiator, coolers, heater and air conditioning hoses.
❑Inspect windshield washer spray and wiper operation.
❑Check windshield for cracks, chips and pitting.
❑Inspect for oil and fluid leaks.
❑Inspect engine air filter.
❑Inspect half shaft dust boots, if equipped.
❑Check shocks and struts and other suspension components for leaks and damage.
❑Inspect steering and linkage.
❑Inspect accessory drive belt(s).
❑Inspect clutch operation, if equipped.
Scheduled Maintenance Guide
342
2011 Escape Hybrid(ehv)
Owners Guide, 2nd Printing
USA(fus)

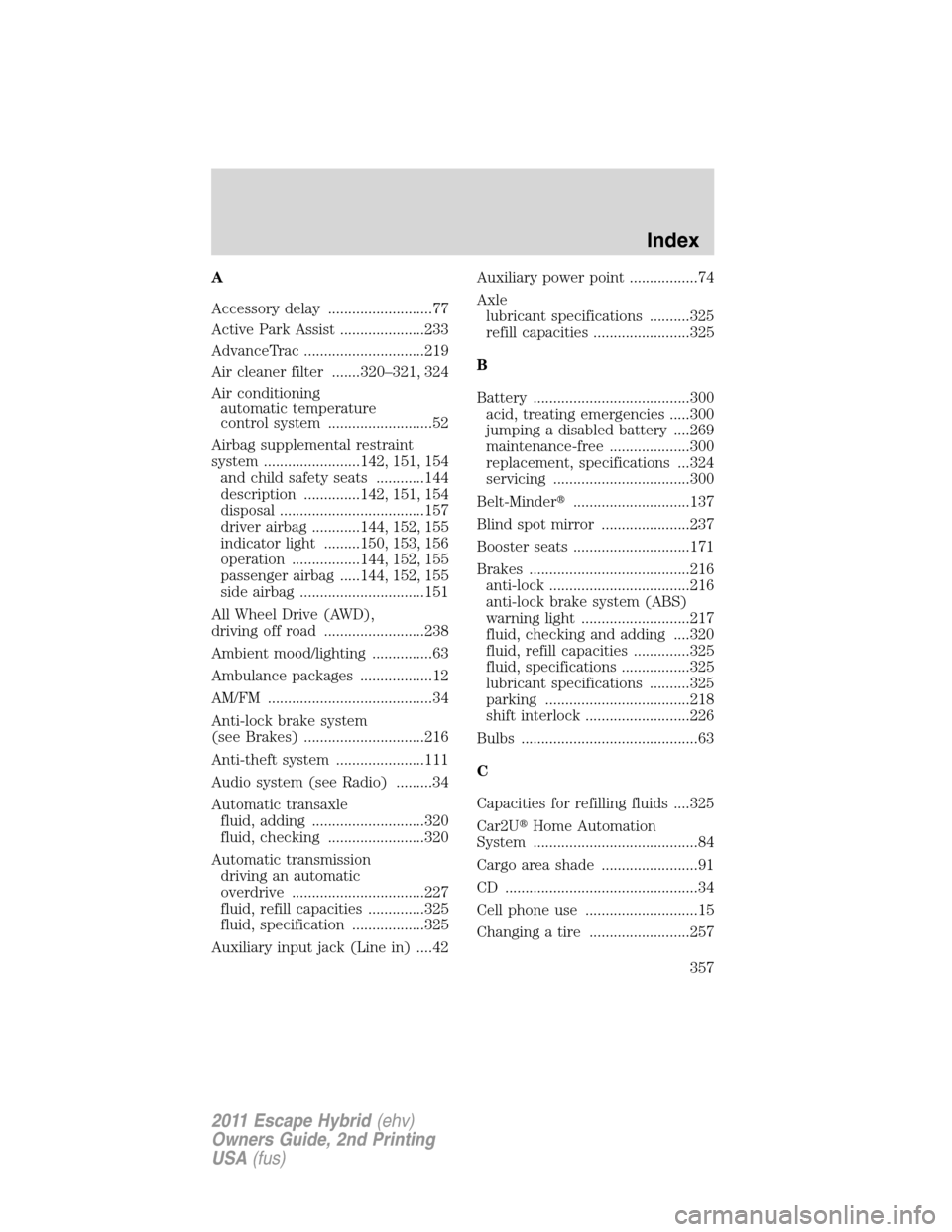

A
Accessory delay ..........................77
Active Park Assist .....................233
AdvanceTrac ..............................219
Air cleaner filter .......320–321, 324
Air conditioning
automatic temperature
control system ..........................52
Airbag supplemental restraint
system ........................142, 151, 154
and child safety seats ............144
description ..............142, 151, 154
disposal ....................................157
driver airbag ............144, 152, 155
indicator light .........150, 153, 156
operation .................144, 152, 155
passenger airbag .....144, 152, 155
side airbag ...............................151
All Wheel Drive (AWD),
driving off road .........................238
Ambient mood/lighting ...............63
Ambulance packages ..................12
AM/FM .........................................34
Anti-lock brake system
(see Brakes) ..............................216
Anti-theft system ......................111
Audio system (see Radio) .........34
Automatic transaxle
fluid, adding ............................320
fluid, checking ........................320
Automatic transmission
driving an automatic
overdrive .................................227
fluid, refill capacities ..............325
fluid, specification ..................325
Auxiliary input jack (Line in) ....42Auxiliary power point .................74
Axle
lubricant specifications ..........325
refill capacities ........................325
B
Battery .......................................300
acid, treating emergencies .....300
jumping a disabled battery ....269
maintenance-free ....................300
replacement, specifications ...324
servicing ..................................300
Belt-Minder.............................137
Blind spot mirror ......................237
Booster seats .............................171
Brakes ........................................216
anti-lock ...................................216
anti-lock brake system (ABS)
warning light ...........................217
fluid, checking and adding ....320
fluid, refill capacities ..............325
fluid, specifications .................325
lubricant specifications ..........325
parking ....................................218
shift interlock ..........................226
Bulbs ............................................63
C
Capacities for refilling fluids ....325
Car2UHome Automation
System .........................................84
Cargo area shade ........................91
CD ................................................34
Cell phone use ............................15
Changing a tire .........................257
Index
357
2011 Escape Hybrid(ehv)
Owners Guide, 2nd Printing
USA(fus)

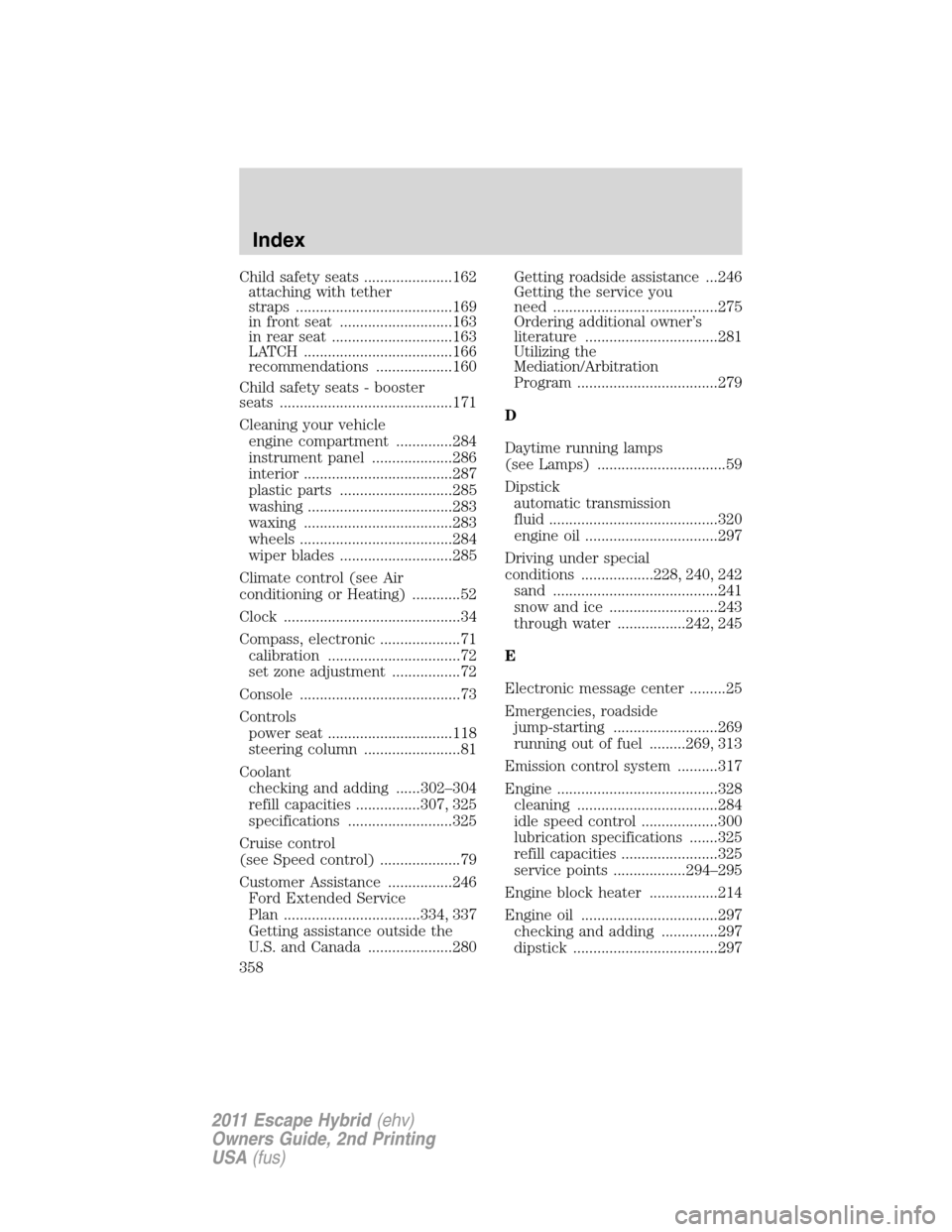

Child safety seats ......................162
attaching with tether
straps .......................................169
in front seat ............................163
in rear seat ..............................163
LATCH .....................................166
recommendations ...................160
Child safety seats - booster
seats ...........................................171
Cleaning your vehicle
engine compartment ..............284
instrument panel ....................286
interior .....................................287
plastic parts ............................285
washing ....................................283
waxing .....................................283
wheels ......................................284
wiper blades ............................285
Climate control (see Air
conditioning or Heating) ............52
Clock ............................................34
Compass, electronic ....................71
calibration .................................72
set zone adjustment .................72
Console ........................................73
Controls
power seat ...............................118
steering column ........................81
Coolant
checking and adding ......302–304
refill capacities ................307, 325
specifications ..........................325
Cruise control
(see Speed control) ....................79
Customer Assistance ................246
Ford Extended Service
Plan ..................................334, 337
Getting assistance outside the
U.S. and Canada .....................280Getting roadside assistance ...246
Getting the service you
need .........................................275
Ordering additional owner’s
literature .................................281
Utilizing the
Mediation/Arbitration
Program ...................................279
D
Daytime running lamps
(see Lamps) ................................59
Dipstick
automatic transmission
fluid ..........................................320
engine oil .................................297
Driving under special
conditions ..................228, 240, 242
sand .........................................241
snow and ice ...........................243
through water .................242, 245
E
Electronic message center .........25
Emergencies, roadside
jump-starting ..........................269
running out of fuel .........269, 313
Emission control system ..........317
Engine ........................................328
cleaning ...................................284
idle speed control ...................300
lubrication specifications .......325
refill capacities ........................325
service points ..................294–295
Engine block heater .................214
Engine oil ..................................297
checking and adding ..............297
dipstick ....................................297
Index
358
2011 Escape Hybrid(ehv)
Owners Guide, 2nd Printing
USA(fus)

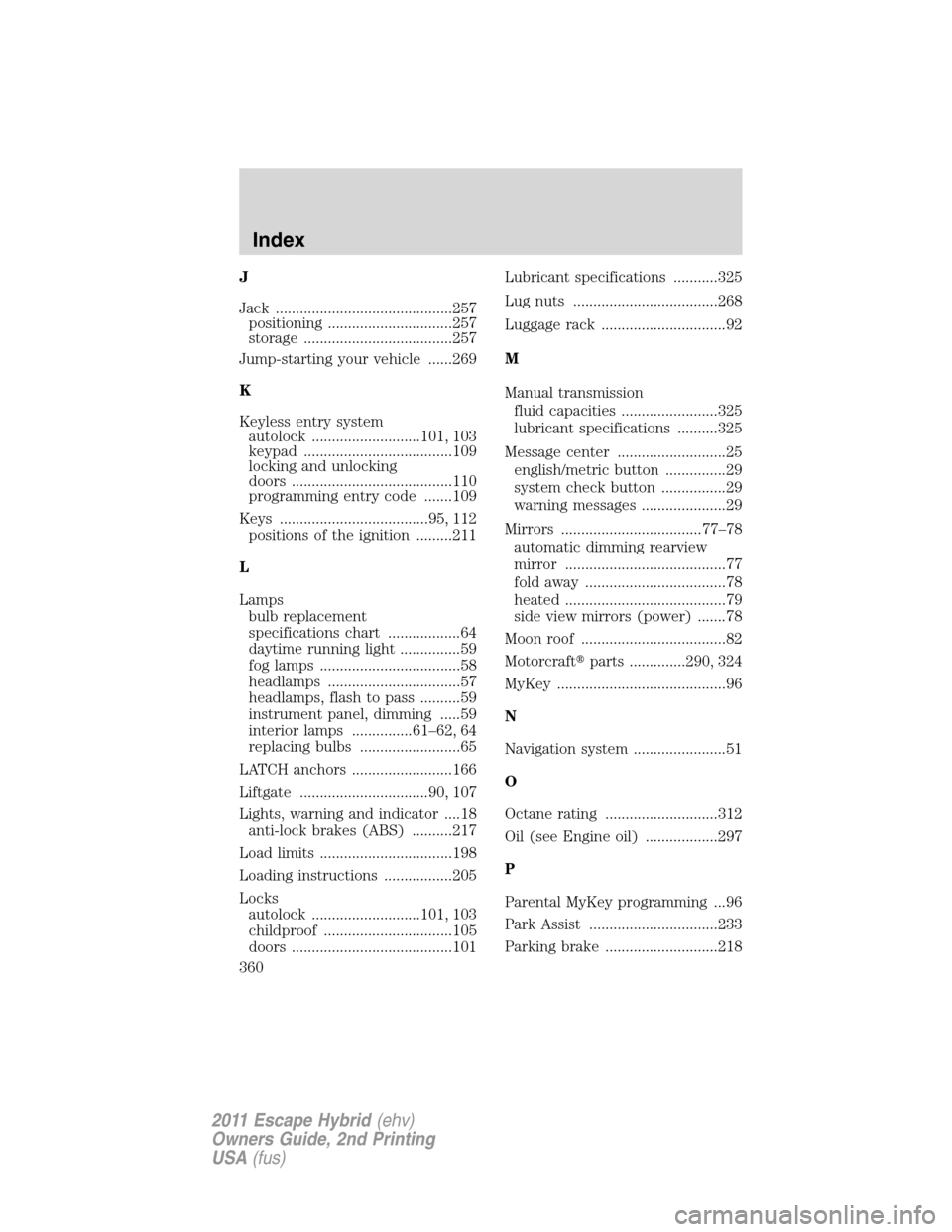

J
Jack ............................................257
positioning ...............................257
storage .....................................257
Jump-starting your vehicle ......269
K
Keyless entry system
autolock ...........................101, 103
keypad .....................................109
locking and unlocking
doors ........................................110
programming entry code .......109
Keys .....................................95, 112
positions of the ignition .........211
L
Lamps
bulb replacement
specifications chart ..................64
daytime running light ...............59
fog lamps ...................................58
headlamps .................................57
headlamps, flash to pass ..........59
instrument panel, dimming .....59
interior lamps ...............61–62, 64
replacing bulbs .........................65
LATCH anchors .........................166
Liftgate ................................90, 107
Lights, warning and indicator ....18
anti-lock brakes (ABS) ..........217
Load limits .................................198
Loading instructions .................205
Locks
autolock ...........................101, 103
childproof ................................105
doors ........................................101Lubricant specifications ...........325
Lug nuts ....................................268
Luggage rack ...............................92
M
Manual transmission
fluid capacities ........................325
lubricant specifications ..........325
Message center ...........................25
english/metric button ...............29
system check button ................29
warning messages .....................29
Mirrors ...................................77–78
automatic dimming rearview
mirror ........................................77
fold away ...................................78
heated ........................................79
side view mirrors (power) .......78
Moon roof ....................................82
Motorcraftparts ..............290, 324
MyKey ..........................................96
N
Navigation system .......................51
O
Octane rating ............................312
Oil (see Engine oil) ..................297
P
Parental MyKey programming ...96
Park Assist ................................233
Parking brake ............................218
Index
360
2011 Escape Hybrid(ehv)
Owners Guide, 2nd Printing
USA(fus)

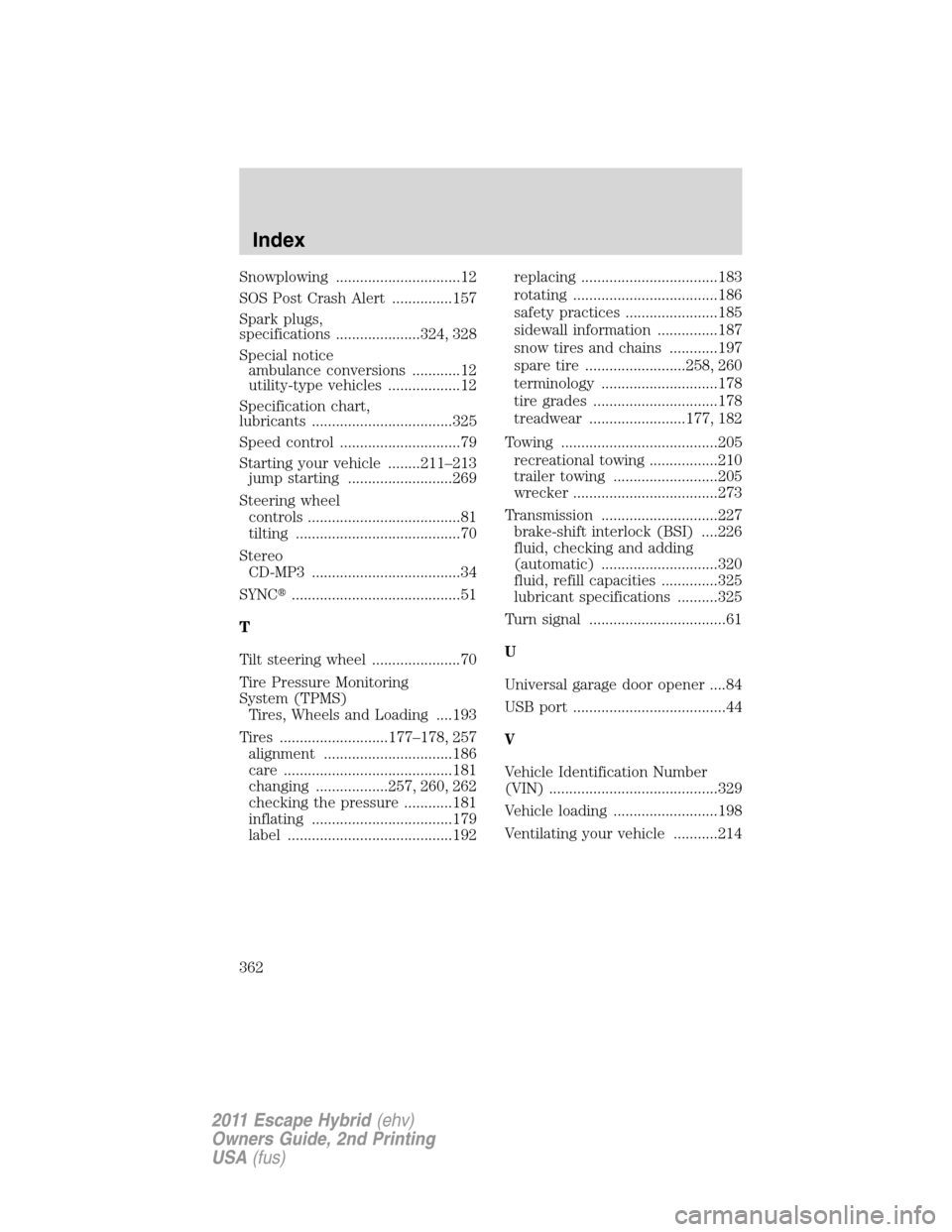

Snowplowing ...............................12
SOS Post Crash Alert ...............157
Spark plugs,
specifications .....................324, 328
Special notice
ambulance conversions ............12
utility-type vehicles ..................12
Specification chart,
lubricants ...................................325
Speed control ..............................79
Starting your vehicle ........211–213
jump starting ..........................269
Steering wheel
controls ......................................81
tilting .........................................70
Stereo
CD-MP3 .....................................34
SYNC..........................................51
T
Tilt steering wheel ......................70
Tire Pressure Monitoring
System (TPMS)
Tires, Wheels and Loading ....193
Tires ...........................177–178, 257
alignment ................................186
care ..........................................181
changing ..................257, 260, 262
checking the pressure ............181
inflating ...................................179
label .........................................192replacing ..................................183
rotating ....................................186
safety practices .......................185
sidewall information ...............187
snow tires and chains ............197
spare tire .........................258, 260
terminology .............................178
tire grades ...............................178
treadwear ........................177, 182
Towing .......................................205
recreational towing .................210
trailer towing ..........................205
wrecker ....................................273
Transmission .............................227
brake-shift interlock (BSI) ....226
fluid, checking and adding
(automatic) .............................320
fluid, refill capacities ..............325
lubricant specifications ..........325
Turn signal ..................................61
U
Universal garage door opener ....84
USB port ......................................44
V
Vehicle Identification Number
(VIN) ..........................................329
Vehicle loading ..........................198
Ventilating your vehicle ...........214
Index
362
2011 Escape Hybrid(ehv)
Owners Guide, 2nd Printing
USA(fus)
