Page 111 of 191
Fuse rating Color
10 amp Red
15 amp Blue
20 amp Yellow
30 amp Light Green
30 amp fuse link Pink
40 amp Green
60 amp fuse link Yellow
80 amp fuse link Black
100 amp fuse link Blue
Instrument panel fuse panel
Number Fuse amperage
ratingCircuits protected
1 Stop 15 amp Brakelamps, shift lock
2 Tail 15 amp Instrument cluster
illumination, license
plate lamp, parking
lamps, side marker
lamps, tail lamps,
(radio, climate control
illumination)
3 Sun roof Ð Not used
4 ASC 10 amp Speed control
5 Ð Ð Not used
6 (Door lock) 30 amp Power door locks
7 Horn 15 amp Horn
8 (Air Conditioning) 15 amp A/C, clutch
Roadside emergencies
111
Page 112 of 191
Number Fuse amperage
ratingCircuits protected
9 Meter 10 amp Backup lamps, shift
lock, gauges, speed
control, turn signals,
key-in-ignition
reminder chime
10 Wiper 20 amp Windshield wipers
and washer
11 (Rear wiper) 10 amp Rear wiper and
washer
12 Hazard 15 amp Hazard flashers, turn
signals
13 Room 10 amp Clock, interior lamp,
luggage compartment
lamp, safety belt
warning chime, radio
power
14 Engine 15 amp Engine control system
15 Mirrors 5 amp Power mirrors
16 Ð Ð Not used
17 Ð Ð Not used
18 (Fog) 10 amp Daytime running
lamps / fog lamps
19 Ð Ð Not used
20 Cigar 20 amp Cigar lighter
21 (Radio) 15 amp Radio (Premium
sound)
Roadside emergencies
112
Page 113 of 191
Engine compartment fuse panel
Number Fuse amperage
ratingCircuits protected
1 Fuel injection 30 amp Fuel injection system,
air bags
2 Defog. 30 amp Rear window
defroster
3 Main 100 amp Overall circuit
protection
USE THE DESIGNATED FUSES ONLY BTAA
1
789
10
11 12 23456
Roadside emergencies
113
Page 114 of 191
Number Fuse amperage
ratingCircuits protected
4 BTN 40 amp Passenger
compartment fuses 1,
2, 6, 12, 13, 7
5 (ABS) 60 amp Anti-lock brake
system (ABS)
6 Cooling fan 40 amp Cooling fan
7 Head Ð Head lamp relay
8 Not used Ð Ð
9 OBD II 10 amp On-board diagnostics
10 Fuel pump 20 amp Fuel pump
11 Head RH 20 amp Passenger side
headlamps
12 Head LH 20 amp Driver side headlamps
CHANGING THE TIRES
Temporary spare tire
information
The temporary spare tire for your
vehicle is labeled as such. It is
smaller than a regular tire and is
designed for emergency use only.
If you use the temporary
spare tire continuously or
do not follow these precautions,
the tire could fail, causing you to
lose control of the vehicle,
possibly injuring yourself or
others.
When driving with the temporary
spare tire,do not:
Roadside emergencies
114
Page 115 of 191
²exceed 80 km/h (50 mph) under
any circumstances
²load the vehicle beyond the
maximum vehicle load rating
listed on the Safety Compliance
Certification Label
²use tire chains
²drive through an automatic car
wash (because of the vehicle's
reduced ground clearance)
²try to repair the temporary
spare tire or remove it from its
wheel
²use the wheel for any other type
of vehicle
Tire changing procedure
1. Park on a level surface.
2. Activate the hazard flashers.
3. Set the parking brake.
4. Place the gearshift in P
(automatic transaxle) or R
(manual transaxle).
²Automatic
P
R
N
D
D
L
Roadside emergencies
115
Page 116 of 191
²Manual
5. Block the diagonally opposite
wheel.
²Remove the lug wrench first.
Use the lug wrench to remove
the hold-down bolts on the
spare tire and jack.
4 25 3 1R
Roadside emergencies
116
Page 117 of 191
6. Remove the jack, jack handle
and spare tire from the vehicle's
rear cargo area.
²Locate the wheel cover
hold-down lug nut.
²Completely remove this lug nut.
Use the lug wrench provided
with the jack to loosen the
retention bolts on the spare tire.
²Do not attempt to remove the
wheel cover until lug nuts are
removed.
Roadside emergencies
117
Page 118 of 191
7. Loosen the remaining wheel lug
nuts with the lug wrench about
one half turn counterclockwise.
8. Position the jack at the jack
notch closest to the wheel.
9. Insert the jack handle and raise
the vehicle until the tire just clears
the ground.
10. Remove the wheel lug nuts and
flat tire, and install the spare with
the ``temporary use'' label facing
outward.
11. Install the same metric wheel
lug nuts as removed and tighten
until snug.
Roadside emergencies
118
Page 119 of 191

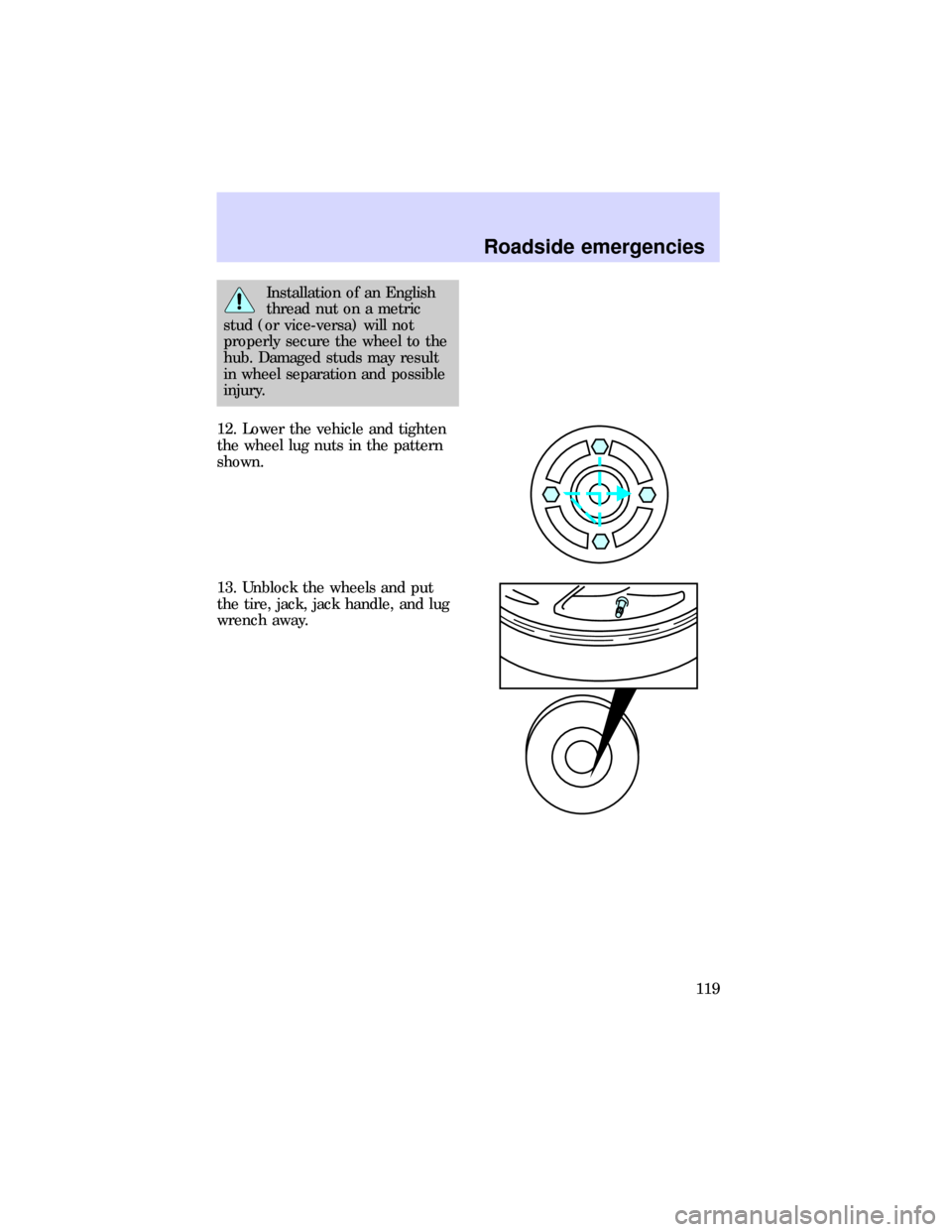

Installation of an English
thread nut on a metric
stud (or vice-versa) will not
properly secure the wheel to the
hub. Damaged studs may result
in wheel separation and possible
injury.
12. Lower the vehicle and tighten
the wheel lug nuts in the pattern
shown.
13. Unblock the wheels and put
the tire, jack, jack handle, and lug
wrench away.
Roadside emergencies
119
Page 120 of 191

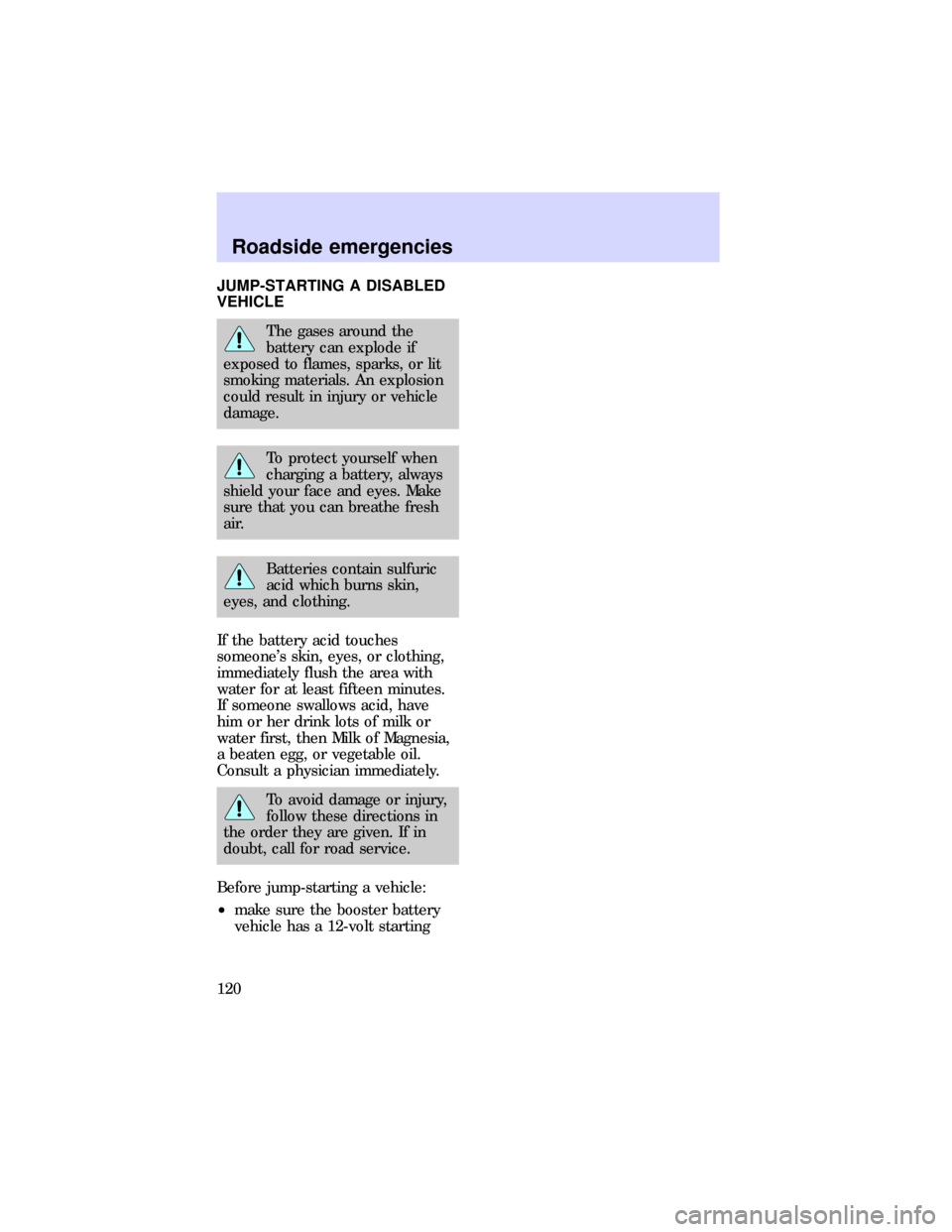

JUMP-STARTING A DISABLED
VEHICLE
The gases around the
battery can explode if
exposed to flames, sparks, or lit
smoking materials. An explosion
could result in injury or vehicle
damage.
To protect yourself when
charging a battery, always
shield your face and eyes. Make
sure that you can breathe fresh
air.
Batteries contain sulfuric
acid which burns skin,
eyes, and clothing.
If the battery acid touches
someone's skin, eyes, or clothing,
immediately flush the area with
water for at least fifteen minutes.
If someone swallows acid, have
him or her drink lots of milk or
water first, then Milk of Magnesia,
a beaten egg, or vegetable oil.
Consult a physician immediately.
To avoid damage or injury,
follow these directions in
the order they are given. If in
doubt, call for road service.
Before jump-starting a vehicle:
²make sure the booster battery
vehicle has a 12-volt starting
Roadside emergencies
120
