Page 52 of 200
Downloaded from www.Manualslib.com manuals search engine POWER DOOR LOCKS (IF EQUIPPED)
Press U to unlock all doors and L to
lock all doors.
CHILDPROOF DOOR LOCKS
When these locks are set, the rear
doors cannot be opened from the
inside. The rear doors can be
opened from the outside when the
doors are unlocked.
The childproof locks are located on
rear edge of each rear door and
must be set separately for each
door. Setting the lock for one door
will not automatically set the lock
for both doors.
Move lock control down to engage
the lock. Move control up to
disengage childproof locks.
UL
Controls and features
52
Page 66 of 200
Downloaded from www.Manualslib.com manuals search engine Combination lap and shoulder belts
1. Insert the belt tongue into the
proper buckle (the buckle closest to
the direction the tongue is coming
from) until you hear a snap and feel
it latch. Make sure the tongue is
securely fastened in the buckle.
2. To unfasten, push the release
button and remove the tongue from
the buckle.
The front and rear outboard safety restraints in the vehicle are
combination lap and shoulder belts. The front passenger and rear seat
outboard safety belts have two types of locking modes described below:
Automatic locking mode
In this mode, the shoulder belt is automatically pre-locked. The belt will
still retract to remove any slack in the shoulder belt.
The automatic locking mode is not available on the driver safety belt.
When to use the automatic locking mode
²When a tight lap/shoulder fit is desired.
²Anytimea child safety seat is installed in a passenger front or
outboard rear seating position (if equipped). Refer toSafety
Restraints for ChildrenorSafety Seats for Childrenlater in this
chapter.
Seating and safety restraints
66
Page 77 of 200
Downloaded from www.Manualslib.com manuals search engine SAFETY SEATS FOR CHILDREN
Child and infant or child safety seats
Use a safety seat that is recommended for the size and weight of the child.
Carefully follow all of the manufacturer's instructions with the safety seat
you put in your vehicle. If you do not install and use the safety seat properly,
the child may be injured in a sudden stop or collision.
When installing a child safety seat:
²Review and follow the information
presented in theAir Bag
Supplemental Restraint System
section in this chapter.
²Use the correct safety belt buckle
for that seating position.
²Insert the belt tongue into the
proper buckle until you hear a
snap and feel it latch. Make sure
the tongue is securely fastened in the buckle.
²Keep the buckle release button pointing up and away from the safety
seat, with the tongue between the child seat and the release button,
to prevent accidental unbuckling.
²Place seat back in upright position.
²Put the safety belt in the automatic locking mode. Refer toAutomatic
locking mode(passenger side front and outboard rear seating
positions) (if equipped).
Ford recommends the use of a child safety seat having a top tether
strap. Install the child safety seat in a seating position which is capable
of providing a tether anchorage. For more information on top tether
straps, refer toAttaching safety seats with tether straps.
Seating and safety restraints
77
Page 79 of 200
Downloaded from www.Manualslib.com manuals search engine 3. While holding the shoulder and
lap belt portions together, route the
tongue through the child seat
according to the child seat
manufacturer's instructions. Be sure
the belt webbing is not twisted.
4. Insert the belt tongue into the
proper buckle (the buckle closest to
the direction the tongue is coming
from) for that seating position until
you hear a snap and feel the latch
engage. Make sure the tongue is
latched securely by pulling on it.
5. To put the retractor in the
automatic locking mode, grasp the
shoulder portion of the belt and pull
downward until all of the belt is
extracted and a click is heard.
6. Allow the belt to retract. The belt will click as it retracts to indicate it
is in the automatic locking mode.
Seating and safety restraints
79
Page 80 of 200
Downloaded from www.Manualslib.com manuals search engine 7. Pull the lap belt portion across
the child seat toward the buckle and
pull up on the shoulder belt while
pushing down with your knee on the
child seat.
8. Allow the safety belt to retract to
remove any slack in the belt.
9. Before placing the child in the
seat, forcibly tilt the seat forward
and back to make sure the seat is
securely held in place.
10. Try to pull the belt out of the retractor to make sure the retractor is
in the automatic locking mode (you should not be able to pull more belt
out). If the retractor is not locked, unbuckle the belt and repeat steps
two through nine.
Check to make sure the child seat is properly secured before each use.
Attaching safety seats with tether straps
Some manufacturers make safety seats that include a tether strap that
goes over the back of the vehicle seat and attaches to an anchoring
point. Other manufacturers offer the tether strap as an accessory.
Contact the manufacturer of your child safety seat for information about
ordering a tether strap.
Tether anchorage hardware (Coupe)
Attachment holes (at both rear seating positions) have been provided in
your vehicle to attach anchor hardware, if desired. Tether anchorage
hardware kits (part number 613D74) including instructions, may be
obtained at no charge from any Ford or Lincoln-Mercury dealer. All
vehicles built for sale in Canada include a tether anchor hardware kit.
Seating and safety restraints
80
Page 145 of 200

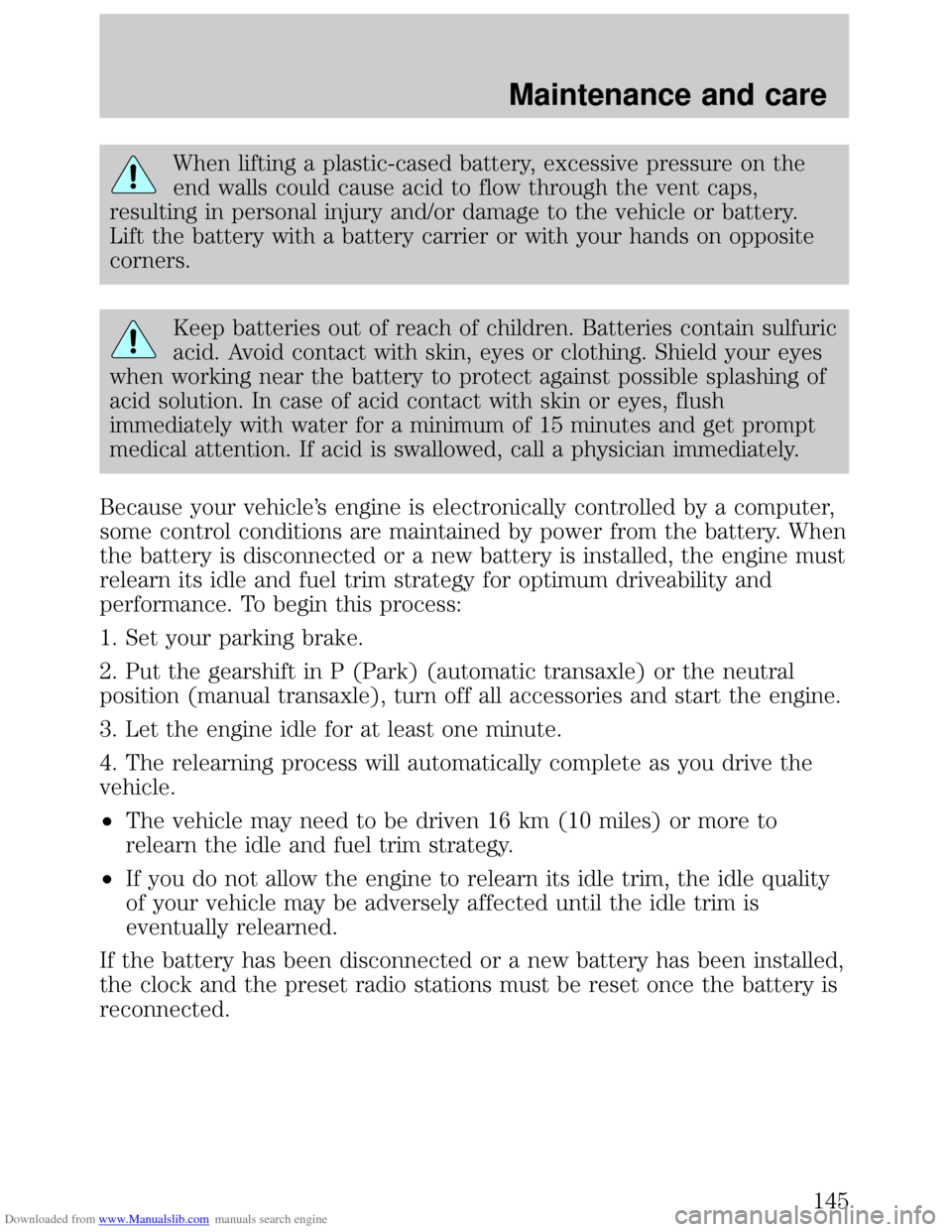

Downloaded from www.Manualslib.com manuals search engine When lifting a plastic-cased battery, excessive pressure on the
end walls could cause acid to flow through the vent caps,
resulting in personal injury and/or damage to the vehicle or battery.
Lift the battery with a battery carrier or with your hands on opposite
corners.
Keep batteries out of reach of children. Batteries contain sulfuric
acid. Avoid contact with skin, eyes or clothing. Shield your eyes
when working near the battery to protect against possible splashing of
acid solution. In case of acid contact with skin or eyes, flush
immediately with water for a minimum of 15 minutes and get prompt
medical attention. If acid is swallowed, call a physician immediately.
Because your vehicle's engine is electronically controlled by a computer,
some control conditions are maintained by power from the battery. When
the battery is disconnected or a new battery is installed, the engine must
relearn its idle and fuel trim strategy for optimum driveability and
performance. To begin this process:
1. Set your parking brake.
2. Put the gearshift in P (Park) (automatic transaxle) or the neutral
position (manual transaxle), turn off all accessories and start the engine.
3. Let the engine idle for at least one minute.
4. The relearning process will automatically complete as you drive the
vehicle.
²The vehicle may need to be driven 16 km (10 miles) or more to
relearn the idle and fuel trim strategy.
²If you do not allow the engine to relearn its idle trim, the idle quality
of your vehicle may be adversely affected until the idle trim is
eventually relearned.
If the battery has been disconnected or a new battery has been installed,
the clock and the preset radio stations must be reset once the battery is
reconnected.
Maintenance and care
145
Page 194 of 200
Downloaded from www.Manualslib.com manuals search engine Air bag supplemental
restraint system ..........................71
and child safety seats ..............73
description ................................71
disposal ......................................75
driver air bag ............................73
indicator light ........................8,75
operation ...................................73
passenger air bag .....................73
Air cleaner filter ................146,174
Air conditioning ..........................37
Anti-theft system ...................58,59
arming the system ....................59
disarming a
triggered system ..................59,60
disarming an untriggered
system .......................................59
warning light ...............................9
Automatic transaxle ...................95
driving with ...............................97
fluid, refill capacities ..............174
fluid, specification ..................176
Battery .......................................144
acid, treating emergencies .....144
charging system
warning light .............................10
jumping a disabled battery ....117
maintenance-free ....................144
replacement, specifications ...174
servicing ..................................144
Brakes ..........................................89
anti-lock ................................89,90
anti-lock brake system
(ABS) warning light ..............9,89
brake warning light ....................8
fluid, checking and adding ....134
fluid, refill capacities ..............174
fluid, specifications ..........175,176
lubricant specifications ...175,176
parking ......................................90
shift interlock ............................95
Break-in period .............................2Capacities for refilling fluids ....174
Cargo cover .................................54
Child safety restraints ................76
child safety belts ......................76
child safety seats ......................77
Child safety seats ........................77
attaching with tether straps ....80
built-in child seat .....................77
in front seat ..............................78
in rear seat ................................78
tether anchorage
hardware ..............................80,81
Cleaning your vehicle ...............169
engine compartment ..............171
exterior ....................................170
exterior lamps .........................172
instrument panel ....................172
interior .....................................173
plastic parts ............................172
safety belts ..............................173
washing ....................................170
waxing .....................................170
wheels ......................................171
wiper blades ............................172
Clock ..................................19,25,33
Clutch
fluid ..........................................135
operation while driving ............92
recommended shift speeds ......94
Coolant ........................137,139,140
checking and adding ..............138
refill capacities .................139,174
specifications ...................175,176
Customer Assistance ................181
Ford accessories
for your vehicle ......................188
Ford Extended
Service Plan ............................182
Getting assistance outside the
U.S. and Canada .....................187
Getting roadside assistance ...181
Index
194
Page 196 of 200
Downloaded from www.Manualslib.com manuals search engine Headlamps ...................................42
aiming ...............................168,169
bulb specifications ..................167
daytime running lights .............43
flash to pass ..............................43
high beam ..............................9,43
replacing bulbs .......................162
turning on and off ....................42
warning chime ..........................10
Heating ........................................37
heater only system ...................37
heating and air
conditioning system .................39
Hood ..........................................127
Ignition ................................176,177
positions of the ignition ...........42
Infant seats
(see Safety seats) .......................77
Inspection/
maintenance (I/M) testing .......160
Instrument panel ..........................6
cleaning ...................................172
lighting up panel
and interior ...............................14
location of components ..............6
Jump-starting your vehicle ......117
Keys
key in ignition chime ...............10
positions of the ignition ...........42
Lamps
cargo lamps ...............................14
daytime running light ...............43
fog lamps ...................................44
headlamps ..........................42,162
headlamps, flash to pass ..........43
instrument panel, dimming .....14
interior lamps ....................51,167
replacing bulbs ..161,164,165,166
Lane change indicator
(see Turn signal) ........................43
Lights, warning and indicator ......6
air bag ..........................................8anti-lock brakes (ABS) .........9,89
anti-theft .....................................9
brake ............................................8
charging system ........................10
high beam ...................................9
liftgate ajar ................................10
low fuel ........................................7
oil pressure ...............................10
safety belt ...................................8
service engine soon ....................7
turn signal indicator ...................9
Load limits .................................100
GAWR ......................................100
GVWR ......................................100
trailer towing ..........................100
Locks
childproof ..................................52
Lubricant specifications ....175,176
Manual transaxle .........................92
fluid capacities ........................174
lubricant specifications ..........176
reverse .......................................95
Mirrors
side view mirrors (power) .......14
Moon roof ....................................50
Motorcraft parts .................156,174
Octane rating ............................155
Odometer .....................................13
Panic alarm feature, remote
entry system ................................57
Parking brake ..............................90
Parts (see Motorcraft parts) ....174
Power distribution box
(see Fuses) ...............................110
Power door locks ........................52
Power steering ............................91
fluid, checking and adding ....140
fluid, refill capacity ................174
fluid, specifications ..........175,176
Radio ............................................15
Relays .................................107,113
Remote entry system ............55,57
Index
196
Page 197 of 200
Downloaded from www.Manualslib.com manuals search engine illuminated entry ......................58
locking/unlocking doors ......55,56
opening the trunk .....................56
panic alarm ...............................57
replacement/additional
transmitters ...............................58
replacing the batteries .............57
Roof rack ...................................104
Safety belts (see Safety
restraints) ................10,65,66,67,68
Safety Compliance
Certification Label ....................180
Safety defects, reporting ..........193
Safety restraints ...........65,66,67,68
cleaning the safety belts ...70,173
extension assembly ..................69
for adults ..............................66,67
for children ..........................75,76
lap belt ......................................68
warning light
and chime .....................8,10,69,70
Safety seats for children ............77
Seat belts
(see Safety restraints) ...............65
Seats ............................................61
child safety seats ......................77
cleaning ...................................173
Servicing your vehicle ..............123
Spark plugs,
specifications ...............174,176,177
Specification chart,
lubricants ............................175,176
Speed control ..............................44
Speedometer ...............................13
Starting your vehicle .............83,86
jump starting ..........................117
Steering wheel
tilting .........................................48
Tachometer .................................13
Tilt steering wheel ......................48
Tires .............................113,148,149changing ...........................113,114
checking the pressure ............149
replacing ..................................150
rotating ....................................149
snow tires and chains ............151
tire grades ...............................149
treadwear ................................148
Towing
wrecker ....................................122
Transaxle .....................................92
automatic operation .................95
fluid, refill capacities ..............174
lubricant specifications ..........176
manual operation ......................92
Transmission
fluid, checking and adding
(automatic) .............................141
fluid, checking and adding
(manual) .................................143
Trip odometer .............................13
Trunk
remote release .....................15,56
Turn signal ...............................9,43
Vehicle dimensions ...................177
Vehicle Identification Number
(VIN) ..........................................180
Vehicle loading ..........................100
Ventilating your vehicle .............88
Warning chimes ...........................10
Warning lights (see Lights) .........6
Washer fluid ..............................136
Water, Driving through .............102
Windows
power .........................................53
rear wiper/washer .....................50
Windshield washer fluid and
wipers
checking and cleaning ............147
operation ...................................49
replacing wiper blades ...........147
Wrecker towing .........................122
Index
197
