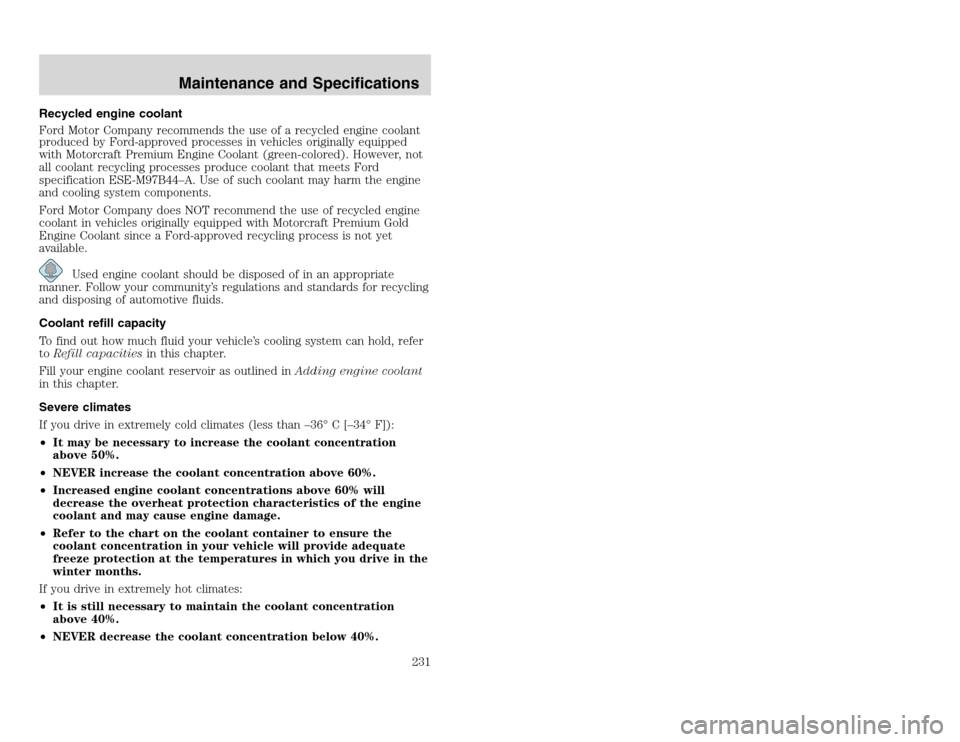

Recycled engine coolant
Ford Motor Company recommends the use of a recycled engine coolant
produced by Ford-approved processes in vehicles originally equipped
with Motorcraft Premium Engine Coolant (green-colored). However, not
all coolant recycling processes produce coolant that meets Ford
specification ESE-M97B44–A. Use of such coolant may harm the engine
and cooling system components.
Ford Motor Company does NOT recommend the use of recycled engine
coolant in vehicles originally equipped with Motorcraft Premium Gold
Engine Coolant since a Ford-approved recycling process is not yet
available.
Used engine coolant should be disposed of in an appropriate
manner. Follow your community’s regulations and standards for recycling
and disposing of automotive fluids.
Coolant refill capacity
To find out how much fluid your vehicle’s cooling system can hold, refer
toRefill capacitiesin this chapter.
Fill your engine coolant reservoir as outlined inAdding engine coolant
in this chapter.
Severe climates
If you drive in extremely cold climates (less than –36° C [–34° F]):
•It may be necessary to increase the coolant concentration
above 50%.
•NEVER increase the coolant concentration above 60%.
•Increased engine coolant concentrations above 60% will
decrease the overheat protection characteristics of the engine
coolant and may cause engine damage.
•Refer to the chart on the coolant container to ensure the
coolant concentration in your vehicle will provide adequate
freeze protection at the temperatures in which you drive in the
winter months.
If you drive in extremely hot climates:
•It is still necessary to maintain the coolant concentration
above 40%.
•NEVER decrease the coolant concentration below 40%.
Maintenance and Specifications
231
Recycled engine coolant
Ford Motor Company recommends the use of a recycled engine coolant
produced by Ford-approved processes in vehicles originally equipped
with Motorcraft Premium Engine Coolant (green-colored). However, not
all coolant recycling processes produce coolant that meets Ford
specification ESE-M97B44–A. Use of such coolant may harm the engine
and cooling system components.
Ford Motor Company does NOT recommend the use of recycled engine
coolant in vehicles originally equipped with Motorcraft Premium Gold
Engine Coolant since a Ford-approved recycling process is not yet
available.
Used engine coolant should be disposed of in an appropriate
manner. Follow your community’s regulations and standards for recycling
and disposing of automotive fluids.
Coolant refill capacity
To find out how much fluid your vehicle’s cooling system can hold, refer
toRefill capacitiesin this chapter.
Fill your engine coolant reservoir as outlined inAdding engine coolant
in this chapter.
Severe climates
If you drive in extremely cold climates (less than –36° C [–34° F]):
•It may be necessary to increase the coolant concentration
above 50%.
•NEVER increase the coolant concentration above 60%.
•Increased engine coolant concentrations above 60% will
decrease the overheat protection characteristics of the engine
coolant and may cause engine damage.
•Refer to the chart on the coolant container to ensure the
coolant concentration in your vehicle will provide adequate
freeze protection at the temperatures in which you drive in the
winter months.
If you drive in extremely hot climates:
•It is still necessary to maintain the coolant concentration
above 40%.
•NEVER decrease the coolant concentration below 40%.
Maintenance and Specifications
231

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 116 B

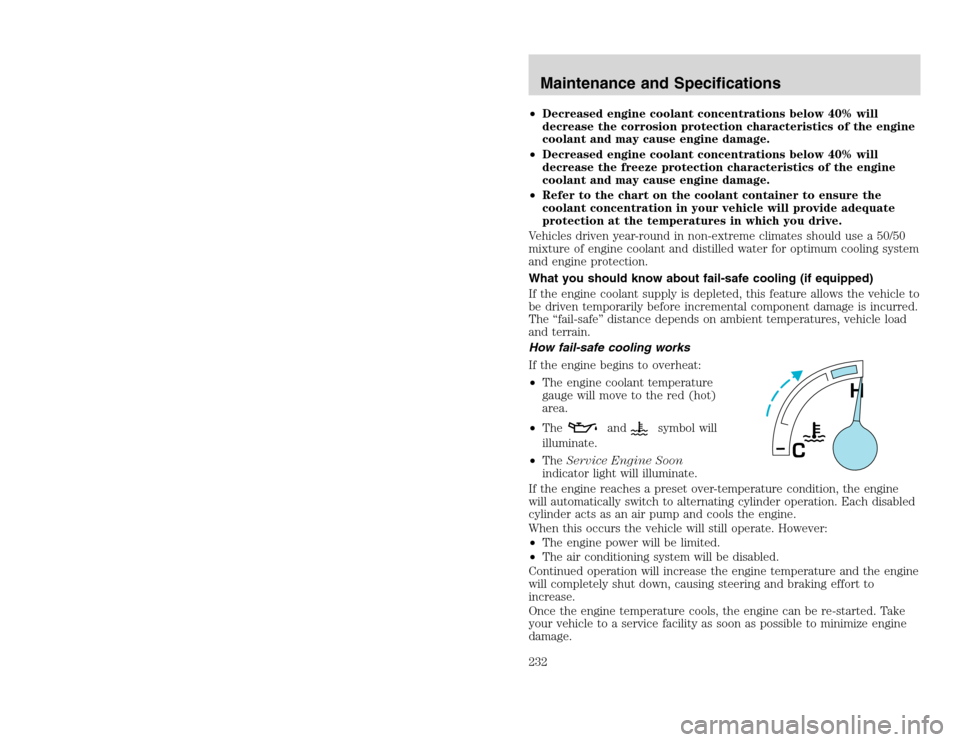

•Decreased engine coolant concentrations below 40% will
decrease the corrosion protection characteristics of the engine
coolant and may cause engine damage.
•Decreased engine coolant concentrations below 40% will
decrease the freeze protection characteristics of the engine
coolant and may cause engine damage.
•Refer to the chart on the coolant container to ensure the
coolant concentration in your vehicle will provide adequate
protection at the temperatures in which you drive.
Vehicles driven year-round in non-extreme climates should use a 50/50
mixture of engine coolant and distilled water for optimum cooling system
and engine protection.
What you should know about fail-safe cooling (if equipped)
If the engine coolant supply is depleted, this feature allows the vehicle to
be driven temporarily before incremental component damage is incurred.
The “fail-safe” distance depends on ambient temperatures, vehicle load
and terrain.
How fail-safe cooling works
If the engine begins to overheat:
•The engine coolant temperature
gauge will move to the red (hot)
area.
•The
and
symbol will
illuminate.
•TheService Engine Soon
indicator light will illuminate.
If the engine reaches a preset over-temperature condition, the engine
will automatically switch to alternating cylinder operation. Each disabled
cylinder acts as an air pump and cools the engine.
When this occurs the vehicle will still operate. However:
•The engine power will be limited.
•The air conditioning system will be disabled.
Continued operation will increase the engine temperature and the engine
will completely shut down, causing steering and braking effort to
increase.
Once the engine temperature cools, the engine can be re-started. Take
your vehicle to a service facility as soon as possible to minimize engine
damage.
H
C
Maintenance and Specifications232
•Decreased engine coolant concentrations below 40% will
decrease the corrosion protection characteristics of the engine
coolant and may cause engine damage.
•Decreased engine coolant concentrations below 40% will
decrease the freeze protection characteristics of the engine
coolant and may cause engine damage.
•Refer to the chart on the coolant container to ensure the
coolant concentration in your vehicle will provide adequate
protection at the temperatures in which you drive.
Vehicles driven year-round in non-extreme climates should use a 50/50
mixture of engine coolant and distilled water for optimum cooling system
and engine protection.
What you should know about fail-safe cooling (if equipped)
If the engine coolant supply is depleted, this feature allows the vehicle to
be driven temporarily before incremental component damage is incurred.
The “fail-safe” distance depends on ambient temperatures, vehicle load
and terrain.
How fail-safe cooling works
If the engine begins to overheat:
•The engine coolant temperature
gauge will move to the red (hot)
area.
•The
and
symbol will
illuminate.
•TheService Engine Soon
indicator light will illuminate.
If the engine reaches a preset over-temperature condition, the engine
will automatically switch to alternating cylinder operation. Each disabled
cylinder acts as an air pump and cools the engine.
When this occurs the vehicle will still operate. However:
•The engine power will be limited.
•The air conditioning system will be disabled.
Continued operation will increase the engine temperature and the engine
will completely shut down, causing steering and braking effort to
increase.
Once the engine temperature cools, the engine can be re-started. Take
your vehicle to a service facility as soon as possible to minimize engine
damage.
H
C
Maintenance and Specifications232

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 117 A
When fail-safe mode is activated
You have limited engine power when in the fail-safe mode, so drive the
vehicle with caution. The vehicle will not be able to maintain high-speed
operation and the engine will run rough. Remember that the engine is
capable of completely shutting down automatically to prevent engine
damage, therefore:
1. Pull off the road as soon as safely possible and turn off the engine.
2. Arrange for the vehicle to be taken to a service facility.
3. If this is not possible, wait a short period for the engine to cool.
4. Check the coolant level and replenish if low.
Never remove the coolant reservoir cap while the engine is
running or hot.
5. Re-start the engine and take your vehicle to a service facility.
Driving the vehicle without repairing the engine problem
increases the chance of engine damage. Take your vehicle to a
service facility as soon as possible.
WHAT YOU SHOULD KNOW ABOUT AUTOMOTIVE FUELS
Important safety precautions
Do not overfill the fuel tank. The pressure in an overfilled tank
may cause leakage and lead to fuel spray and fire.The fuel system may be under pressure. If the fuel filler cap is
venting vapor or if you hear a hissing sound, wait until it stops
before completely removing the fuel filler cap. Otherwise, fuel may
spray out and injure you or others.If you do not use the proper fuel filler cap, excessive pressure or
vacuum in the fuel tank may damage the fuel system or cause
the fuel cap to disengage in a collision, which may result in possible
personal injury.Automotive fuels can cause serious injury or death if misused or
mishandled.
Maintenance and Specifications
233
When fail-safe mode is activated
You have limited engine power when in the fail-safe mode, so drive the
vehicle with caution. The vehicle will not be able to maintain high-speed
operation and the engine will run rough. Remember that the engine is
capable of completely shutting down automatically to prevent engine
damage, therefore:
1. Pull off the road as soon as safely possible and turn off the engine.
2. Arrange for the vehicle to be taken to a service facility.
3. If this is not possible, wait a short period for the engine to cool.
4. Check the coolant level and replenish if low.
Never remove the coolant reservoir cap while the engine is
running or hot.
5. Re-start the engine and take your vehicle to a service facility.
Driving the vehicle without repairing the engine problem
increases the chance of engine damage. Take your vehicle to a
service facility as soon as possible.
WHAT YOU SHOULD KNOW ABOUT AUTOMOTIVE FUELS
Important safety precautions
Do not overfill the fuel tank. The pressure in an overfilled tank
may cause leakage and lead to fuel spray and fire.The fuel system may be under pressure. If the fuel filler cap is
venting vapor or if you hear a hissing sound, wait until it stops
before completely removing the fuel filler cap. Otherwise, fuel may
spray out and injure you or others.If you do not use the proper fuel filler cap, excessive pressure or
vacuum in the fuel tank may damage the fuel system or cause
the fuel cap to disengage in a collision, which may result in possible
personal injury.Automotive fuels can cause serious injury or death if misused or
mishandled.
Maintenance and Specifications
233

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 128 A
Fluid Ford Part Name Application Capacity
Engine coolant-
Gasoline
engines
3
Motorcraft
Premium Engine
Coolant
(green-colored)or
Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)5.4L V8 engine 25L (26.4
quarts)
4
6.8L V10 engine 27.0L (28.5
quarts)
4
Engine
coolant-Diesel
engineRefer to your 7.3L Diesel Supplement
Engine oil
(includes filter
change)-Gasoline
enginesMotorcraft SAE
5W-20 Premium
Synthetic Blend
Motor OilAll 5.7L (6.0
quarts)
Engine oil
(includes filter
change)-Diesel
engineRefer to your 7.3L Diesel Supplement
Fuel tank N/A All 166.6L (44.0
gallons)
Power steering
fluidMotorcraft
MERCONAT FAll Fill to line on
dipstick
Transfer case
fluid (if
equipped)Motorcraft
MERCONAT F4x4 vehicles 1.9L (2.0
quarts)
Transmission
fluid
5
Motorcraft
MERCONAT F4x2 vehicles 16.1L (17.1
quarts)
6
4x4 vehicles 16.7L (17.7
quarts)
6
Windshield
washer fluidUltra-Clear
Windshield Washer
ConcentrateAll 4.2L (1.1
gallons)
Maintenance and Specifications
255
Fluid Ford Part Name Application Capacity
Engine coolant-
Gasoline
engines
3
Motorcraft
Premium Engine
Coolant
(green-colored)or
Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)5.4L V8 engine 25L (26.4
quarts)
4
6.8L V10 engine 27.0L (28.5
quarts)
4
Engine
coolant-Diesel
engineRefer to your 7.3L Diesel Supplement
Engine oil
(includes filter
change)-Gasoline
enginesMotorcraft SAE
5W-20 Premium
Synthetic Blend
Motor OilAll 5.7L (6.0
quarts)
Engine oil
(includes filter
change)-Diesel
engineRefer to your 7.3L Diesel Supplement
Fuel tank N/A All 166.6L (44.0
gallons)
Power steering
fluidMotorcraft
MERCONAT FAll Fill to line on
dipstick
Transfer case
fluid (if
equipped)Motorcraft
MERCONAT F4x4 vehicles 1.9L (2.0
quarts)
Transmission
fluid
5
Motorcraft
MERCONAT F4x2 vehicles 16.1L (17.1
quarts)
6
4x4 vehicles 16.7L (17.7
quarts)
6
Windshield
washer fluidUltra-Clear
Windshield Washer
ConcentrateAll 4.2L (1.1
gallons)
Maintenance and Specifications
255

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 129 A

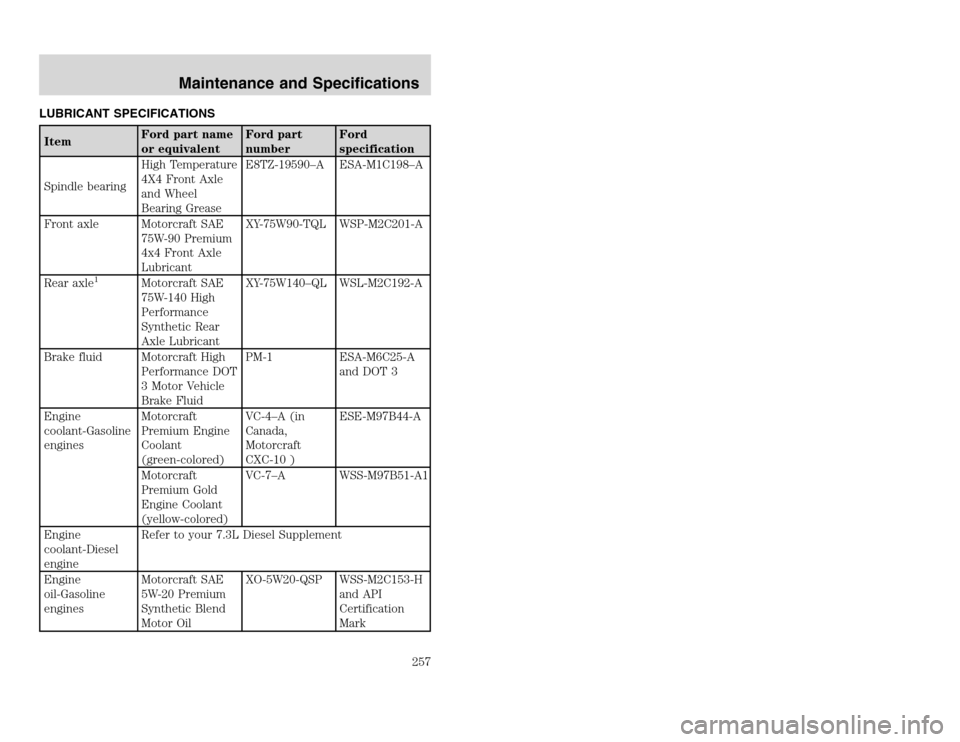

LUBRICANT SPECIFICATIONSItemFord part name
or equivalentFord part
numberFord
specification
Spindle bearingHigh Temperature
4X4 Front Axle
and Wheel
Bearing GreaseE8TZ-19590–A ESA-M1C198–A
Front axle Motorcraft SAE
75W-90 Premium
4x4 Front Axle
LubricantXY-75W90-TQL WSP-M2C201-A
Rear axle
1
Motorcraft SAE
75W-140 High
Performance
Synthetic Rear
Axle LubricantXY-75W140–QL WSL-M2C192-A
Brake fluid Motorcraft High
Performance DOT
3 Motor Vehicle
Brake FluidPM-1 ESA-M6C25-A
and DOT 3
Engine
coolant-Gasoline
enginesMotorcraft
Premium Engine
Coolant
(green-colored)VC-4–A (in
Canada,
Motorcraft
CXC-10 )ESE-M97B44-A
Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7–A WSS-M97B51-A1
Engine
coolant-Diesel
engineRefer to your 7.3L Diesel Supplement
Engine
oil-Gasoline
enginesMotorcraft SAE
5W-20 Premium
Synthetic Blend
Motor OilXO-5W20-QSP WSS-M2C153-H
and API
Certification
Mark
Maintenance and Specifications
257
LUBRICANT SPECIFICATIONSItemFord part name
or equivalentFord part
numberFord
specification
Spindle bearingHigh Temperature
4X4 Front Axle
and Wheel
Bearing GreaseE8TZ-19590–A ESA-M1C198–A
Front axle Motorcraft SAE
75W-90 Premium
4x4 Front Axle
LubricantXY-75W90-TQL WSP-M2C201-A
Rear axle
1
Motorcraft SAE
75W-140 High
Performance
Synthetic Rear
Axle LubricantXY-75W140–QL WSL-M2C192-A
Brake fluid Motorcraft High
Performance DOT
3 Motor Vehicle
Brake FluidPM-1 ESA-M6C25-A
and DOT 3
Engine
coolant-Gasoline
enginesMotorcraft
Premium Engine
Coolant
(green-colored)VC-4–A (in
Canada,
Motorcraft
CXC-10 )ESE-M97B44-A
Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7–A WSS-M97B51-A1
Engine
coolant-Diesel
engineRefer to your 7.3L Diesel Supplement
Engine
oil-Gasoline
enginesMotorcraft SAE
5W-20 Premium
Synthetic Blend
Motor OilXO-5W20-QSP WSS-M2C153-H
and API
Certification
Mark
Maintenance and Specifications
257

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 133 B

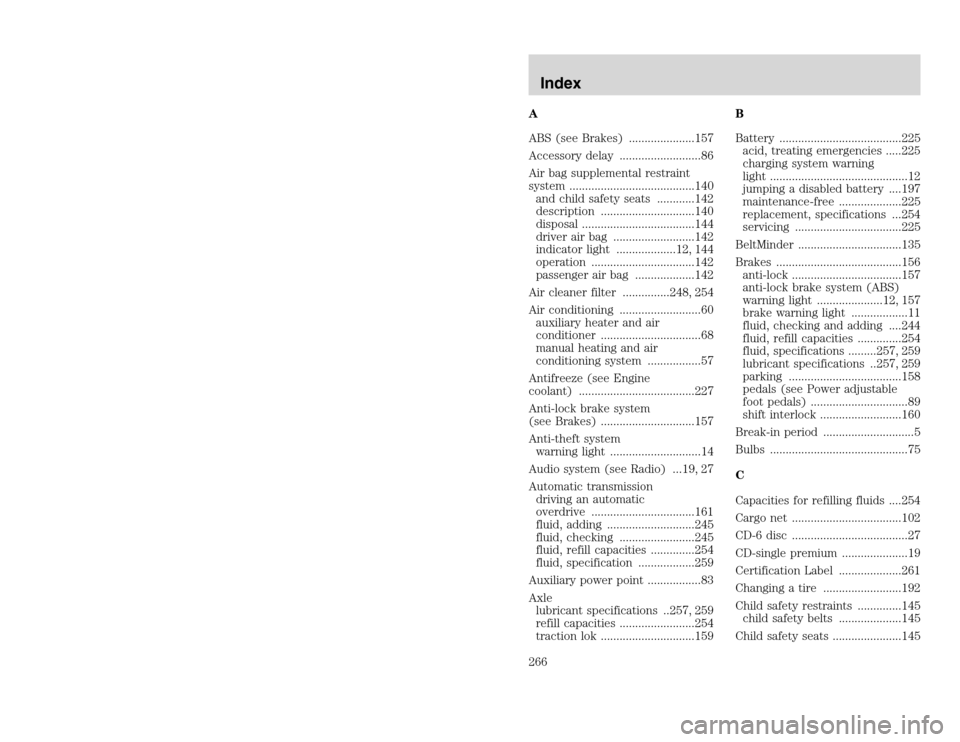

A
ABS (see Brakes) .....................157
Accessory delay ..........................86
Air bag supplemental restraint
system ........................................140
and child safety seats ............142
description ..............................140
disposal ....................................144
driver air bag ..........................142
indicator light ...................12, 144
operation .................................142
passenger air bag ...................142
Air cleaner filter ...............248, 254
Air conditioning ..........................60
auxiliary heater and air
conditioner ................................68
manual heating and air
conditioning system .................57
Antifreeze (see Engine
coolant) .....................................227
Anti-lock brake system
(see Brakes) ..............................157
Anti-theft system
warning light .............................14
Audio system (see Radio) ...19, 27
Automatic transmission
driving an automatic
overdrive .................................161
fluid, adding ............................245
fluid, checking ........................245
fluid, refill capacities ..............254
fluid, specification ..................259
Auxiliary power point .................83
Axle
lubricant specifications ..257, 259
refill capacities ........................254
traction lok ..............................159B
Battery .......................................225
acid, treating emergencies .....225
charging system warning
light ............................................12
jumping a disabled battery ....197
maintenance-free ....................225
replacement, specifications ...254
servicing ..................................225
BeltMinder .................................135
Brakes ........................................156
anti-lock ...................................157
anti-lock brake system (ABS)
warning light .....................12, 157
brake warning light ..................11
fluid, checking and adding ....244
fluid, refill capacities ..............254
fluid, specifications .........257, 259
lubricant specifications ..257, 259
parking ....................................158
pedals (see Power adjustable
foot pedals) ...............................89
shift interlock ..........................160
Break-in period .............................5
Bulbs ............................................75
C
Capacities for refilling fluids ....254
Cargo net ...................................102
CD-6 disc .....................................27
CD-single premium .....................19
Certification Label ....................261
Changing a tire .........................192
Child safety restraints ..............145
child safety belts ....................145
Child safety seats ......................145Index266
A
ABS (see Brakes) .....................157
Accessory delay ..........................86
Air bag supplemental restraint
system ........................................140
and child safety seats ............142
description ..............................140
disposal ....................................144
driver air bag ..........................142
indicator light ...................12, 144
operation .................................142
passenger air bag ...................142
Air cleaner filter ...............248, 254
Air conditioning ..........................60
auxiliary heater and air
conditioner ................................68
manual heating and air
conditioning system .................57
Antifreeze (see Engine
coolant) .....................................227
Anti-lock brake system
(see Brakes) ..............................157
Anti-theft system
warning light .............................14
Audio system (see Radio) ...19, 27
Automatic transmission
driving an automatic
overdrive .................................161
fluid, adding ............................245
fluid, checking ........................245
fluid, refill capacities ..............254
fluid, specification ..................259
Auxiliary power point .................83
Axle
lubricant specifications ..257, 259
refill capacities ........................254
traction lok ..............................159B
Battery .......................................225
acid, treating emergencies .....225
charging system warning
light ............................................12
jumping a disabled battery ....197
maintenance-free ....................225
replacement, specifications ...254
servicing ..................................225
BeltMinder .................................135
Brakes ........................................156
anti-lock ...................................157
anti-lock brake system (ABS)
warning light .....................12, 157
brake warning light ..................11
fluid, checking and adding ....244
fluid, refill capacities ..............254
fluid, specifications .........257, 259
lubricant specifications ..257, 259
parking ....................................158
pedals (see Power adjustable
foot pedals) ...............................89
shift interlock ..........................160
Break-in period .............................5
Bulbs ............................................75
C
Capacities for refilling fluids ....254
Cargo net ...................................102
CD-6 disc .....................................27
CD-single premium .....................19
Certification Label ....................261
Changing a tire .........................192
Child safety restraints ..............145
child safety belts ....................145
Child safety seats ......................145Index266

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 134 A
attaching with tether straps ..149
in front seat ............................147
in rear seat ..............................147
Cleaning your vehicle
engine compartment ..............214
exterior ....................................217
instrument panel ....................216
interior .....................................216
plastic parts ............................215
washing ....................................213
waxing .....................................213
wheels ......................................214
wiper blades ....................215–216
woodtone trim ........................216
Climate control (see Air
conditioning or Heating) ......57, 60
Clock ......................................23, 32
Compass, electronic ..............86, 95
calibration .................................96
set zone adjustment .................96
Console ......................................101
overhead ..............................82–83
Controls
power seat ...............................119
steering column ........................93
Coolant
checking and adding ..............227
refill capacities ................231, 254
specifications ..................257, 259
Cruise control (see Speed
control) ........................................89
Customer Assistance ................185
Ford accessories for your
vehicle .............................217–218
Ford Extended Service
Plan ..........................................206
Getting assistance outside the
U.S. and Canada .....................210
Getting roadside assistance ...185Getting the service you
need .........................................204
Ordering additional owner’s
literature .................................211
The Dispute Settlement
Board .......................................206
Utilizing the
Mediation/Arbitration
Program ...................................209
D
Daytime running lamps
(see Lamps) ................................72
Defrost
rear window ..............................70
Dipstick
automatic transmission
fluid ..........................................245
engine oil .................................222
Doors
door ajar warning .....................14
lubricant specifications ..........257
Driving under special
conditions ..........................171, 173
sand .........................................172
snow and ice ...........................174
through water .................173, 177
E
Emergencies, roadside
jump-starting ..........................197
Emission control system ..........241
Engine ................................259–260
check engine/service engine
soon light ..................................10
cleaning ...................................214
coolant .....................................227
diesel ...........................................7
Index
267
attaching with tether straps ..149
in front seat ............................147
in rear seat ..............................147
Cleaning your vehicle
engine compartment ..............214
exterior ....................................217
instrument panel ....................216
interior .....................................216
plastic parts ............................215
washing ....................................213
waxing .....................................213
wheels ......................................214
wiper blades ....................215–216
woodtone trim ........................216
Climate control (see Air
conditioning or Heating) ......57, 60
Clock ......................................23, 32
Compass, electronic ..............86, 95
calibration .................................96
set zone adjustment .................96
Console ......................................101
overhead ..............................82–83
Controls
power seat ...............................119
steering column ........................93
Coolant
checking and adding ..............227
refill capacities ................231, 254
specifications ..................257, 259
Cruise control (see Speed
control) ........................................89
Customer Assistance ................185
Ford accessories for your
vehicle .............................217–218
Ford Extended Service
Plan ..........................................206
Getting assistance outside the
U.S. and Canada .....................210
Getting roadside assistance ...185Getting the service you
need .........................................204
Ordering additional owner’s
literature .................................211
The Dispute Settlement
Board .......................................206
Utilizing the
Mediation/Arbitration
Program ...................................209
D
Daytime running lamps
(see Lamps) ................................72
Defrost
rear window ..............................70
Dipstick
automatic transmission
fluid ..........................................245
engine oil .................................222
Doors
door ajar warning .....................14
lubricant specifications ..........257
Driving under special
conditions ..........................171, 173
sand .........................................172
snow and ice ...........................174
through water .................173, 177
E
Emergencies, roadside
jump-starting ..........................197
Emission control system ..........241
Engine ................................259–260
check engine/service engine
soon light ..................................10
cleaning ...................................214
coolant .....................................227
diesel ...........................................7
Index
267

20815.psp Ford O/G 2002 Excursion English 4th Print 2C3J-19A321-HB 04/24/2003 09:14:57 134 B

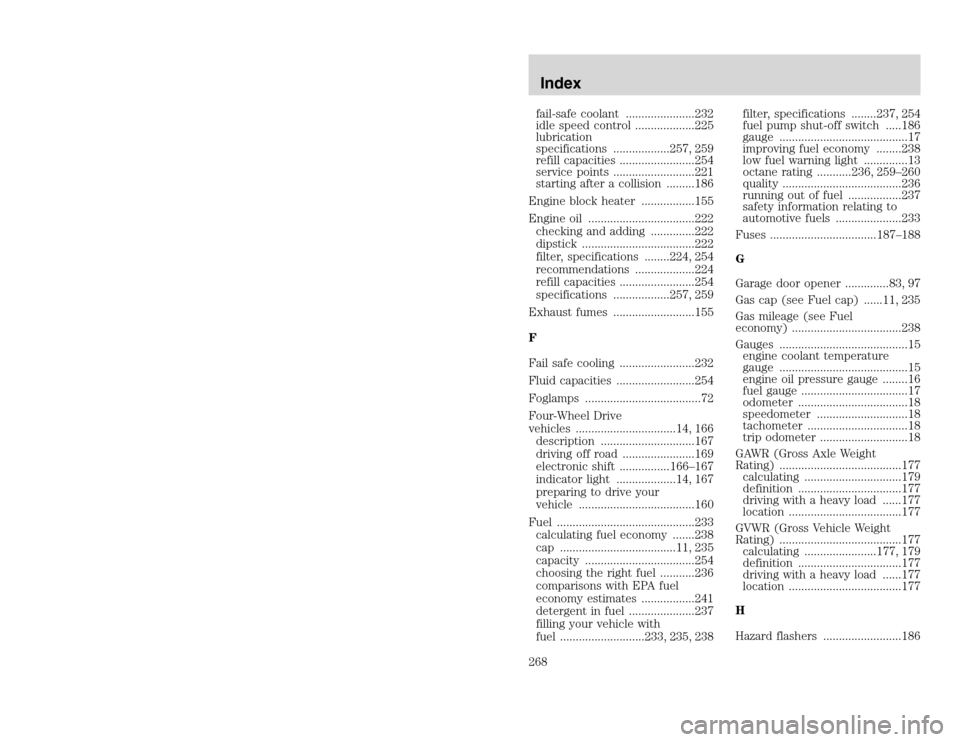

fail-safe coolant ......................232
idle speed control ...................225
lubrication
specifications ..................257, 259
refill capacities ........................254
service points ..........................221
starting after a collision .........186
Engine block heater .................155
Engine oil ..................................222
checking and adding ..............222
dipstick ....................................222
filter, specifications ........224, 254
recommendations ...................224
refill capacities ........................254
specifications ..................257, 259
Exhaust fumes ..........................155
F
Fail safe cooling ........................232
Fluid capacities .........................254
Foglamps .....................................72
Four-Wheel Drive
vehicles ................................14, 166
description ..............................167
driving off road .......................169
electronic shift ................166–167
indicator light ...................14, 167
preparing to drive your
vehicle .....................................160
Fuel ............................................233
calculating fuel economy .......238
cap .....................................11, 235
capacity ...................................254
choosing the right fuel ...........236
comparisons with EPA fuel
economy estimates .................241
detergent in fuel .....................237
filling your vehicle with
fuel ...........................233, 235, 238filter, specifications ........237, 254
fuel pump shut-off switch .....186
gauge .........................................17
improving fuel economy ........238
low fuel warning light ..............13
octane rating ...........236, 259–260
quality ......................................236
running out of fuel .................237
safety information relating to
automotive fuels .....................233
Fuses ..................................187–188
G
Garage door opener ..............83, 97
Gas cap (see Fuel cap) ......11, 235
Gas mileage (see Fuel
economy) ...................................238
Gauges .........................................15
engine coolant temperature
gauge .........................................15
engine oil pressure gauge ........16
fuel gauge ..................................17
odometer ...................................18
speedometer .............................18
tachometer ................................18
trip odometer ............................18
GAWR (Gross Axle Weight
Rating) .......................................177
calculating ...............................179
definition .................................177
driving with a heavy load ......177
location ....................................177
GVWR (Gross Vehicle Weight
Rating) .......................................177
calculating .......................177, 179
definition .................................177
driving with a heavy load ......177
location ....................................177
H
Hazard flashers .........................186Index268
fail-safe coolant ......................232
idle speed control ...................225
lubrication
specifications ..................257, 259
refill capacities ........................254
service points ..........................221
starting after a collision .........186
Engine block heater .................155
Engine oil ..................................222
checking and adding ..............222
dipstick ....................................222
filter, specifications ........224, 254
recommendations ...................224
refill capacities ........................254
specifications ..................257, 259
Exhaust fumes ..........................155
F
Fail safe cooling ........................232
Fluid capacities .........................254
Foglamps .....................................72
Four-Wheel Drive
vehicles ................................14, 166
description ..............................167
driving off road .......................169
electronic shift ................166–167
indicator light ...................14, 167
preparing to drive your
vehicle .....................................160
Fuel ............................................233
calculating fuel economy .......238
cap .....................................11, 235
capacity ...................................254
choosing the right fuel ...........236
comparisons with EPA fuel
economy estimates .................241
detergent in fuel .....................237
filling your vehicle with
fuel ...........................233, 235, 238filter, specifications ........237, 254
fuel pump shut-off switch .....186
gauge .........................................17
improving fuel economy ........238
low fuel warning light ..............13
octane rating ...........236, 259–260
quality ......................................236
running out of fuel .................237
safety information relating to
automotive fuels .....................233
Fuses ..................................187–188
G
Garage door opener ..............83, 97
Gas cap (see Fuel cap) ......11, 235
Gas mileage (see Fuel
economy) ...................................238
Gauges .........................................15
engine coolant temperature
gauge .........................................15
engine oil pressure gauge ........16
fuel gauge ..................................17
odometer ...................................18
speedometer .............................18
tachometer ................................18
trip odometer ............................18
GAWR (Gross Axle Weight
Rating) .......................................177
calculating ...............................179
definition .................................177
driving with a heavy load ......177
location ....................................177
GVWR (Gross Vehicle Weight
Rating) .......................................177
calculating .......................177, 179
definition .................................177
driving with a heavy load ......177
location ....................................177
H
Hazard flashers .........................186Index268
