Page 1 of 240
Introduction 4
Instrument Cluster 10
Warning and control lights 10
Gauges 13
Entertainment Systems 17
AM/FM stereo cassette with CD 17
AM/FM stereo with CD 21
Rear seat controls 24
Rear seat entertainment system 24
Climate Controls 40
Manual heating and air conditioning 40
Electronic automatic temperature control 41
Rear window defroster 44
Lights 45
Headlamps 45
Turn signal control 47
Bulb replacement 49
Driver Controls 54
Windshield wiper/washer control 54
Power windows 58
Mirrors 59
Speed control 61
Message center 65
Table of Contents
1

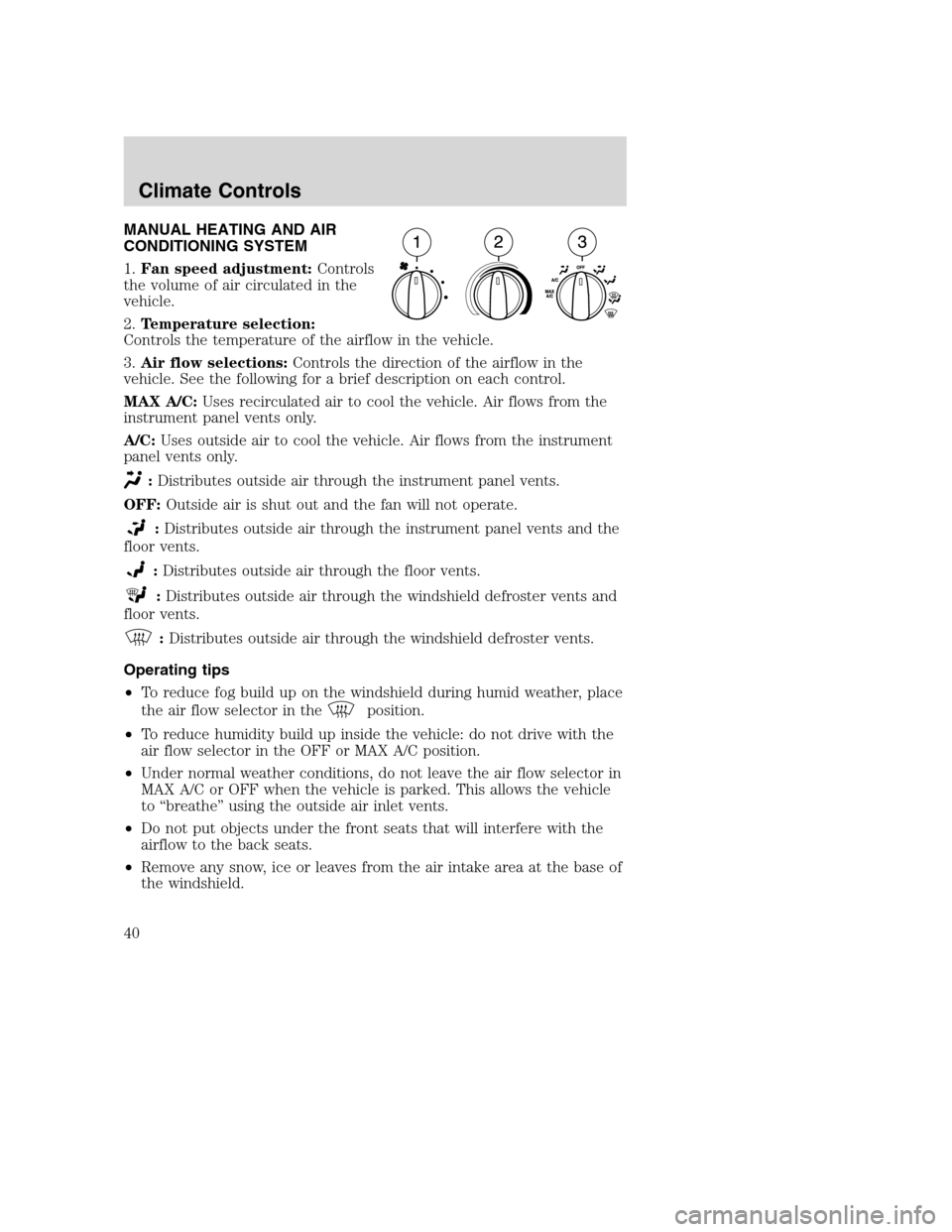

Page 40 of 240
MANUAL HEATING AND AIR
CONDITIONING SYSTEM
1.Fan speed adjustment:Controls
the volume of air circulated in the
vehicle.
2.Temperature selection:
Controls the temperature of the airflow in the vehicle.
3.Air flow selections:Controls the direction of the airflow in the
vehicle. See the following for a brief description on each control.
MAX A/C:Uses recirculated air to cool the vehicle. Air flows from the
instrument panel vents only.
A/C:Uses outside air to cool the vehicle. Air flows from the instrument
panel vents only.
:Distributes outside air through the instrument panel vents.
OFF:Outside air is shut out and the fan will not operate.
:Distributes outside air through the instrument panel vents and the
floor vents.
:Distributes outside air through the floor vents.
:Distributes outside air through the windshield defroster vents and
floor vents.
:Distributes outside air through the windshield defroster vents.
Operating tips
•To reduce fog build up on the windshield during humid weather, place
the air flow selector in the
position.
•To reduce humidity build up inside the vehicle: do not drive with the
air flow selector in the OFF or MAX A/C position.
•Under normal weather conditions, do not leave the air flow selector in
MAX A/C or OFF when the vehicle is parked. This allows the vehicle
to “breathe” using the outside air inlet vents.
•Do not put objects under the front seats that will interfere with the
airflow to the back seats.
•Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
Climate Controls
40
Page 41 of 240
To aid in side window defogging/demisting in cold weather:
1. Select
2. Select A/C
3. Modulate the temperature control to maintain comfort.
4. Set the fan speed to HI
5. Direct the outer instrument panel vents towards the side windows
To increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.
Do not place objects on top of the instrument panel as these
objects may become projectiles in a collision or sudden stop.
ELECTRONIC AUTOMATIC TEMPERATURE CONTROL (EATC)
SYSTEM
1.A/C:Press to turn on the air
conditioning in all modes
except
2.Recirculated air:Reduces cool
down time in very hot conditions by
recirculating the cabin air. May also
help keep undesired odors from entering the vehicle.
3.Rear defrost:
Press to
defrost the rear window.
OFFAUTOEXT TEMP
A/CF
AUTO
Climate Controls
41

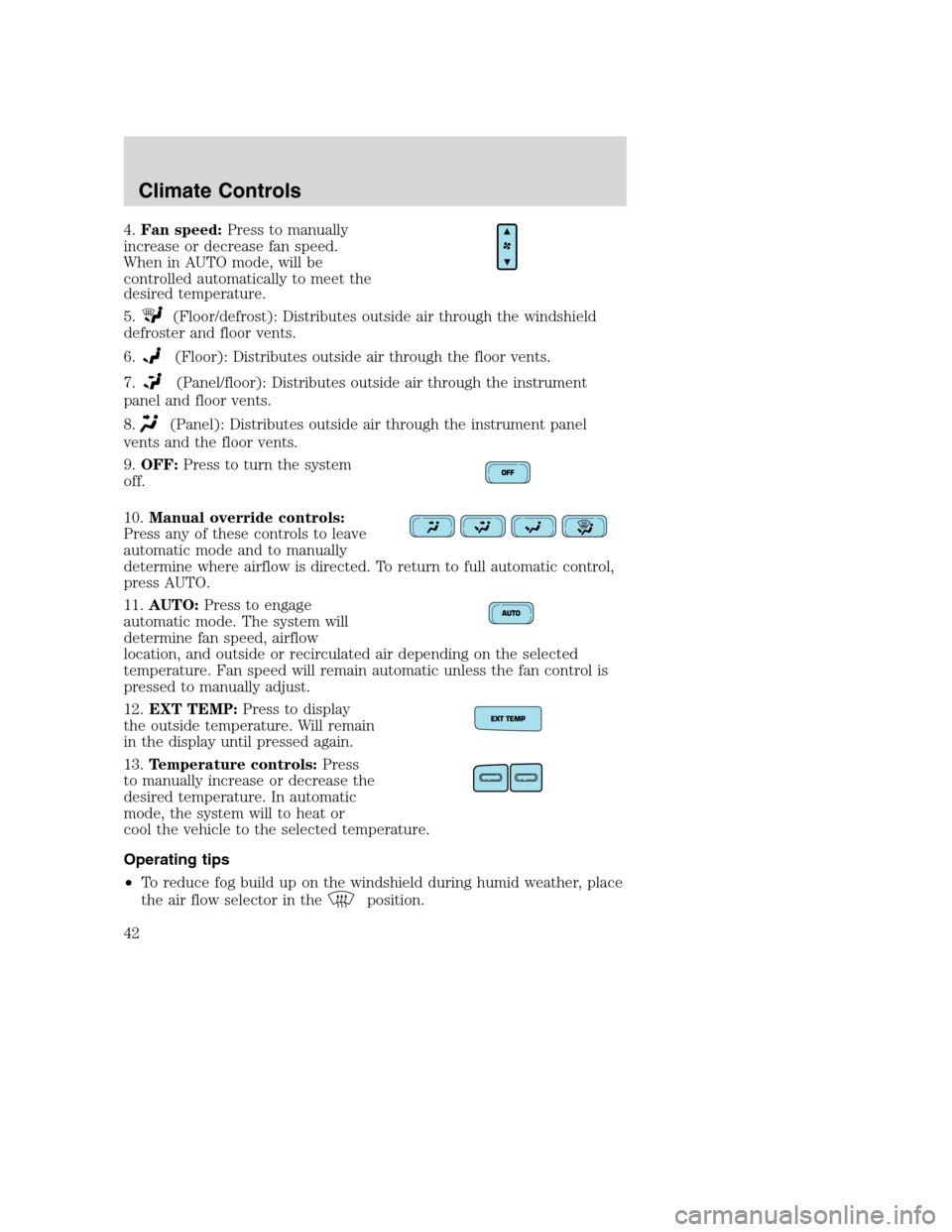

Page 42 of 240
4.Fan speed:Press to manually
increase or decrease fan speed.
When in AUTO mode, will be
controlled automatically to meet the
desired temperature.
5.
(Floor/defrost): Distributes outside air through the windshield
defroster and floor vents.
6.
(Floor): Distributes outside air through the floor vents.
7.
(Panel/floor): Distributes outside air through the instrument
panel and floor vents.
8.
(Panel): Distributes outside air through the instrument panel
vents and the floor vents.
9.OFF:Press to turn the system
off.
10.Manual override controls:
Press any of these controls to leave
automatic mode and to manually
determine where airflow is directed. To return to full automatic control,
press AUTO.
11.AUTO:Press to engage
automatic mode. The system will
determine fan speed, airflow
location, and outside or recirculated air depending on the selected
temperature. Fan speed will remain automatic unless the fan control is
pressed to manually adjust.
12.EXT TEMP:Press to display
the outside temperature. Will remain
in the display until pressed again.
13.Temperature controls:Press
to manually increase or decrease the
desired temperature. In automatic
mode, the system will to heat or
cool the vehicle to the selected temperature.
Operating tips
•To reduce fog build up on the windshield during humid weather, place
the air flow selector in the
position.
Climate Controls
42
Page 43 of 240
•To reduce humidity build up inside the vehicle: do not drive with the
air flow selector in the OFF or MAX A/C position.
•Under normal weather conditions, do not leave the air flow selector in
MAX A/C or OFF when the vehicle is parked. This allows the vehicle
to “breathe” using the outside air inlet vents.
•Do not put objects under the front seats that will interfere with the
airflow to the back seats.
•Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
To aid in side window defogging/demisting in cold weather:
1. Select
2. Select A/C
3. Modulate the temperature control to maintain comfort.
4. Set the fan speed to HI
5. Direct the outer instrument panel vents towards the side windows
To increase airflow to the outer instrument panel vents, close the vents
located in the middle of the instrument panel.
Do not place objects on top of the instrument panel as these
objects may become projectiles in a collision or sudden stop.
AUXILIARY SYSTEM (IF EQUIPPED)
Your vehicle may be equipped with auxiliary climate controls. These
allow the front or rear seat passengers to control airflow direction,
temperature and fan level of the rear compartment to quickly heat or
cool the entire vehicle.
Front auxiliary controls:
1.Fan control:Determines fan
speed levels. Turn to REAR to give
rear seat passengers control of the
rear auxiliary controls. Otherwise,
the front controls will determine the
settings for the entire vehicle cabin.
If set to OFF, the front and rear
auxiliary controls will not function.
2.Temperature control:Determines temperature level. If the main
climate control system is cooling in MAX A/C or
mode, the
auxiliary controls will not function as the entire vehicle will operate at a
full cool temperature.
Climate Controls
43
Page 44 of 240
3.Airflow control:FLOOR directs air to the floor of the third row
seating. PANEL directs air to the overhead registers of the second and
third row seating. To blend the airflow, select any position between
PANEL and FLOOR.
Rear auxiliary controls:
Once the front auxiliary control is set to REAR, the rear seat passengers
may use the rear auxiliary controls in the overhead console to make the
desired adjustments.
1.Fan control:Determines fan
speed levels.
2.Temperature control:
Determines temperature levels. If
the main climate control system is
cooling in MAX A/C or
mode,
the auxiliary controls will not function as the entire vehicle will operate
at a full cool temperature.
3.Airflow control:FLOOR directs air to the floor of the third row
seating. PANEL directs air to the overhead registers of the second and
third row seating. To blend the airflow, select any position between
PANEL and FLOOR.
REAR WINDOW DEFROSTER
The rear defroster control is located
on the instrument panel and works
to defrost your rear window from
fog and ice.
Ensure that the ignition is ON position. Press to turn the defroster
ON/OFF. The indicator light will illuminate when ON.
Climate Controls
44

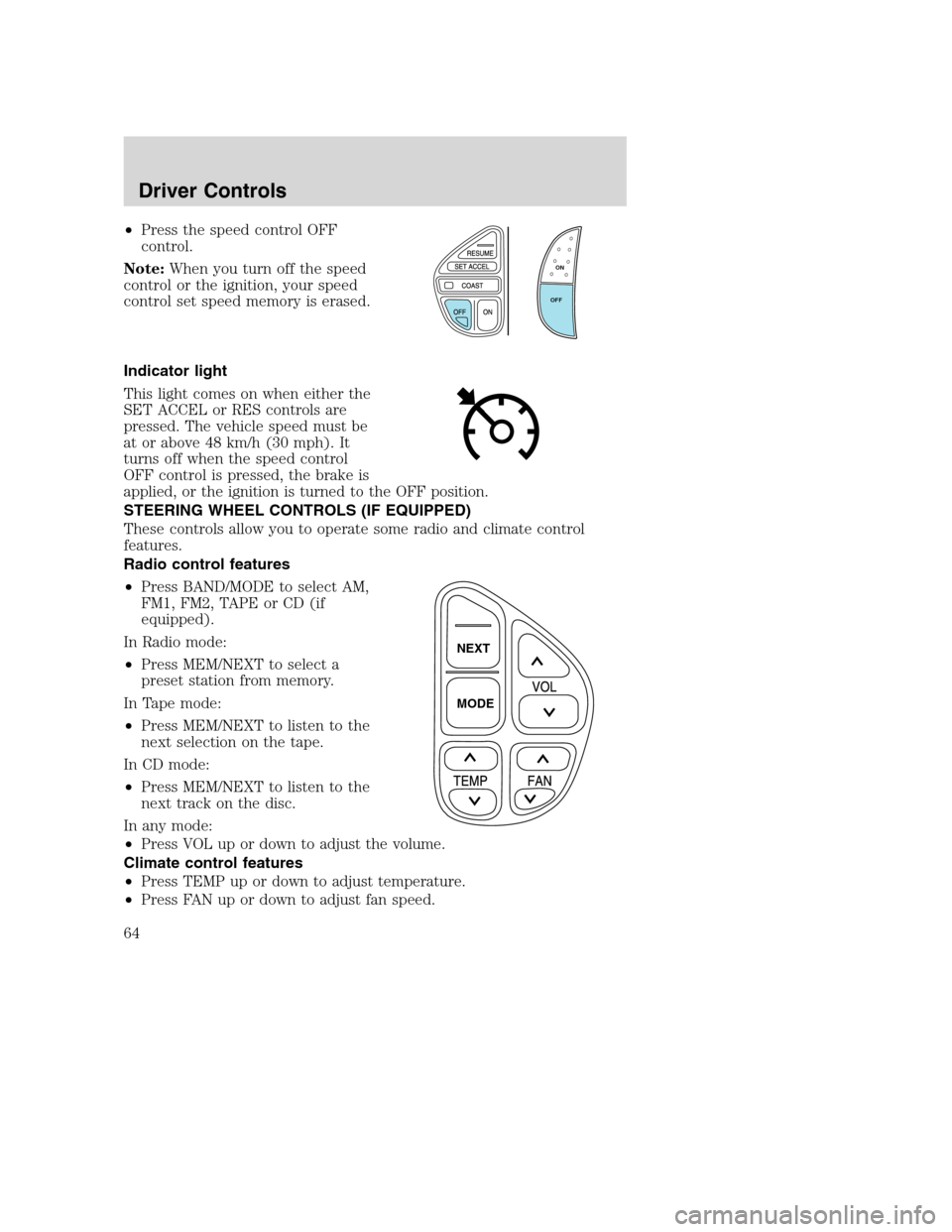

Page 64 of 240
•Press the speed control OFF
control.
Note:When you turn off the speed
control or the ignition, your speed
control set speed memory is erased.
Indicator light
This light comes on when either the
SET ACCEL or RES controls are
pressed. The vehicle speed must be
at or above 48 km/h (30 mph). It
turns off when the speed control
OFF control is pressed, the brake is
applied, or the ignition is turned to the OFF position.
STEERING WHEEL CONTROLS (IF EQUIPPED)
These controls allow you to operate some radio and climate control
features.
Radio control features
•Press BAND/MODE to select AM,
FM1, FM2, TAPE or CD (if
equipped).
In Radio mode:
•Press MEM/NEXT to select a
preset station from memory.
In Tape mode:
•Press MEM/NEXT to listen to the
next selection on the tape.
In CD mode:
•Press MEM/NEXT to listen to the
next track on the disc.
In any mode:
•Press VOL up or down to adjust the volume.
Climate control features
•Press TEMP up or down to adjust temperature.
•Press FAN up or down to adjust fan speed.
O
N
O
F
F
NEXT
MODE
Driver Controls
64
Page 218 of 240
INFORMATION ABOUT UNIFORM TIRE QUALITY GRADING
New vehicles are fitted with tires
that have a rating on them called
Tire Quality Grades. The Quality
grades can be found where
applicable on the tire sidewall
between tread shoulder and
maximum section width. For
example:
•Treadwear 200 Traction AA Temperature A
These Tire Quality Grades are determined by standards that the United
States Department of Transportation has set.
Tire Quality Grades apply to new pneumatic tires for use on passenger
cars. They do not apply to deep tread, winter-type snow tires,
space-saver or temporary use spare tires, tires with nominal rim
diameters of 10 to 12 inches or limited production tires as defined in
Title 49 Code of Federal Regulations Part 575.104(c)(2).
U.S. Department of Transportation-Tire quality grades:The U.S.
Department of Transportation requires Ford to give you the following
information about tire grades exactly as the government has written it.
Treadwear
The treadwear grade is a comparative rating based on the wear rate of
the tire when tested under controlled conditions on a specified
government test course. For example, a tire graded 150 would wear one
and one-half (1 1/2) times as well on the government course as a tire
graded 100. The relative performance of tires depends upon the actual
conditions of their use, however, and may depart significantly from the
norm due to variations in driving habits, service practices, and
differences in road characteristics and climate.
Traction AA A B C
The traction grades, from highest to lowest are AA, A, B, and C. The
grades represent the tire’s ability to stop on wet pavement as measured
under controlled conditions on specified government test surfaces of
asphalt and concrete. A tire marked C may have poor traction
performance.
Maintenance and Specifications
218
Page 221 of 240
When replacing full size tires, never mix radial bias-belted, or
bias-type tires. Use only the tire sizes that are listed on the
Certification Label. Make sure that all tires are the same size, speed
rating, and load-carrying capacity. Use only the tire combinations
recommended on the label. If you do not follow these precautions,
your vehicle handling may be affected which can lead to loss of vehicle
control, vehicle rollover and/or personal injury.
Make sure that all replacement tires are of the same size, type,
speed rating, load-carrying capacity and tread design (e.g., “All
Terrain”, “Touring”, etc.), as originally offered by Ford.
Do not replace your tires with “high performance” tires or larger
size tires.
Failure to follow these precautions may adversely affect the
handling of the vehicle, and increase the risk of loss of vehicle
control, vehicle rollover and/or personal injury.
Tires that are larger or smaller than your vehicle’s original tires may also
affect the accuracy of your speedometer.
SNOW TIRES AND CHAINS
Snow tires must be the same size and grade as the tires you
currently have on your vehicle.
The tires on your vehicle have all weather treads to provide traction in
rain and snow. However, in some climates, you may need to use snow
tires and chains. If you need to use chains, it is recommended that steel
wheels (of the same size and specifications) be used, as chains may chip
aluminum wheels.
Follow these guidelines when using snow tires and chains:
•Use only SAE Class S chains.
•Install chains securely, verifying that the chains do not touch any
wiring, brake lines or fuel lines.
•Drive cautiously. If you hear the chains rub or bang against your
vehicle, stop and re-tighten the chains. If this does not work, remove
the chains to prevent damage to your vehicle.
Maintenance and Specifications
221
Page 236 of 240
plastic parts ............................185
washing ....................................183
waxing .....................................183
wheels ......................................184
wiper blades ............................185
Climate control (see Air
conditioning or Heating) ......41, 43
Compass, electronic ....................66
calibration .................................67
set zone adjustment .................67
Console ........................................72
overhead ....................................56
Controls
power seat .................................89
steering column ........................64
Coolant
checking and adding ..............197
refill capacities ................201, 222
specifications ..................225, 227
Cruise control (see
Speed control) ............................61
Customer Assistance ................154
Ford accessories for your
vehicle .....................................187
Ford Extended Service
Plan ..........................................176
Getting assistance outside
the U.S. and Canada ..............180
Getting roadside assistance ...154
Getting the service
you need .................................174
Ordering additional
owner’s literature ...................181
The Dispute Settlement
Board .......................................176
Utilizing the Mediation/
Arbitration Program ...............179D
Daytime running lamps
(see Lamps) ................................46
Dipstick
automatic transmission
fluid ..........................................214
engine oil .................................192
Doors
lubricant specifications ..........225
Driving under special
conditions ..................134, 140, 143
sand .........................................142
snow and ice ...........................144
through water .................142, 146
E
Emergencies, roadside
jump-starting ..........................166
Emission control system ..........211
Engine ................................227–228
cleaning ...................................184
coolant .....................................197
diesel ...........................................7
fail-safe coolant ......................202
idle speed control ...................195
lubrication
specifications ..................225, 227
refill capacities ........................222
service points ..........................191
starting after a collision .........155
Engine block heater .................127
Engine oil ..................................192
checking and adding ..............192
dipstick ....................................192
filter, specifications ........194, 222
recommendations ...................194
refill capacities ........................222
specifications ..................225, 227
Index
236
