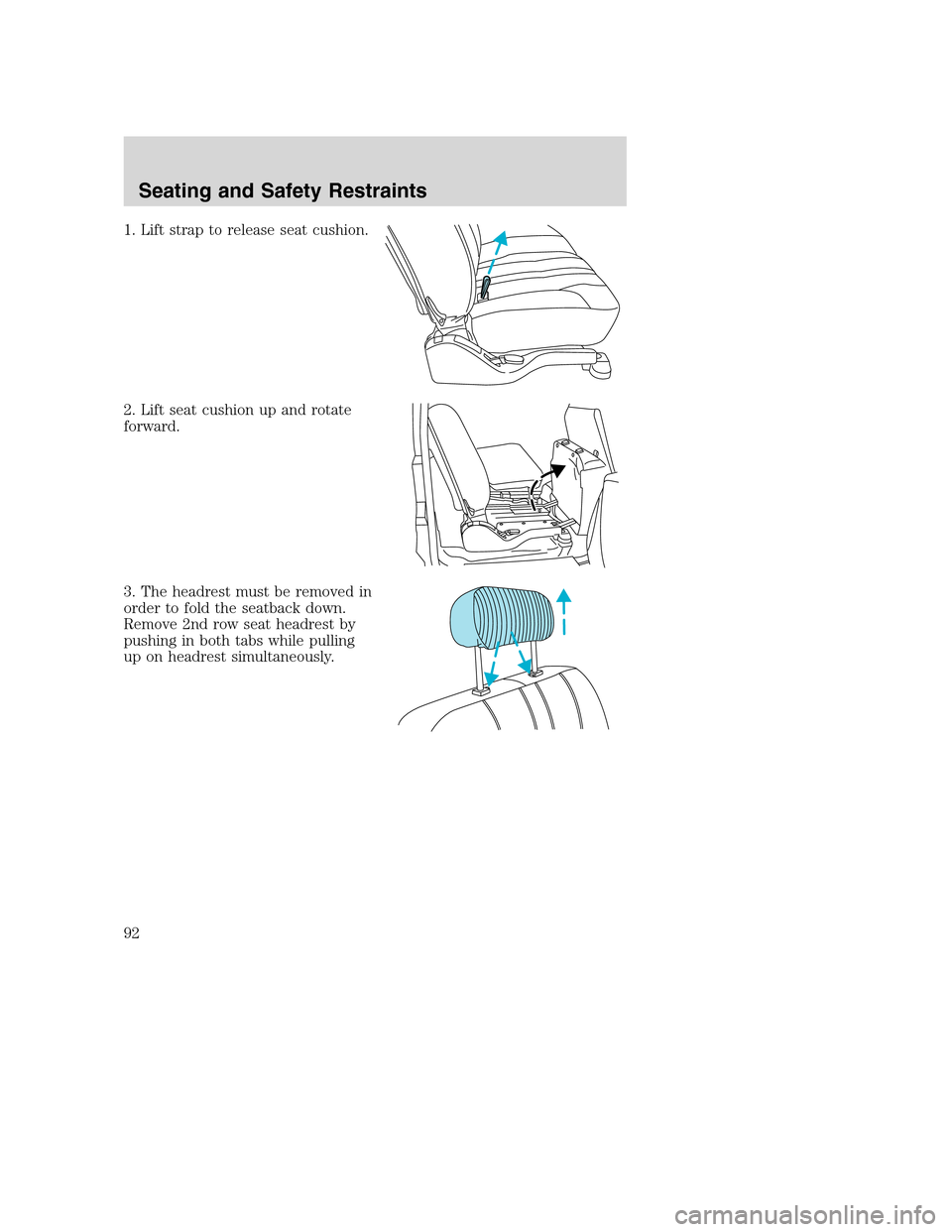

1. Lift strap to release seat cushion.
2. Lift seat cushion up and rotate
forward.
3. The headrest must be removed in
order to fold the seatback down.
Remove 2nd row seat headrest by
pushing in both tabs while pulling
up on headrest simultaneously.
Seating and Safety Restraints
92

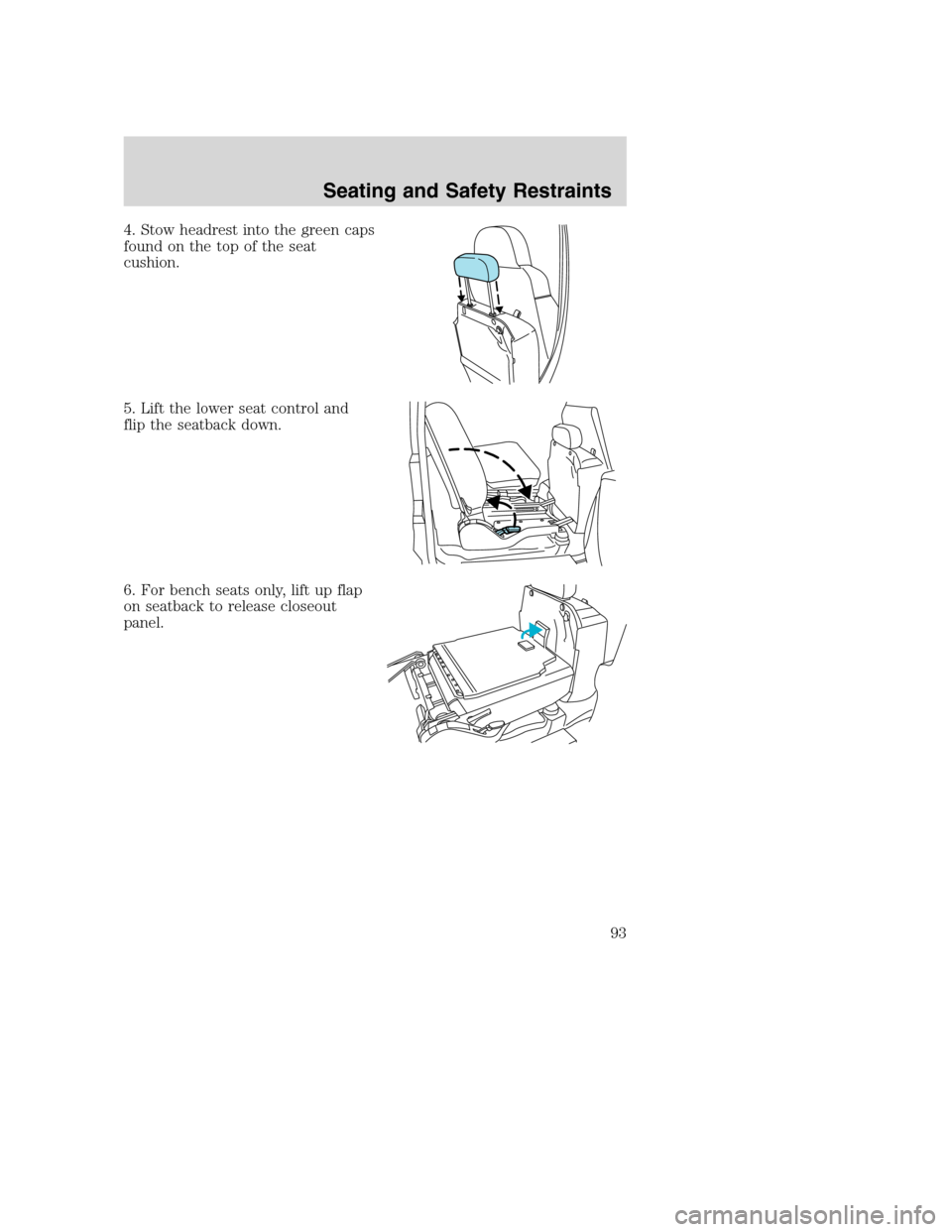

4. Stow headrest into the green caps
found on the top of the seat
cushion.
5. Lift the lower seat control and
flip the seatback down.
6. For bench seats only, lift up flap
on seatback to release closeout
panel.
Seating and Safety Restraints
93

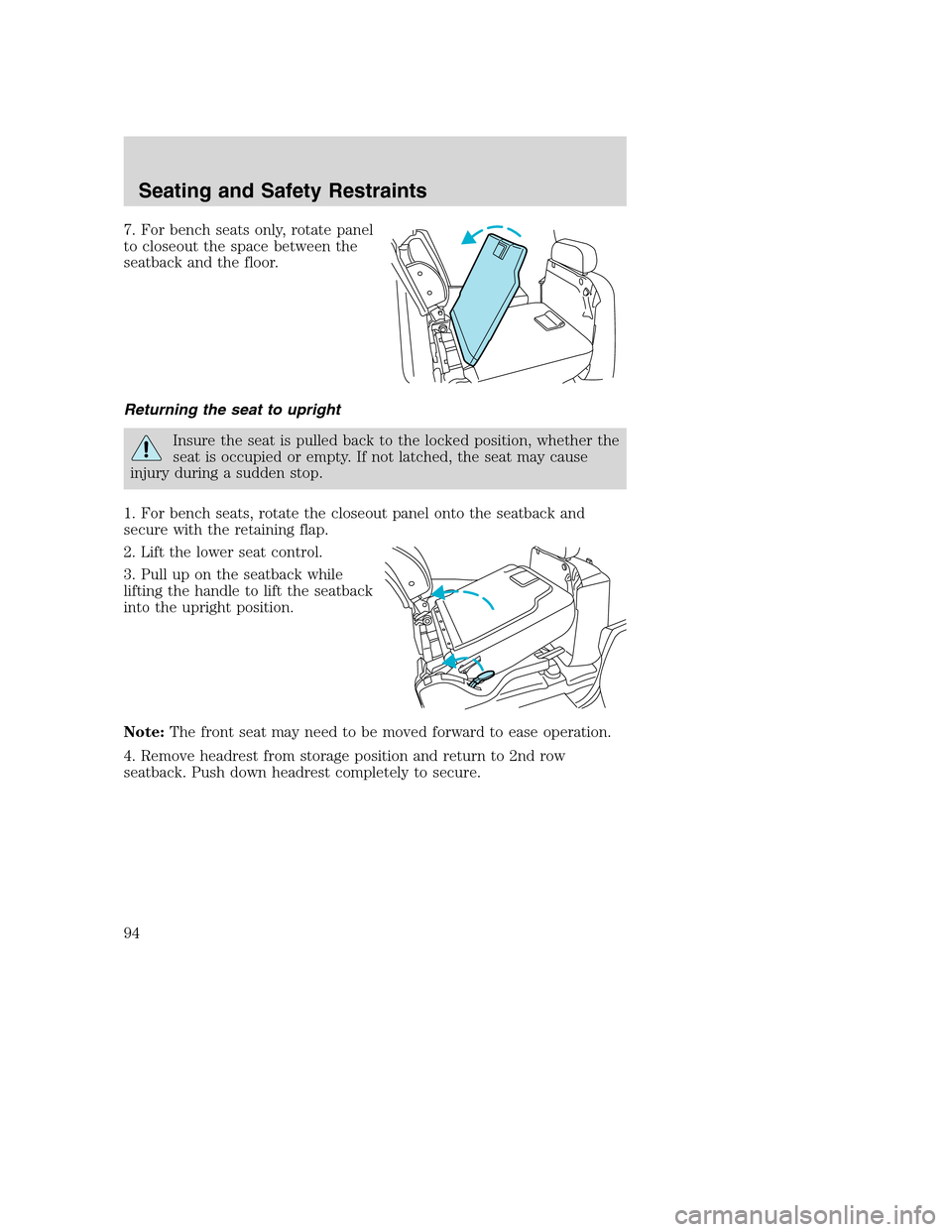

7. For bench seats only, rotate panel
to closeout the space between the
seatback and the floor.
Returning the seat to upright
Insure the seat is pulled back to the locked position, whether the
seat is occupied or empty. If not latched, the seat may cause
injury during a sudden stop.
1. For bench seats, rotate the closeout panel onto the seatback and
secure with the retaining flap.
2. Lift the lower seat control.
3. Pull up on the seatback while
lifting the handle to lift the seatback
into the upright position.
Note:The front seat may need to be moved forward to ease operation.
4. Remove headrest from storage position and return to 2nd row
seatback. Push down headrest completely to secure.
Seating and Safety Restraints
94
