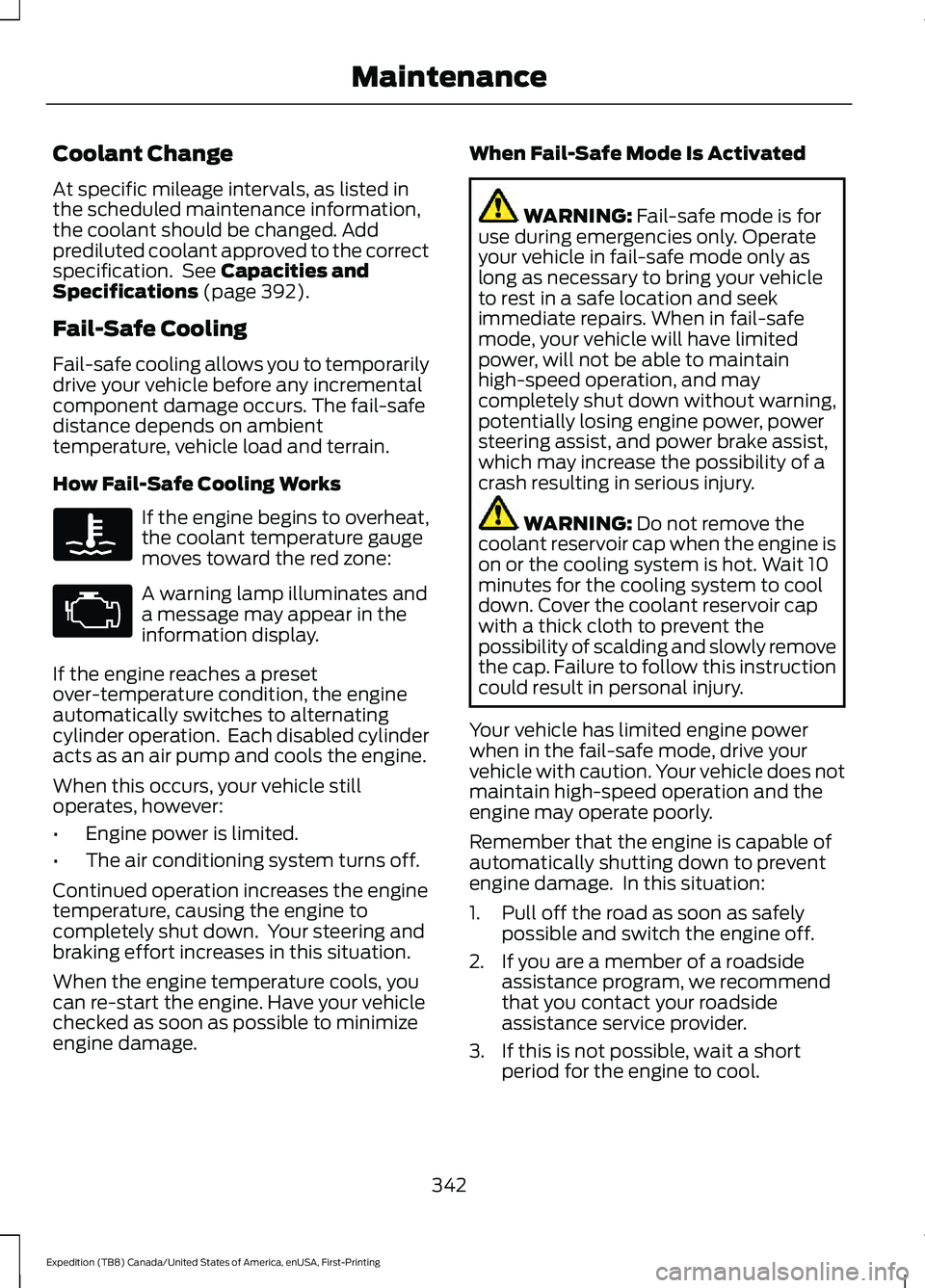

Coolant Change
At specific mileage intervals, as listed in
the scheduled maintenance information,
the coolant should be changed. Add
prediluted coolant approved to the correct
specification. See Capacities and
Specifications (page 392).
Fail-Safe Cooling
Fail-safe cooling allows you to temporarily
drive your vehicle before any incremental
component damage occurs. The fail-safe
distance depends on ambient
temperature, vehicle load and terrain.
How Fail-Safe Cooling Works If the engine begins to overheat,
the coolant temperature gauge
moves toward the red zone:
A warning lamp illuminates and
a message may appear in the
information display.
If the engine reaches a preset
over-temperature condition, the engine
automatically switches to alternating
cylinder operation. Each disabled cylinder
acts as an air pump and cools the engine.
When this occurs, your vehicle still
operates, however:
• Engine power is limited.
• The air conditioning system turns off.
Continued operation increases the engine
temperature, causing the engine to
completely shut down. Your steering and
braking effort increases in this situation.
When the engine temperature cools, you
can re-start the engine. Have your vehicle
checked as soon as possible to minimize
engine damage. When Fail-Safe Mode Is Activated WARNING:
Fail-safe mode is for
use during emergencies only. Operate
your vehicle in fail-safe mode only as
long as necessary to bring your vehicle
to rest in a safe location and seek
immediate repairs. When in fail-safe
mode, your vehicle will have limited
power, will not be able to maintain
high-speed operation, and may
completely shut down without warning,
potentially losing engine power, power
steering assist, and power brake assist,
which may increase the possibility of a
crash resulting in serious injury. WARNING:
Do not remove the
coolant reservoir cap when the engine is
on or the cooling system is hot. Wait 10
minutes for the cooling system to cool
down. Cover the coolant reservoir cap
with a thick cloth to prevent the
possibility of scalding and slowly remove
the cap. Failure to follow this instruction
could result in personal injury.
Your vehicle has limited engine power
when in the fail-safe mode, drive your
vehicle with caution. Your vehicle does not
maintain high-speed operation and the
engine may operate poorly.
Remember that the engine is capable of
automatically shutting down to prevent
engine damage. In this situation:
1. Pull off the road as soon as safely possible and switch the engine off.
2. If you are a member of a roadside assistance program, we recommend
that you contact your roadside
assistance service provider.
3. If this is not possible, wait a short period for the engine to cool.
342
Expedition (TB8) Canada/United States of America, enUSA, First-Printing Maintenance

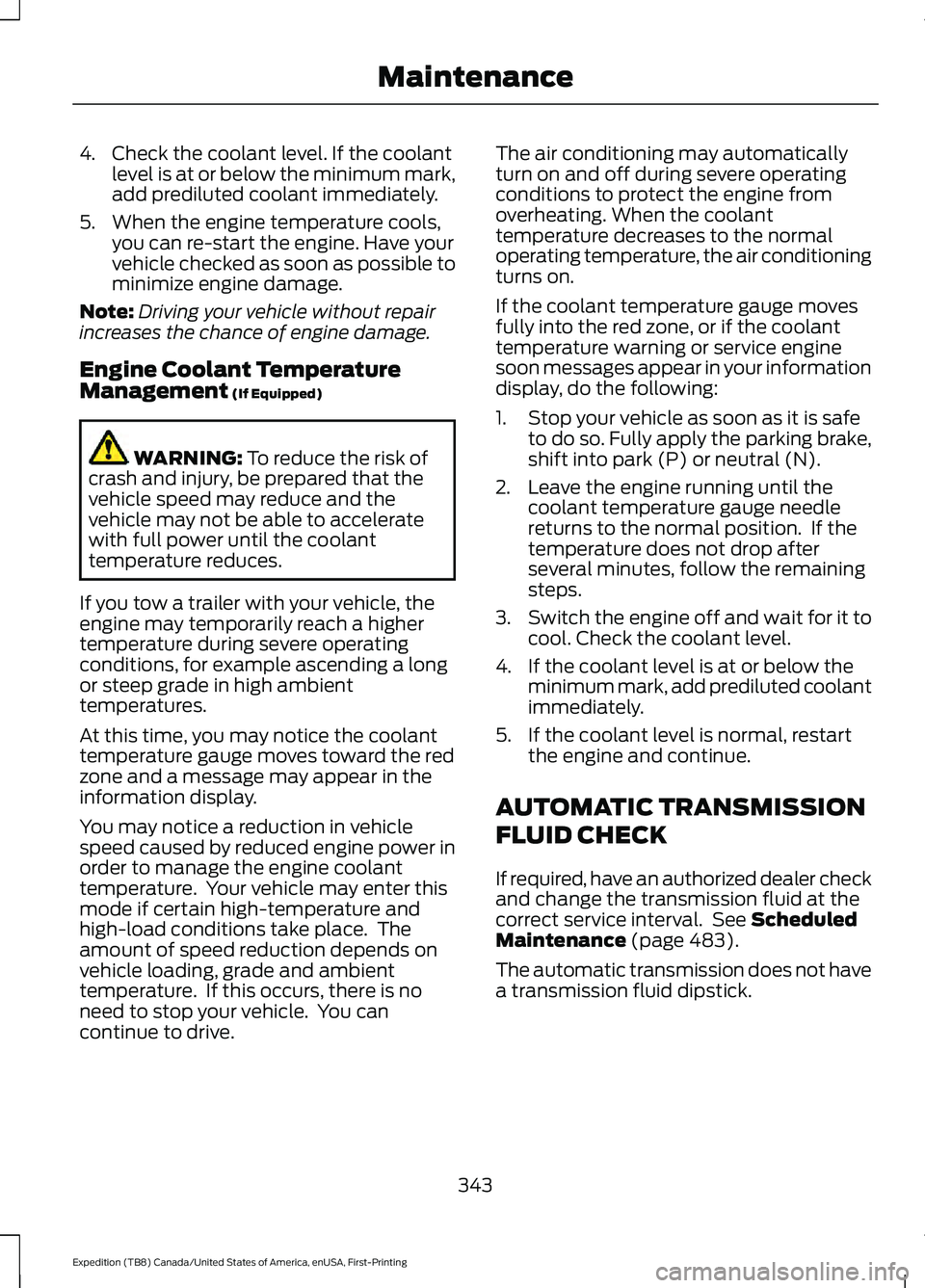

4. Check the coolant level. If the coolant
level is at or below the minimum mark,
add prediluted coolant immediately.
5. When the engine temperature cools, you can re-start the engine. Have your
vehicle checked as soon as possible to
minimize engine damage.
Note: Driving your vehicle without repair
increases the chance of engine damage.
Engine Coolant Temperature
Management (If Equipped) WARNING:
To reduce the risk of
crash and injury, be prepared that the
vehicle speed may reduce and the
vehicle may not be able to accelerate
with full power until the coolant
temperature reduces.
If you tow a trailer with your vehicle, the
engine may temporarily reach a higher
temperature during severe operating
conditions, for example ascending a long
or steep grade in high ambient
temperatures.
At this time, you may notice the coolant
temperature gauge moves toward the red
zone and a message may appear in the
information display.
You may notice a reduction in vehicle
speed caused by reduced engine power in
order to manage the engine coolant
temperature. Your vehicle may enter this
mode if certain high-temperature and
high-load conditions take place. The
amount of speed reduction depends on
vehicle loading, grade and ambient
temperature. If this occurs, there is no
need to stop your vehicle. You can
continue to drive. The air conditioning may automatically
turn on and off during severe operating
conditions to protect the engine from
overheating. When the coolant
temperature decreases to the normal
operating temperature, the air conditioning
turns on.
If the coolant temperature gauge moves
fully into the red zone, or if the coolant
temperature warning or service engine
soon messages appear in your information
display, do the following:
1. Stop your vehicle as soon as it is safe
to do so. Fully apply the parking brake,
shift into park (P) or neutral (N).
2. Leave the engine running until the coolant temperature gauge needle
returns to the normal position. If the
temperature does not drop after
several minutes, follow the remaining
steps.
3. Switch the engine off and wait for it to
cool. Check the coolant level.
4. If the coolant level is at or below the minimum mark, add prediluted coolant
immediately.
5. If the coolant level is normal, restart the engine and continue.
AUTOMATIC TRANSMISSION
FLUID CHECK
If required, have an authorized dealer check
and change the transmission fluid at the
correct service interval. See
Scheduled
Maintenance (page 483).
The automatic transmission does not have
a transmission fluid dipstick.
343
Expedition (TB8) Canada/United States of America, enUSA, First-Printing Maintenance

Body
•
Wash your vehicle thoroughly to
remove dirt, grease, oil, tar or mud from
exterior surfaces, rear-wheel housing
and the underside of front fenders.
• Periodically wash your vehicle if it is
stored in exposed locations.
• Touch-up exposed or primed metal to
prevent rust.
• Cover chrome and stainless steel parts
with a thick coat of auto wax to prevent
discoloration. Re-wax as necessary
when you wash your vehicle.
• Lubricate all hood, door and luggage
compartment hinges and latches with
a light grade oil.
• Cover interior trim to prevent fading.
• Keep all rubber parts free from oil and
solvents.
Engine
• Change the engine oil and filter prior to
storage because used engine oil
contains contaminates which may
cause engine damage.
• Start the engine every 15 days for a
minimum of 15 minutes. Run at fast
idle with the climate controls set to
defrost until the engine reaches normal
operating temperature.
• With your foot on the brake, shift
through all the gears while the engine
is running.
• We recommend that you change the
engine oil before you use your vehicle
again.
Fuel system
• Fill the fuel tank with high-quality fuel
until the first automatic shutoff of the
fuel pump nozzle. Cooling system
•
Protect against freezing temperatures.
• When removing your vehicle from
storage, check coolant fluid level.
Confirm that there are no cooling
system leaks and that fluid is at the
recommended level.
Disconnecting Your 12 Volt Battery
• Check and recharge as necessary. Keep
connections clean.
• If storing your vehicle for more than 30
days without recharging the battery,
we recommend that you disconnect
the battery cables to maintain battery
charge for quick starting.
Note: It is necessary to reset memory
features if you disconnect the battery
cables.
Brakes
• Make sure the brakes and parking brake
release fully.
Tires
• Maintain recommended air pressure.
Miscellaneous
• Make sure all linkages, cables, levers
and pins under your vehicle are covered
with grease to prevent rust.
• Move vehicles at least 25 ft (7.5 m)
every 15 days to lubricate working parts
and prevent corrosion.
359
Expedition (TB8) Canada/United States of America, enUSA, First-Printing Vehicle Care

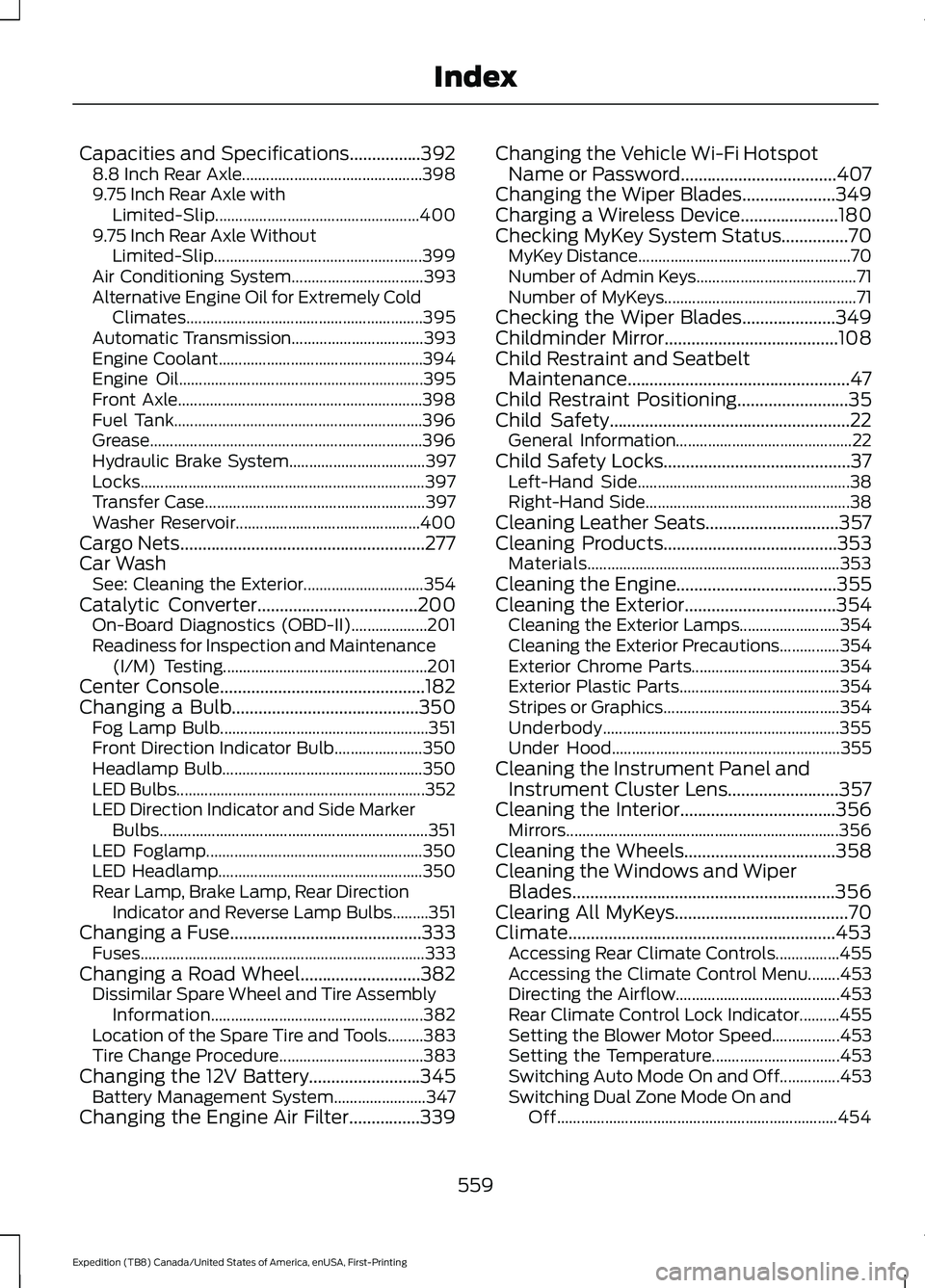

Capacities and Specifications................392
8.8 Inch Rear Axle............................................. 398
9.75 Inch Rear Axle with Limited-Slip................................................... 400
9.75 Inch Rear Axle Without Limited-Slip.................................................... 399
Air Conditioning System................................. 393
Alternative Engine Oil for Extremely Cold Climates........................................................... 395
Automatic Transmission................................. 393
Engine Coolant................................................... 394
Engine Oil............................................................. 395
Front Axle............................................................. 398
Fuel Tank.............................................................. 396
Grease.................................................................... 396
Hydraulic Brake System.................................. 397
Locks....................................................................... 397
Transfer Case....................................................... 397
Washer Reservoir.............................................. 400
Cargo Nets.......................................................277
Car Wash See: Cleaning the Exterior.............................. 354
Catalytic Converter....................................200 On-Board Diagnostics (OBD-II)................... 201
Readiness for Inspection and Maintenance (I/M) Testing................................................... 201
Center Console
..............................................182
Changing a Bulb..........................................350
Fog Lamp Bulb.................................................... 351
Front Direction Indicator Bulb...................... 350
Headlamp Bulb.................................................. 350
LED Bulbs.............................................................. 352
LED Direction Indicator and Side Marker Bulbs................................................................... 351
LED Foglamp...................................................... 350
LED Headlamp................................................... 350
Rear Lamp, Brake Lamp, Rear Direction Indicator and Reverse Lamp Bulbs.........351
Changing a Fuse
...........................................333
Fuses....................................................................... 333
Changing a Road Wheel
...........................382
Dissimilar Spare Wheel and Tire Assembly
Information..................................................... 382
Location of the Spare Tire and Tools.........383
Tire Change Procedure.................................... 383
Changing the 12V Battery
.........................345
Battery Management System....................... 347
Changing the Engine Air Filter................339 Changing the Vehicle Wi-Fi Hotspot
Name or Password
...................................407
Changing the Wiper Blades.....................349
Charging a Wireless Device......................180
Checking MyKey System Status...............70 MyKey Distance..................................................... 70
Number of Admin Keys........................................ 71
Number of MyKeys................................................ 71
Checking the Wiper Blades.....................349
Childminder Mirror.......................................108
Child Restraint and Seatbelt Maintenance..................................................47
Child Restraint Positioning.........................35
Child Safety
......................................................22
General Information............................................ 22
Child Safety Locks..........................................37 Left-Hand Side..................................................... 38
Right-Hand Side................................................... 38
Cleaning Leather Seats..............................357
Cleaning Products
.......................................353
Materials............................................................... 353
Cleaning the Engine....................................355
Cleaning the Exterior
..................................354
Cleaning the Exterior Lamps......................... 354
Cleaning the Exterior Precautions...............354
Exterior Chrome Parts..................................... 354
Exterior Plastic Parts........................................ 354
Stripes or Graphics............................................ 354
Underbody........................................................... 355
Under Hood......................................................... 355
Cleaning the Instrument Panel and Instrument Cluster Lens.........................357
Cleaning the Interior...................................356 Mirrors.................................................................... 356
Cleaning the Wheels..................................358
Cleaning the Windows and Wiper Blades...........................................................356
Clearing All MyKeys.......................................70
Climate............................................................453 Accessing Rear Climate Controls................455
Accessing the Climate Control Menu........453
Directing the Airflow......................................... 453
Rear Climate Control Lock Indicator..........455
Setting the Blower Motor Speed.................453
Setting the Temperature................................ 453
Switching Auto Mode On and Off...............453
Switching Dual Zone Mode On and Off...................................................................... 454
559

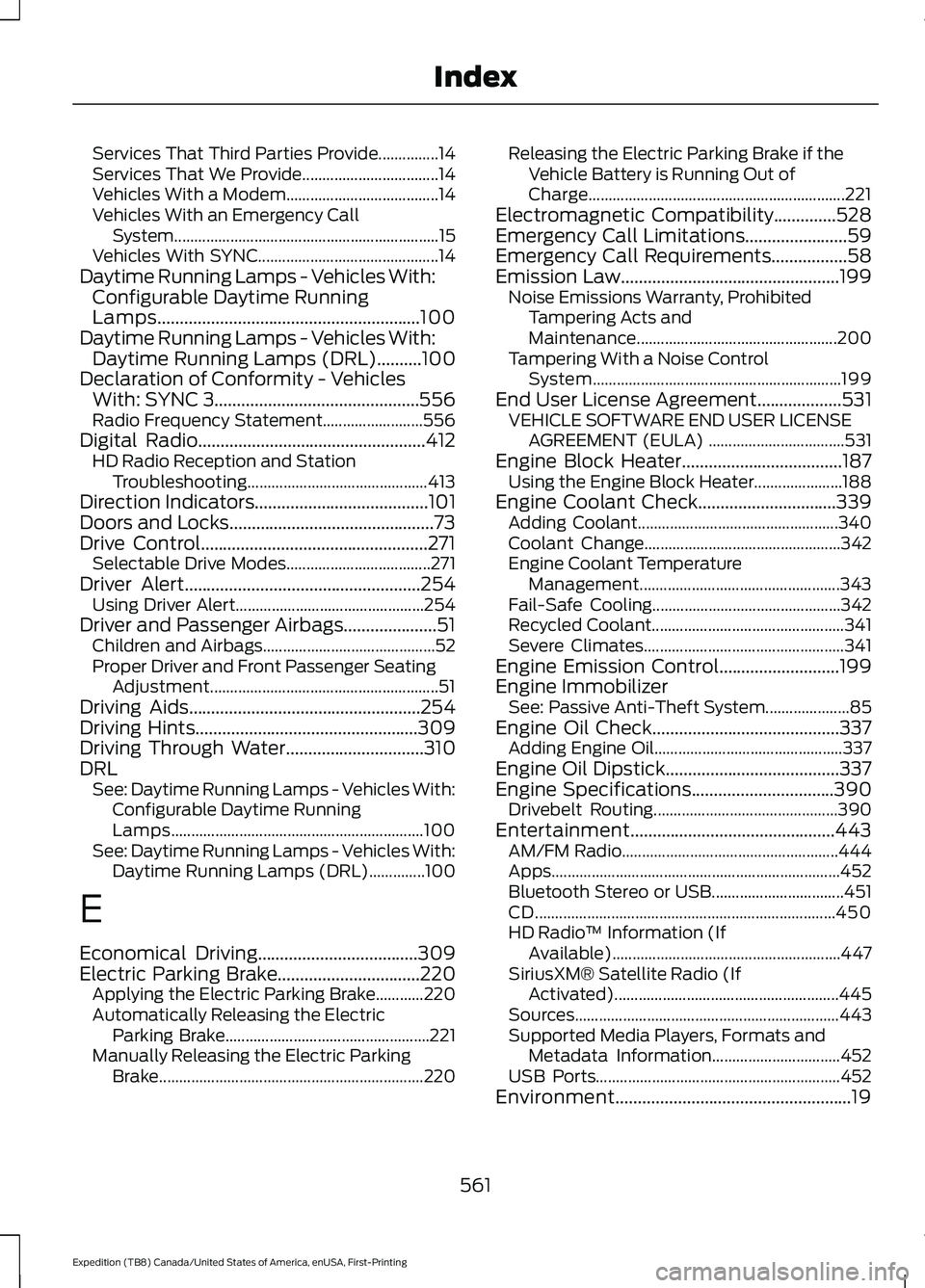

Expedition (TB8) Canada/United States of America, enUSA, First-Printing Index

Services That Third Parties Provide...............14
Services That We Provide..................................
14
Vehicles With a Modem...................................... 14
Vehicles With an Emergency Call System.................................................................. 15
Vehicles With SYNC............................................. 14
Daytime Running Lamps - Vehicles With: Configurable Daytime Running
Lamps...........................................................100
Daytime Running Lamps - Vehicles With: Daytime Running Lamps (DRL)..........100
Declaration of Conformity - Vehicles With: SYNC 3..............................................556
Radio Frequency Statement......................... 556
Digital Radio...................................................412
HD Radio Reception and Station
Troubleshooting............................................. 413
Direction Indicators
.......................................101
Doors and Locks..............................................73
Drive Control...................................................271 Selectable Drive Modes.................................... 271
Driver Alert
.....................................................254
Using Driver Alert............................................... 254
Driver and Passenger Airbags.....................51 Children and Airbags........................................... 52
Proper Driver and Front Passenger Seating Adjustment......................................................... 51
Driving Aids....................................................254
Driving Hints
..................................................309
Driving Through Water...............................310
DRL See: Daytime Running Lamps - Vehicles With:
Configurable Daytime Running
Lamps............................................................... 100
See: Daytime Running Lamps - Vehicles With: Daytime Running Lamps (DRL)..............100
E
Economical Driving....................................309
Electric Parking Brake................................220 Applying the Electric Parking Brake............220
Automatically Releasing the Electric
Parking Brake................................................... 221
Manually Releasing the Electric Parking Brake.................................................................. 220Releasing the Electric Parking Brake if the
Vehicle Battery is Running Out of
Charge................................................................ 221
Electromagnetic Compatibility
..............528
Emergency Call Limitations.......................59
Emergency Call Requirements.................58
Emission Law
.................................................199
Noise Emissions Warranty, Prohibited
Tampering Acts and
Maintenance.................................................. 200
Tampering With a Noise Control System.............................................................. 199
End User License Agreement...................531 VEHICLE SOFTWARE END USER LICENSE
AGREEMENT (EULA) .................................. 531
Engine Block Heater
....................................187
Using the Engine Block Heater...................... 188
Engine Coolant Check...............................339 Adding Coolant.................................................. 340
Coolant Change................................................. 342
Engine Coolant Temperature Management.................................................. 343
Fail-Safe Cooling............................................... 342
Recycled Coolant................................................ 341
Severe Climates.................................................. 341
Engine Emission Control...........................199
Engine Immobilizer See: Passive Anti-Theft System..................... 85
Engine Oil Check..........................................337 Adding Engine Oil............................................... 337
Engine Oil Dipstick.......................................337
Engine Specifications................................390 Drivebelt Routing.............................................. 390
Entertainment..............................................443 AM/FM Radio...................................................... 444
Apps........................................................................\
452
Bluetooth Stereo or USB................................. 451
CD........................................................................\
... 450
HD Radio ™ Information (If
Available)......................................................... 447
SiriusXM® Satellite Radio (If Activated)........................................................ 445
Sources.................................................................. 443
Supported Media Players, Formats and Metadata Information................................ 452
USB Ports............................................................. 452
Environment.....................................................19
561

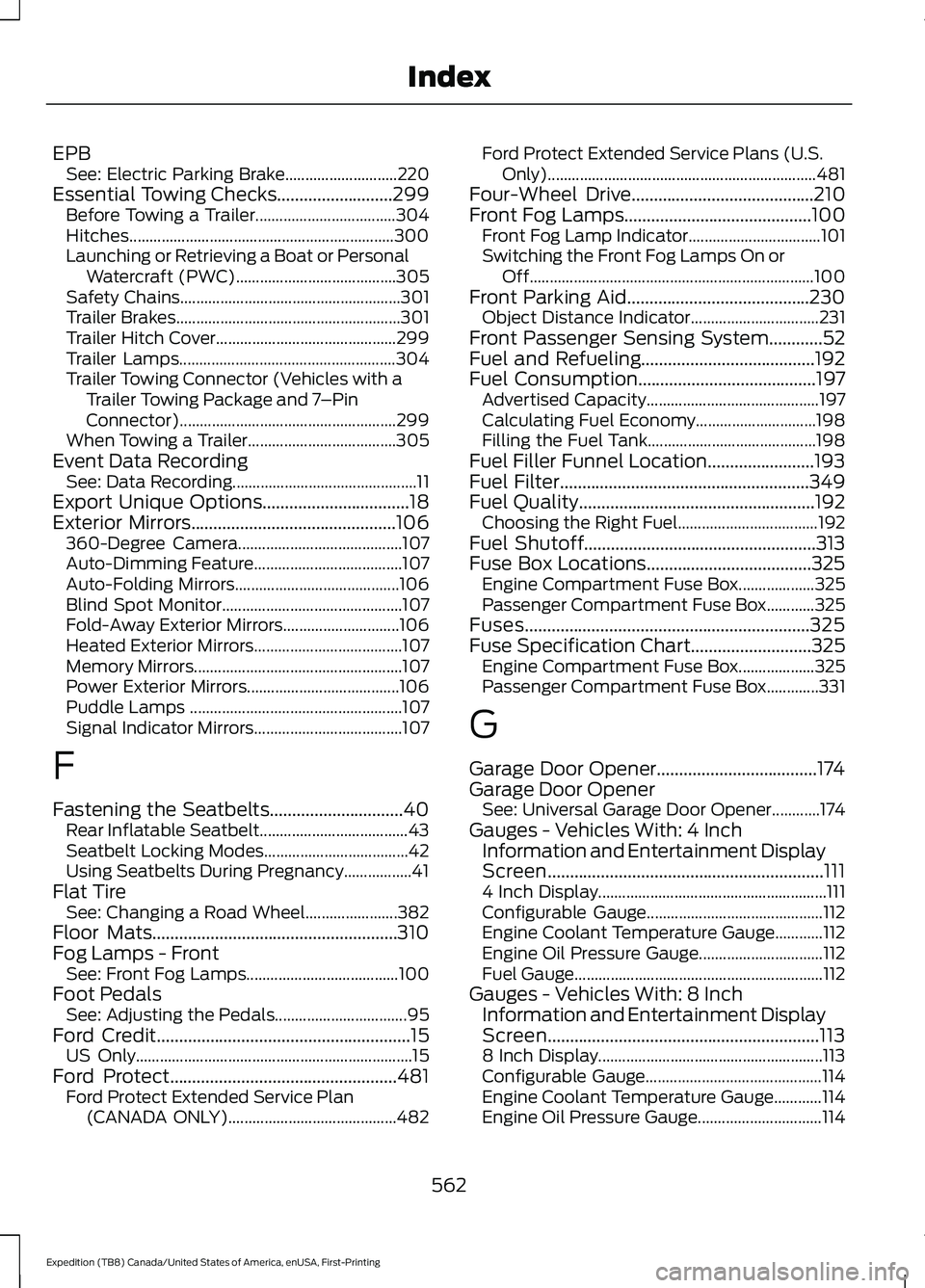

Expedition (TB8) Canada/United States of America, enUSA, First-Printing Index

EPB
See: Electric Parking Brake............................ 220
Essential Towing Checks..........................299 Before Towing a Trailer................................... 304
Hitches.................................................................. 300
Launching or Retrieving a Boat or Personal Watercraft (PWC)........................................ 305
Safety Chains....................................................... 301
Trailer Brakes........................................................ 301
Trailer Hitch Cover............................................. 299
Trailer Lamps...................................................... 304
Trailer Towing Connector (Vehicles with a Trailer Towing Package and 7 –Pin
Connector)...................................................... 299
When Towing a Trailer..................................... 305
Event Data Recording See: Data Recording.............................................. 11
Export Unique Options.................................18
Exterior Mirrors..............................................106
360-Degree Camera......................................... 107
Auto-Dimming Feature..................................... 107
Auto-Folding Mirrors......................................... 106
Blind Spot Monitor............................................. 107
Fold-Away Exterior Mirrors............................. 106
Heated Exterior Mirrors..................................... 107
Memory Mirrors.................................................... 107
Power Exterior Mirrors...................................... 106
Puddle Lamps ..................................................... 107
Signal Indicator Mirrors..................................... 107
F
Fastening the Seatbelts..............................40 Rear Inflatable Seatbelt..................................... 43
Seatbelt Locking Modes.................................... 42
Using Seatbelts During Pregnancy.................41
Flat Tire See: Changing a Road Wheel....................... 382
Floor Mats.......................................................310
Fog Lamps - Front See: Front Fog Lamps...................................... 100
Foot Pedals See: Adjusting the Pedals................................. 95
Ford Credit
.........................................................15
US Only..................................................................... 15
Ford Protect
...................................................481
Ford Protect Extended Service Plan
(CANADA ONLY).......................................... 482Ford Protect Extended Service Plans (U.S.
Only)................................................................... 481
Four-Wheel Drive
.........................................210
Front Fog Lamps..........................................100
Front Fog Lamp Indicator................................. 101
Switching the Front Fog Lamps On or Off....................................................................... 100
Front Parking Aid.........................................230 Object Distance Indicator................................ 231
Front Passenger Sensing System............52
Fuel and Refueling.......................................192
Fuel Consumption
........................................197
Advertised Capacity........................................... 197
Calculating Fuel Economy.............................. 198
Filling the Fuel Tank.......................................... 198
Fuel Filler Funnel Location
........................193
Fuel Filter........................................................349
Fuel Quality.....................................................192 Choosing the Right Fuel................................... 192
Fuel Shutoff....................................................313
Fuse Box Locations.....................................325 Engine Compartment Fuse Box................... 325
Passenger Compartment Fuse Box............325
Fuses................................................................325
Fuse Specification Chart...........................325 Engine Compartment Fuse Box................... 325
Passenger Compartment Fuse Box.............331
G
Garage Door Opener....................................174
Garage Door Opener See: Universal Garage Door Opener............174
Gauges - Vehicles With: 4 Inch Information and Entertainment Display
Screen..............................................................111
4 Inch Display......................................................... 111
Configurable Gauge............................................ 112
Engine Coolant Temperature Gauge............112
Engine Oil Pressure Gauge............................... 112
Fuel Gauge.............................................................. 112
Gauges - Vehicles With: 8 Inch Information and Entertainment Display
Screen.............................................................113
8 Inch Display........................................................ 113
Configurable Gauge............................................ 114
Engine Coolant Temperature Gauge............114
Engine Oil Pressure Gauge............................... 114
562
Expedition (TB8) Canada/United States of America, enUSA, First-Printing Index

V
Vehicle Care...................................................353
General Information......................................... 353
Vehicle Identification Number................392
Vehicle Storage............................................358 Body........................................................................\
359
Brakes.................................................................... 359
Cooling system................................................... 359
Disconnecting Your 12 Volt Battery.............359
Engine.................................................................... 359
Fuel system.......................................................... 359
General.................................................................. 358
Miscellaneous..................................................... 359
Removing Vehicle From Storage.................360
Tires........................................................................\
359
Vehicle Wi-Fi Hotspot................................407
Ventilation See: Climate Control......................................... 146
VIN See: Vehicle Identification Number............392
Voice Control
...................................................93
W
Warning Lamps and Indicators................115 Adaptive Cruise Control Indicator.................115
Airbag Warning Lamp........................................ 115
Anti-Lock Brake System Warning Lamp................................................................... 115
Automatic Headlamp High Beam Indicator............................................................. 115
Auto-Start-Stop Indicator................................ 115
Battery..................................................................... 115
Blind Spot Information System Indicator............................................................. 115
Brake System Warning Lamp......................... 116
Cruise Control Indicator.................................... 116
Direction Indicator............................................... 116
Door Ajar Warning Lamp.................................. 116
Electric Park Brake.............................................. 116
Electronic Limited Slip Differential...............116
Engine Coolant Temperature Warning Lamp................................................................... 116
Fasten Seatbelt Warning Lamp..................... 116
Four-Wheel Drive Indicators........................... 116
Front Fog Lamp Indicator.................................. 117
Headlamp High Beam Indicator..................... 117Hill Descent............................................................
117
Hood Ajar................................................................ 117
Liftgate Ajar Warning Lamp............................. 117
Low Fuel Level Warning Lamp........................ 117
Low Tire Pressure Warning Lamp.................. 117
Oil Pressure Warning Lamp.............................. 117
Powertrain Malfunction/Reduced Power/Electronic Throttle Control...........117
Service Engine Soon........................................... 117
Stability Control and Traction Control Indicator............................................................. 118
Stability Control and Traction Control Off Warning Lamp................................................. 118
Tow Haul Indicator.............................................. 118
Washer Fluid Check
....................................348
Washers See: Cleaning the Exterior.............................. 354
See: Wipers and Washers................................. 96
Waxing.............................................................355
What Is 911 Assist
...........................................58
What Is Automatic High Beam Control...........................................................103
What Is Cruise Control
...............................246
Requirements..................................................... 246
What Is the Cabin Air Filter
.......................156
What Is the Power Outlet..........................178
What is the Rear Occupant Alert System
............................................................172
What Is the Wireless Accessory Charger
..........................................................180
Wheel Nuts See: Changing a Road Wheel....................... 382
Wheels and Tires
..........................................361
General Information.......................................... 361
Technical Specifications................................ 388
Windows and Mirrors..................................105
Windshield Washers
......................................97
Front Camera Washer......................................... 97
Windshield Wipers
........................................96
Speed Dependent Wipers................................ 96
Wiper Blades See: Checking the Wiper Blades.................349
Wipers and Washers....................................96
Wireless Accessory Charger Precautions
.................................................180
Wireless Accessory Charger.....................180
571
Expedition (TB8) Canada/United States of America, enUSA, First-Printing Index
