FORD EXPLORER 1996 2.G Owners Manual

Servicing Your Explorer
391
[SV44140( X)10/94]
33-1/2 pica
art:0021118-C

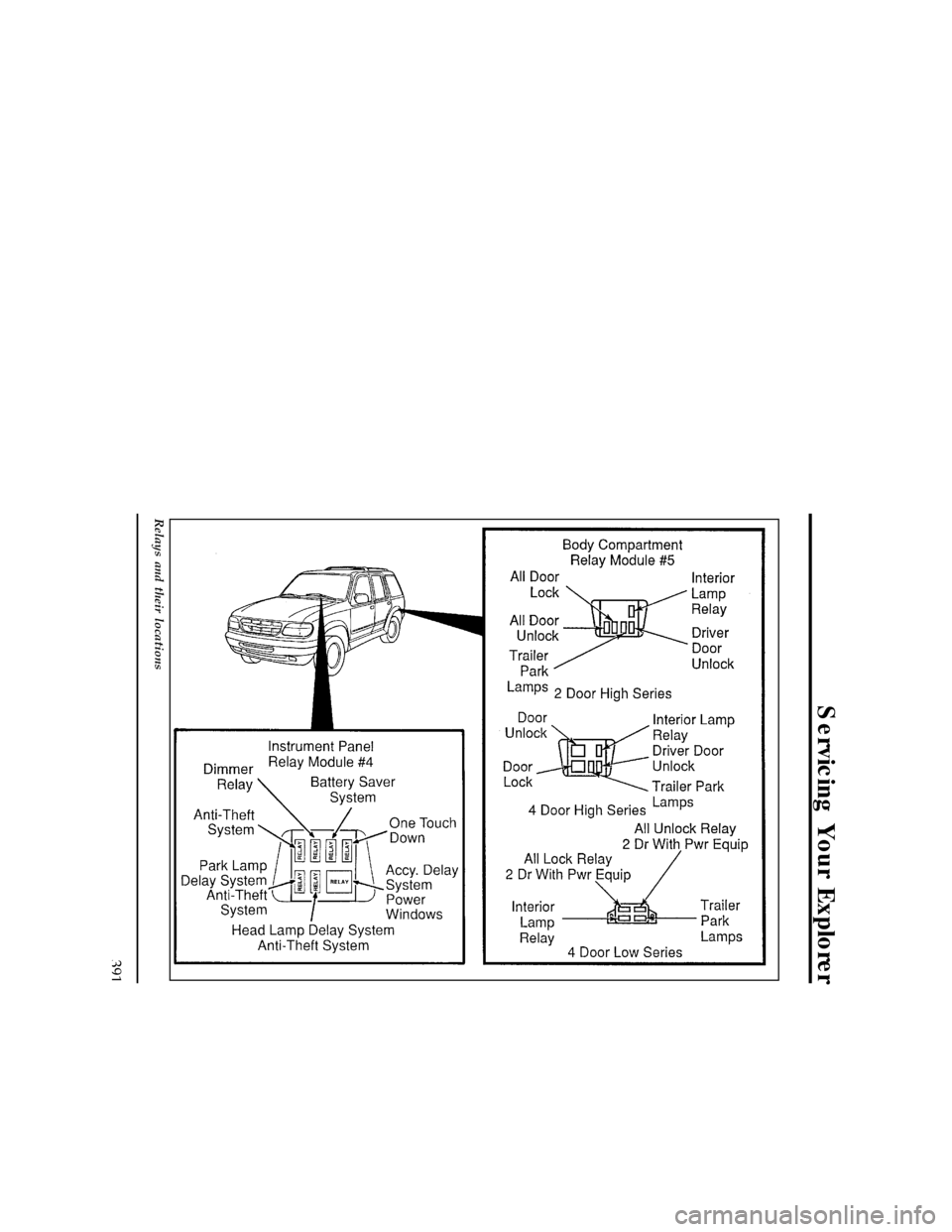

Relays and their locations
File:15unsvx.ex
Update:Thu Feb 29 09:20:34 1996

392
%*
[SV44600(ALL)03/95]
Lights and Bulb Replacement
*
[SV44700(ALL)01/95]
It is a good idea to check the operation of the following lights
frequently:
*
[SV44800(ALL)01/95]
n
headlamps
*
[SV44850(ALL)02/95]
n
high-mount brakelamp
*
[SV44900(ALL)01/95]
n
tail lamps
*
[SV45000(ALL)01/95]
n
brakelamps
*
[SV45100(ALL)01/95]
n
hazard flasher
*
[SV45200(ALL)01/95]
n
turn signals
*
[SV45300(ALL)01/95]
n
license plate lamp
*
[SV45350(ALL)02/95]
n
fog lamps
%*
[SV45400(ALL)01/95]
The alignment of your headlamps should be checked if:
*
[SV45500(ALL)01/95]
n
oncoming motorists frequently signal you to turn off your
vehicle's high beams when you do not have the high beams
on
*
[SV45600(ALL)01/95]
n
the headlamps do not seem to give you enough light to see
clearly at night
*
[SV45700(ALL)01/95]
n
the headlamp beams are pointed substantially away from a
position slightly down and to the right
File:15unsvx.ex
Update:Thu Feb 29 09:20:34 1996

Servicing Your Explorer
393
%*
[SV45800(ALL)03/95]
Headlamp Bulb
*
[SV45900(ALL)01/95]
The headlamps on your vehicle use replaceable bulbs. When the
lamp burns out, simply replace the bulb, rather than the whole
lamp.
*
[SV46000(ALL)05/95]
RWARNING
Handle a halogen headlamp bulb carefully and keep out
of children's reach. Grasp the bulb only by its plastic
base and do not touch the glass. The oil from your hand
could cause the bulb to break the next time the
headlamps are operated.
*
[SV46050(ALL)12/91]
NOTE: If the bulb is accidently touched, it should be cleaned
with rubbing alcohol before being used.
*
[SV46100(ALL)01/95]
Do not remove the burned-out bulb unless you can immediately
replace it with a new one. If a bulb is removed for an extended
period of time, contaminants may enter the headlamp housing
and affect its performance.
[SV46200(ALL)04/94]
10-1/2 pica
art:0021197-A

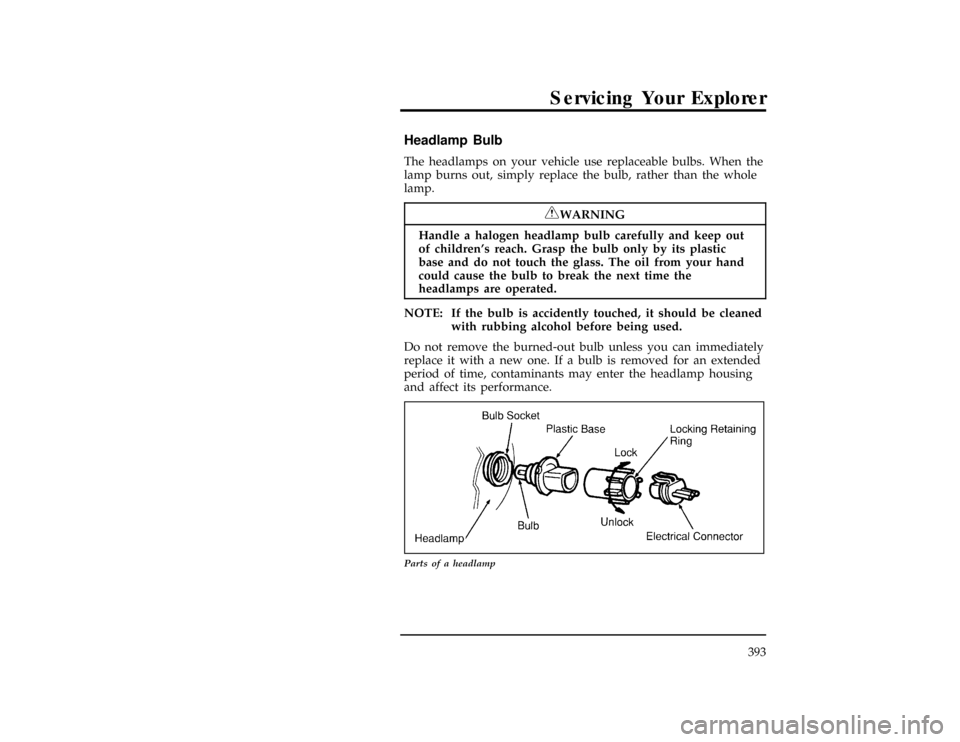

Parts of a headlamp
File:15unsvx.ex
Update:Thu Feb 29 09:20:34 1996

394
*
[SV46300(ALL)03/95]
Removing the headlamp bulb
*
[SV46400(ALL)01/95]1.
Make sure that the headlamp switch is in the OFF position.
[SV46501( X)05/95]2.
Lift the hood, open the hinged headlamp cover, and behind
the headlamp remove the electrical connector by grasping
the wires and pulling rearward.
*
[SV46700(ALL)04/95]3.
Remove the bulb retaining ring by turning it 1/8 of a turn to
free it from the socket. Then slide the ring off the plastic
base.Keep the ring.You must use it again to hold the new
bulb in place.
*
[SV46800(ALL)04/95]4.
Carefully remove the bulb assembly from its socket by
gently pulling it rearward without turning.
*
[SV46900(ALL)03/95]
Installing the headlamp bulb
*
[SV47000(ALL)02/95]1.
With the flat side of the bulb's plastic base facing upward,
insert the glass end of the bulb into the socket. You may
need to turn the bulb left or right to line up the grooves in
the plastic base with the tabs in the socket. When the
grooves are aligned, push the bulb into the socket until the
plastic base contacts the rear of the socket.
*
[SV47100(ALL)08/95]2.
Slip the bulb retaining ring over the plastic base until it
contacts the rear of the socket. Lock the ring into the socket
by rotating it clockwise until you feel a ªstop.º
*
[SV47200(ALL)02/95]3.
Push the electrical connector into the rear of the plastic base
until it snaps, locking it into position.
*
[SV47300(ALL)02/95]4.
Turn the headlamps on and make sure that they work
properly. If the headlamp was correctly aligned before you
changed the bulb, you should not need to align it again.
File:15unsvx.ex
Update:Thu Feb 29 09:20:34 1996

Servicing Your Explorer
395
*
[SV47401( X)02/95]
Map Lamp Bulb (Overhead Console)
*
[SV47402( X)03/93]

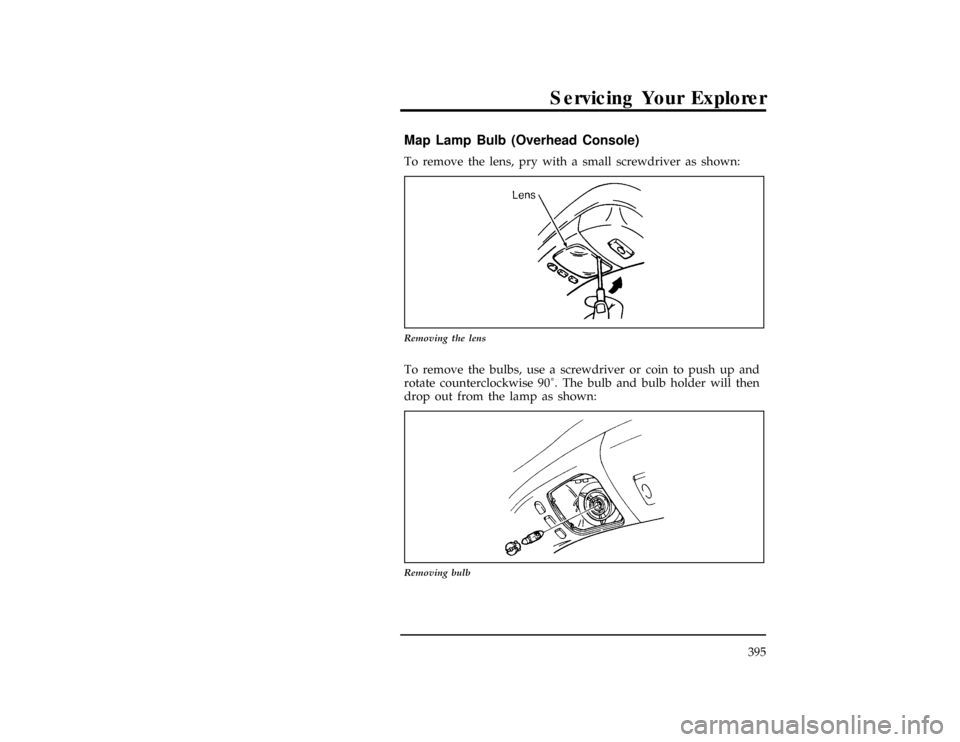

To remove the lens, pry with a small screwdriver as shown:
[SV47403( X)10/94]
10-1/2 pica
art:0021199-A
Removing the lens
*
[SV47404( X)03/93]
To remove the bulbs, use a screwdriver or coin to push up and
rotate counterclockwise90Ê. Thebulb and bulb holder will then
drop out from the lamp as shown:
[SV47405( X)10/94]
10-1/2 pica
art:0021200-A
Removing bulb
File:15unsvx.ex
Update:Thu Feb 29 09:20:34 1996

396
[SV47415(ALL)01/95]
Tail Lamp Bulb
[SV47420(ALL)01/95]
Removing the tail lamp bulb
[SV47445( X)10/94]1.
Remove the two (2) screws retaining rear lamp to vehicle.
[SV47450( X)10/94]2.
Remove rear lamp by pulling rearward to disengage two
lower barbed retainers.
[SV47455( X)10/94]3.
Remove socket from lamp.
[SV47460( X)10/94]4.
Remove bulb from socket.
[SV47465(ALL)01/95]
Installing the tail lamp bulb
[SV47490( X)10/94]1.
Install bulb in socket.
[SV47495( X)10/94]2.
Install socket to lamp.
[SV47500( X)10/94]3.
Align lower barbed retainers and install lamp to vehicle.
[SV47505( X)10/95]4.
Install two (2) lamp retaining screws.
File:15unsvx.ex
Update:Thu Feb 29 09:20:34 1996

Servicing Your Explorer
397
[SV47515( X)10/94]
24 pica art:0021370-A

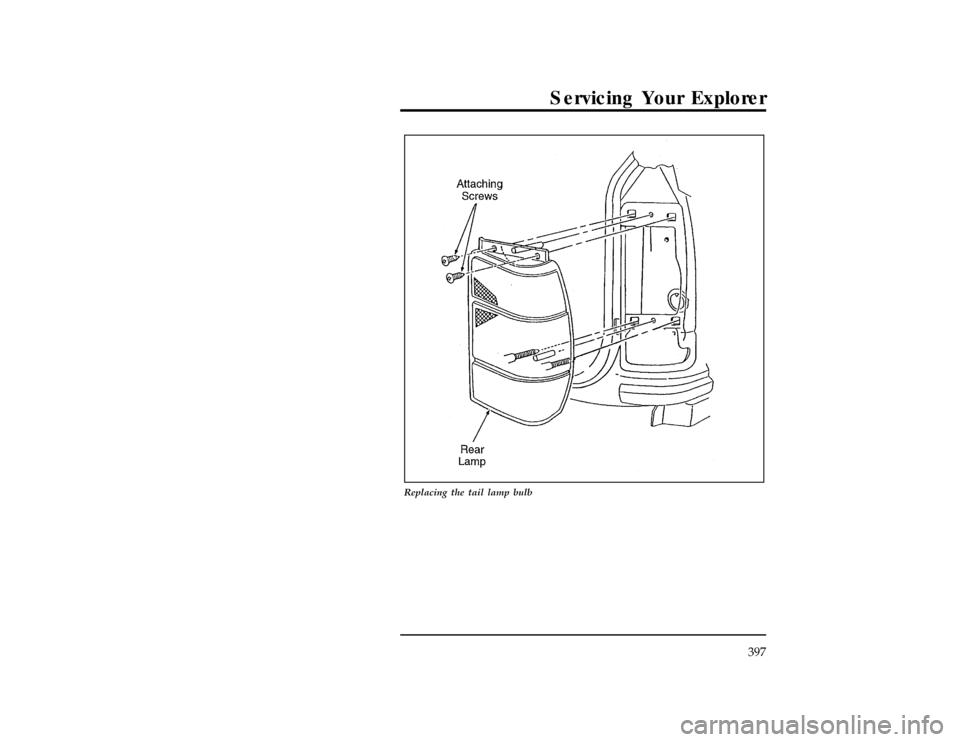

Replacing the tail lamp bulb
File:15unsvx.ex
Update:Thu Feb 29 09:20:34 1996

398
*
[SV47625(ALL)03/95]

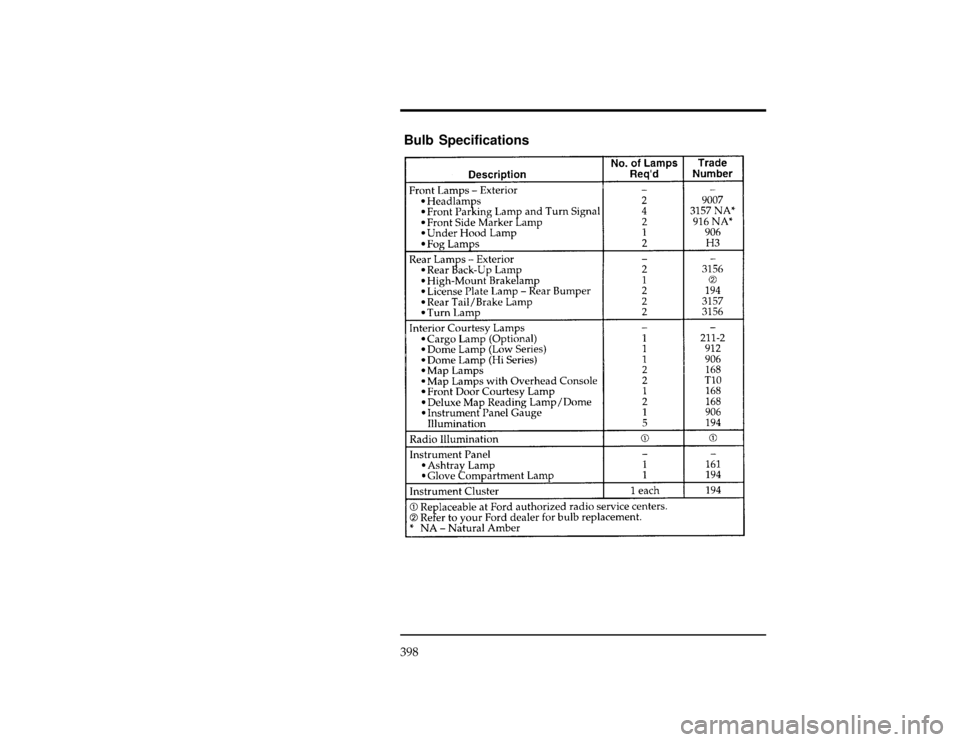

Bulb Specifications
[SV47825( X)05/95]
thirty-four pica
chart:0090186-AFile:15unsvx.ex
Update:Thu Feb 29 09:20:34 1996

Servicing Your Explorer
399
[SV47875( X)04/94]
eight pica
chart:0020633-G*
[SV48400(ALL)10/90]

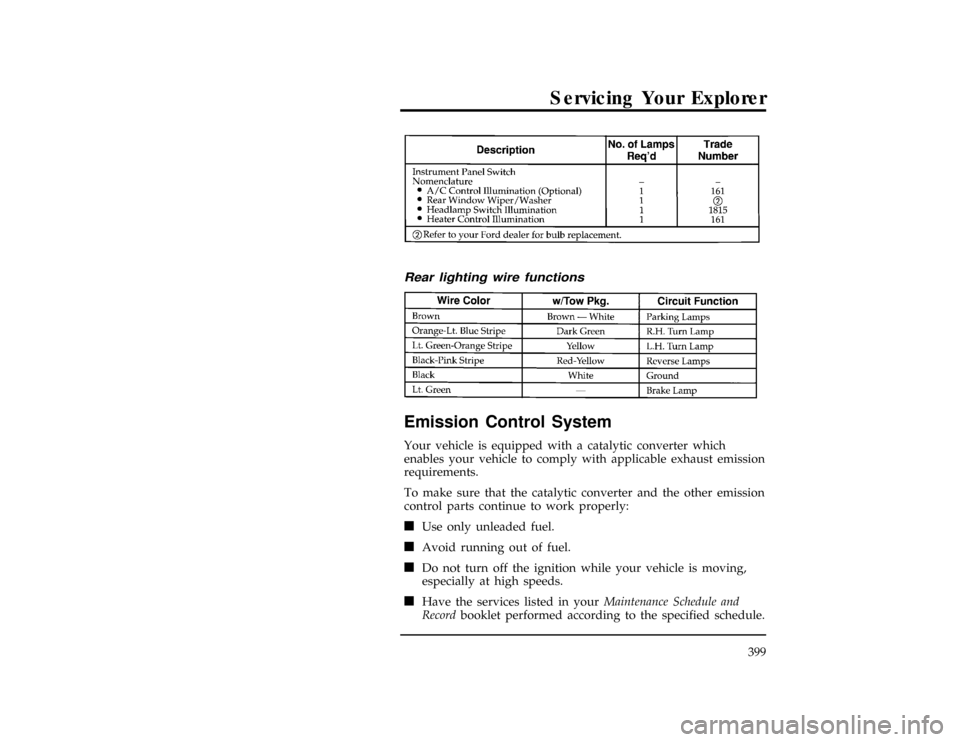

Rear lighting wire functions
[SV48500(ALL)04/94]
eight pica
chart:0021201-A%*
[SV48600(ALL)03/95]
Emission Control System
*
[SV48700(ALL)05/95]
Your vehicle is equipped with a catalytic converter which
enables your vehicle to comply with applicable exhaust emission
requirements.
*
[SV48800(ALL)05/95]
To make sure that the catalytic converter and the other emission
control parts continue to work properly:
*
[SV48900(ALL)01/95]
n
Use only unleaded fuel.
*
[SV49000(ALL)01/95]
n
Avoid running out of fuel.
*
[SV49100(ALL)01/95]
n
Do not turn off the ignition while your vehicle is moving,
especially at high speeds.
*
[SV49200(ALL)03/95]
n
Have the services listed in yourMaintenance Schedule and
Recordbooklet performed according to the specified schedule.
File:15unsvx.ex
Update:Thu Feb 29 09:20:34 1996

400
*
[SV49300(ALL)05/95]
RWARNING
Do not park, idle, or drive your vehicle in dry grass or
other dry ground cover. The emission system heats up
the engine compartment and exhaust system, which can
start a fire.
*
[SV49400(ALL)05/95]
RWARNING
On vehicles without original equipment floor covering or
insulation, do not let passengers ride in your truck in a
manner that allows contact between skin and the metal
floor.
*
[SV49500(ALL)05/95]
Watch for fluid leaks, strange odors, smoke, loss of oil pressure,
the charge warning light, the check engine light, or the
temperature warning light. These sometimes indicate that the
emission system is not working properly.
*
[SV49600(ALL)01/95]
Do not make any unauthorized changes to your vehicle or
engine. Changes that cause more unburned fuel to reach the
exhaust system can increase the temperature of the engine or
exhaust system.
*
[SV49700(ALL)01/95]
By law, anyone who manufactures, repairs, services, sells, leases,
trades vehicles, or supervises a fleet of vehicles is not permitted
to intentionally remove an emission control device or prevent it
from working. In some of the United States and in Canada,
vehicle owners may be liable if their emission control device is
removed or is prevented from working.
