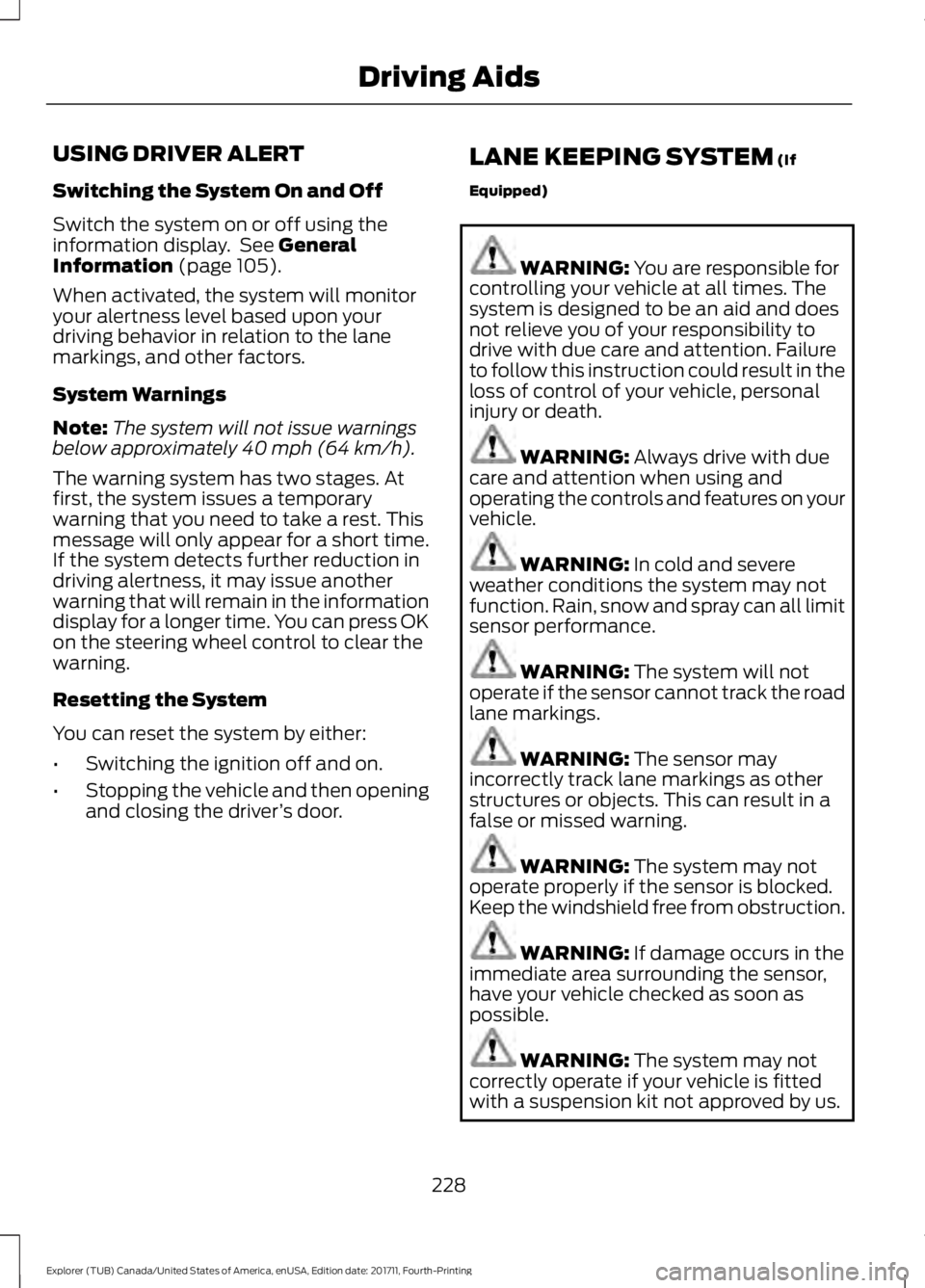

Page 231 of 571

FORD EXPLORER 2018  Owners Manual USING DRIVER ALERT
Switching the System On and Off
Switch the system on or off using the
information display.  See General
Information (page 105).
When activated, the system will monitor
your alertnes

Page 232 of 571

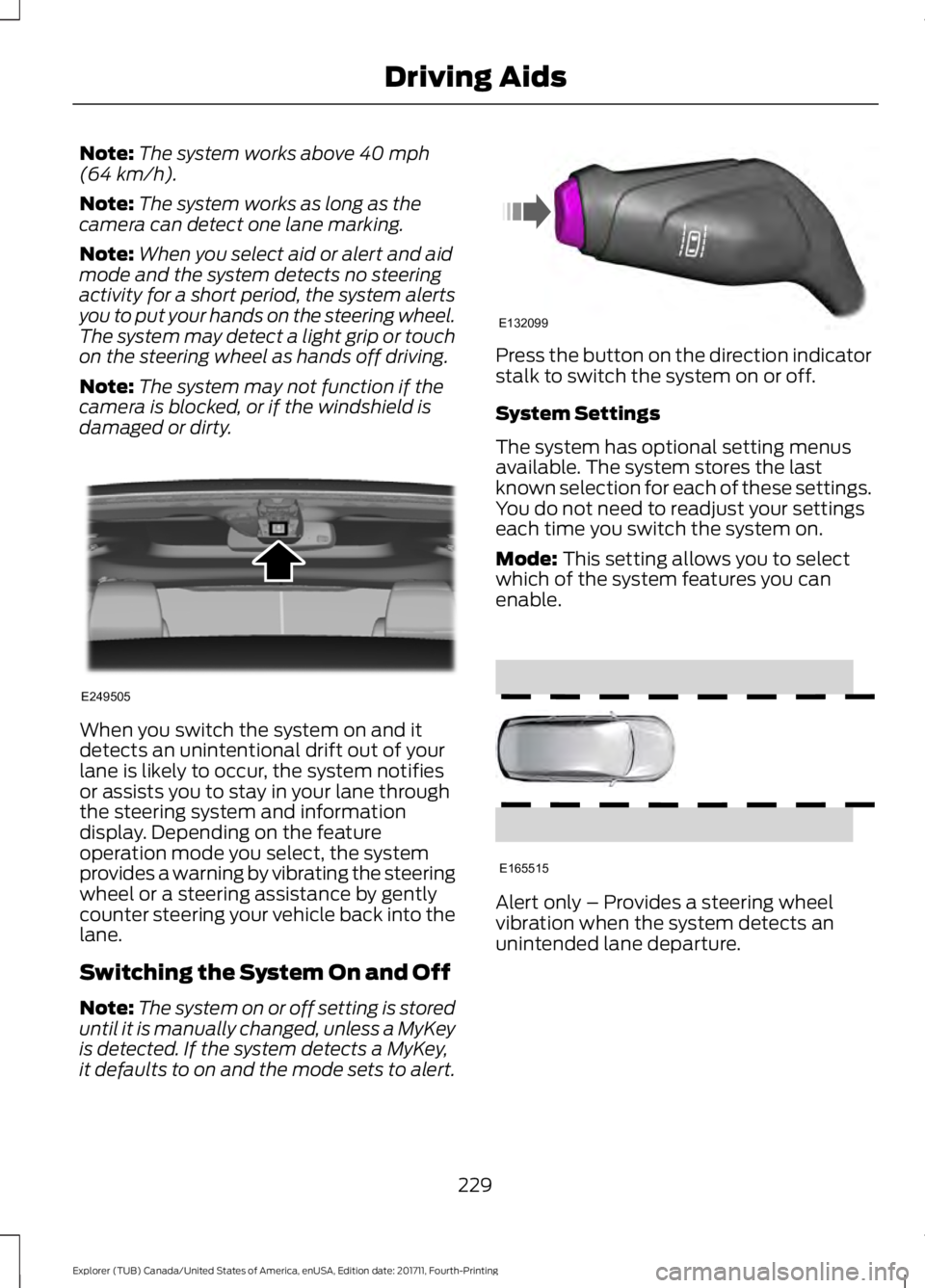

FORD EXPLORER 2018  Owners Manual Note:
The system works above 40 mph
(64 km/h).
Note: The system works as long as the
camera can detect one lane marking.
Note: When you select aid or alert and aid
mode and the system detects no steer

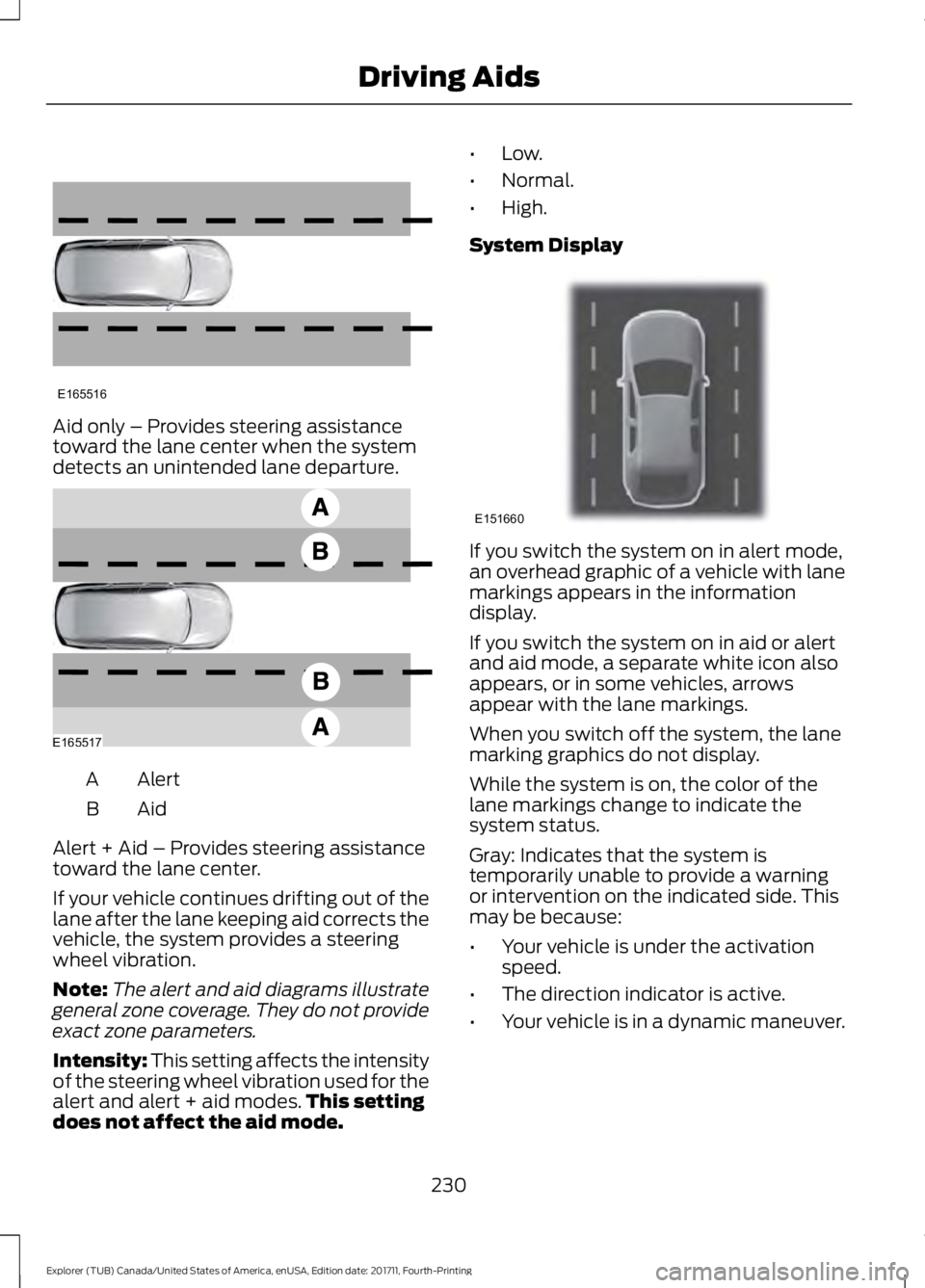

Page 233 of 571

FORD EXPLORER 2018  Owners Manual Aid only – Provides steering assistance
toward the lane center when the system
detects an unintended lane departure.
Alert
A
AidB
Alert + Aid – Provides steering assistance
toward the lane center.

Page 234 of 571

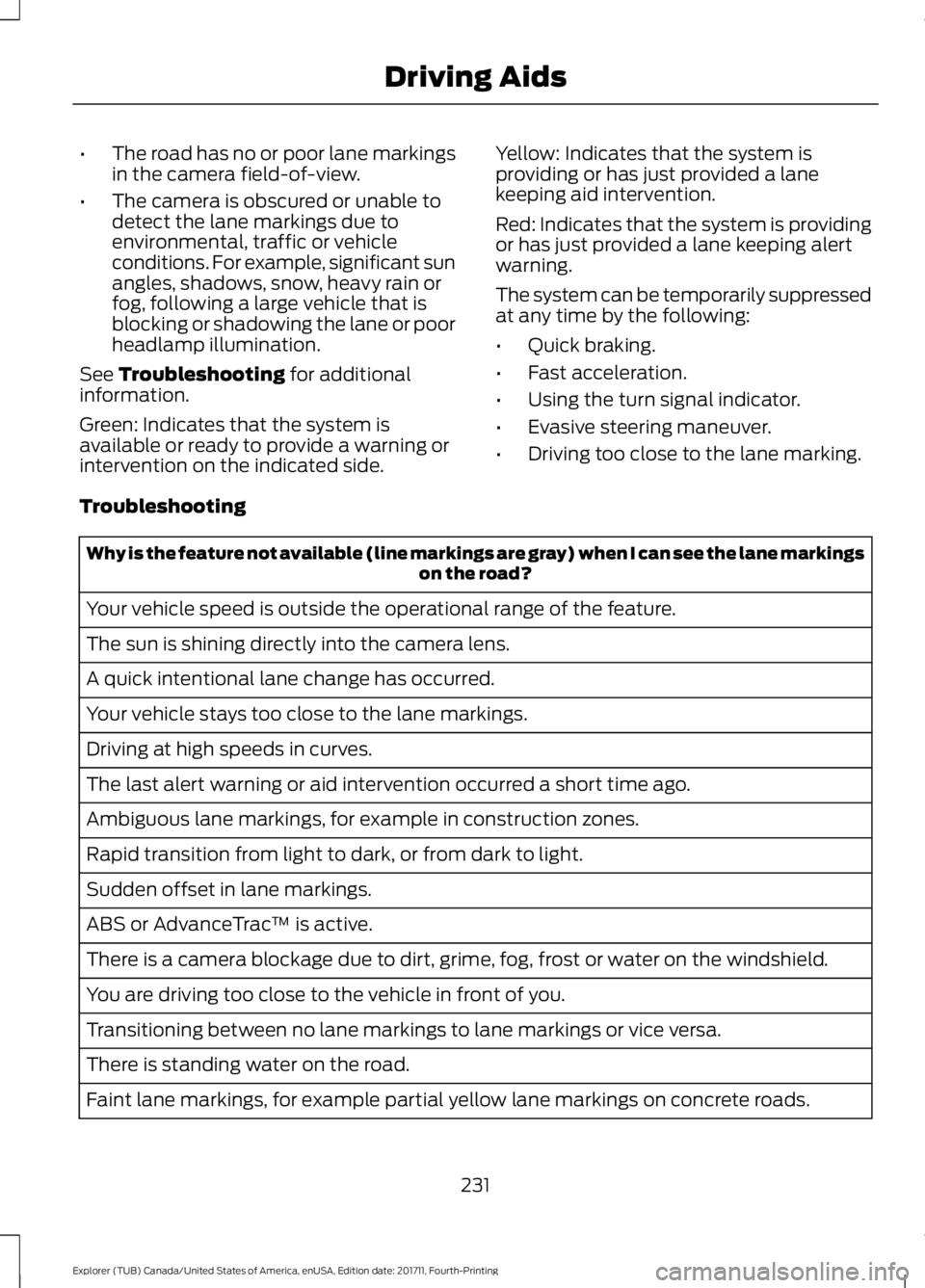

FORD EXPLORER 2018  Owners Manual •
The road has no or poor lane markings
in the camera field-of-view.
• The camera is obscured or unable to
detect the lane markings due to
environmental, traffic or vehicle
conditions. For example

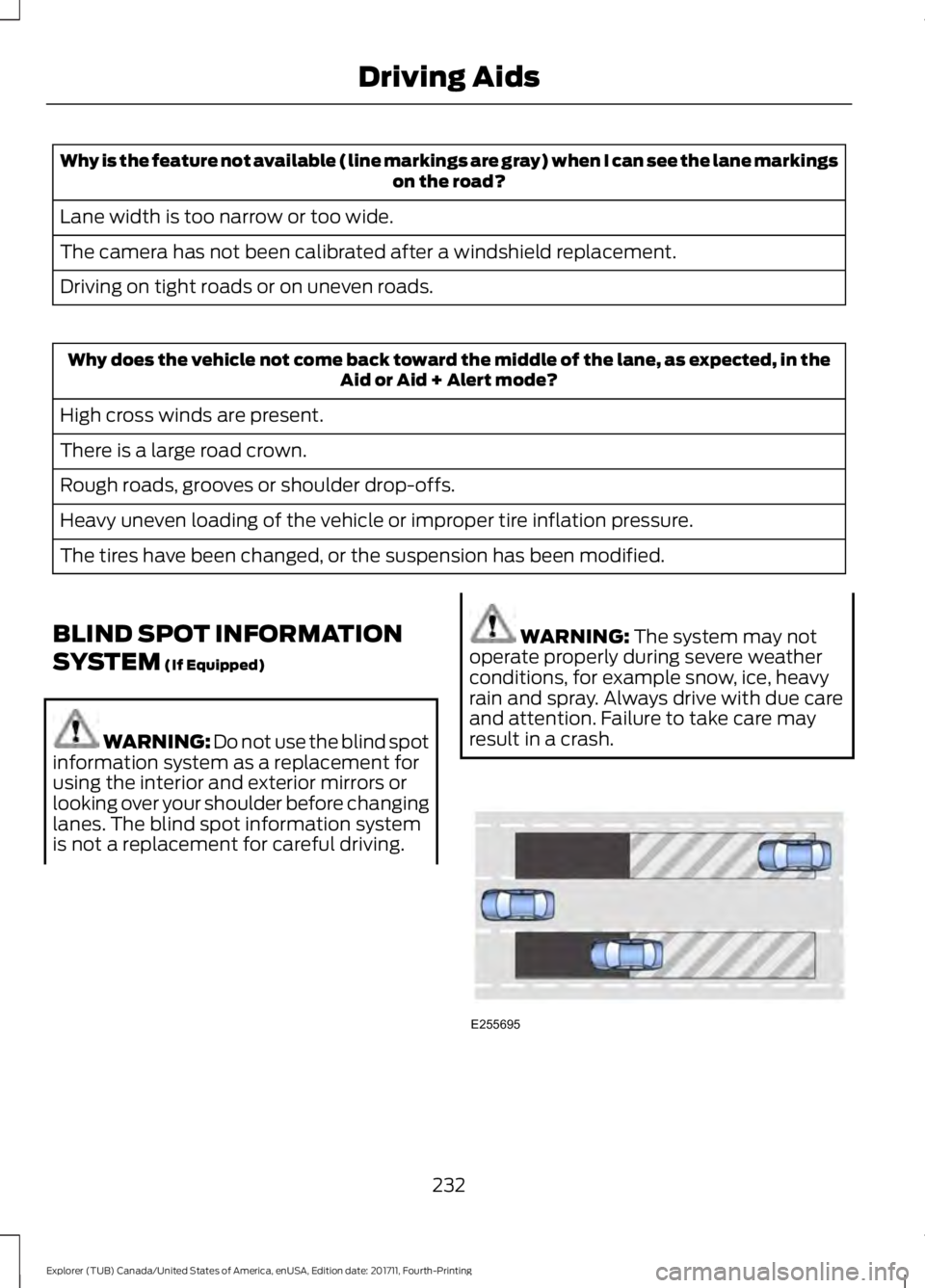

Page 235 of 571

FORD EXPLORER 2018  Owners Manual Why is the feature not available (line markings are gray) when I can see the lane markings
on the road?
Lane width is too narrow or too wide.
The camera has not been calibrated after a windshield repl

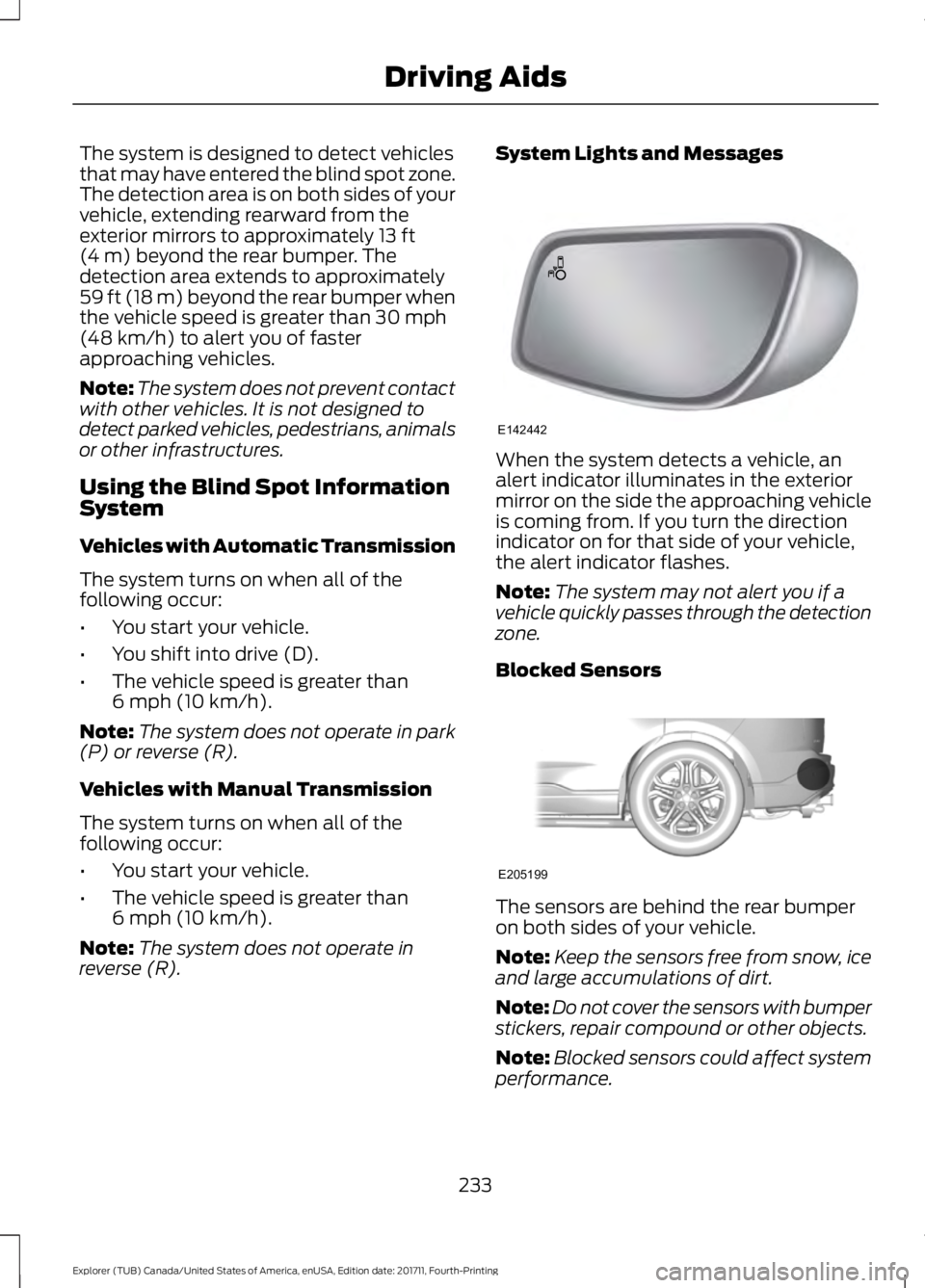

Page 236 of 571

FORD EXPLORER 2018  Owners Manual The system is designed to detect vehicles
that may have entered the blind spot zone.
The detection area is on both sides of your
vehicle, extending rearward from the
exterior mirrors to approximately

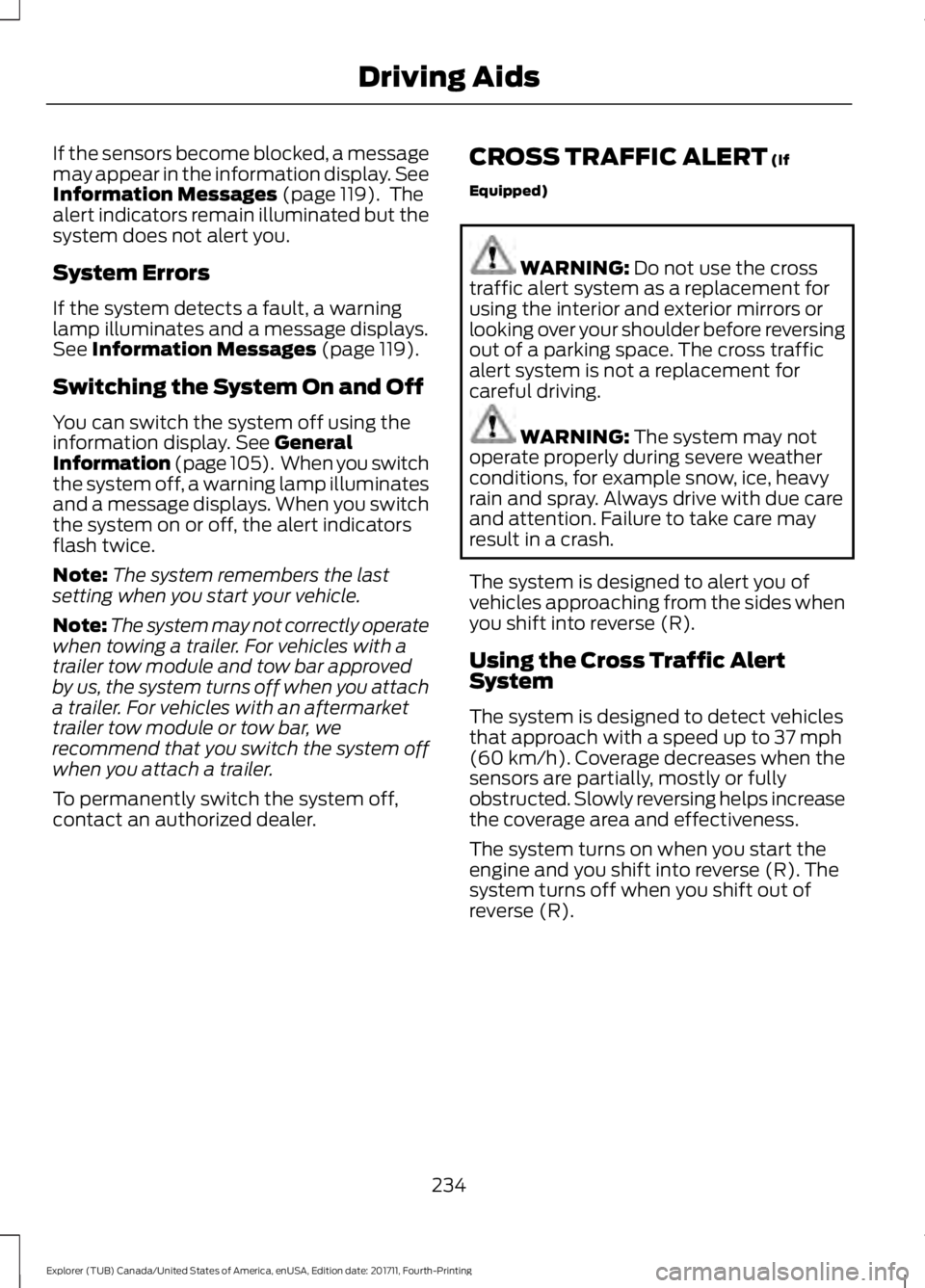

Page 237 of 571

FORD EXPLORER 2018  Owners Manual If the sensors become blocked, a message
may appear in the information display. See
Information Messages (page 119).  The
alert indicators remain illuminated but the
system does not alert you.
System

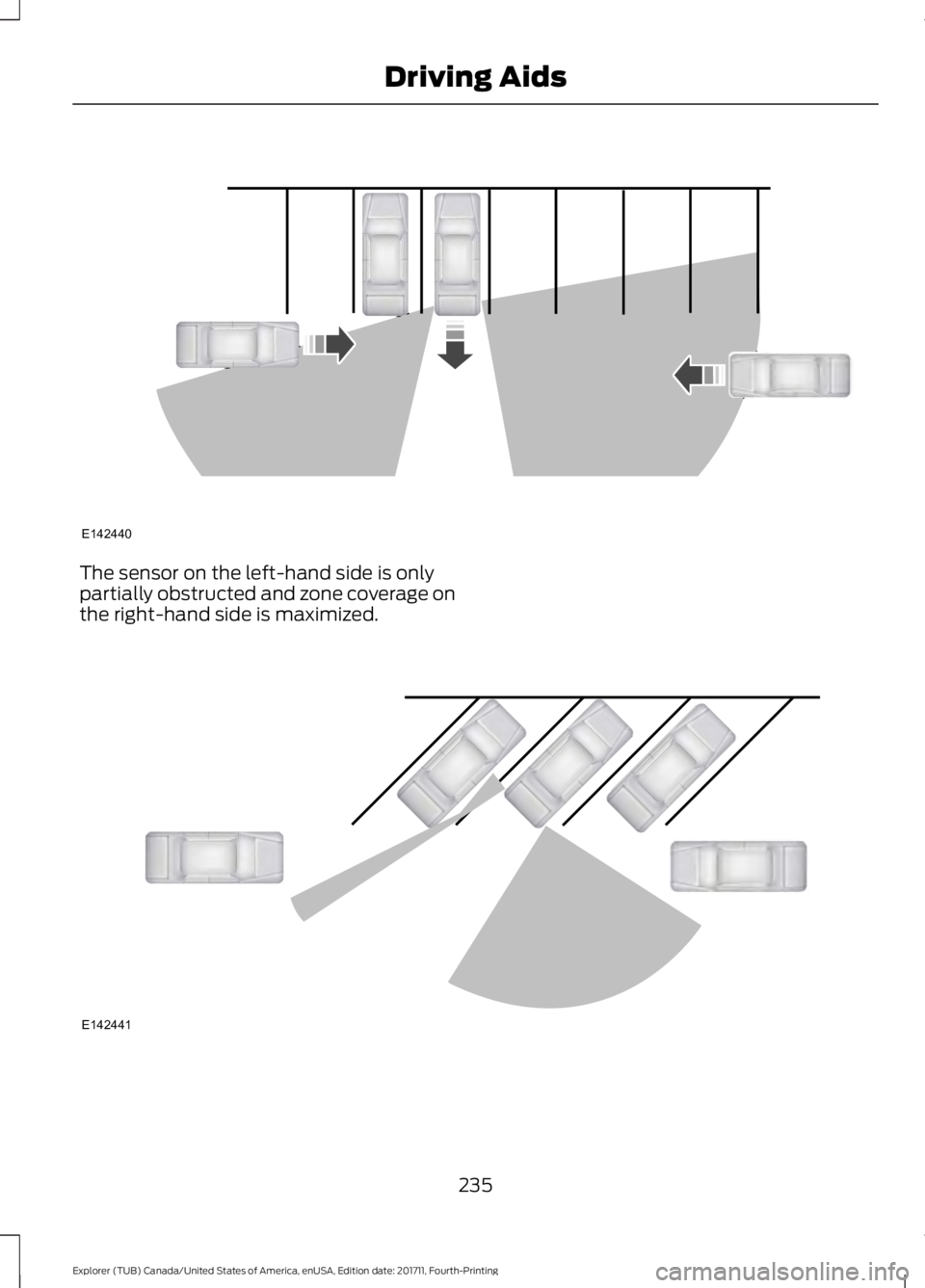

Page 238 of 571

FORD EXPLORER 2018  Owners Manual The sensor on the left-hand side is only
partially obstructed and zone coverage on
the right-hand side is maximized.
235
Explorer (TUB) Canada/United States of America, enUSA, Edition date: 201711, Fo

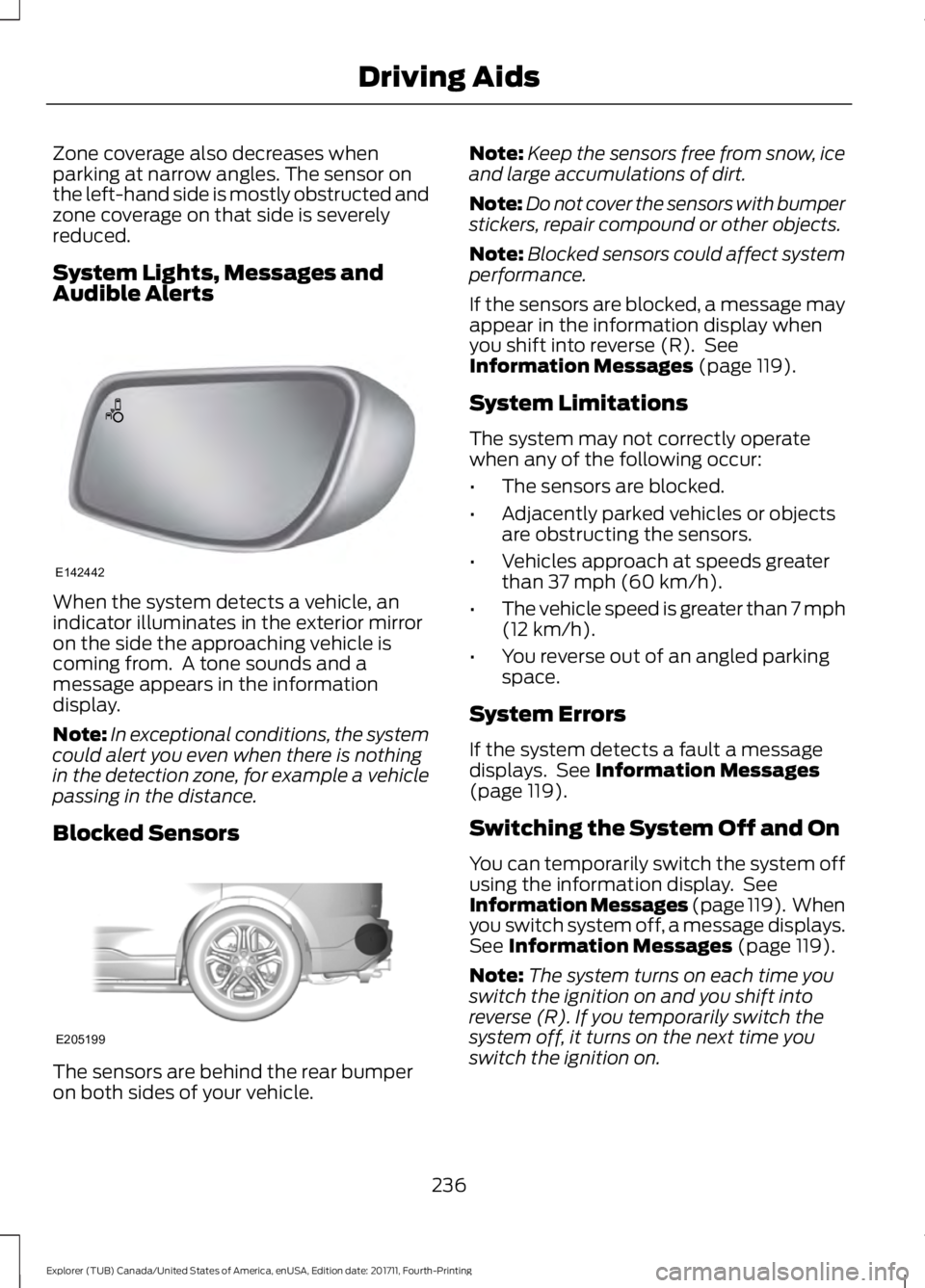

Page 239 of 571

FORD EXPLORER 2018  Owners Manual Zone coverage also decreases when
parking at narrow angles. The sensor on
the left-hand side is mostly obstructed and
zone coverage on that side is severely
reduced.
System Lights, Messages and
Audibl

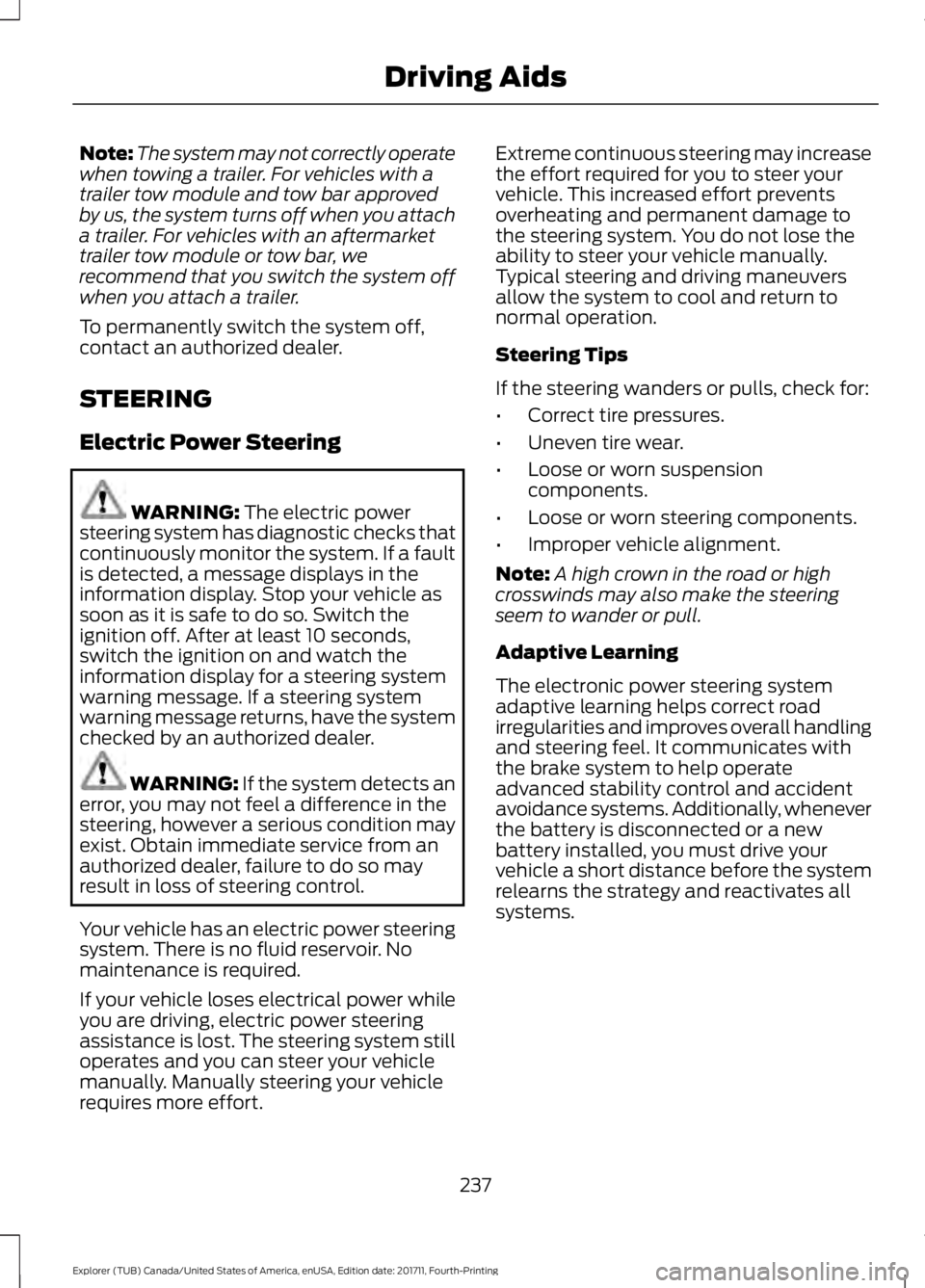

Page 240 of 571

FORD EXPLORER 2018  Owners Manual Note:
The system may not correctly operate
when towing a trailer. For vehicles with a
trailer tow module and tow bar approved
by us, the system turns off when you attach
a trailer. For vehicles with a
