Page 281 of 571

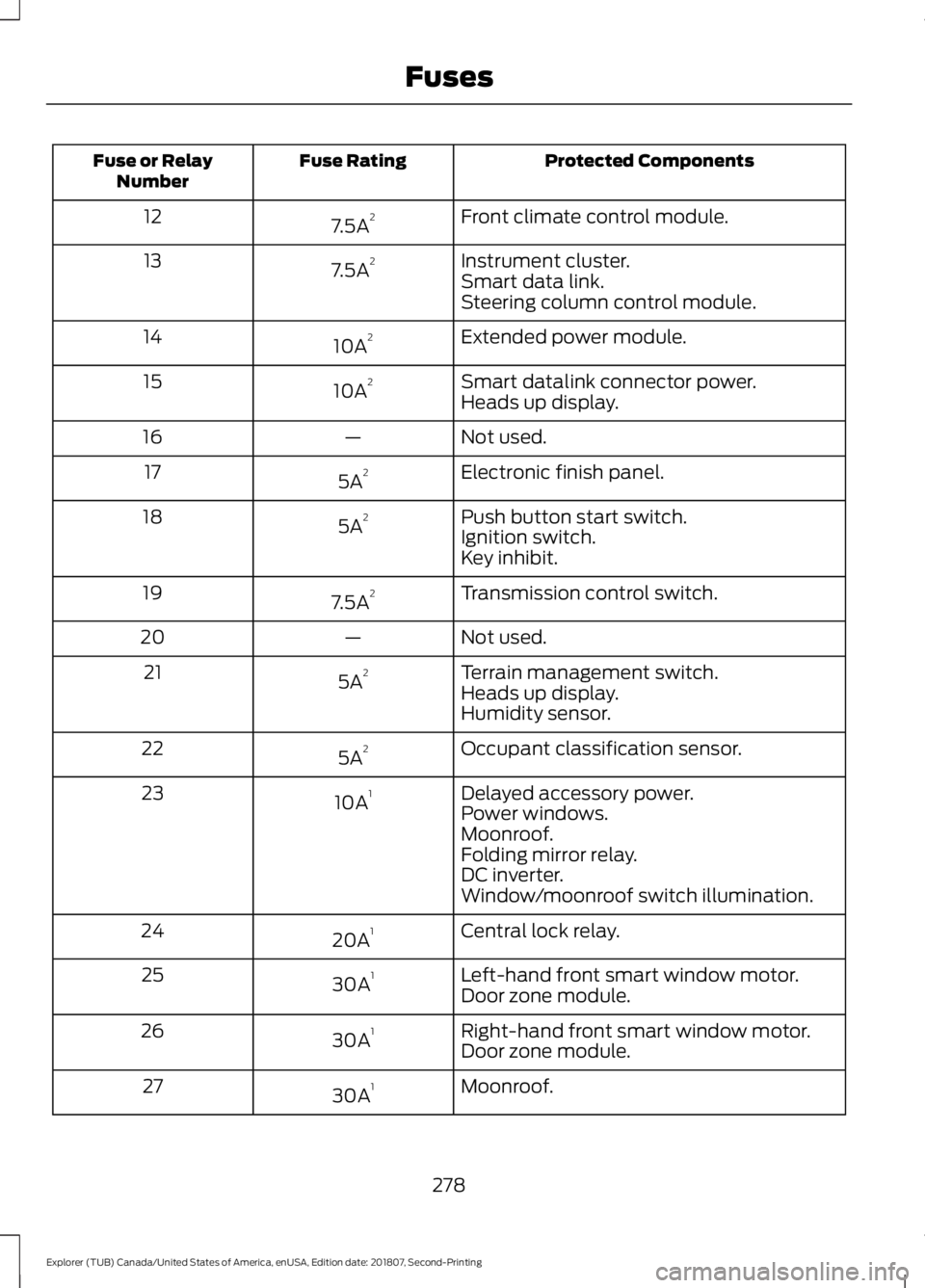

FORD EXPLORER 2019  Owners Manual Protected Components
Fuse Rating
Fuse or Relay
Number
Front climate control module.
7.5A 2
12
Instrument cluster.
7.5A 2
13
Smart data link.
Steering column control module.
Extended power module.
10A

Page 282 of 571

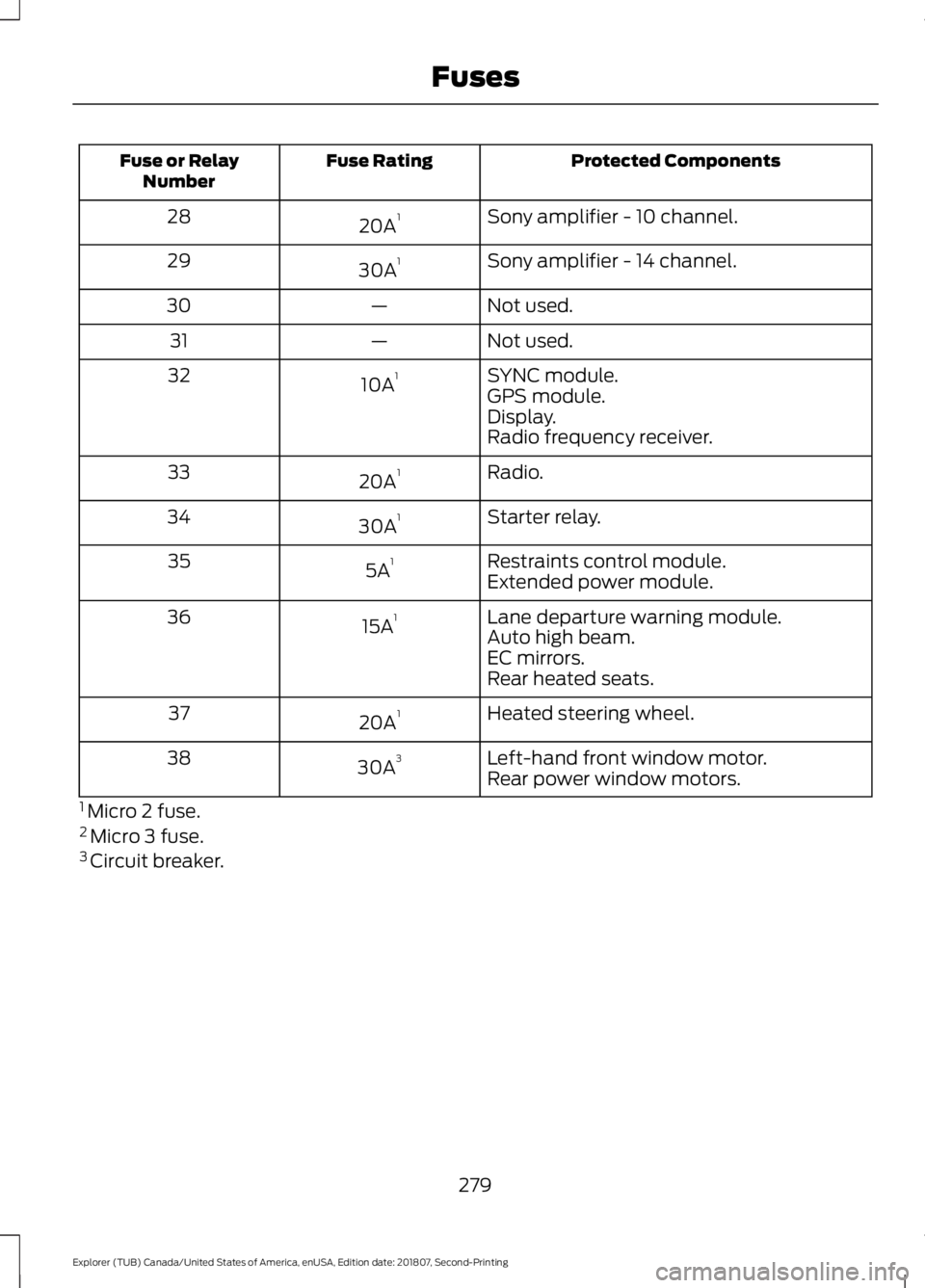

FORD EXPLORER 2019  Owners Manual Protected Components
Fuse Rating
Fuse or Relay
Number
Sony amplifier - 10 channel.
20A 1
28
Sony amplifier - 14 channel.
30A 1
29
Not used.
—
30
Not used.
—
31
SYNC module.
10A 1
32
GPS module.
Di

Page 283 of 571

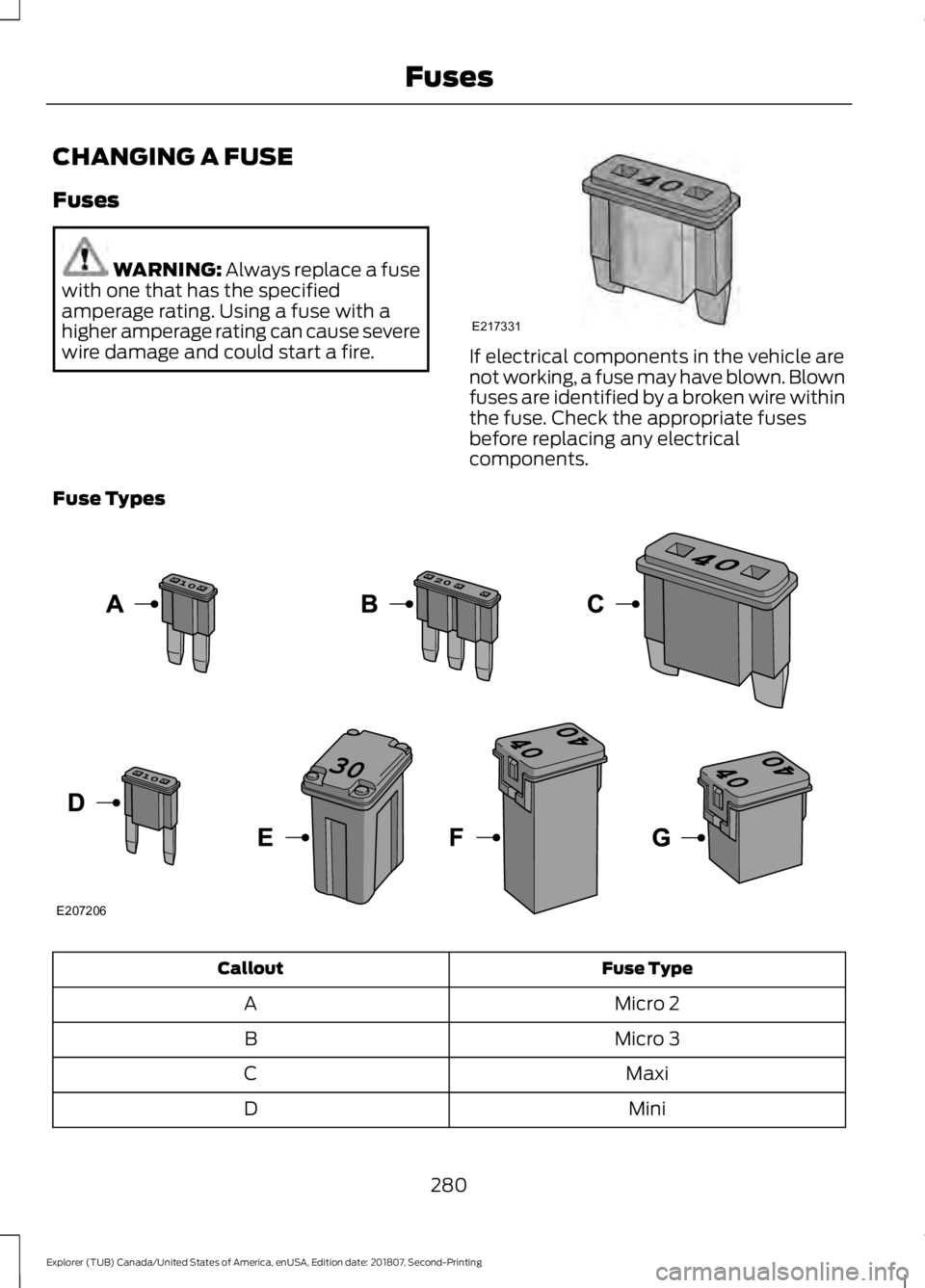

FORD EXPLORER 2019  Owners Manual CHANGING A FUSE
Fuses
WARNING: Always replace a fuse
with one that has the specified
amperage rating. Using a fuse with a
higher amperage rating can cause severe
wire damage and could start a fire. If

Page 284 of 571

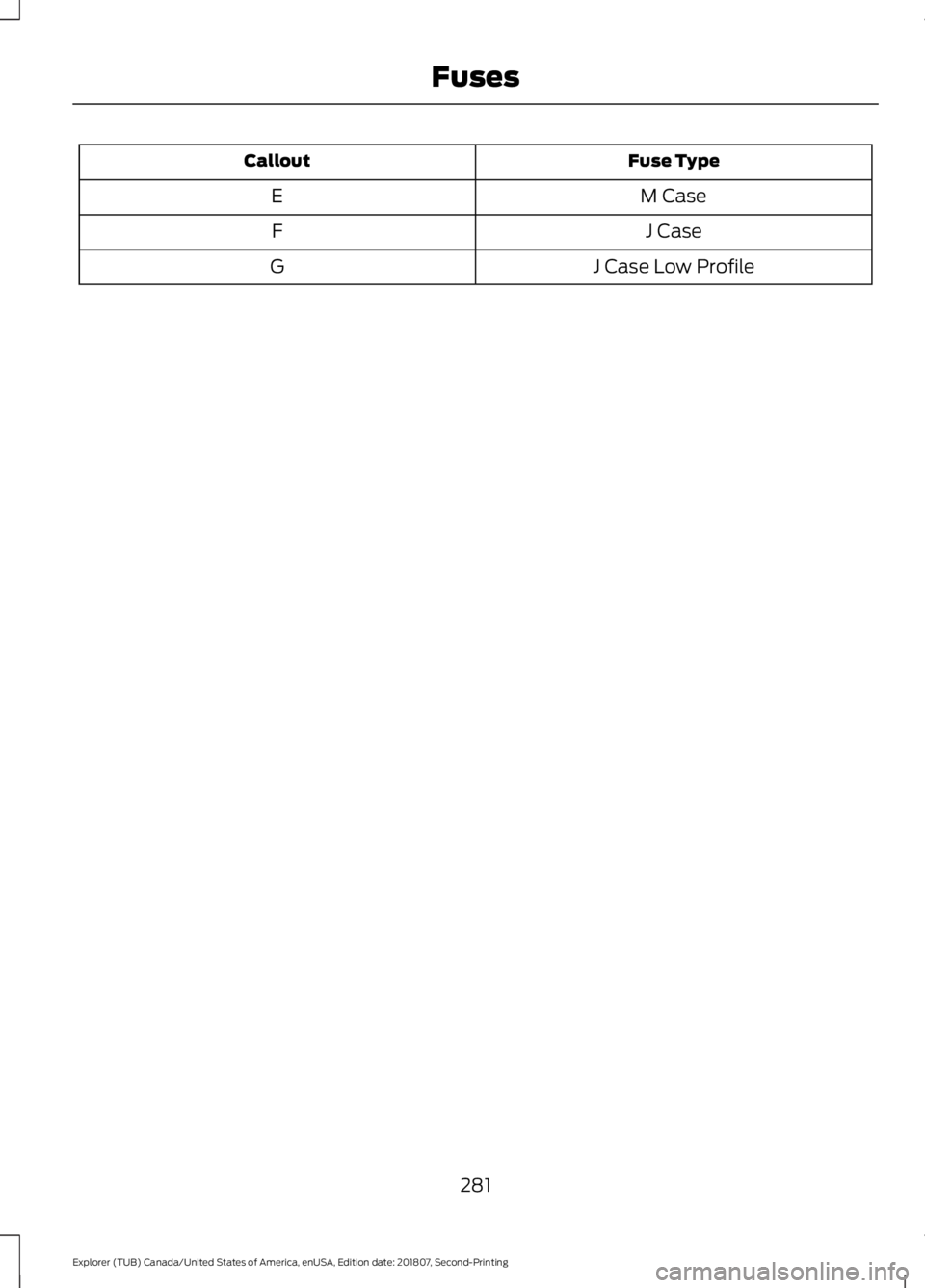

FORD EXPLORER 2019  Owners Manual Fuse Type
Callout
M Case
E
J Case
F
J Case Low Profile
G
281
Explorer (TUB) Canada/United States of America, enUSA, Edition date: 201807, Second-Printing Fuses

Page 285 of 571

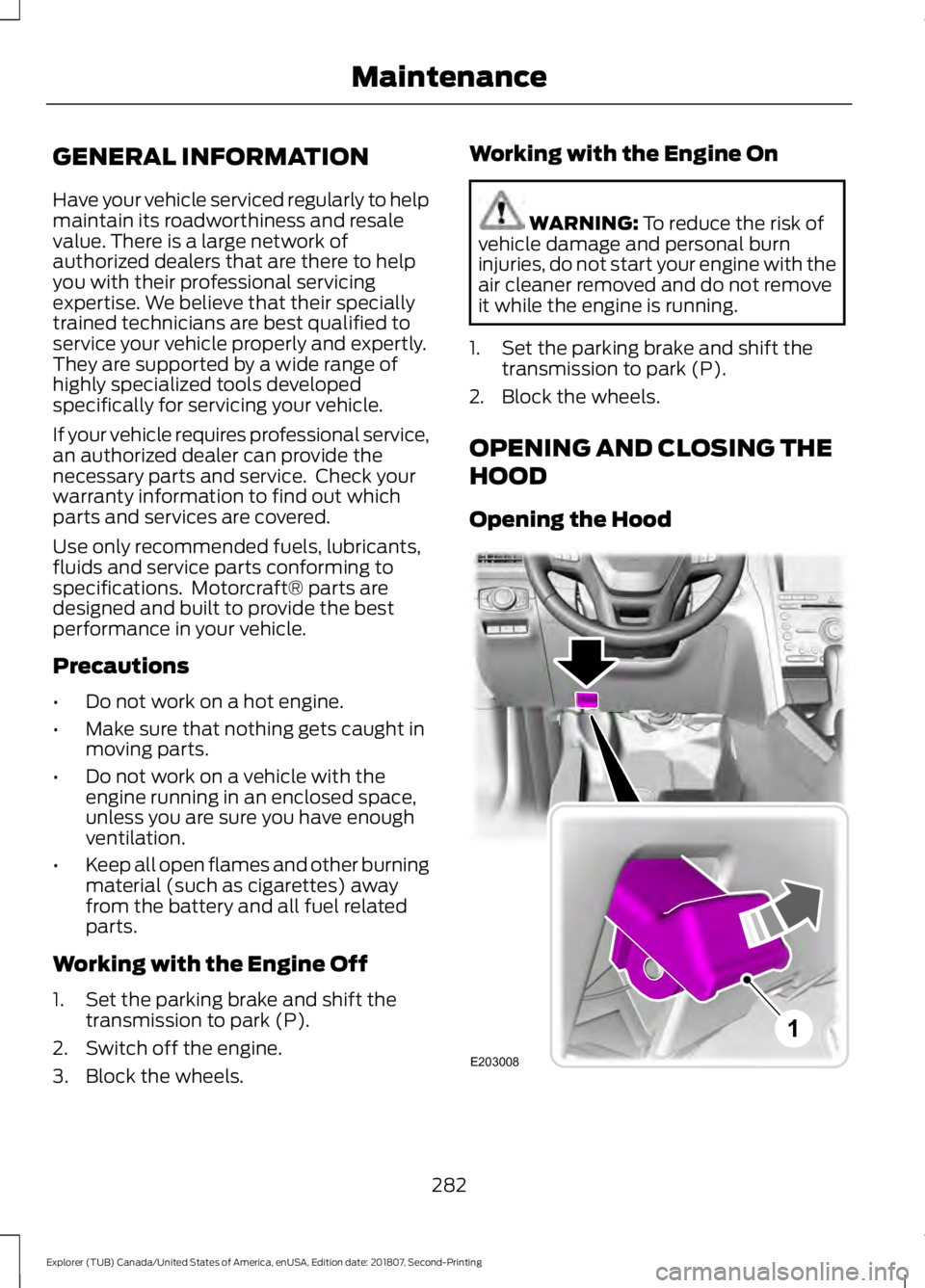

FORD EXPLORER 2019  Owners Manual GENERAL INFORMATION
Have your vehicle serviced regularly to help
maintain its roadworthiness and resale
value. There is a large network of
authorized dealers that are there to help
you with their prof

Page 286 of 571

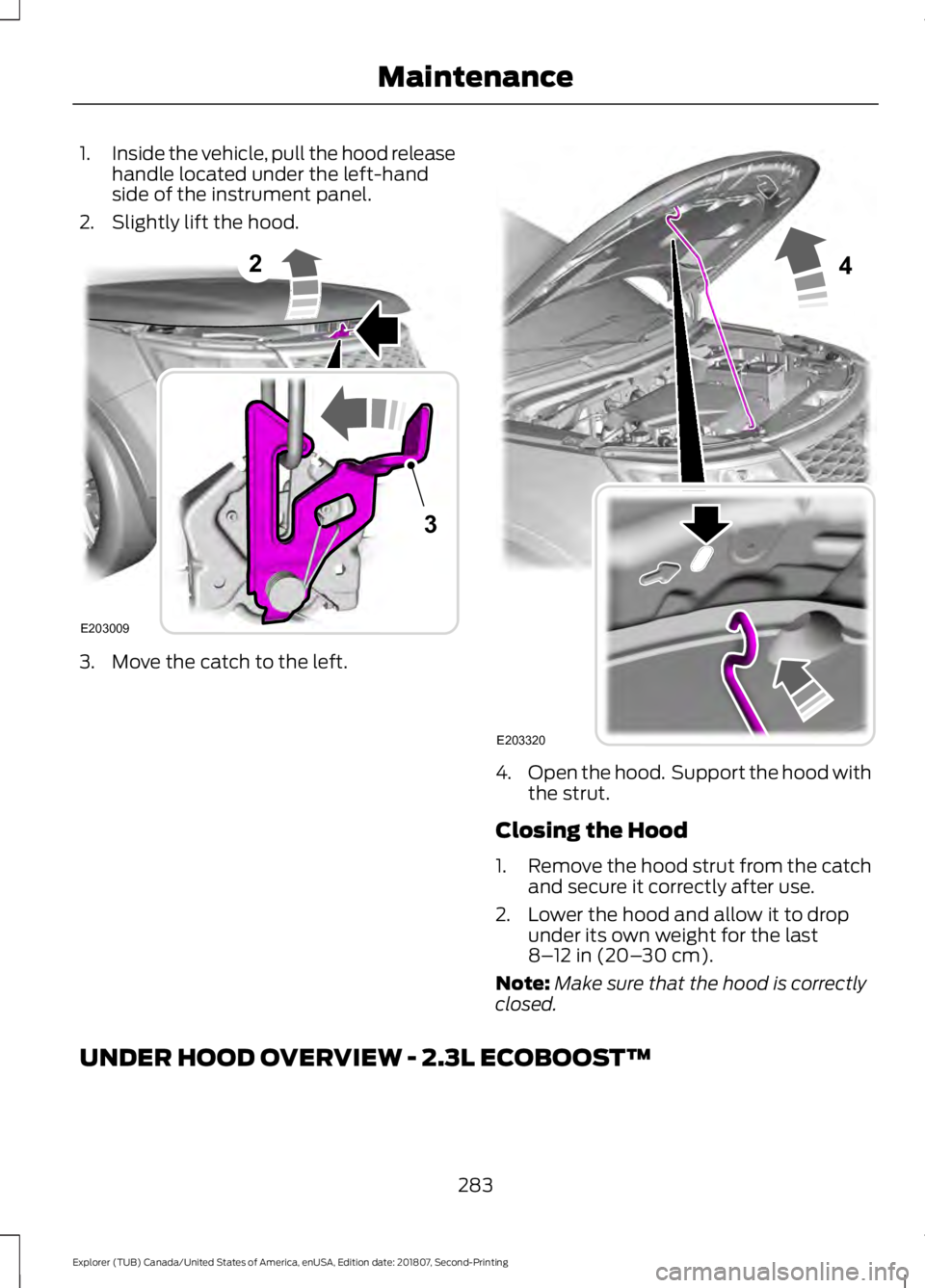

FORD EXPLORER 2019  Owners Manual 1.
Inside the vehicle, pull the hood release
handle located under the left-hand
side of the instrument panel.
2. Slightly lift the hood. 3. Move the catch to the left.
4.
Open the hood.  Support the h

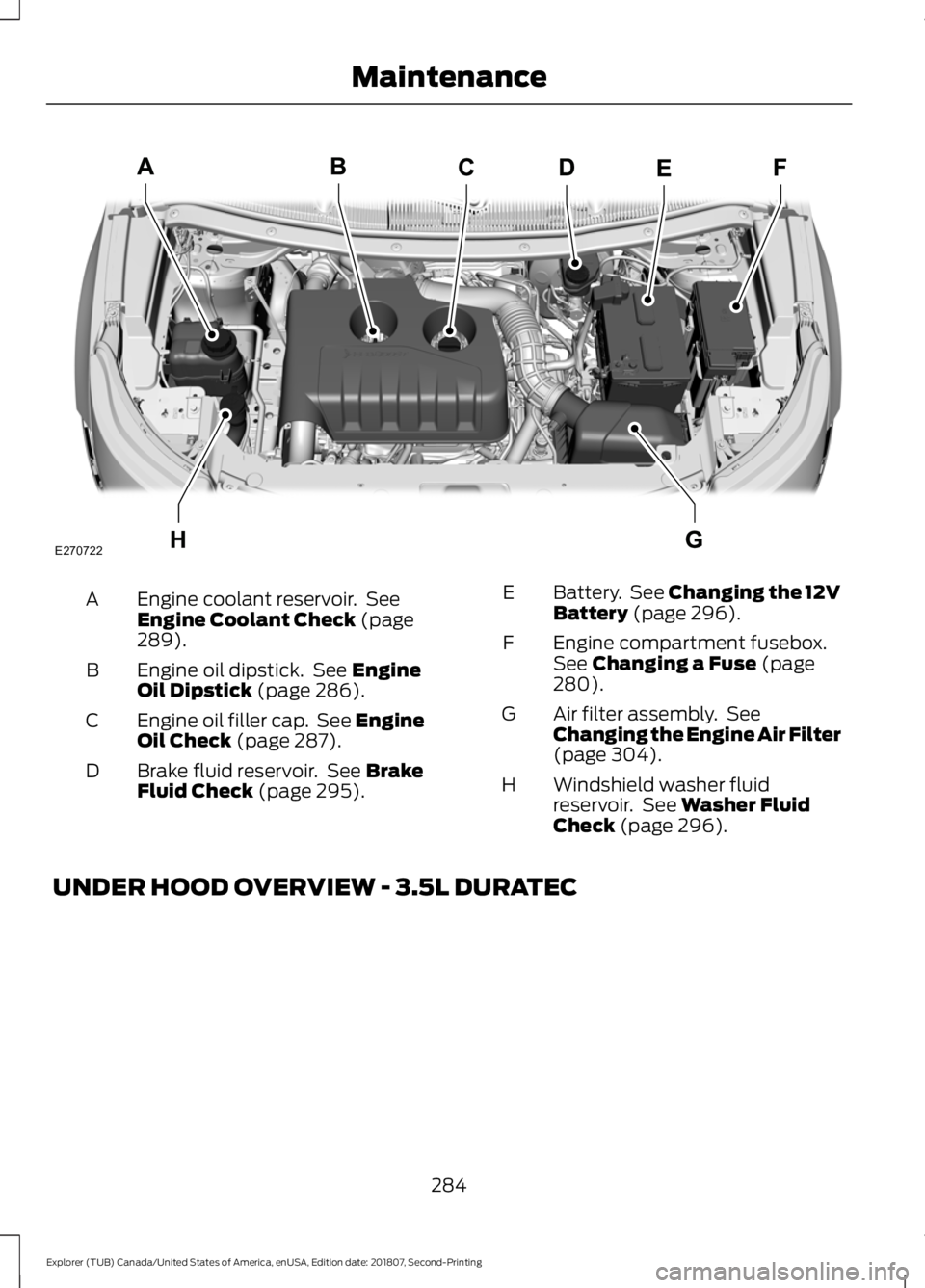

Page 287 of 571

FORD EXPLORER 2019  Owners Manual Engine coolant reservoir.  See
Engine Coolant Check (page
289).
A
Engine oil dipstick.  See
Engine
Oil Dipstick (page 286).
B
Engine oil filler cap.  See Engine
Oil Check
 (page 287).
C
Brake fluid r

Page 288 of 571

FORD EXPLORER 2019  Owners Manual Engine coolant reservoir.  See
Engine Coolant Check (page
289).
A
Brake fluid reservoir.  See
Brake
Fluid Check (page 295).
B
Battery.  See
Changing the 12V
Battery (page 296).
C
Engine compartment

Page 289 of 571

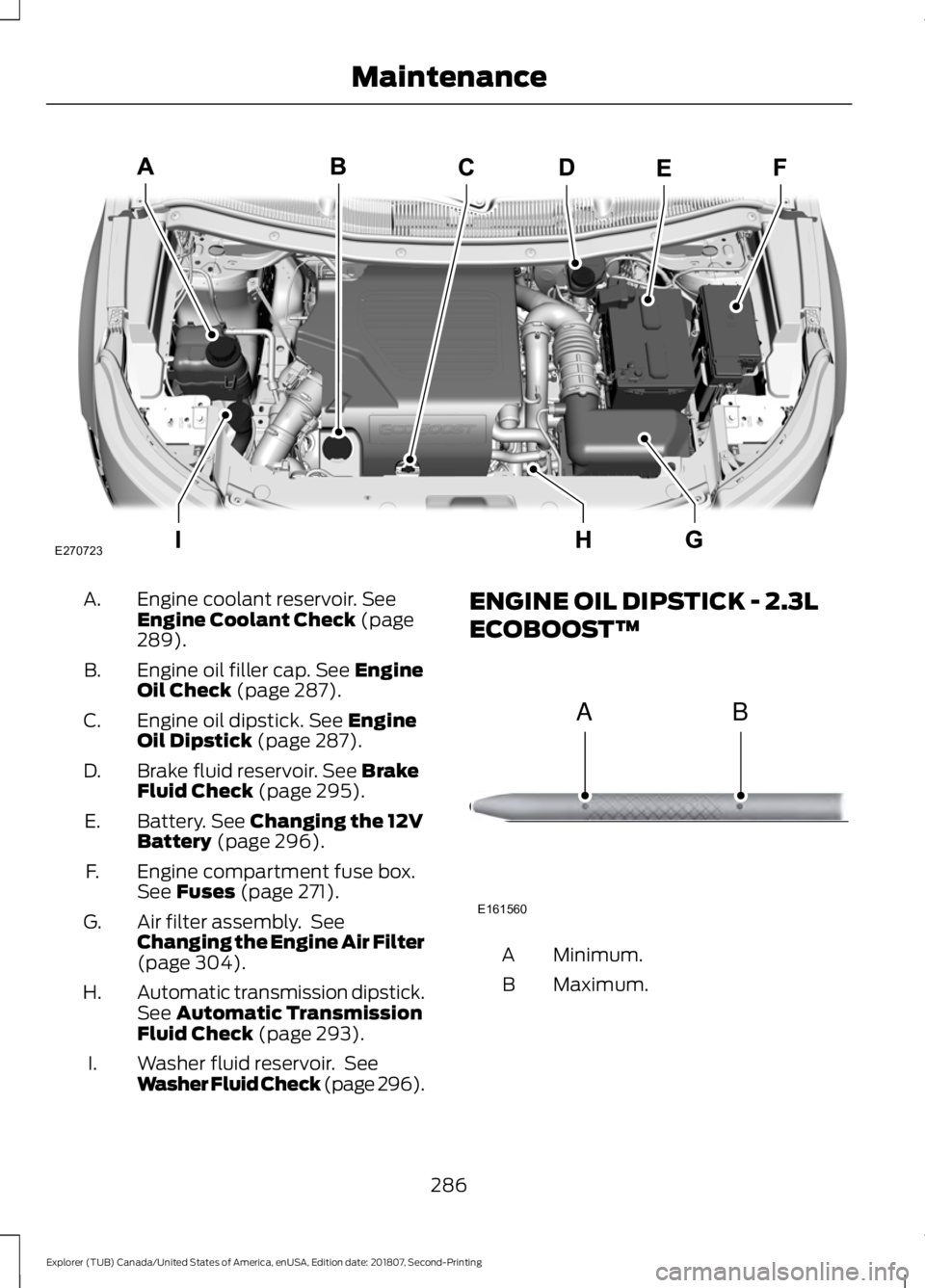

FORD EXPLORER 2019  Owners Manual Engine coolant reservoir. See
Engine Coolant Check (page
289).
A.
Engine oil filler cap.
 See Engine
Oil Check (page 287).
B.
Engine oil dipstick.
 See Engine
Oil Dipstick (page 287).
C.
Brake fluid r

Page 290 of 571

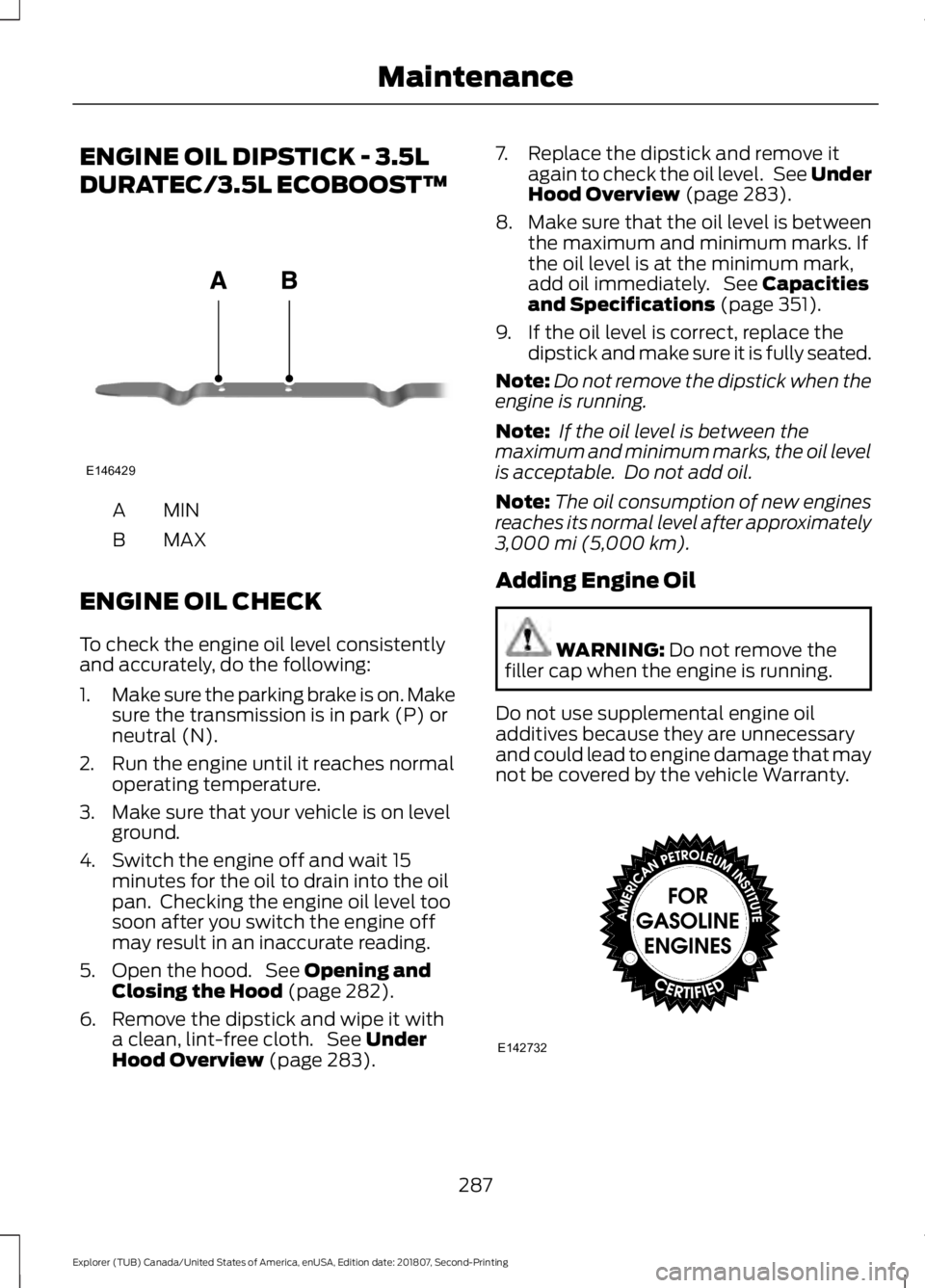

FORD EXPLORER 2019  Owners Manual ENGINE OIL DIPSTICK - 3.5L
DURATEC/3.5L ECOBOOST™
MINA
MAX
B
ENGINE OIL CHECK
To check the engine oil level consistently
and accurately, do the following:
1. Make sure the parking brake is on. Make
