battery replacement FORD EXPLORER SPORT TRAC 2002 Owners Manual

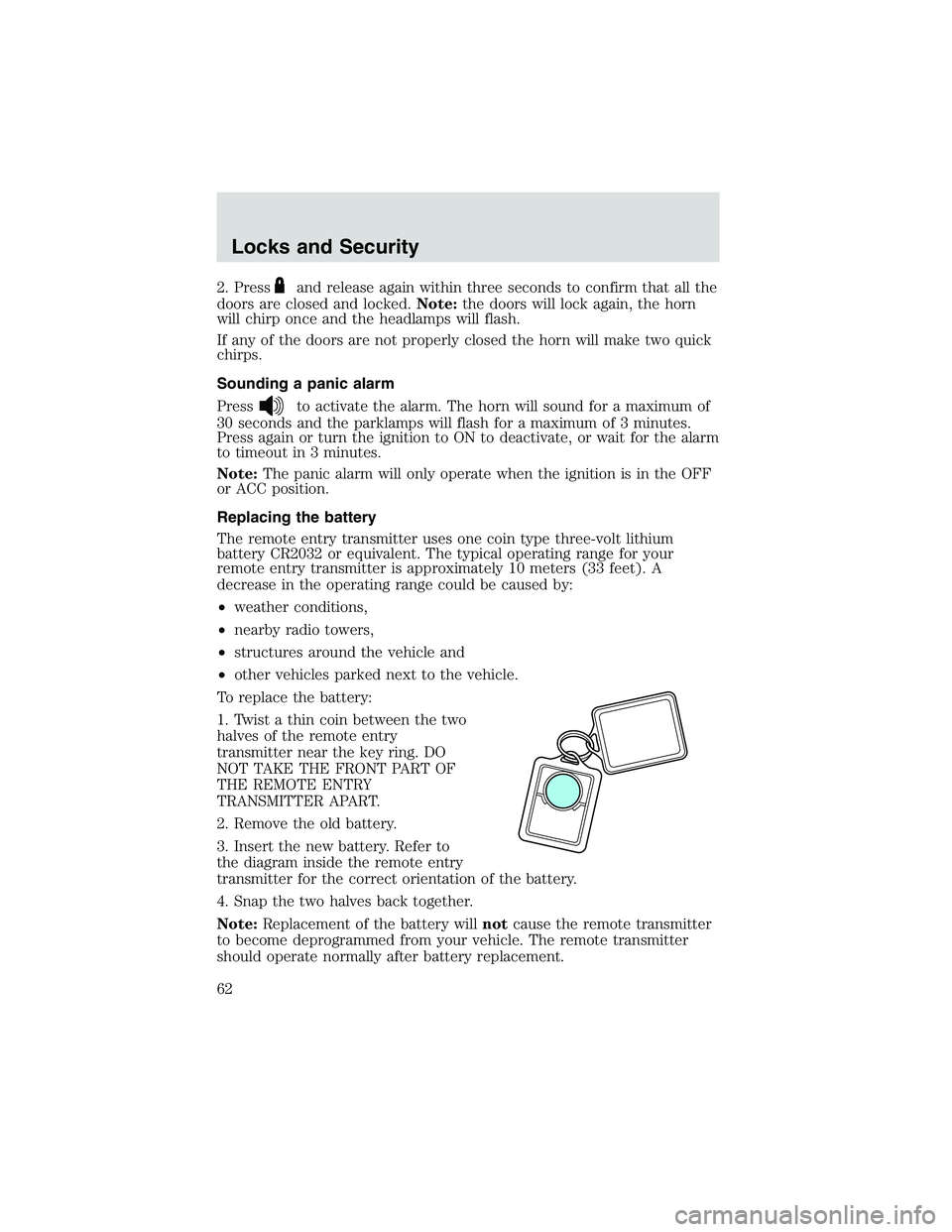

2. Pressand release again within three seconds to confirm that all the
doors are closed and locked.Note:the doors will lock again, the horn
will chirp once and the headlamps will flash.
If any of the doors are not properly closed the horn will make two quick
chirps.
Sounding a panic alarm
Press
to activate the alarm. The horn will sound for a maximum of
30 seconds and the parklamps will flash for a maximum of 3 minutes.
Press again or turn the ignition to ON to deactivate, or wait for the alarm
to timeout in 3 minutes.
Note:The panic alarm will only operate when the ignition is in the OFF
or ACC position.
Replacing the battery
The remote entry transmitter uses one coin type three-volt lithium
battery CR2032 or equivalent. The typical operating range for your
remote entry transmitter is approximately 10 meters (33 feet). A
decrease in the operating range could be caused by:
•weather conditions,
•nearby radio towers,
•structures around the vehicle and
•other vehicles parked next to the vehicle.
To replace the battery:
1. Twist a thin coin between the two
halves of the remote entry
transmitter near the key ring. DO
NOT TAKE THE FRONT PART OF
THE REMOTE ENTRY
TRANSMITTER APART.
2. Remove the old battery.
3. Insert the new battery. Refer to
the diagram inside the remote entry
transmitter for the correct orientation of the battery.
4. Snap the two halves back together.
Note:Replacement of the battery willnotcause the remote transmitter
to become deprogrammed from your vehicle. The remote transmitter
should operate normally after battery replacement.
Locks and Security
62

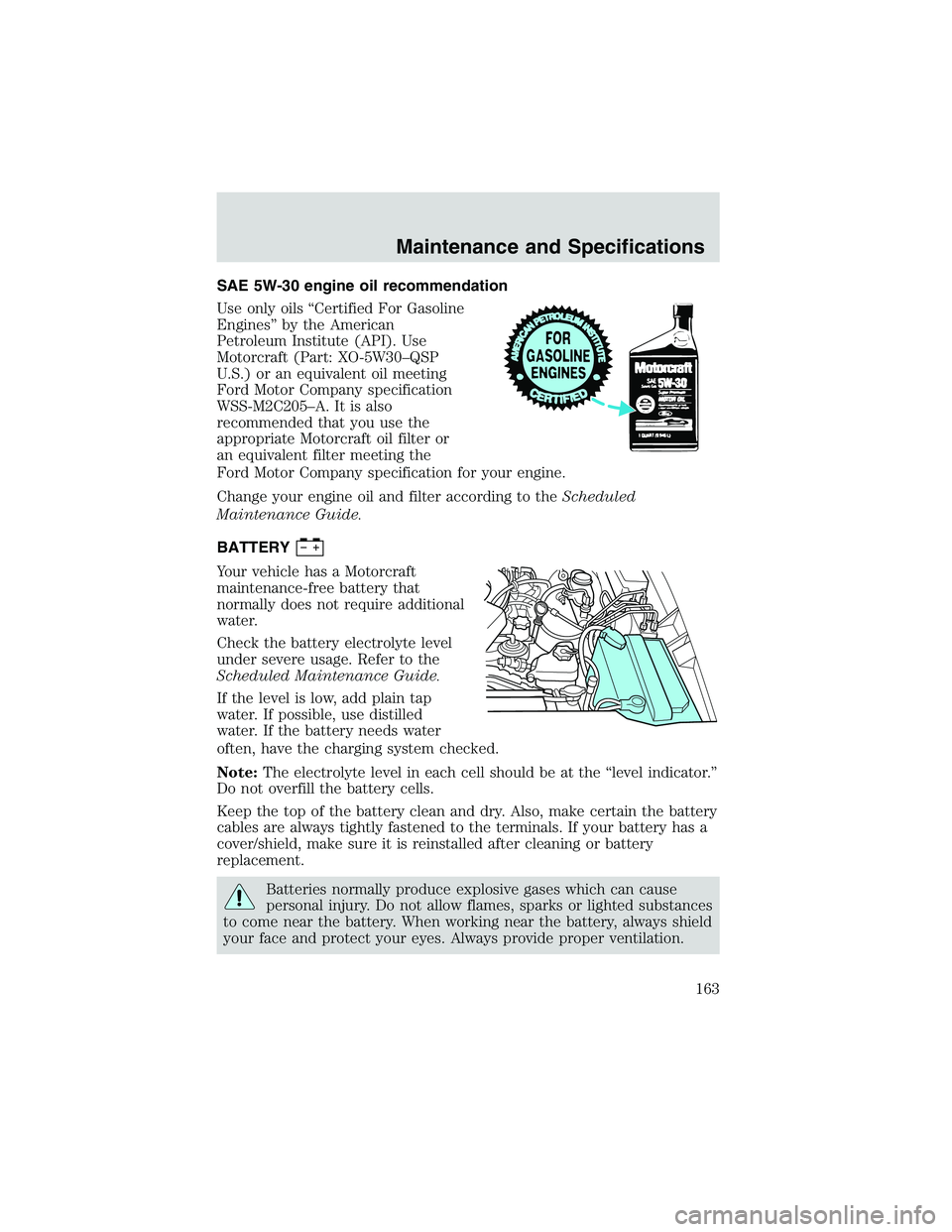

SAE 5W-30 engine oil recommendation
Use only oils“Certified For Gasoline
Engines”by the American
Petroleum Institute (API). Use
Motorcraft (Part: XO-5W30–QSP
U.S.) or an equivalent oil meeting
Ford Motor Company specification
WSS-M2C205–A. It is also
recommended that you use the
appropriate Motorcraft oil filter or
an equivalent filter meeting the
Ford Motor Company specification for your engine.
Change your engine oil and filter according to theScheduled
Maintenance Guide.
BATTERY
Your vehicle has a Motorcraft
maintenance-free battery that
normally does not require additional
water.
Check the battery electrolyte level
under severe usage. Refer to the
Scheduled Maintenance Guide.
If the level is low, add plain tap
water. If possible, use distilled
water. If the battery needs water
often, have the charging system checked.
Note:The electrolyte level in each cell should be at the“level indicator.”
Do not overfill the battery cells.
Keep the top of the battery clean and dry. Also, make certain the battery
cables are always tightly fastened to the terminals. If your battery has a
cover/shield, make sure it is reinstalled after cleaning or battery
replacement.
Batteries normally produce explosive gases which can cause
personal injury. Do not allow flames, sparks or lighted substances
to come near the battery. When working near the battery, always shield
your face and protect your eyes. Always provide proper ventilation.
Maintenance and Specifications
163

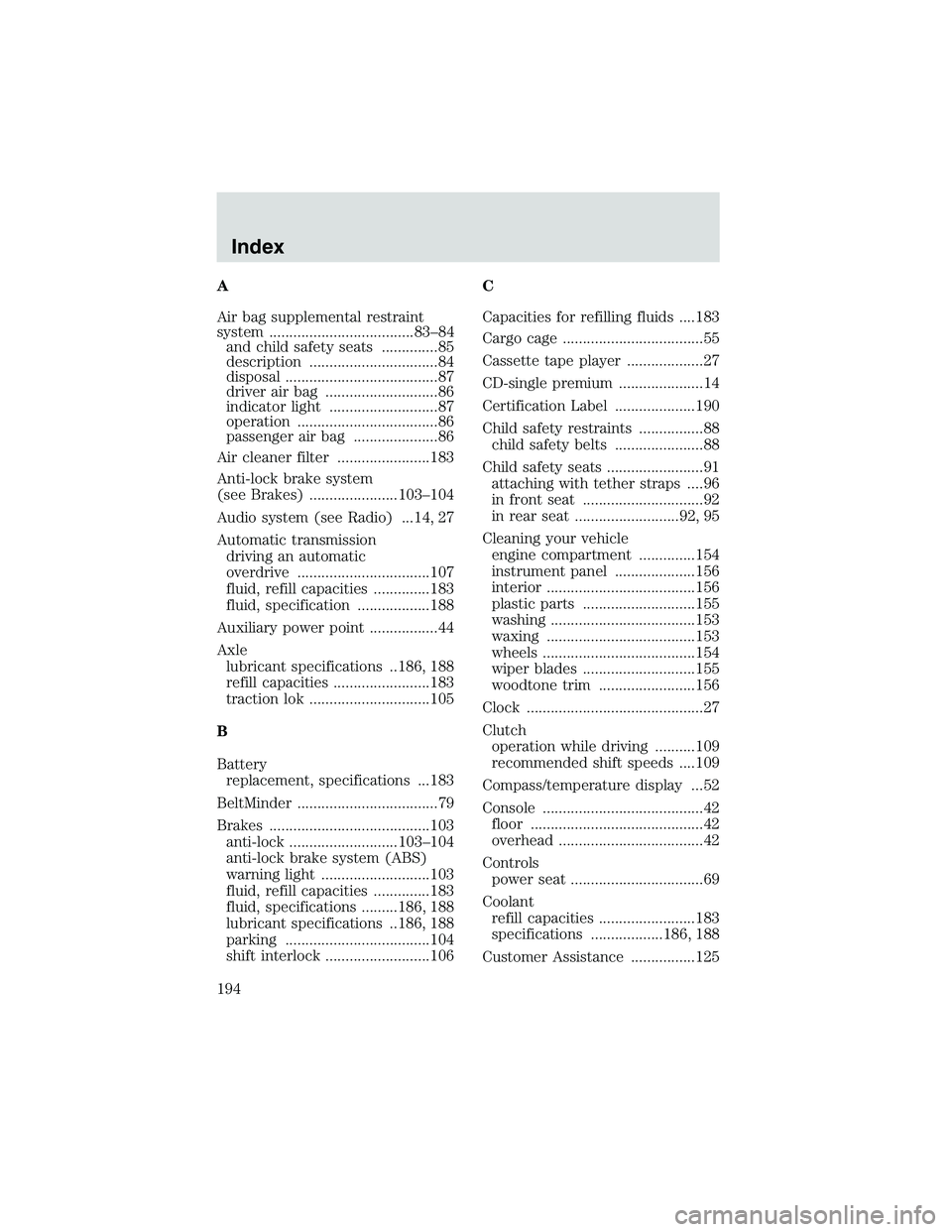

A
Air bag supplemental restraint
system ....................................83–84
and child safety seats ..............85
description ................................84
disposal ......................................87
driver air bag ............................86
indicator light ...........................87
operation ...................................86
passenger air bag .....................86
Air cleaner filter .......................183
Anti-lock brake system
(see Brakes) ......................103–104
Audio system (see Radio) ...14, 27
Automatic transmission
driving an automatic
overdrive .................................107
fluid, refill capacities ..............183
fluid, specification ..................188
Auxiliary power point .................44
Axle
lubricant specifications ..186, 188
refill capacities ........................183
traction lok ..............................105
B
Battery
replacement, specifications ...183
BeltMinder ...................................79
Brakes ........................................103
anti-lock ...........................103–104
anti-lock brake system (ABS)
warning light ...........................103
fluid, refill capacities ..............183
fluid, specifications .........186, 188
lubricant specifications ..186, 188
parking ....................................104
shift interlock ..........................106C
Capacities for refilling fluids ....183
Cargo cage ...................................55
Cassette tape player ...................27
CD-single premium .....................14
Certification Label ....................190
Child safety restraints ................88
child safety belts ......................88
Child safety seats ........................91
attaching with tether straps ....96
in front seat ..............................92
in rear seat ..........................92, 95
Cleaning your vehicle
engine compartment ..............154
instrument panel ....................156
interior .....................................156
plastic parts ............................155
washing ....................................153
waxing .....................................153
wheels ......................................154
wiper blades ............................155
woodtone trim ........................156
Clock ............................................27
Clutch
operation while driving ..........109
recommended shift speeds ....109
Compass/temperature display ...52
Console ........................................42
floor ...........................................42
overhead ....................................42
Controls
power seat .................................69
Coolant
refill capacities ........................183
specifications ..................186, 188
Customer Assistance ................125
Index
194
