FORD F-150 2021 Owners Manual

ENGINE SPECIFICATIONS - 3.5L ECOBOOST™
Specification
Engine
10.5:1
Compression ratio.
213.4 in³ (3,497 cm³)
Displacement.
1-4-2-5-3-6
Firing order.
Coil on plug
Ignition system.
Minimum 87 octane
Required fuel.
0.028 in (0.7 mm) - 0.031 in (0.8 mm)
Spark plug gap.
577
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing Capacities and Specifications

ENGINE SPECIFICATIONS - 3.5L, HYBRID ELECTRIC VEHICLE
(HEV)
Specification
Engine
10.5:1
Compression ratio.
213.4 in³ (3,497 cm³)
Displacement.
1-4-2-5-3-6
Firing order.
Coil on plug
Ignition system.
Minimum 87 octane
Required fuel.
0.028 in (0.7 mm) - 0.031 in (0.8 mm)
Spark plug gap.
578
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing Capacities and Specifications

ENGINE SPECIFICATIONS - 5.0L
Specification
Engine
12:1
Compression ratio.
307 in³ (5,038 cm³)
Displacement.
1-3-7-2-6-5-4-8
Firing order.
Coil on plug, coil near plug
Ignition system.
Minimum 87 octane
Required fuel.
0.039 in (1 mm) - 0.043 in (1.1 mm)
Spark plug gap.
579
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing Capacities and Specifications

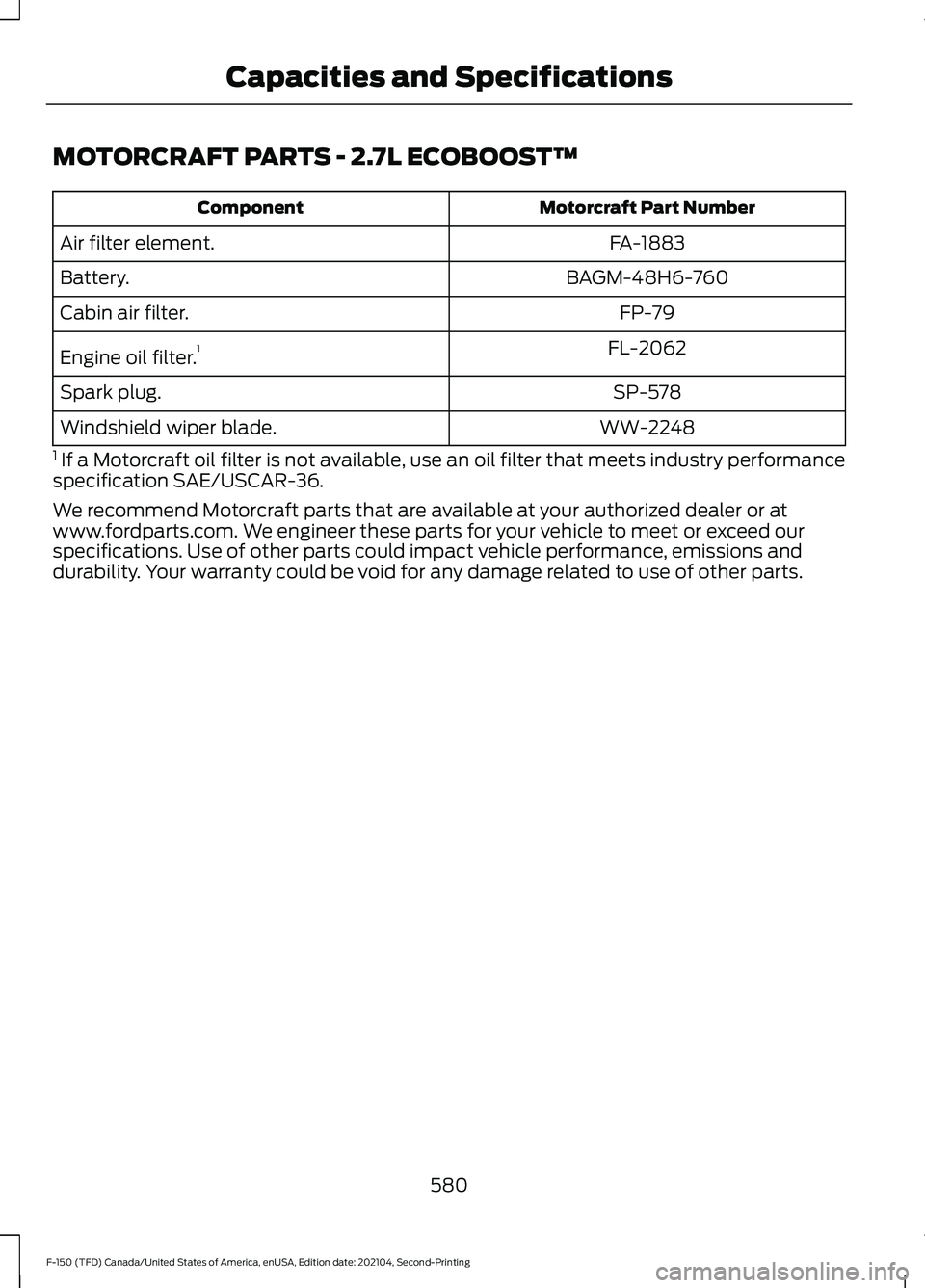

MOTORCRAFT PARTS - 2.7L ECOBOOST™
Motorcraft Part Number
Component
FA-1883
Air filter element.
BAGM-48H6-760
Battery.
FP-79
Cabin air filter.
FL-2062
Engine oil filter. 1
SP-578
Spark plug.
WW-2248
Windshield wiper blade.
1 If a Motorcraft oil filter is not available, use an oil filter that meets industry performance
specification SAE/USCAR-36.
We recommend Motorcraft parts that are available at your authorized dealer or at
www.fordparts.com. We engineer these parts for your vehicle to meet or exceed our
specifications. Use of other parts could impact vehicle performance, emissions and
durability. Your warranty could be void for any damage related to use of other parts.
580
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing Capacities and Specifications

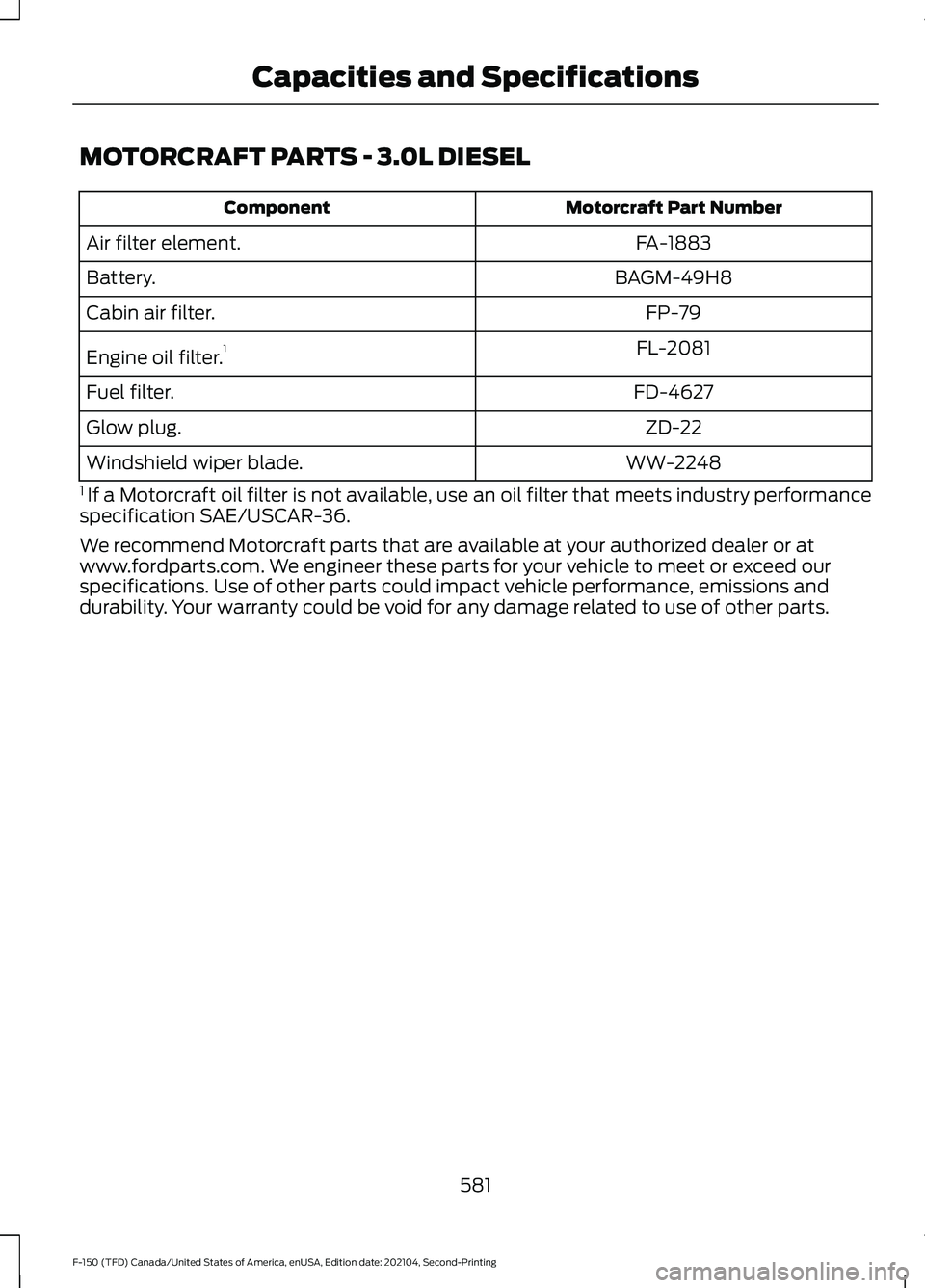

MOTORCRAFT PARTS - 3.0L DIESEL
Motorcraft Part Number
Component
FA-1883
Air filter element.
BAGM-49H8
Battery.
FP-79
Cabin air filter.
FL-2081
Engine oil filter. 1
FD-4627
Fuel filter.
ZD-22
Glow plug.
WW-2248
Windshield wiper blade.
1 If a Motorcraft oil filter is not available, use an oil filter that meets industry performance
specification SAE/USCAR-36.
We recommend Motorcraft parts that are available at your authorized dealer or at
www.fordparts.com. We engineer these parts for your vehicle to meet or exceed our
specifications. Use of other parts could impact vehicle performance, emissions and
durability. Your warranty could be void for any damage related to use of other parts.
581
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing Capacities and Specifications

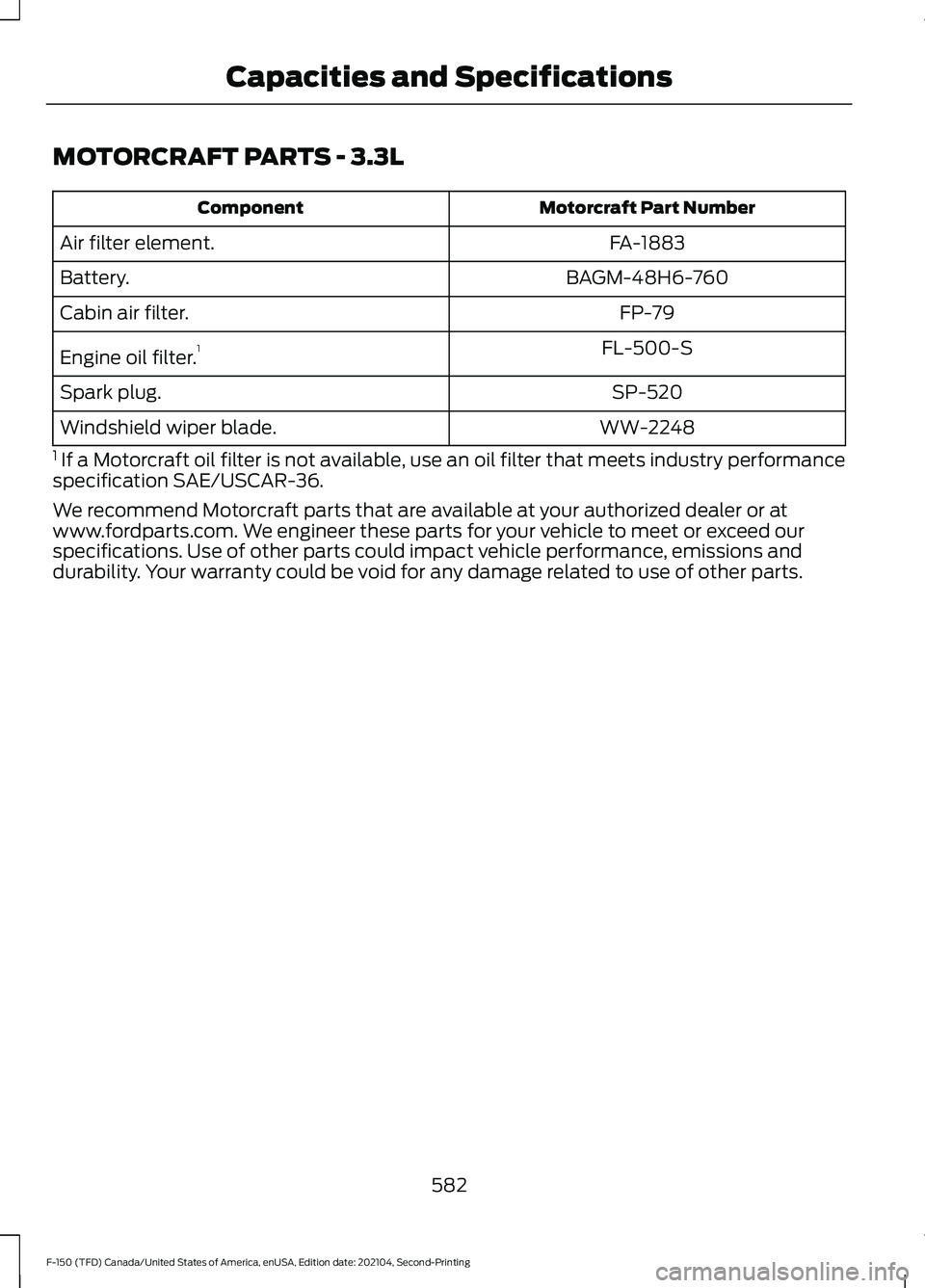

MOTORCRAFT PARTS - 3.3L
Motorcraft Part Number
Component
FA-1883
Air filter element.
BAGM-48H6-760
Battery.
FP-79
Cabin air filter.
FL-500-S
Engine oil filter. 1
SP-520
Spark plug.
WW-2248
Windshield wiper blade.
1 If a Motorcraft oil filter is not available, use an oil filter that meets industry performance
specification SAE/USCAR-36.
We recommend Motorcraft parts that are available at your authorized dealer or at
www.fordparts.com. We engineer these parts for your vehicle to meet or exceed our
specifications. Use of other parts could impact vehicle performance, emissions and
durability. Your warranty could be void for any damage related to use of other parts.
582
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing Capacities and Specifications

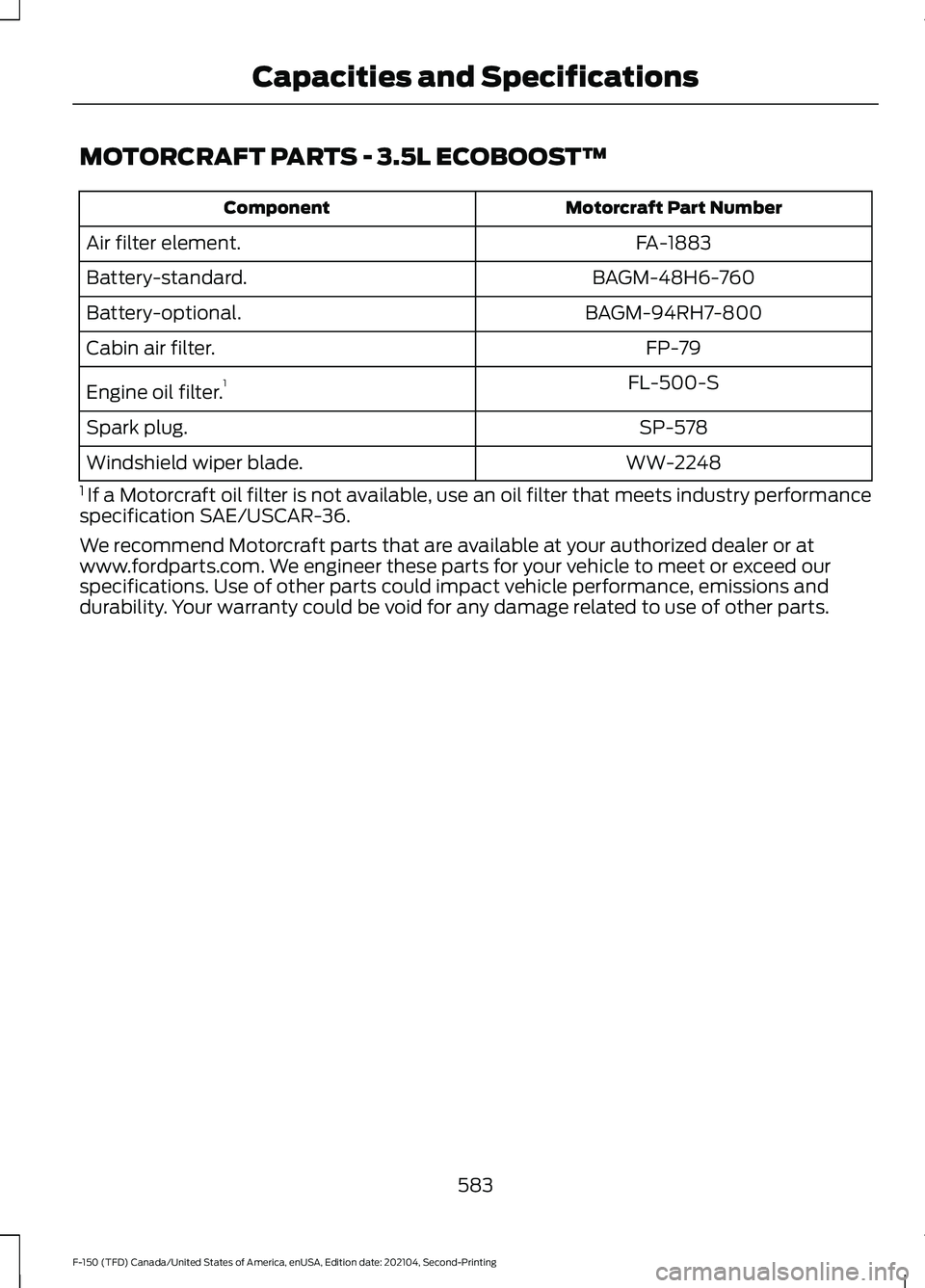

MOTORCRAFT PARTS - 3.5L ECOBOOST™
Motorcraft Part Number
Component
FA-1883
Air filter element.
BAGM-48H6-760
Battery-standard.
BAGM-94RH7-800
Battery-optional.
FP-79
Cabin air filter.
FL-500-S
Engine oil filter. 1
SP-578
Spark plug.
WW-2248
Windshield wiper blade.
1 If a Motorcraft oil filter is not available, use an oil filter that meets industry performance
specification SAE/USCAR-36.
We recommend Motorcraft parts that are available at your authorized dealer or at
www.fordparts.com. We engineer these parts for your vehicle to meet or exceed our
specifications. Use of other parts could impact vehicle performance, emissions and
durability. Your warranty could be void for any damage related to use of other parts.
583
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing Capacities and Specifications

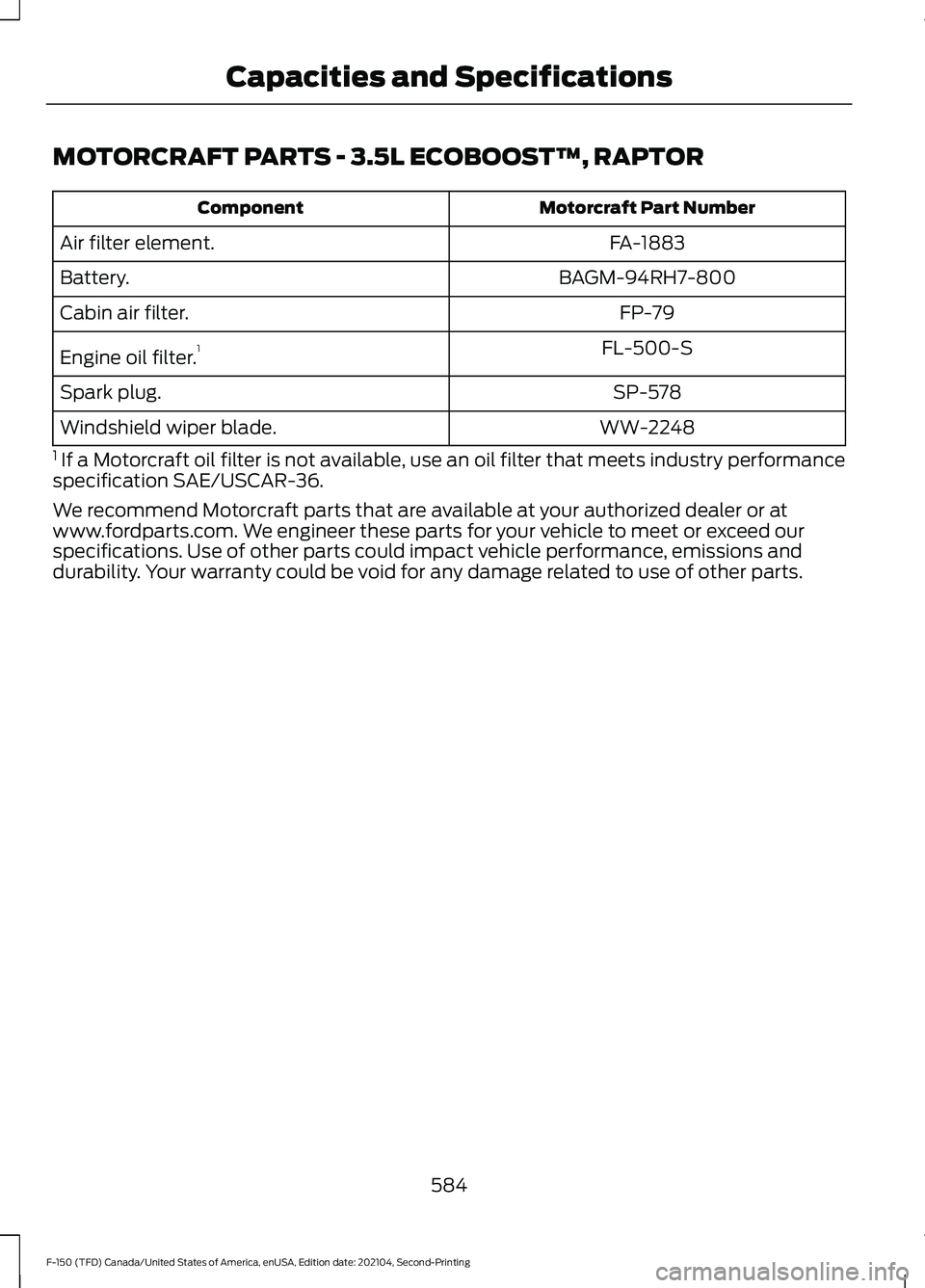

MOTORCRAFT PARTS - 3.5L ECOBOOST™, RAPTOR
Motorcraft Part Number
Component
FA-1883
Air filter element.
BAGM-94RH7-800
Battery.
FP-79
Cabin air filter.
FL-500-S
Engine oil filter. 1
SP-578
Spark plug.
WW-2248
Windshield wiper blade.
1 If a Motorcraft oil filter is not available, use an oil filter that meets industry performance
specification SAE/USCAR-36.
We recommend Motorcraft parts that are available at your authorized dealer or at
www.fordparts.com. We engineer these parts for your vehicle to meet or exceed our
specifications. Use of other parts could impact vehicle performance, emissions and
durability. Your warranty could be void for any damage related to use of other parts.
584
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing Capacities and Specifications

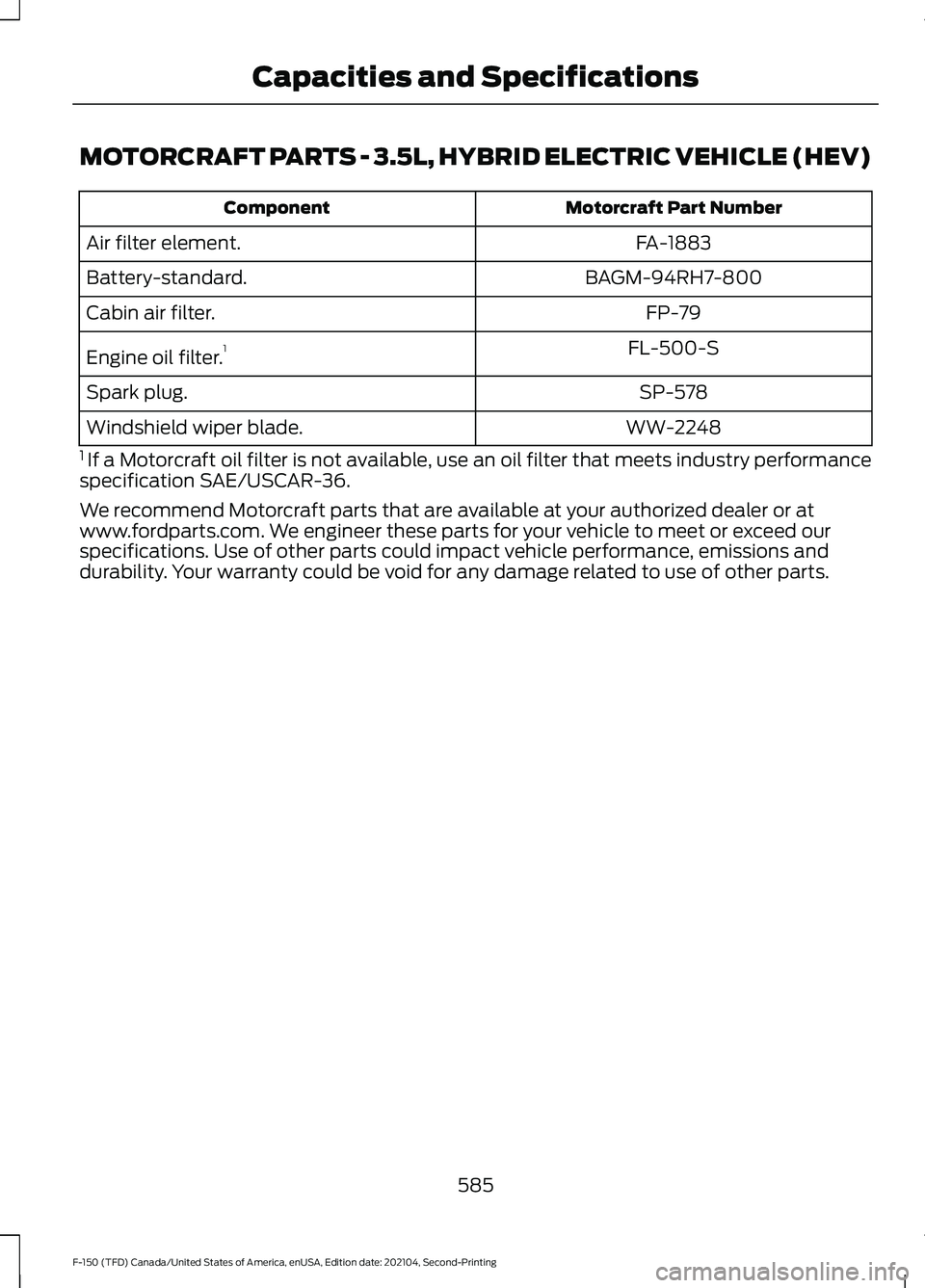

MOTORCRAFT PARTS - 3.5L, HYBRID ELECTRIC VEHICLE (HEV)
Motorcraft Part Number
Component
FA-1883
Air filter element.
BAGM-94RH7-800
Battery-standard.
FP-79
Cabin air filter.
FL-500-S
Engine oil filter. 1
SP-578
Spark plug.
WW-2248
Windshield wiper blade.
1 If a Motorcraft oil filter is not available, use an oil filter that meets industry performance
specification SAE/USCAR-36.
We recommend Motorcraft parts that are available at your authorized dealer or at
www.fordparts.com. We engineer these parts for your vehicle to meet or exceed our
specifications. Use of other parts could impact vehicle performance, emissions and
durability. Your warranty could be void for any damage related to use of other parts.
585
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing Capacities and Specifications

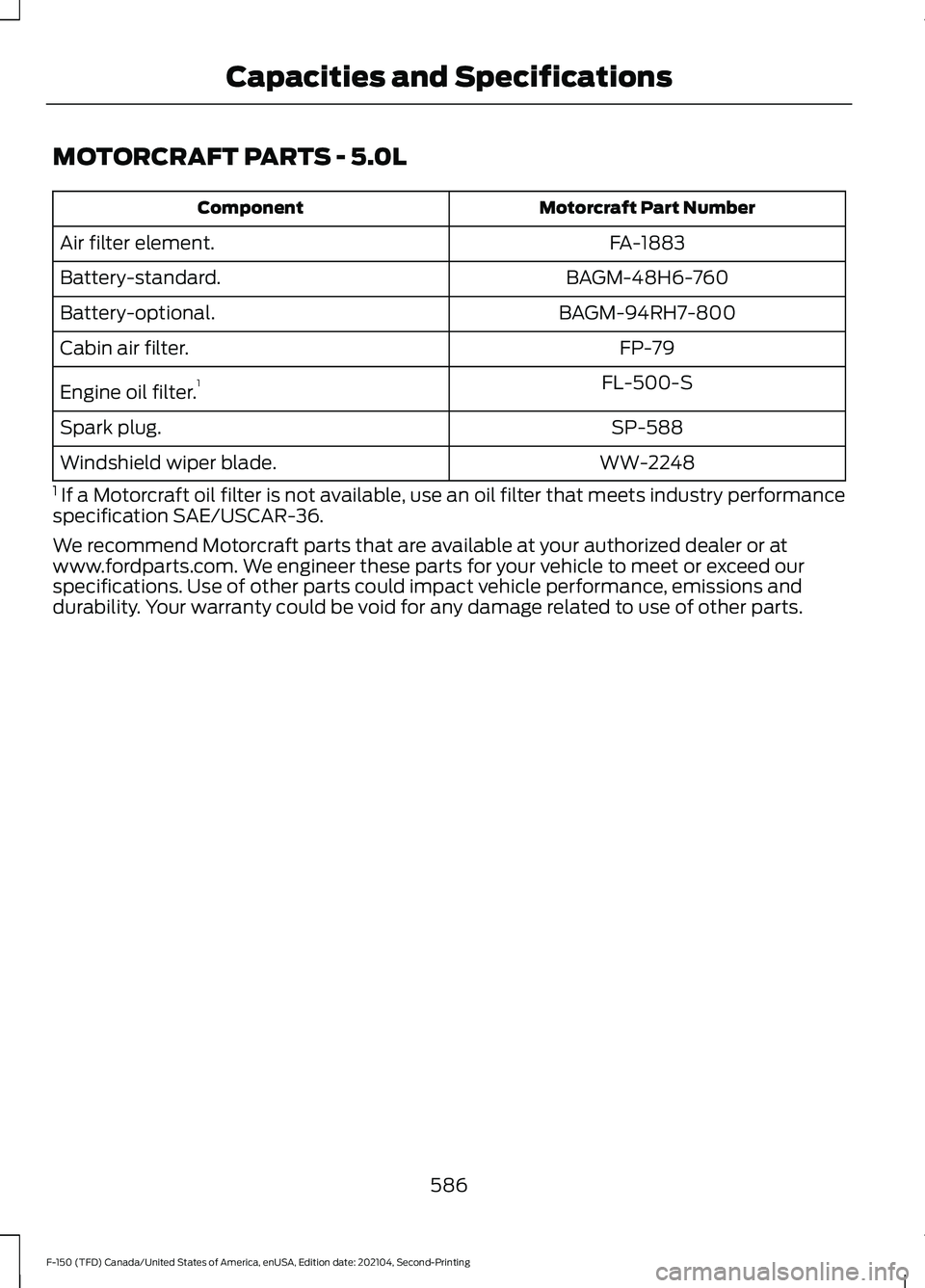

MOTORCRAFT PARTS - 5.0L
Motorcraft Part Number
Component
FA-1883
Air filter element.
BAGM-48H6-760
Battery-standard.
BAGM-94RH7-800
Battery-optional.
FP-79
Cabin air filter.
FL-500-S
Engine oil filter. 1
SP-588
Spark plug.
WW-2248
Windshield wiper blade.
1 If a Motorcraft oil filter is not available, use an oil filter that meets industry performance
specification SAE/USCAR-36.
We recommend Motorcraft parts that are available at your authorized dealer or at
www.fordparts.com. We engineer these parts for your vehicle to meet or exceed our
specifications. Use of other parts could impact vehicle performance, emissions and
durability. Your warranty could be void for any damage related to use of other parts.
586
F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202104, Second-Printing Capacities and Specifications
