FORD F-150 2022 Owners Manual

Protected Component
Rating
Item
DC/DC power (hybrid).
5 A
159
Smart data link control.
10 A
160
Traction battery controlmodule (hybrid).
15 A
168
Motor electric cool pump(hybrid).
10 A
169
Pedestrian alert controlmodule (hybrid).
10 A
170
Traction battery controlmodule (hybrid).
Electric motor cool pump (hybrid).
Body control module B+.
60 A
202
Body control module start/stop.
30 A
210
Upfitter 5 relay (Raptor,Tremor).
5 A
305
Upfitter 6 relay (Raptor,Tremor).
5 A
306 Protected Component
Relay Number
Electronic fan relay 1.
R04
Electronic fan relay 3.
R06
Not used.
R35
Not used.
R36
477
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Fuses

BODY CONTROL MODULE
FUSE BOX
LOCATING THE BODY CONTROL
MODULE FUSE BOX ACCESSING THE BODY CONTROL
MODULE FUSE BOX
IDENTIFYING THE FUSES IN THE BODY CONTROL MODULE FUSE BOX
478
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing FusesE322874 E322804 E145984

Protected Component
Fuse Rating
Fuse
Loca- tion
Not used.
—
1
Delayed accessory feed.
10 A
2
Wireless charger.
7.5 A
3
Not used.
20 A
4
Not used.
—
5
Driver power window switch.
10 A
6
Gear shift module.
10 A
7
Cell phone passport module.
5 A
8
Combined sensor module.
5 A
9
Not used.
—
10
Not used.
—
11
Enhanced central gateway.
7.5 A
12
Climate control.
Instrument cluster.
7.5 A
13
Steering column control module.
Not used (spare).
15 A
14
Integrated control panel.
15 A
15
SYNC.
Not used.
—
16
Headlamp control module.
7.5 A
17
Not used.
7.5 A
18
Headlamp switch.
5 A
19
Passive start.
5 A
20
Ignition switch.
Key inhibit solenoid.
Trailer brake switch.
5 A
21
Not used.
5 A
22
479
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Fuses

Protected Component
Fuse Rating
Fuse
Loca- tion
Driver door control module.
30 A
23
Moonroof.
30 A
24
Not used.
20 A
25
Passenger door control module.
30 A
26
Not used.
30 A
27
Amplifier.
30 A
28
12 inch display.
15 A
29
Adjustable pedals.
Not used.
5 A
30
RF receiver.
10 A
31
Driver monitor.
Terrain management switch.
Audio control module.
20 A
32
Not used.
—
33
Run/start relay.
30 A
34
400 watt inverter run/start.
5 A
35
Auto-dimming interior mirror.
15 A
36
Rear heat seat run/start.
Adaptive front steering run/start.
Heated wheel (vehicles without adaptive front steering).
Advanced driver-assistance systems.
20 A
37
Rear power windows.
30 A circuit
breaker.
38
480
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Fuses

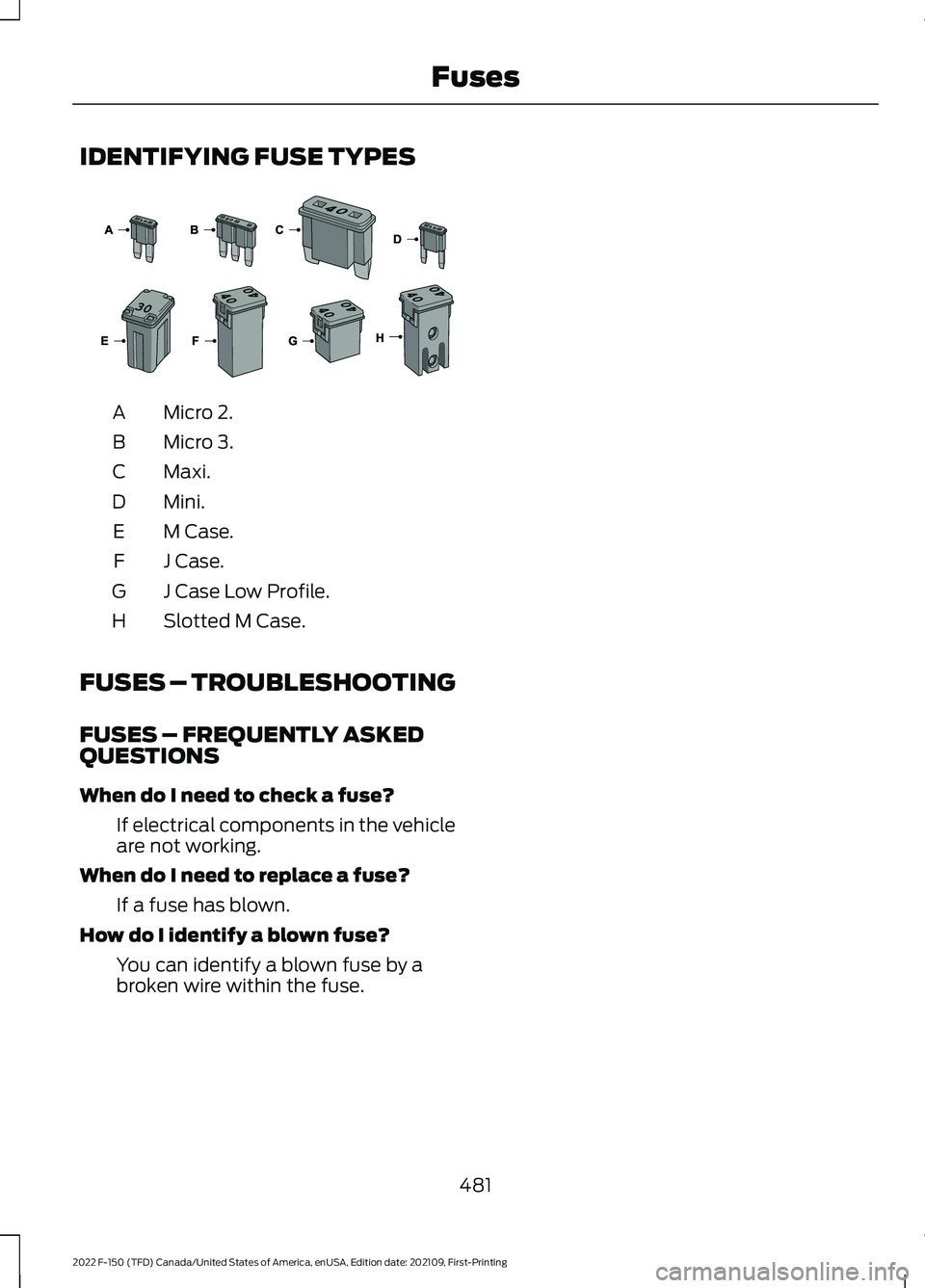

IDENTIFYING FUSE TYPES
Micro 2.
A
Micro 3.
B
Maxi.
C
Mini.
D
M Case.
E
J Case.
F
J Case Low Profile.
G
Slotted M Case.
H
FUSES – TROUBLESHOOTING
FUSES – FREQUENTLY ASKED
QUESTIONS
When do I need to check a fuse? If electrical components in the vehicle
are not working.
When do I need to replace a fuse? If a fuse has blown.
How do I identify a blown fuse? You can identify a blown fuse by a
broken wire within the fuse.
481
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Fuses E267379

MAINTENANCE PRECAUTIONS
Service your vehicle regularly to help
maintain its roadworthiness and resale
value. There is a large network of
authorized dealers that are there to help
you with their professional servicing
expertise. We believe that their specially
trained technicians are best qualified to
service your vehicle properly and expertly.
They are supported by a wide range of
highly specialized tools developed
specifically for servicing your vehicle.
If your vehicle requires professional service,
an authorized dealer can provide the
necessary parts and service. Check your
warranty information to find out which
parts and services are covered.
Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications. See Capacities and
Specifications (page 558).
• Do not work on a hot engine.
• Make sure that nothing gets caught in
moving parts.
• Do not work on a vehicle with the
engine running in an enclosed space,
unless you are sure you have enough
ventilation.
• Keep all open flames and other burning
material, such as cigarettes, away from
the battery and all fuel related parts.
• Set the parking brake, shift the
transmission to park (P) and block the
wheels. OPENING AND CLOSING THE
HOOD WARNING:
Make sure that you fully
latch the hood before driving. Failure to
follow this instruction could result in
personal injury or death. 1.
Pull the hood release handle under the
left hand side of the instrument panel. 2. Pull the secondary release lever under
the front of the hood near the center
of your vehicle.
482
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing MaintenanceE337831 E338104

3. Raise the hood until the lift cylinders
hold it open.
4. To close, lower the hood and make sure that it fully latches.
UNDER HOOD OVERVIEW - 2.7L ECOBOOST™ Engine compartment fuse box. See Fuses (page 472).
A.
Battery.
See Changing the 12V Battery (page 494).
B.
Engine oil filler cap.
See Checking the Engine Oil Level (page 488).
C.
483
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing MaintenanceE338089 E337516

Engine oil dipstick. See Engine Oil Dipstick Overview (page 488).
D.
Brake fluid reservoir.
See Checking the Brake Fluid (page 287).
E.
Air filter assembly.
See Changing the Engine Air Filter (page 493).
F.
Engine coolant reservoir.
See Checking the Coolant (page 489).
G.
Windshield washer fluid reservoir.
H.
UNDER HOOD OVERVIEW - 3.3L Engine compartment fuse box.
See Fuses (page 472).
A.
Battery.
See Changing the 12V Battery (page 494).
B.
Engine oil filler cap.
See Checking the Engine Oil Level (page 488).
C.
Engine oil dipstick.
See Engine Oil Dipstick Overview (page 488).
D.
Brake fluid reservoir.
See Checking the Brake Fluid (page 287).
E.
Air filter assembly.
See Changing the Engine Air Filter (page 493).
F.
484
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing MaintenanceE337514

Engine coolant reservoir. See Checking the Coolant (page 489).
G.
Windshield washer fluid reservoir.
H.
UNDER HOOD OVERVIEW - 3.5L ECOBOOST™ Engine compartment fuse box.
See Fuses (page 472).
A.
Battery.
See Changing the 12V Battery (page 494).
B.
Engine oil filler cap.
See Checking the Engine Oil Level (page 488).
C.
Engine oil dipstick.
See Engine Oil Dipstick Overview (page 488).
D.
Brake fluid reservoir.
See Brakes (page 286).
E.
Air filter.
See Changing the Engine Air Filter (page 493).
F.
Engine coolant reservoir.
See Checking the Coolant (page 489).
G.
Windshield washer fluid reservoir.
H.
485
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing MaintenanceE313722

UNDER HOOD OVERVIEW - 3.5L, HYBRID ELECTRIC VEHICLE
(HEV)
Engine compartment fuse box. See Fuses (page 472).
A.
Battery.
See Changing the 12V Battery (page 494).
B.
Engine oil dipstick.
See Engine Oil Dipstick Overview (page 488).
C.
Engine oil filler cap.
See Adding Engine Oil (page 488).
D.
Brake fluid reservoir. See
Checking the Brake Fluid (page 287).
E.
Air filter.
See Changing the Engine Air Filter (page 493).
F.
Secondary coolant reservoir. See
Checking the Coolant (page 489).
G.
Engine coolant reservoir. See
Checking the Coolant (page 489).
H.
Windshield washer fluid reservoir.
I.
486
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing MaintenanceE333718
