MOBILE DEVICE DATA
If you connect a mobile device to your
vehicle, you can display data from your
device on the touchscreen for example,
music and album art. You can share your
vehicle data with mobile apps on your
device through the system. See App
Requirements (page 626).
The mobile apps function operates by your
connected device sending data to us in the
United States. The data is encrypted and
includes, for example, the vehicle
identification number of your vehicle, the
SYNC module serial number, odometer,
enabled apps, usage statistics and
debugging information. We retain it only
as long as necessary to provide the service,
to troubleshoot, for continuous
improvement and to offer you products
and services that may be of interest to you
according to your preferences and where
allowed by law.
If you connect a cell phone to the system,
the system creates a profile that links to
that cell phone. The cell phone profile
enables more mobile features and efficient
operation. The profile contains, for
example data from your phonebook, read
and unread text messages and call history,
including history of calls when your cell
phone was not connected to the system.
If you connect a media device, the system
creates and retains a media device index
of supported media content. The system
also records a short diagnostic log of
approximately 10 minutes of all recent
system activity. The cell phone profile, media device index
and diagnostic log remain in your vehicle
unless you delete them and are generally
accessible only in your vehicle when you
connect your cell phone or media device.
If you no longer plan to use the system or
your vehicle, we recommend you use the
master reset function to erase the stored
information. See Performing a Master
Reset (page 634).
System data cannot be accessed without
special equipment and access to your
vehicle's module.
For additional information about our
privacy policy, refer to the local Ford
website.
Note: To find out if your vehicle has
connectivity technology, visit
www .For dC onne c t e d . c om .
EMERGENCY CALL SYSTEM
DATA
(IF EQUIPPED)
When the emergency call system is active,
it may disclose to emergency services that
your vehicle has been in a crash involving
the deployment of an airbag or activation
of the fuel pump shut-off. Certain versions
or updates to the emergency call system
may also be capable of electronically or
verbally disclosing to emergency services
operators your vehicle location or other
details about your vehicle or crash to assist
emergency services operators to provide
the most appropriate emergency services.
If you do not want to disclose this
information, do not activate the emergency
call system.
Note: You cannot deactivate emergency
call systems that are required by law.
30
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Data Privacy
Page 525 of 750

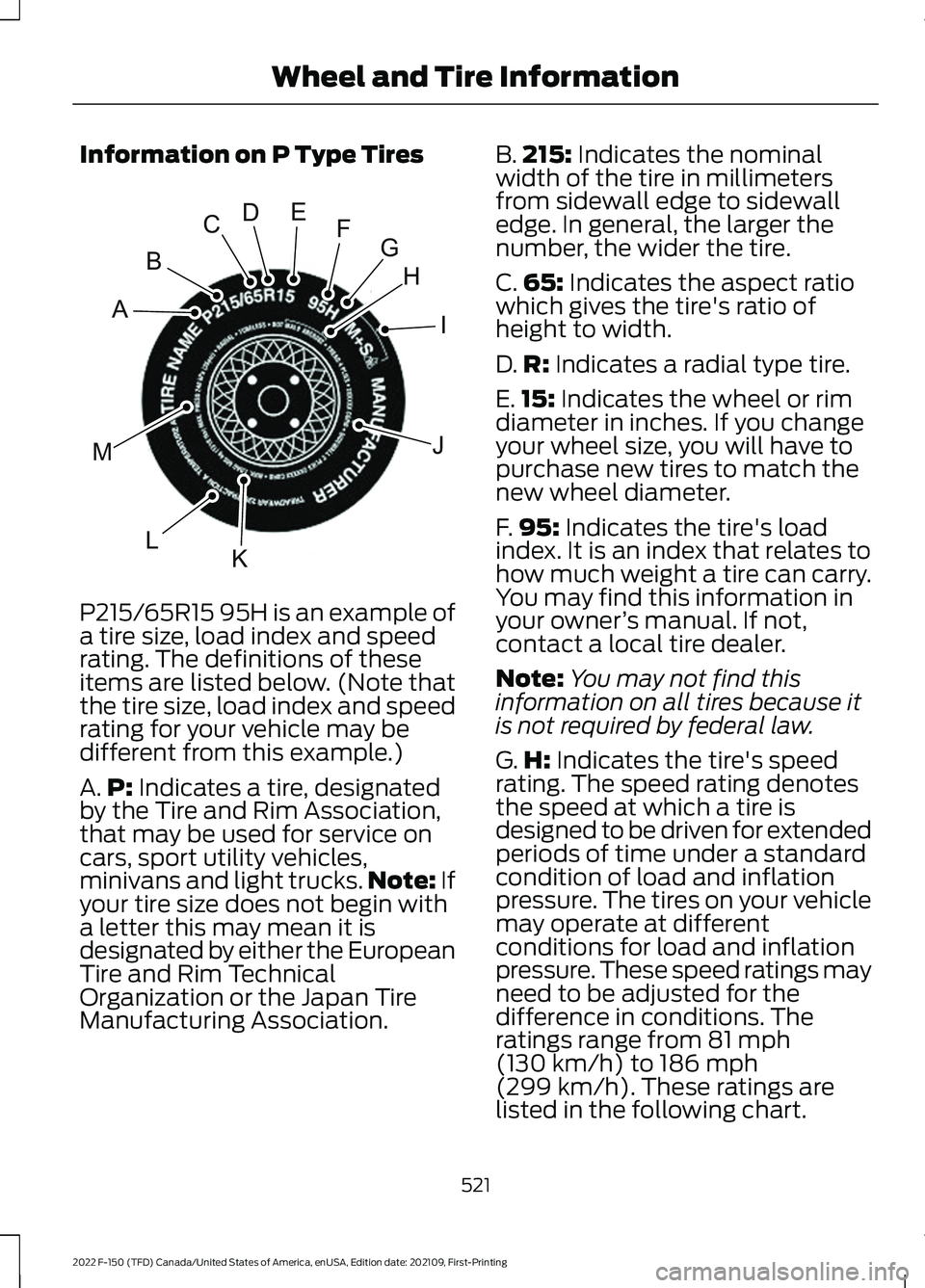

Information on P Type Tires
P215/65R15 95H is an example of
a tire size, load index and speed
rating. The definitions of these
items are listed below. (Note that
the tire size, load index and speed
rating for your vehicle may be
different from this example.)
A.
P: Indicates a tire, designated
by the Tire and Rim Association,
that may be used for service on
cars, sport utility vehicles,
minivans and light trucks. Note:
If
your tire size does not begin with
a letter this may mean it is
designated by either the European
Tire and Rim Technical
Organization or the Japan Tire
Manufacturing Association. B.
215:
Indicates the nominal
width of the tire in millimeters
from sidewall edge to sidewall
edge. In general, the larger the
number, the wider the tire.
C. 65:
Indicates the aspect ratio
which gives the tire's ratio of
height to width.
D. R:
Indicates a radial type tire.
E. 15:
Indicates the wheel or rim
diameter in inches. If you change
your wheel size, you will have to
purchase new tires to match the
new wheel diameter.
F. 95:
Indicates the tire's load
index. It is an index that relates to
how much weight a tire can carry.
You may find this information in
your owner ’s manual. If not,
contact a local tire dealer.
Note: You may not find this
information on all tires because it
is not required by federal law.
G. H:
Indicates the tire's speed
rating. The speed rating denotes
the speed at which a tire is
designed to be driven for extended
periods of time under a standard
condition of load and inflation
pressure. The tires on your vehicle
may operate at different
conditions for load and inflation
pressure. These speed ratings may
need to be adjusted for the
difference in conditions. The
ratings range from
81 mph
(130 km/h) to 186 mph
(299 km/h)
. These ratings are
listed in the following chart.
521
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Wheel and Tire InformationH
I
J
KL
M
A
B
CDEFGE142543
Page 531 of 750

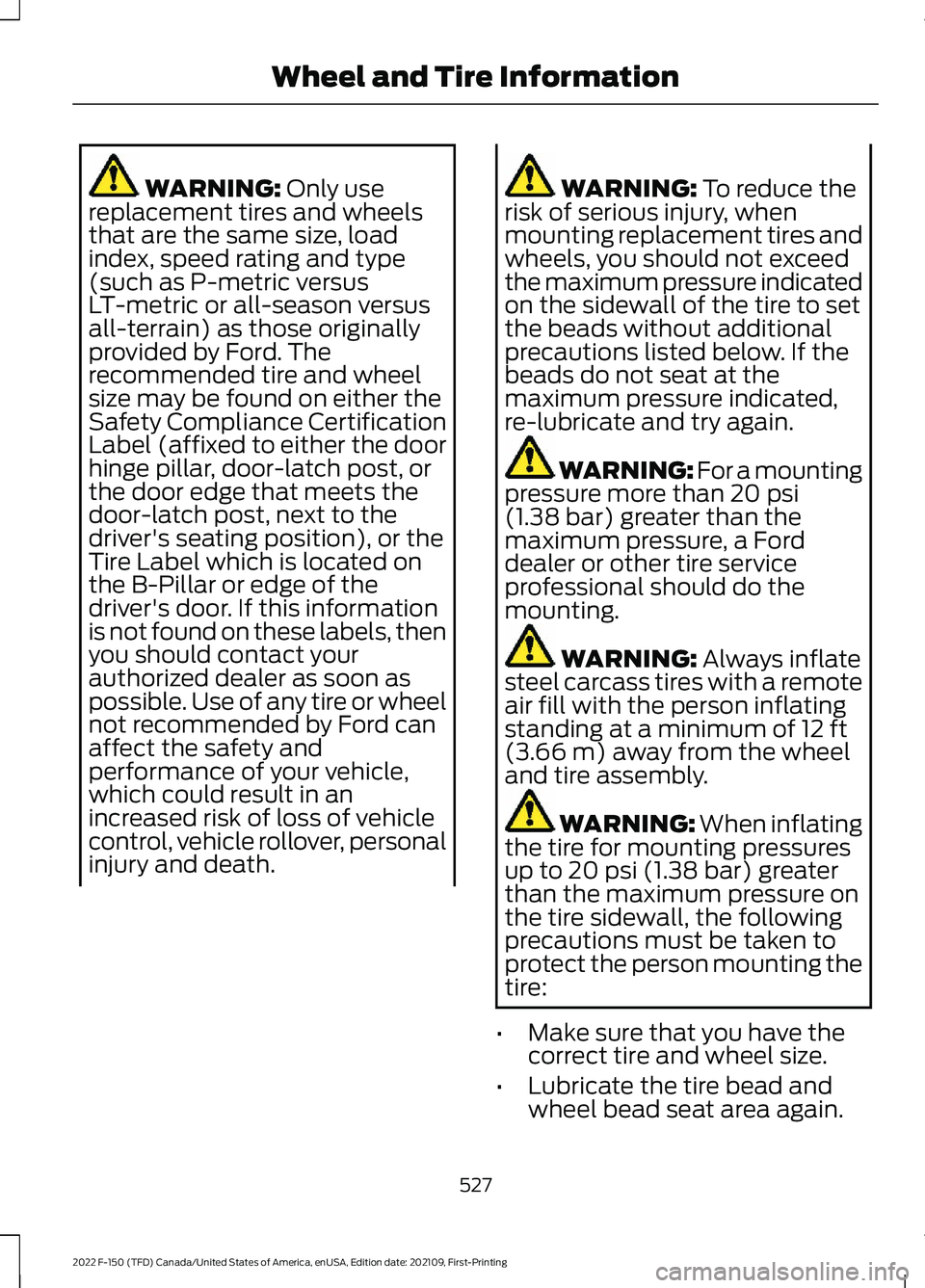

WARNING: Only use
replacement tires and wheels
that are the same size, load
index, speed rating and type
(such as P-metric versus
LT-metric or all-season versus
all-terrain) as those originally
provided by Ford. The
recommended tire and wheel
size may be found on either the
Safety Compliance Certification
Label (affixed to either the door
hinge pillar, door-latch post, or
the door edge that meets the
door-latch post, next to the
driver's seating position), or the
Tire Label which is located on
the B-Pillar or edge of the
driver's door. If this information
is not found on these labels, then
you should contact your
authorized dealer as soon as
possible. Use of any tire or wheel
not recommended by Ford can
affect the safety and
performance of your vehicle,
which could result in an
increased risk of loss of vehicle
control, vehicle rollover, personal
injury and death. WARNING: To reduce the
risk of serious injury, when
mounting replacement tires and
wheels, you should not exceed
the maximum pressure indicated
on the sidewall of the tire to set
the beads without additional
precautions listed below. If the
beads do not seat at the
maximum pressure indicated,
re-lubricate and try again. WARNING: For a mounting
pressure more than
20 psi
(1.38 bar) greater than the
maximum pressure, a Ford
dealer or other tire service
professional should do the
mounting. WARNING:
Always inflate
steel carcass tires with a remote
air fill with the person inflating
standing at a minimum of
12 ft
(3.66 m) away from the wheel
and tire assembly. WARNING:
When inflating
the tire for mounting pressures
up to
20 psi (1.38 bar) greater
than the maximum pressure on
the tire sidewall, the following
precautions must be taken to
protect the person mounting the
tire:
• Make sure that you have the
correct tire and wheel size.
• Lubricate the tire bead and
wheel bead seat area again.
527
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Wheel and Tire Information
Page 532 of 750
•

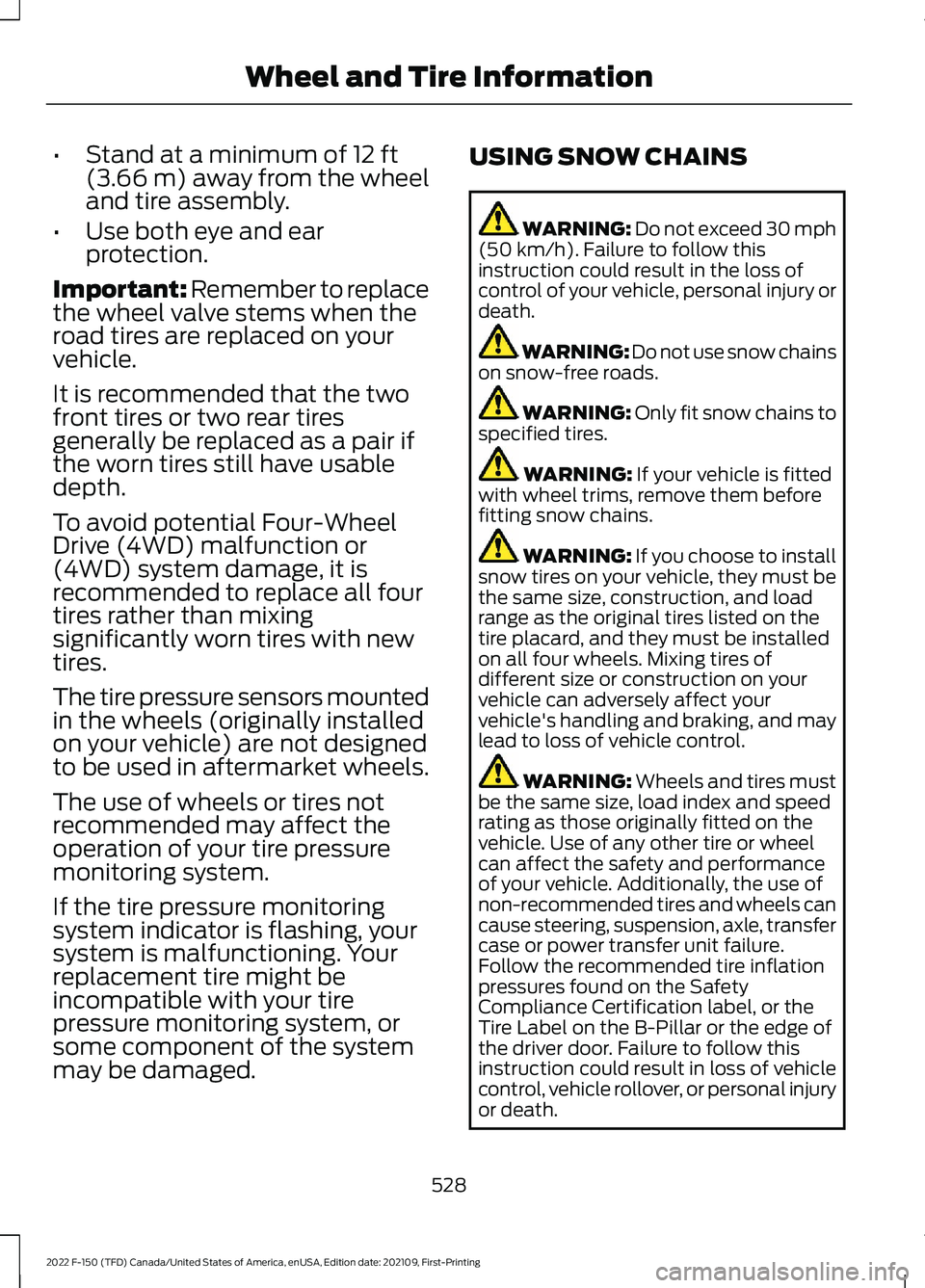

Stand at a minimum of 12 ft
(3.66 m) away from the wheel
and tire assembly.
• Use both eye and ear
protection.
Important: Remember to replace
the wheel valve stems when the
road tires are replaced on your
vehicle.
It is recommended that the two
front tires or two rear tires
generally be replaced as a pair if
the worn tires still have usable
depth.
To avoid potential Four-Wheel
Drive (4WD) malfunction or
(4WD) system damage, it is
recommended to replace all four
tires rather than mixing
significantly worn tires with new
tires.
The tire pressure sensors mounted
in the wheels (originally installed
on your vehicle) are not designed
to be used in aftermarket wheels.
The use of wheels or tires not
recommended may affect the
operation of your tire pressure
monitoring system.
If the tire pressure monitoring
system indicator is flashing, your
system is malfunctioning. Your
replacement tire might be
incompatible with your tire
pressure monitoring system, or
some component of the system
may be damaged. USING SNOW CHAINS WARNING: Do not exceed 30 mph
(50 km/h)
. Failure to follow this
instruction could result in the loss of
control of your vehicle, personal injury or
death. WARNING:
Do not use snow chains
on snow-free roads. WARNING:
Only fit snow chains to
specified tires. WARNING:
If your vehicle is fitted
with wheel trims, remove them before
fitting snow chains. WARNING: If you choose to install
snow tires on your vehicle, they must be
the same size, construction, and load
range as the original tires listed on the
tire placard, and they must be installed
on all four wheels. Mixing tires of
different size or construction on your
vehicle can adversely affect your
vehicle's handling and braking, and may
lead to loss of vehicle control. WARNING:
Wheels and tires must
be the same size, load index and speed
rating as those originally fitted on the
vehicle. Use of any other tire or wheel
can affect the safety and performance
of your vehicle. Additionally, the use of
non-recommended tires and wheels can
cause steering, suspension, axle, transfer
case or power transfer unit failure.
Follow the recommended tire inflation
pressures found on the Safety
Compliance Certification label, or the
Tire Label on the B-Pillar or the edge of
the driver door. Failure to follow this
instruction could result in loss of vehicle
control, vehicle rollover, or personal injury
or death.
528
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Wheel and Tire Information
Page 723 of 750
3
360 Degree Camera....................................321
360 Degree Camera Settings........................ 323
360 Degree Camera Guide Lines...........322
360 Degree Camera Limitations............321
360 Degree Camera Precautions...........321
360 Degree Camera Settings.................323 Switching the 360 Degree Camera On and
Off....................................................................... 323
Switching the 360 Degree Camera View................................................................... 324
4
4WD See: Four-Wheel Drive.................................... 269
9
911 Assist...........................................................85
A
A/C See: Climate Control - Vehicles With:
Automatic Temperature Control..............181
See: Climate Control - Vehicles With: Manual Temperature Control................................... 186
About This Publication.................................22
About Us
.............................................................19
ABS See: Brakes.......................................................... 286
Accessing Apps
............................................626
Accessing Navigation................................630
Accessing the Passive Key Backup Position.........................................................237
Accessories....................................................635
Active Park Assist........................................325 Active Park Assist – Troubleshooting.........327
Active Park Assist Precautions
...............325
Active Park Assist – Troubleshooting.........................................327
Active Park Assist – Frequently Asked Questions......................................................... 327
Active Park Assist – Information Messages.......................................................... 327Adaptive Cruise Control.............................331
Adaptive Cruise Control –
Troubleshooting............................................. 341
Intelligent Adaptive Cruise Control............340
Lane Centering................................................... 338
Adaptive Cruise Control Automatic Cancellation...............................................334
Adaptive Cruise Control Indicators........337
Adaptive Cruise Control Limitations...................................................332
Adaptive Cruise Control Precautions..................................................331
Adaptive Cruise Control – Troubleshooting.........................................341
Adaptive Cruise Control – Information Messages.......................................................... 341
Adaptive Front Lighting..............................155 How Does Adaptive Front Lighting
Work.................................................................... 155
Switching Adaptive Front Lighting On and Off....................................................................... 156
Adjustable Pedals........................................140
Adjusting the Exterior Mirrors...................162
Adjusting the Headlamps - Vehicles With: Halogen Headlamps
....................497
Adjusting the Headlamps - Vehicles With: LED Headlamps............................496
Adjusting the Instrument Panel Lighting Brightness
....................................................158
Adjusting the Integrated Trailer Brake Controller Mode
..........................................411
Adjusting the Map.......................................630 Changing the Format of the Map...............630
Zooming the Map In and Out....................... 630
Adjusting the Pedals...................................140
Adjusting the Seatbelt Height..................64
Adjusting the Seatbelt Length..................65
Adjusting the Seatbelts During Pregnancy......................................................64
Adjusting the Sound Settings................604
Adjusting the Steering Wheel - Vehicles With: Manual Adjustable Steering
Column..........................................................138
Adjusting the Steering Wheel - Vehicles With: Power Adjustable Steering
Column..........................................................138
Adjusting the Volume................................604
719
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Index
Page 724 of 750
Aid Mode.........................................................363
How Does Aid Mode Work............................. 363
What Is Aid Mode.............................................. 363
Airbag Precautions
.........................................72
Airbags...............................................................70 Front Passenger Sensing System................... 74
Air Conditioning See: Climate Control - Vehicles With:
Automatic Temperature Control..............181
See: Climate Control - Vehicles With: Manual Temperature Control................................... 186
Air Conditioning System Capacity and Specification - 2.7L EcoBoost™
.........585
Air Conditioning System Capacity and Specification - 3.3L.................................586
Air Conditioning System Capacity and Specification - 3.5L, Hybrid Electric
Vehicle (HEV)............................................588
Air Conditioning System Capacity and Specification - 3.5L Ecoboost™.........587
Air Conditioning System Capacity and Specification - 5.0L.................................589
Alert and Aid Mode.....................................363 How Does Alert and Aid Mode Work.........364
What Is Alert and Aid Mode........................... 363
Alert Mode......................................................362 Adjusting the Steering Wheel Vibration
Intensity............................................................ 363
How Does Alert Mode Work.......................... 363
What Is Alert Mode........................................... 362
AM/FM Radio
...............................................605
AM/FM Radio Limitations.............................. 605
Selecting a Radio Station.............................. 605
Ambient Lighting
..........................................158
Adjusting Ambient Lighting............................ 158
Switching Ambient Lighting On and Off....................................................................... 158
Anti-Lock Braking System.......................286 Anti-Lock Braking System
Limitations...................................................... 286
Anti-Theft Alarm System..........................132 Arming the Anti-Theft Alarm System.........133
Disarming the Anti-Theft Alarm
System............................................................... 133
How Does the Anti-Theft Alarm System Work.................................................................... 132
What Are the Inclination Sensors.................133
What Are the Interior Sensors........................ 132What Is the Anti-Theft Alarm System........132
What Is the Perimeter Alarm..........................
132
Anti-Theft Alarm System Settings........133 Setting the Alarm Security Level.................. 133
Switching Ask on Exit On and Off................133
What are the Alarm Security Levels............133
What Is Ask on Exit............................................. 133
Appendices
.....................................................716
Applying the Electric Parking Brake.............................................................289
Applying the Electric Parking Brake in an Emergency..................................................289
App Precautions..........................................626
App Requirements
......................................626
Apps.................................................................626
At a Glance........................................................31
Audio System...............................................603
AM/FM Radio..................................................... 605
Audio System – Troubleshooting................610
Digital Radio....................................................... 606
Satellite Radio.................................................... 607
Audio System Precautions
......................603
Audio System – Troubleshooting..........610 Audio System – Information
Messages......................................................... 610
Auto-Dimming Exterior Mirror
.................163
What Is the Auto-Dimming Exterior
Mirror
.................................................................. 163
Auto-Dimming Interior Mirror...................161 Auto-Dimming Interior Mirror
Limitations........................................................ 161
What Is the Auto-Dimming Interior Mirror................................................................... 161
Auto Hold
........................................................297
Auto Hold Indicators...................................297
Autolamps......................................................146 Autolamp Settings............................................. 146
What Are Autolamps........................................ 146
Autolock...........................................................103 Autolock Requirements................................... 103
What Is Autolock................................................ 103
Automatically Releasing the Electric Parking Brake
.............................................289
Automatic Crash Shutoff.........................466
Automatic Crash Shutoff
Precautions.................................................... 466
Re-Enabling Your Vehicle............................... 466
What Is Automatic Crash Shutoff..............466
720
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Index
Page 725 of 750
Automatic Emergency Braking...............381
Switching Automatic Emergency Braking
On and Off....................................................... 381
What Is Automatic Emergency Braking............................................................... 381
Automatic Engine Stop - Vehicles With: Keyless Entry and Push Button
Start...............................................................236
How Does Automatic Engine Stop Work................................................................... 237
Overriding Automatic Engine Stop..............237
Switching Automatic Engine Stop On and Off....................................................................... 237
What Is Automatic Engine Stop................... 236
Automatic High Beam Control................150 Automatic High Beam Control
Indicators.......................................................... 152
Automatic High Beam Control Limitations......................................................... 151
Automatic High Beam Control Precautions....................................................... 151
Automatic High Beam Control Requirements................................................... 151
How Does Automatic High Beam Control Work................................................................... 150
Overriding Automatic High Beam Control............................................................... 152
Switching Automatic High Beam Control On and Off........................................................ 152
Automatic High Beam Control – Troubleshooting.........................................152
Automatic High Beam Control – Information Messages................................. 152
Automatic Locking Mode............................63 Disengaging Automatic Locking Mode........64
Engaging Automatic Locking Mode..............64
What Is Automatic Locking Mode.................63
When to Use Automatic Locking
Mode.................................................................... 63
Automatic Return to Park (P).................265 Automatic Return to Park (P)
Limitations...................................................... 265
How Does Automatic Return to Park (P) Work................................................................... 265
What Is Automatic Return to Park (P)...................................................................... 265
Automatic Transmission Audible Warnings......................................................268 Automatic Transmission..........................260
Automatic Return to Park (P)....................... 265
Automatic Transmission Positions............260
Manually Shifting Gears.................................. 262
Manual Park Release........................................ 267
Temporary Neutral Mode............................... 264
Automatic Transmission Positions......................................................260
Drive (D)............................................................... 260
Manual (M)........................................................... 261
Neutral (N).......................................................... 260
Park (P)................................................................. 260
Reverse (R).......................................................... 260
Automatic Transmission Precautions................................................260
Auto Mode
.......................................................183
Auto Mode Indicators........................................ 183
Switching Auto Mode On and Off................183
Switching Dual Mode On and Off................184
Auto-Start-Stop..........................................244 Auto-Start-Stop – Troubleshooting..........245
Auto-Start-Stop Indicators.....................244
Auto-Start-Stop Precautions
.................244
Auto-Start-Stop – Troubleshooting........................................245
Auto-Start-Stop – Frequently Asked Questions........................................................ 246
Auto-Start-Stop – Information Messages......................................................... 245
Autounlock......................................................103 Autounlock Requirements.............................. 103
Switching Autounlock On and Off...............103
What Is Autounlock........................................... 103
Autowipers.......................................................141 Adjusting the Sensitivity of the Rain
Sensor................................................................. 141
Autowipers Settings........................................... 141
What Are Autowipers......................................... 141
Auxiliary Switches
.......................................636
B
Base Warranty..............................................639
Battery See: Changing the 12V Battery..................... 494
Bed Extender...................................................113 Bed Extender Precautions................................ 113
Using the Bed Extender..................................... 114
721
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Index
Page 726 of 750
Beginning a Voice Interaction...................617
Blind Spot Information System.............368 Blind Spot Information System –
Troubleshooting.............................................. 371
Blind Spot Information System With Trailer Coverage.......................................................... 369
Blind Spot Information System Indicators.......................................................371
Blind Spot Information System Limitations..................................................368
Blind Spot Information System Precautions................................................368
Blind Spot Information System Requirements............................................368
Blind Spot Information System – Troubleshooting.........................................371
Blind Spot Information System – Information Messages.................................. 371
Blind Spot Information System With Trailer Coverage........................................369
Blind Spot Information System With Trailer Coverage Limitations.................................. 369
Selecting a Trailer................................................ 371
Setting a Trailer Length................................... 370
What Is Blind Spot Information System with Trailer Coverage............................................ 369
BlueCruise Alerts
..........................................347
BlueCruise Automatic Cancellation................................................347
BlueCruise......................................................344 BlueCruise – Troubleshooting...................... 348
BlueCruise Indicators
..................................347
BlueCruise Limitations..............................345
BlueCruise Precautions.............................344
BlueCruise Requirements.........................345
BlueCruise Settings....................................346
BlueCruise – Troubleshooting................348 BlueCruise – Information Messages..........348
Bluetooth®....................................................625
Body Control Module Fuse Box
..............478
Accessing the Body Control Module Fuse
Box...................................................................... 478
Identifying the Fuses in the Body Control Module Fuse Box........................................... 478
Locating the Body Control Module Fuse Box...................................................................... 478
Bonnet Lock See: Opening and Closing the Hood..........482 Booster Seats
..................................................58
Brake Fluid Specification..........................287
Brake Over Accelerator.............................286
Brake Over Accelerator - Raptor............286
Brake Precautions.......................................286
Brakes..............................................................286 Anti-Lock Braking System............................. 286
Brakes – Troubleshooting.............................. 288
Brakes – Troubleshooting........................288 Brakes – Frequently Asked
Questions........................................................ 288
Brakes – Warning Lamps............................... 288
Breaking-In.....................................................455
C
Calculating Payload
.....................................391
Calculating the Load Limit........................391
Canceling the Set Speed..........................330
Canceling the Set Speed - Raptor........303
Capacities and Specifications
................558
Catalytic Converter.....................................258
Catalytic Converter –
Troubleshooting............................................ 258
Catalytic Converter Precautions............258
Catalytic Converter – Troubleshooting........................................
258
Catalytic Converter – Warning
Lamps............................................................... 258
Center Console Work Surface.................223 Center Console Work Surface –
Troubleshooting............................................ 225
Center Console Work Surface – Troubleshooting........................................225
Center Console Work Surface – Information Messages......................................................... 225
Center Display Limitations
........................614
Center Display Overview...........................614
Center Display Precautions......................614
Changing a Flat Tire....................................543
Changing a Flat Tire - Raptor/ Tremor..........................................................549
Changing a Road Wheel...........................543
Changing the 12V Battery.........................494
Changing the Fuel Filter - Gasoline.......................................................493
Changing the Remote Control Battery - Police Responder
........................................89
722
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Index
Page 727 of 750
Changing the Remote Control Battery -
Vehicles With: Flip Key..............................92
Changing the Remote Control Battery - Vehicles With: Push Button Start.........90
Changing the Vehicle Wi-Fi Hotspot Name or Password...................................601
Charging a Device.........................................210
Charging a Wireless Device......................226
Checking MyKey System Status
..............98
Checking the Brake Fluid..........................287
Checking the Coolant................................489
Checking the Seatbelts................................67
Checking the Tire Pressures....................532
Checking the Wiper Blades.......................142
Children and Airbags.....................................73
Child Restraint Anchor Points...................48 Locating the Child Restraint Lower Anchor
Points................................................................... 48
Locating the Child Restraint Top Tether Anchor Points................................................... 49
What Are the Child Restraint Anchor Points................................................................... 48
Child Restraints
..............................................50
Child Restraint Position Information............50
Child Restraints Recommendation................51
Child Safety
......................................................47
Child Restraint Anchor Points......................... 48
Child Restraints.................................................... 50
Installing Child Restraints.................................. 51
Child Safety Locks
.........................................60
Child Safety Precautions.............................47
Cleaning Products
.........................................511
Cleaning the Exterior....................................511 Cleaning Camera Lenses and
Sensors.............................................................. 513
Cleaning Chrome, Aluminium or Stainless Steel.................................................................... 512
Cleaning Headlamps and Rear Lamps................................................................ 512
Cleaning Stripes or Graphics.......................... 513
Cleaning the Engine Compartment.............513
Cleaning the Exterior Precautions.................511
Cleaning the Underbody.................................. 513
Cleaning Wheels................................................. 512
Cleaning Windows and Wiper Blades.........512
Cleaning the Interior....................................513 Cleaning Carpets and Floor Mats.................515
Cleaning Displays and Screens..................... 514Cleaning Moonroof Tracks..............................
515
Cleaning Plastic................................................... 514
Cleaning Seatbelts............................................. 515
Cleaning Seats and the Headliner...............514
Cleaning the Instrument Panel..................... 513
Clearing All MyKeys.......................................98
Clearing the Garage Door Opener.........207
Climate Control
..............................................181
Auto Mode............................................................. 183
Climate Control Hints.................................184
Closing the Tailgate
.......................................117
Closing the Tailgate From Inside Your
Vehicle................................................................. 117
Closing the Tailgate From Outside Your Vehicle................................................................. 117
Closing the Tailgate Using the Remote Control................................................................ 118
Cold Weather Precautions.......................455
Connected Vehicle
......................................597
Connected Vehicle –
Troubleshooting............................................ 598
Connecting the Vehicle to a Mobile Network............................................................ 597
Connected Vehicle Data..............................29
Connected Vehicle Limitations
..............597
Connected Vehicle Requirements.........597
Connected Vehicle – Troubleshooting
.......................................598
Connected Vehicle – Frequently Asked
Questions........................................................ 598
Connecting a Bluetooth® Device..........625
Connecting a Trailer...................................399 Connecting a Trailer –
Troubleshooting............................................ 402
Hitches.................................................................. 399
Connecting a Trailer Precautions..........399
Connecting a Trailer – Troubleshooting
........................................402
Connecting a Trailer – Information
Messages......................................................... 402
Connecting the Vehicle to a Mobile Network........................................................597
Connecting FordPass to the Modem.........597
Enabling and Disabling the Modem...........597
What Is the Modem.......................................... 597
Connecting the Vehicle to a Wi-Fi Network........................................................597
Connecting Your Phone
............................620
723
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Index
Page 728 of 750
Contacting Us..................................................20
Cooling System Capacity and Specification - 2.7L EcoBoost™..........578
Cooling System Capacity and Specification - 3.3L..................................579
Cooling System Capacity and Specification - 3.5L, Hybrid Electric
Vehicle (HEV)............................................580
Cooling System Capacity and Specification - 3.5L Ecoboost™.........579
Cooling System Capacity and Specification - 5.0L
..................................581
Cooling System Capacity and Specification - Raptor, Police
Responder....................................................581
Crash and Breakdown Information.................................................462
Automatic Crash Shutoff............................... 466
Jump Starting the Vehicle.............................. 464
Post-Crash Alert System................................ 466
Recovery Towing................................................ 467
Crash Sensors and Airbag Indicator........77
Crash Sensors and Airbag Indicator - Police Responder
........................................78
Creating a MyKey - Vehicles With: Flip Key....................................................................98
Creating a MyKey - Vehicles With: Push Button Start
...................................................97
Creating a Personal Profile......................629
Creating a Vehicle Wi-Fi Hotspot...........601
Cross Traffic Alert.........................................372 Cross Traffic Alert –
Troubleshooting............................................. 374
Cross Traffic Alert Indicators
...................373
Cross Traffic Alert Limitations.................372
Cross Traffic Alert Precautions...............372
Cross Traffic Alert – Troubleshooting........................................374
Cross Traffic Alert – Information Messages.......................................................... 374
Cruise Control...............................................329
Cruise Control Indicators
..........................330
Cup Holders....................................................227
Cup Holder Precautions................................... 227
Customer Information
...............................656
Radio Frequency Certification
Labels............................................................... 659Customizing the Instrument Cluster
Display............................................................175
D
Data Privacy
......................................................27
Decommissioning Requirements..........655
Decommissioning the Vehicle................655
Department of Transportation Uniform Tire Quality Grades
...................................519
Deploying and Stowing the Power Running Boards..........................................137
Digital Radio
.................................................606
Digital Radio Indicators................................... 607
Digital Radio Limitations................................ 606
How Does Digital Radio Work...................... 606
Switching Digital Radio Reception On and Off...................................................................... 607
What Is Digital Radio....................................... 606
Directing the Flow of Air.............................183
Disposing of Airbags.....................................83
Distance Alert...............................................380 Adjusting the Sensitivity of Distance
Alert.................................................................... 381
What Is Distance Alert.................................... 380
Distance Indication
.....................................379
Distance Indication Indicator........................ 380
Switching Distance Indication On and Off...................................................................... 380
What Is Distance Indication........................... 379
Doors and Locks Audible Warnings.......................................................103
Doors and Locks
...........................................102
Autolock................................................................. 103
Autounlock............................................................ 103
Doors and Locks – Troubleshooting...........104
Mislock.................................................................... 103
Operating the Doors From Inside Your Vehicle............................................................... 102
Operating the Doors From Outside Your Vehicle............................................................... 102
Doors and Locks – Troubleshooting
........................................104
Doors and Locks – Frequently Asked
Questions......................................................... 105
Doors and Locks – Information Messages.......................................................... 104
Doors and Locks – Warning Lamps............104
724
2022 F-150 (TFD) Canada/United States of America, enUSA, Edition date: 202109, First-Printing Index
