To reduce the chances of interference
from another vehicle, perform the
system reset procedure at least 3 ft
(1 m) away from another Ford Motor
Company vehicle undergoing the
system reset procedure at the same
time.
• Do not wait more than two minutes
between resetting each tire sensor or
the system can time-out and you have
to repeat the entire procedure on all
four wheels.
• A double horn sounds indicating the
need to repeat the procedure.

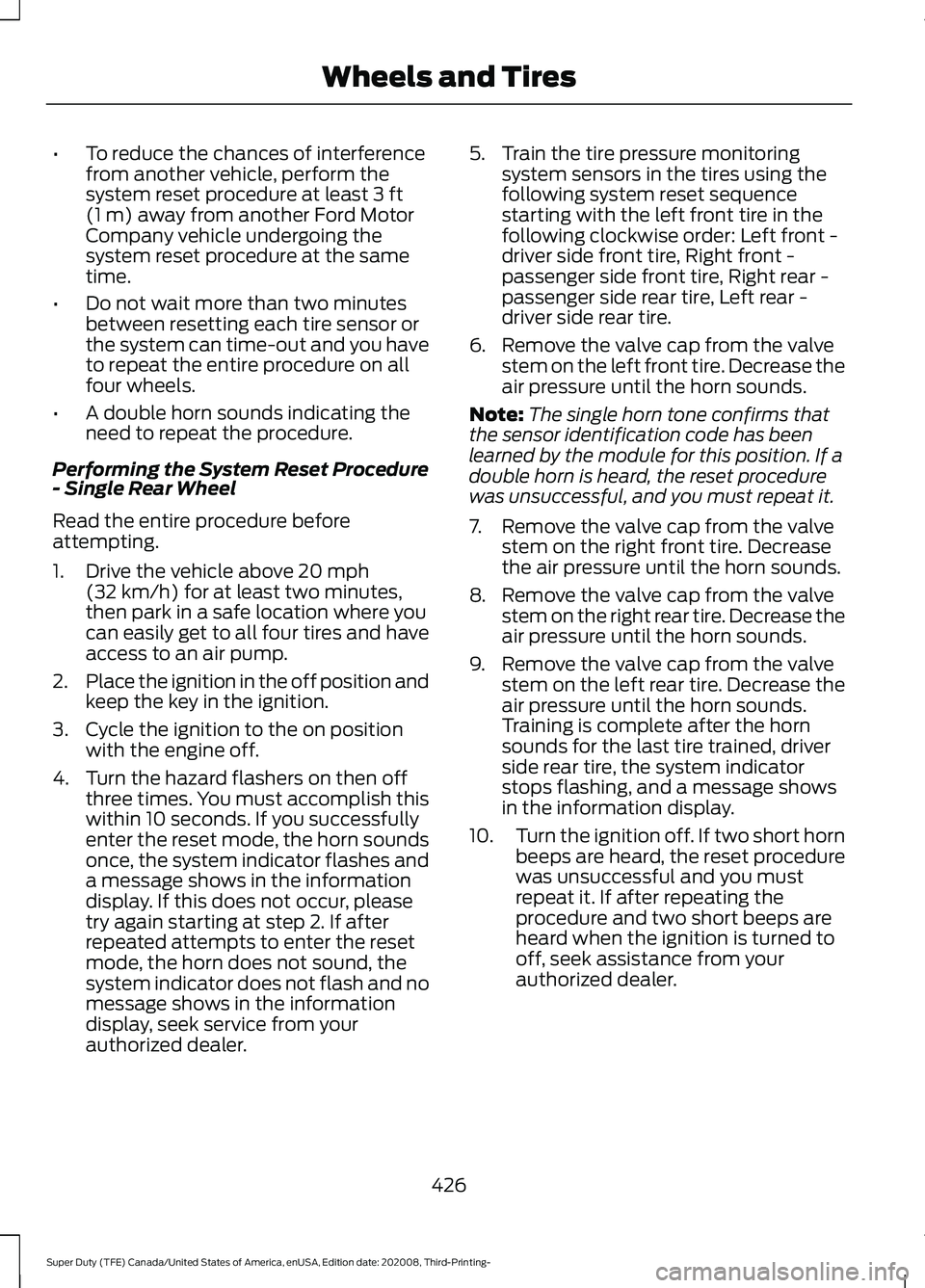

Performing the System Reset Procedure
- Single Rear Wheel
Read the entire procedure before
attempting.
1. Drive the vehicle above
20 mph
(32 km/h) for at least two minutes,
then park in a safe location where you
can easily get to all four tires and have
access to an air pump.
2. Place the ignition in the off position and
keep the key in the ignition.
3. Cycle the ignition to the on position with the engine off.
4. Turn the hazard flashers on then off three times. You must accomplish this
within 10 seconds. If you successfully
enter the reset mode, the horn sounds
once, the system indicator flashes and
a message shows in the information
display. If this does not occur, please
try again starting at step 2. If after
repeated attempts to enter the reset
mode, the horn does not sound, the
system indicator does not flash and no
message shows in the information
display, seek service from your
authorized dealer. 5. Train the tire pressure monitoring
system sensors in the tires using the
following system reset sequence
starting with the left front tire in the
following clockwise order: Left front -
driver side front tire, Right front -
passenger side front tire, Right rear -
passenger side rear tire, Left rear -
driver side rear tire.
6. Remove the valve cap from the valve stem on the left front tire. Decrease the
air pressure until the horn sounds.
Note: The single horn tone confirms that
the sensor identification code has been
learned by the module for this position. If a
double horn is heard, the reset procedure
was unsuccessful, and you must repeat it.
7. Remove the valve cap from the valve stem on the right front tire. Decrease
the air pressure until the horn sounds.
8. Remove the valve cap from the valve stem on the right rear tire. Decrease the
air pressure until the horn sounds.
9. Remove the valve cap from the valve stem on the left rear tire. Decrease the
air pressure until the horn sounds.
Training is complete after the horn
sounds for the last tire trained, driver
side rear tire, the system indicator
stops flashing, and a message shows
in the information display.
10. Turn the ignition off. If two short horn
beeps are heard, the reset procedure
was unsuccessful and you must
repeat it. If after repeating the
procedure and two short beeps are
heard when the ignition is turned to
off, seek assistance from your
authorized dealer.
426
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202008, Third-Printing- Wheels and Tires

11.
Set all four tires to the recommended
air pressure as indicated on the
Safety Compliance Certification
Label, affixed to either the door hinge
pillar, door-latch post, or the door
edge that meets the door-latch post,
next to the driver seating position or
Tire Label located on the B-Pillar or
the edge of the driver door.
Performing the System Reset Procedure
- Dual Rear Wheel
For further information see
Understanding Your Tire Pressure
Monitoring System and refer to Dual
Rear Wheel, earlier in this section.
Read the entire procedure before
attempting.

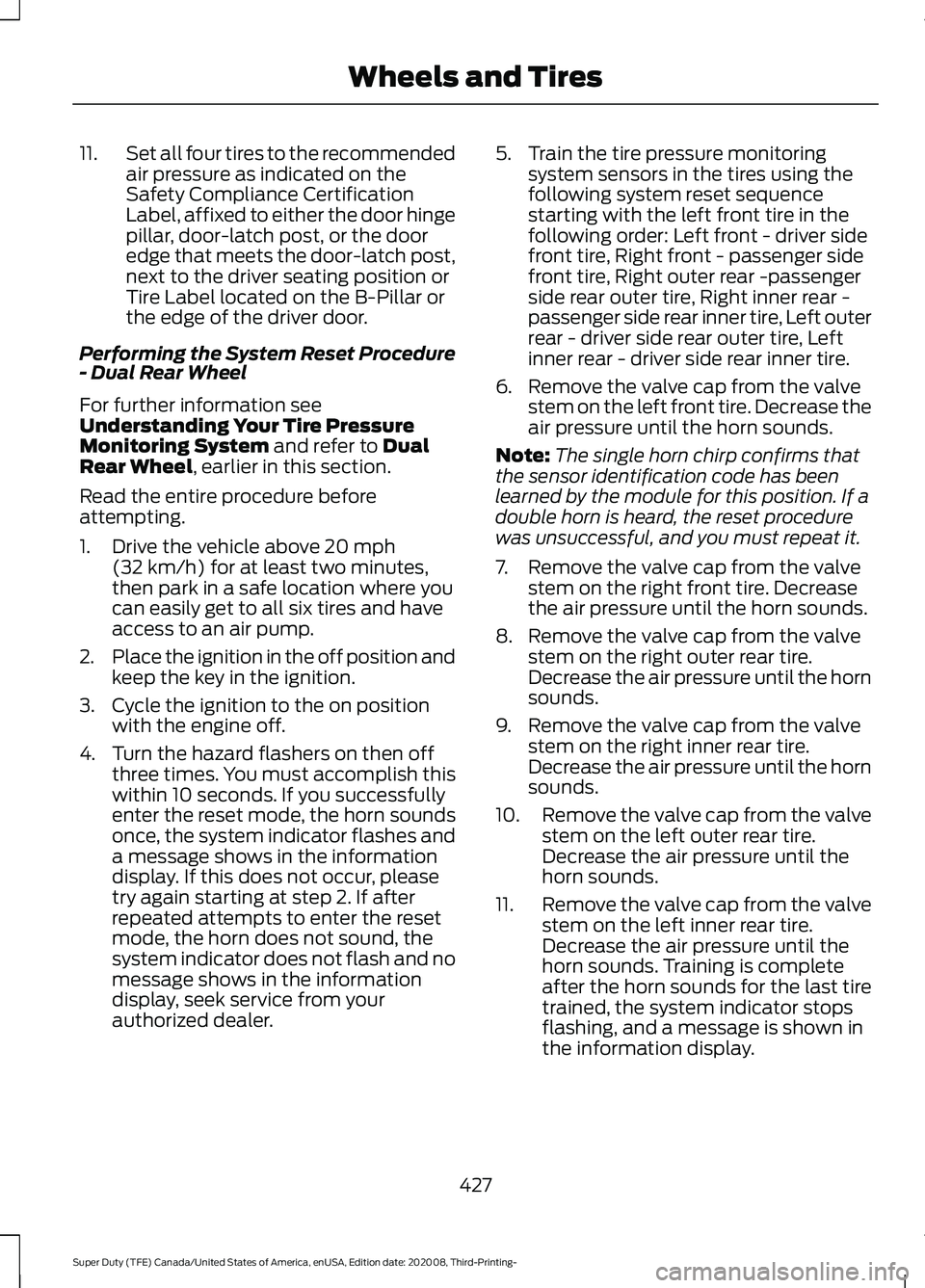

1. Drive the vehicle above
20 mph
(32 km/h) for at least two minutes,
then park in a safe location where you
can easily get to all six tires and have
access to an air pump.
2. Place the ignition in the off position and
keep the key in the ignition.
3. Cycle the ignition to the on position with the engine off.
4. Turn the hazard flashers on then off three times. You must accomplish this
within 10 seconds. If you successfully
enter the reset mode, the horn sounds
once, the system indicator flashes and
a message shows in the information
display. If this does not occur, please
try again starting at step 2. If after
repeated attempts to enter the reset
mode, the horn does not sound, the
system indicator does not flash and no
message shows in the information
display, seek service from your
authorized dealer. 5. Train the tire pressure monitoring
system sensors in the tires using the
following system reset sequence
starting with the left front tire in the
following order: Left front - driver side
front tire, Right front - passenger side
front tire, Right outer rear -passenger
side rear outer tire, Right inner rear -
passenger side rear inner tire, Left outer
rear - driver side rear outer tire, Left
inner rear - driver side rear inner tire.
6. Remove the valve cap from the valve stem on the left front tire. Decrease the
air pressure until the horn sounds.
Note: The single horn chirp confirms that
the sensor identification code has been
learned by the module for this position. If a
double horn is heard, the reset procedure
was unsuccessful, and you must repeat it.
7. Remove the valve cap from the valve stem on the right front tire. Decrease
the air pressure until the horn sounds.
8. Remove the valve cap from the valve stem on the right outer rear tire.
Decrease the air pressure until the horn
sounds.
9. Remove the valve cap from the valve stem on the right inner rear tire.
Decrease the air pressure until the horn
sounds.
10. Remove the valve cap from the valve
stem on the left outer rear tire.
Decrease the air pressure until the
horn sounds.
11. Remove the valve cap from the valve
stem on the left inner rear tire.
Decrease the air pressure until the
horn sounds. Training is complete
after the horn sounds for the last tire
trained, the system indicator stops
flashing, and a message is shown in
the information display.
427
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202008, Third-Printing- Wheels and Tires

12.
Turn the ignition off. If two short horn
beeps are heard, the reset procedure
was unsuccessful and you must
repeat it. If after repeating the
procedure and two short beeps are
heard when the ignition is turned to
off, seek assistance from your
authorized dealer.
13. Set all six tires to the recommended air pressure as indicated on the
Safety Compliance Certification
Label, affixed to either the door hinge
pillar, door-latch post, or the door
edge that meets the door-latch post,
next to the driver seating position or
Tire Label located on the B-Pillar or
the edge of the driver door.

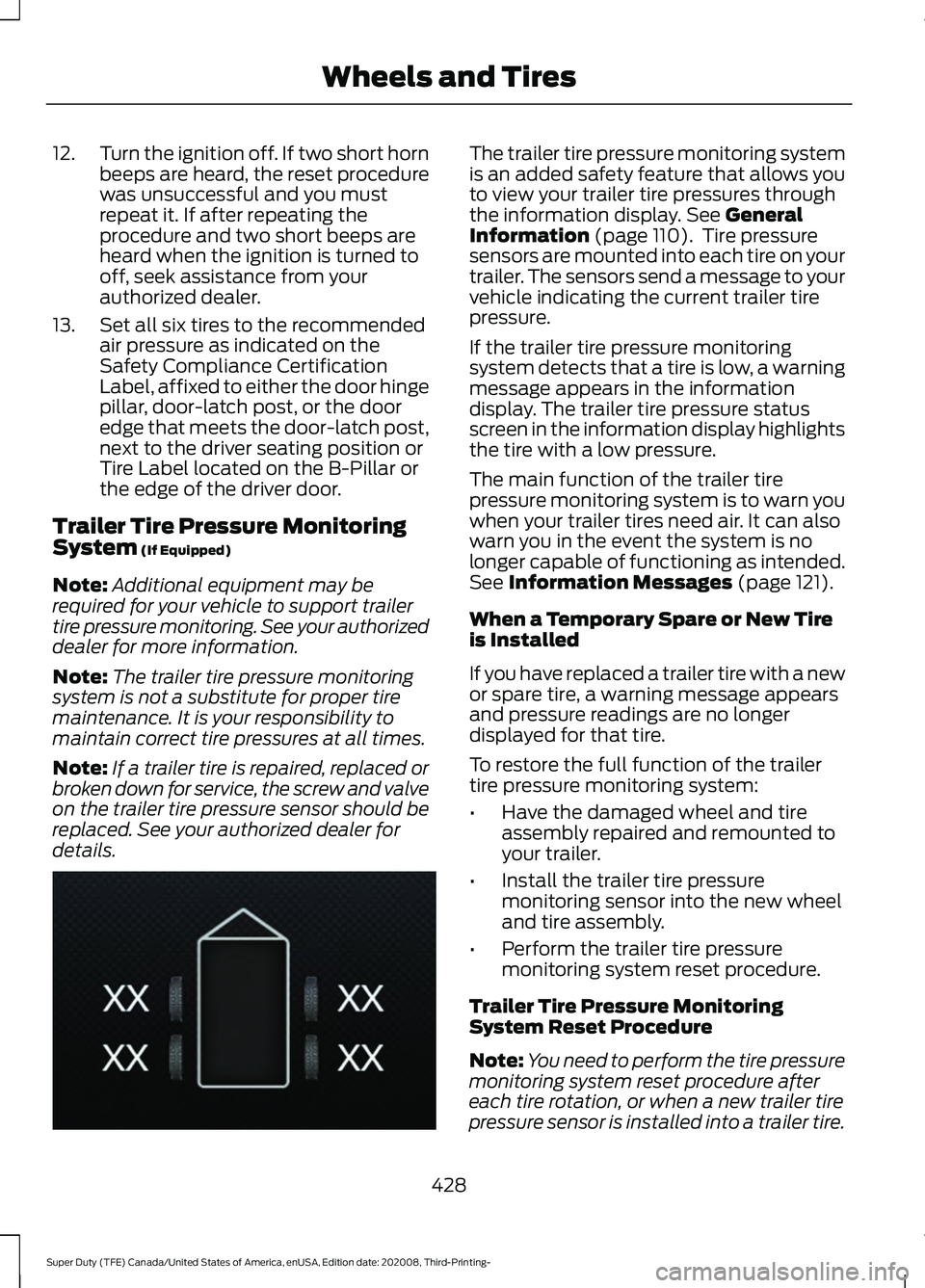

Trailer Tire Pressure Monitoring
System (If Equipped)
Note: Additional equipment may be
required for your vehicle to support trailer
tire pressure monitoring. See your authorized
dealer for more information.
Note: The trailer tire pressure monitoring
system is not a substitute for proper tire
maintenance. It is your responsibility to
maintain correct tire pressures at all times.
Note: If a trailer tire is repaired, replaced or
broken down for service, the screw and valve
on the trailer tire pressure sensor should be
replaced. See your authorized dealer for
details. The trailer tire pressure monitoring system
is an added safety feature that allows you
to view your trailer tire pressures through
the information display.
See General
Information (page 110). Tire pressure
sensors are mounted into each tire on your
trailer. The sensors send a message to your
vehicle indicating the current trailer tire
pressure.
If the trailer tire pressure monitoring
system detects that a tire is low, a warning
message appears in the information
display. The trailer tire pressure status
screen in the information display highlights
the tire with a low pressure.
The main function of the trailer tire
pressure monitoring system is to warn you
when your trailer tires need air. It can also
warn you in the event the system is no
longer capable of functioning as intended.
See
Information Messages (page 121).
When a Temporary Spare or New Tire
is Installed
If you have replaced a trailer tire with a new
or spare tire, a warning message appears
and pressure readings are no longer
displayed for that tire.
To restore the full function of the trailer
tire pressure monitoring system:
• Have the damaged wheel and tire
assembly repaired and remounted to
your trailer.
• Install the trailer tire pressure
monitoring sensor into the new wheel
and tire assembly.
• Perform the trailer tire pressure
monitoring system reset procedure.
Trailer Tire Pressure Monitoring
System Reset Procedure
Note: You need to perform the tire pressure
monitoring system reset procedure after
each tire rotation, or when a new trailer tire
pressure sensor is installed into a trailer tire.
428
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202008, Third-Printing- Wheels and TiresE235807

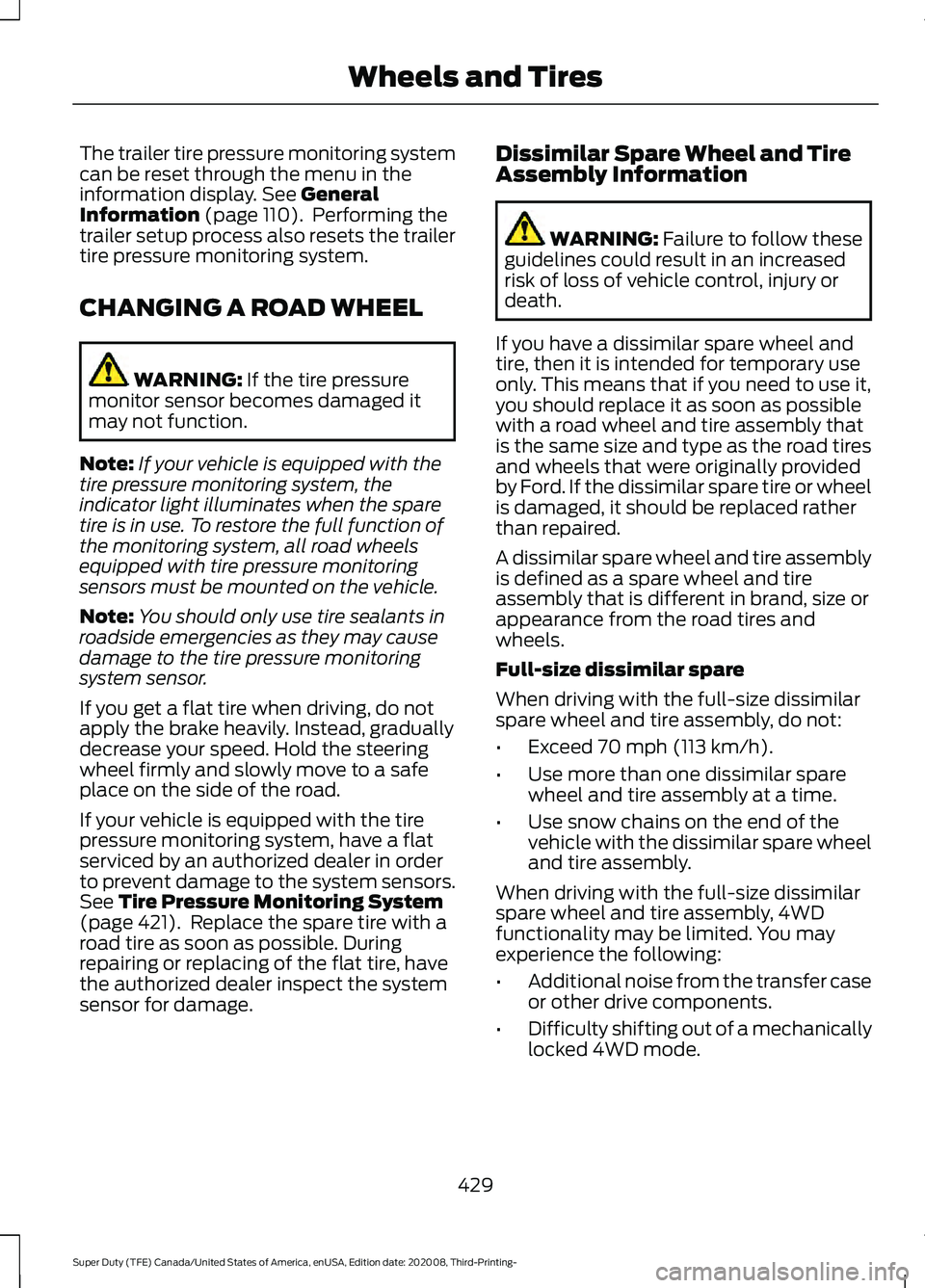

The trailer tire pressure monitoring system
can be reset through the menu in the
information display. See General
Information (page 110). Performing the
trailer setup process also resets the trailer
tire pressure monitoring system.
CHANGING A ROAD WHEEL WARNING:
If the tire pressure
monitor sensor becomes damaged it
may not function.
Note: If your vehicle is equipped with the
tire pressure monitoring system, the
indicator light illuminates when the spare
tire is in use. To restore the full function of
the monitoring system, all road wheels
equipped with tire pressure monitoring
sensors must be mounted on the vehicle.
Note: You should only use tire sealants in
roadside emergencies as they may cause
damage to the tire pressure monitoring
system sensor.
If you get a flat tire when driving, do not
apply the brake heavily. Instead, gradually
decrease your speed. Hold the steering
wheel firmly and slowly move to a safe
place on the side of the road.
If your vehicle is equipped with the tire
pressure monitoring system, have a flat
serviced by an authorized dealer in order
to prevent damage to the system sensors.
See
Tire Pressure Monitoring System
(page 421). Replace the spare tire with a
road tire as soon as possible. During
repairing or replacing of the flat tire, have
the authorized dealer inspect the system
sensor for damage. Dissimilar Spare Wheel and Tire
Assembly Information WARNING:
Failure to follow these
guidelines could result in an increased
risk of loss of vehicle control, injury or
death.
If you have a dissimilar spare wheel and
tire, then it is intended for temporary use
only. This means that if you need to use it,
you should replace it as soon as possible
with a road wheel and tire assembly that
is the same size and type as the road tires
and wheels that were originally provided
by Ford. If the dissimilar spare tire or wheel
is damaged, it should be replaced rather
than repaired.
A dissimilar spare wheel and tire assembly
is defined as a spare wheel and tire
assembly that is different in brand, size or
appearance from the road tires and
wheels.
Full-size dissimilar spare
When driving with the full-size dissimilar
spare wheel and tire assembly, do not:
• Exceed
70 mph (113 km/h).
• Use more than one dissimilar spare
wheel and tire assembly at a time.
• Use snow chains on the end of the
vehicle with the dissimilar spare wheel
and tire assembly.
When driving with the full-size dissimilar
spare wheel and tire assembly, 4WD
functionality may be limited. You may
experience the following:
• Additional noise from the transfer case
or other drive components.
• Difficulty shifting out of a mechanically
locked 4WD mode.
429
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202008, Third-Printing- Wheels and Tires

App Permissions
App permissions are organized by groups.
You can grant these group permissions
individually. You can change a permission
group status any time when not driving, by
using the settings menu.
When you launch an app using SYNC, the
system may ask you to grant certain
permissions, for example:
•
To allow your vehicle to provide vehicle
information to the app such as, but not
limited to: Fuel level, fuel economy, fuel
consumption, engine speed, rain
sensor, odometer, VIN, external
temperature, gear position, tire
pressure, and head lamp status.
• To allow your vehicle to provide driving
characteristic information such as, but
not limited to: MyKey, seatbelt status,
engine revolutions per minute, gear
position, braking events, steering wheel
angle, and accelerator pedal position.
• To allow your vehicle to provide
location information, including: GPS
and speed.
• To allow the app to send push
notifications using the vehicle display
and voice capabilities while running in
a background state. Push notifications
may be particularly useful for news or
location based apps.
Note: You only need to grant permissions
the first time you use an app with SYNC.
Note: Ford is not responsible or liable for
any damages or loss of privacy relating to
usage of an app, or dissemination of any
vehicle data that you approve Ford to
provide to an app. Enabling SYNC Mobile Apps
In order to enable mobile apps, SYNC
requires user consent to send and receive
app authorization information and updates
using the data plan associated with the
connected device.
Data is sent to Ford in the United States
through the connected device. The
information is encrypted and includes, for
example, the vehicle identification number
of your vehicle, the SYNC module serial
number, odometer, enabled apps, usage
statistics and debugging information.
Updates may take place.
Note:
You must enable mobile apps for
each connected device the first time you
select a mobile app using the system.
Note: Standard data rates apply. Ford is
not responsible for any additional charges
you may receive from your service provider,
when your vehicle sends or receives data
through the connected device. This includes
any additional charges incurred due to
driving in areas when roaming out of a home
network.
USING SYNC™ WITH YOUR
MEDIA PLAYER
SYNC supports digital media sources
including: iPod, Bluetooth® devices, and
most USB drives. SYNC also supports
audio formats, such as MP3, WMA, WAV
and ACC.
Media Sources
The
AUX or MEDIA button allows you to
view and select available media sources.
Press the
AUX or MEDIA button to view
your sources. Use the directional arrows
and OK button to select your source. You
can also use the steering wheel audio
controls.
503
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202008, Third-Printing- SYNC™
(If Equipped)

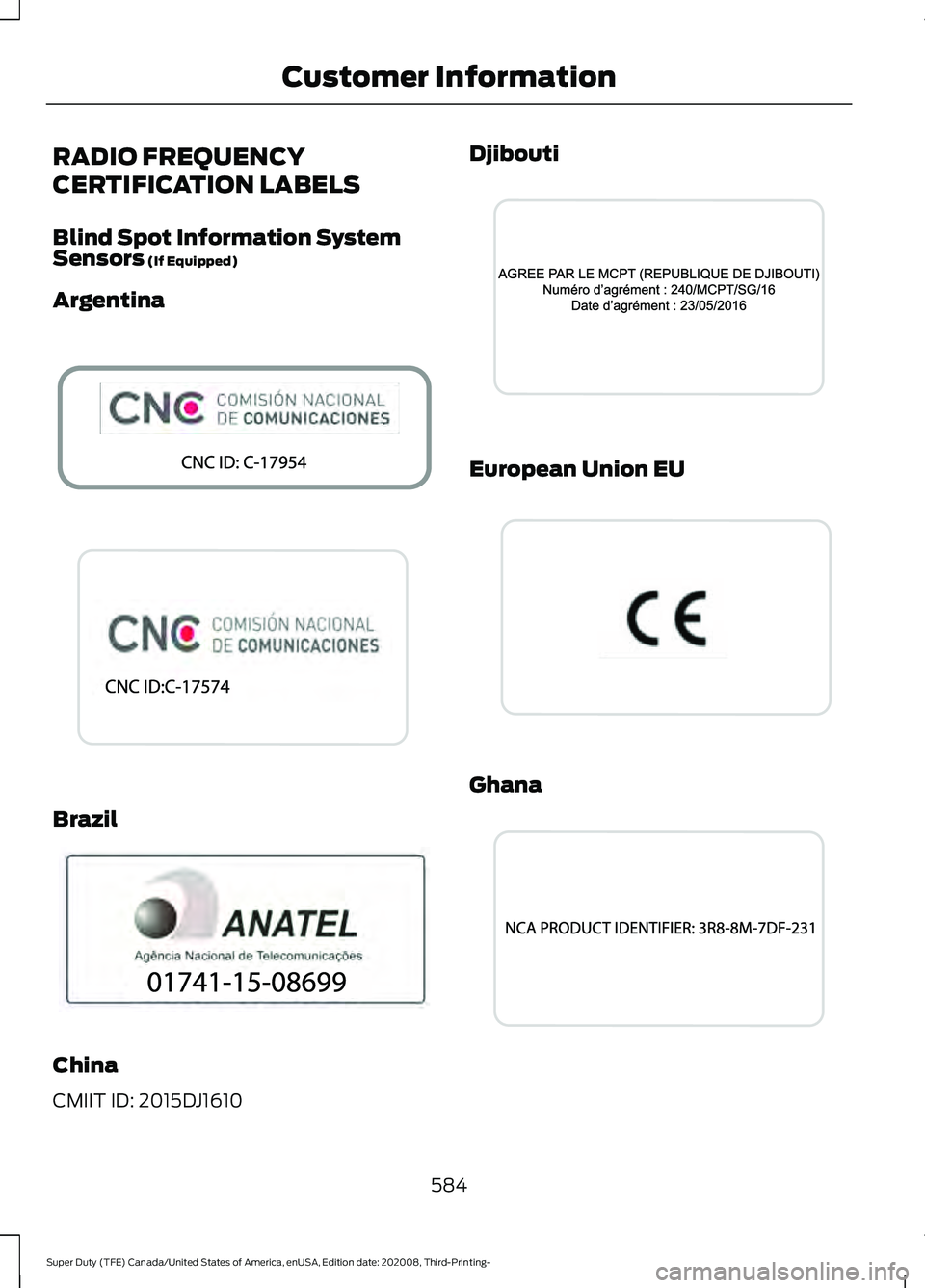

RADIO FREQUENCY
CERTIFICATION LABELS
Blind Spot Information System
Sensors (If Equipped)
Argentina Brazil
China
CMIIT ID: 2015DJ1610 Djibouti
European Union EU
Ghana
584
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202008, Third-Printing- Customer InformationE337180 E340516 E340204 E340826 E310043 E269695

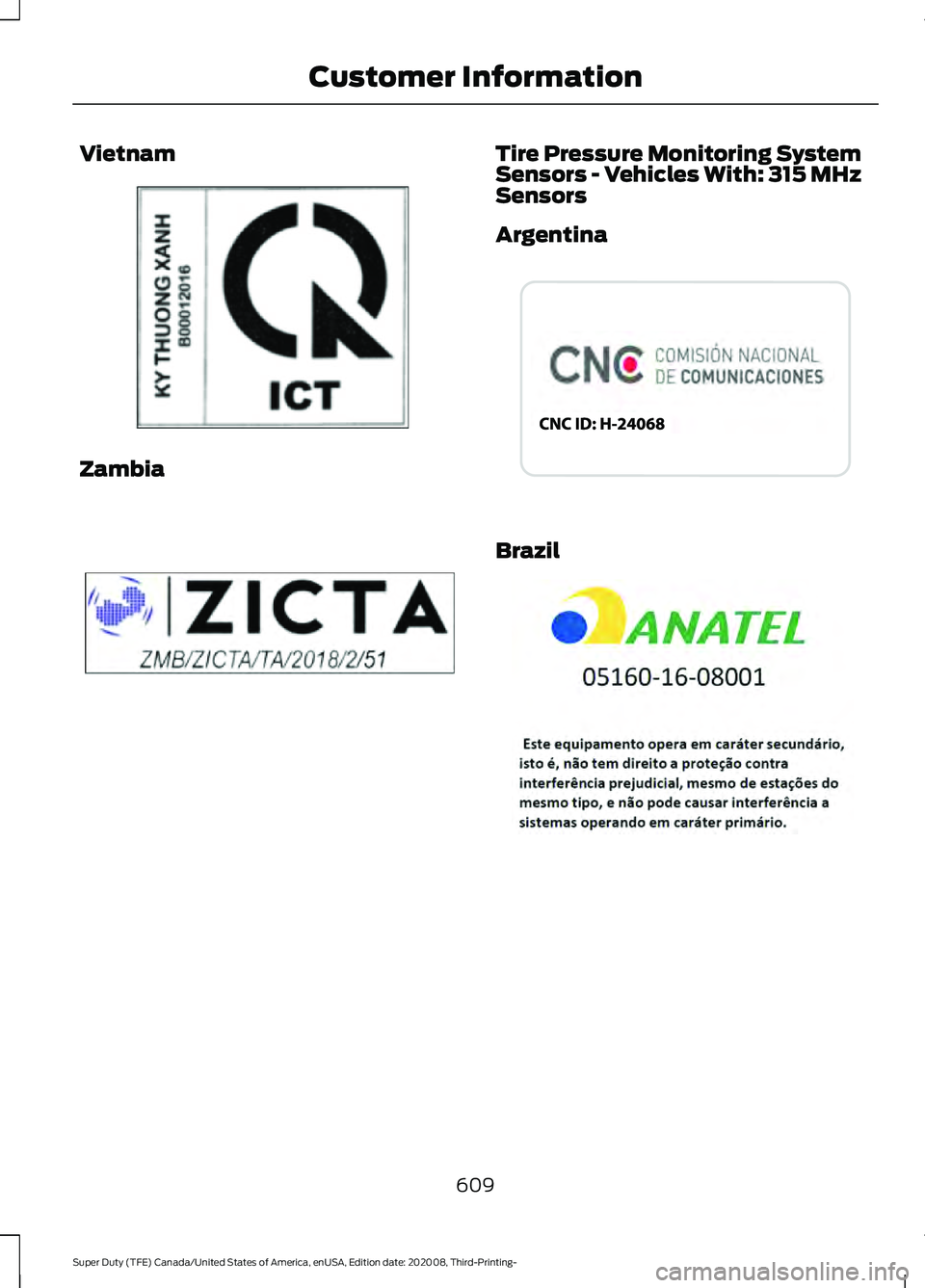

Vietnam
Zambia Tire Pressure Monitoring System
Sensors - Vehicles With: 315 MHz
Sensors
Argentina
Brazil
609
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202008, Third-Printing- Customer InformationE339834 E339835 E338008 E338010

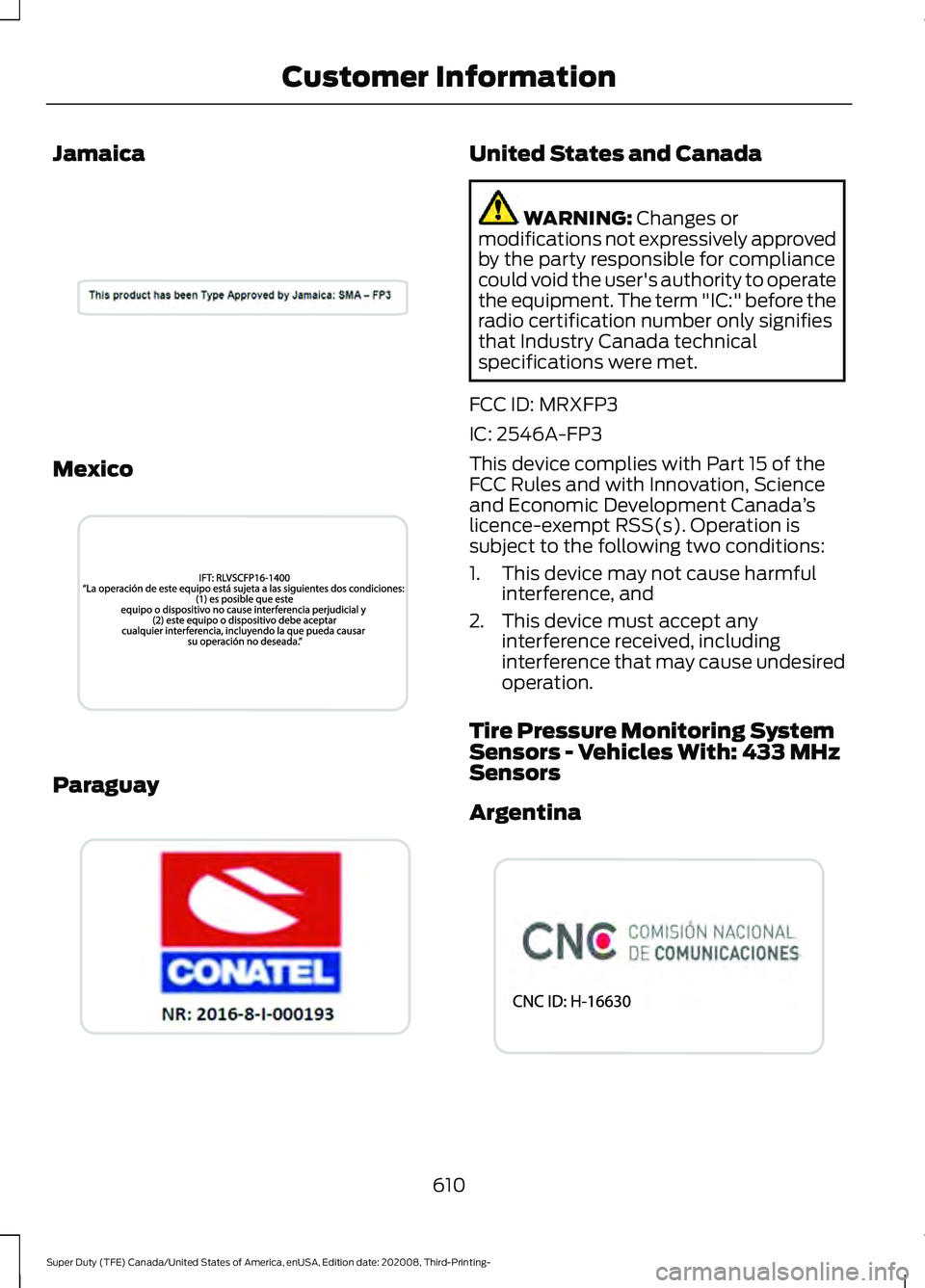

Jamaica
Mexico
Paraguay United States and Canada
WARNING: Changes or
modifications not expressively approved
by the party responsible for compliance
could void the user's authority to operate
the equipment. The term "IC:" before the
radio certification number only signifies
that Industry Canada technical
specifications were met.
FCC ID: MRXFP3
IC: 2546A-FP3
This device complies with Part 15 of the
FCC Rules and with Innovation, Science
and Economic Development Canada ’s
licence-exempt RSS(s). Operation is
subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including
interference that may cause undesired
operation.
Tire Pressure Monitoring System
Sensors - Vehicles With: 433 MHz
Sensors
Argentina 610
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202008, Third-Printing- Customer InformationE338213 E338212 E338214 E338009

Switching Maximum Air Conditioning On
and Off.............................................................. 532
Switching Maximum Defrost On and Off....................................................................... 532
Switching Rear Auto Mode On and Off....................................................................... 533
Switching Recirculated Air On and Off....................................................................... 533
Switching the Air Conditioning On and Off........................................................................\
531
Switching the Climate Controlled Seats On and Off.............................................................. 532
Switching the Climate Control On and Off....................................................................... 532
Switching the Heated Exterior Mirrors On and Off.............................................................. 532
Switching the Heated Rear Window On and Off....................................................................... 532
Switching the Heated Seats On and Off....................................................................... 532
Switching the Heated Steering Wheel On and Off.............................................................. 532
Switching the Heated Windshield On and Off....................................................................... 532
Switching the Rear Climate Controlled Seats On and Off.......................................... 533
Switching the Rear Heated Seats On and Off....................................................................... 533
Switching the Rear Ventilated Seats On and Off.............................................................. 533
Switching the Ventilated Seats On and Off....................................................................... 533
Climate Control.............................................143 Auto Mode............................................................. 145
Climate Control – Troubleshooting.............146
Climate Control – Troubleshooting.........................................146
Climate Control – Frequently Asked
Questions......................................................... 146
Connected Vehicle
......................................474
Connecting the Vehicle to a Mobile
Network............................................................ 474
Connected Vehicle Limitations
...............474
Connected Vehicle Requirements.........474
Connected Vehicle – Troubleshooting - Vehicles With: Modem............................475
Connected Vehicle – Troubleshooting - Vehicles With: SYNC/SYNC 3..............476 Connecting the Vehicle to a Mobile
Network........................................................474
Connecting FordPass to the Modem..........474
Enabling and Disabling the Modem...........474
What Is the Modem.......................................... 474
Connecting the Vehicle to a Wi-Fi Network........................................................474
Coolant Check See: Engine Coolant Check - 6.2L...............364
See: Engine Coolant Check - 6.7L
Diesel................................................................ 368
See: Engine Coolant Check - 7.3L.................371
Cooling System Capacity and Specification - 6.2L..................................455
Cooling System Capacity and Specification - 6.7L Diesel....................456
Cooling System Capacity and Specification - 7.3L..................................456
Crash Sensors and Airbag Indicator........53
Creating a MyKey
............................................62
Programming or Changing Configurable
Settings............................................................... 63
Creating a Vehicle Wi-Fi Hotspot..........478 Connecting a Device to the Wi-Fi
Hotspot............................................................. 478
Finding the Wi-Fi Hotspot Name and Password......................................................... 478
Cross Traffic Alert........................................259 Cross Traffic Alert Behavior When Trailer
is Attached....................................................... 261
Cross Traffic Alert Indicator............................ 261
Cross Traffic Alert Information Messages.......................................................... 261
Cross Traffic Alert System Limitations...................................................... 260
Cross Traffic Alert System Sensors............260
Switching the System On and Off...............261
Using Cross Traffic Alert.................................. 259
Cruise Control................................................242
Cruise Control Indicators
..........................243
Cruise Control - Vehicles With: Adaptive Cruise Control
...............................................82
Cruise Control - Vehicles With: Cruise Control.............................................................82
Customer Assistance.................................332
Customer Information
...............................584
Radio Frequency Certification
Labels............................................................... 584
650
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202008, Third-Printing- Index

Pre-Collision Assist.....................................264
Adjusting the Pre-Collision Assist
Settings............................................................ 266
Blocked Sensors................................................. 267
Distance Indication and Alert....................... 265
Using the Pre-Collision Assist System.............................................................. 264
Protecting the Environment
........................19
Puncture See: Changing a Road Wheel....................... 429
R
Radio Frequency Certification Labels...........................................................584
Blind Spot Information System Sensors............................................................ 584
Body Control Module....................................... 587
Cruise Control Module.................................... 590
Keys and Remote Controls............................ 594
Passive Anti-Theft System............................ 598
Radio Transceiver Module............................. 602
SYNC...................................................................... 605
Tire Pressure Monitoring System Sensors............................................................ 609
Wireless Accessory Charging Module.........613
Rear Axle Fluid Capacity and Specification - Diesel..............................467
Rear Axle - 10.5................................................... 467
Rear Axle - 10.8.................................................. 468
Rear Axle - 11.8 .................................................. 468
Rear Axle Fluid Capacity and Specification - Gasoline........................469
Rear Axle - 10.5.................................................. 469
Rear Axle - 10.8................................................... 470
Rear Axle - 11.8 ................................................... 470
Rear Axle - 11.8 (With Heavy Duty Tow Option)............................................................... 471
Rear Axle
..........................................................221
Rear Occupant Alert System Audible Warnings.......................................................163
Rear Occupant Alert System Indicators - Vehicles With: SYNC 3..........................163
Rear Occupant Alert System Indicators - Vehicles With: SYNC..............................163
Rear Occupant Alert System Limitations...................................................162 Rear Occupant Alert System
Precautions..................................................162
Rear Occupant Alert System...................162
Rear Parking Aid
...........................................234
Obstacle Distance Indicator.......................... 235
Rear Seats
.......................................................158
Folding Up the Rear Seat Cushion ..............158
Rear Under Seat Storage................................. 159
Returning the Seat to the Seating Position.............................................................. 159
Rear View Camera
.......................................235
Camera Guidelines............................................ 236
Obstacle Distance Indicator........................... 237
Rear Camera Delay............................................ 237
Using the Rear View Camera System........236
Rear View Camera See: Rear View Camera................................... 235
Recommended Towing Weights...........300 Calculating the Maximum Loaded Trailer
Weight for Your Vehicle.............................. 304
Refueling - Diesel
.........................................190
Dual Fuel Tanks................................................... 192
Fueling Tips............................................................ 191
Refueling................................................................. 191
Refueling - Gasoline
....................................189
Fuel Filler Cap...................................................... 190
Remote Control..............................................55 Car Finder............................................................... 60
Integrated Keyhead Transmitter..................... 55
Intelligent Access Key.........................................56
Memory Feature................................................... 59
Replacing the Battery......................................... 57
Sounding the Panic Alarm............................... 60
Remotely Starting the Engine
.................140
Remotely Stopping the Engine................141
Remote Start Limitations.........................140
Remote Start Remote Control Indicators.......................................................141
Remote Control Feedback............................... 141
Remote Start
.................................................140
Remote Start Settings....................................... 141
Remote Start Settings
.................................141
Setting the Remote Start Duration..............142
Switching Climate Control Auto Mode On
and Off................................................................ 141
Switching Climate Control Last Settings On and Off......................................................... 141
657
Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202008, Third-Printing- Index
