FORD F-450 2022 Owner's Guide

If you connect a cell phone to the system,
the system creates a profile that links to
that cell phone. The cell phone profile
enables more mobile features and efficient
operation. The profile contains, for
example data from your phonebook, read
and unread text messages and call history,
including history of calls when your cell
phone was not connected to the system.
If you connect a media device, the system
creates and retains a media device index
of supported media content. The system
also records a short diagnostic log of
approximately 10 minutes of all recent
system activity.
The cell phone profile, media device index
and diagnostic log remain in your vehicle
unless you delete them and are generally
accessible only in your vehicle when you
connect your cell phone or media device.
If you no longer plan to use the system or
your vehicle, we recommend you use the
master reset function to erase the stored
information. See Performing a Master
Reset (page 614).
System data cannot be accessed without
special equipment and access to your
vehicle's module.
For additional information about our
privacy policy, refer to the local Ford
website.
Note: To find out if your vehicle has
connectivity technology, visit
www .For dC onne c t e d . c om .
EMERGENCY CALL SYSTEM
DATA
When the emergency call system is active,
it may disclose to emergency services that
your vehicle has been in a crash involving
the deployment of an airbag or activation
of the fuel pump shut-off. Certain versions
or updates to the emergency call system
may also be capable of electronically or verbally disclosing to emergency services
operators your vehicle location or other
details about your vehicle or crash to assist
emergency services operators to provide
the most appropriate emergency services.
If you do not want to disclose this
information, do not activate the emergency
call system.
Note:
You cannot deactivate emergency
call systems that are required by law.
28
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Data Privacy

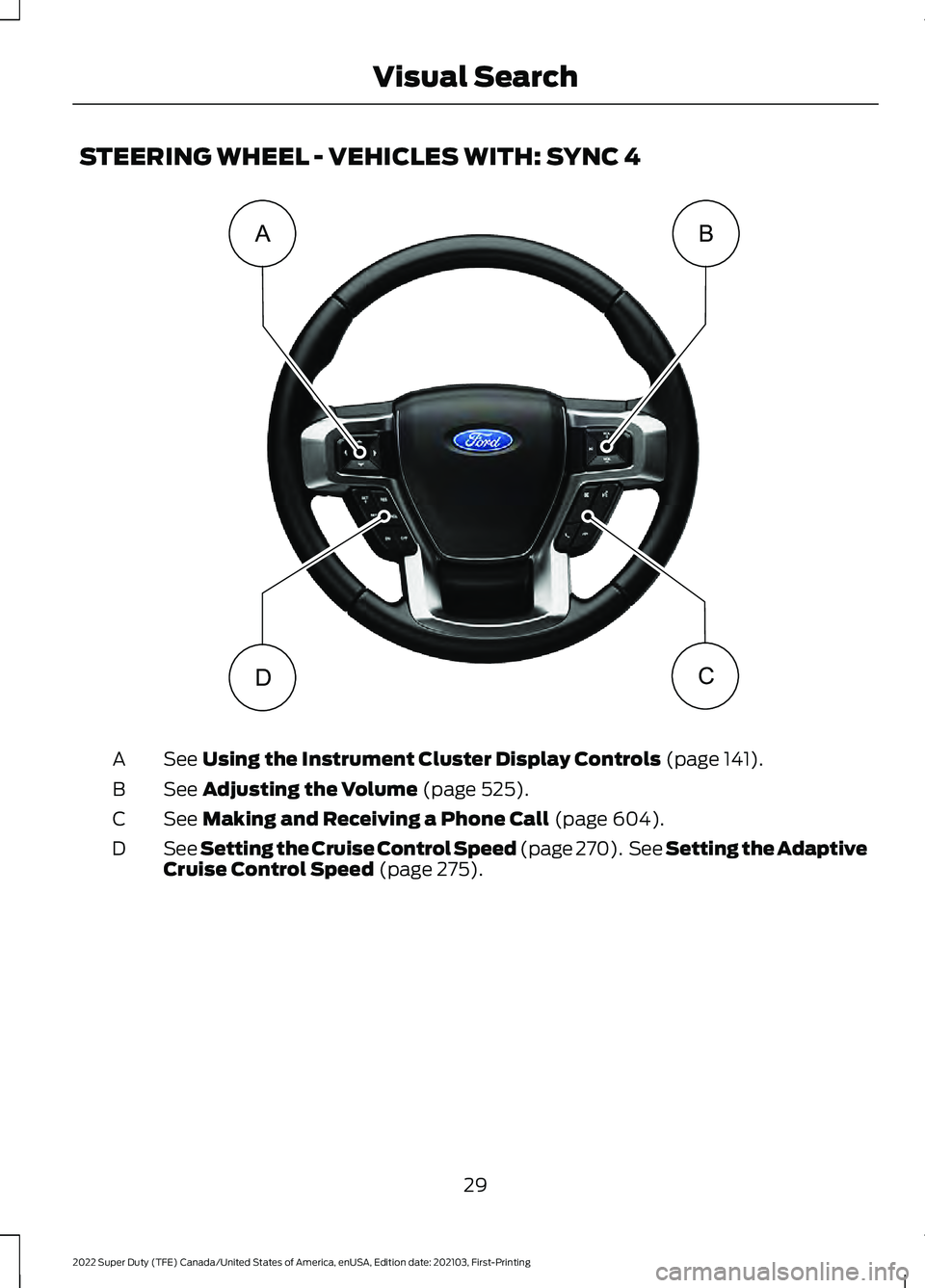

STEERING WHEEL - VEHICLES WITH: SYNC 4
See Using the Instrument Cluster Display Controls (page 141).
A
See
Adjusting the Volume (page 525).
B
See
Making and Receiving a Phone Call (page 604).
C
See Setting the Cruise Control Speed (page 270). See Setting the Adaptive
Cruise Control Speed
(page 275).
D
29
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Visual SearchAB
DC E346226

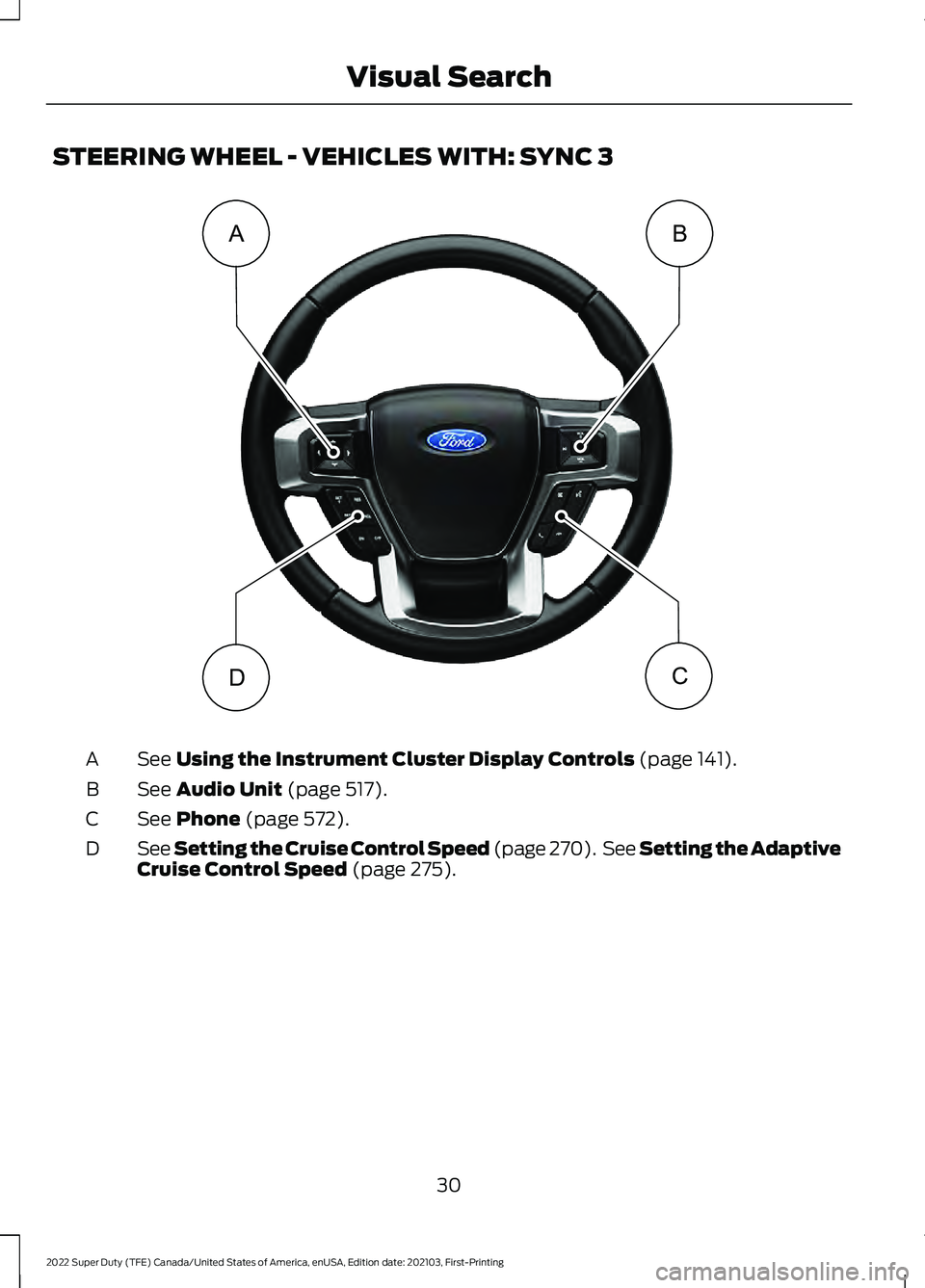

STEERING WHEEL - VEHICLES WITH: SYNC 3
See Using the Instrument Cluster Display Controls (page 141).
A
See
Audio Unit (page 517).
B
See
Phone (page 572).
C
See Setting the Cruise Control Speed (page 270). See Setting the Adaptive
Cruise Control Speed
(page 275).
D
30
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Visual SearchAB
DC E346226

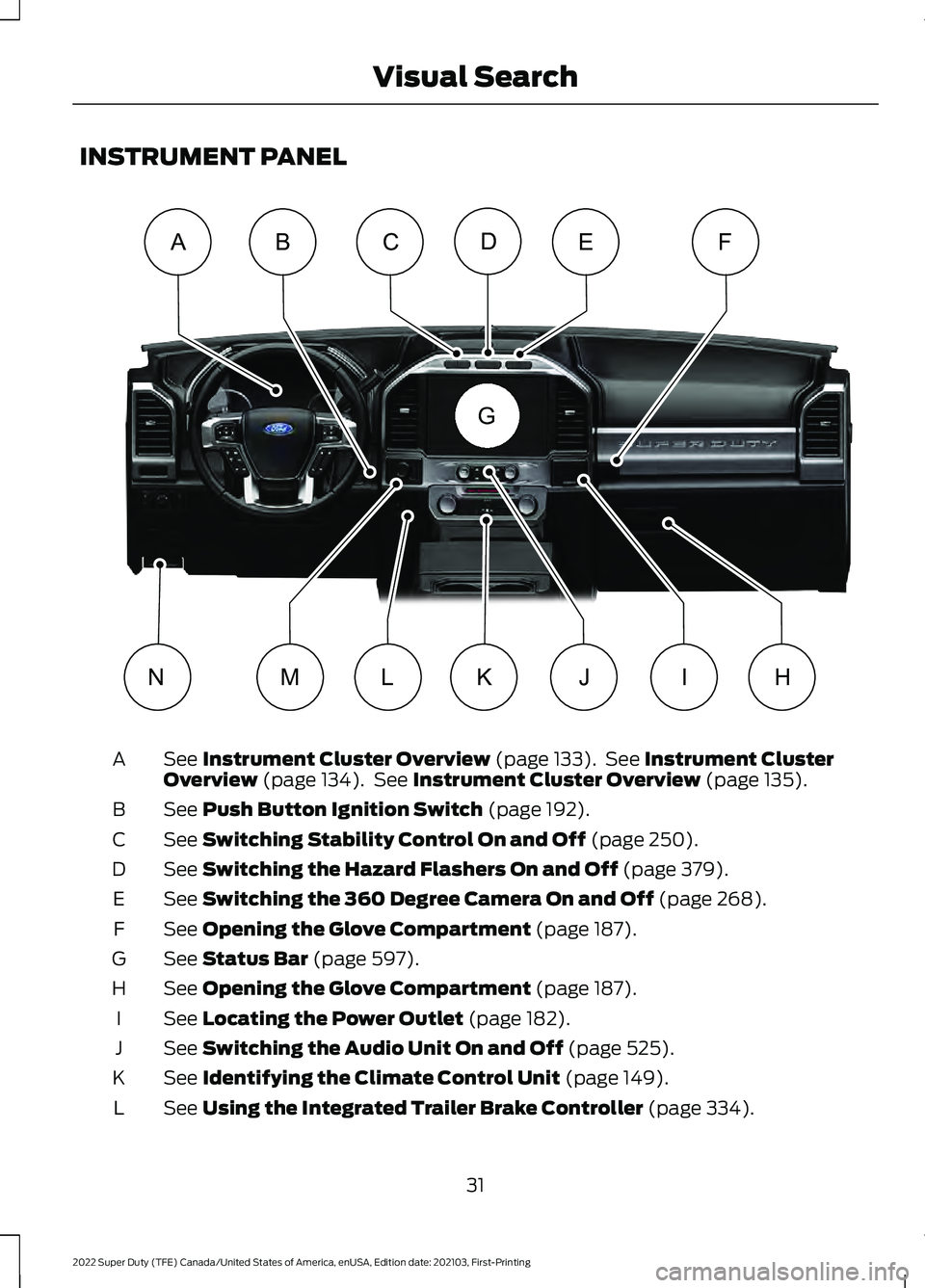

INSTRUMENT PANEL
See Instrument Cluster Overview (page 133). See Instrument Cluster
Overview (page 134). See Instrument Cluster Overview (page 135).
A
See
Push Button Ignition Switch (page 192).
B
See
Switching Stability Control On and Off (page 250).
C
See
Switching the Hazard Flashers On and Off (page 379).
D
See
Switching the 360 Degree Camera On and Off (page 268).
E
See
Opening the Glove Compartment (page 187).
F
See
Status Bar (page 597).
G
See
Opening the Glove Compartment (page 187).
H
See
Locating the Power Outlet (page 182).
I
See
Switching the Audio Unit On and Off (page 525).
J
See
Identifying the Climate Control Unit (page 149).
K
See
Using the Integrated Trailer Brake Controller (page 334).
L
31
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Visual SearchABCEFD
HLMIJKN
GE346227

See Selecting a Four-Wheel Drive Mode (page 230).
M
See
Releasing the Parking Brake (page 243).
N
VEHICLE INTERIOR See
Sitting in the Correct Position (page 158).
A
See
Opening the Center Console (page 188).
B
See
Unfolding the Seats (page 168).
C
See
Folding the Seats (page 168).
D
32
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Visual SearchABC
D E346228

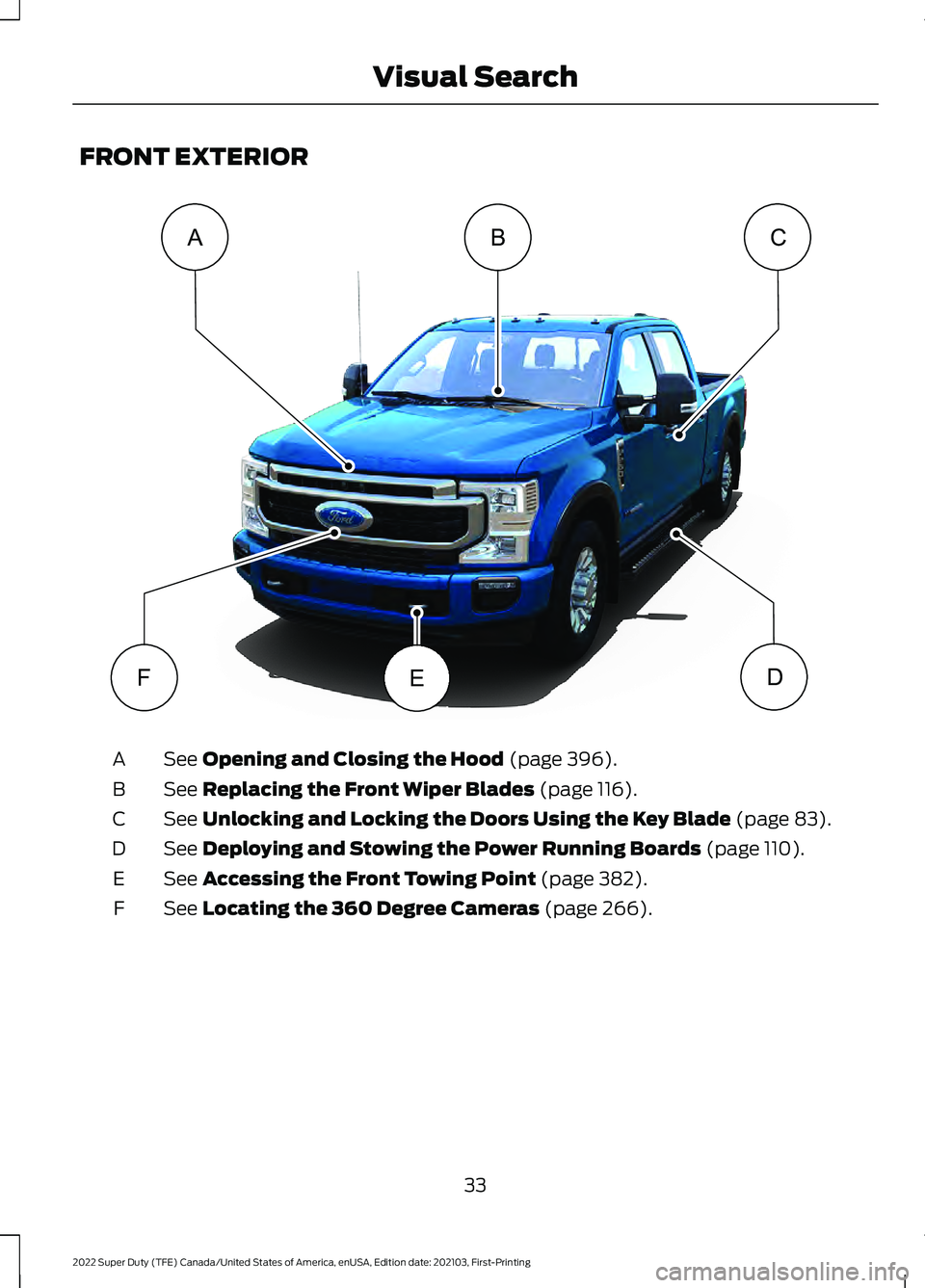

FRONT EXTERIOR
See Opening and Closing the Hood (page 396).
A
See
Replacing the Front Wiper Blades (page 116).
B
See
Unlocking and Locking the Doors Using the Key Blade (page 83).
C
See
Deploying and Stowing the Power Running Boards (page 110).
D
See
Accessing the Front Towing Point (page 382).
E
See
Locating the 360 Degree Cameras (page 266).
F
33
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Visual SearchACB
DFEE346229

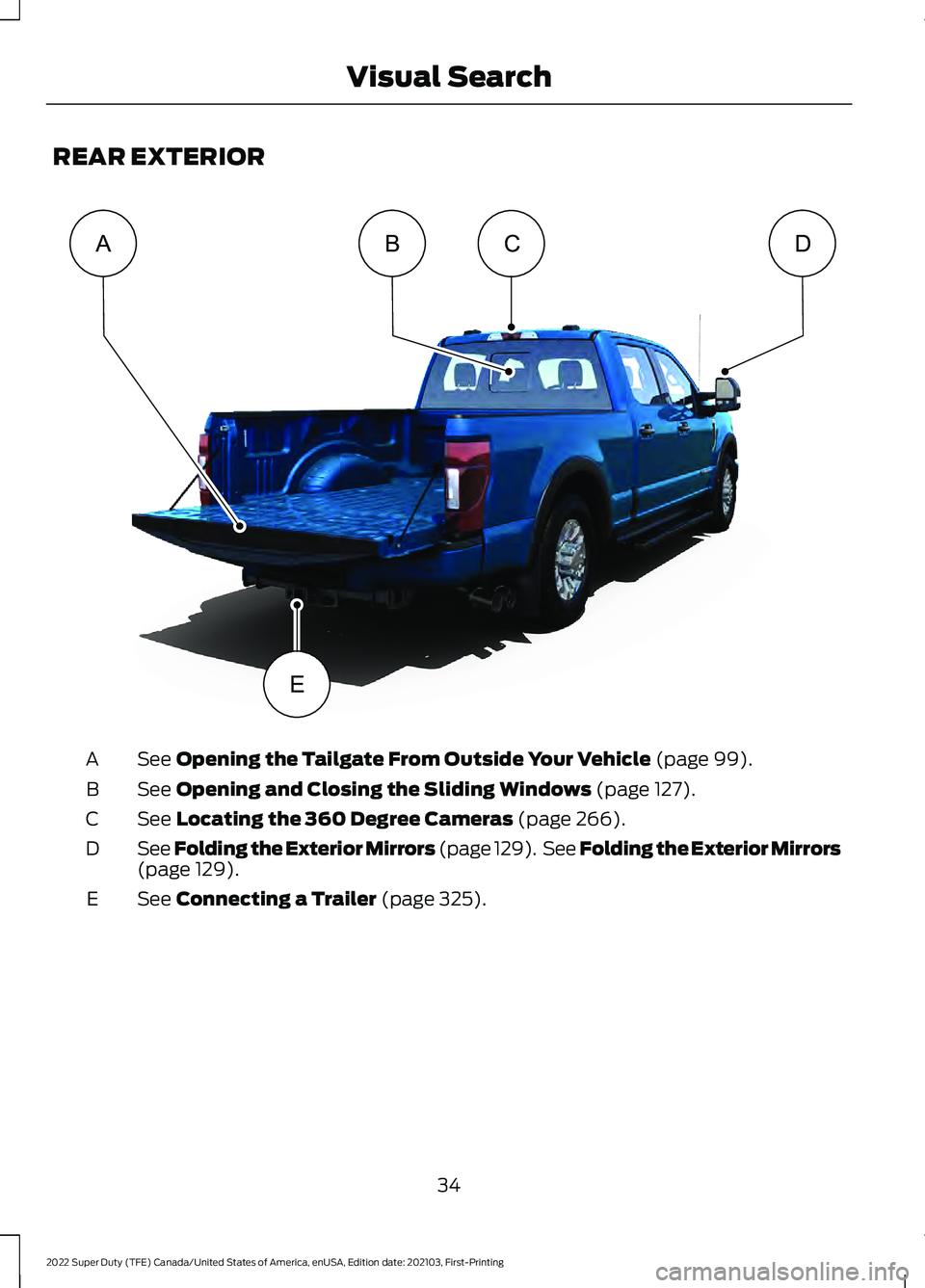

REAR EXTERIOR
See Opening the Tailgate From Outside Your Vehicle (page 99).
A
See
Opening and Closing the Sliding Windows (page 127).
B
See
Locating the 360 Degree Cameras (page 266).
C
See Folding the Exterior Mirrors (page 129
). See Folding the Exterior Mirrors
(page 129).
D
See
Connecting a Trailer (page 325).
E
34
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Visual SearchADBC
EE346230

CHILD SAFETY PRECAUTIONS
WARNING: Always make sure your
child is secured properly in a device that
is appropriate for their height, age and
weight. Child safety restraints must be
bought separately from your vehicle.
Failure to follow these instructions and
guidelines may result in an increased risk
of serious injury or death to your child. WARNING: All children are shaped
differently. The National Highway Traffic
Safety Administration and other safety
organizations, base their
recommendations for child restraints on
probable child height, age and weight
thresholds, or on the minimum
requirements of the law. We recommend
that you check with a NHTSA Certified
Child Passenger Safety Technician
(CPST) to make sure that you properly
install the child restraint in your vehicle
and that you consult your pediatrician to
make sure you have a child restraint
appropriate for your child. To locate a
child restraint fitting station and CPST,
contact NHTSA toll free at
1-888-327-4236 or go to
www.nhtsa.dot.gov. In Canada, contact
Transport Canada toll free at
1-800-333-0371 or go to www.tc.gc.ca
to find a Child Car Seat Clinic in your
area. Failure to properly restrain children
in child restraints made especially for
their height, age and weight, may result
in an increased risk of serious injury or
death to your child. WARNING:
On hot days, the
temperature inside the vehicle can rise
very quickly. Exposure of people or
animals to these high temperatures for
even a short time can cause death or
serious heat related injuries, including
brain damage. Small children are
particularly at risk. WARNING:
Do not place a
rearward facing child restraint in front of
an active airbag. Failure to follow this
instruction could result in personal injury
or death. WARNING:
Properly secure
children 12 years old and under in a rear
seating position whenever possible. If
you are unable to properly secure all
children in a rear seating position,
properly secure the largest child on the
front seat. If you must use a forward
facing child restraint on the front seat,
move the seat as far back as possible.
Failure to follow these instructions could
result in personal injury or death. WARNING: Always carefully follow
the instructions and warnings provided
by the manufacturer of any child
restraint to determine if the restraint
device is appropriate for your child's size,
height, weight, or age. Follow the child
restraint manufacturer's instructions and
warnings provided for installation and
use in conjunction with the instructions
and warnings provided by your vehicle
manufacturer. A safety seat that is
improperly installed or utilized, is
inappropriate for your child's height, age,
or weight or does not properly fit the
child may increase the risk of serious
injury or death.
35
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Child Safety

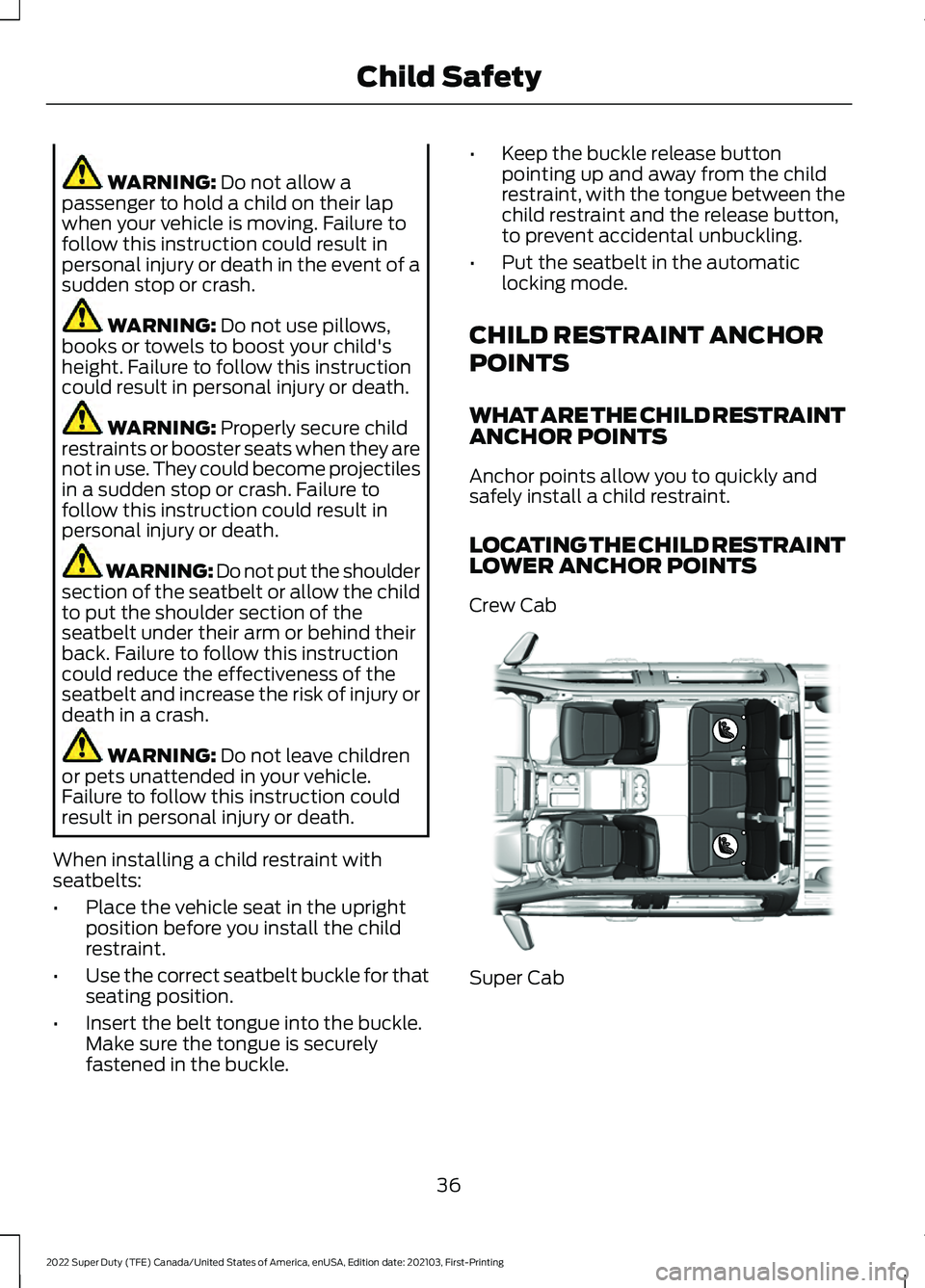

WARNING: Do not allow a
passenger to hold a child on their lap
when your vehicle is moving. Failure to
follow this instruction could result in
personal injury or death in the event of a
sudden stop or crash. WARNING:
Do not use pillows,
books or towels to boost your child's
height. Failure to follow this instruction
could result in personal injury or death. WARNING:
Properly secure child
restraints or booster seats when they are
not in use. They could become projectiles
in a sudden stop or crash. Failure to
follow this instruction could result in
personal injury or death. WARNING: Do not put the shoulder
section of the seatbelt or allow the child
to put the shoulder section of the
seatbelt under their arm or behind their
back. Failure to follow this instruction
could reduce the effectiveness of the
seatbelt and increase the risk of injury or
death in a crash. WARNING:
Do not leave children
or pets unattended in your vehicle.
Failure to follow this instruction could
result in personal injury or death.
When installing a child restraint with
seatbelts:
• Place the vehicle seat in the upright
position before you install the child
restraint.
• Use the correct seatbelt buckle for that
seating position.
• Insert the belt tongue into the buckle.
Make sure the tongue is securely
fastened in the buckle. •
Keep the buckle release button
pointing up and away from the child
restraint, with the tongue between the
child restraint and the release button,
to prevent accidental unbuckling.
• Put the seatbelt in the automatic
locking mode.
CHILD RESTRAINT ANCHOR
POINTS
WHAT ARE THE CHILD RESTRAINT
ANCHOR POINTS
Anchor points allow you to quickly and
safely install a child restraint.
LOCATING THE CHILD RESTRAINT
LOWER ANCHOR POINTS
Crew Cab Super Cab
36
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Child SafetyE308373

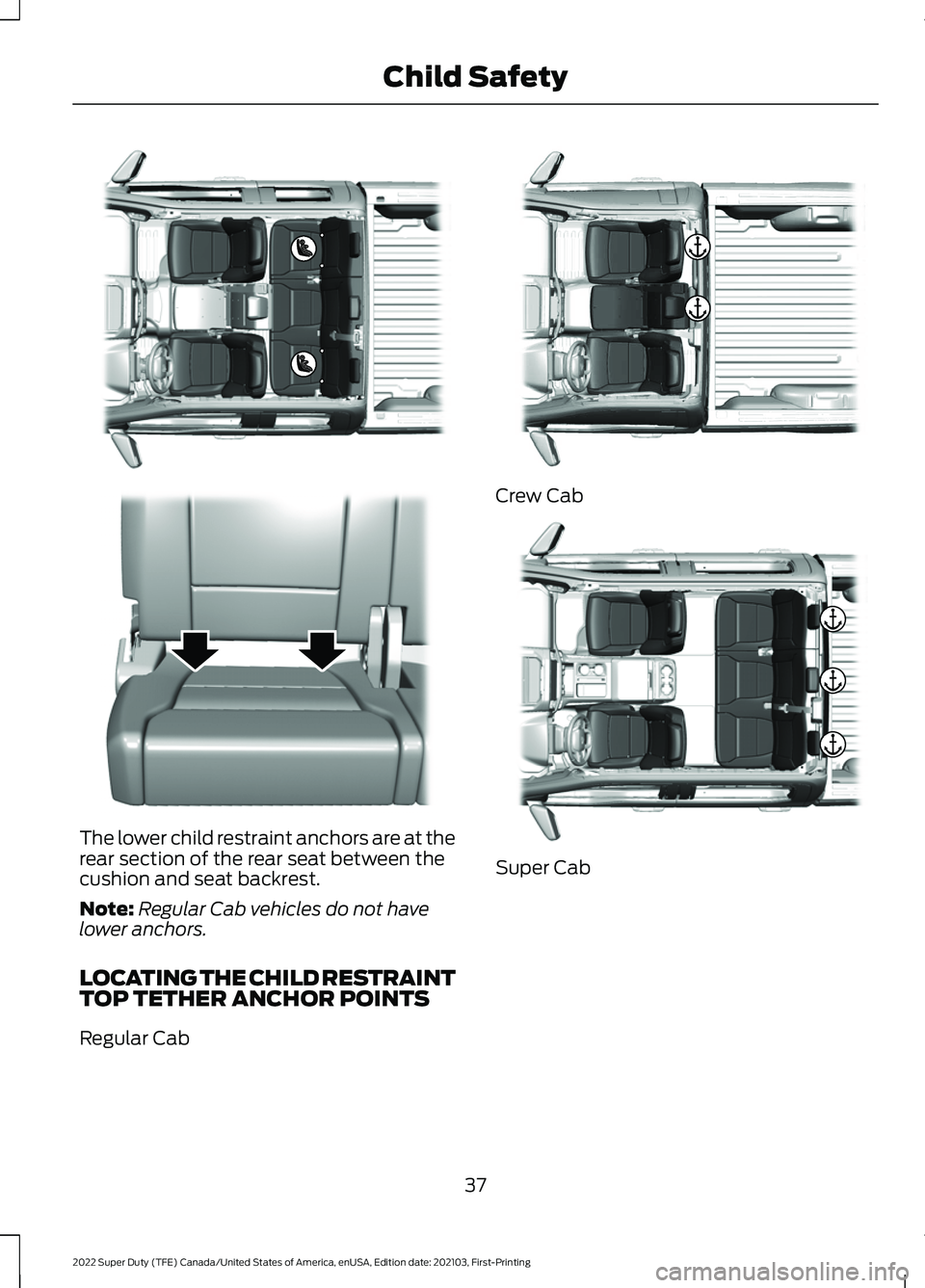

The lower child restraint anchors are at the
rear section of the rear seat between the
cushion and seat backrest.
Note:
Regular Cab vehicles do not have
lower anchors.
LOCATING THE CHILD RESTRAINT
TOP TETHER ANCHOR POINTS
Regular Cab Crew Cab
Super Cab
37
2022 Super Duty (TFE) Canada/United States of America, enUSA, Edition date: 202103, First-Printing Child SafetyE308385 E312604 E308389 E308390
