Roadside Emergencies
%*
[ER00205( ALL)01/96]
If the Engine Cranks but Does
Not Start or Does Not Start After
a Collision
*
[ER00210( ALL)01/96]
Fuel Pump Shut-Off Switch
*
[ER00220( ALL)01/96]
If the engine cranks but does not start or does
not start even after a small collision, the fuel
pump shut-off switch may have been activated.
The shut-off switch is a device intended to stop
the fuel pump when your vehicle has been
involved in a substantial jolt.
*
[ER00225( ALL)01/96]
Once the shut-off switch is activated, you must
reset the switch by hand before you can start
your vehicle.
[ER00235( M)01/96]
one third page art:0020006-B
Fuel pump shut-off switch location
File:10lterm.ex
Update:Fri Dec 13 11:23:45 1996

78
*
[ER00250( ALL)01/96]
RWARNING
If you see or smell fuel, do not reset the
switch or try to start your vehicle. Have
all the passengers get out of the vehicle
and call the local fire department or a
towing service.
*
[ER00252( ALL)01/96]
If your engine cranks but does not start after a
collision or substantial jolt:
*
[ER00255( ALL)01/96]
1. Turn the ignition key to the OFF position.
*
[ER00260( ALL)01/96]
2. Check under the vehicle for leaking fuel.
*
[ER00265( ALL)01/96]
3. If you do not see or smell fuel, push the red
reset button down. If the button is already
set, you may have a different mechanical
problem.
[ER00275( M)01/96]
4. Turn the ignition key to RUN for a few
seconds, then turn it OFF. (Do not start the
engine.)
*
[ER00280( ALL)01/96]
5. Check under the vehicle again for leaking
fuel.If you see or smell fuel, do not start
your vehicle again.If you do not see or
smell fuel, you can try to start your vehicle
again.
[ER00285( ALL)01/96]
6. Check all vehicle warning lights before
driving your vehicle.
[ER00295( M)01/96]
quarter page art:0020107-A
Reset button for fuel pump shut-off switch
File:10lterm.ex
Update:Fri Dec 13 11:23:45 1996

79
%*
[ER00300( ALL)01/96]
Fuses, Fuse Links and Circuit
Breakers
*
[ER00400(B FM)01/96]
Fuses, circuit breakers and fuse links protect
your vehicle's electrical system from overloading.
If electrical parts in your vehicle are not
working, the system may have been overloaded
and blown a fuse or tripped a circuit breaker.
Before you replace or repair any electrical parts,
check the appropriate fuses or circuit breakers.
*
[ER00450( ALL)01/96]
The following charts tell you which fuses or
circuit breakers protect each electrical part of
your vehicle. If a fuse blows or a circuit breaker
opens a circuit, all the parts of your vehicle that
use that circuit will not work.
[ER00500( M)01/96]
Selected circuits, such as headlamps and
windshield wipers, are protected with circuit
breakers. A circuit breaker is designed to stop
current flow in case of a short-circuit or
overload. It will automatically restore current
flow after a few seconds, but will again interrupt
current if the overload or short-circuit continues.
This on-off cycle will continue as long as the
overload or short-circuit exists.
*
[ER00550( ALL)01/96]
Once you have determined which fuses or circuit
breakers to check, follow the procedures under
Checking and replacing fusesorChecking and
replacing circuit breakerslater in this chapter.
File:10lterm.ex
Update:Fri Dec 13 11:23:45 1996

80 % [ER00850( M)01/96]
full page art:0020730-DFuses/circuit breakers and their locations
File:10lterm.ex
Update:Fri Dec 13 11:23:45 1996

81 [ER00900( M)01/96]
thirty-six pica chart:0020963-F
File:10lterm.ex
Update:Fri Dec 13 11:23:45 1996

82 [ER01250( M)01/96]

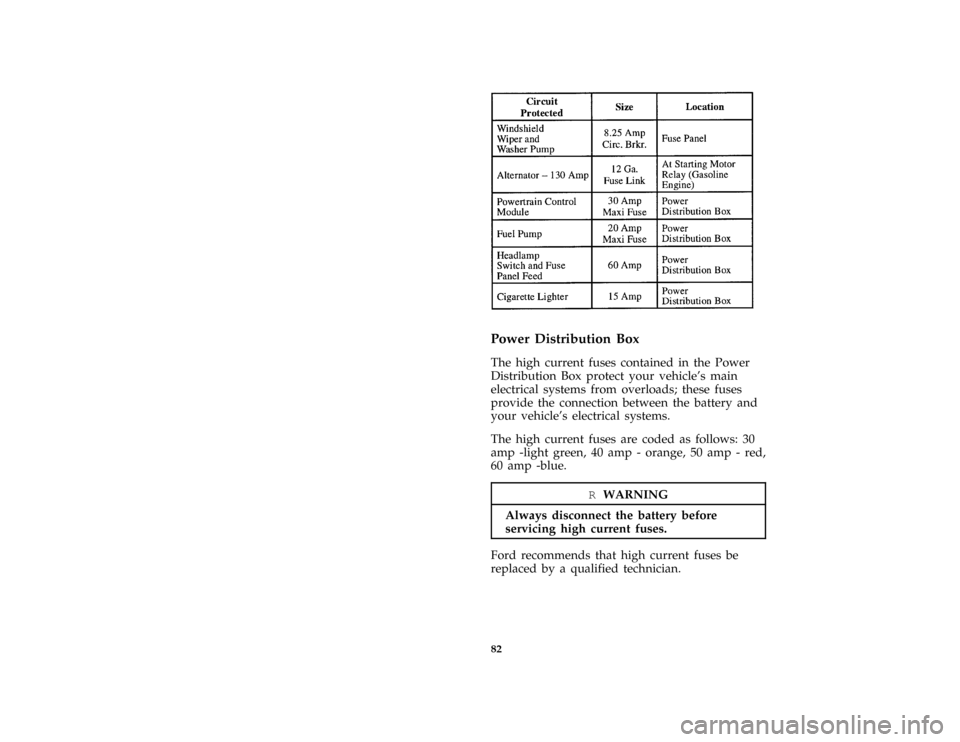

sixteen pica chart:0020731-E
[ER01300( ALL)01/96]
Power Distribution Box
*
[ER01350( ALL)01/96]
The high current fuses contained in the Power
Distribution Box protect your vehicle's main
electrical systems from overloads; these fuses
provide the connection between the battery and
your vehicle's electrical systems.
*
[ER01400( ALL)01/96]
The high current fuses are coded as follows: 30
amp -light green, 40 amp - orange, 50 amp - red,
60 amp -blue.
*
[ER01450( ALL)01/96]
RWARNING
Always disconnect the battery before
servicing high current fuses.
*
[ER01500( ALL)01/96]
Ford recommends that high current fuses be
replaced by a qualified technician.
File:10lterm.ex
Update:Fri Dec 13 11:23:45 1996

83
*
[ER01550( ALL)01/96]
RWARNING
Always replace the cover to the Power
Distribution Box before reconnecting the
battery or refilling fluid reservoirs.
*
[ER01600( ALL)01/96]
A blown high current fuse may be replaced but
will continue to blow until the cause of the
overload condition is corrected.
*
[ER01650( ALL)01/96]
RWARNING
Always replace a fuse with one that has
the specified amperage rating. Using a
fuse with a higher amperage rating can
cause severe wire damage and could start
a fire.
[ER01950( M)01/96]

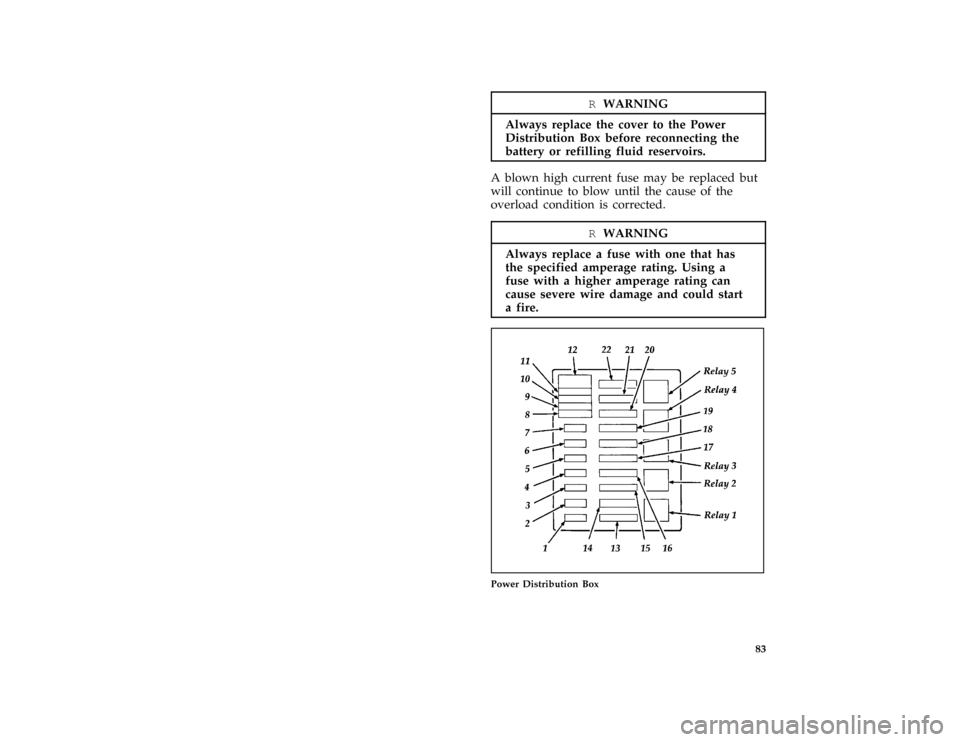

half page art:0020964-A
Power Distribution Box
File:10lterm.ex
Update:Fri Dec 13 11:23:45 1996

84 [ER02000( M)01/96]

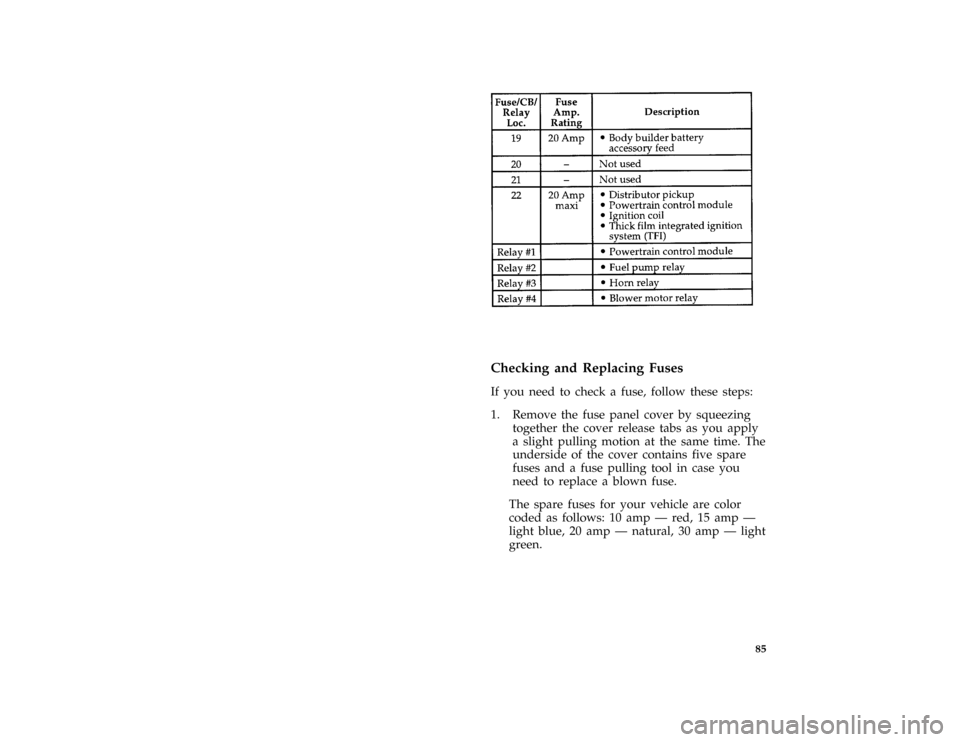

thirty-six pica chart:0020965-D
File:10lterm.ex
Update:Fri Dec 13 11:23:45 1996

85 [ER02050( M)01/96]

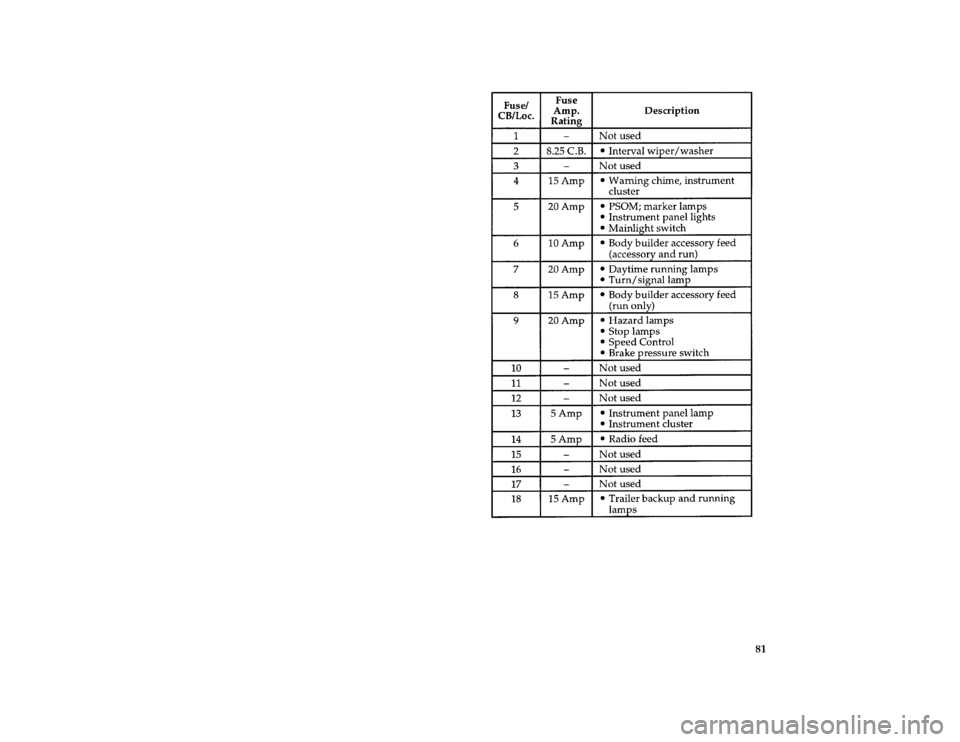

eighteen pica chart:0020966-C
%*
[ER02250( ALL)01/96]
Checking and Replacing Fuses
*
[ER02300( ALL)01/96]
If you need to check a fuse, follow these steps:
[ER02350( M)01/96]
1. Remove the fuse panel cover by squeezing
together the cover release tabs as you apply
a slight pulling motion at the same time. The
underside of the cover contains five spare
fuses and a fuse pulling tool in case you
need to replace a blown fuse.
*
[ER02550( M)01/96]
The spare fuses for your vehicle are color
coded as follows: 10 amp Ð red, 15 amp Ð
light blue, 20 amp Ð natural, 30 amp Ð light
green.
File:10lterm.ex
Update:Fri Dec 13 11:23:45 1996

86
*
[ER02600( ALL)01/96]
2. On the fuse panel cover, find the number of
the fuse you want to check. The diagram on
the cover tells you where to locate the fuse
on the panel.
*
[ER02650(B FM)01/96]
The underside of the cover also contains a
fuse pulling tool in case you need to replace
a blown fuse.
*
[ER02700( ALL)01/96]
3. Check the fuse to see if it is blown. Look
through the clear side of the fuse to see if
the metal wire inside is separated. If it is,
the fuse is blown and should be replaced.
*
[ER02750( ALL)01/96]
quarter page art:0020405-A
The side view of a fuse
*
[ER02800( ALL)01/96]
4. Replace the fuse with one that has the right
amperage rating (see previous chart).
*
[ER02850( ALL)01/96]
RWARNING
Always replace a fuse with one that has
the specified amperage rating. Using a
fuse with a higher amperage rating can
cause severe wire damage and could start
a fire.
*
[ER02900( ALL)01/96]
5. Put the fuse panel cover back on.
*
[ER02950( ALL)01/96]
Even after you replace a fuse, it will continue to
blow if you do not find what caused the
overload. If the fuse continues to blow, have
your electrical system checked.
File:10lterm.ex
Update:Fri Dec 13 11:23:45 1996
