FORD F SERIES MOTORHOME AND COMMERCIAL CHASSIS 2004 11.G Owners Manual

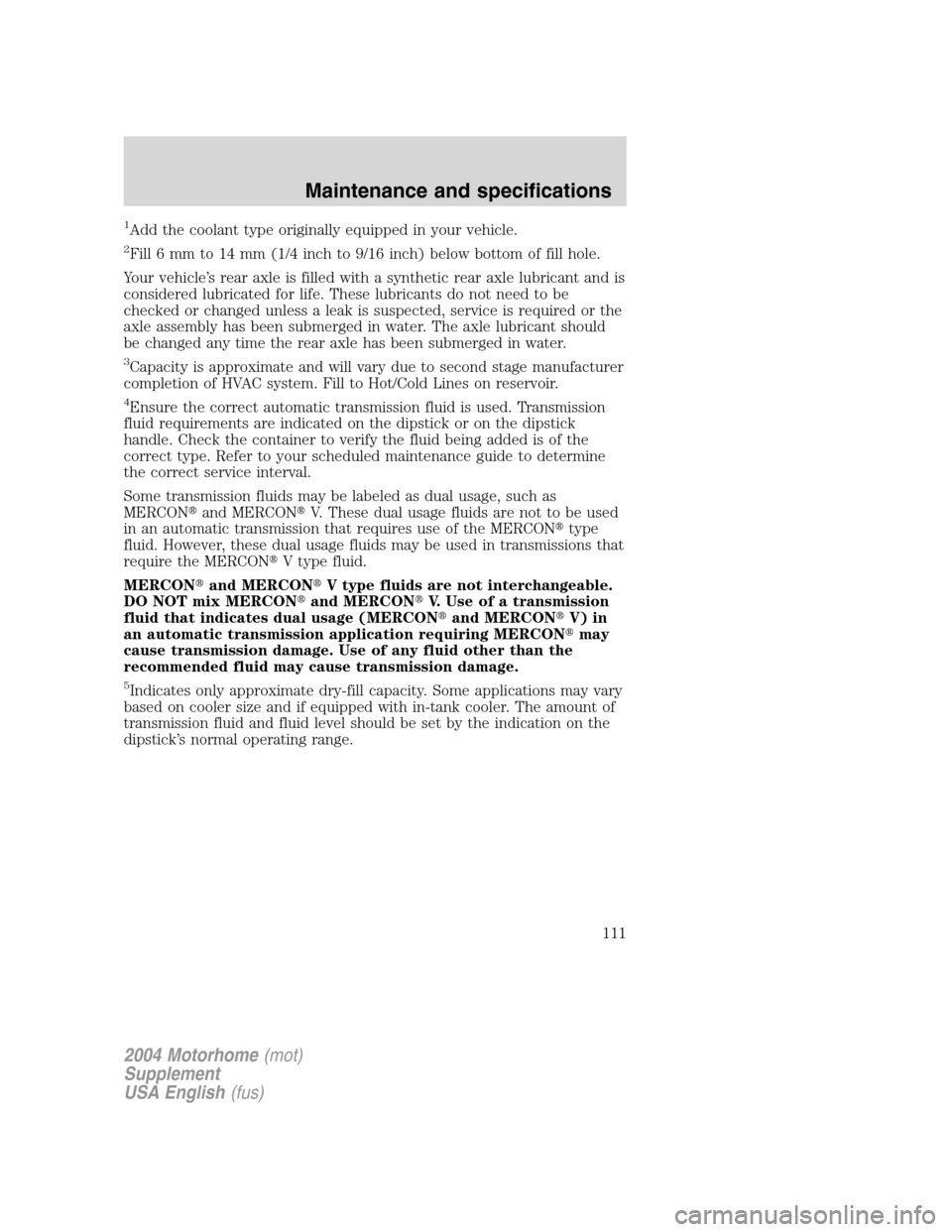

1Add the coolant type originally equipped in your vehicle.
2Fill 6 mm to 14 mm (1/4 inch to 9/16 inch) below bottom of fill hole.
Your vehicle’s rear axle is filled with a synthetic rear axle lubricant and is
considered lubricated for life. These lubricants do not need to be
checked or changed unless a leak is suspected, service is required or the
axle assembly has been submerged in water. The axle lubricant should
be changed any time the rear axle has been submerged in water.
3Capacity is approximate and will vary due to second stage manufacturer
completion of HVAC system. Fill to Hot/Cold Lines on reservoir.
4Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to your scheduled maintenance guide to determine
the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
5Indicates only approximate dry-fill capacity. Some applications may vary
based on cooler size and if equipped with in-tank cooler. The amount of
transmission fluid and fluid level should be set by the indication on the
dipstick’s normal operating range.
2004 Motorhome(mot)
Supplement
USA English(fus)
Maintenance and specifications
111

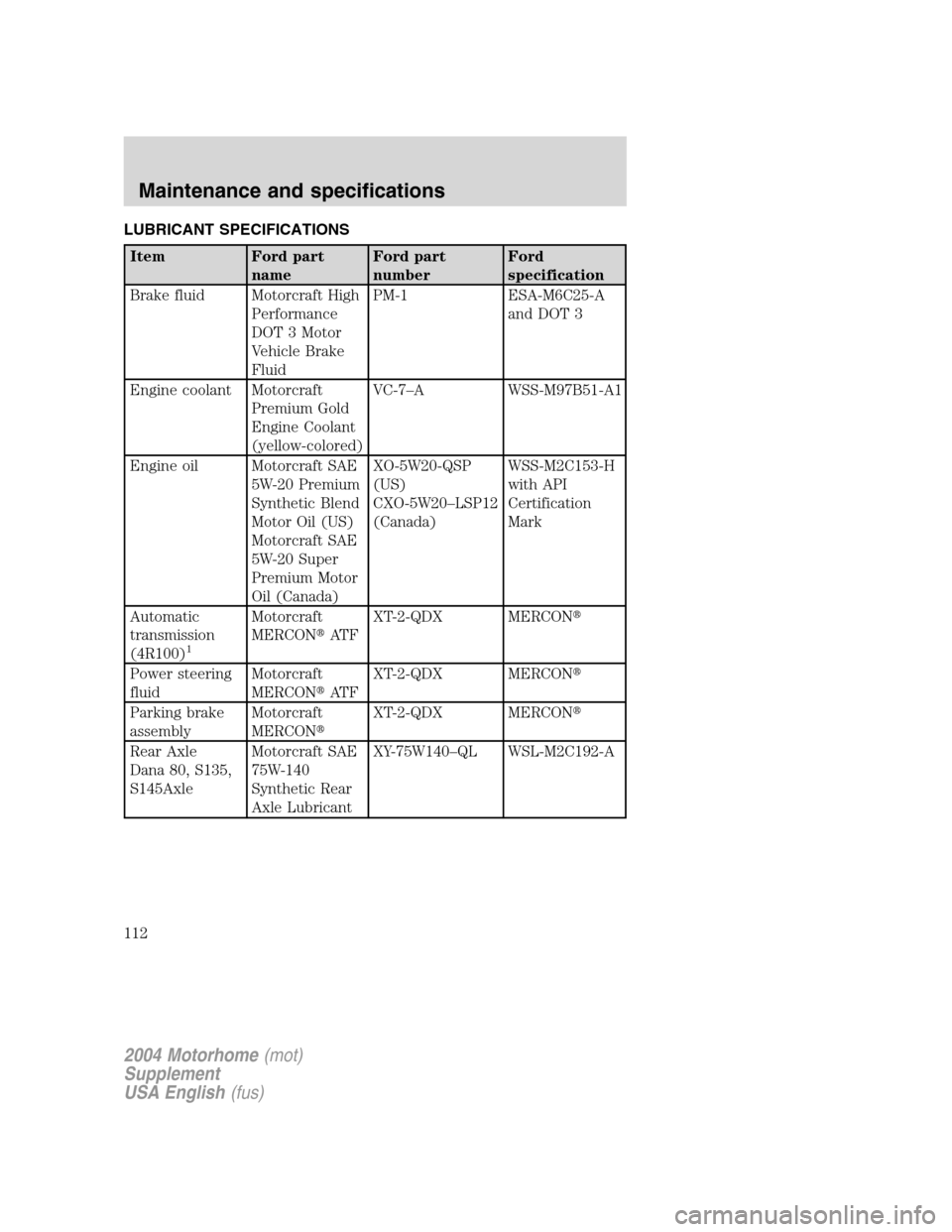

LUBRICANT SPECIFICATIONS
Item Ford part
nameFord part
numberFord
specification
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidPM-1 ESA-M6C25-A
and DOT 3
Engine coolant Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7–A WSS-M97B51-A1
Engine oil Motorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)XO-5W20-QSP
(US)
CXO-5W20–LSP12
(Canada)WSS-M2C153-H
with API
Certification
Mark
Automatic
transmission
(4R100)
1
Motorcraft
MERCONAT FXT-2-QDX MERCON
Power steering
fluidMotorcraft
MERCONAT FXT-2-QDX MERCON
Parking brake
assemblyMotorcraft
MERCONXT-2-QDX MERCON
Rear Axle
Dana 80, S135,
S145AxleMotorcraft SAE
75W-140
Synthetic Rear
Axle LubricantXY-75W140–QL WSL-M2C192-A
2004 Motorhome(mot)
Supplement
USA English(fus)
Maintenance and specifications
112

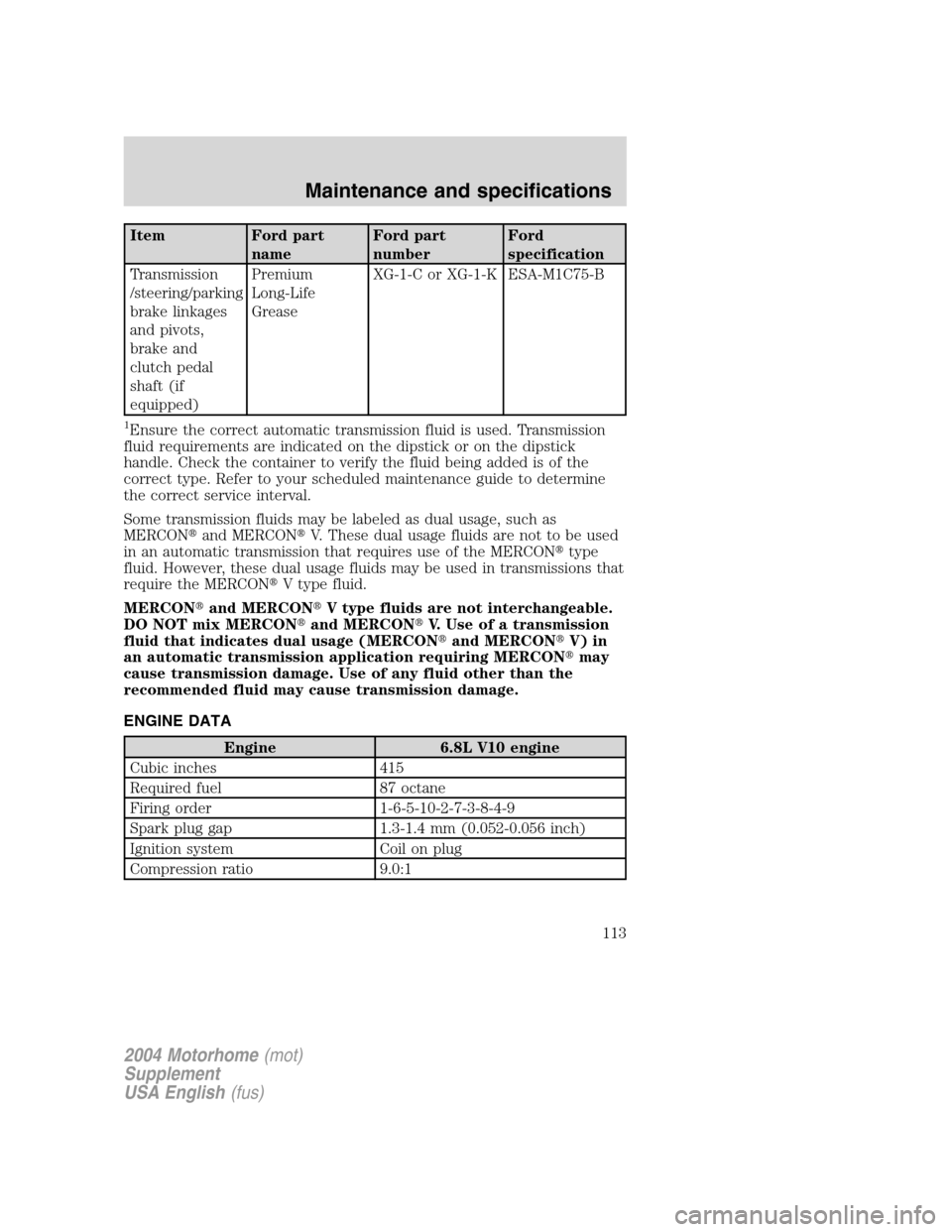

Item Ford part
nameFord part
numberFord
specification
Transmission
/steering/parking
brake linkages
and pivots,
brake and
clutch pedal
shaft (if
equipped)Premium
Long-Life
GreaseXG-1-C or XG-1-K ESA-M1C75-B
1Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to your scheduled maintenance guide to determine
the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCONand MERCONV type fluids are not interchangeable.
DO NOT mix MERCONand MERCONV. Use of a transmission
fluid that indicates dual usage (MERCONand MERCONV) in
an automatic transmission application requiring MERCONmay
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
ENGINE DATA
Engine 6.8L V10 engine
Cubic inches 415
Required fuel 87 octane
Firing order 1-6-5-10-2-7-3-8-4-9
Spark plug gap 1.3-1.4 mm (0.052-0.056 inch)
Ignition system Coil on plug
Compression ratio 9.0:1
2004 Motorhome(mot)
Supplement
USA English(fus)
Maintenance and specifications
113

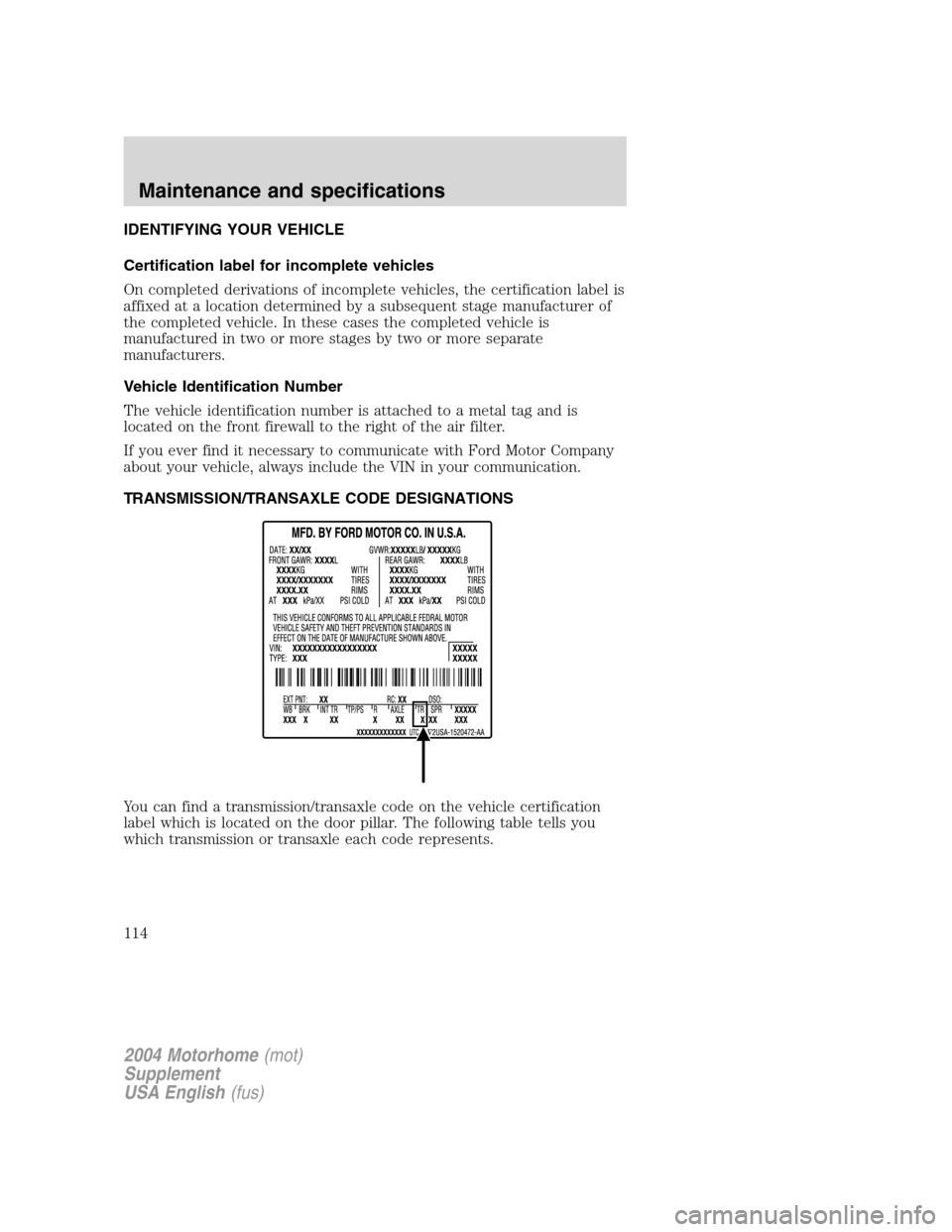

IDENTIFYING YOUR VEHICLE
Certification label for incomplete vehicles
On completed derivations of incomplete vehicles, the certification label is
affixed at a location determined by a subsequent stage manufacturer of
the completed vehicle. In these cases the completed vehicle is
manufactured in two or more stages by two or more separate
manufacturers.
Vehicle Identification Number
The vehicle identification number is attached to a metal tag and is
located on the front firewall to the right of the air filter.
If you ever find it necessary to communicate with Ford Motor Company
about your vehicle, always include the VIN in your communication.
TRANSMISSION/TRANSAXLE CODE DESIGNATIONS
You can find a transmission/transaxle code on the vehicle certification
label which is located on the door pillar. The following table tells you
which transmission or transaxle each code represents.
2004 Motorhome(mot)
Supplement
USA English(fus)
Maintenance and specifications
114

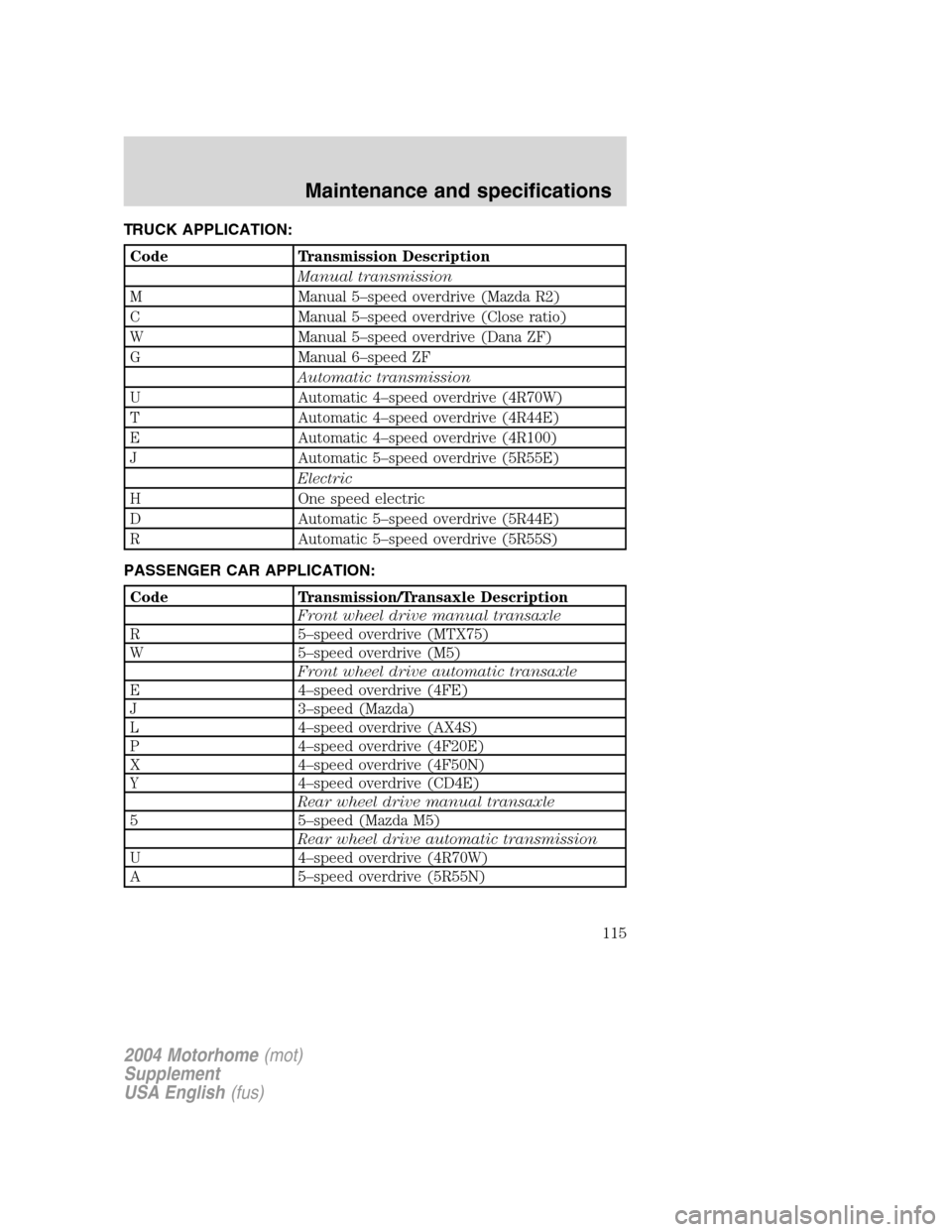

TRUCK APPLICATION:
Code Transmission Description
Manual transmission
M Manual 5–speed overdrive (Mazda R2)
C Manual 5–speed overdrive (Close ratio)
W Manual 5–speed overdrive (Dana ZF)
G Manual 6–speed ZF
Automatic transmission
U Automatic 4–speed overdrive (4R70W)
T Automatic 4–speed overdrive (4R44E)
E Automatic 4–speed overdrive (4R100)
J Automatic 5–speed overdrive (5R55E)
Electric
H One speed electric
D Automatic 5–speed overdrive (5R44E)
R Automatic 5–speed overdrive (5R55S)
PASSENGER CAR APPLICATION:
Code Transmission/Transaxle Description
Front wheel drive manual transaxle
R5–speed overdrive (MTX75)
W5–speed overdrive (M5)
Front wheel drive automatic transaxle
E4–speed overdrive (4FE)
J3–speed (Mazda)
L4–speed overdrive (AX4S)
P4–speed overdrive (4F20E)
X4–speed overdrive (4F50N)
Y4–speed overdrive (CD4E)
Rear wheel drive manual transaxle
55–speed (Mazda M5)
Rear wheel drive automatic transmission
U4–speed overdrive (4R70W)
A5–speed overdrive (5R55N)
2004 Motorhome(mot)
Supplement
USA English(fus)
Maintenance and specifications
115

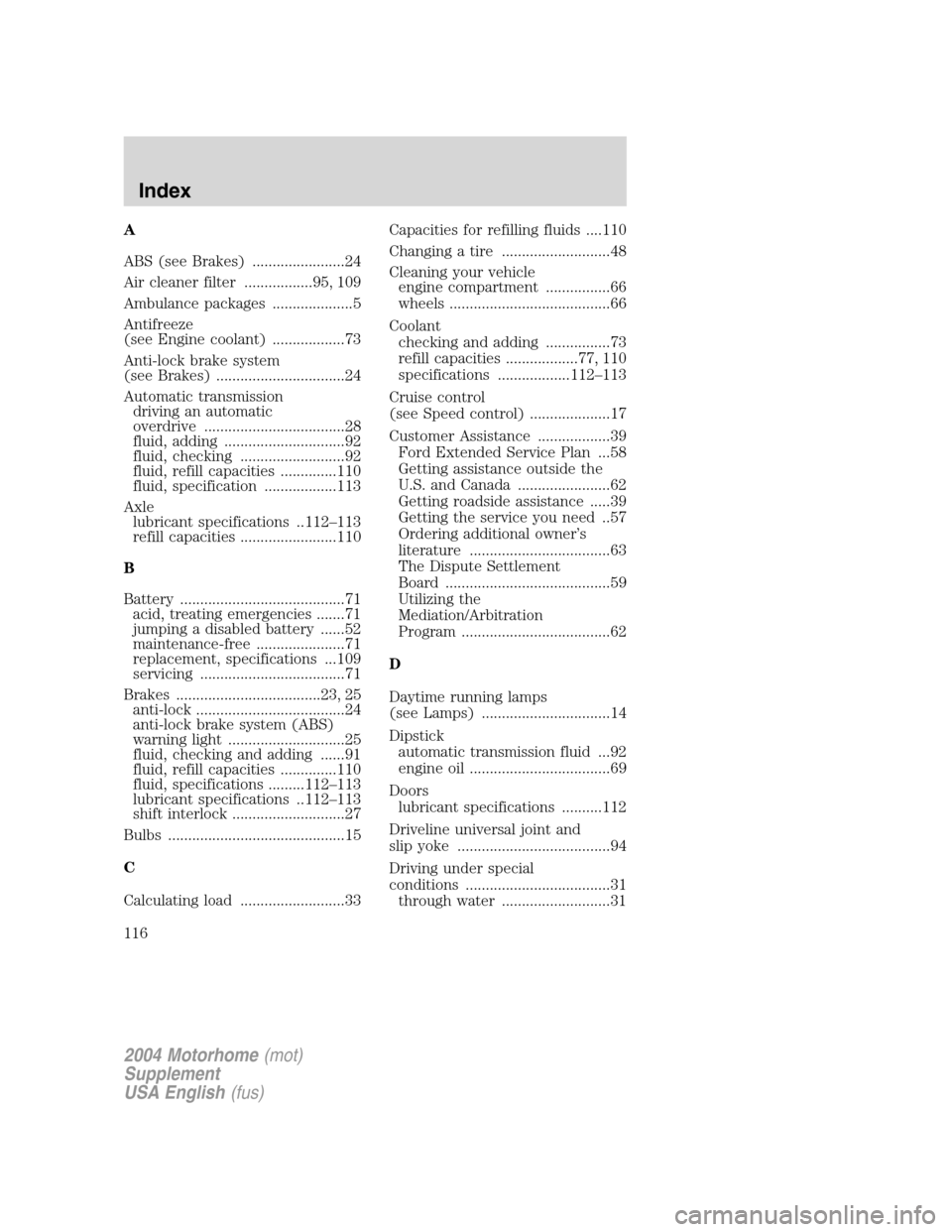

A
ABS (see Brakes) .......................24
Air cleaner filter .................95, 109
Ambulance packages ....................5
Antifreeze
(see Engine coolant) ..................73
Anti-lock brake system
(see Brakes) ................................24
Automatic transmission
driving an automatic
overdrive ...................................28
fluid, adding ..............................92
fluid, checking ..........................92
fluid, refill capacities ..............110
fluid, specification ..................113
Axle
lubricant specifications ..112–113
refill capacities ........................110
B
Battery .........................................71
acid, treating emergencies .......71
jumping a disabled battery ......52
maintenance-free ......................71
replacement, specifications ...109
servicing ....................................71
Brakes ....................................23, 25
anti-lock .....................................24
anti-lock brake system (ABS)
warning light .............................25
fluid, checking and adding ......91
fluid, refill capacities ..............110
fluid, specifications .........112–113
lubricant specifications ..112–113
shift interlock ............................27
Bulbs ............................................15
C
Calculating load ..........................33Capacities for refilling fluids ....110
Changing a tire ...........................48
Cleaning your vehicle
engine compartment ................66
wheels ........................................66
Coolant
checking and adding ................73
refill capacities ..................77, 110
specifications ..................112–113
Cruise control
(see Speed control) ....................17
Customer Assistance ..................39
Ford Extended Service Plan ...58
Getting assistance outside the
U.S. and Canada .......................62
Getting roadside assistance .....39
Getting the service you need ..57
Ordering additional owner’s
literature ...................................63
The Dispute Settlement
Board .........................................59
Utilizing the
Mediation/Arbitration
Program .....................................62
D
Daytime running lamps
(see Lamps) ................................14
Dipstick
automatic transmission fluid ...92
engine oil ...................................69
Doors
lubricant specifications ..........112
Driveline universal joint and
slip yoke ......................................94
Driving under special
conditions ....................................31
through water ...........................31
2004 Motorhome(mot)
Supplement
USA English(fus)
Index
116

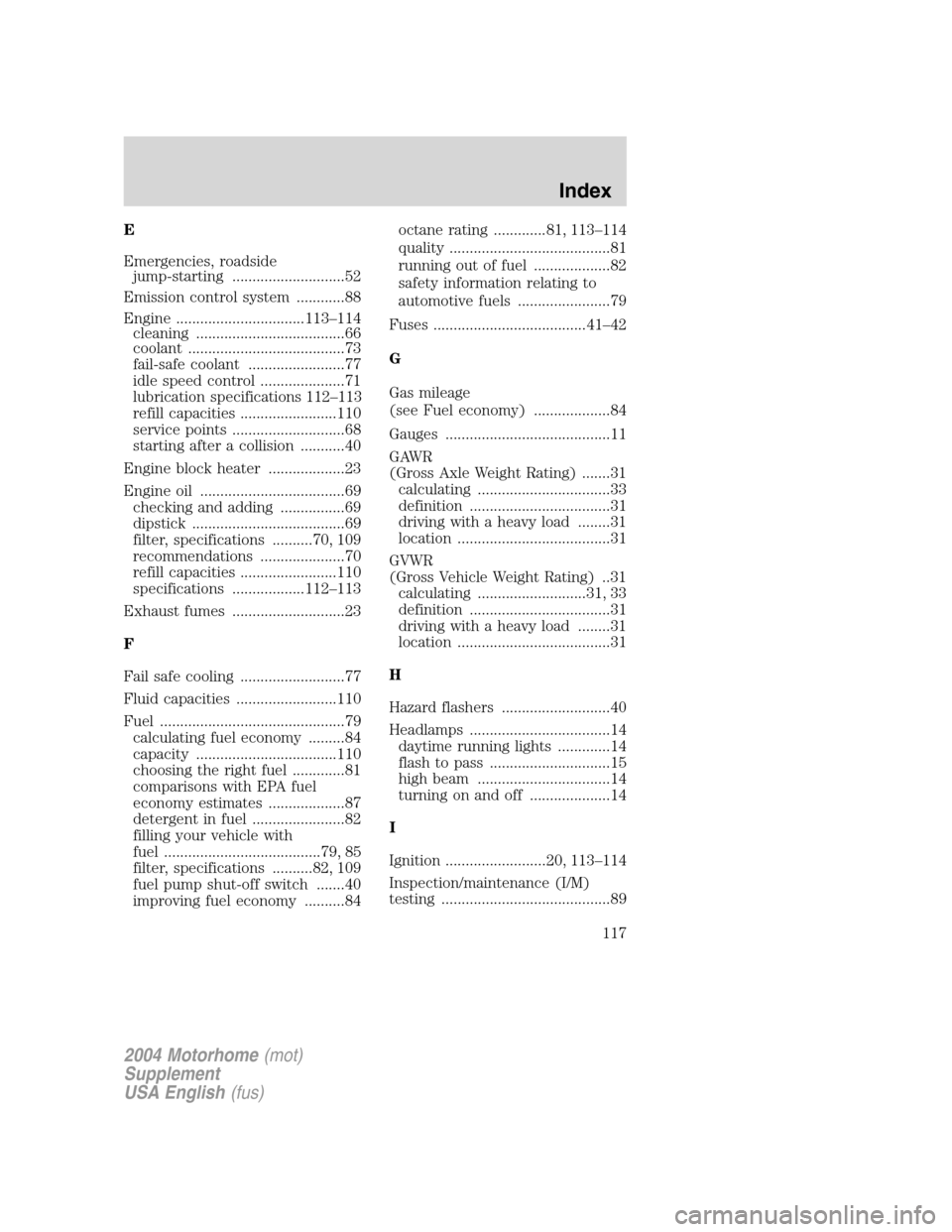

E
Emergencies, roadside
jump-starting ............................52
Emission control system ............88
Engine ................................113–114
cleaning .....................................66
coolant .......................................73
fail-safe coolant ........................77
idle speed control .....................71
lubrication specifications 112–113
refill capacities ........................110
service points ............................68
starting after a collision ...........40
Engine block heater ...................23
Engine oil ....................................69
checking and adding ................69
dipstick ......................................69
filter, specifications ..........70, 109
recommendations .....................70
refill capacities ........................110
specifications ..................112–113
Exhaust fumes ............................23
F
Fail safe cooling ..........................77
Fluid capacities .........................110
Fuel ..............................................79
calculating fuel economy .........84
capacity ...................................110
choosing the right fuel .............81
comparisons with EPA fuel
economy estimates ...................87
detergent in fuel .......................82
filling your vehicle with
fuel .......................................79, 85
filter, specifications ..........82, 109
fuel pump shut-off switch .......40
improving fuel economy ..........84octane rating .............81, 113–114
quality ........................................81
running out of fuel ...................82
safety information relating to
automotive fuels .......................79
Fuses ......................................41–42
G
Gas mileage
(see Fuel economy) ...................84
Gauges .........................................11
GAWR
(Gross Axle Weight Rating) .......31
calculating .................................33
definition ...................................31
driving with a heavy load ........31
location ......................................31
GVWR
(Gross Vehicle Weight Rating) ..31
calculating ...........................31, 33
definition ...................................31
driving with a heavy load ........31
location ......................................31
H
Hazard flashers ...........................40
Headlamps ...................................14
daytime running lights .............14
flash to pass ..............................15
high beam .................................14
turning on and off ....................14
I
Ignition .........................20, 113–114
Inspection/maintenance (I/M)
testing ..........................................89
2004 Motorhome(mot)
Supplement
USA English(fus)
Index
117

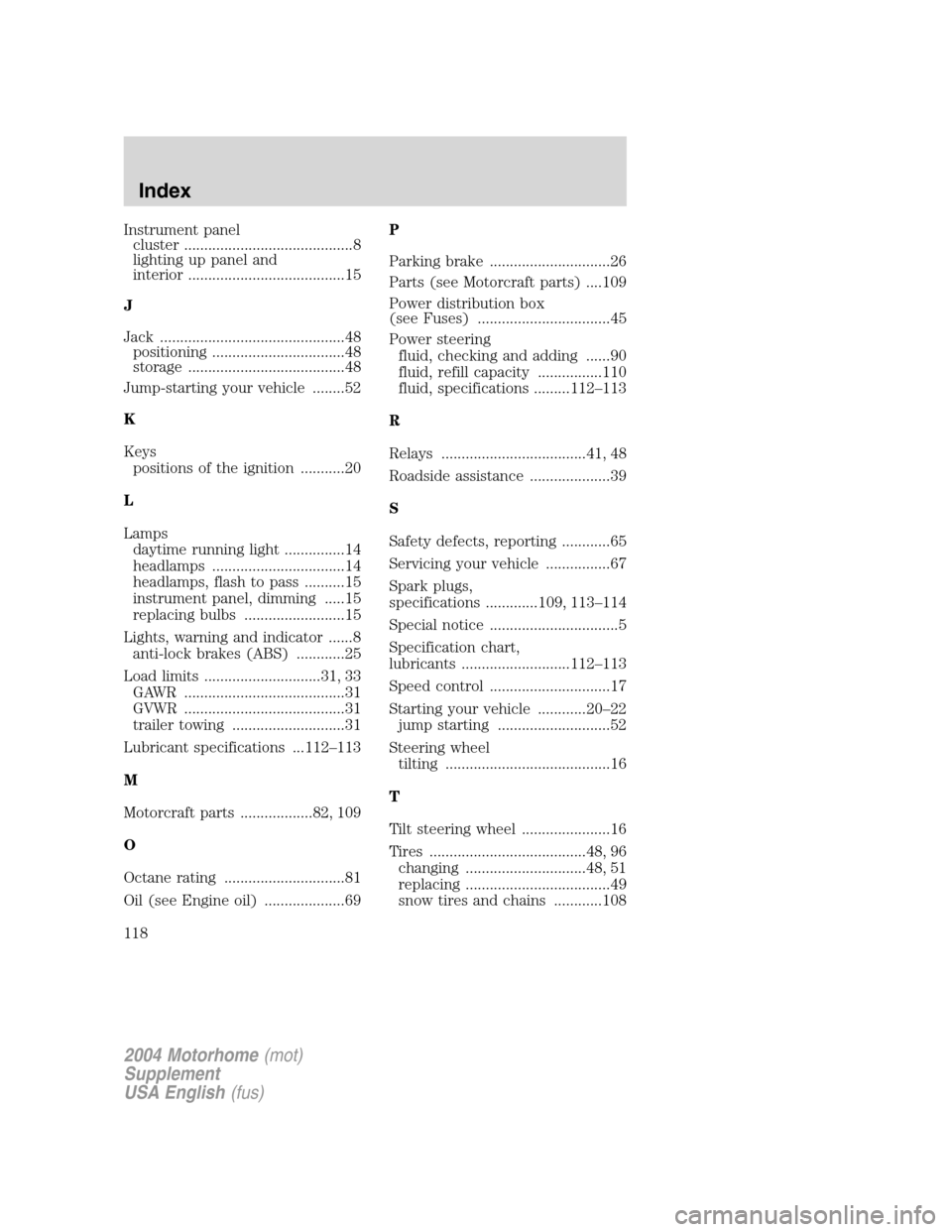

Instrument panel
cluster ..........................................8
lighting up panel and
interior .......................................15
J
Jack ..............................................48
positioning .................................48
storage .......................................48
Jump-starting your vehicle ........52
K
Keys
positions of the ignition ...........20
L
Lamps
daytime running light ...............14
headlamps .................................14
headlamps, flash to pass ..........15
instrument panel, dimming .....15
replacing bulbs .........................15
Lights, warning and indicator ......8
anti-lock brakes (ABS) ............25
Load limits .............................31, 33
GAWR ........................................31
GVWR ........................................31
trailer towing ............................31
Lubricant specifications ...112–113
M
Motorcraft parts ..................82, 109
O
Octane rating ..............................81
Oil (see Engine oil) ....................69P
Parking brake ..............................26
Parts (see Motorcraft parts) ....109
Power distribution box
(see Fuses) .................................45
Power steering
fluid, checking and adding ......90
fluid, refill capacity ................110
fluid, specifications .........112–113
R
Relays ....................................41, 48
Roadside assistance ....................39
S
Safety defects, reporting ............65
Servicing your vehicle ................67
Spark plugs,
specifications .............109, 113–114
Special notice ................................5
Specification chart,
lubricants ...........................112–113
Speed control ..............................17
Starting your vehicle ............20–22
jump starting ............................52
Steering wheel
tilting .........................................16
T
Tilt steering wheel ......................16
Tires .......................................48, 96
changing ..............................48, 51
replacing ....................................49
snow tires and chains ............108
2004 Motorhome(mot)
Supplement
USA English(fus)
Index
118

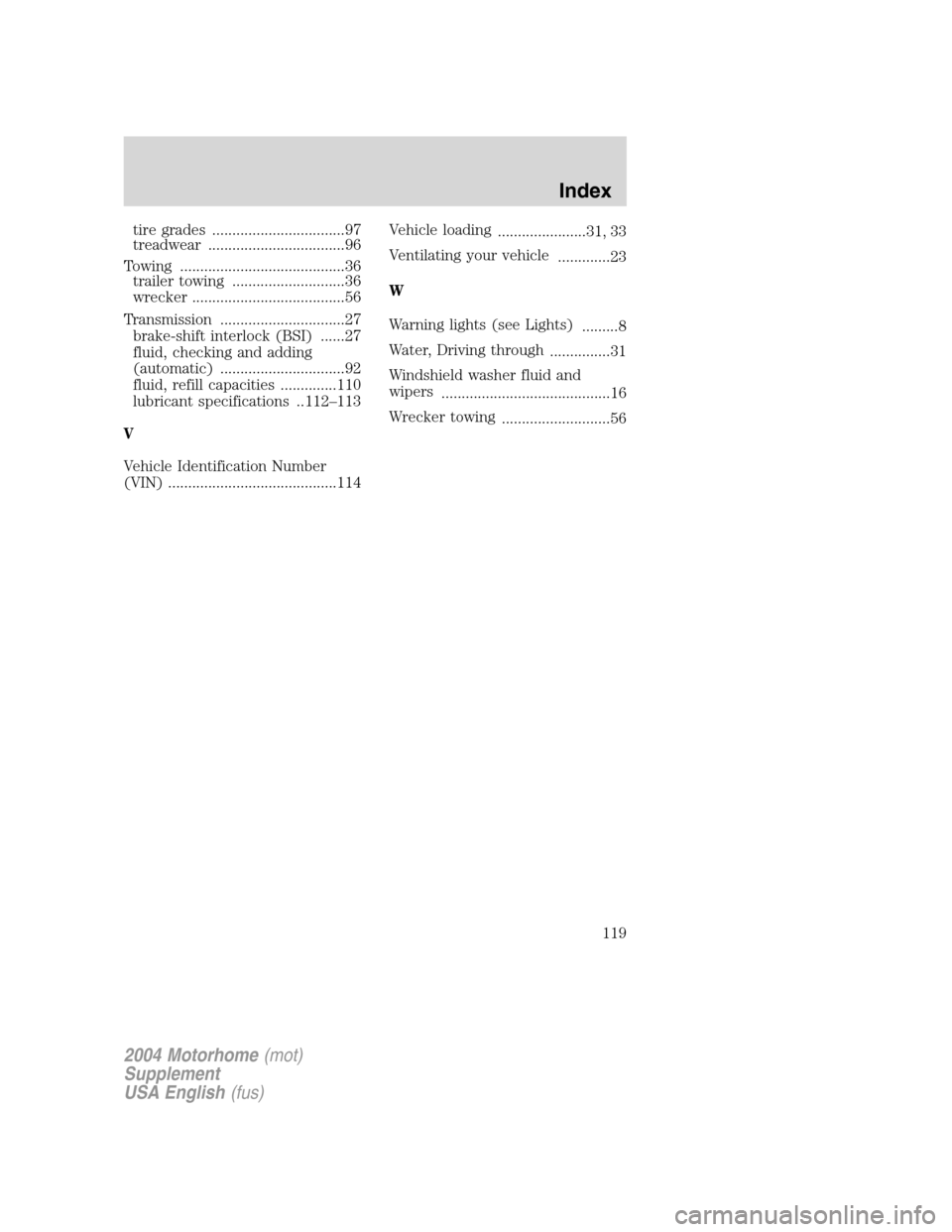

tire grades .................................97
treadwear ..................................96
Towing .........................................36
trailer towing ............................36
wrecker ......................................56
Transmission ...............................27
brake-shift interlock (BSI) ......27
fluid, checking and adding
(automatic) ...............................92
fluid, refill capacities ..............110
lubricant specifications ..112–113
V
Vehicle Identification Number
(VIN) ..........................................114Vehicle loading
......................31, 33
Ventilating your vehicle
.............23
W
Warning lights (see Lights)
.........8
Water, Driving through
...............31
Windshield washer fluid and
wipers
..........................................16
Wrecker towing
...........................56
2004 Motorhome(mot)
Supplement
USA English(fus)
Index
119

120
