FORD F150 1996 10.G Owners Manual

149
button to begin playing the first track of the
disc, press the ªREVº button to back up from
the end of the disc, or use the ªSEEKº function
to locate a desired track.
*
[AS07000(BEF )04/95]
Using the ªSCANº function
*
[AS07050(BEF )04/95]
Press the ªSCAN/TUNEº button to enter the
scan mode. Once in the scan mode, press the top
(
a) or bottom (
b) half of the ªSEEKº button to
scan forward or reverse, respectively. The CD
player will begin scanning the disc, stopping on
each listenable track for approximately eight
seconds. This continues until you press the
ªSCAN/TUNEº button a second time. While in
the scan mode, the display shows the current
sampled track number.
*
[AS07100(BEF )04/95]
Special features of your CD player
*
[AS07150(BEF )04/95]
q
Compression
*
[AS07200(BEF )04/95]
The compression feature will bring soft and
loud passages closer together for a more
consistent listening level.
*
[AS07250(BEF )04/95]
To turn the compression on, press the
ªCOMPº button. When on, the compression
indicator (ªCº) will appear in the display.
Press the button again to turn off.
*
[AS07300(BEF )04/95]
q
Automatic Disc Storage
*
[AS07350(BEF )04/95]
If the disc is ejected from the CD player but
is not removed from the disc opening within
approximately 10 seconds, the player will
automatically reload the disc for storage,
unless the disc is automatically ejected due to
a ªfocus errorº (disc inserted upside down).
In this case, the disc will not be automatically
reloaded.
File:ltasf.ex
Update:Thu May 9 15:15:21 1996

150
*
[AS07400(BEF )04/95]
How to eject the disc
*
[AS07500(BEF )04/95]
Push the ªEJECTº button to stop play, eject the
disc and resume radio operation of your audio
system.
*
[AS07600(BEF )04/95]
NOTE: You can eject the disc while the radio
power and/or ignition is on or off.
%*
[AS08100(BEF )04/95]
How To Take Care of and Clean Your CD
Player and Discs
*
[AS08200(BEF )04/95]
To ensure the continued performance of your
Ford Compact Disc Player, carefully read the
following precautions:
*
[AS08300(BEF )04/95]
q
Always handle the disc by its edge. Never
touch the playing surface.
*
[AS08400(BEF )04/95]
q
Before playing, inspect the disc for any
contamination. If needed, clean the disc with
an approved disc cleaner, such as the
DiscwasherHCompact Disc Cleaner or the
Allsop 3HCompact Disc Cleaner, by wiping
from the center out to the edges.Do not use
a circular motion to clean.
*
[AS08500(BEF )04/95]
q
Do not clean discs with solvents such as
benzine, thinner, commercially available
cleaners or antistatic spray intended for
analog records.
*
[AS08600(BEF )04/95]
q
Do not expose the disc to direct sunlight or
heat sources such as defroster and floor
heating ducts. Do not leave any discs in a
parked car in direct sunlight where there may
be a considerable rise in temperature or
damage may result.
*
[AS08700(BEF )04/95]
q
After playing, store the disc in its case.
*
[AS08800(BEF )04/95]
q
If a disc has already been inserted, do not try
to insert another disc. Doing so may damage
the disc player.
File:ltasf.ex
Update:Thu May 9 15:15:21 1996

151
*
[AS08900(BEF )04/95]
q
Do not insert anything other than a disc into
the disc player.
*
[AS09000(BEF )04/95]
CAUTION:The use of optical instruments with
this product will increase eye hazard as the laser
beam used in this compact disc player is
harmful to the eyes. Do not attempt to
disassemble the case. Refer servicing to qualified
personnel only.
*
[AS09100(BEF )04/95]
Common Operating Conditions of Your
CD Player
*
[AS09200(BEF )04/95]
The following information is designed to help
you recognize typical situations that could be
mistakenly interpreted as mechanical
malfunctions of the disc player.
*
[AS09300(BEF )04/95]
q
A disc is already loaded.
*
[AS09400(BEF )04/95]
q
The disc is inserted with the label surface
downward.
*
[AS09500(BEF )04/95]
q
The disc is dusty or defective.
*
[AS09600(BEF )04/95]
q
The player's internal temperature is above
140ÊF (60ÊC).Allow the player to cool off
before operating.
*
[AS09700(BEF )04/95]
q
Different manufacturers of compact discs may
produce discs with different dimensions or
tolerances, some of which may not be within
industry standards or in accordance with the
CD format. Because of this, a new disc that is
free of dust and scratches could be defective
and may not play on your Ford Compact
Disc Player.
File:ltasf.ex
Update:Thu May 9 15:15:21 1996

152
*
[AS09800(BEF )04/95]
If play does not begin after the CD button is
pushed:
*
[AS09850(BEF )04/95]
q
The radio is not on.
*
[AS09900(BEF )04/95]
q
The unit is in the stop mode.
*
[AS10000(BEF )05/95]
q
Moisture may have condensed on the lenses
within the unit. If this occurs, remove the CD
magazine and wait approximately an hour
until the moisture evaporates.
*
[AS10100(BEF )04/95]
If the sound skips:
*
[AS10200(BEF )04/95]
q
Badly scratched discs or extremely rough
roads will cause the sound to skip. Skipping
will not damage the disc player or scratch the
discs.
File:ltasf.ex
Update:Thu May 9 15:15:21 1996

153
*
[AS21300(BEF )05/95]
Electronic Stereo and Stereo
Cassette Radios
*
[AS21400(BEF )02/95]
Using the Controls on Your New Radio
*
[AS21415(BEF )04/95]
full page art:0060586-C
Electronic Stereo Radio
File:ltasf.ex
Update:Thu May 9 15:15:21 1996

154
*
[AS21420(BEF )04/95]

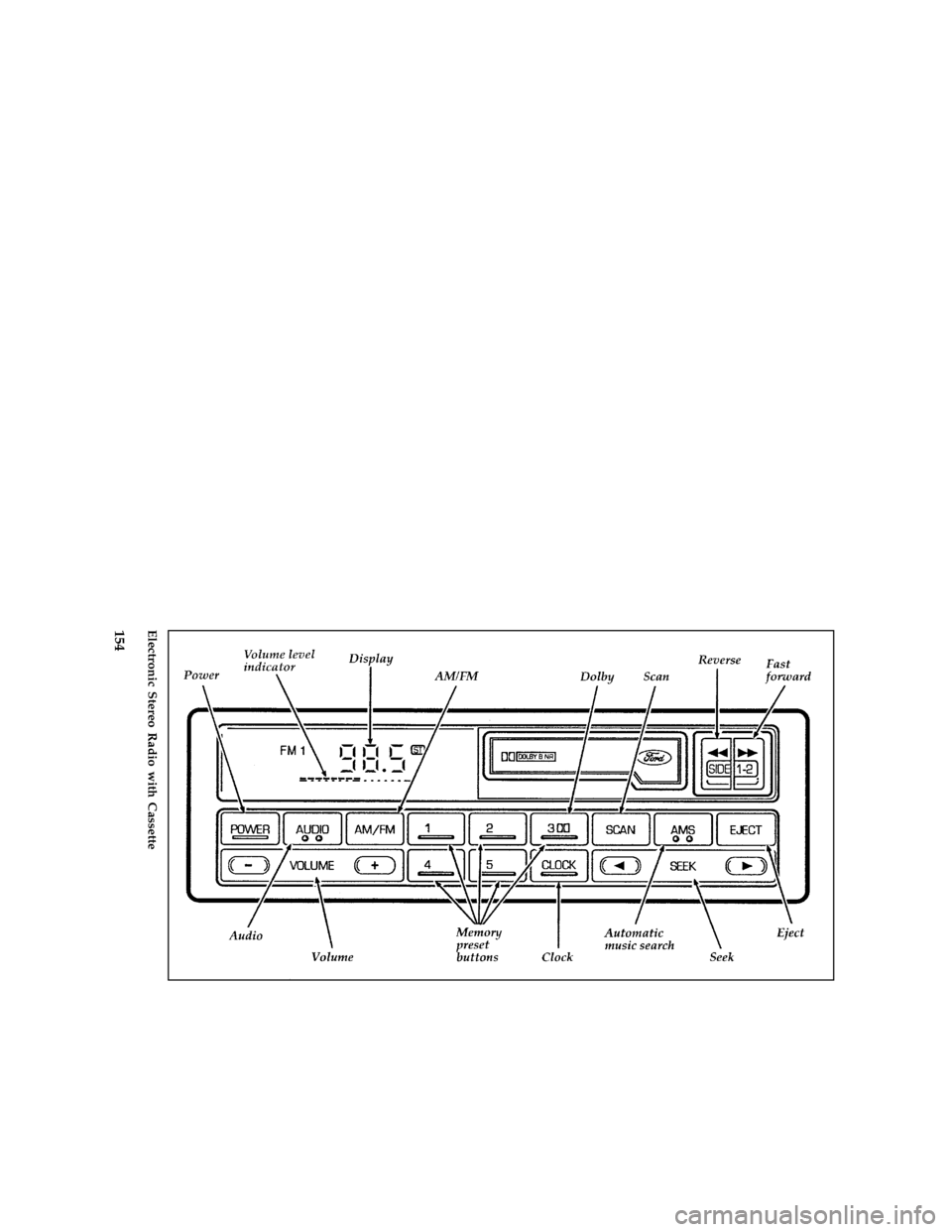

full page art:0060587-C
Electronic Stereo Radio with Cassette
File:ltasf.ex
Update:Thu May 9 15:15:21 1996

155
*
[AS22305(BEF )05/95]
How to tune radio stations (Stereo Radio)
*
[AS22310(BEF )05/95]
There are three ways for you to tune in to a
particular station. You can manually locate the
station by using the ªTUNEº button, ªSEEKº the
station or select the station by using the memory
buttons, which you can set to any desired
frequency.
%*
[AS22320(BEF )05/95]
How to tune radio stations (Stereo Cassette
Radio)
*
[AS22350(BEF )02/95]
There are four ways for you to tune in to a
particular station. You can manually locate the
station by using Automatic Music Search
(ªAMSº), ªSEEKº the station, ªSCANº to the
station or select the station by using the memory
buttons, which you can set to any desired
frequency.
*
[AS22450(BEF )05/95]
q
Using the ªTUNEº function
*
[AS22460(BEF )05/95]
You can change the frequency up or down
one increment at a time by pressing and
releasing either the right (+) or left (-) side of
the ªTUNEº button. To change frequencies
quickly, press and hold down either the right
or left side of the ªTUNEº button.
*
[AS22470(BEF )04/95]
Manual tuning adjusts your radio to any
allowable broadcast frequency, whether or
not a station is present on that frequency.
(SeeAll About Radio Frequenciesin this
section.)
File:ltasf.ex
Update:Thu May 9 15:15:21 1996

156
*
[AS22550(BEF )05/95]
q
Using the ªAMSº function to manually tune
your radio (Stereo Cassette Radio)
*
[AS22650(BEF )02/95]
You can change the frequency up or down
one increment at a time by first pressing the
ªAMSº button (display shows ªTUNEº) then
within approximately five seconds pressing
and releasing either the right (
a) or left (
b)
side of the ªSEEKº button. To change
frequencies quickly, press andhold down
either the right or left side of the ªSEEKº
button.
*
[AS22800(BEF )04/95]
q
Using the ªSEEKº function
*
[AS22900(BEF )04/95]
This feature on your radio allows you to
automatically select listenable stations up or
down the frequency band. Press the right
(
a) side of the ªSEEKº button to select the
next listenable station up the frequency band.
Press the left (
b) side of the button to select
the next listenable station down the
frequency band. By holding the button down,
listenable stations can be passed over to reach
the desired station.
*
[AS23125(BEF )02/95]
q
Using the ªSCANº function (Stereo Cassette
Radio)
*
[AS23150(BEF )07/94]
Press the ªSCANº button to enter the scan
mode. The radio will begin scanning up the
frequency band, stopping on each listenable
station for approximately a five-second
sampling. This continues until you press the
ªSCANº button a second time. The display
flashes ªAMº or ªFM.º
File:ltasf.ex
Update:Thu May 9 15:15:21 1996

157
*
[AS23200(BEF )04/95]
q
Setting the Station Memory Preset buttons
*
[AS23250(BEF )05/95]
Your radio is equipped with 5 station
memory buttons. These buttons can be used
to select up to 5 preset AM stations and 10
preset FM stations (5 in FM1 and 5 in FM2).
*
[AS23400(BEF )02/95]
Follow the easy steps below to set these buttons
to the desired frequencies:
*
[AS23500(BEF )04/95]
1. Select a band, then select a frequency.
*
[AS23700(BEF )04/95]
2. Press one of the memory buttons and hold
the button until the sound returns. That
station is now held in memory on that
button.
*
[AS23800(BEF )04/95]
3. Follow the two steps above for each station
memory preset button you want to set.
*
[AS23900(BEF )04/95]
NOTE: If the vehicle's battery is disconnected,
the clock and station memory preset
buttons (if programmed in auto mode)
will need to be reset.
*
[AS24000(BEF )02/95]
Adjusting the tone balance and speaker
output of your radio
*
[AS24150(BEF )05/95]
Push the ªAUDIOº button repeatedly until
the display reads ªBASS.º Push the right (+)
side of the ªVOLUMEº button to increase
bass (more ªlowsº), and push the left (-) side
to decrease bass (less ªlowsº).
*
[AS24300(BEF )04/95]
q
Increasing or decreasing treble response
*
[AS24350(BEF )05/95]
Push the ªAUDIOº button repeatedly until
the display reads ªTREB.º Push the right (+)
side of the ªVOLUMEº button to increase the
treble (more ªhighsº), and push the left (-)
side to decrease treble (less ªhighsº).
File:ltasf.ex
Update:Thu May 9 15:15:21 1996

158
*
[AS24500(BEF )08/89]
Speaker features and operation
*
[AS24600(BEF )04/95]
q
Adjusting speaker balance
*
[AS24650(BEF )05/95]
Balance control allows you to adjust the
sound distribution between the right and left
speakers. Push the ªAUDIOº button
repeatedly until the display reads ªBAL.º
Push the right (+) side of the ªVOLUMEº
button to shift the sound to the right
speakers, and push the left (-) side to shift
the sound to the left speakers.
*
[AS24800(BEF )04/95]
q
Adjusting speaker fader
*
[AS24850(BEF )05/95]
Fade control allows you to adjust the sound
distribution between the front and rear
speakers. Push the ªAUDIOº button
repeatedly until the display reads ªFADE.º
Push the right (+) side of the ªVOLUMEº
button to shift the sound to the front
speakers, and push the left (-) side to shift
the sound to the rear speakers.
*
[AS24950(BEF )05/94]
NOTE: Illuminated bars show relative levels of
bass and treble and positions of
speaker balance and fader functions
after adjustments are made, then revert
to volume level set.
