Press the MEDIA control to toggle between AM, FM1, FM2, TAPE, CD,
CDDJ, VCP and AUX modes. When selected, the media source will
illuminate in the radio display.
Note:On-screen indicators may appear on the LCD flip-down screen
regarding the current operating mode of the system. These on-screen
indicators may or may not be accurate. Always refer to the radio display
for an accurate indication of the current operating mode.
²AM
AM radio frequency band
²FM1, FM2
FM radio frequency bands
²TAPE
cassette tape (if equipped)
²CD
single cd player (if equipped)
²CDDJ
compact disc changer (if equipped)
²VCP
videocassette player
²AUX
auxiliary jack input
Seek function
The SEEK control allows you to
access preset radio stations or your
CD selections.
The SEEK control has varying functions depending on which mode is
enabled.
Operating Instructions
21
Page 22 of 24
In radio mode (AM, FM1, FM2):
Press the
control to find the next listenable station down the
frequency band.
Press the
control to find the next listenable station up the frequency
band.
In tape mode, press the SEEK control to access the previous (
)or
the next (
) selection.
In CD mode, press the SEEK control to access the previous (
)or
the next (
) track.
In CDDJ mode, press the SEEK control to access the previous (
)or
the next (
) track of the currently selected disc.
Using headphones
Your Rear Seat Entertainment System (RSES) allows the rear seat
passengers to listen to one media source (radio, TAPE, CD, CDDJ, VCP,
or AUX) while the front seat passengers listen to another.

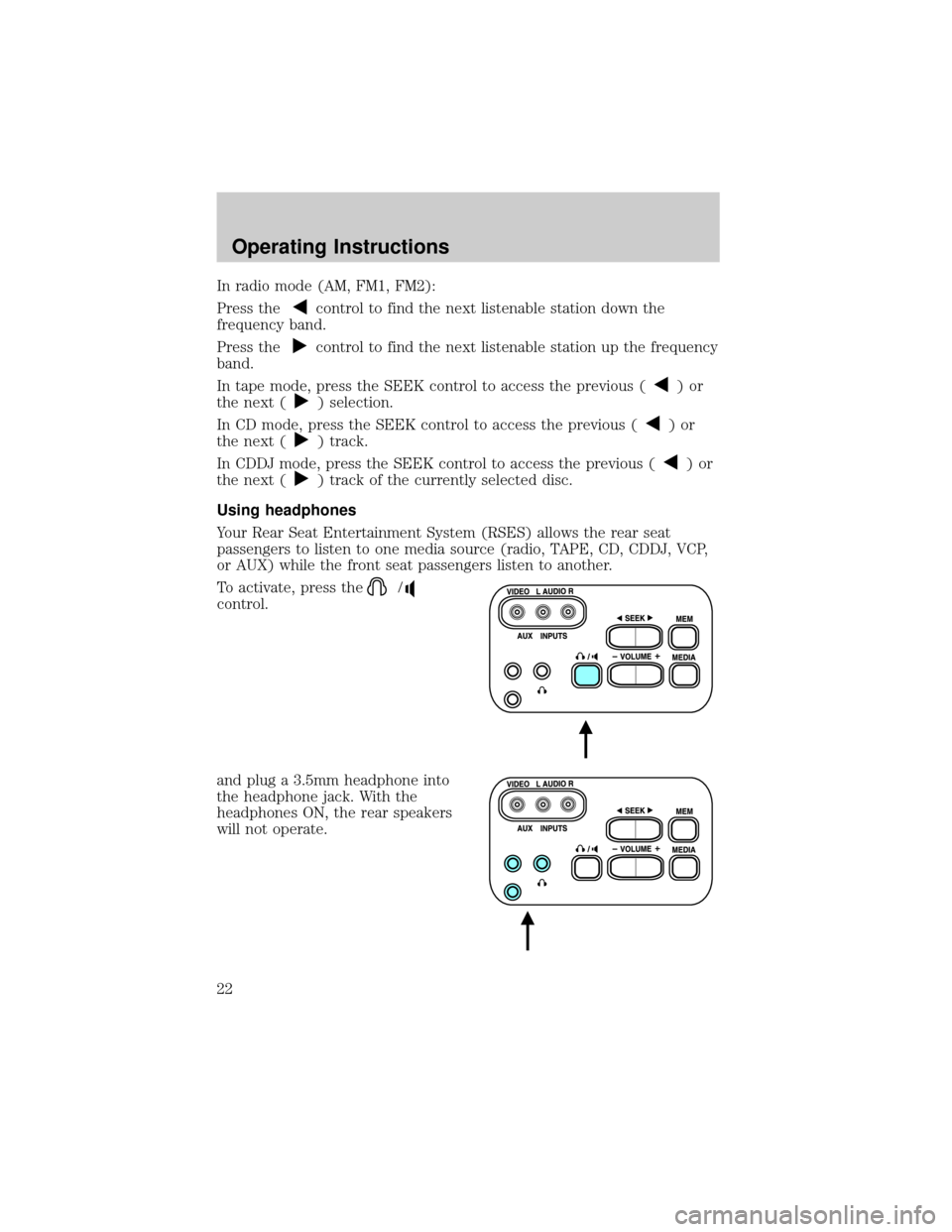

To activate, press the
/
control.
and plug a 3.5mm headphone into
the headphone jack. With the
headphones ON, the rear speakers
will not operate.
Operating Instructions
22
Page 23 of 24
Press the MEDIA control to toggle to the desired media source.
Use the SEEK, VOLUME and MEM controls to make any desired
adjustments.
Press the
/control again to engage the radio speakers and
deactivate the Dual Play Feature.
AUXILIARY INPUT DEVICE CONNECTION
Connecting auxiliary video equipment
The Rear Seat Entertainment System (RSES) accepts video and audio
RCA type connectors for all standard video games and video equipment
(such as camcorders) at the auxiliary input jacks of the Rear Seat
Entertainment Module (RSEM).
Playing video games
²Press the/control to enter Dual Play mode.
²Connect the video line to the YELLOW jack (video input).
²Connect left and right audio cables to the WHITE (left audio input)
and RED (right audio input) jacks respectively.
²Connect headphones to the headphone jacks.
²Press the MEDIA button on the Rear Seat Entertainment Module
(RSEM) to select AUX mode. The liquid crystal display (LCD) screen
will be turned ON, and the AUX indicator lamp will be lit. (The
remote control cannot be used to enable AUX mode.)
²Adjust the VOLUME control buttons as desired and view the game on
the LCD flip-down screen. Adjust screen brightness with the thumb
switch.
Using auxiliary video equipment
²Connect the video line to the YELLOW jack.
²Connect the left and right audio wires to the WHITE and RED jacks
respectively.
²Follow operating instructions for the video equipment.
Auxiliary video equipment can be powered by the power point and may
require a 12±volt DC to 120±volt AC power inverter.
Operating Instructions
23
Page 24 of 24
TROUBLESHOOTING
Use the following troubleshooting chart to remedy symptoms you may
experience. If the problem is not readily corrected, consult your Ford,
Lincoln-Mercury dealer.
Symptom Possible Cause Solution
No power supply.
Ignition ON, power
indicator light is OFF.
Power line
disconnected, shorted
or damaged. Blown fuseContact your local Ford
Lincoln-Mercury dealer.
VCP does not operate.
Power button is blinking
green.Machine is dewed
inside. Protection
circuit is operating.Wait until VCP
becomes dry inside.
May take several hours.
VCP does not operate.
Power button is blinking
red.Temperature too high.
Temperature protection
circuit is operating.Wait until vehicle cabin
temperature cools
down.
VCP does not operate.
Power button is blinking
orange.Over voltage situation
has occurred from
vehicle's electrical
systemTake your vehicle in for
service as soon as
possible to your local
Ford and Lincoln
Mercury Dealer.
Function indicators do not
disappear from screen.Incorrect display mode.Press the DISPLAY
button on remote control.
Video9noise9
(distortion) in playback.Abnormal tracking. If
noise appears at same
part of the tape all the
time, the tape is likely
damaged.Press AUTO button on
remote control to
cancel automatic
tracking. Manually
adjust (+) (þ)
TRACKING buttons.
Still picture fluctuates
up and down.Incorrect vertical hold
adjustment.Press AUTO button on
remote control to
cancel automatic
tracking. Manually
adjust (+) (þ)
TRACKING buttons.
Playback picture rough
or frosted.Dirty VCP heads. Clean heads with head
cleaning cassette.
No video playback on
screen.RSES not in VCP
mode.Press MEDIA button.
OBTAINING A FRENCH SUPPLEMENT
French supplements can be obtained from your dealer or by writing to
Ford Motor Company of Canada, Limited, Service Publications, P.O. Box
1580, Station B, Mississauga, Ontario L4Y 4G3.
Troubleshooting
