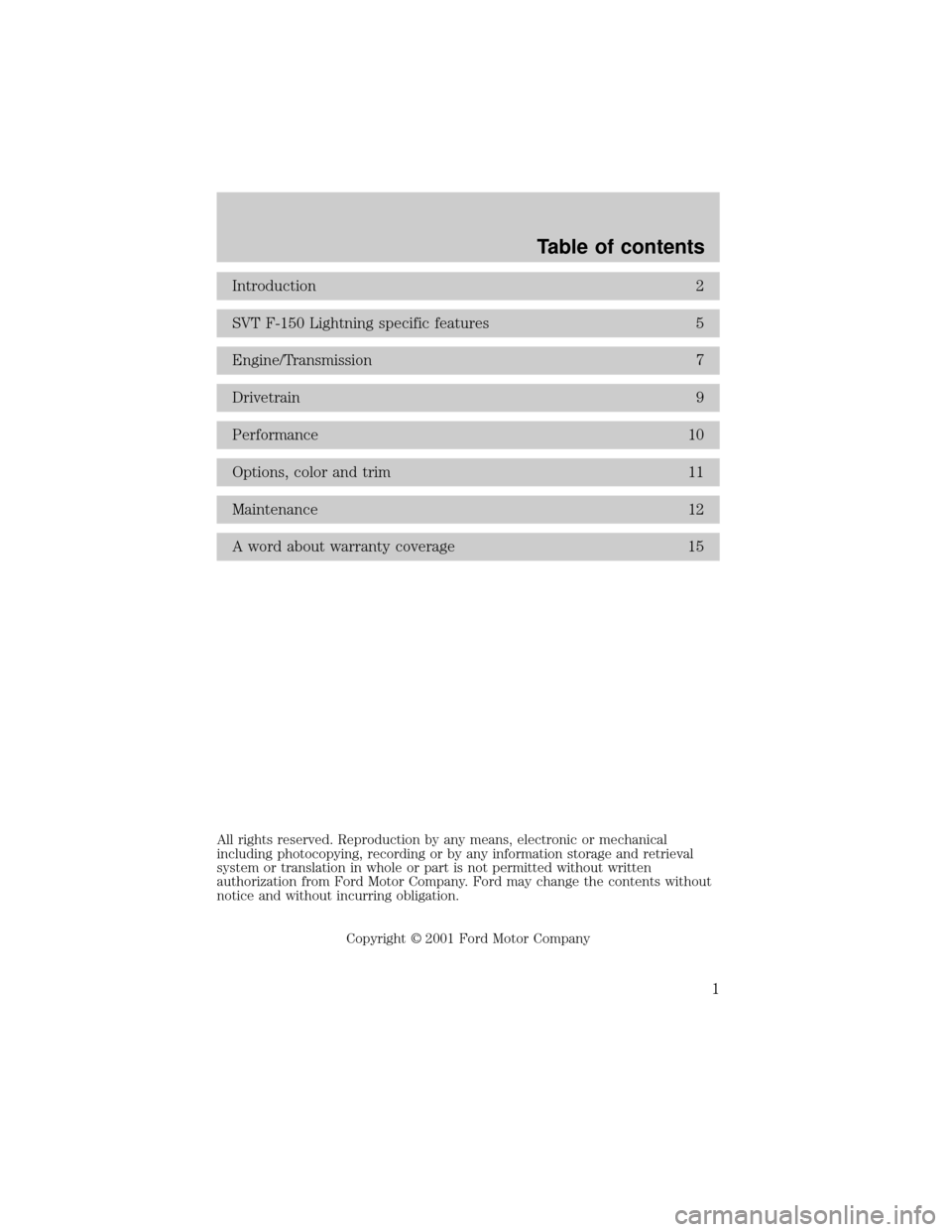

Introduction 2
SVT F-150 Lightning specific features 5
Engine/Transmission 7
Drivetrain 9
Performance 10
Options, color and trim 11
Maintenance 12
A word about warranty coverage 15
All rights reserved. Reproduction by any means, electronic or mechanical
including photocopying, recording or by any information storage and retrieval
system or translation in whole or part is not permitted without written
authorization from Ford Motor Company. Ford may change the contents without
notice and without incurring obligation.
Copyright 2001 Ford Motor Company
Table of contents
1
Page 2 of 16
INTRODUCTION
Welcome to the Ford Special Vehicle Team family and thank you for
purchasing the Ford SVT F±150 Lightning. We trust that our tremendous
dedication to the automotive enthusiast's total ownership experience will
provide you with many miles of exhilarating, safe, and comfortable
driving in your new SVT F±150 Lightning.
SVT strives for balance between powertrain and chassis, cornering
prowess and long-distance comfort, always working to build vehicles in
which no one system overwhelms or overshadows any other. In the SVT
F±150 Lightning, that philosophy is carried forward through a
sophisticated powertrain as well as significant interior, exterior,
suspension, and braking system components.
This supplement complements your F±150 Owner's Guide and provides
information specific to SVT and the SVT F±150 Lightning. By referring to
the pages listed in this supplement, you can identify those features,
recommendations, and specifications unique to your new SVT F±150
Lightning.
If you have any questions, please call us at the Ford Special Vehicle
Team hotline from 8:30 a.m. to 6:00 p.m. EST at 1±800±FORD-SVT
(1±800±367±3788).
SVT HISTORY
The Ford Special Vehicle Team (SVT) was established in 1991. SVT was
commissioned to create factory-produced driver's cars and trucks;
vehicles that possess a balance between engine and chassis, roadholding
and a supple ride, refinement and performance capability. These qualities
are the core of the SVT product development philosophy.
To support SVT, Ford Motor Company created a dedicated product
development group, Ford Special Vehicle Engineering (SVE). The
nucleus of the Ford SVT and SVE is a small, cross-functional group of
engineers, product planners, and marketing people who meet on a
weekly basis to ensure SVT vehicles and their mission remain focused. In
addition to Ford SVE, SVT draws heavily on the talents and knowledge
of other driving enthusiasts at Ford who work in the key disciplines of
design, product development, manufacturing, and marketing. The heart
of the SVT philosophy is a deep commitment to skillful and enthusiastic
driving. The ultimate goal of everyone at SVT and SVE is to create
vehicles that speak to the needs and desires of the knowledgeable
driving enthusiast.
Introduction
2
Page 3 of 16
Every SVT vehicle produced has been designed and developed with four
key virtues in mind: Performance, Substance, Exclusivity, and Value.
These hallmarks have driven the SVT Mustang Cobra since 1993, the
original SVT Lightning from 1993 to 1995, the SVT Contour introduced
in early 1997 as a 1998 model, and the 1999±2002 SVT F-150 Lightning.
In October 2001, Special Vehicle Engineering (SVE) was renamed Special
Vehicle Team/Engineering (SVT/Engineering).
SVT OWNERSHIP BENEFITS
²SVT Authorized Dealer:A group of approximately 600 specially
trained and certified SVT dealers who are dedicated to a culture
within their dealership that is friendly to the knowledgeable driving
enthusiast.
²SVT Premium Service:Owners and lessees of 2002 model year SVT
vehicles will be provided with a complimentary loaner vehicle when
their 2002 SVT vehicle is in for service (includes warranty work and
routine maintenance, other than oil changes). The dealership will also
wash and vacuum the customer's vehicle, unless requested otherwise.
²SVT Owner's Association One Year Membership:The SVT
Owner's Association is a club designed to enhance the experience of
owning an SVT vehicle through events and learning activities, as well
as the camaraderie of spending time with other SVT enthusiasts. Your
new vehicle purchase or lease entitles you to afreeone year
membership.
²Team Ford Racing One Year Membership:Team Ford Racing
provides inside access to news about Ford racing teams and drivers,
exclusive race-day hospitality programs, access to test sessions and
other benefits.
²20% Discount at the Bob Bondurant School of High
Performance Driving:The techniques learned at the Bondurant
School enhance the driving of any car, anywhere. The SVT discount is
available to you for one year from the date of purchase.
²Certificate of Authenticity:In recognition of your vehicle's
exclusivity, the certificate documents your vehicle's date of
production, vehicle identification number, final assembly plant and
production sequence number. Certificates are printed 60 to 90 days
after production is complete, and will be mailed to you automatically.
Introduction
3
Page 4 of 16
²SVT Info Center:Have a question or want information about your
SVT vehicle, or any of our new products? Please call the SVT Info
Center at 1±800±FORD-SVT. We'll handle your request or get you in
touch with someone who can.
²SVT Website:The official SVT site,www.svt.ford.com, will provide
you with frequently updated information on products, events and
many other areas of interest for SVT owners.
²Official SVT Merchandise:Let the world know you are an SVT fan,
and look sharp at the same time. We have completely updated the
SVT apparel lineup for 2002, with higher quality, brand name
merchandise.
Introduction
4
Page 5 of 16

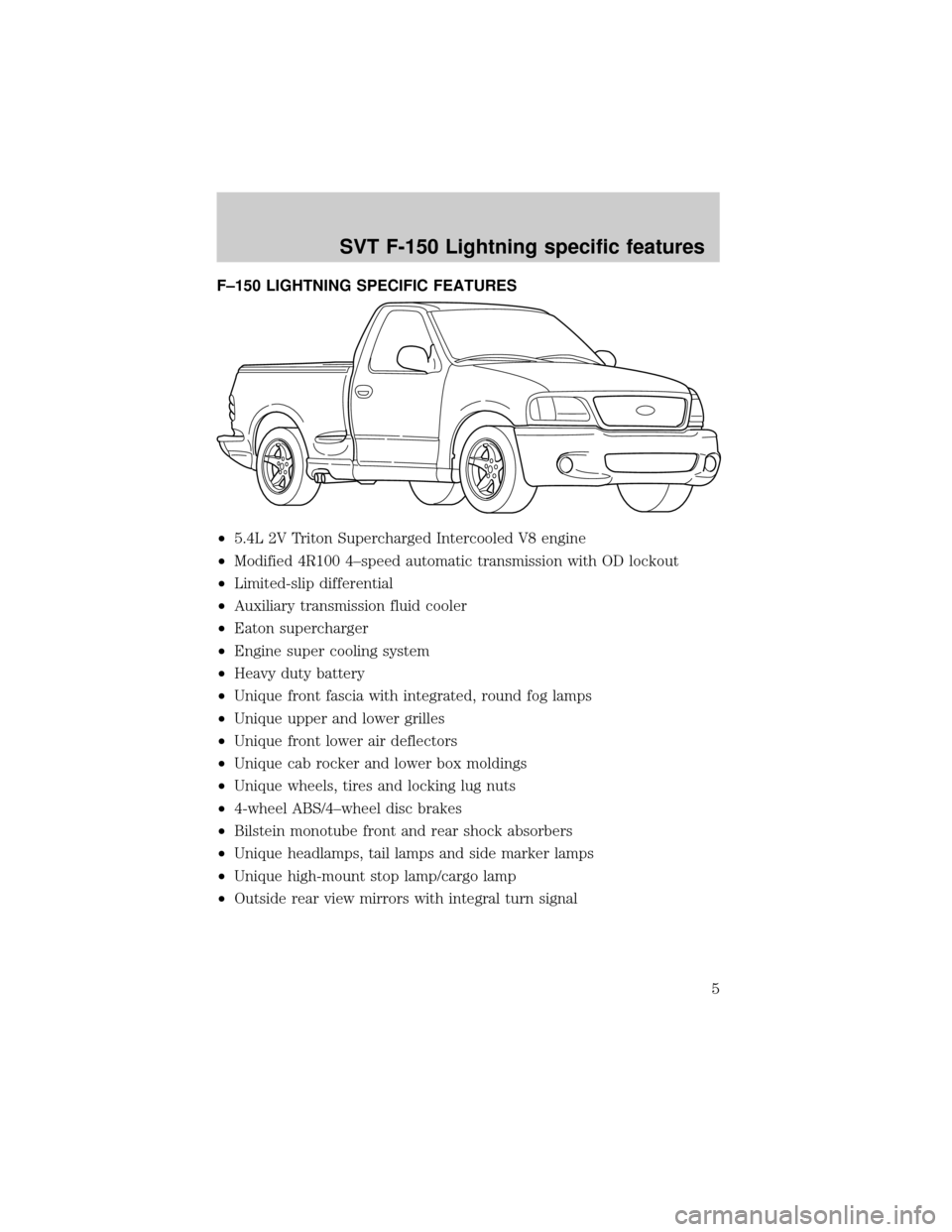

F±150 LIGHTNING SPECIFIC FEATURES
²5.4L 2V Triton Supercharged Intercooled V8 engine
²Modified 4R100 4±speed automatic transmission with OD lockout
²Limited-slip differential
²Auxiliary transmission fluid cooler
²Eaton supercharger
²Engine super cooling system
²Heavy duty battery
²Unique front fascia with integrated, round fog lamps
²Unique upper and lower grilles
²Unique front lower air deflectors
²Unique cab rocker and lower box moldings
²Unique wheels, tires and locking lug nuts
²4-wheel ABS/4±wheel disc brakes
²Bilstein monotube front and rear shock absorbers
²Unique headlamps, tail lamps and side marker lamps
²Unique high-mount stop lamp/cargo lamp
²Outside rear view mirrors with integral turn signal
SVT F-150 Lightning specific features
5
Page 6 of 16

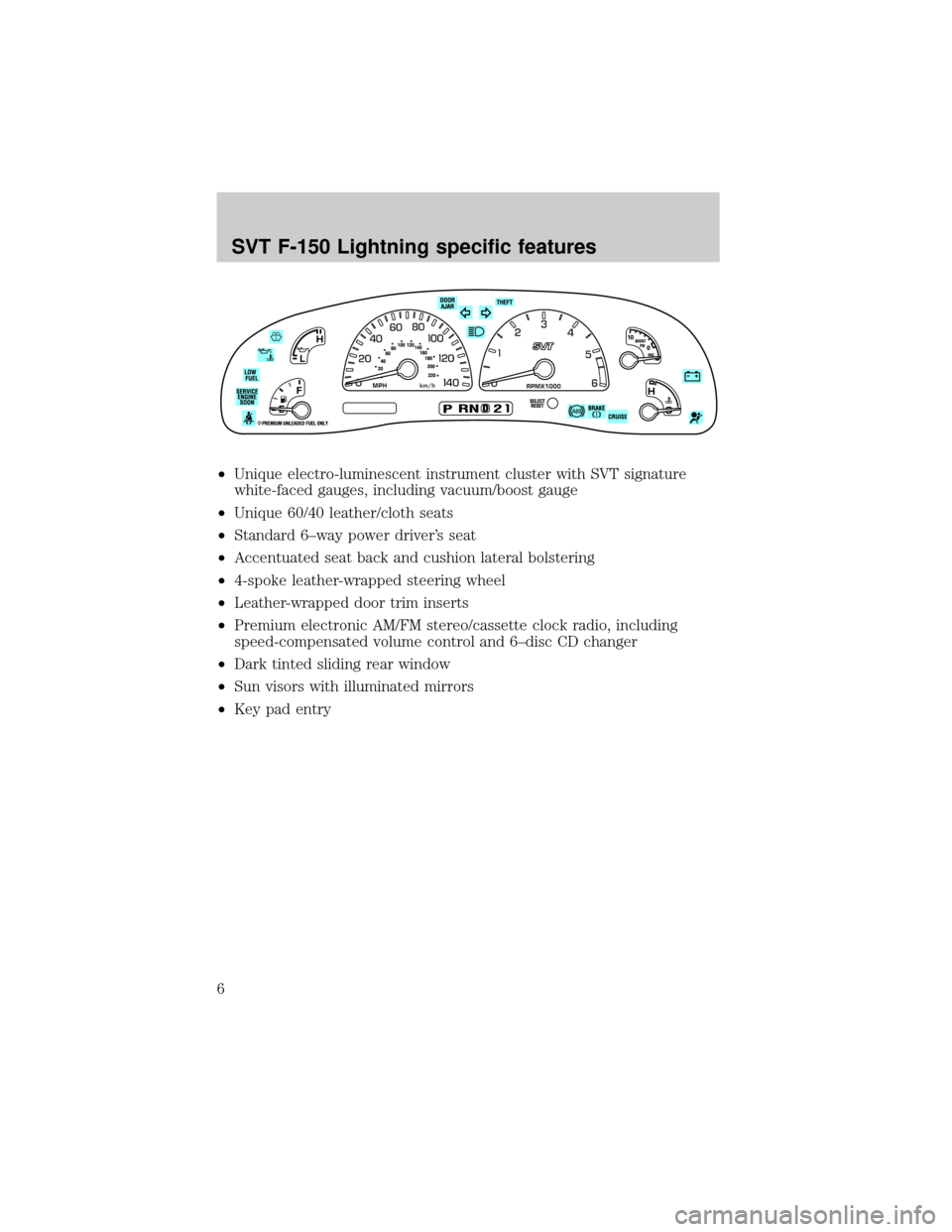

²Unique electro-luminescent instrument cluster with SVT signature
white-faced gauges, including vacuum/boost gauge
²Unique 60/40 leather/cloth seats
²Standard 6±way power driver's seat
²Accentuated seat back and cushion lateral bolstering
²4-spoke leather-wrapped steering wheel
²Leather-wrapped door trim inserts
²Premium electronic AM/FM stereo/cassette clock radio, including
speed-compensated volume control and 6±disc CD changer
²Dark tinted sliding rear window
²Sun visors with illuminated mirrors
²Key pad entry
SVT F-150 Lightning specific features
6
Page 7 of 16

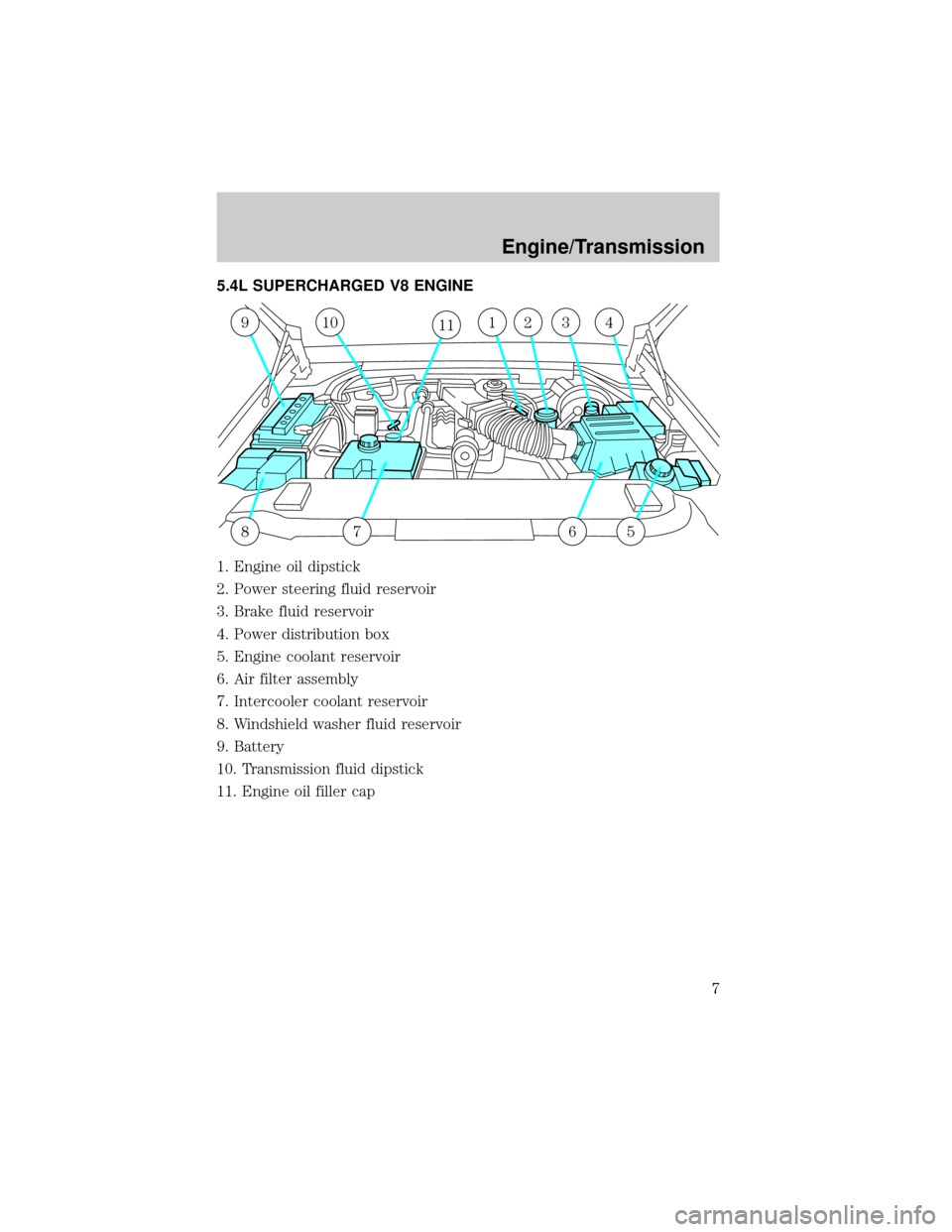

5.4L SUPERCHARGED V8 ENGINE
1. Engine oil dipstick
2. Power steering fluid reservoir
3. Brake fluid reservoir
4. Power distribution box
5. Engine coolant reservoir
6. Air filter assembly
7. Intercooler coolant reservoir
8. Windshield washer fluid reservoir
9. Battery
10. Transmission fluid dipstick
11. Engine oil filler cap
9
8765
10111234
Engine/Transmission
7
Page 8 of 16
ENGINE
ConfigurationSupercharged longitudinally mounted, 90-degree
V8, single overhead cam, cast iron cylinder block
and cast aluminum cylinder heads
Bore x Stroke90.2 x 105.8 mm (3.55 x 4.17 in)
Displacement5409 cc (330.1 cid)
Compression ratio8.4:1
Horsepower
(SAE net)284 kW @ 4750 rpm (380 HP @ 4750 rpm)
Torque610 Nm @ 3250 rpm (450 lb.-ft. @ 3250 rpm)
Redline5250 rpm (fuel shut-off at 5500 rpm)
Specific output52.5 kW/L (70.2 HP/L)
ValvetrainSingle overhead cam, silent-design chain drive,
roller finger followers with hydraulic lash
adjustment, ovate-wire valve springs, two valves
per cylinder
Fuel systemSequential electronic fuel injection
Ignition systemCoil-on-plug electronic ignition
Mass air sensor90 mm (3.54 in) diameter, high flow capacity
Throttle bodyTwin 57 mm (2.24 in) diameter
bore-simultaneously open
SuperchargerEaton-Model 112, Generation IV, 55 kPa (8 psi)
mechanical boost
Exhaust manifoldsCast-high silicon, molybdenum iron
Exhaust systemDual-stainless steel
Engine/Transmission
8
Page 9 of 16
DRIVETRAIN
Rear axle9.75 in limited-slip differential with 3.73:1 final drive
ratio
DriveshaftAluminum with hardened yoke
TransmissionModified 4R100 4-speed automatic with OD lockout
Gear ratiosGear Ratio
1st 2.71
2nd 1.53
3rd 1.00
4th (OD) 0.71
Reverse 2.176
Drivetrain
9
Page 10 of 16
PERFORMANCE
0-100 km/h (0-60 mph)5.8 seconds
400 meters (quarter mile)13.9 seconds @ 160.9 km/h
(100 mph)
Top speed228 km/h (142 mph)
Braking, 100-0 km/h (60-0 mph)41.5 meters (136 ft.)
183 meter slalom (600 ft.)102.4 km/h (63.6 mph)
61 meter skid pad (200 ft.)0.85 g
Performance
10
