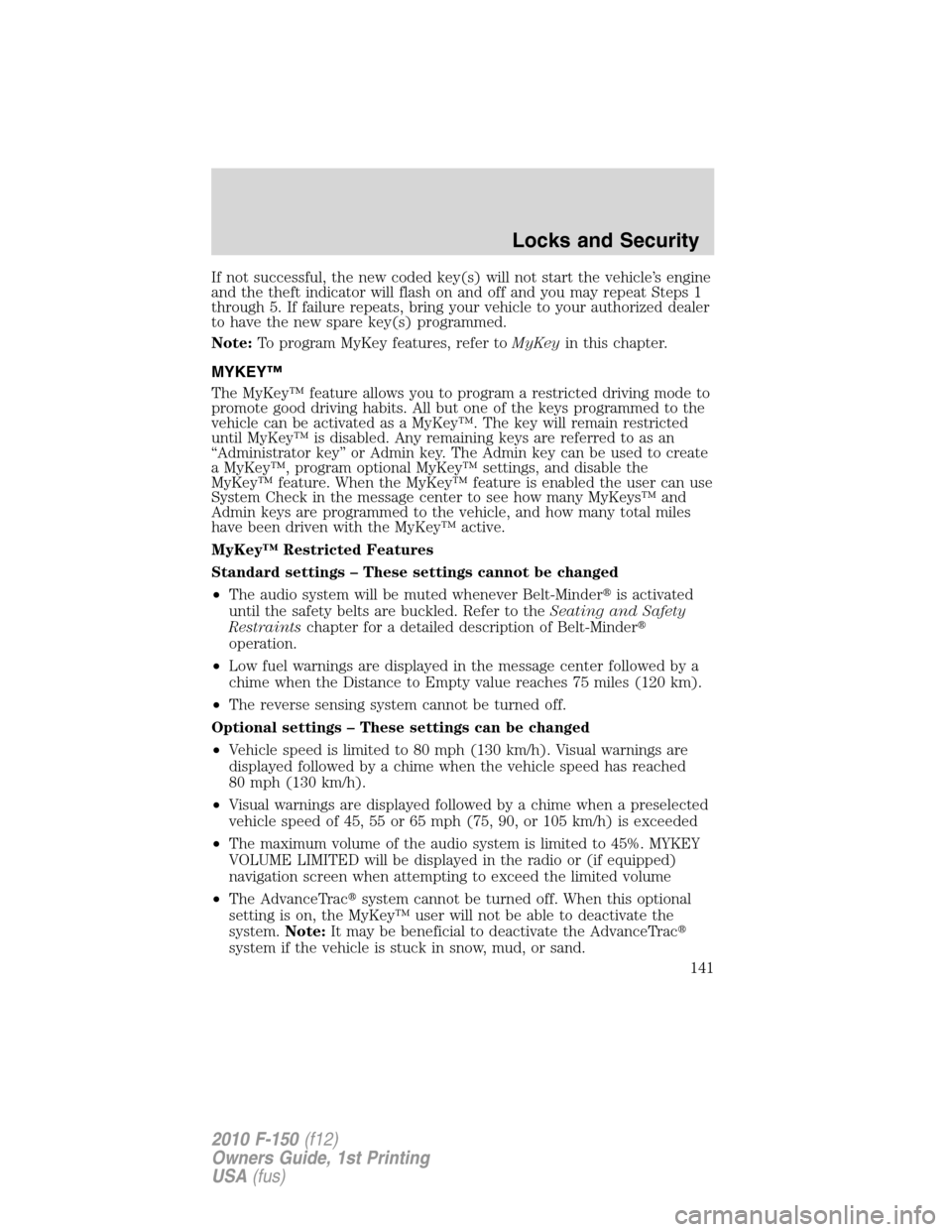

If not successful, the new coded key(s) will not start the vehicle’s engine
and the theft indicator will flash on and off and you may repeat Steps 1
through 5. If failure repeats, bring your vehicle to your authorized dealer
to have the new spare key(s) programmed.
Note:To program MyKey features, refer toMyKeyin this chapter.
MYKEY™
The MyKey™ feature allows you to program a restricted driving mode to
promote good driving habits. All but one of the keys programmed to the
vehicle can be activated as a MyKey™. The key will remain restricted
until MyKey™ is disabled. Any remaining keys are referred to as an
“Administrator key” or Admin key. The Admin key can be used to create
a MyKey™, program optional MyKey™ settings, and disable the
MyKey™ feature. When the MyKey™ feature is enabled the user can use
System Check in the message center to see how many MyKeys™ and
Admin keys are programmed to the vehicle, and how many total miles
have been driven with the MyKey™ active.
MyKey™ Restricted Features
Standard settings – These settings cannot be changed
•The audio system will be muted whenever Belt-Minder
is activated
until the safety belts are buckled. Refer to theSeating and Safety
Restraintschapter for a detailed description of Belt-Minder

operation.
•Low fuel warnings are displayed in the message center followed by a
chime when the Distance to Empty value reaches 75 miles (120 km).
•The reverse sensing system cannot be turned off.
Optional settings – These settings can be changed
•Vehicle speed is limited to 80 mph (130 km/h). Visual warnings are
displayed followed by a chime when the vehicle speed has reached
80 mph (130 km/h).
•Visual warnings are displayed followed by a chime when a preselected
vehicle speed of 45, 55 or 65 mph (75, 90, or 105 km/h) is exceeded
•The maximum volume of the audio system is limited to 45%. MYKEY
VOLUME LIMITED will be displayed in the radio or (if equipped)
navigation screen when attempting to exceed the limited volume
•The AdvanceTrac
system cannot be turned off. When this optional
setting is on, the MyKey™ user will not be able to deactivate the
system.Note:It may be beneficial to deactivate the AdvanceTrac

system if the vehicle is stuck in snow, mud, or sand.
Locks and Security
141
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

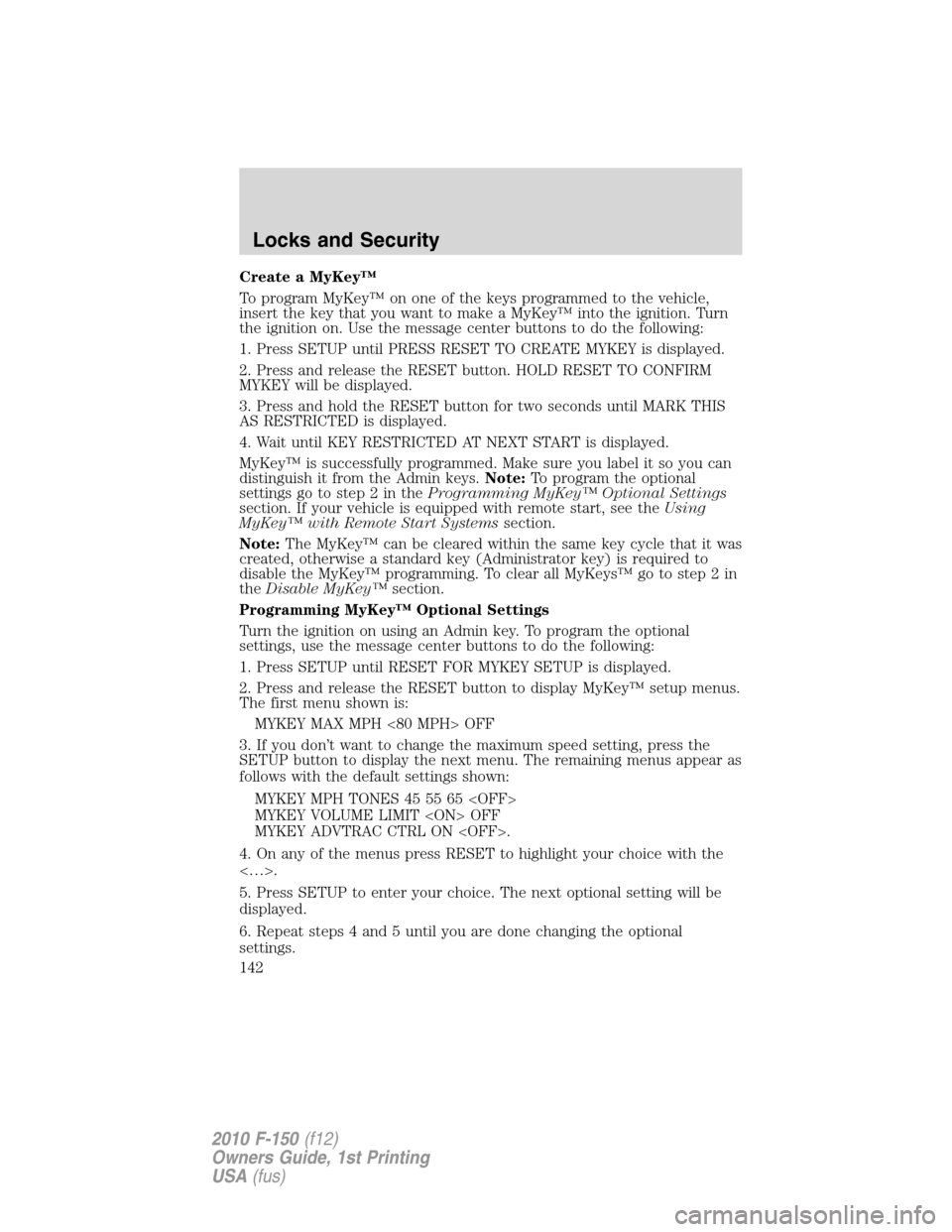

Create a MyKey™
To program MyKey™ on one of the keys programmed to the vehicle,
insert the key that you want to make a MyKey™ into the ignition. Turn
the ignition on. Use the message center buttons to do the following:
1. Press SETUP until PRESS RESET TO CREATE MYKEY is displayed.
2. Press and release the RESET button. HOLD RESET TO CONFIRM
MYKEY will be displayed.
3. Press and hold the RESET button for two seconds until MARK THIS
AS RESTRICTED is displayed.
4. Wait until KEY RESTRICTED AT NEXT START is displayed.
MyKey™ is successfully programmed. Make sure you label it so you can
distinguish it from the Admin keys.Note:To program the optional
settings go to step 2 in theProgramming MyKey™ Optional Settings
section. If your vehicle is equipped with remote start, see theUsing
MyKey™ with Remote Start Systemssection.
Note:The MyKey™ can be cleared within the same key cycle that it was
created, otherwise a standard key (Administrator key) is required to
disable the MyKey™ programming. To clear all MyKeys™ go to step 2 in
theDisable MyKey™section.
Programming MyKey™ Optional Settings
Turn the ignition on using an Admin key. To program the optional
settings, use the message center buttons to do the following:
1. Press SETUP until RESET FOR MYKEY SETUP is displayed.
2. Press and release the RESET button to display MyKey™ setup menus.
The first menu shown is:
MYKEY MAX MPH <80 MPH> OFF
3. If you don’t want to change the maximum speed setting, press the
SETUP button to display the next menu. The remaining menus appear as
follows with the default settings shown:
MYKEY MPH TONES 45 55 65
MYKEY VOLUME LIMIT OFF
MYKEY ADVTRAC CTRL ON .
4. On any of the menus press RESET to highlight your choice with the
<…>.
5. Press SETUP to enter your choice. The next optional setting will be
displayed.
6. Repeat steps 4 and 5 until you are done changing the optional
settings.
Locks and Security
142
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

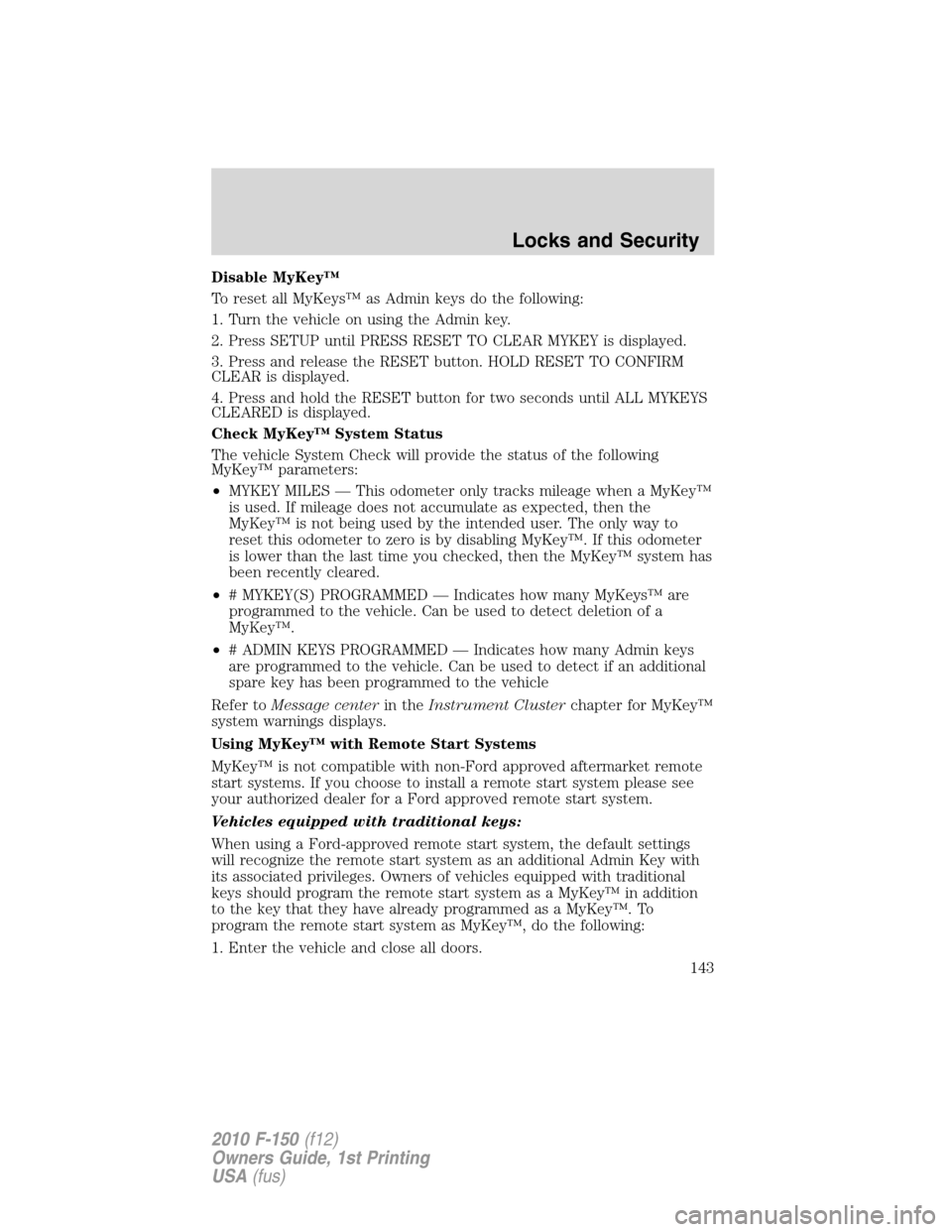

Disable MyKey™
To reset all MyKeys™ as Admin keys do the following:
1. Turn the vehicle on using the Admin key.
2. Press SETUP until PRESS RESET TO CLEAR MYKEY is displayed.
3. Press and release the RESET button. HOLD RESET TO CONFIRM
CLEAR is displayed.
4. Press and hold the RESET button for two seconds until ALL MYKEYS
CLEARED is displayed.
Check MyKey™ System Status
The vehicle System Check will provide the status of the following
MyKey™ parameters:
•MYKEY MILES — This odometer only tracks mileage when a MyKey™
is used. If mileage does not accumulate as expected, then the
MyKey™ is not being used by the intended user. The only way to
reset this odometer to zero is by disabling MyKey™. If this odometer
is lower than the last time you checked, then the MyKey™ system has
been recently cleared.
•# MYKEY(S) PROGRAMMED — Indicates how many MyKeys™ are
programmed to the vehicle. Can be used to detect deletion of a
MyKey™.
•# ADMIN KEYS PROGRAMMED — Indicates how many Admin keys
are programmed to the vehicle. Can be used to detect if an additional
spare key has been programmed to the vehicle
Refer toMessage centerin theInstrument Clusterchapter for MyKey™
system warnings displays.
Using MyKey™ with Remote Start Systems
MyKey™ is not compatible with non-Ford approved aftermarket remote
start systems. If you choose to install a remote start system please see
your authorized dealer for a Ford approved remote start system.
Vehicles equipped with traditional keys:
When using a Ford-approved remote start system, the default settings
will recognize the remote start system as an additional Admin Key with
its associated privileges. Owners of vehicles equipped with traditional
keys should program the remote start system as a MyKey™ in addition
to the key that they have already programmed as a MyKey™. To
program the remote start system as MyKey™, do the following:
1. Enter the vehicle and close all doors.
Locks and Security
143
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

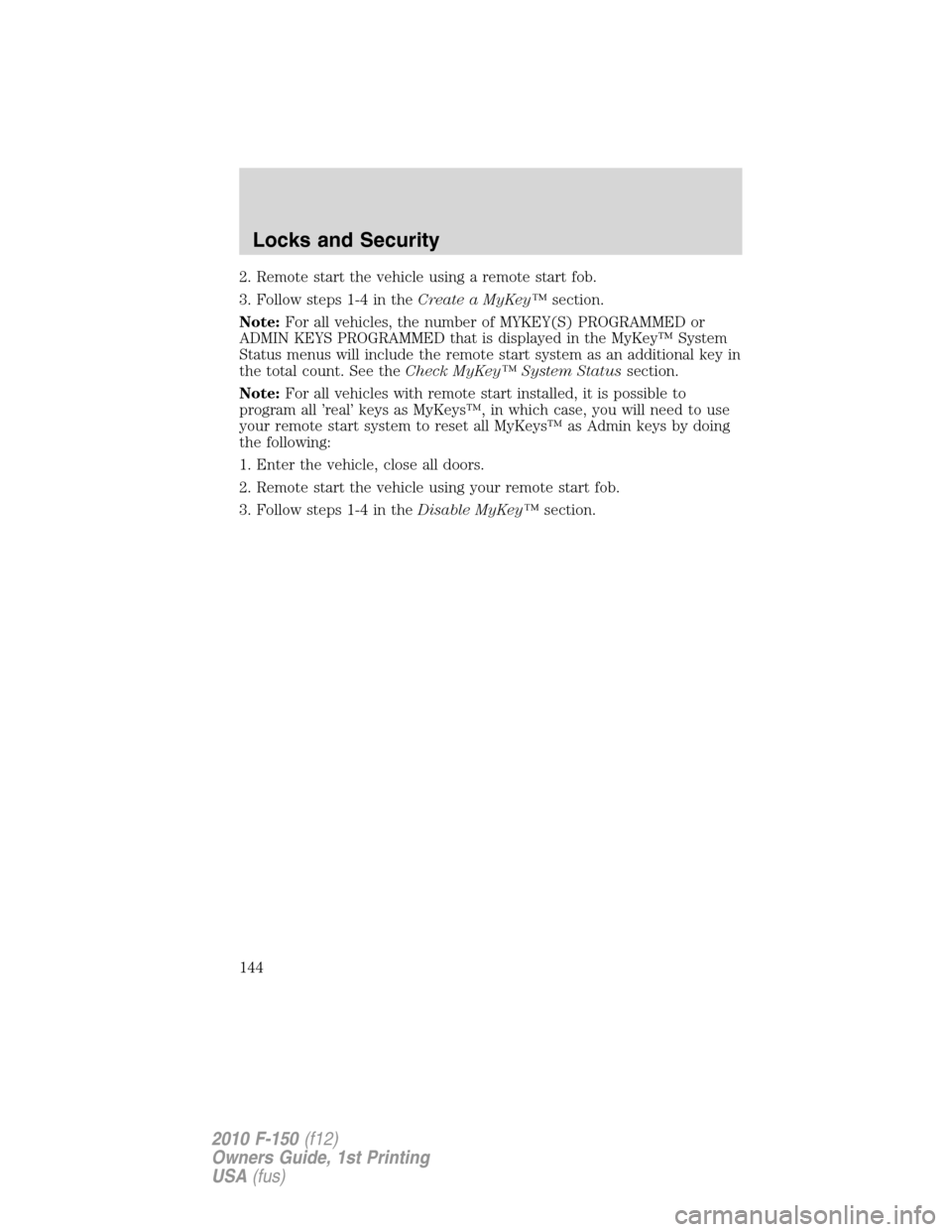

2. Remote start the vehicle using a remote start fob.
3. Follow steps 1-4 in theCreate a MyKey™section.
Note:For all vehicles, the number of MYKEY(S) PROGRAMMED or
ADMIN KEYS PROGRAMMED that is displayed in the MyKey™ System
Status menus will include the remote start system as an additional key in
the total count. See theCheck MyKey™ System Statussection.
Note:For all vehicles with remote start installed, it is possible to
program all ’real’ keys as MyKeys™, in which case, you will need to use
your remote start system to reset all MyKeys™ as Admin keys by doing
the following:
1. Enter the vehicle, close all doors.
2. Remote start the vehicle using your remote start fob.
3. Follow steps 1-4 in theDisable MyKey™section.
Locks and Security
144
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

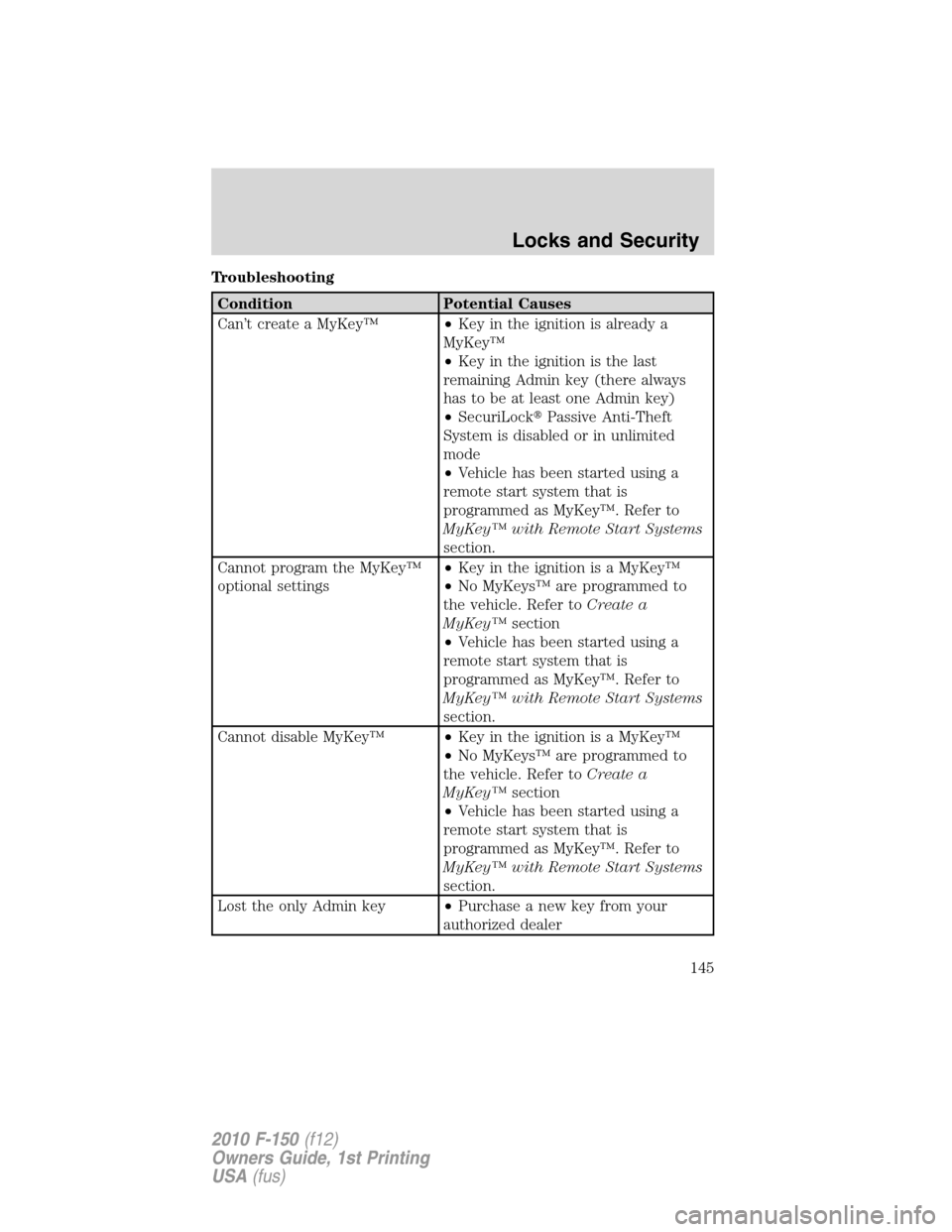

Troubleshooting
Condition Potential Causes
Can’t create a MyKey™•Key in the ignition is already a
MyKey™
•Key in the ignition is the last
remaining Admin key (there always
has to be at least one Admin key)
•SecuriLock
Passive Anti-Theft
System is disabled or in unlimited
mode
•Vehicle has been started using a
remote start system that is
programmed as MyKey™. Refer to
MyKey™ with Remote Start Systems
section.
Cannot program the MyKey™
optional settings•Key in the ignition is a MyKey™
•No MyKeys™ are programmed to
the vehicle. Refer toCreate a
MyKey™section
•Vehicle has been started using a
remote start system that is
programmed as MyKey™. Refer to
MyKey™ with Remote Start Systems
section.
Cannot disable MyKey™•Key in the ignition is a MyKey™
•No MyKeys™ are programmed to
the vehicle. Refer toCreate a
MyKey™section
•Vehicle has been started using a
remote start system that is
programmed as MyKey™. Refer to
MyKey™ with Remote Start Systems
section.
Lost the only Admin key•Purchase a new key from your
authorized dealer
Locks and Security
145
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

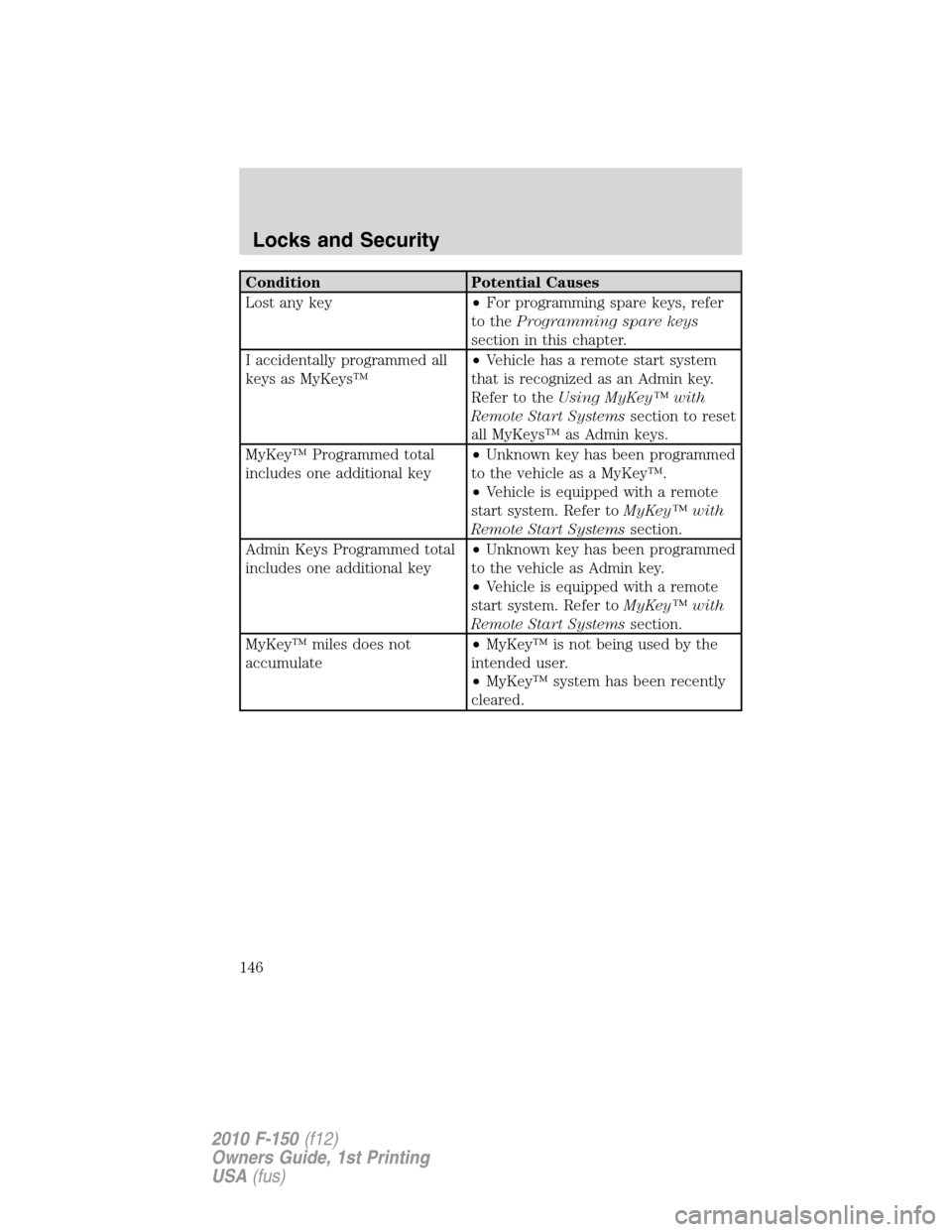

Condition Potential Causes
Lost any key•For programming spare keys, refer
to theProgramming spare keys
section in this chapter.
I accidentally programmed all
keys as MyKeys™•Vehicle has a remote start system
that is recognized as an Admin key.
Refer to theUsing MyKey™ with
Remote Start Systemssection to reset
all MyKeys™ as Admin keys.
MyKey™ Programmed total
includes one additional key•Unknown key has been programmed
to the vehicle as a MyKey™.
•Vehicle is equipped with a remote
start system. Refer toMyKey™ with
Remote Start Systemssection.
Admin Keys Programmed total
includes one additional key•Unknown key has been programmed
to the vehicle as Admin key.
•Vehicle is equipped with a remote
start system. Refer toMyKey™ with
Remote Start Systemssection.
MyKey™ miles does not
accumulate•MyKey™ is not being used by the
intended user.
•MyKey™ system has been recently
cleared.
Locks and Security
146
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

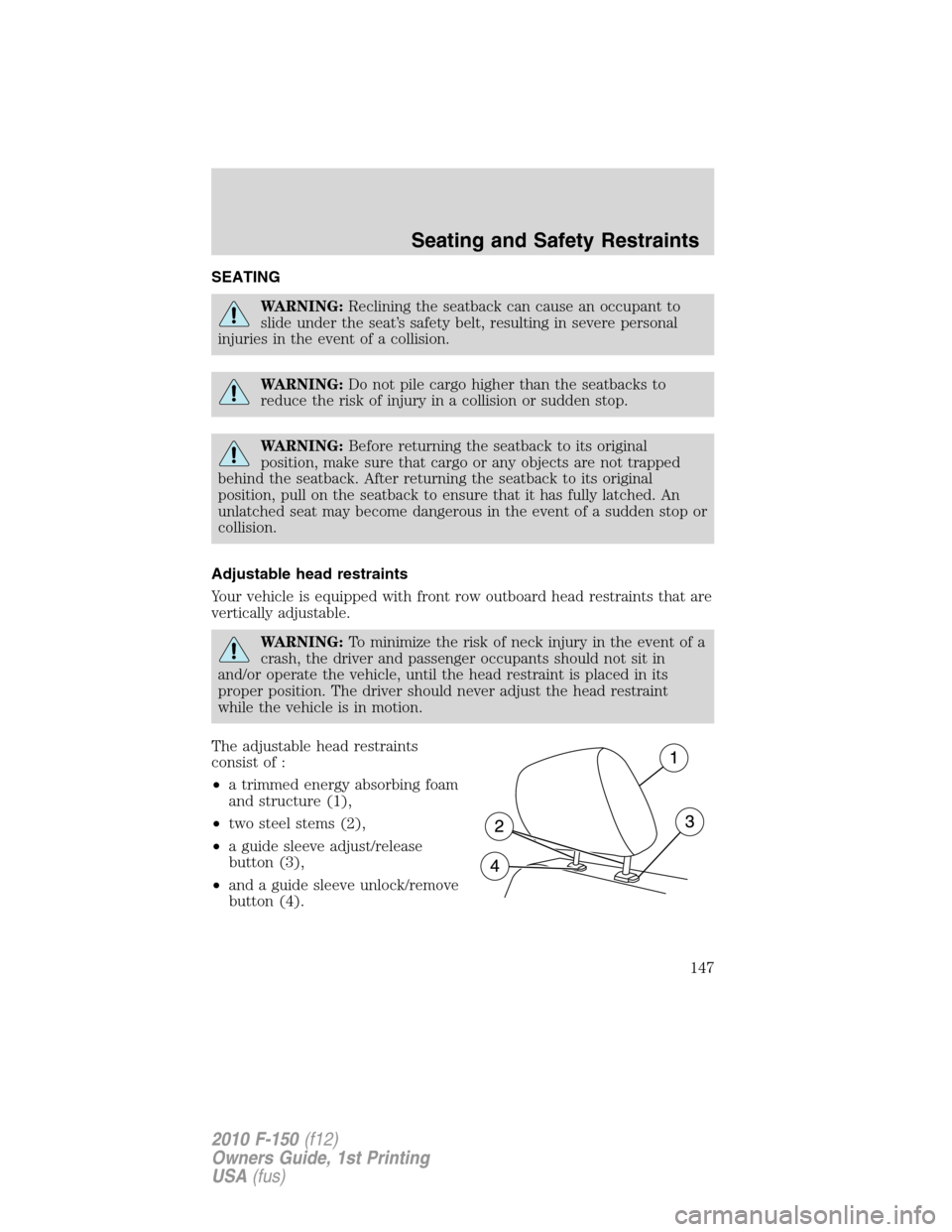

SEATING
WARNING:Reclining the seatback can cause an occupant to
slide under the seat’s safety belt, resulting in severe personal
injuries in the event of a collision.
WARNING:Do not pile cargo higher than the seatbacks to
reduce the risk of injury in a collision or sudden stop.
WARNING:Before returning the seatback to its original
position, make sure that cargo or any objects are not trapped
behind the seatback. After returning the seatback to its original
position, pull on the seatback to ensure that it has fully latched. An
unlatched seat may become dangerous in the event of a sudden stop or
collision.
Adjustable head restraints
Your vehicle is equipped with front row outboard head restraints that are
vertically adjustable.
WARNING:To minimize the risk of neck injury in the event of a
crash, the driver and passenger occupants should not sit in
and/or operate the vehicle, until the head restraint is placed in its
proper position. The driver should never adjust the head restraint
while the vehicle is in motion.
The adjustable head restraints
consist of :
•a trimmed energy absorbing foam
and structure (1),
•two steel stems (2),
•a guide sleeve adjust/release
button (3),
•and a guide sleeve unlock/remove
button (4).
Seating and Safety Restraints
147
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

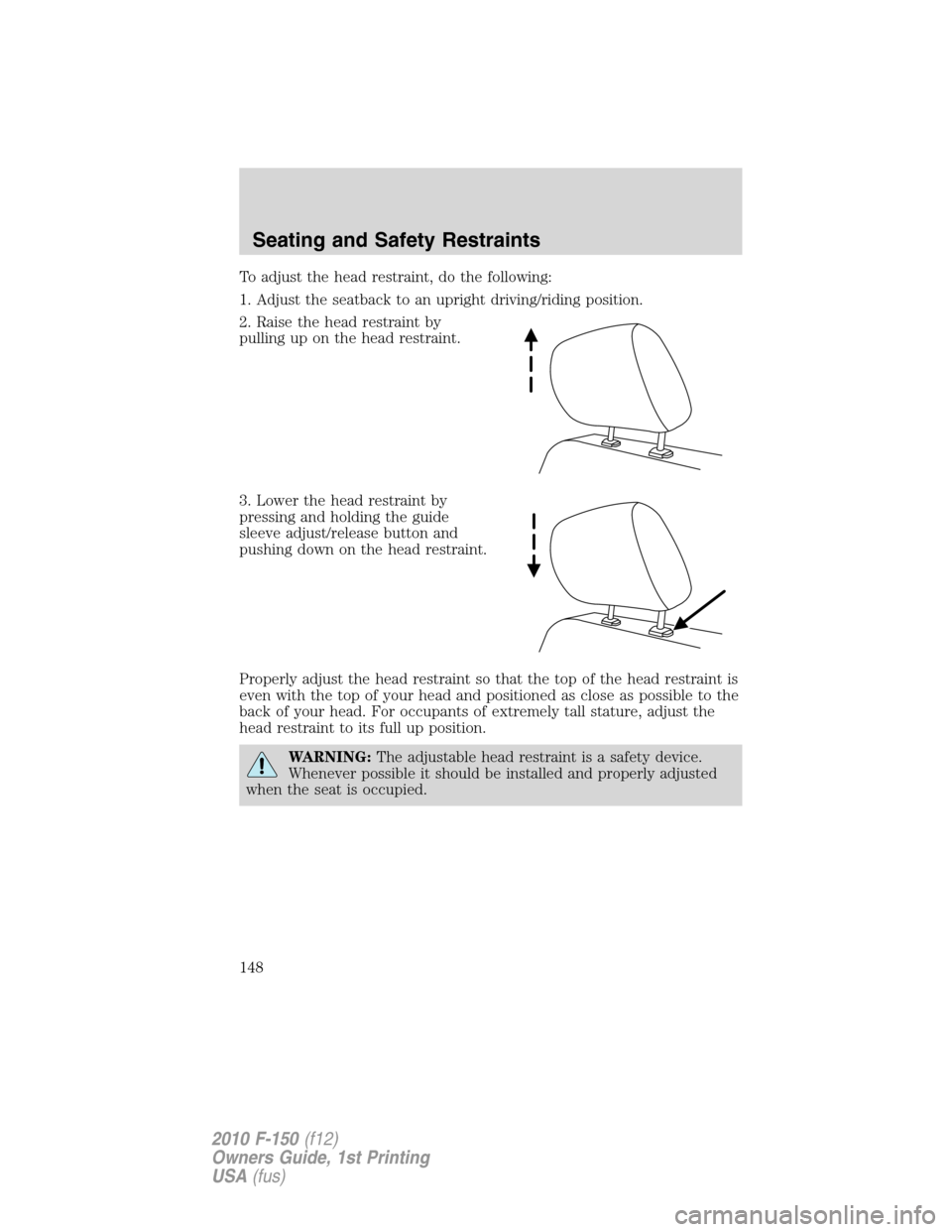

To adjust the head restraint, do the following:
1. Adjust the seatback to an upright driving/riding position.
2. Raise the head restraint by
pulling up on the head restraint.
3. Lower the head restraint by
pressing and holding the guide
sleeve adjust/release button and
pushing down on the head restraint.
Properly adjust the head restraint so that the top of the head restraint is
even with the top of your head and positioned as close as possible to the
back of your head. For occupants of extremely tall stature, adjust the
head restraint to its full up position.
WARNING:The adjustable head restraint is a safety device.
Whenever possible it should be installed and properly adjusted
when the seat is occupied.
Seating and Safety Restraints
148
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

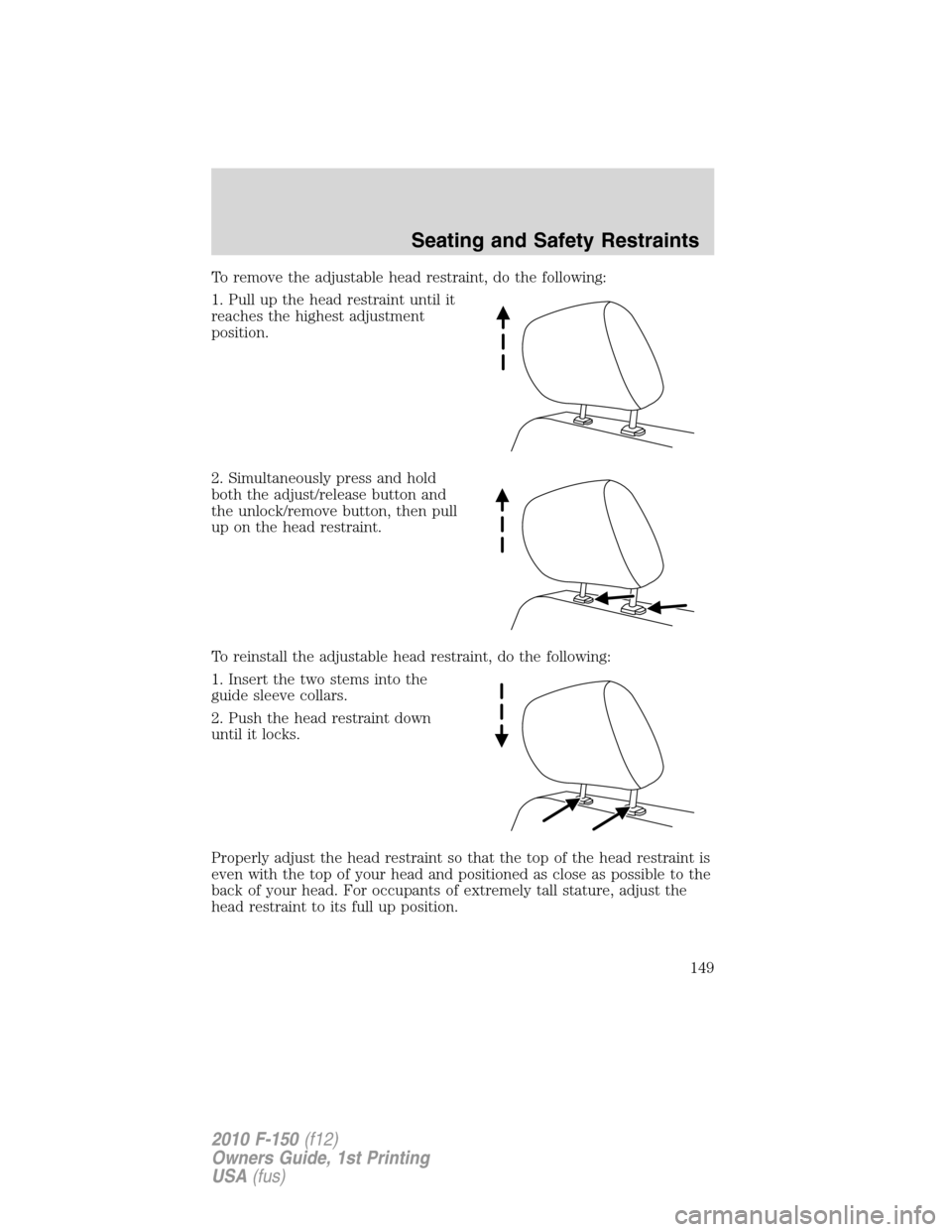

To remove the adjustable head restraint, do the following:
1. Pull up the head restraint until it
reaches the highest adjustment
position.
2. Simultaneously press and hold
both the adjust/release button and
the unlock/remove button, then pull
up on the head restraint.
To reinstall the adjustable head restraint, do the following:
1. Insert the two stems into the
guide sleeve collars.
2. Push the head restraint down
until it locks.
Properly adjust the head restraint so that the top of the head restraint is
even with the top of your head and positioned as close as possible to the
back of your head. For occupants of extremely tall stature, adjust the
head restraint to its full up position.
Seating and Safety Restraints
149
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)

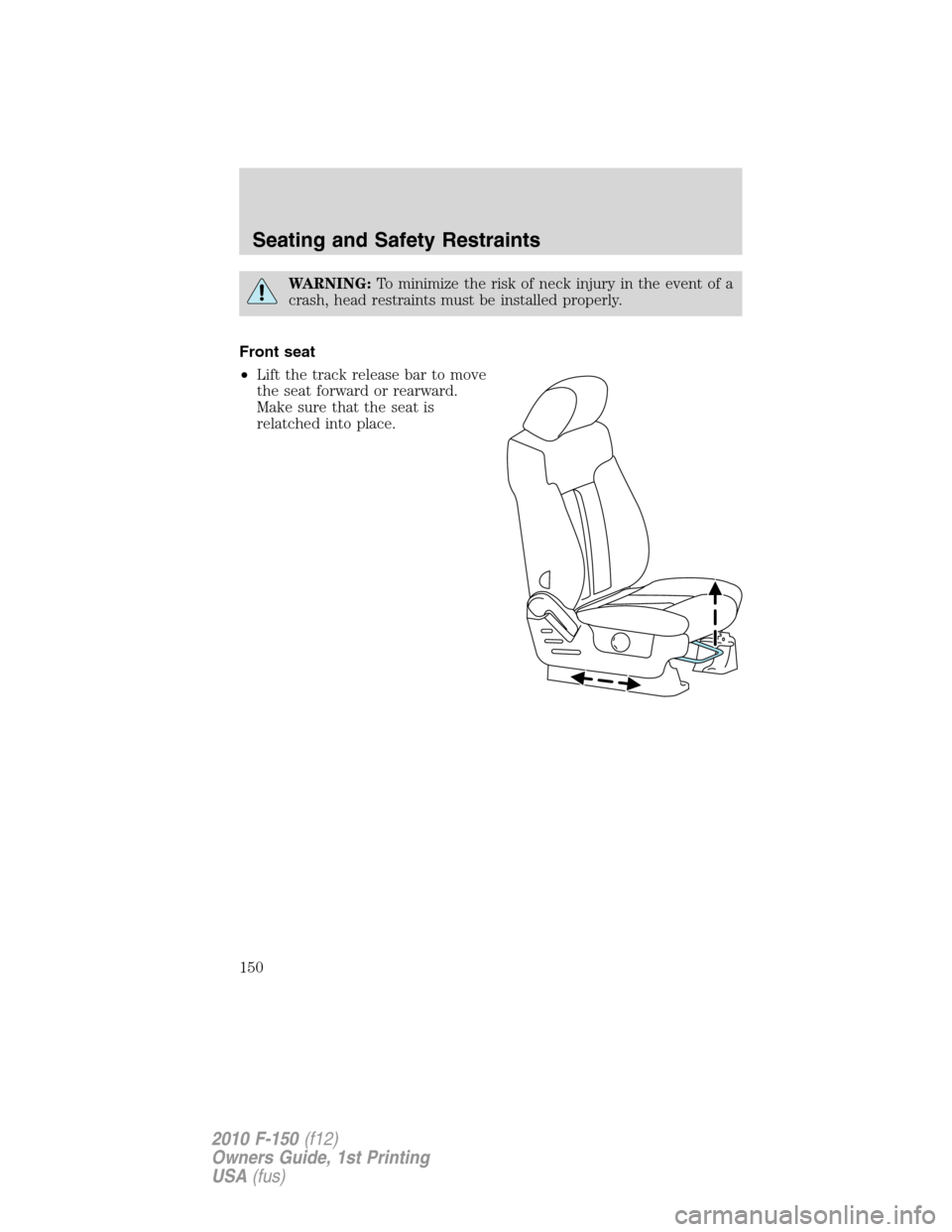

WARNING:To minimize the risk of neck injury in the event of a
crash, head restraints must be installed properly.
Front seat
•Lift the track release bar to move
the seat forward or rearward.
Make sure that the seat is
relatched into place.
Seating and Safety Restraints
150
2010 F-150(f12)
Owners Guide, 1st Printing
USA(fus)
