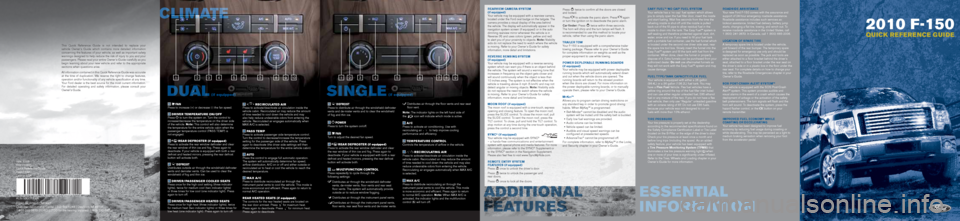

FORD F150 2010 12.G Quick Reference Guide

2010 F-150
QU ICK R E FE R E NCE G U I DE
Easy FuEl™ ‘no cap’ Fu El systE m
Your vehicle has a ‘no cap’ fuel system which allows
you to simply open the fuel filler door, insert the nozzle
and start fueling. Wait five seconds from the time the
refueling nozzle is shut-off until the nozzle is pulled
back out of the fill pipe to allow residual fuel in the
nozzle to drain into the tank. The Easy Fuel™ system is
self-sealing and therefore protected against dust, dirt,
water, snow and ice. If you need to fill your fuel tank
with a portable fuel container, use the fuel funnel which
is located under the second row driver side seat, near
the spare tire tool box. Slowly insert the funnel into the
Easy Fuel™ system and fill the tank with fuel from the
container. When done, clean the funnel or properly
dispose of it. Extra funnels can be purchased from your
authorized dealer. Do not use aftermarket funnels as
they will not work with the Easy Fuel™ system and may
cause damage.
Fu El typE /tank c apacity/FlE x FuEl
Your vehicle is equipped with either a 26 gallon
(98.4L) or a 36 gallon (136.2L) fuel tank. You may
have a Flex Fuel Vehicle. Flex fuel vehicles have a
yellow ring around the top of the fuel filler inlet (tube)
and can use either regular unleaded fuel, E85 ethanol
fuel or any mixture of the two. If you do not have a flex
fuel vehicle, then only use “Regular” unleaded gasoline
with an octane rating of 87. Do not use E85 fuels,
because your vehicle was not designed to run on
fuels with more than 10% ethanol.
tir E pr Essur E
Your tire pressure is properly set at the dealership
according to the recommended specifications found on
the Safety Compliance Certification Label or Tire Label
located on the B-Pillar or the edge of the driver’s door.
Check your tire pressure at least once a month and
before long trips (including the spare). As an added
safety feature, your vehicle has been equipped with
a t ire p ressure monitoring system (tpms) that
illuminates a low tire pressure warning light
when
one or more of your tires is significantly under-inflated.
Refer to the Tires, Wheels and Loading chapter in your
Owner’s Guide for more information. r
oaD siDE assistancE
Your new Ford F-150 comes with the assurance and
support of 24-hour emergency roadside assistance.
Roadside assistance includes such services as:
lockout assistance, limited fuel delivery, battery jump
starts, changing a flat tire, towing, and winch out. To
receive roadside assistance in the United States, call
1 (800) 241-3673. In Canada, call 1 (800) 665-2006.
l ocation oF spar E tirE
A temporary spare tire is located under the vehicle,
just forward of the rear bumper. The temporary spare
is designed for emergency use only and should be
replaced as soon as possible. The jack and tools are
either attached to a floor bracket behind the driver’s
seat, attached to a floor bracket under the rear seat on
the driver’s side or in a plastic box in the floor under the
rear seat. For complete details on how to change your
tire, refer to the Roadside Emergencies chapter in your
Owner’s Guide.
sos p ost-crash alE rt systE m™
Your vehicle is equipped with the SOS Post-Crash
Alert™ system. This system provides audible and
visual alarms in the event of a crash which causes the
deployment of airbags or the activation of the safety
belt pretensioners. The turn signals will flash and the
horn will sound. To deactivate the system, press the
hazard flasher control, or the
button on your
remote transmitter.
i mprovED Fu El E conomy whilE
coasting or DE cElErating
Your vehicle has been designed to improve fuel
economy by reducing fuel usage during coasting or
while decelerating. This may be perceived as a light to
medium braking sensation when removing your foot
from the accelerator pedal.
1 2 3 4 5 678 91 234 56 78910
1 FAN Press to increase (+) or decrease (-) the fan speed.
2 DR IVE R TE M PE RATU R E ON /OFF
Press to turn the system on. Turn the control to
increase/decrease the temperature on the driver side
of the vehicle. note: This control will also determine
the temperature for the entire vehicle cabin when the
passenger temperature control (PASS TEMP) is
not engaged.
3 R EAR DE FROSTE R (if equipped)
Press to activate the rear window defroster and clear
the rear window of thin ice and fog. Press again to
deactivate. If your vehicle is equipped with both a rear
defrost and heated mirrors, pressing the rear defrost
button will activate both.
4 DE FROSTDistributes outside air through the windshield defroster
vents and demister vents. Can be used to clear the
windshield of fog and thin ice.
5 DR IVE R / PASSE NG E R COOLE D SEATS
Press once for the high cool setting (three indicator
lights), twice for medium cool (two indicator lights)
or three times for low cool (one indicator light). Press
again to turn off.
6 DR IVE R / PASSE NG E R H EATE D SEATS
Press once for high heat (three indicator lights), twice
for medium heat (two indicator lights) or three times for
low heat (one indicator light). Press again to turn off.
7 R ECI RCU LATE D AI R
Press to activate/deactivate air circulation inside the
vehicle cabin. Recirculated air may reduce the amount
of time needed to cool down the vehicle and may
also help reduce undesirable odors from entering the
vehicle. Recirculated air engages automatically when
MAX A/C is selected.
8 PASS TE M P
Press to activate passenger side temperature control.
Turn the control to decrease/increase the temperature
setting for the passenger side of the vehicle. Press
again to deactivate (the driver side settings will then
determine the temperature for the entire vehicle cabin).
9 AUTO Press the control to engage full automatic operation.
The system will automatically determine fan speed,
airflow distribution, A/C on or off and either outside or
recirculated air to heat or cool the vehicle to reach the
desired temperature.
10 MAX A/C
Press to distribute recirculated air through the
instrument panel vents to cool the vehicle. This mode is
more economical and efficient. Press again to return to
normal A/C operation.
R EAR H EATE D SEATS (if equipped):
The controls for the rear heated seats are located on
the rear door armrest. Press
for maximum heat.
Press again to deactivate. Press for minimum heat.
Press again to deactivate.
1 DE FROSTPress to distribute air through the windshield defroster
vents and de-mister vents and to clear the windshield
of fog and thin ice.
2 POWE R Press to turn the system on/off.
3 FAN Turn to adjust the desired fan speed.
4 R EAR DE FROSTE R (if equipped)
Press to activate the rear window defroster and clear
the rear window of thin ice and fog. Press again to
deactivate. If your vehicle is equipped with both a rear
defrost and heated mirrors, pressing the rear defrost
button will activate both.
5 M U LTI FU NCTION CONTROL
Press repeatedly to cycle through the
following settings:
Distributes air through the windshield defroster vents, de-mister vents, floor vents and rear seat
floor vents. The system will automatically provide
outside air to reduce window fogging.
Distributes air through the instrument panel vents.
Distributes air through the instrument panel vents,
floor vents, rear seat floor vents and de-mister vents.
Distributes air through the floor vents and rear seat floor vent.
note: The indicator lights on the left hand side of
the
icon will indicate which mode is active.
6 A/C
Press to activate air conditioning. Use with
recirculating air
to help improve cooling
performance and efficiency.
7 TE M PE RATU R E CONTROL
Controls the temperature of airflow in the vehicle.
8 R ECI RCU LATI NG AI R
Press to activate/deactivate air circulation inside the
vehicle cabin. Recirculated air may reduce the amount
of time needed to cool down the vehicle and may also
reduce undesirable odors from entering the vehicle.
Recirculating air engages automatically when MAX A/C
is selected.
9 MAX A/C Press to distribute recirculating air through the
instrument panel vents to cool the vehicle. This mode
is more economic and efficient. Press again to return
to normal A/C operation. note: When MAX A/C is
activated, the indicator lights and the multifunction
control (5) will turn off.
This Quick Reference Guide is not intended to replace your
vehicle Owner’s Guide which contains more detailed information
concerning the features of your vehicle, as well as important safety
warnings designed to help reduce the risk of injury to you and your
passengers. Please read your entire Owner’s Guide carefully as you
begin learning about your new vehicle and refer to the appropriate
sections when questions arise.
All information contained in this Quick Reference Guide was accurate
at the time of duplication. We reserve the right to change features,
operation and/or functionality of any vehicle specification at any time.
Your Ford dealer is the best source for the most current information.
For detailed operating and safety information, please consult your
Owner’s Guide.
FORD M OTOR COMPAnY
Customer Relationship Center | P.O. Box 6248 | Dearborn, MI 48121
1-800-392-3673 (FORD) | (TDD for the hearing impaired: 1-800-232-5952) June 2009
First Printing
Quick Reference Guide
Ford F-150
Litho in USA
AL3J 19G217 AA
rEarvi Ew cam Era systE m
(if equipped)
Your vehicle may be equipped with a rearview camera,
located under the Ford oval badge on the tailgate. The
camera provides a visual display of the area behind
the vehicle. The display will automatically appear in the
navigation system screen (if equipped) or in the auto
dimming rearview mirror whenever the vehicle is in
Reverse (R) and uses colors (green, yellow and red)
to alert you of your proximity to objects. note: Visibility
aids do not replace the need to watch where the vehicle
is moving. Refer to your Owner’s Guide for safety
information, more detail and limitations.
rEvE rsE s Ensing systE m
(if equipped)
Your vehicle may be equipped with a reverse sensing
system which can warn you if there is an object behind
the vehicle. The system will sound a warning tone that
increases in frequency as the object gets closer and
will sound continuously when the object is less than
10 inches away. The system is not effective when the
vehicle is traveling above 3 mph (5 km/h) and may not
detect angular or moving objects.
note: Visibility aids
do not replace the need to watch where the vehicle
is moving. Refer to your Owner’s Guide for safety
information, more detail and limitations.
m oon rooF (if equipped)
The moon roof is equipped with a one-touch, express
opening and closing feature. To open the moon roof,
press the SLI DE control. To close the moon roof, pull
the SLI DE control. To vent the moon roof, press the
TI LT control. To close, pull and hold the TI LT control. To
stop motion at any time during the one-touch operation,
press the control a second time.
sync® (if equipped)
Your vehicle may be equipped with SY nC®
– a hands-free communications and entertainment
system with special phone and media features. For more
information, please refer to the SY nC
® Supplement or
to the SY nC® section in the navigation Supplement.
Please also feel free to visit www.SyncMyRide.com.
rE motE Entry s ystEm
FEatur Es (if equipped)
Press
once to unlock the driver’s door.
Press
twice to unlock the passenger and
rear doors.
Press
once to lock all the doors. Press
twice to confirm all the doors are closed
and locked.
Press
to activate the panic alarm. Press again
or turn the ignition on to deactivate the panic alarm.
car finder: Press
twice within three seconds.
The horn will chirp and the turn lamps will flash. It
is recommended to use this method to locate your
vehicle, rather than using the panic alarm.
trailE r tow
Your F-150 is equipped with a comprehensive trailer
towing package. Please refer to your Owner’s Guide
for complete information on weights as well as the
proper equipment to use while towing.
p owE r DEployablE running boar Ds
(if equipped)
Your vehicle may be equipped with power deployable
running boards which will automatically extend down
and out when the vehicle doors are opened. The
running boards will return to the stowed position
when the doors are closed. For more information on
the power deployable running boards, or to manually
operate them, please refer to your Owner’s Guide.
m
ykey™
Allows you to program certain driving restrictions on
any standard key in order to promote good driving
habits. When MyKey™ is programmed:
• Belt-Minder
® cannot be disabled and the audio
system will be muted until the safety belt is buckled.
•
Early low fuel warnings are provided.
•
Audio volume can be limited.
•
Vehicle speed can be limited.
•
Audible and visual speed warnings can be
configured at preselected speeds.
• AdvanceTrac
® cannot be programmed off.
For complete information, refer to MyKey™ in the Locks
and Security chapter in your Owner’s Guide.
DUAL(if equipped)
CLI MATE
SI NG LE (if equipped)
ESSE NTIAL
I N FOR MATION
ADDITIONAL
FEATU R ES

• To turn off, press the brake pedal or press OFF.
vol +/- : Press to increase/decrease volume levels.
: Press to access the previous/next radio station,
CD track or preset satellite radio channel.
m ED ia: Press repeatedly to access all possible
media sources.
: Press to access voice recognition, if equipped.
: Press to access SYn C® phone features,
if equipped.
9 ElE ctronic shi Ft 4wD systE m
(if equipped)
Your vehicle may be equipped with an electronic shift
4WD system which allows you to choose between
2WD High, 4WD High or 4WD Low. Choose 2H
(2WD High) to provide power to the rear wheels
only – used mainly for street and highway driving. This
mode provides optimal smoothness and fuel economy
at high speeds. Choose 4H (4WD High) for extra
traction on snow or on icy roads or off-road situations.
(not intended for dry pavement use.) Choose 4L (4WD
Low) when you need extra gearing to provide maximum
power to all four wheels at reduced speeds. This is
intended for use in situations such as deep sand, steep
grades or pulling heavy objects.
The Electronic Locking Differential (ELD) axle
(if equipped) is a device in the rear axle which allows
both rear wheels to turn at the same speed which helps
to provide additional traction if the vehicle becomes
stuck. To activate, pull the knob toward you while
the control is in either 4H (4x4 high) or 4L (4x4 low)
mode. The indicator light
will blink briefly and then
remain solid. The indicator light will also display in the
message center. For more information, refer to the
Driving chapter in your Owner’s Guide.
awD (if equipped)
Depending on your option package, your vehicle
may be equipped with AWD. With AWD, power is
automatically delivered to all four wheels for increased
traction. This mode is recommended for on-road driving
conditions such as dry road surfaces, wet pavement,
snow, gravel and shallow sand. For more information,
refer to your Owner’s Guide.
10 aDvancEtrac® with r oll stability
control™ (rsc®) stability
EnhancE mEnt systE m
The AdvanceTrac
® stability system helps you to
maintain stability and steerability of your vehicle during a variety of road conditions. If your vehicle becomes
stuck in the snow, mud or sand, try turning off the
AdvanceTrac
® system to allow wheel spin and help
increase momentum to dig the vehicle out. The system
defaults to on and the control will illuminate when
turned off. Refer to your Owner’s Guide for safety
information and more details.
trailE r sway (if equipped)
Your vehicle may be equipped with trailer sway control.
This control uses the vehicle’s AdvanceTrac
® system to
detect and help reduce trailer sway by applying brake
force at individual wheels and, if necessary, reducing
engine power. If this happens, TRAILER SWAY
REDUCE SPEED will display in the instrument cluster
with the AdvanceTrac icon
. For more information,
please refer to your Owner’s Guide.
11 ambi Ent lighting (if equipped)
Press
repeatedly to turn the feature on, cycle
through your color options and turn the feature off.
When activated, the foot well areas, cup holders and
center console bin illuminates with the chosen color.
12 hazar D Flash Er
Press to activate the front and rear direction
signals when your vehicle is disabled and is creating
a safety hazard for other motorists. Press again to
turn off. The hazard flashers will operate when the
ignition is on or off.
13 voicE-activatED navigation systE m
(if equipped)
Your vehicle may be equipped with a voice-activated
navigation system which integrates several functions
including voice recognition, destination entry, climate
control, and SIRIUS
® satellite radio into one easy-to-use
system, displaying them on an 8” touch screen
display. note: Some features are unavailable while
driving. Refer to your navigation supplement for
more information.
1 hEaD lamp controls
: Turns the headlamps off.
: Turns on parking, instrument panel, license plate
and tail lamps.
: Turns on low beam headlamps.
: Autolamps (if equipped) Automatically turns the
exterior lamps on/off based on available daylight.
: Turns on fog lamps (if equipped) by pulling the
control towards you.
p anel dimmer control
Move to adjust the level of brightness on the instrument
panel during parking lamp and headlamp operation.
Move to the full right position to turn on the interior
lamps. Move to the left position to turn off the lights.

2 powE r aDjustablE pED als (if equipped)
Press the right side of the control
to move the pedals
closer to you or the left side of the control to move
the pedals away from you. The pedals should only be
adjusted when the vehicle is stopped and in Park (P).
3 m ulti-Function lEvE r anD rain
s Ensing wipE rs (if equipped)
Rotate the end of the control up/down to increase/
decrease the speed of the wipers.
Push the end of the stalk:
• quickly for a single swipe without fluid.
• and hold briefly for three swipes with washer fluid.
• and hold for a longer wash cycle.
courtesy wipe feature: One extra wipe will occur
after a wash cycle to clear your windshield of any
excess washer fluid.
rain sensing wipers (if equipped): These wipers
activate automatically when moisture is detected on
the windshield provided the multi-function lever is set
to any setting other than OFF. The speed of the wipers
will vary based on the amount of moisture on the
windshield and also the interval setting. Ensure that the
multi-function lever is turned to OFF prior to entering
a car wash.
note: For optimal wiper performance, clean your
blades and glass regularly. Refer to your Owner’s
Guide for more information.
4 airbag r EaDinEss light
The airbag readiness light
illuminates briefly when
the ignition is turned on. If this light fails to illuminate,
remains on or continues to flash after the engine
is started, contact your authorized dealer as soon
as possible. A chime will also sound if there is a
malfunction in the indicator light.
5 anti-lock brak E systEm (abs)
warning light
The ABS light
illuminates briefly when the ignition
is turned on. If the ABS light remains on or continues
to flash, a malfunction has been detected, contact your
authorized dealer as soon as possible. normal braking
(less ABS) is still functional unless the brake warning
light
is also illuminated.
6 sE rvicE E nginE soon light
The service engine soon light
illuminates briefly
when the ignition is turned on. If it remains on or is
blinking after the engine is started, the On Board
Diagnostics System (OBD-II) has detected a
malfunction. Drive in a moderate fashion and contact
your authorized dealer as soon as possible.
7 mE ssag E cEntEr (if equipped)
The message center displays important vehicle
information through a constant monitoring of vehicle
systems. The system will also notify you of potential
vehicle problems with a display of system warnings
followed by long indicator chime. Refer to your Owner’s
Guide for more information.
8 stEE ring wh EEl controls
To set the speed:
1. Press O n.
2. Accelerate to the desired speed.
3. Press SET + or SET – and take your foot off
the accelerator.
• To set a higher speed, press and hold SET + or
press SET + repeatedly until the desired speed
is reached.
• To set a lower speed, press and hold SET – or
press SET – repeatedly until the desired speed
is reached.
• To return to a previously set speed, press RESUME.

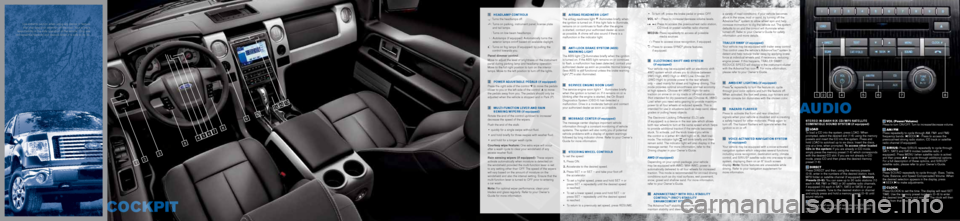

1 2
3 467 8
8
11
10
9 12
5
13
stE
rEo i n-Dash s ix cD/mp3 satE llitE
compatiblE soun D systEm (if equipped)
1 LOAD
To load a CD into the system, press LOAD. When
prompted, select the desired slot (1-6) using the memory
presets and insert the CD into the system. Press and
hold LOAD to autoload up to six discs. Insert the discs,
one at a time, when prompted. t o access other loaded
cDs in the system: If you are already in CD mode,
simply press the memory preset (1-6) which corresponds
with the desired CD slot. If you are not already in CD
mode, press CD and then press the desired memory
preset (1-6).
2 DI R ECT
Press DIRECT and then, using the memory presets
(0-9), enter in the numbers of the desired station, track,
MP3 folder or satellite channel (if equipped). memory
p resets (0–9): You can save up to 30 radio stations (10
each in AM, FM1 or FM2) or 30 satellite radio channels,
if equipped (10 each in SAT1, SAT2 or SAT3) in your
memory presets. Tune to the desired station or channel
and simply press and hold a memory preset (0–9) until
sound returns.
3 SCAN
Press for a brief sampling of radio stations, CD tracks
or satellite radio channels (if equipped). Press again
to stop.
4 VOL (Power/Volume)
Press to turn O n/OFF. Turn to increase/decrease volume.
5 AM / FM
Press repeatedly to cycle through AM, FM1 and FM2
frequency bands.
SEEK - Press to access the
previous/next strong radio station, CD track or satellite
radio channel (if equipped).
6 SI R I US: Press SIRIUS repeatedly to cycle through
SAT1, SAT2 and SAT3 modes (satellite radio, if
equipped). Press ME nU (when satellite radio is active)
and then press
to cycle through additional options.
For a full description of these options, and SIRIUS®
satellite radio, please refer to your Owner’s Guide.
7 SOU N D
Press SOU nD repeatedly to cycle through: Bass, Treble,
Fade, Balance, and Speed Compensated Volume. When
the desired selection appears in the display, press
SEEK to make adjustments.
8 CLOCK
Press CLOCK to set the time. The display will read SET
TIME. Use the memory preset numbers (0–9) to enter
the desired time– hours and minutes. The clock will then
begin from that time.
1 23 4 5 7
6 8
Use extreme caution when using any device or feature
that may take your attention off the road. Your primary
responsibility is the safe operation of the vehicle. Only use
non-essential features and devices when it is safe to do so.
COCKPIT
AU DIO
