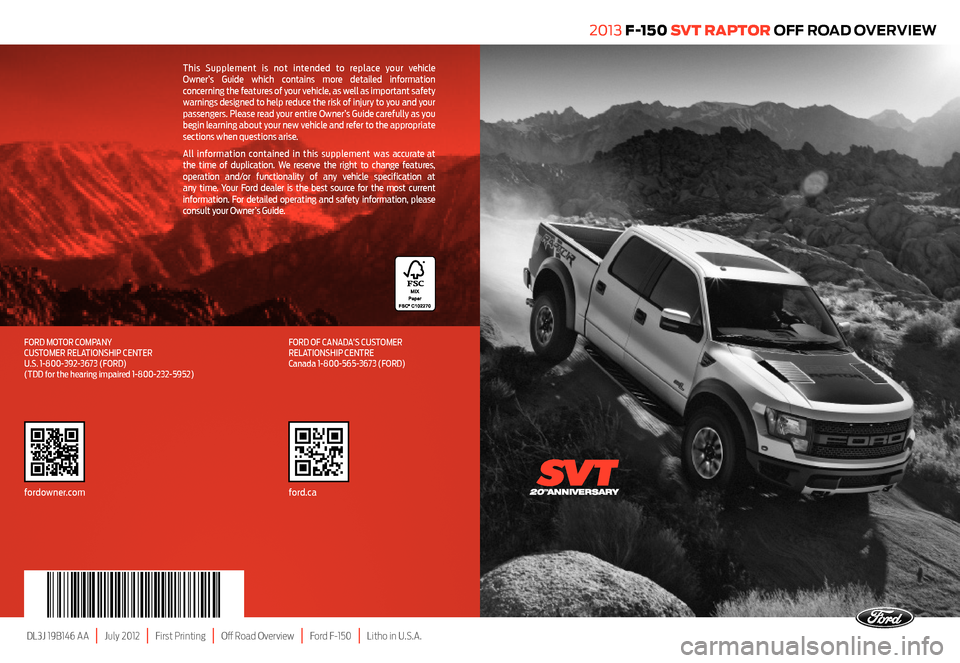

FORD F150 2013 12.G Raptor Quick Reference Guide

This Supplement is not intended to replace your vehicle Owner’s Guide which contains more detailed information concerning the features of your vehicle, as well as important safety warnings designed to help reduce the risk of injury to you and your passengers. Please read your entire Owner’s Guide carefully as you begin learning about your new vehicle and refer to the appropriate sections when questions arise.
All information contained in this supplement was accurate at the time of duplication. We reserve the right to change features, operation and/or functionality of any vehicle specification at any time. Your Ford dealer is the best source for the most current information. For detailed operating and safety information, please consult your Owner’s Guide.
2013 F-150 SV T RAPTOR OFF ROAD OVERVIEW
DL3J 19B146 AA | July 2012 | First Printing | Off Road Overview | Ford F-150 | Litho in U.S.A.
FORD MOTOR COMPANY CUSTOMER RELATIONSHIP CENTER U.S. 1-800-392-3673 (FORD) (TDD for the hearing impaired 1-800-232-5952)
FORD OF CANADA’S CUSTOMER RELATIONSHIP CENTRE Canada 1-800-565-3673 (FORD)
fordowner.comford.ca

AdvanceTrac® (press)Electronic Locking Rear Differential (pull 4x4 knob)
Hill Descent Control™
(press)Note:Hill Descent Control function is not affected by Off Road Mode, AdvanceTrac or Electronic Locking Differential settingsEnabled (Key-On)SPORT (Single Press)Disabled (Press & Hold)Transmission Calibration*Throttle Map*
AdvanceTrac light below speedometer is off
AdvanceTrac icon on Off Road Screen shows ‘Enabled’
AdvanceTrac light below speedometer illuminates
AdvanceTrac icon on Off Road Screen shows ‘Sport’
AdvanceTrac icon below speedometer blinks after hold and then remains illuminated
AdvanceTrac icon on Off Road Screen shows ‘Disabled’
Differential lock indicator on T-case mode bezel: - Flashes while engaging or disengaging- Illuminated when differential is locked- ELD icon in LCD Display lights
Engaged automatically with “Off Road Mode”
1) Lamp on button illuminates2)
“Hill Descent Control Ready” in message center3) Audible chime4) HDC light in LCD Display illuminates and HDC icon on Off Road screen shows ‘Active’ when system is controlling vehicle:
(press)
Off
When disengaging... 1) Lamp on button turns off2)
“Exiting Off Road Mode” in message center3) Audible chime
Anti-lock BrakesNormal
Street Sport
**NormalNormalAutomatically reverts to Single Press state at 35 mph
2HAutomatically disengaged above 12 mphStandardTraction ControlNormalPerformance CalibrationOff**4HAutomatically disengaged above 25 mphControls descent speed between 2 and 20 mph.
System remains ‘armed’ between 20 and 40 mph but will not control hill descent speed
System disengages above 40 mph and the button must be pressed again to re-engage
Yaw ControlNormalIncreased YawOff4LDoes not automatically disengage4-Low uniqueRoll Stability ControlNormalNormalOff
On (single press)
When engaging... 1) Lamp on button illuminates2)
“Off Road Mode Enabled” in message center3) Audible chime
Anti-lock BrakesNormal
Off Road Sport
**Off Road BrakingOff Road Braking
Settings retained for all vehicle speeds
2H
Does not automatically disengage
Off Road Unique
Traction ControlNormalPerformance CalibrationOff**PerformanceShift Schedule
PerformanceThrottle Map4H
Yaw ControlNormalIncreased YawOff
4L4-Low uniqueRoll Stability ControlNormalOffOff

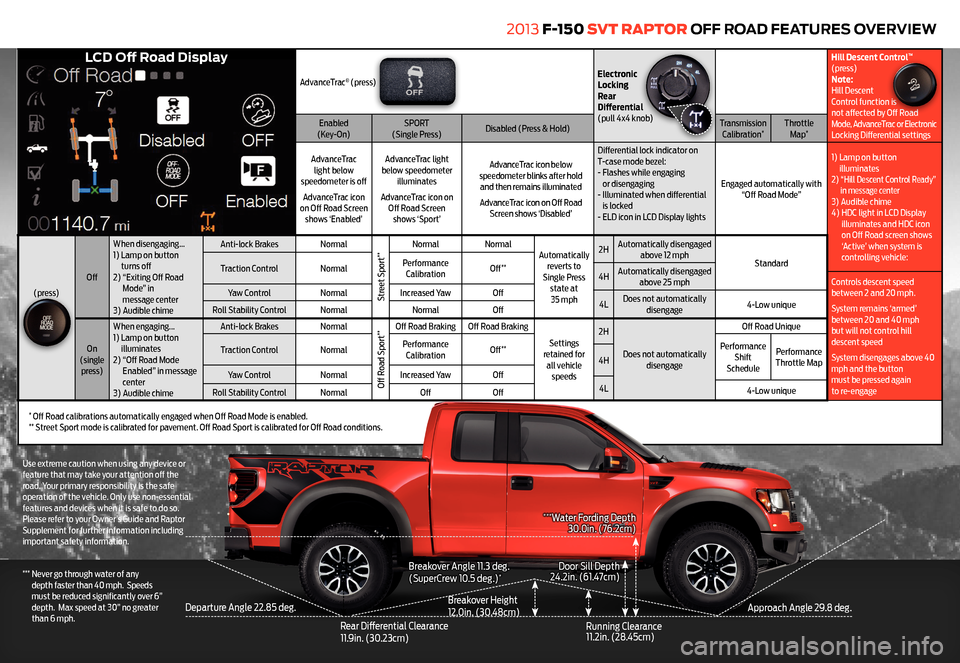

2013 F-150 SV T RAPTOR OFF ROAD FEATURES OVERVIEW
* Off Road calibrations automatically engaged when Off Road Mode is enabled.** Street Sport mode is calibrated for pavement. Off Road Sport is calibrated for Off Road conditions.
Breakover Angle 11.3 deg. (SuperCrew 10.5 deg.)*
Departure Angle 22.85 deg.Breakover Height 12.0in. (30.48cm)
Rear Differential Clearance 11.9in. (30.23cm)Running Clearance 11.2in. (28.45cm)
Door Sill Depth 24.2in. (61.47cm)
***Water Fording Depth 30.0in. (76.2cm)
Use extreme caution when using any device or feature that may take your attention off the road. Your primary responsibility is the safe operation of the vehicle. Only use non-essential features and devices when it is safe to do so. Please refer to your Owner’s Guide and Raptor Supplement for further information including important safety information.
LCD Off Road Display
Approach Angle 29.8 deg.
*** Never go through water of any depth faster than 40 mph.  Speeds must be reduced significantly over 6” depth.  Max speed at 30” no greater than 6 mph.
