2013 F-150 Raptor Supplement

Introduction
2
F-150 SVT Raptor-specific features
4
Engine/Transmission
7
Driving
10
Off-road mode 10
Hill descent mode 14
Upfitter controls 15
Driving your F-150 SVT Raptor off-road 20
Roadside Emergencies
28
Wrecker towing 28

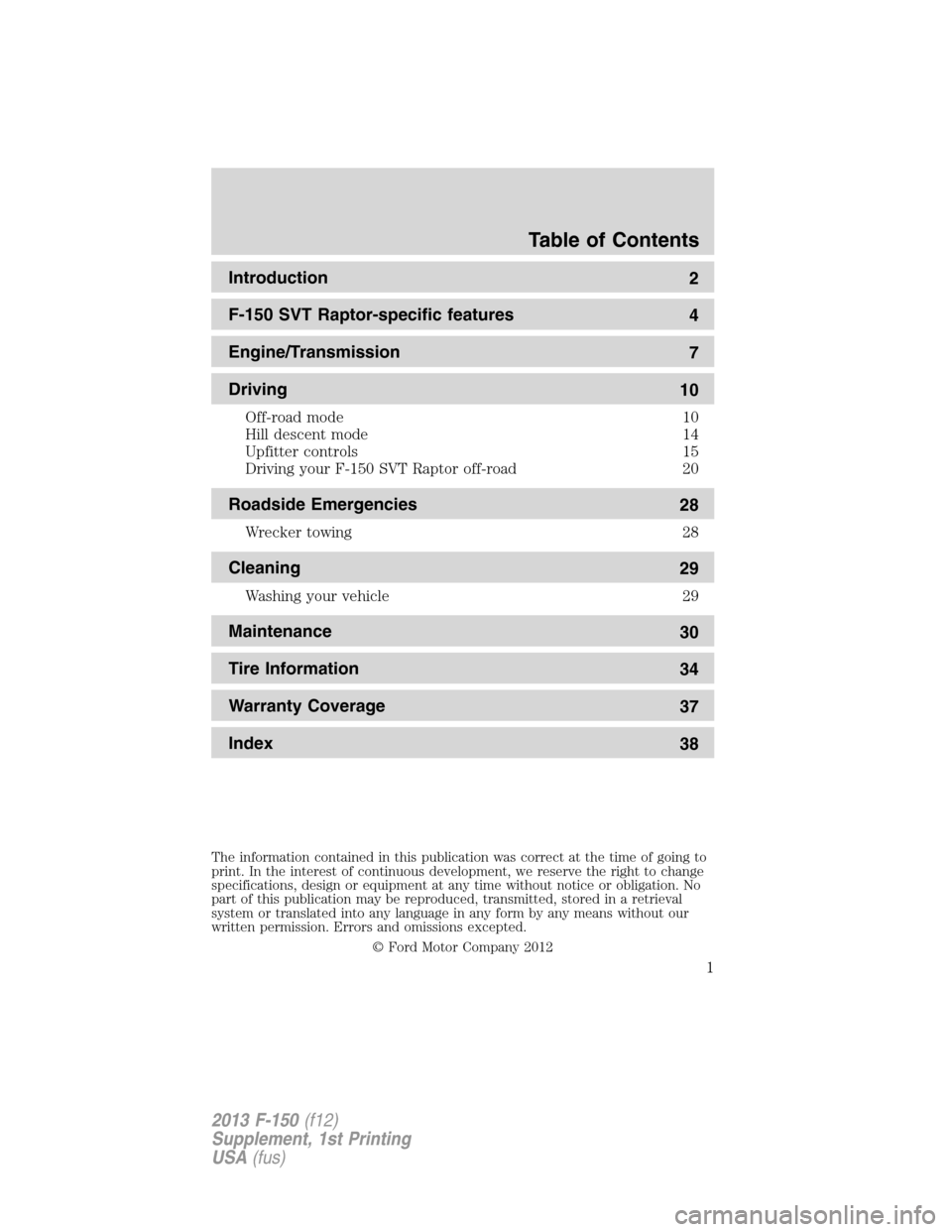

Cleaning
29
Washing your vehicle 29
Maintenance
30
Tire Information
34
Warranty Coverage
37
Index
38
The information contained in this publication was correct at the time of going to
print. In the interest of continuous development, we reserve the right to change
specifications, design or equipment at any time without notice or obligation. No
part of this publication may be reproduced, transmitted, stored in a retrieval
system or translated into any language in any form by any means without our
written permission. Errors and omissions excepted.
© Ford Motor Company 2012
Table of Contents
1
2013 F-150(f12)
Supplement, 1st Printing
USA(fus)

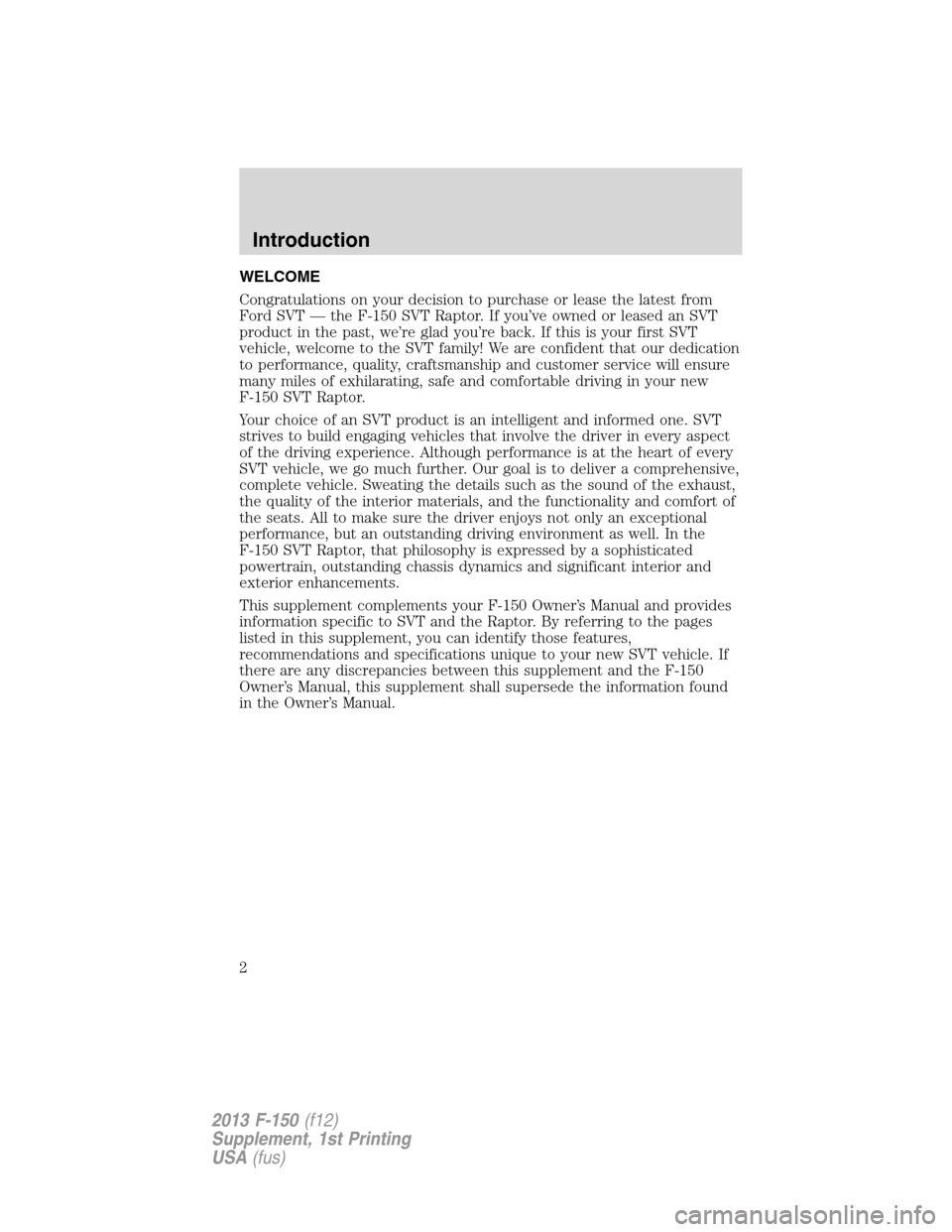

WELCOME
Congratulations on your decision to purchase or lease the latest from
Ford SVT — the F-150 SVT Raptor. If you’ve owned or leased an SVT
product in the past, we’re glad you’re back. If this is your first SVT
vehicle, welcome to the SVT family! We are confident that our dedication
to performance, quality, craftsmanship and customer service will ensure
many miles of exhilarating, safe and comfortable driving in your new
F-150 SVT Raptor.
Your choice of an SVT product is an intelligent and informed one. SVT
strives to build engaging vehicles that involve the driver in every aspect
of the driving experience. Although performance is at the heart of every
SVT vehicle, we go much further. Our goal is to deliver a comprehensive,
complete vehicle. Sweating the details such as the sound of the exhaust,
the quality of the interior materials, and the functionality and comfort of
the seats. All to make sure the driver enjoys not only an exceptional
performance, but an outstanding driving environment as well. In the
F-150 SVT Raptor, that philosophy is expressed by a sophisticated
powertrain, outstanding chassis dynamics and significant interior and
exterior enhancements.
This supplement complements your F-150 Owner’s Manual and provides
information specific to SVT and the Raptor. By referring to the pages
listed in this supplement, you can identify those features,
recommendations and specifications unique to your new SVT vehicle. If
there are any discrepancies between this supplement and the F-150
Owner’s Manual, this supplement shall supersede the information found
in the Owner’s Manual.
Introduction
2
2013 F-150(f12)
Supplement, 1st Printing
USA(fus)

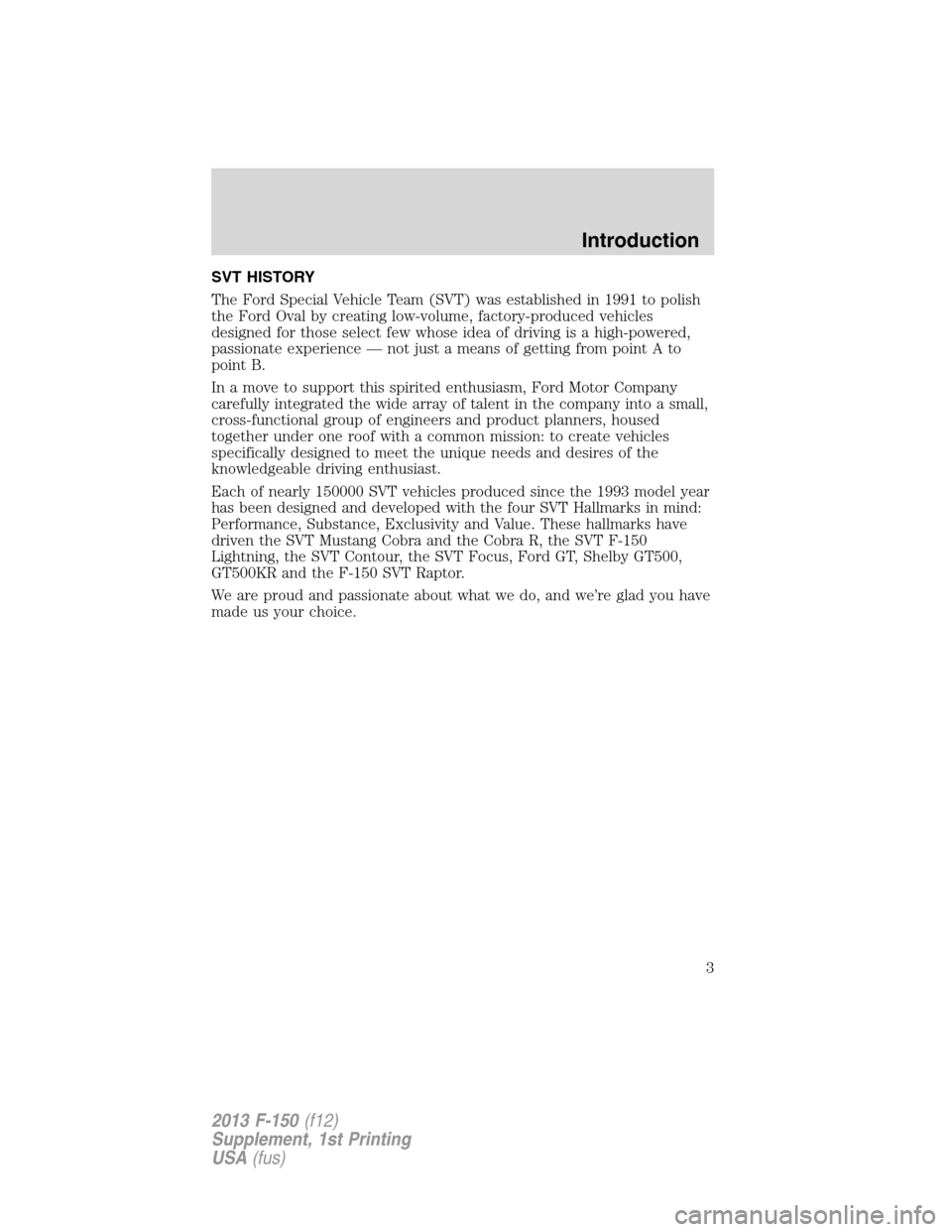

SVT HISTORY
The Ford Special Vehicle Team (SVT) was established in 1991 to polish
the Ford Oval by creating low-volume, factory-produced vehicles
designed for those select few whose idea of driving is a high-powered,
passionate experience — not just a means of getting from point A to
point B.
In a move to support this spirited enthusiasm, Ford Motor Company
carefully integrated the wide array of talent in the company into a small,
cross-functional group of engineers and product planners, housed
together under one roof with a common mission: to create vehicles
specifically designed to meet the unique needs and desires of the
knowledgeable driving enthusiast.
Each of nearly 150000 SVT vehicles produced since the 1993 model year
has been designed and developed with the four SVT Hallmarks in mind:
Performance, Substance, Exclusivity and Value. These hallmarks have
driven the SVT Mustang Cobra and the Cobra R, the SVT F-150
Lightning, the SVT Contour, the SVT Focus, Ford GT, Shelby GT500,
GT500KR and the F-150 SVT Raptor.
We are proud and passionate about what we do, and we’re glad you have
made us your choice.
Introduction
3
2013 F-150(f12)
Supplement, 1st Printing
USA(fus)

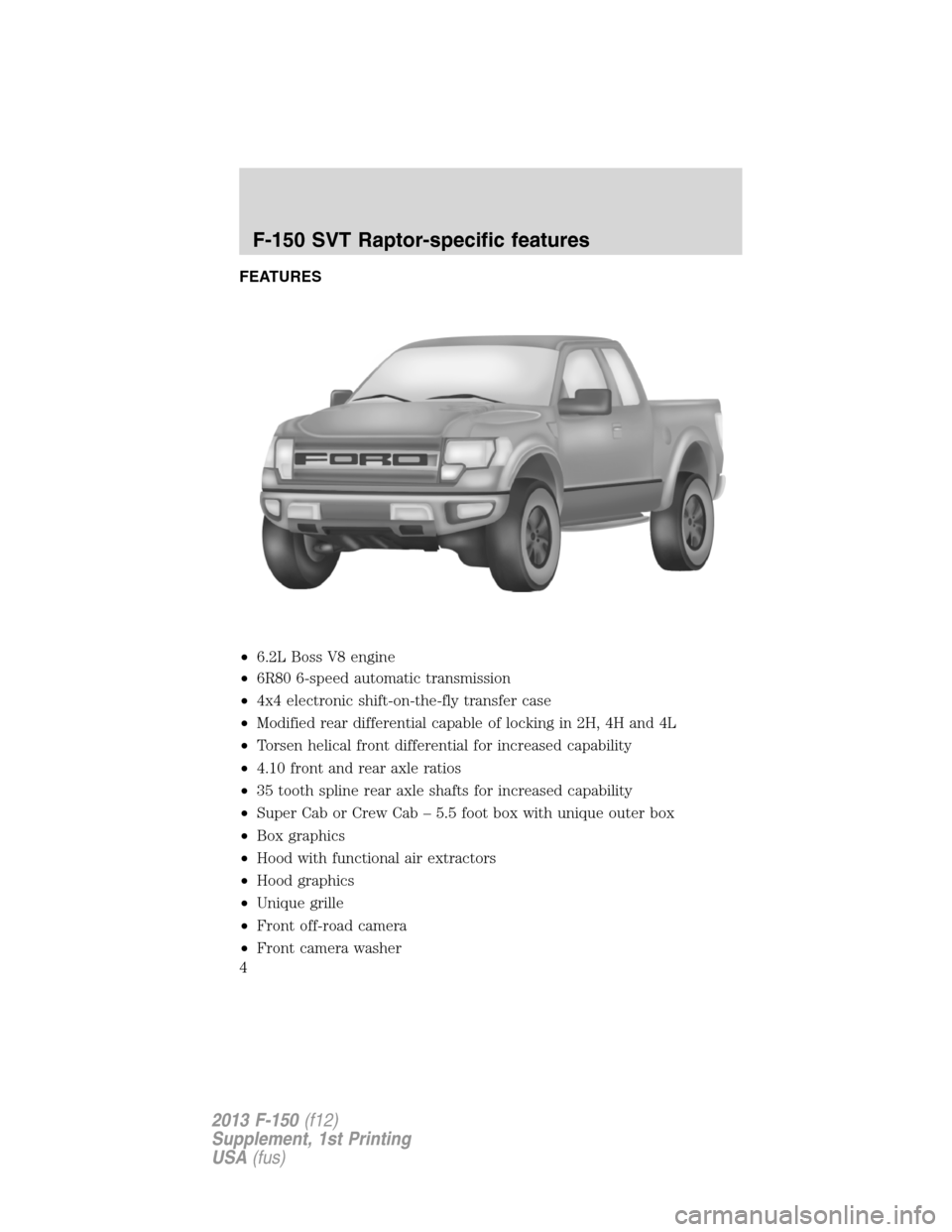

FEATURES
•6.2L Boss V8 engine
•6R80 6-speed automatic transmission
•4x4 electronic shift-on-the-fly transfer case
•Modified rear differential capable of locking in 2H, 4H and 4L
•Torsen helical front differential for increased capability
•4.10 front and rear axle ratios
•35 tooth spline rear axle shafts for increased capability
•Super Cab or Crew Cab – 5.5 foot box with unique outer box
•Box graphics
•Hood with functional air extractors
•Hood graphics
•Unique grille
•Front off-road camera
•Front camera washer
F-150 SVT Raptor-specific features
4
2013 F-150(f12)
Supplement, 1st Printing
USA(fus)

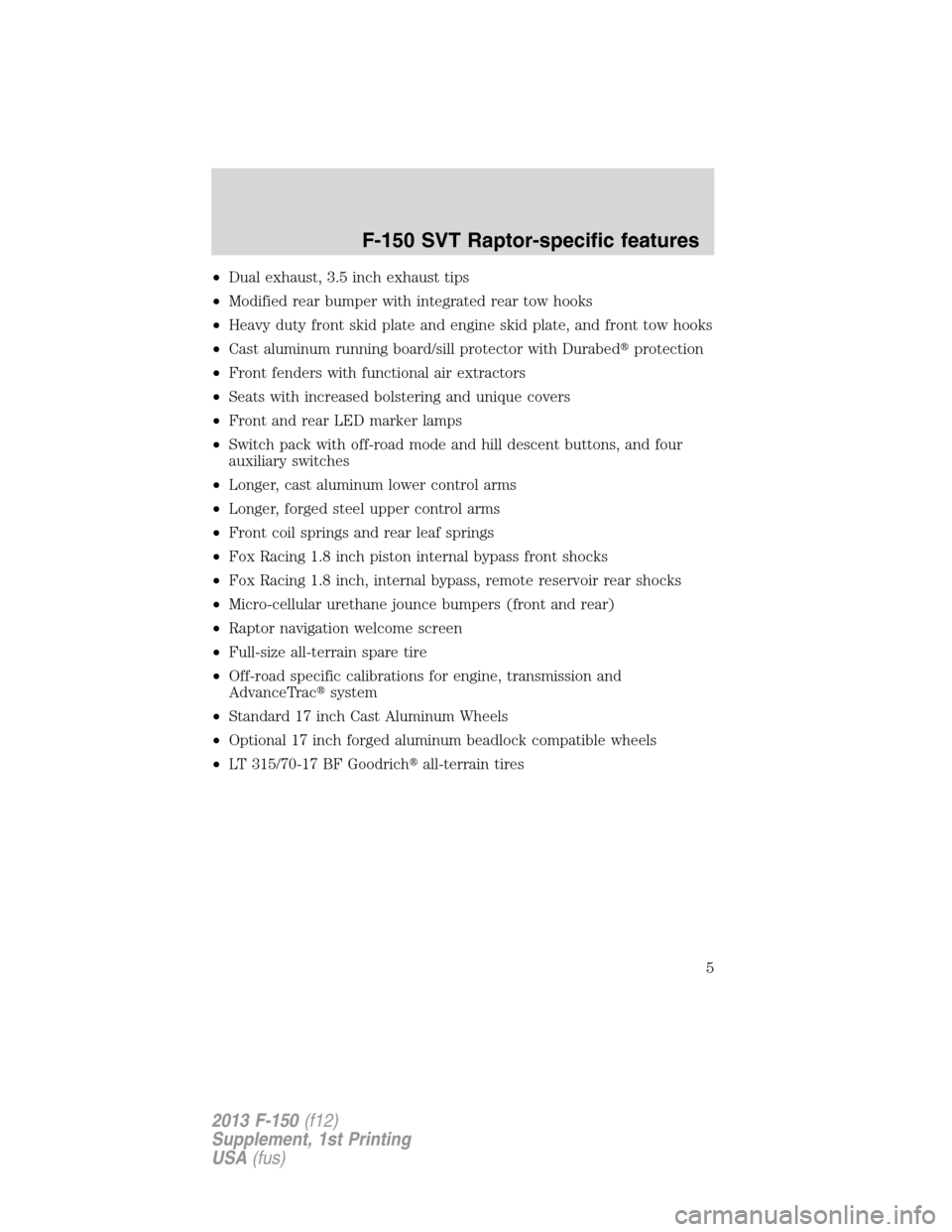

•Dual exhaust, 3.5 inch exhaust tips
•Modified rear bumper with integrated rear tow hooks
•Heavy duty front skid plate and engine skid plate, and front tow hooks
•Cast aluminum running board/sill protector with Durabedprotection
•Front fenders with functional air extractors
•Seats with increased bolstering and unique covers
•Front and rear LED marker lamps
•Switch pack with off-road mode and hill descent buttons, and four
auxiliary switches
•Longer, cast aluminum lower control arms
•Longer, forged steel upper control arms
•Front coil springs and rear leaf springs
•Fox Racing 1.8 inch piston internal bypass front shocks
•Fox Racing 1.8 inch, internal bypass, remote reservoir rear shocks
•Micro-cellular urethane jounce bumpers (front and rear)
•Raptor navigation welcome screen
•Full-size all-terrain spare tire
•Off-road specific calibrations for engine, transmission and
AdvanceTracsystem
•Standard 17 inch Cast Aluminum Wheels
•Optional 17 inch forged aluminum beadlock compatible wheels
•LT 315/70-17 BF Goodrichall-terrain tires
F-150 SVT Raptor-specific features
5
2013 F-150(f12)
Supplement, 1st Printing
USA(fus)

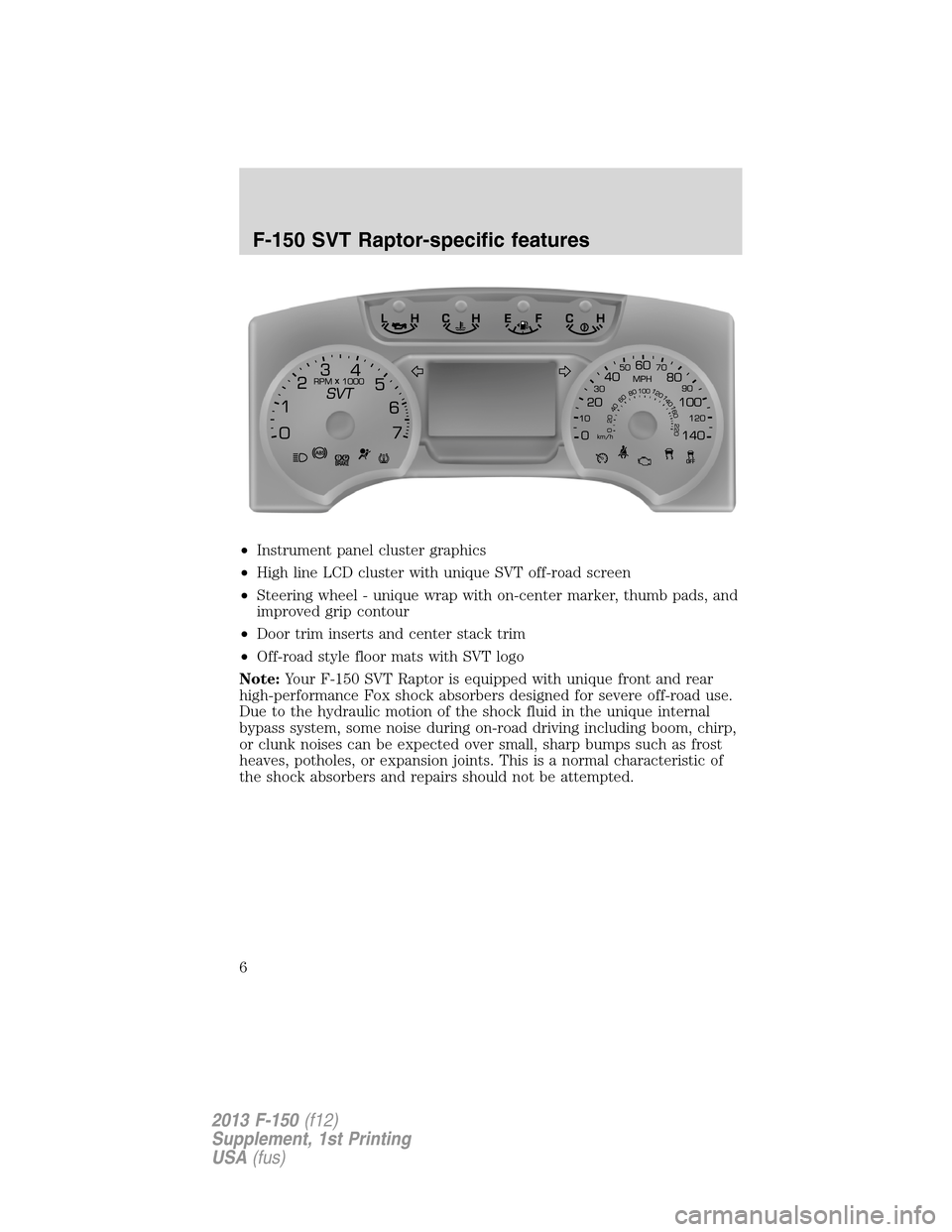

•Instrument panel cluster graphics
•High line LCD cluster with unique SVT off-road screen
•Steering wheel - unique wrap with on-center marker, thumb pads, and
improved grip contour
•Door trim inserts and center stack trim
•Off-road style floor mats with SVT logo
Note:Your F-150 SVT Raptor is equipped with unique front and rear
high-performance Fox shock absorbers designed for severe off-road use.
Due to the hydraulic motion of the shock fluid in the unique internal
bypass system, some noise during on-road driving including boom, chirp,
or clunk noises can be expected over small, sharp bumps such as frost
heaves, potholes, or expansion joints. This is a normal characteristic of
the shock absorbers and repairs should not be attempted.
F-150 SVT Raptor-specific features
6
2013 F-150(f12)
Supplement, 1st Printing
USA(fus)

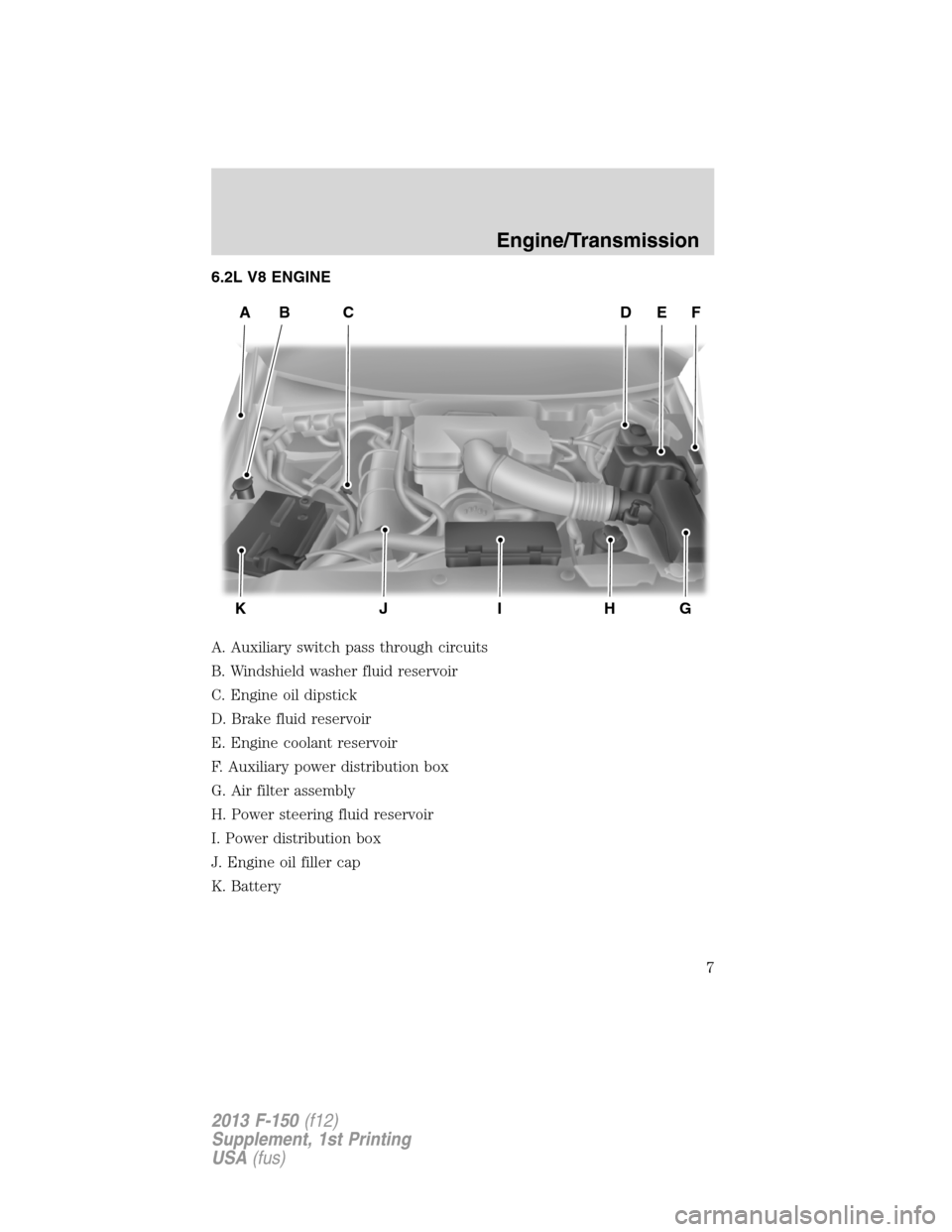

6.2L V8 ENGINE
A. Auxiliary switch pass through circuits
B. Windshield washer fluid reservoir
C. Engine oil dipstick
D. Brake fluid reservoir
E. Engine coolant reservoir
F. Auxiliary power distribution box
G. Air filter assembly
H. Power steering fluid reservoir
I. Power distribution box
J. Engine oil filler cap
K. Battery
CDEF
GHIJK
AB
Engine/Transmission
7
2013 F-150(f12)
Supplement, 1st Printing
USA(fus)

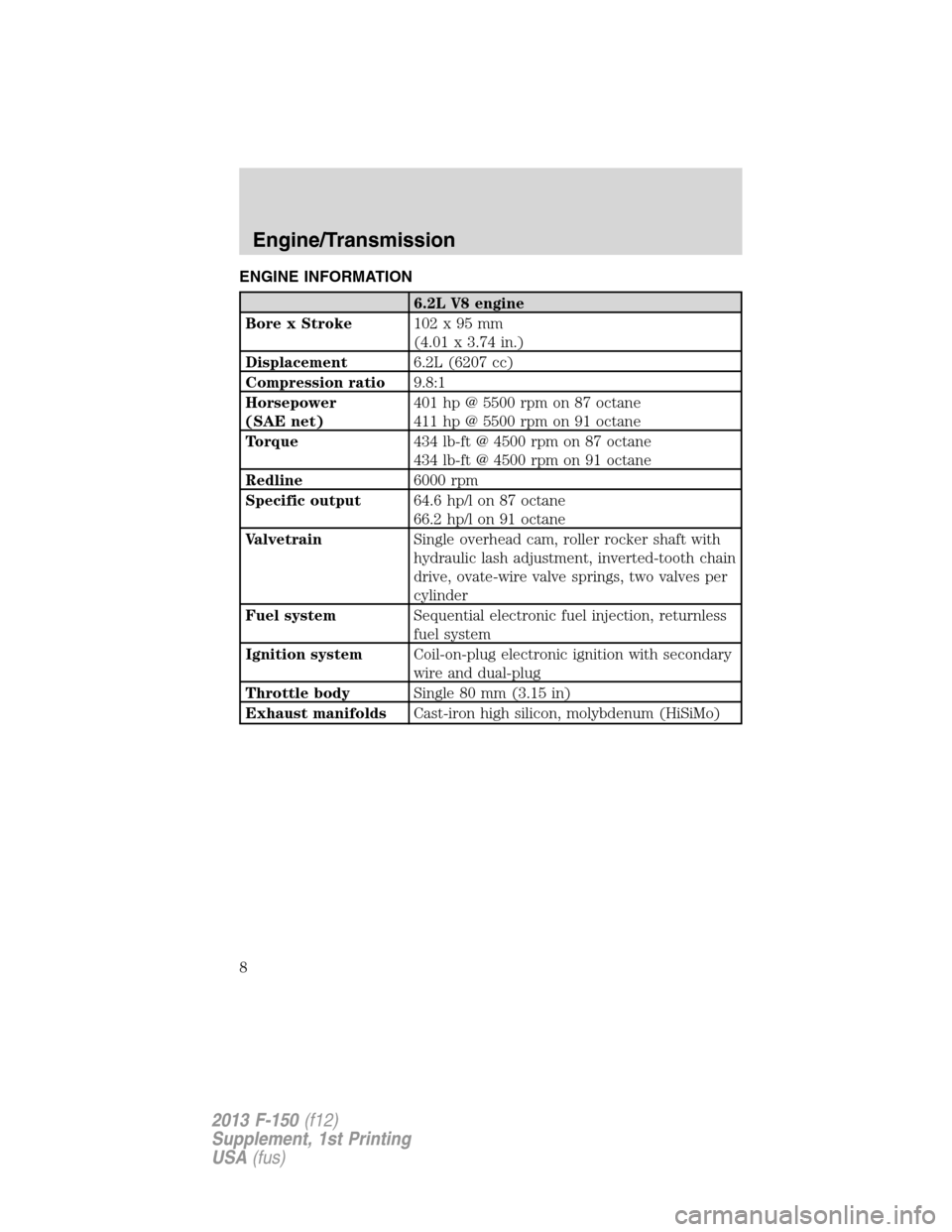

ENGINE INFORMATION
6.2L V8 engine
Bore x Stroke102x95mm
(4.01 x 3.74 in.)
Displacement6.2L (6207 cc)
Compression ratio9.8:1
Horsepower
(SAE net)401 hp @ 5500 rpm on 87 octane
411 hp @ 5500 rpm on 91 octane
Torque434 lb-ft @ 4500 rpm on 87 octane
434 lb-ft @ 4500 rpm on 91 octane
Redline6000 rpm
Specific output64.6 hp/l on 87 octane
66.2 hp/l on 91 octane
ValvetrainSingle overhead cam, roller rocker shaft with
hydraulic lash adjustment, inverted-tooth chain
drive, ovate-wire valve springs, two valves per
cylinder
Fuel systemSequential electronic fuel injection, returnless
fuel system
Ignition systemCoil-on-plug electronic ignition with secondary
wire and dual-plug
Throttle bodySingle 80 mm (3.15 in)
Exhaust manifoldsCast-iron high silicon, molybdenum (HiSiMo)
Engine/Transmission
8
2013 F-150(f12)
Supplement, 1st Printing
USA(fus)

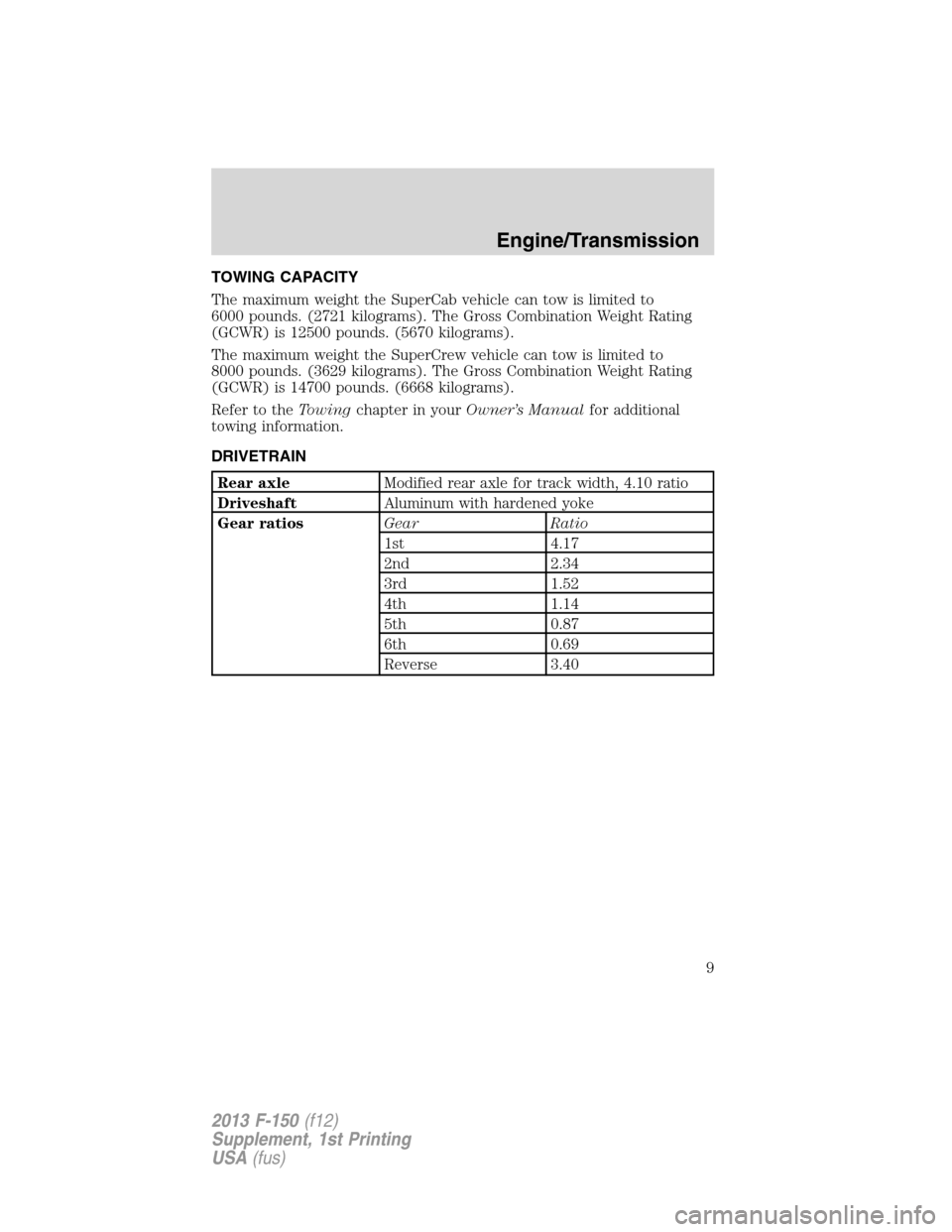

TOWING CAPACITY
The maximum weight the SuperCab vehicle can tow is limited to
6000 pounds. (2721 kilograms). The Gross Combination Weight Rating
(GCWR) is 12500 pounds. (5670 kilograms).
The maximum weight the SuperCrew vehicle can tow is limited to
8000 pounds. (3629 kilograms). The Gross Combination Weight Rating
(GCWR) is 14700 pounds. (6668 kilograms).
Refer to theTowingchapter in yourOwner’s Manualfor additional
towing information.
DRIVETRAIN
Rear axleModified rear axle for track width, 4.10 ratio
DriveshaftAluminum with hardened yoke
Gear ratiosGear Ratio
1st 4.17
2nd 2.34
3rd 1.52
4th 1.14
5th 0.87
6th 0.69
Reverse 3.40
Engine/Transmission
9
2013 F-150(f12)
Supplement, 1st Printing
USA(fus)
