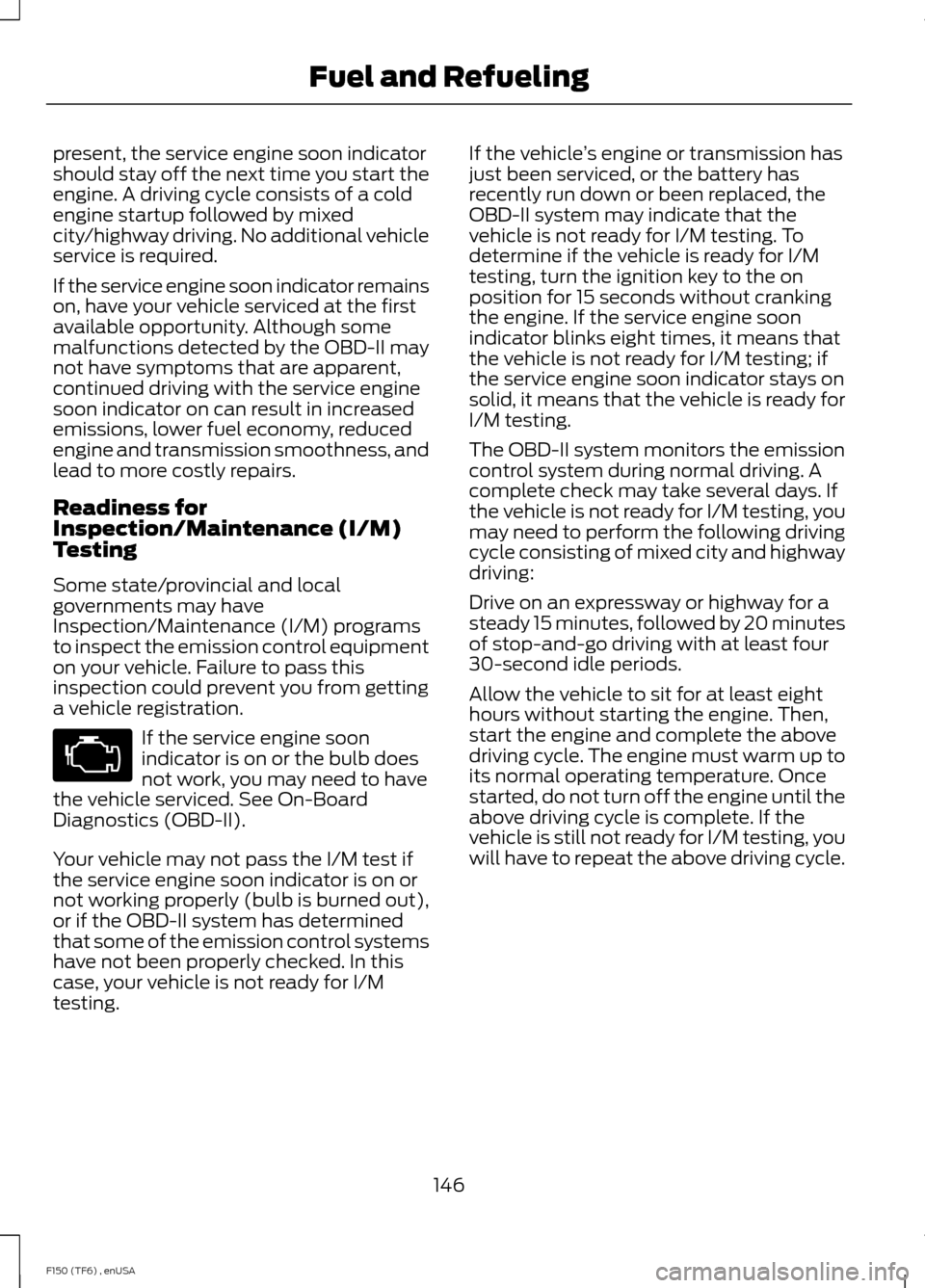

present, the service engine soon indicator
should stay off the next time you start the
engine. A driving cycle consists of a cold
engine startup followed by mixed
city/highway driving. No additional vehicle
service is required.
If the service engine soon indicator remains
on, have your vehicle serviced at the first
available opportunity. Although some
malfunctions detected by the OBD-II may
not have symptoms that are apparent,
continued driving with the service engine
soon indicator on can result in increased
emissions, lower fuel economy, reduced
engine and transmission smoothness, and
lead to more costly repairs.
Readiness for
Inspection/Maintenance (I/M)
Testing
Some state/provincial and local
governments may have
Inspection/Maintenance (I/M) programs
to inspect the emission control equipment
on your vehicle. Failure to pass this
inspection could prevent you from getting
a vehicle registration.
If the service engine soon
indicator is on or the bulb does
not work, you may need to have
the vehicle serviced. See On-Board
Diagnostics (OBD-II).
Your vehicle may not pass the I/M test if
the service engine soon indicator is on or
not working properly (bulb is burned out),
or if the OBD-II system has determined
that some of the emission control systems
have not been properly checked. In this
case, your vehicle is not ready for I/M
testing. If the vehicle
’s engine or transmission has
just been serviced, or the battery has
recently run down or been replaced, the
OBD-II system may indicate that the
vehicle is not ready for I/M testing. To
determine if the vehicle is ready for I/M
testing, turn the ignition key to the on
position for 15 seconds without cranking
the engine. If the service engine soon
indicator blinks eight times, it means that
the vehicle is not ready for I/M testing; if
the service engine soon indicator stays on
solid, it means that the vehicle is ready for
I/M testing.
The OBD-II system monitors the emission
control system during normal driving. A
complete check may take several days. If
the vehicle is not ready for I/M testing, you
may need to perform the following driving
cycle consisting of mixed city and highway
driving:
Drive on an expressway or highway for a
steady 15 minutes, followed by 20 minutes
of stop-and-go driving with at least four
30-second idle periods.
Allow the vehicle to sit for at least eight
hours without starting the engine. Then,
start the engine and complete the above
driving cycle. The engine must warm up to
its normal operating temperature. Once
started, do not turn off the engine until the
above driving cycle is complete. If the
vehicle is still not ready for I/M testing, you
will have to repeat the above driving cycle.
146
F150 (TF6) , enUSA Fuel and Refueling
Page 464 of 472

E
Economical Driving......................................210
Electronic Locking Differential.................161 Activating the Electronic Locking
Differential........................................................ 161
Emission Control System
..........................144
On-Board Diagnostics (OBD-II).................... 145
Readiness for Inspection/Maintenance (I/M) Testing................................................... 146
End User License Agreement...................421 SYNC® End User License Agreement
(EULA)............................................................... 421
Engine Block Heater.....................................137 Using the Engine Block Heater...................... 138
Engine Coolant Check
.................................241
Adding Engine Coolant.................................... 242
Checking the Engine Coolant......................... 241
Recycled Engine Coolant................................ 242
Severe Climates................................................. 243
What You Should Know About Fail-Safe Cooling.............................................................. 243
Engine Immobilizer See: Passive Anti-Theft System...................... 61
Engine Oil Check
..........................................240
Adding Engine Oil.............................................. 240
Engine Oil Dipstick......................................240
Engine Specifications................................296 Drivebelt Routing............................................... 296
Entertainment...............................................376 A/V Inputs............................................................ 392
AM/FM Radio...................................................... 378
Bluetooth Audio.................................................. 391
Browsing Device Content................................ 376
CD........................................................................\
.... 387
SD Card Slot and USB Port........................... 388
SIRIUS® Satellite Radio (If Activated)........................................................ 383
Supported Media Players, Formats and Metadata Information................................. 391Essential Towing Checks...........................201
Before Towing a Trailer................................... 206
Hitches.................................................................... 201
Launching or Retrieving a Boat or Personal Watercraft (PWC)........................................ 207
Safety Chains...................................................... 202
Trailer Brakes....................................................... 202
Trailer Lamps...................................................... 206
Trailer Towing Connector................................. 201
Using a Step Bumper (If Equipped)..........206
When Towing a Trailer..................................... 206
Event Data Recording See: Data Recording.............................................. 9
Export Unique Options..................................13
Extended Service Plan (ESP).................436 SERVICE PLANS (CANADA ONLY).............437
SERVICE PLANS (U.S. Only)......................... 436
Exterior Mirrors
................................................76
Auto-dimming Feature (if equipped)...........77
Clearance Lamps ................................................. 77
Fold-Away Exterior Mirrors................................ 77
Heated Exterior Mirrors ...................................... 77
Integrated Blind Spot Mirror (If Equipped).......................................................... 78
Memory Mirrors ..................................................... 77
Power Exterior Mirrors......................................... 76
Signal Indicator Mirrors ...................................... 77
Telescoping Mirrors ............................................. 77
F
Fastening the Safety Belts...........................31 Fastening the Cinch Tongue............................. 32
Safety Belt Extension Assembly.................... 34
Safety Belt Locking Modes............................... 32
Using Safety Belts During Pregnancy...........32
Using the Safety Belt with Cinch Tongue (Front Center Seat)......................................... 31
Floor Mats.........................................................211
Fog Lamps - Front See: Front Fog Lamps......................................... 72
Foot Pedals See: Adjusting the Pedals................................. 68
Ford Credit
..........................................................11
(U.S. Only)................................................................. 11
Four-Wheel Drive..........................................153
Front Fog Lamps.............................................72
Front Passenger Sensing System.............41
461
F150 (TF6) , enUSA Index
