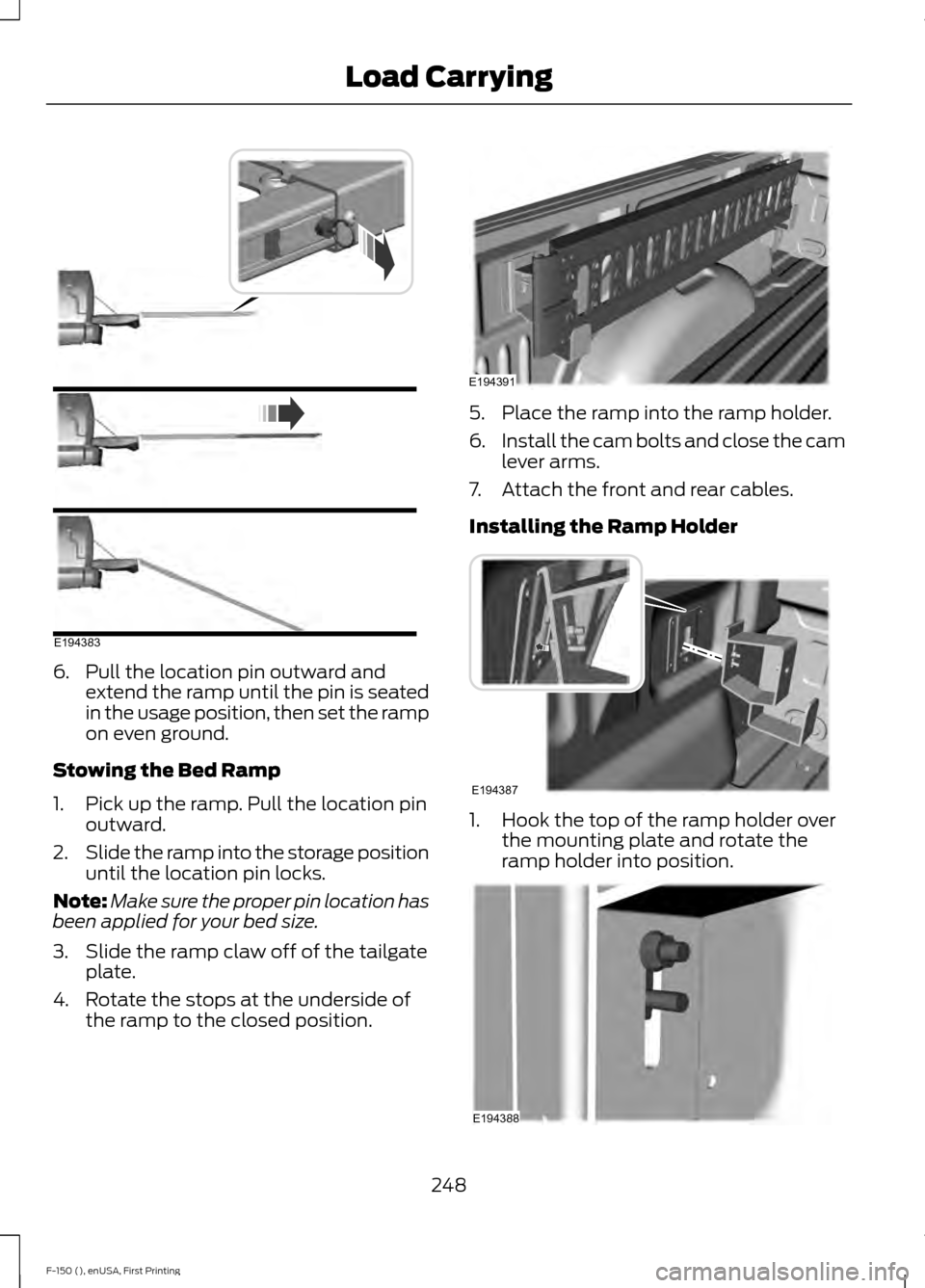

6. Pull the location pin outward and
extend the ramp until the pin is seated
in the usage position, then set the ramp
on even ground.
Stowing the Bed Ramp
1. Pick up the ramp. Pull the location pin outward.
2. Slide the ramp into the storage position
until the location pin locks.
Note: Make sure the proper pin location has
been applied for your bed size.
3. Slide the ramp claw off of the tailgate plate.
4. Rotate the stops at the underside of the ramp to the closed position. 5. Place the ramp into the ramp holder.
6.
Install the cam bolts and close the cam
lever arms.
7. Attach the front and rear cables.
Installing the Ramp Holder 1. Hook the top of the ramp holder over
the mounting plate and rotate the
ramp holder into position. 248
F-150 (), enUSA, First Printing Load CarryingE194383 E194391 E194387 E194388

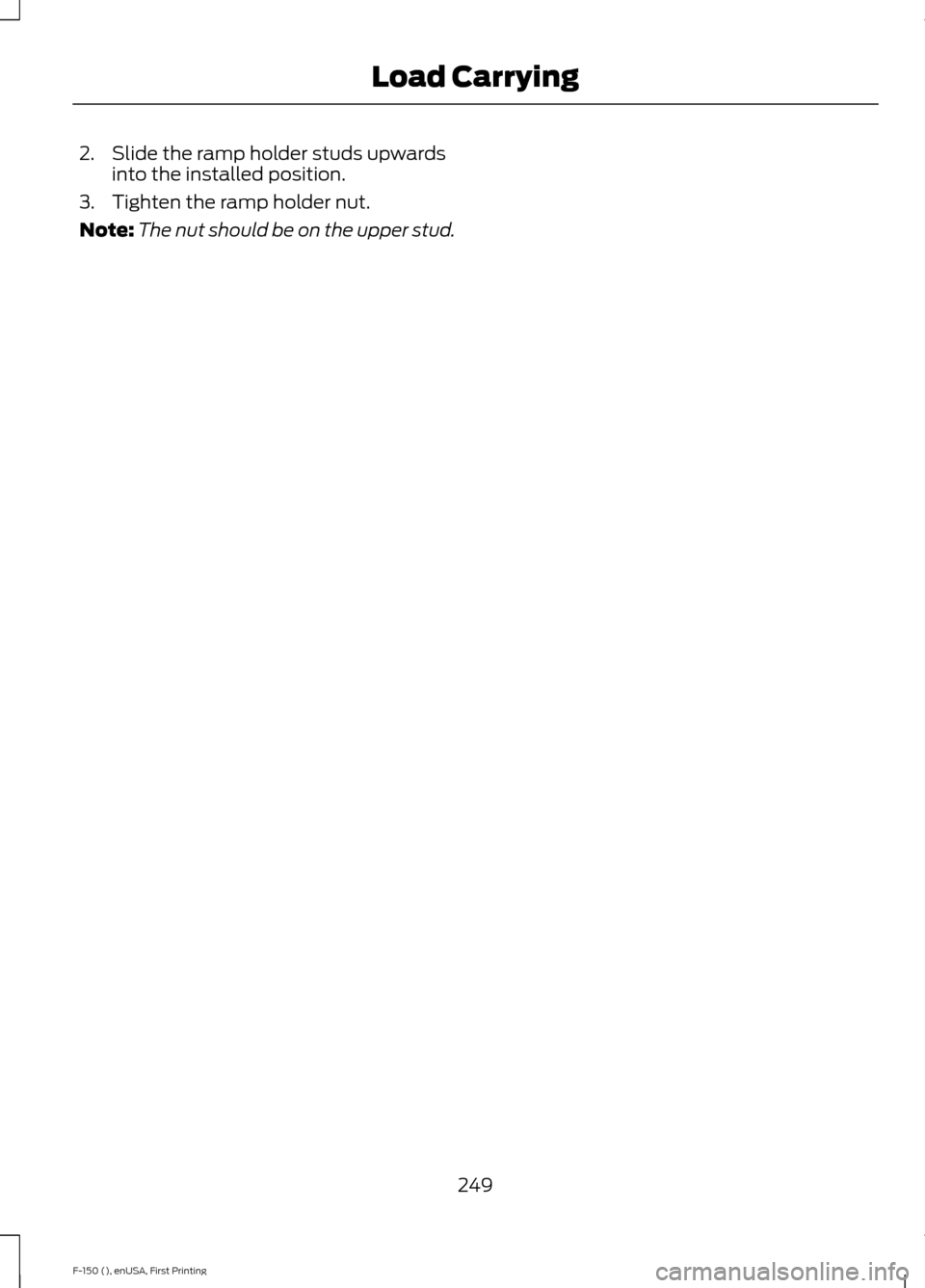

2. Slide the ramp holder studs upwards
into the installed position.
3. Tighten the ramp holder nut.
Note: The nut should be on the upper stud.
249
F-150 (), enUSA, First Printing Load Carrying

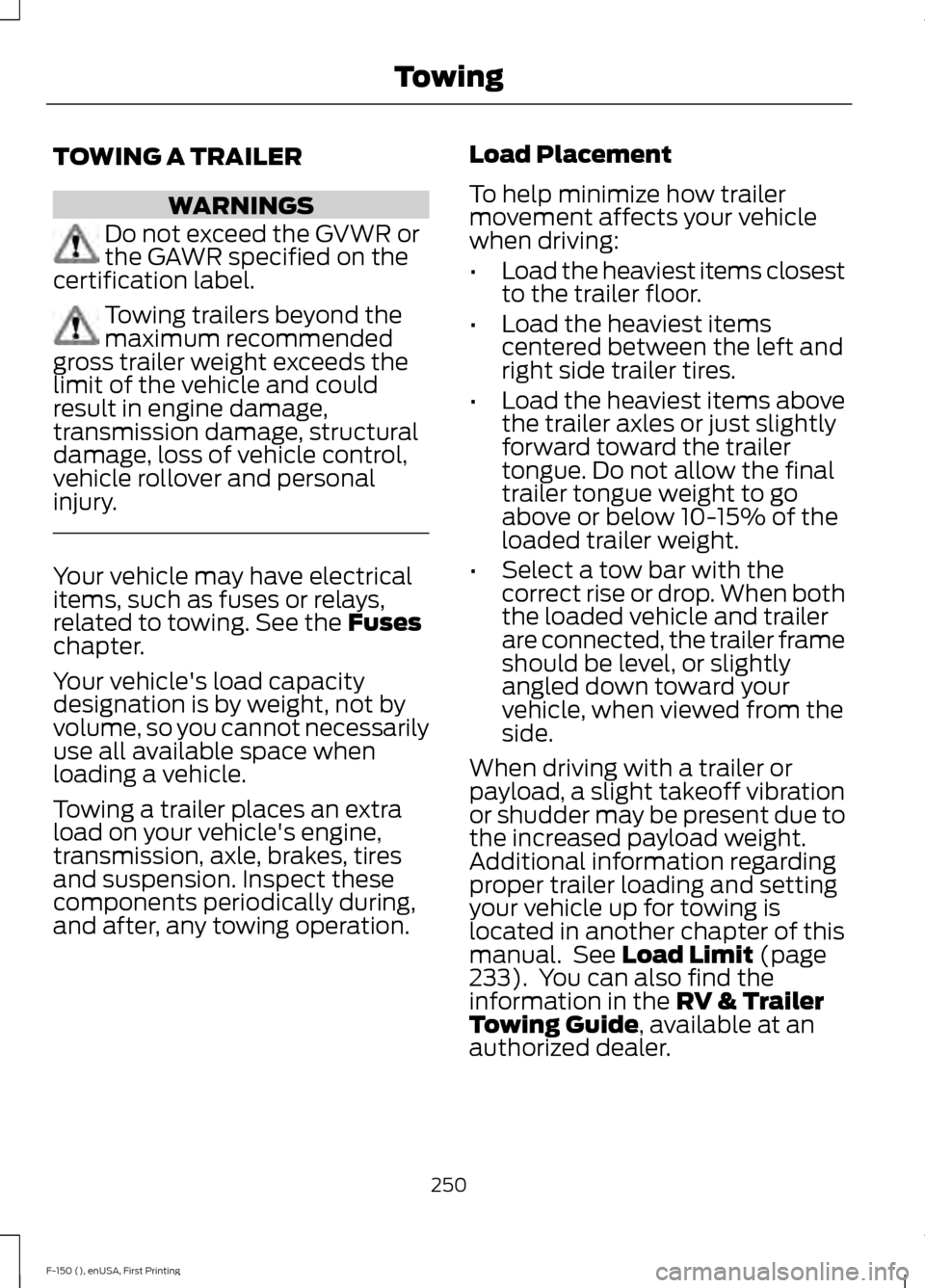

TOWING A TRAILER
WARNINGS
Do not exceed the GVWR or
the GAWR specified on the
certification label. Towing trailers beyond the
maximum recommended
gross trailer weight exceeds the
limit of the vehicle and could
result in engine damage,
transmission damage, structural
damage, loss of vehicle control,
vehicle rollover and personal
injury. Your vehicle may have electrical
items, such as fuses or relays,
related to towing. See the Fuses
chapter.
Your vehicle's load capacity
designation is by weight, not by
volume, so you cannot necessarily
use all available space when
loading a vehicle.
Towing a trailer places an extra
load on your vehicle's engine,
transmission, axle, brakes, tires
and suspension. Inspect these
components periodically during,
and after, any towing operation. Load Placement
To help minimize how trailer
movement affects your vehicle
when driving:
•
Load the heaviest items closest
to the trailer floor.
• Load the heaviest items
centered between the left and
right side trailer tires.
• Load the heaviest items above
the trailer axles or just slightly
forward toward the trailer
tongue. Do not allow the final
trailer tongue weight to go
above or below 10-15% of the
loaded trailer weight.
• Select a tow bar with the
correct rise or drop. When both
the loaded vehicle and trailer
are connected, the trailer frame
should be level, or slightly
angled down toward your
vehicle, when viewed from the
side.
When driving with a trailer or
payload, a slight takeoff vibration
or shudder may be present due to
the increased payload weight.
Additional information regarding
proper trailer loading and setting
your vehicle up for towing is
located in another chapter of this
manual. See
Load Limit (page
233). You can also find the
information in the RV & Trailer
Towing Guide, available at an
authorized dealer.
250
F-150 (), enUSA, First Printing Towing

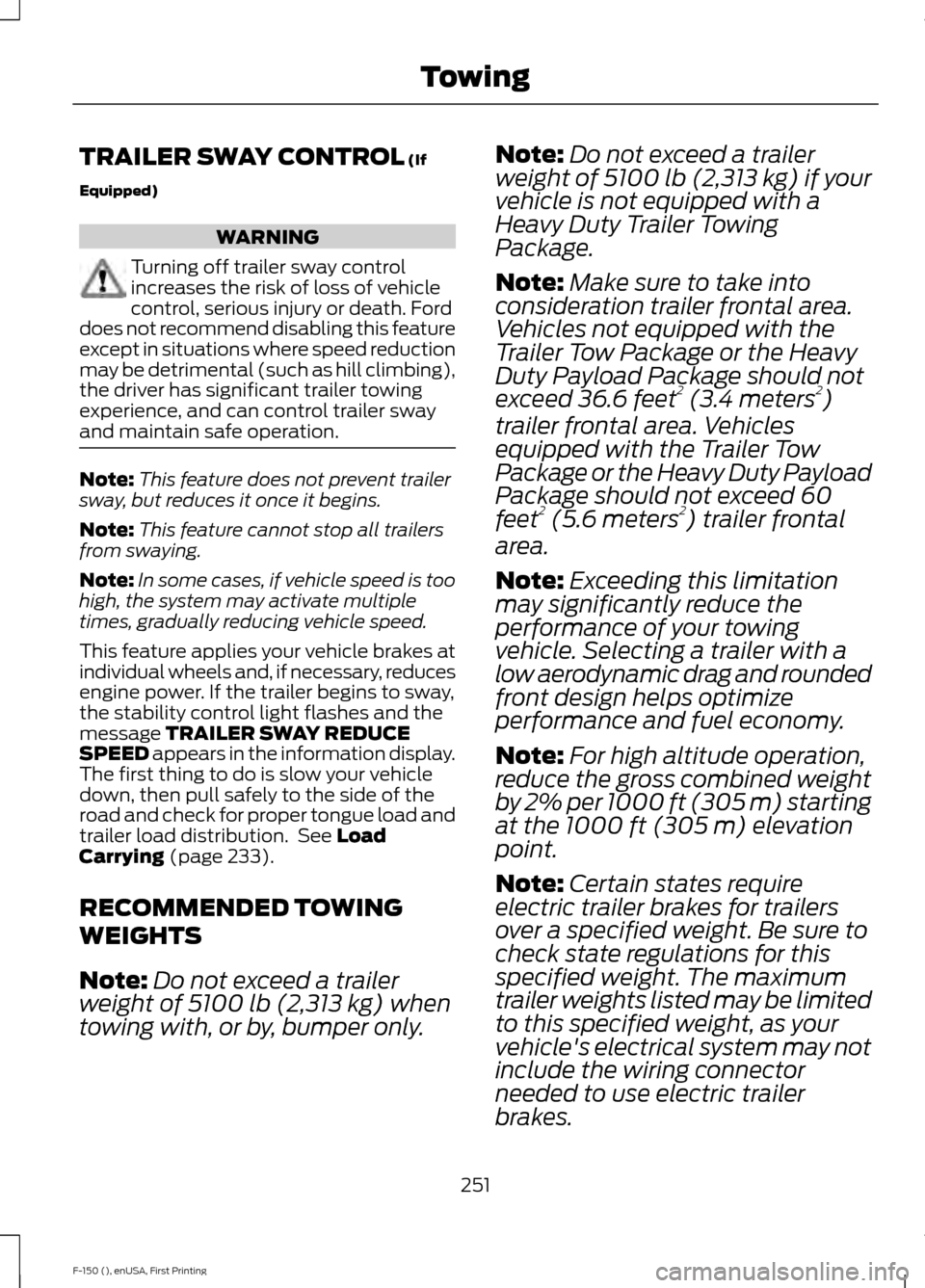

TRAILER SWAY CONTROL (If
Equipped) WARNING
Turning off trailer sway control
increases the risk of loss of vehicle
control, serious injury or death. Ford
does not recommend disabling this feature
except in situations where speed reduction
may be detrimental (such as hill climbing),
the driver has significant trailer towing
experience, and can control trailer sway
and maintain safe operation. Note:
This feature does not prevent trailer
sway, but reduces it once it begins.
Note: This feature cannot stop all trailers
from swaying.
Note: In some cases, if vehicle speed is too
high, the system may activate multiple
times, gradually reducing vehicle speed.
This feature applies your vehicle brakes at
individual wheels and, if necessary, reduces
engine power. If the trailer begins to sway,
the stability control light flashes and the
message
TRAILER SWAY REDUCE
SPEED appears in the information display.
The first thing to do is slow your vehicle
down, then pull safely to the side of the
road and check for proper tongue load and
trailer load distribution. See
Load
Carrying (page 233).
RECOMMENDED TOWING
WEIGHTS
Note: Do not exceed a trailer
weight of
5100 lb (2,313 kg) when
towing with, or by, bumper only. Note:
Do not exceed a trailer
weight of
5100 lb (2,313 kg) if your
vehicle is not equipped with a
Heavy Duty Trailer Towing
Package.
Note: Make sure to take into
consideration trailer frontal area.
Vehicles not equipped with the
Trailer Tow Package or the Heavy
Duty Payload Package should not
exceed 36.6 feet 2
(3.4 meters 2
)
trailer frontal area. Vehicles
equipped with the Trailer Tow
Package or the Heavy Duty Payload
Package should not exceed 60
feet 2
(5.6 meters 2
) trailer frontal
area.
Note: Exceeding this limitation
may significantly reduce the
performance of your towing
vehicle. Selecting a trailer with a
low aerodynamic drag and rounded
front design helps optimize
performance and fuel economy.
Note: For high altitude operation,
reduce the gross combined weight
by 2% per
1000 ft (305 m) starting
at the 1000 ft (305 m) elevation
point.
Note: Certain states require
electric trailer brakes for trailers
over a specified weight. Be sure to
check state regulations for this
specified weight. The maximum
trailer weights listed may be limited
to this specified weight, as your
vehicle's electrical system may not
include the wiring connector
needed to use electric trailer
brakes.
251
F-150 (), enUSA, First Printing Towing

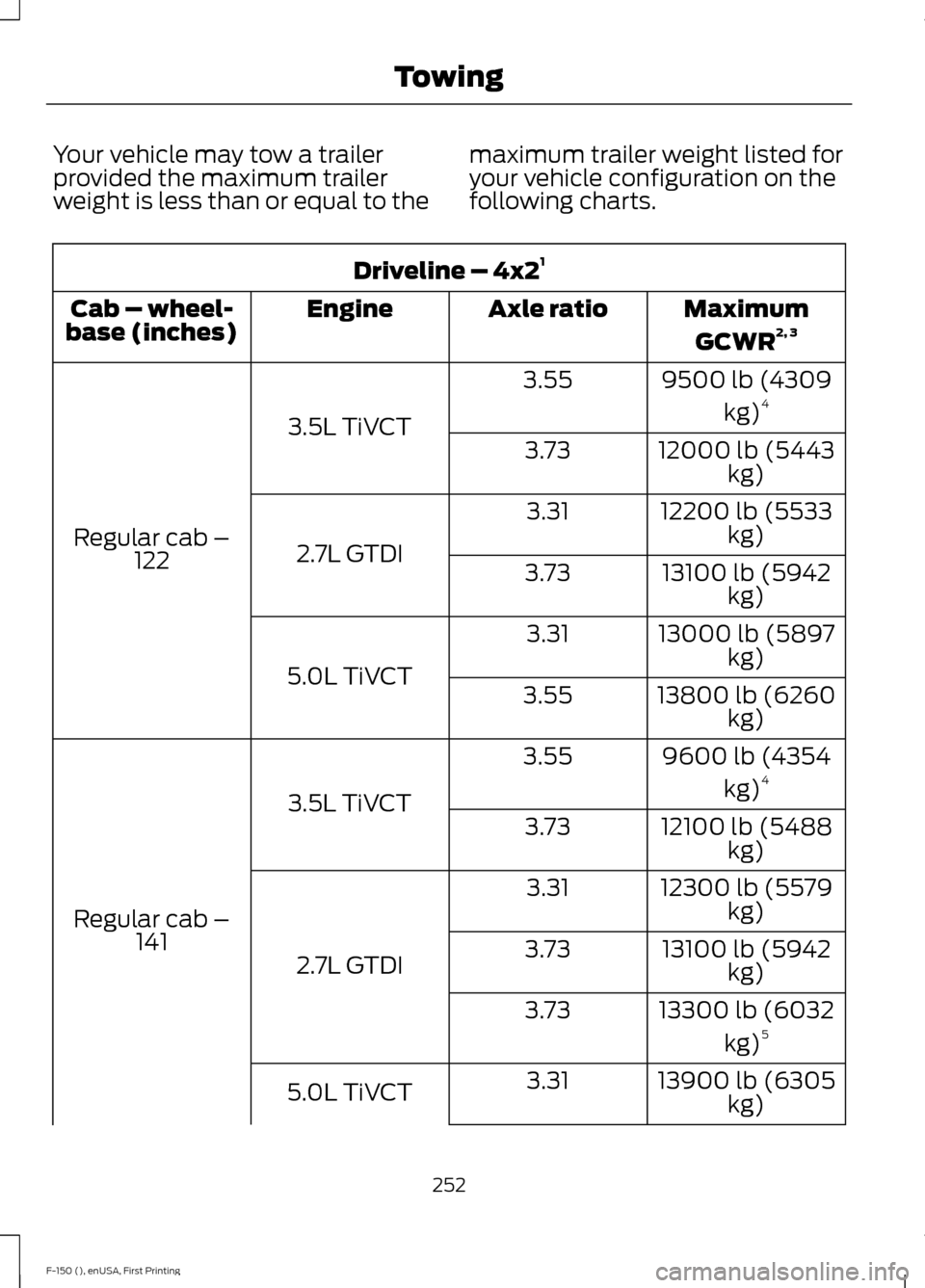

Your vehicle may tow a trailer
provided the maximum trailer
weight is less than or equal to the
maximum trailer weight listed for
your vehicle configuration on the
following charts.Driveline – 4x2
1
MaximumGCWR 2, 3
Axle ratio
Engine
Cab – wheel-
base (inches)
9500 lb (4309kg)4
3.55
3.5L TiVCT
Regular cab – 122 12000 lb (5443
kg)
3.73
12200 lb (5533kg)
3.31
2.7L GTDI 13100 lb (5942
kg)
3.73
13000 lb (5897kg)
3.31
5.0L TiVCT 13800 lb (6260
kg)
3.55
9600 lb (4354kg)4
3.55
3.5L TiVCT
Regular cab – 141 12100 lb (5488
kg)
3.73
12300 lb (5579kg)
3.31
2.7L GTDI 13100 lb (5942
kg)
3.73
13300 lb (6032kg)5
3.73
13900 lb (6305kg)
3.31
5.0L TiVCT
252
F-150 (), enUSA, First Printing Towing

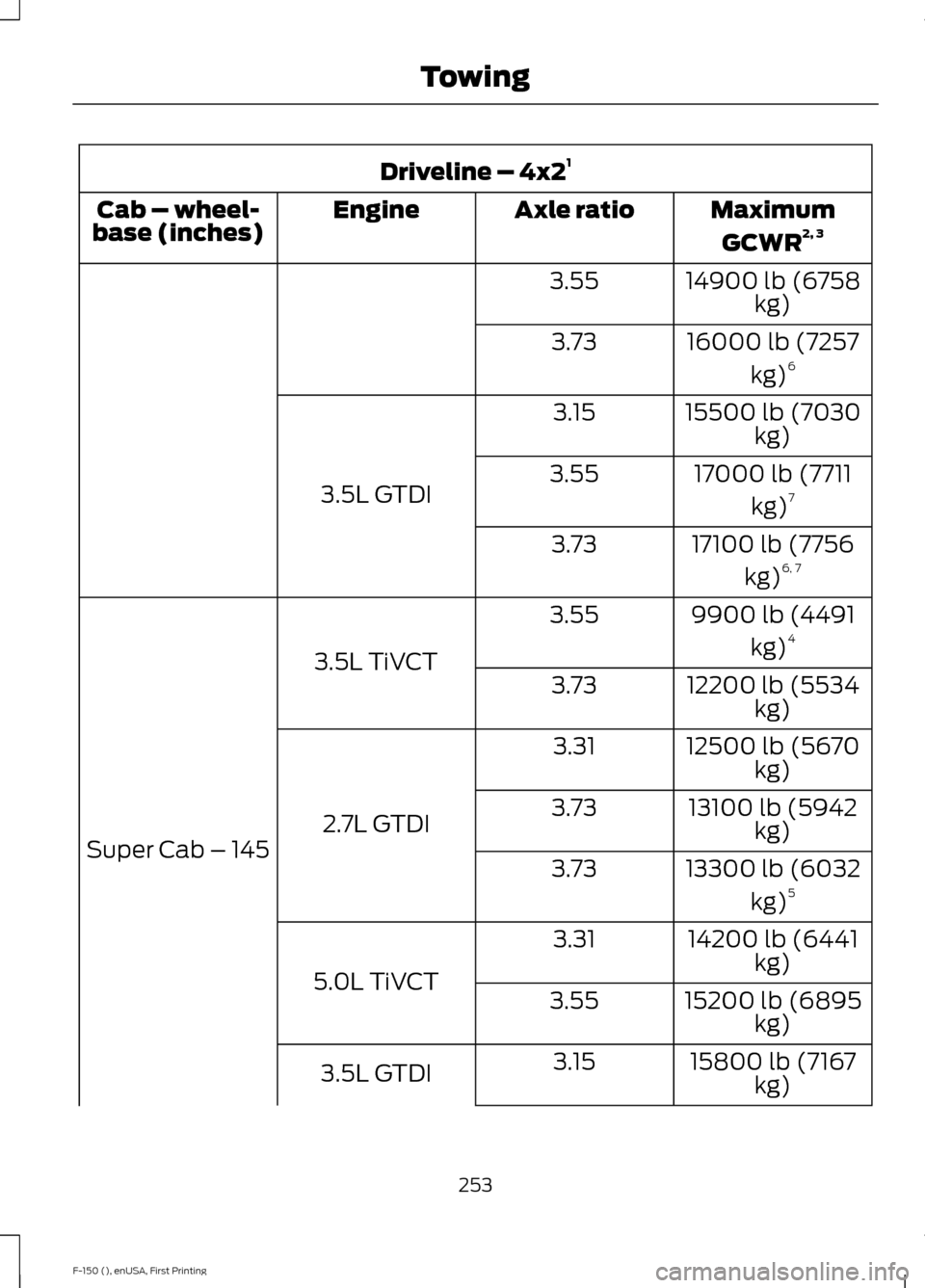

Driveline – 4x2
1
MaximumGCWR 2, 3
Axle ratio
Engine
Cab – wheel-
base (inches)
14900 lb (6758kg)
3.55
16000 lb (7257kg)6
3.73
15500 lb (7030kg)
3.15
3.5L GTDI 17000 lb (7711
kg)7
3.55
17100 lb (7756kg)6, 7
3.73
9900 lb (4491kg)4
3.55
3.5L TiVCT
Super Cab – 145 12200 lb (5534
kg)
3.73
12500 lb (5670kg)
3.31
2.7L GTDI 13100 lb (5942
kg)
3.73
13300 lb (6032kg)5
3.73
14200 lb (6441kg)
3.31
5.0L TiVCT 15200 lb (6895
kg)
3.55
15800 lb (7167kg)
3.15
3.5L GTDI
253
F-150 (), enUSA, First Printing Towing

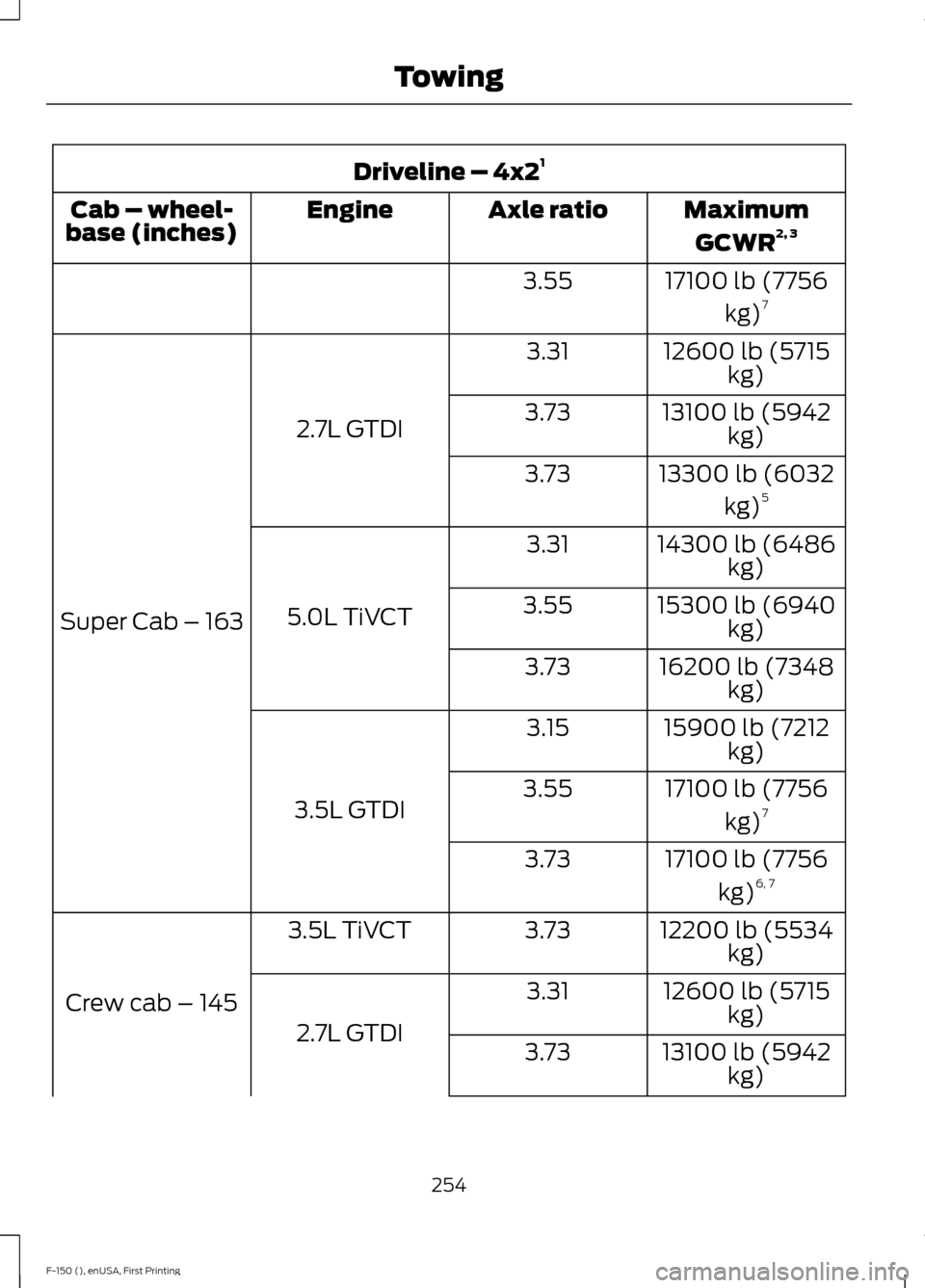

Driveline – 4x2
1
MaximumGCWR 2, 3
Axle ratio
Engine
Cab – wheel-
base (inches)
17100 lb (7756kg)7
3.55
12600 lb (5715kg)
3.31
2.7L GTDI
Super Cab – 163 13100 lb (5942
kg)
3.73
13300 lb (6032kg)5
3.73
14300 lb (6486kg)
3.31
5.0L TiVCT 15300 lb (6940
kg)
3.55
16200 lb (7348kg)
3.73
15900 lb (7212kg)
3.15
3.5L GTDI 17100 lb (7756
kg)7
3.55
17100 lb (7756kg)6, 7
3.73
12200 lb (5534kg)
3.73
3.5L TiVCT
Crew cab – 145 12600 lb (5715
kg)
3.31
2.7L GTDI 13100 lb (5942
kg)
3.73
254
F-150 (), enUSA, First Printing Towing

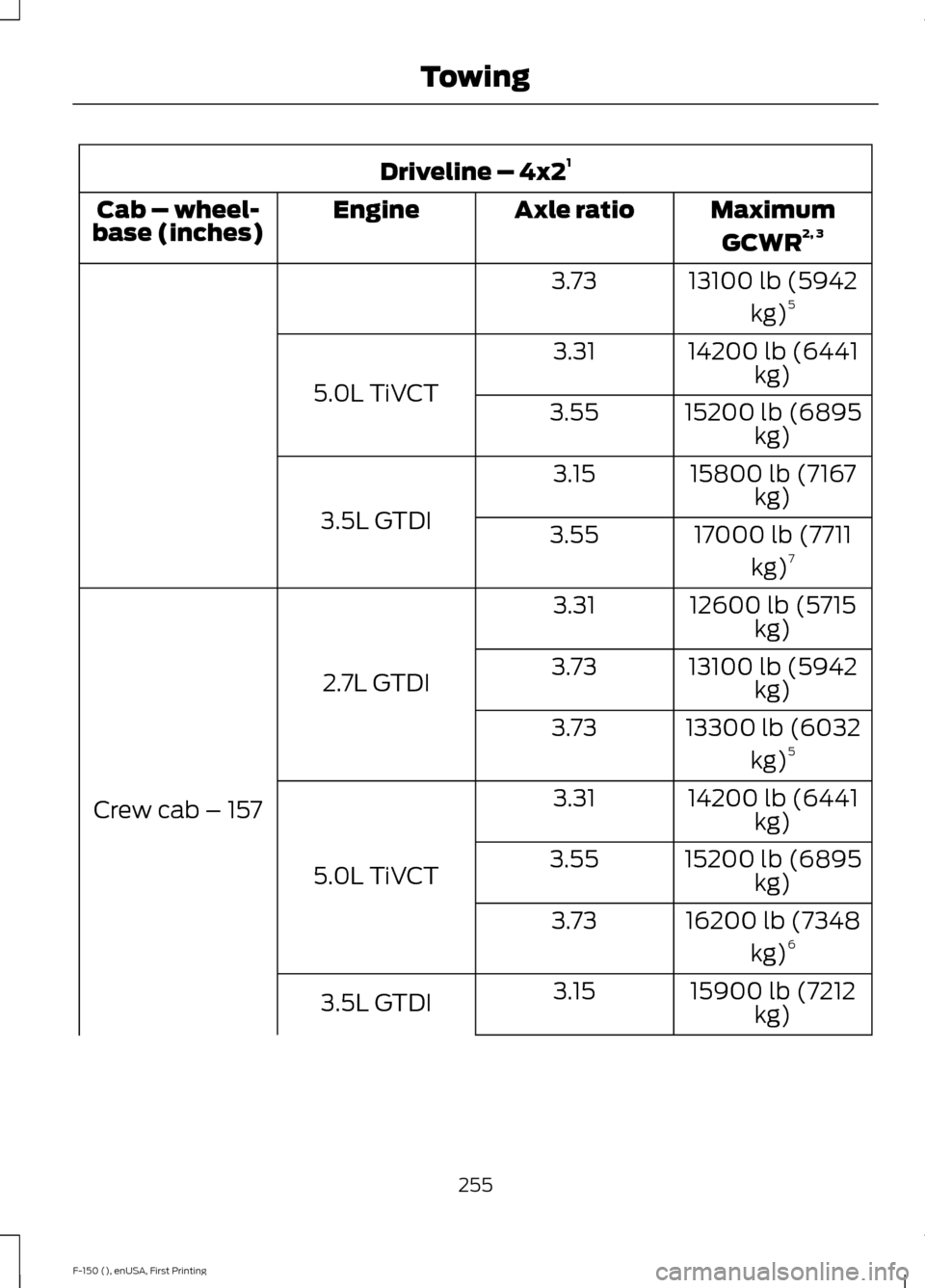

Driveline – 4x2
1
MaximumGCWR 2, 3
Axle ratio
Engine
Cab – wheel-
base (inches)
13100 lb (5942kg)5
3.73
14200 lb (6441kg)
3.31
5.0L TiVCT 15200 lb (6895
kg)
3.55
15800 lb (7167kg)
3.15
3.5L GTDI 17000 lb (7711
kg)7
3.55
12600 lb (5715kg)
3.31
2.7L GTDI
Crew cab – 157 13100 lb (5942
kg)
3.73
13300 lb (6032kg)5
3.73
14200 lb (6441kg)
3.31
5.0L TiVCT 15200 lb (6895
kg)
3.55
16200 lb (7348kg)6
3.73
15900 lb (7212kg)
3.15
3.5L GTDI
255
F-150 (), enUSA, First Printing Towing

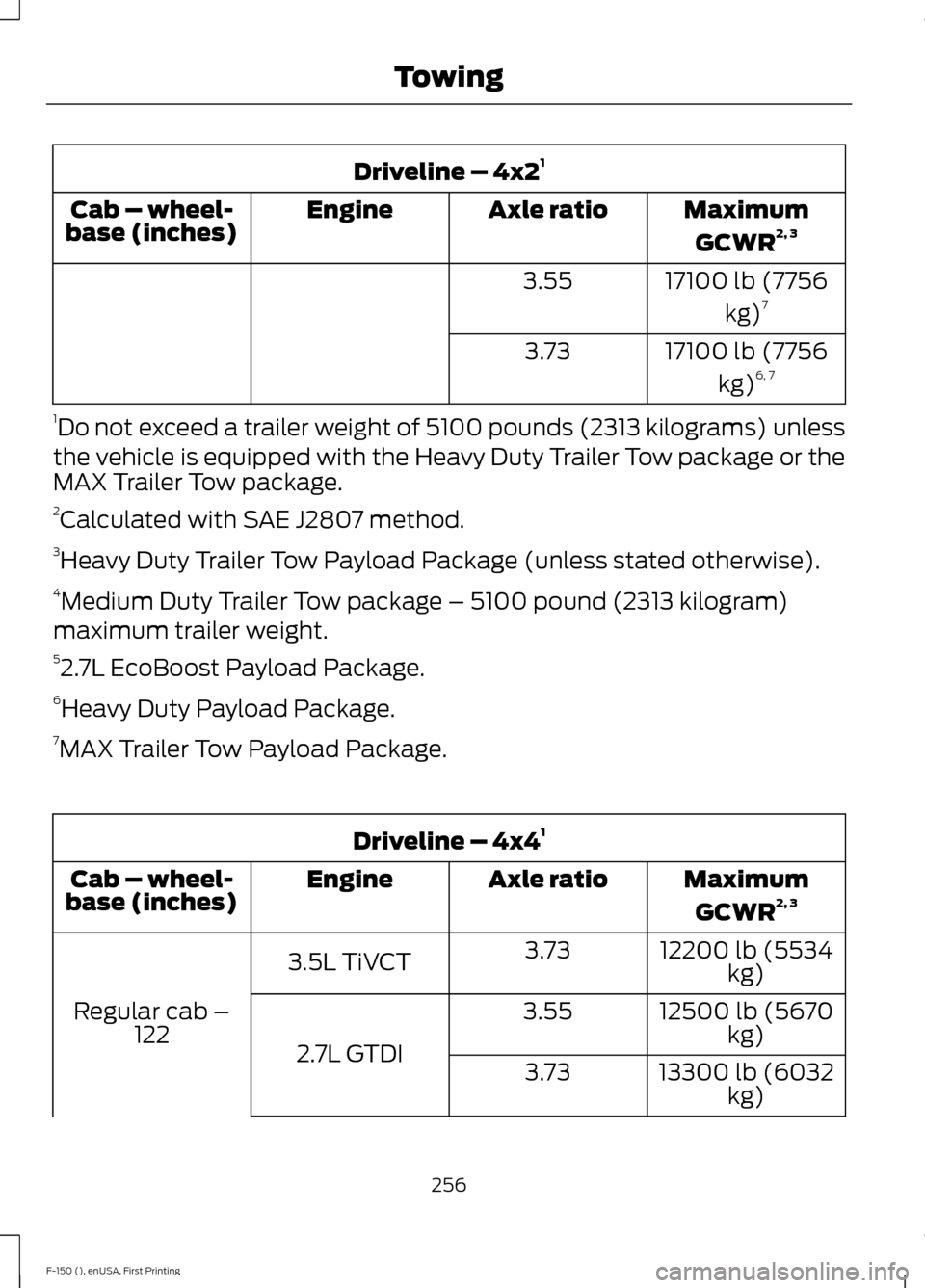

Driveline – 4x2
1
MaximumGCWR 2, 3
Axle ratio
Engine
Cab – wheel-
base (inches)
17100 lb (7756kg)7
3.55
17100 lb (7756kg)6, 7
3.73
1 Do not exceed a trailer weight of 5100 pounds (2313 kilograms) unless
the vehicle is equipped with the Heavy Duty Trailer Tow package or the
MAX Trailer Tow package.
2 Calculated with SAE J2807 method.
3 Heavy Duty Trailer Tow Payload Package (unless stated otherwise).
4 Medium Duty Trailer Tow package – 5100 pound (2313 kilogram)
maximum trailer weight.
5 2.7L EcoBoost Payload Package.
6 Heavy Duty Payload Package.
7 MAX Trailer Tow Payload Package. Driveline – 4x4
1
MaximumGCWR 2, 3
Axle ratio
Engine
Cab – wheel-
base (inches)
12200 lb (5534kg)
3.73
3.5L TiVCT
Regular cab – 122 12500 lb (5670
kg)
3.55
2.7L GTDI 13300 lb (6032
kg)
3.73
256
F-150 (), enUSA, First Printing Towing

Driveline – 4x4
1
MaximumGCWR 2, 3
Axle ratio
Engine
Cab – wheel-
base (inches)
13200 lb (5987kg)
3.31, 3.55
5.0L TiVCT 14600 lb (6622
kg)
3.73
12200 lb (5534kg)
3.73
3.5L TiVCT
Regular cab – 141 12500 lb (5670
kg)
3.55
2.7L GTDI 13300 lb (6032
kg)
3.73
13300 lb (6032kg)4
3.73
14100 lb (6396kg)
3.31, 3.55
5.0L TiVCT 16200 lb (7348
kg)
3.73
16200 lb (7348kg)5
3.73
15800 lb (7167kg)
3.31
3.5L GTDI 15800 lb (7167
kg)
3.55
17100 lb (7756kg)6
3.55
17000 lb (7711kg)5, 6
3.73
