The label contains the name of the manufacturer,
the month and year of manufacture, the
certification statement and the Vehicle
Identification Number. The label also contains
Gross Vehicle Weight Rating and Gross Axle
Weight Ratings, wheel and tire data and
information codes for additional vehicle data.
For further information about the Safety
Compliance Certification Label and the
information contained on it, refer to the Index.
[II05750(FM)04/96]
Incomplete Vehicles
[II05800(FM)04/96]
On completed derivations of incomplete vehicles,
the Safety Compliance Certification Label is
affixed at a location determined by a subsequent
stage manufacturer of the completed vehicle. In
these cases the completed vehicle is
manufactured in two (or more) stages by two (or
more) separate manufacturers, with the
manufacture of the completed vehicle occurring
at a later date than the manufacture of the
incomplete vehicle. Consequently, the model
year of the completed vehicle may be later than
the model year of its chassis.
%*
[II05850(FM)01/96]
Federal Highway Administration
Regulation
*
[II05900(FM)01/96]
Regulations such as those issued by the Federal
Highway Administration or issued pursuant to
the Occupational Safety and Health Act (OSHA),
and/or state and local laws and regulations may
require additional equipment for the way you
intend to use the vehicle. It is the responsibility
of the registered owner to determine the
applicability of such laws and regulations to
your intended use for the vehicle, and to
arrange for the installation of required
equipment. Your Ford dealer has information
about the availability of many items of
equipment which may be ordered for your
vehicle.
File:02ltiif.ex
Update:Tue May 28 08:39:40 1996
ProCarManuals.com

9
%*
[II06000(FM)01/96]
Breaking Your Vehicle In
*
[II06100(FM)01/96]
Your new vehicle goes through an adjustment or
break-in period during the first 1,000 miles
(1,600 km) that you drive it. During the break-in
period, you need to pay careful attention to how
you drive your vehicle.
%*
[II06300(FM)01/96]
q
Avoid sudden stops.Because your vehicle
has new brake linings, you should take these
steps:
*
[II06400(FM)01/96]
Ð Watch traffic carefully so that you can
anticipate when to stop.
*
[II06500(FM)01/96]
Ð Begin braking well in advance.
*
[II06600(FM)01/96]
Ð Apply the brakes gradually.
*
[II06700(FM)01/96]
The break-in period for new brake linings
lasts for 100 miles (160 km) of city driving or
1,000 miles (1,600 km) of highway driving.
*
[II06750(FM)03/96]
q
Wheel lug nuts must be retightened to proper
torque specifications at 500 miles/800 km of
new vehicle operation. Proper torque
specifications are provided in this guide. Also
retighten to proper torque specifications at
500 miles/800 km after any wheel change or
any other time the wheel lug nuts have been
loosened.
%*
[II06800(F )03/96]
q
Use only the type of engine oil that Ford
recommends.SeeEngine oil recommendations
in the Index. Do not use special ªbreak-inº
oils.
File:02ltiif.ex
Update:Tue May 28 08:39:40 1996
ProCarManuals.com

11
Instrumentation
%*
[IS00600(FM)01/96]
The instrument panel (dashboard) on your
vehicle is divided into several different sections.
The illustrations on the following pages show
the major parts of the instrument panel that are
described in this chapter. Some items shown
may not be on all vehicles.
*
[IS00700(F )03/96]
Your vehicle has one of the following clusters:
*
[IS00900(F )03/96]
q
A mechanical cluster
*
[IS01000(F )03/96]
q
A mechanical cluster with tachometer
*
[IS01100(F )03/96]
If you are not sure which cluster your vehicle
has, check the diagrams on the following pages
of this section.
File:03ltisf.ex
Update:Tue May 28 08:40:24 1996
ProCarManuals.com

12 [IS01150(F )05/96]

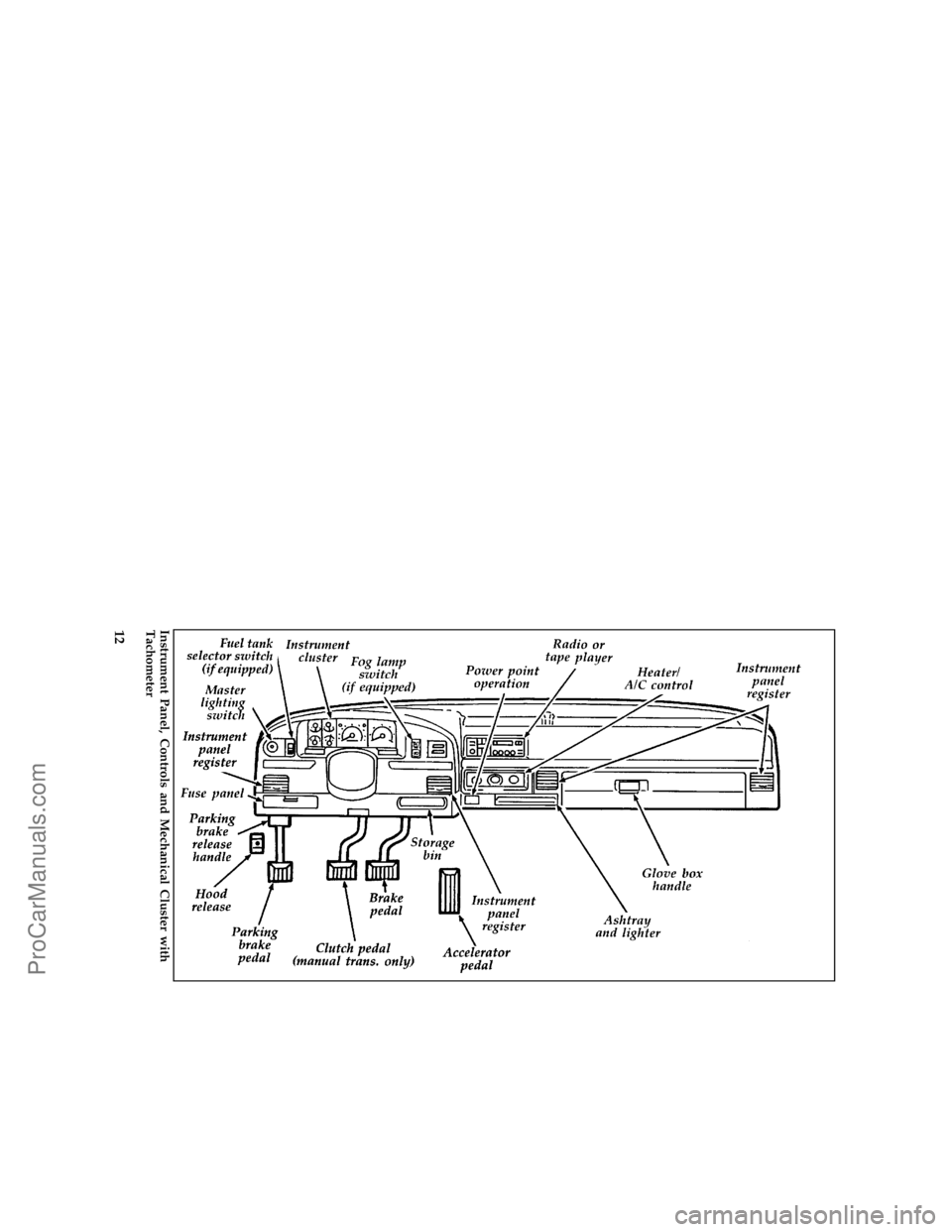

full page art:0020027-HInstrument Panel, Controls and Mechanical Cluster with
Tachometer
File:03ltisf.ex
Update:Tue May 28 08:40:24 1996
ProCarManuals.com

13 [IS01200(F )05/96]

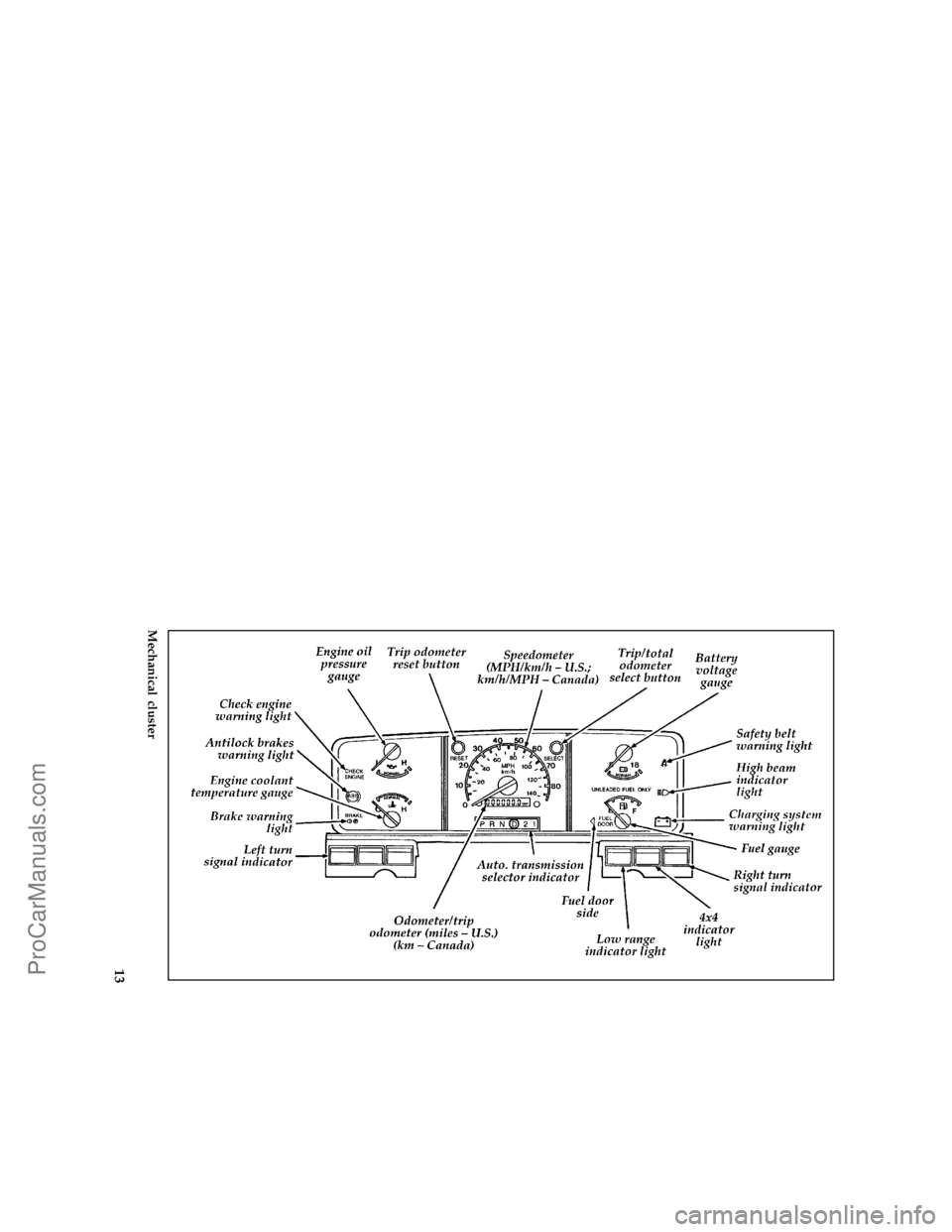

full page art:0020036-L
Mechanical cluster
File:03ltisf.ex
Update:Tue May 28 08:40:24 1996
ProCarManuals.com

14 [IS01300(F )05/96]

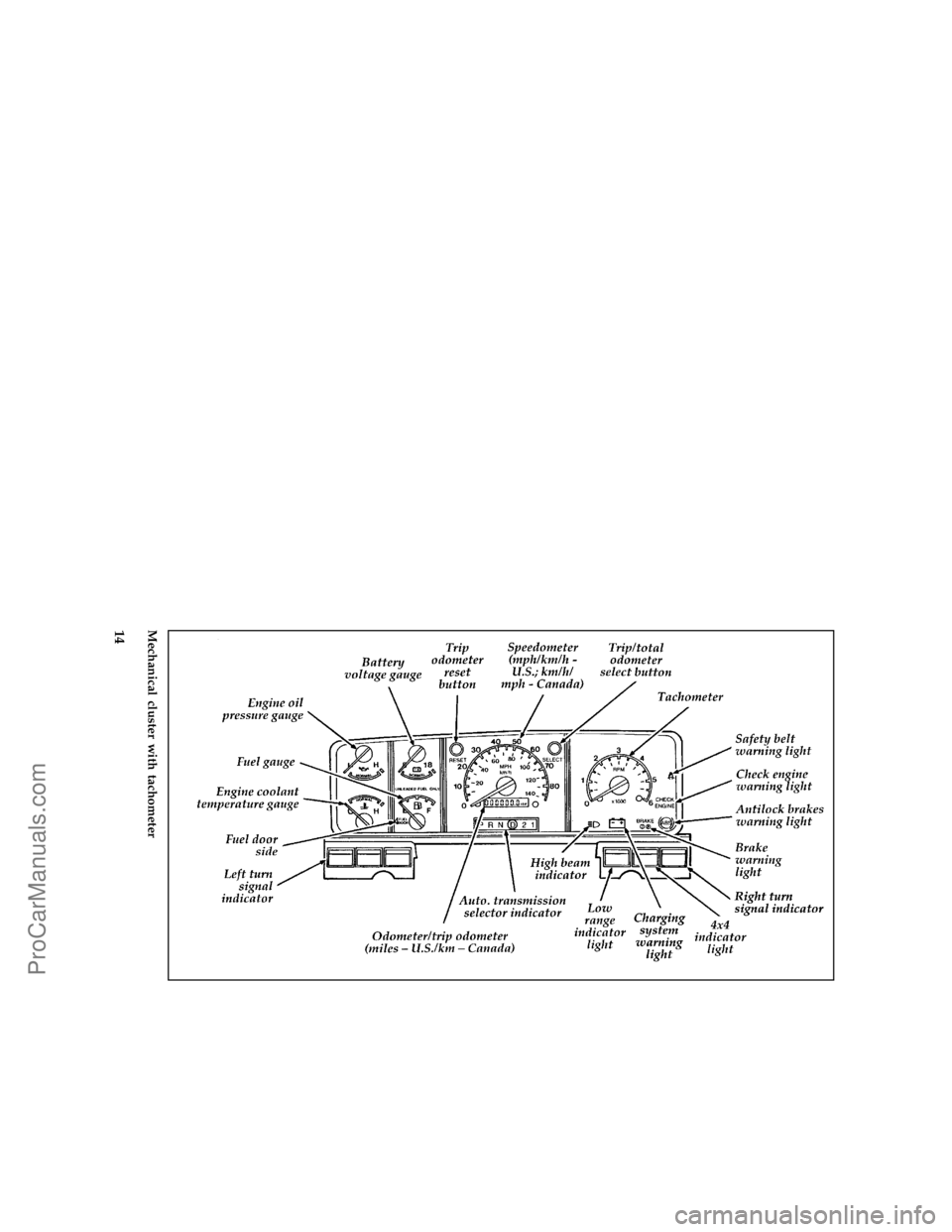

full page art:0020038-OMechanical cluster with tachometer
File:03ltisf.ex
Update:Tue May 28 08:40:24 1996
ProCarManuals.com

15
%*
[IS01700(FM)01/96]
The Mechanical Cluster
*
[IS01800(FM)01/96]
The following warning lights and gauges are on
the mechanical cluster. All of the warning lights
and gauges alert you to possible problems with
your vehicle. Some of the lights listed are
optional. The following sections detail what each
of these indicators means.
%*
[IS02600(FM)01/96]
Brake System Warning Light
[IS02800(F )04/96]
The warning light for the brakes can show three
things Ð that either the parking brake is not
fully released, that the brake fluid level is low in
the master cylinder reservoir or the vacuum
pressure is low on diesel engine vehicles. If the
fluid level is low, the brake system should be
checked by a qualified service technician.
*
[IS02900(FM)03/96]
This light illuminates when you turn the ignition
key to START to verify that the indicator bulb is
working. If the light stays on or illuminates after
you have released the parking brake fully, have
the hydraulic brake system serviced.
*
[IS03000(FM)03/96]
RWARNING
The BRAKE light indicates that the brakes
may not be working properly. Have the
brakes checked immediately.
[IS03100(FM)04/96]
one inch art:0020044-A
Brake warning light
File:03ltisf.ex
Update:Tue May 28 08:40:24 1996
ProCarManuals.com

16 %
*
[IS03200(F )03/96]
Anti-Lock Brake System Warning Light
*
[IS03300(F )04/96]
To check the ABS brake warning light turn the
ignition key to ON. The ABS brake warning
light should glow momentarily.
*
[IS03400(F )03/96]
NOTE: If it does not glow momentarily, have
your vehicle's electrical system checked
immediately.
[IS03500(F )04/96]
NOTE: If the ABS brake warning light begins
to flash in a repeatable flash sequence,
check the rear anti-lock system
continuous power fuse and brake lights
for proper operation.
[IS03600(F )04/96]
one inch art:0020913-B
Antilock warning light
*
[IS03700(F )03/96]
RWARNING
If the anti-lock brake system warning
light remains on or comes on while
driving, have the braking system checked
by a qualified service technician as soon
as possible.
*
[IS03800(F )03/96]
NOTE: If a fault occurs in the anti-lock
system, and the brake warning light is
not lit, the anti-lock system is disabled
but normal brake function remains
operational.
File:03ltisf.ex
Update:Tue May 28 08:40:24 1996
ProCarManuals.com

17 %
*
[IS03900(F )03/96]
Safety Belt Warning Light and Chime
*
[IS04100(F )03/96]
This warning light and chime remind you to
fasten your safety belt. The following conditions
will take place:
*
[IS04200(F )03/96]
q
If the safety belt is not buckled when the key
is turned to the ON position, the light comes
on for 1 to 2 minutes and the chime sounds
for 4 to 8 seconds.
*
[IS04300(F )03/96]
q
If the safety belt is buckled while the light is
on and the chime is sounding, both the light
and chime turn off.
*
[IS04400(F )03/96]
q
If the safety belt is buckled before the
ignition is turned to the ON position, neither
the light nor the chime will come on.
*
[IS04600(FM)04/96]
one inch art:0020046-B
Safety belt warning light
%*
[IS04700(FM)03/96]
Check Engine Warning Light
%*
[IS04800(FM)05/96]
This light illuminates when the engine's
Emission Control System requires service. It will
also illuminate when the ignition key is in the
ON position and the engine is off.
*
[IS04900(FM)04/96]
one inch art:0020048-A
Check engine warning light
File:03ltisf.ex
Update:Tue May 28 08:40:24 1996
ProCarManuals.com

18 [IS05400(F )04/96]NOTE: If your light truck is equipped with
dual fuel tanks, the ªCHECK ENGINEº
light may come on if fuel is restricted
to the engine or if the fuel flow is
momentarily disrupted because of an
empty fuel tank before you switched to
the auxiliary fuel tank. This condition
is normal and the light should go off
after full fuel flow is restored.
%*
[IS05900(FM)01/96]
Charging System Light
*
[IS06000(FM)04/96]
This light indicates that your battery is not being
charged and that you need to have the electrical
system checked.
[IS06100(FM)04/96]
one inch art:0020777-A
Charging system light
*
[IS06200(FM)03/96]
This light illuminates every time you turn the
ignition to the ON or START position (engine
off). The light should go off when the engine
starts and the alternator begins to charge.
*
[IS06300(FM)03/96]
If the light stays on or illuminates when the
engine is running, have the electrical system
checked as soon as possible.
%*
[IS07100(FM)05/96]
Battery Voltage Gauge (Voltmeter)
*
[IS07200(FM)04/96]
This gauge shows you the battery voltage when
the ignition key is in the ON position.
*
[IS07300(FM)01/96]
If you are running electrical accessories (when
the engine is off, or idling at a low speed), the
pointer may move toward the lower end of the
normal band. If it stays outside the normal band
area, have your vehicle's electrical system
checked as soon as it is safely possible.
