Page 381 of 633

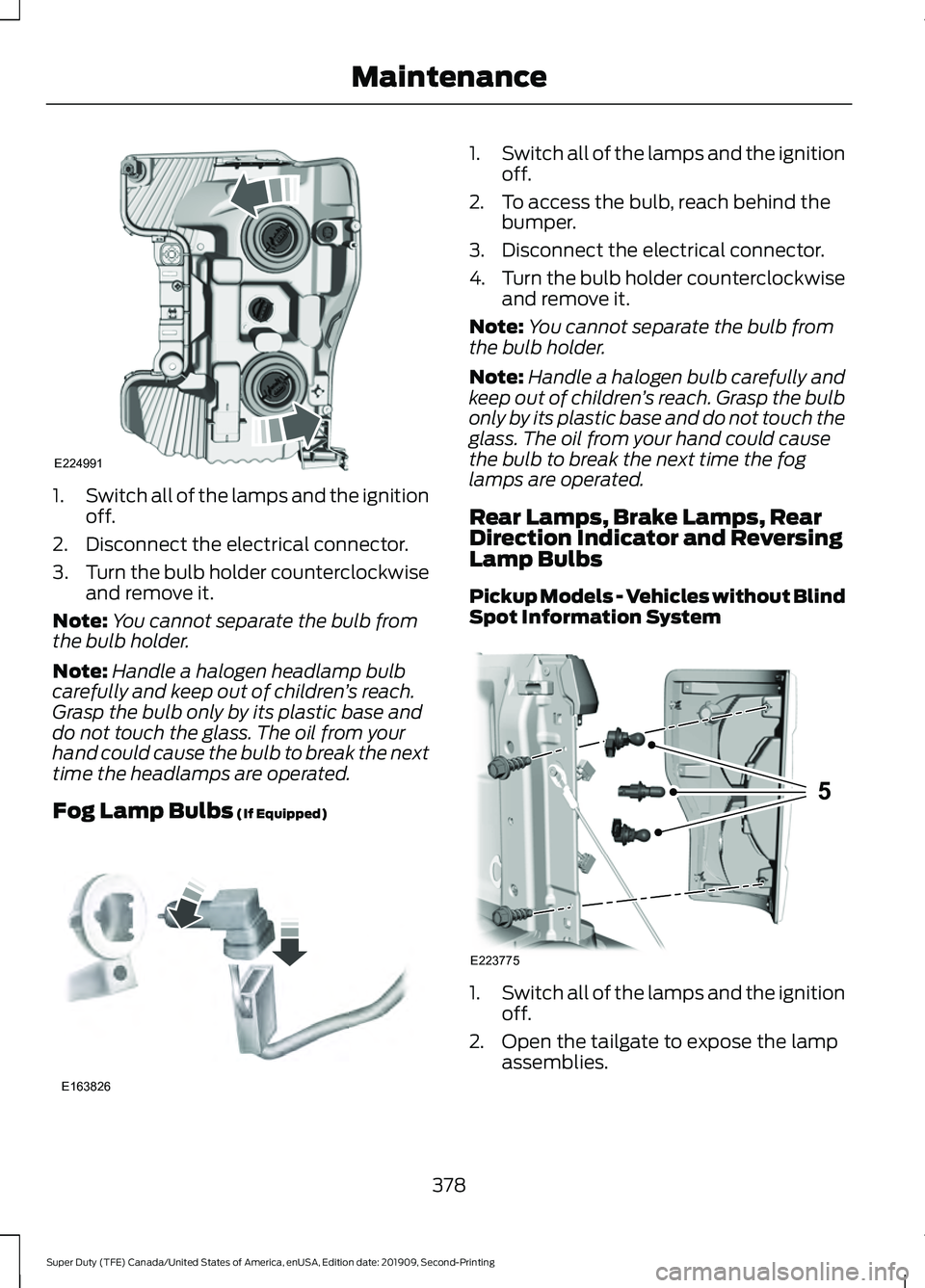

FORD F250 SUPER DUTY 2020  Owners Manual 1.
Switch all of the lamps and the ignition
off.
2. Disconnect the electrical connector.
3. Turn the bulb holder counterclockwise
and remove it.
Note: You cannot separate the bulb from
the bulb holder

Page 382 of 633

FORD F250 SUPER DUTY 2020  Owners Manual 3. Remove the bolts from the tail lamp
assembly and carefully pull the lamp
assembly from the tailgate pillar by
releasing the two retaining tabs.
4. Turn the bulb holder counterclockwise
and remove i

Page 383 of 633

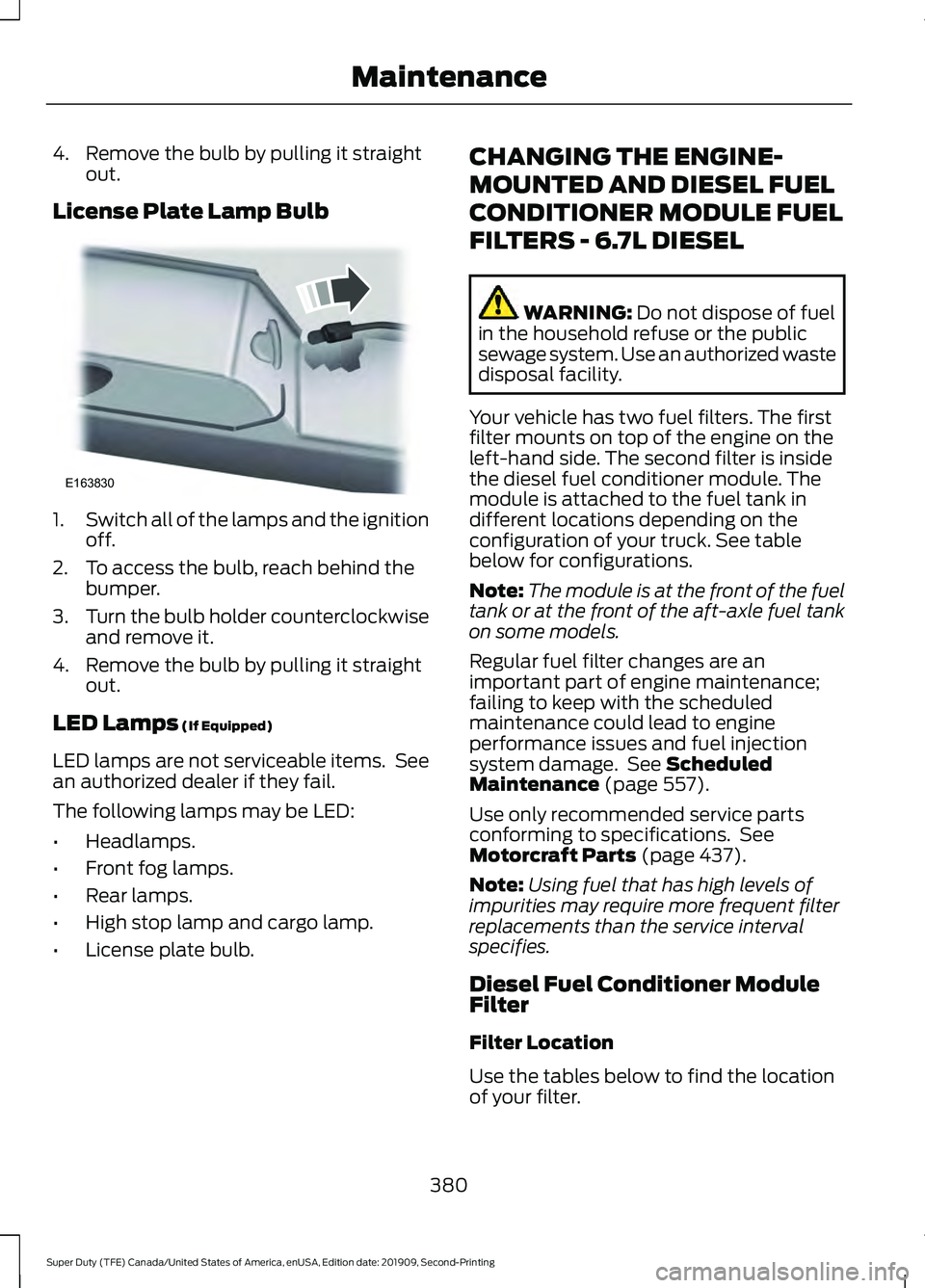

FORD F250 SUPER DUTY 2020  Owners Manual 4. Remove the bulb by pulling it straight
out.
License Plate Lamp Bulb 1.
Switch all of the lamps and the ignition
off.
2. To access the bulb, reach behind the bumper.
3. Turn the bulb holder counterc

Page 384 of 633

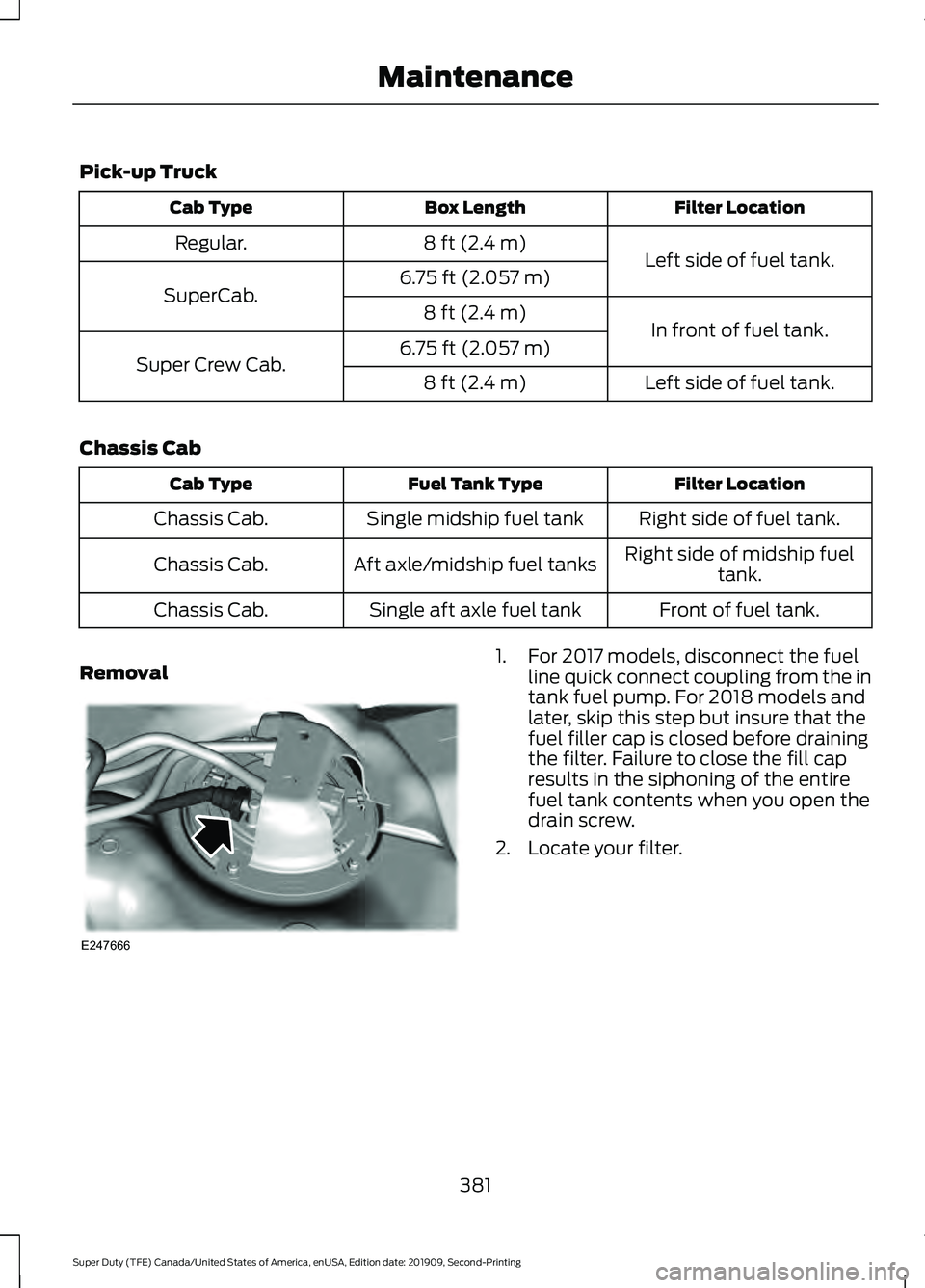

FORD F250 SUPER DUTY 2020  Owners Manual Pick-up Truck
Filter Location
Box Length
Cab Type
Left side of fuel tank.
8 ft (2.4 m)
Regular.
6.75 ft (2.057 m)
SuperCab.
In front of fuel tank.
8 ft (2.4 m)
6.75 ft (2.057 m)
Super Crew Cab.
Left s

Page 385 of 633

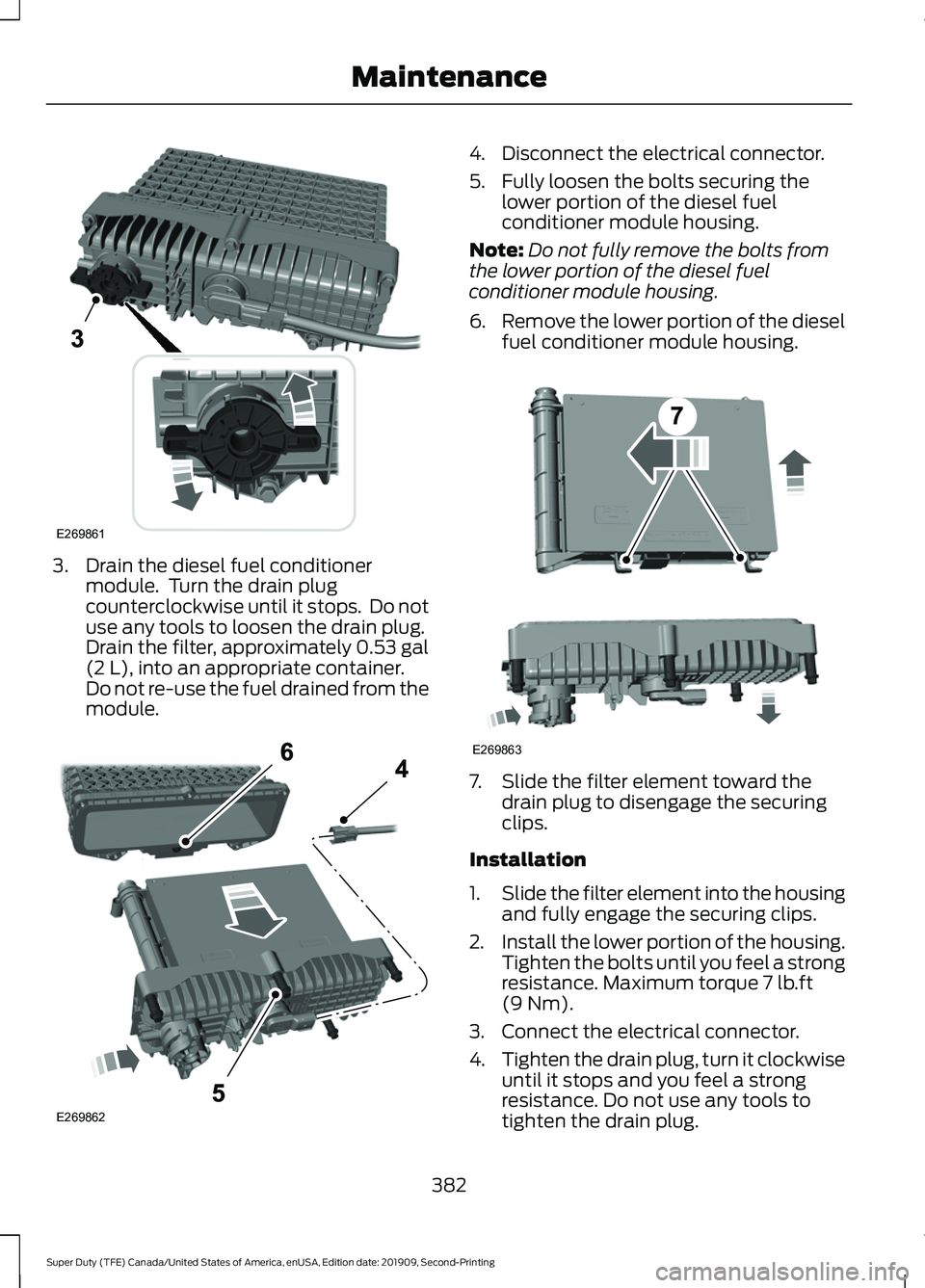

FORD F250 SUPER DUTY 2020  Owners Manual 3. Drain the diesel fuel conditioner
module.  Turn the drain plug
counterclockwise until it stops.  Do not
use any tools to loosen the drain plug.
Drain the filter, approximately 0.53 gal
(2 L), into

Page 386 of 633

FORD F250 SUPER DUTY 2020  Owners Manual Engine-mounted Fuel Filter
Although the fuel system is not fully
pressurized when the vehicle is off, some
residual pressure may remain in the fuel
system since it can take some time for the
pressure

Page 387 of 633

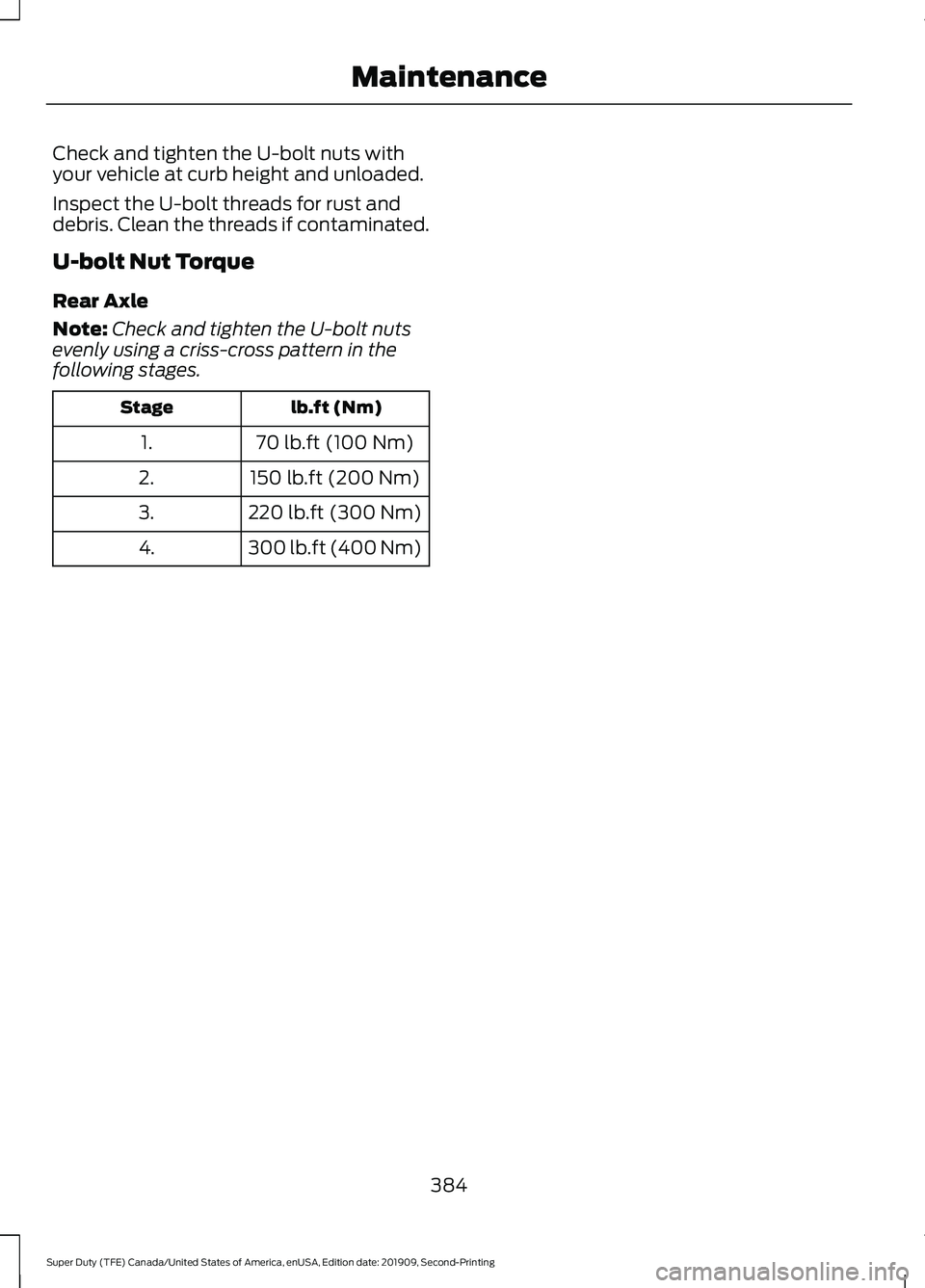

FORD F250 SUPER DUTY 2020  Owners Manual Check and tighten the U-bolt nuts with
your vehicle at curb height and unloaded.
Inspect the U-bolt threads for rust and
debris. Clean the threads if contaminated.
U-bolt Nut Torque
Rear Axle
Note:
Ch

Page 388 of 633

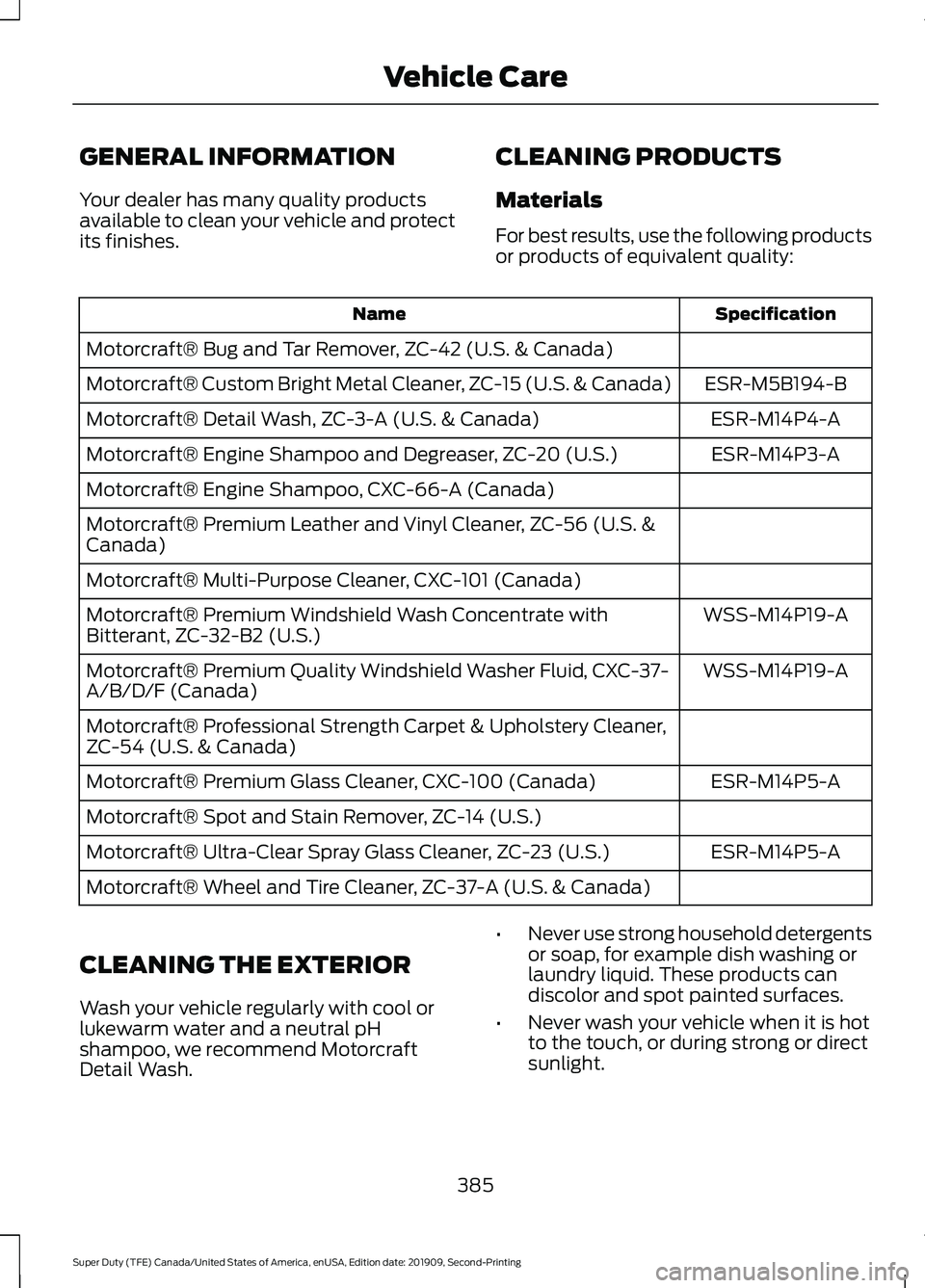

FORD F250 SUPER DUTY 2020  Owners Manual GENERAL INFORMATION
Your dealer has many quality products
available to clean your vehicle and protect
its finishes.
CLEANING PRODUCTS
Materials
For best results, use the following products
or products

Page 389 of 633

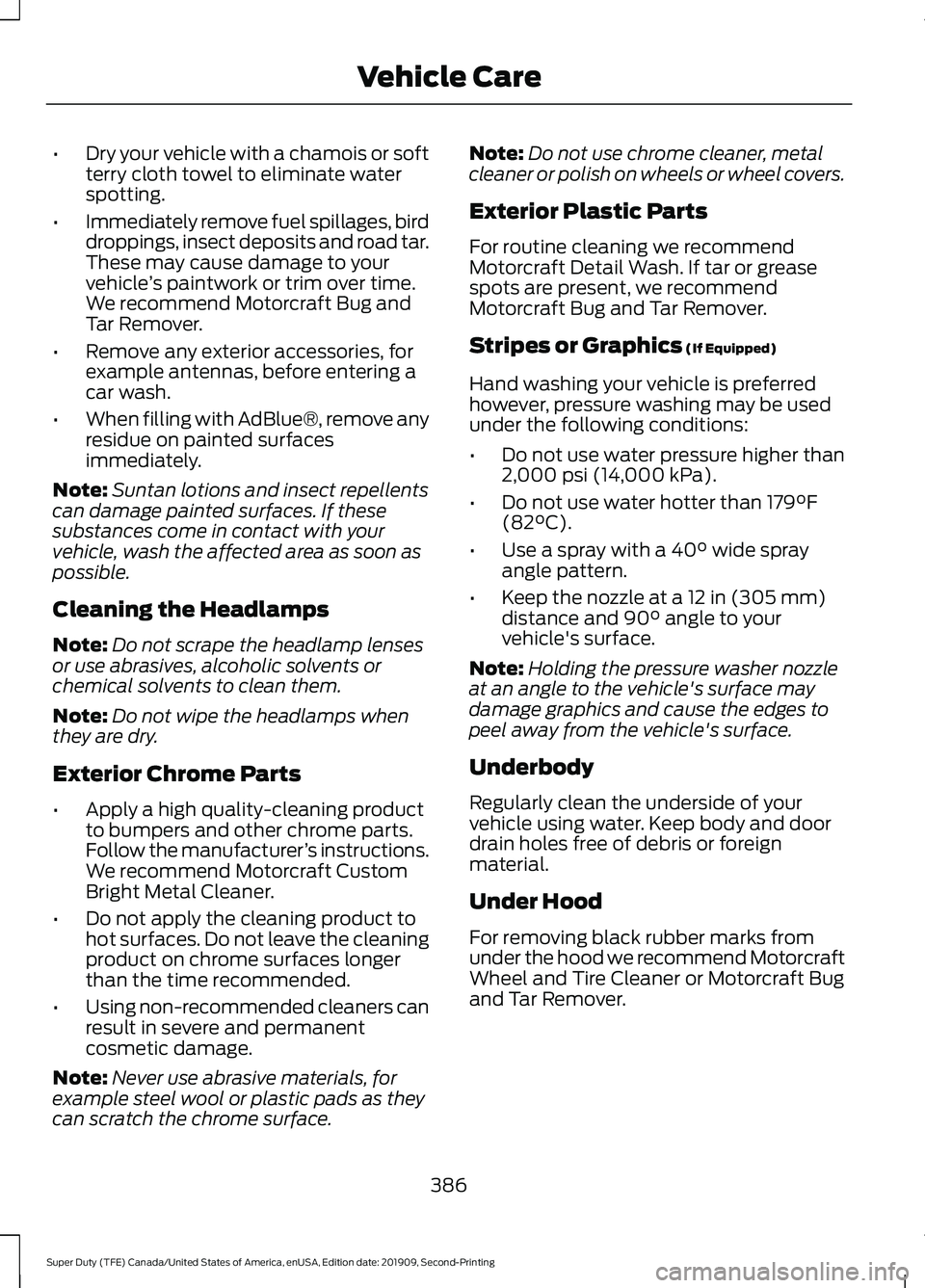

FORD F250 SUPER DUTY 2020  Owners Manual •
Dry your vehicle with a chamois or soft
terry cloth towel to eliminate water
spotting.
• Immediately remove fuel spillages, bird
droppings, insect deposits and road tar.
These may cause damage t

Page 390 of 633

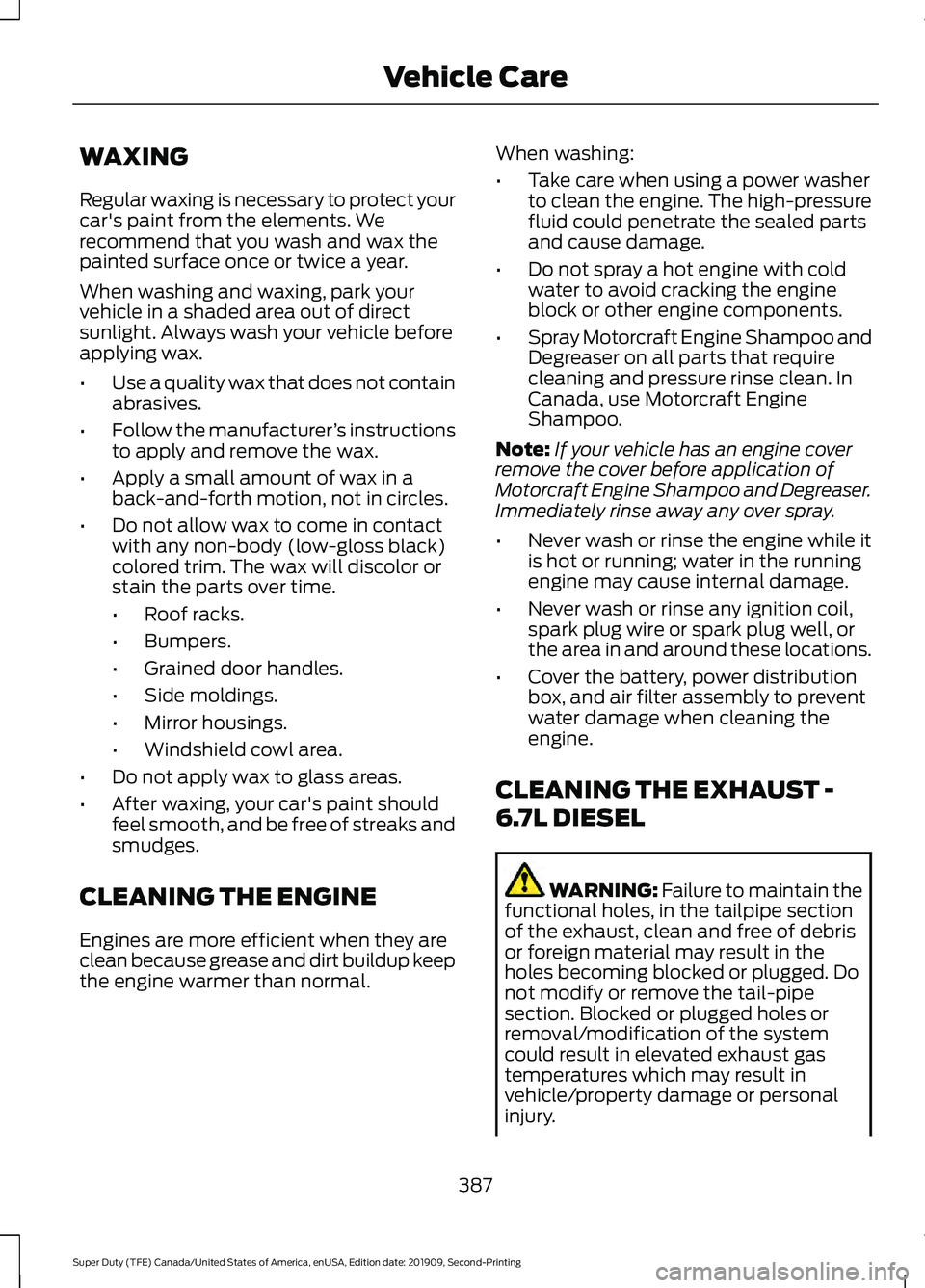

FORD F250 SUPER DUTY 2020  Owners Manual WAXING
Regular waxing is necessary to protect your
car's paint from the elements. We
recommend that you wash and wax the
painted surface once or twice a year.
When washing and waxing, park your
ve
