check engine FORD F650 2005 11.G Service Manual

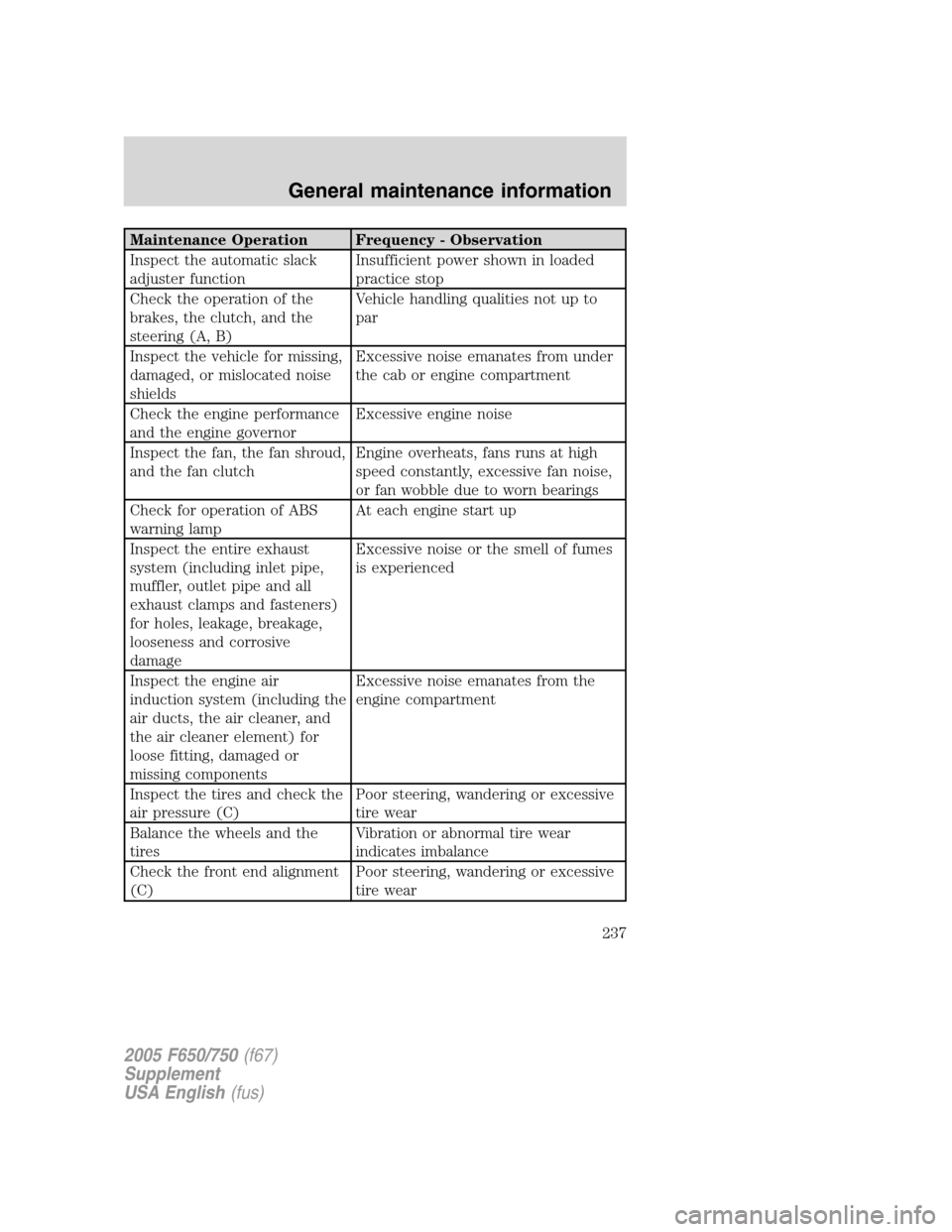

Maintenance Operation Frequency - Observation
Inspect the automatic slack
adjuster functionInsufficient power shown in loaded
practice stop
Check the operation of the
brakes, the clutch, and the
steering (A, B)Vehicle handling qualities not up to
par
Inspect the vehicle for missing,
damaged, or mislocated noise
shieldsExcessive noise emanates from under
the cab or engine compartment
Check the engine performance
and the engine governorExcessive engine noise
Inspect the fan, the fan shroud,
and the fan clutchEngine overheats, fans runs at high
speed constantly, excessive fan noise,
or fan wobble due to worn bearings
Check for operation of ABS
warning lampAt each engine start up
Inspect the entire exhaust
system (including inlet pipe,
muffler, outlet pipe and all
exhaust clamps and fasteners)
for holes, leakage, breakage,
looseness and corrosive
damageExcessive noise or the smell of fumes
is experienced
Inspect the engine air
induction system (including the
air ducts, the air cleaner, and
the air cleaner element) for
loose fitting, damaged or
missing componentsExcessive noise emanates from the
engine compartment
Inspect the tires and check the
air pressure (C)Poor steering, wandering or excessive
tire wear
Balance the wheels and the
tiresVibration or abnormal tire wear
indicates imbalance
Check the front end alignment
(C)Poor steering, wandering or excessive
tire wear
2005 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
237

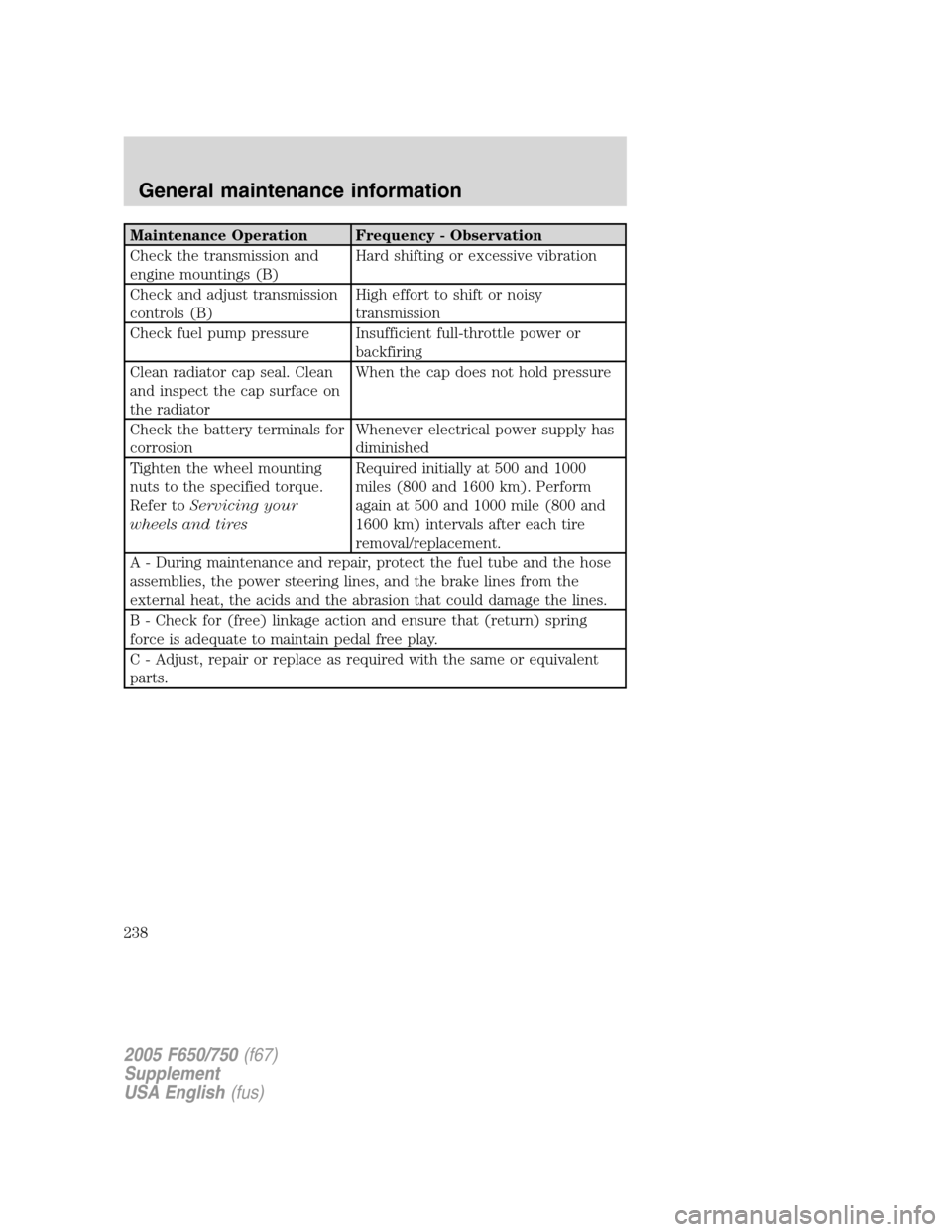

Maintenance Operation Frequency - Observation
Check the transmission and
engine mountings (B)Hard shifting or excessive vibration
Check and adjust transmission
controls (B)High effort to shift or noisy
transmission
Check fuel pump pressure Insufficient full-throttle power or
backfiring
Clean radiator cap seal. Clean
and inspect the cap surface on
the radiatorWhen the cap does not hold pressure
Check the battery terminals for
corrosionWhenever electrical power supply has
diminished
Tighten the wheel mounting
nuts to the specified torque.
Refer toServicing your
wheels and tiresRequired initially at 500 and 1000
miles (800 and 1600 km). Perform
again at 500 and 1000 mile (800 and
1600 km) intervals after each tire
removal/replacement.
A - During maintenance and repair, protect the fuel tube and the hose
assemblies, the power steering lines, and the brake lines from the
external heat, the acids and the abrasion that could damage the lines.
B - Check for (free) linkage action and ensure that (return) spring
force is adequate to maintain pedal free play.
C - Adjust, repair or replace as required with the same or equivalent
parts.
2005 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
238

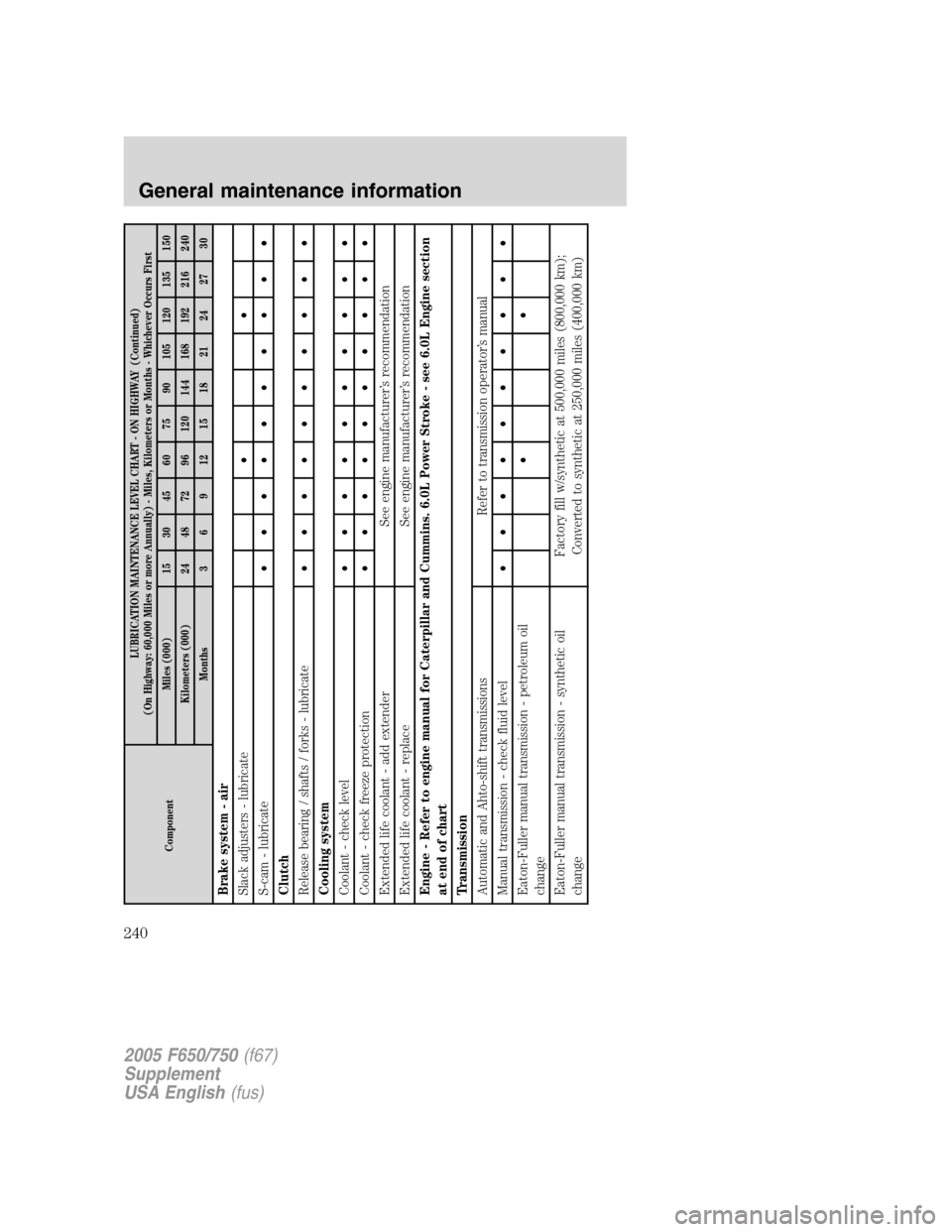

ComponentLUBRICATION MAINTENANCE LEVEL CHART - ON HIGHWAY (Continued)
(On Highway: 60,000 Miles or more Annually) - Miles, Kilometers or Months - Whichever Occurs First
Miles (000) 15 30 45 60 75 90 105 120 135 150
Kilometers (000) 24 48 72 96 120 144 168 192 216 240
Months 3 6 9 12 15 18 21 24 27 30
Brake system - air
Slack adjusters - lubricate••
S-cam - lubricate••••••••••
Clutch
Release bearing / shafts / forks - lubricate••••••••••
Cooling system
Coolant - check level••••••••••
Coolant - check freeze protection••••••••••
Extended life coolant - add extender See engine manufacturer’s recommendation
Extended life coolant - replace See engine manufacturer’s recommendation
Engine - Refer to engine manual for Caterpillar and Cummins. 6.0L Power Stroke - see 6.0L Engine section
at end of chart
Transmission
Automatic and Ahto-shift transmissions Refer to transmission operator’s manual
Manual transmission - check fluid level••••••••••
Eaton-Fuller manual transmission - petroleum oil
change••
Eaton-Fuller manual transmission - synthetic oil
changeFactory fill w/synthetic at 500,000 miles (800,000 km);
Converted to synthetic at 250,000 miles (400,000 km)
2005 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
240

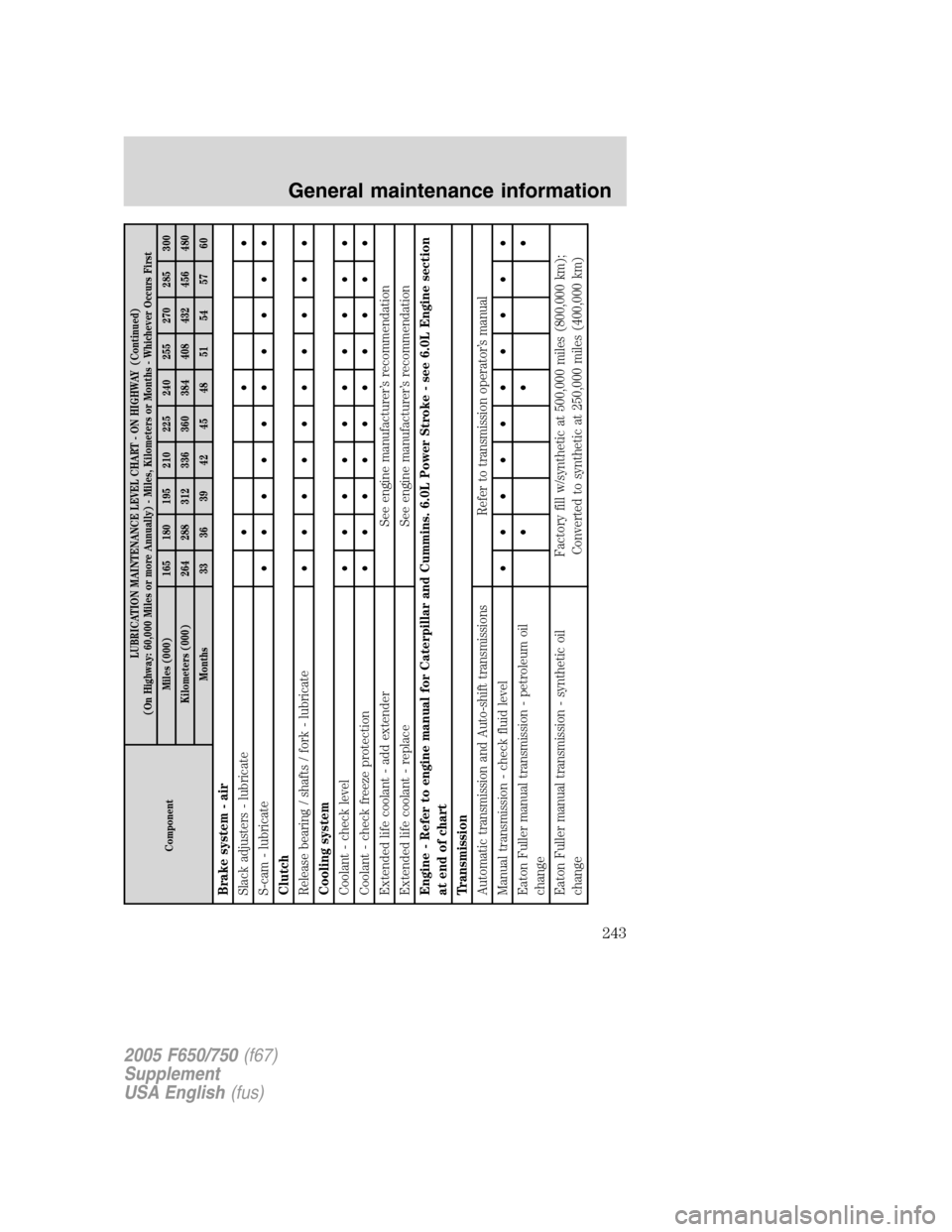

ComponentLUBRICATION MAINTENANCE LEVEL CHART - ON HIGHWAY (Continued)
(On Highway: 60,000 Miles or more Annually) - Miles, Kilometers or Months - Whichever Occurs First
Miles (000) 165 180 195 210 225 240 255 270 285 300
Kilometers (000) 264 288 312 336 360 384 408 432 456 480
Months 33 36 39 42 45 48 51 54 57 60
Brake system - air
Slack adjusters - lubricate•••
S-cam - lubricate••••••••••
Clutch
Release bearing / shafts / fork - lubricate••••••••••
Cooling system
Coolant - check level••••••••••
Coolant - check freeze protection••••••••••
Extended life coolant - add extender See engine manufacturer’s recommendation
Extended life coolant - replace See engine manufacturer’s recommendation
Engine - Refer to engine manual for Caterpillar and Cummins. 6.0L Power Stroke - see 6.0L Engine section
at end of chart
Transmission
Automatic transmission and Auto-shift transmissions Refer to transmission operator’s manual
Manual transmission - check fluid level••••••••••
Eaton Fuller manual transmission - petroleum oil
change•••
Eaton Fuller manual transmission - synthetic oil
changeFactory fill w/synthetic at 500,000 miles (800,000 km);
Converted to synthetic at 250,000 miles (400,000 km)
2005 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
243

ComponentLUBRICATION MAINTENANCE LEVEL CHART - CITY (Continued)
City - 59,000 Miles or Less Annually - Miles, Kilometers or Months - Whichever Occurs First
Miles (000) 10 20 30 40 50 60 70 80 90 100
Kilometers (000) 16 32 48 64 80 96 112 128 144 160
Months 3 6 9 12 15 18 21 24 27 30
Brake system - air
Slack adjusters - lubricate••
S-cam - lubricate••••••••••
Clutch
Release bearing / shafts / fork - lubricate••••••••••
Cooling system
Coolant - check level••••••••••
Coolant - check freeze protection••••••••••
Extended life coolant - add extender See engine manufacturer’s recommendation
Extended life coolant - replace See engine manufacturer’s recommendation
Engine - refer to engine manual for Caterpillar and Cummins. 6.0L Power Stroke, see 6.0L engine section at
end of charts
Transmission
Automatic and Auto-shift transmissions Refer to transmission operator’s manual
Manual transmission - check fluid level••••••••••
Eaton Fuller manual transmission - petroleum oil
change••
Rear axle
Fluid level - check••••••••••
Eaton / Dana / Spicer petroleum oil - change••
2005 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
246

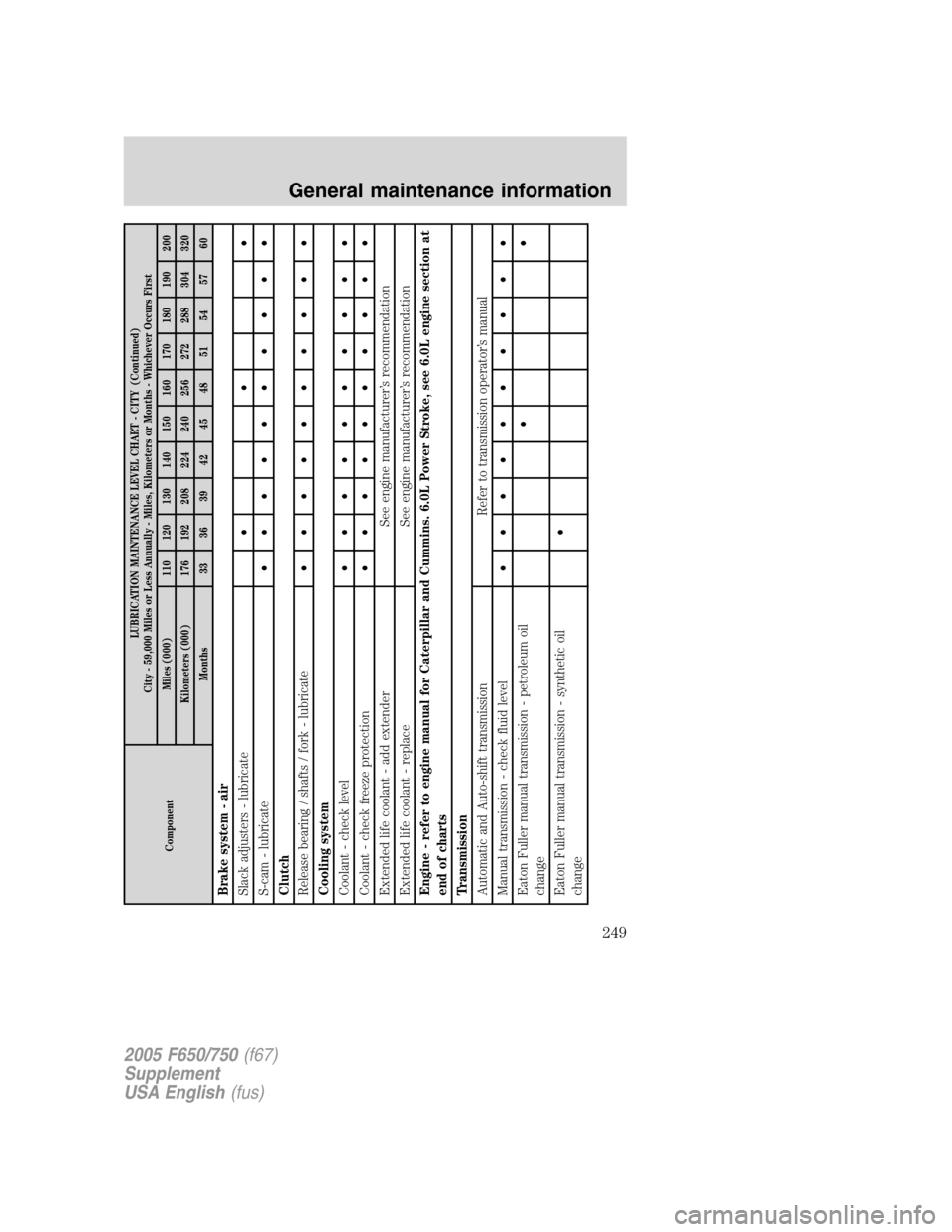

ComponentLUBRICATION MAINTENANCE LEVEL CHART - CITY (Continued)
City - 59,000 Miles or Less Annually - Miles, Kilometers or Months - Whichever Occurs First
Miles (000) 110 120 130 140 150 160 170 180 190 200
Kilometers (000) 176 192 208 224 240 256 272 288 304 320
Months 33 36 39 42 45 48 51 54 57 60
Brake system - air
Slack adjusters - lubricate•••
S-cam - lubricate••••••••••
Clutch
Release bearing / shafts / fork - lubricate••••••••••
Cooling system
Coolant - check level••••••••••
Coolant - check freeze protection••••••••••
Extended life coolant - add extender See engine manufacturer’s recommendation
Extended life coolant - replace See engine manufacturer’s recommendation
Engine - refer to engine manual for Caterpillar and Cummins. 6.0L Power Stroke, see 6.0L engine section at
end of charts
Transmission
Automatic and Auto-shift transmission Refer to transmission operator’s manual
Manual transmission - check fluid level••••••••••
Eaton Fuller manual transmission - petroleum oil
change••
Eaton Fuller manual transmission - synthetic oil
change•
2005 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
249

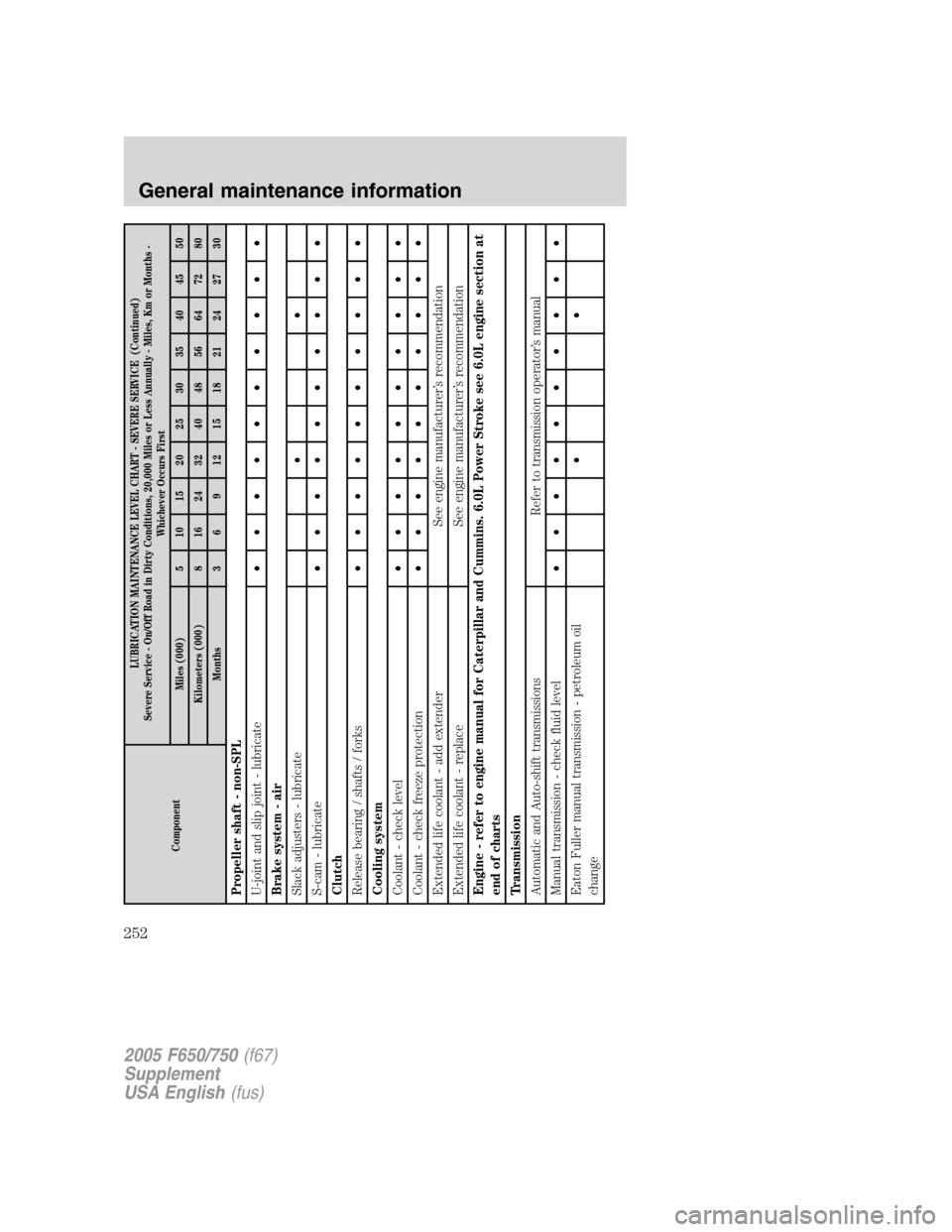

ComponentLUBRICATION MAINTENANCE LEVEL CHART - SEVERE SERVICE (Continued)
Severe Service - On/Off Road in Dirty Conditions, 20,000 Miles or Less Annually - Miles, Km or Months -
Whichever Occurs First
Miles (000) 5 10 15 20 25 30 35 40 45 50
Kilometers (000) 8 16 24 32 40 48 56 64 72 80
Months 3 6 9 12 15 18 21 24 27 30
Propeller shaft - non-SPL
U-joint and slip joint - lubricate••••••••••
Brake system - air
Slack adjusters - lubricate••
S-cam - lubricate••••••••••
Clutch
Release bearing / shafts / forks••••••••••
Cooling system
Coolant - check level••••••••••
Coolant - check freeze protection••••••••••
Extended life coolant - add extender See engine manufacturer’s recommendation
Extended life coolant - replace See engine manufacturer’s recommendation
Engine - refer to engine manual for Caterpillar and Cummins. 6.0L Power Stroke see 6.0L engine section at
end of charts
Transmission
Automatic and Auto-shift transmissions Refer to transmission operator’s manual
Manual transmission - check fluid level••••••••••
Eaton Fuller manual transmission - petroleum oil
change••
2005 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
252

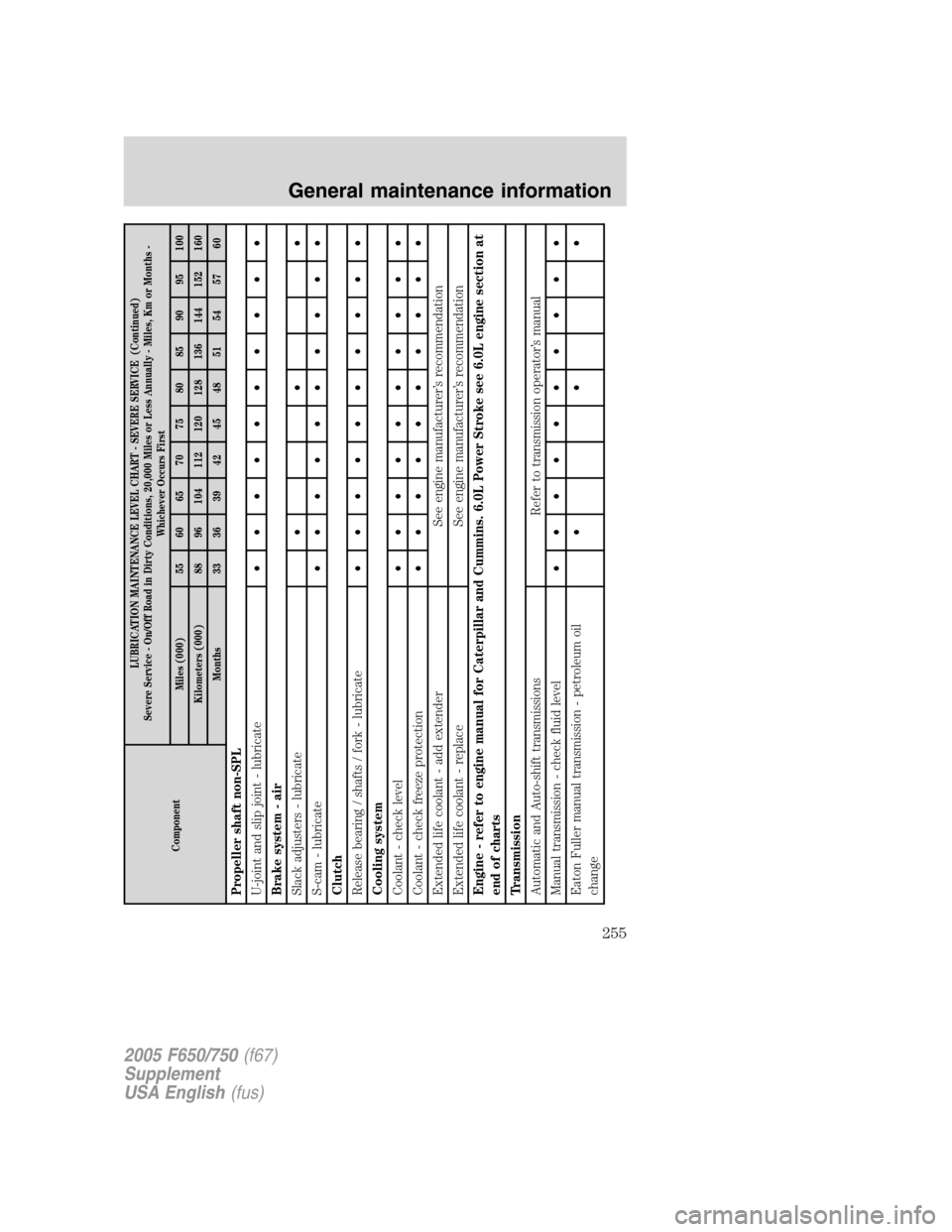

ComponentLUBRICATION MAINTENANCE LEVEL CHART - SEVERE SERVICE (Continued)
Severe Service - On/Off Road in Dirty Conditions, 20,000 Miles or Less Annually - Miles, Km or Months -
Whichever Occurs First
Miles (000) 55 60 65 70 75 80 85 90 95 100
Kilometers (000) 88 96 104 112 120 128 136 144 152 160
Months 33 36 39 42 45 48 51 54 57 60
Propeller shaft non-SPL
U-joint and slip joint - lubricate••••••••••
Brake system - air
Slack adjusters - lubricate•••
S-cam - lubricate••••••••••
Clutch
Release bearing / shafts / fork - lubricate••••••••••
Cooling system
Coolant - check level••••••••••
Coolant - check freeze protection••••••••••
Extended life coolant - add extender See engine manufacturer’s recommendation
Extended life coolant - replace See engine manufacturer’s recommendation
Engine - refer to engine manual for Caterpillar and Cummins. 6.0L Power Stroke see 6.0L engine section at
end of charts
Transmission
Automatic and Auto-shift transmissions Refer to transmission operator’s manual
Manual transmission - check fluid level••••••••••
Eaton Fuller manual transmission - petroleum oil
change•••
2005 F650/750(f67)
Supplement
USA English(fus)
General maintenance information
255

A
Air conditioning ..........................45
manual heating and air
conditioning system .................45
Air suspension ...........................115
Anti-lock brake system
(see Brakes) ..............................113
Audio system
(see Radio) ................30, 32, 35, 39
Automatic transmission ............118
fluid, adding ............................185
fluid, checking ........................185
fluid, refill capacities ..............223
fluid, specification ..................213
Auxiliary power point .................54
Axle ............................130, 164, 204
lubricant specifications ..........213
refill capacities ........................222
B
Battery .......................................180
charging system warning
light ............................................21
jumping a disabled battery ....147
voltage gauge ............................26
BeltMinder ...................................75
Brakes ............................93, 99, 164
adjustment ..............................167
anti-lock ...........................113–114
anti-lock brake system
(ABS) warning light .........21, 114
brake warning light ..................21
fluid, checking and adding ...167,
179
fluid, specifications .................213
parking ......................95, 102, 168
Bulbs ............................................49C
Cassette tape player ...................39
Catalytic converter
(see Emission control) .............188
CD-single premium .........30, 32, 35
Cell phone use ............................54
Child safety restraints ................80
child safety belts ......................80
Child safety seats ........................83
attaching with tether straps ....86
in front seat ..............................84
in rear seat ................................84
tether anchorage hardware .....86
Child safety seats - booster
seats .............................................80
Cleaning your vehicle
chrome and aluminum
parts .........................................159
engine compartment ..............159
exterior ....................................161
instrument panel ....................160
interior .....................................160
interior trim ............................160
plastic parts ............................160
washing ....................................158
waxing .....................................158
wheels ......................................159
Climate control (see Air
conditioning or Heating) ......44–45
Clutch ................................122, 184
adjusting ..................................184
fluid ..........................................184
operation while driving ..........122
specifications ..........................213
Controls
power seat .................................68
2005 F650/750(f67)
Supplement
USA English(fus)
Index
263

Coolant ......................................174
checking and adding ..............174
refill capacities ........................223
specifications ..........................213
temperature gauge ...................26
Cruise control
(see Speed control) ....................58
Customer Assistance ........139, 154
Getting assistance outside the
U.S. and Canada .............154, 156
Getting roadside assistance ...139
Getting the service you
need .........................................154
Ordering additional owner’s
literature .................................157
D
Daytime running lamps
(see Lamps) ................................47
Defects, reporting .....................157
Defrost ...................................44–45
windshield ...........................44–45
with heating and air
conditioning system .................45
with standard heating
system .......................................44
Doors
lubricant specifications ..........213
Driving under special
conditions
through water ...........................92
E
Emergencies, roadside
jump-starting ..........................147
Emission control system ..199, 228
catalytic converter ..................188Engine
cleaning ...................................159
lubrication specifications .......213
Engine fan .................................178
Engine oil ..................................170
checking and adding ..............170
oil pressure gauge ....................26
recommendations ...................171
refill capacities ........................223
specifications ..........................213
F
Flashers, hazard ........................140
Fuel ............................................189
calculating fuel
economy ..........................196–197
capacity ...................................224
choosing the right fuel ...........190
filling your vehicle with fuel ..189
filter,
specifications ..........191–192, 194
gauge .........................................26
improving fuel
economy ..........................196–197
running out of fuel ...........88, 191
safety information relating to
automotive fuels .....................189
Fuses ..........................................140
G
Gas mileage
(see Fuel economy) .........196–197
Gauges .........................................26
battery voltage gauge ...............26
engine coolant temperature
gauge .........................................26
engine oil pressure gauge ........26
fuel gauge ..................................26
odometer ...................................26
2005 F650/750(f67)
Supplement
USA English(fus)
Index
264
