FORD F650 2006 11.G Owners Manual
Manufacturer: FORD, Model Year: 2006, Model line: F650, Model: FORD F650 2006 11.GPages: 272, PDF Size: 1.86 MB

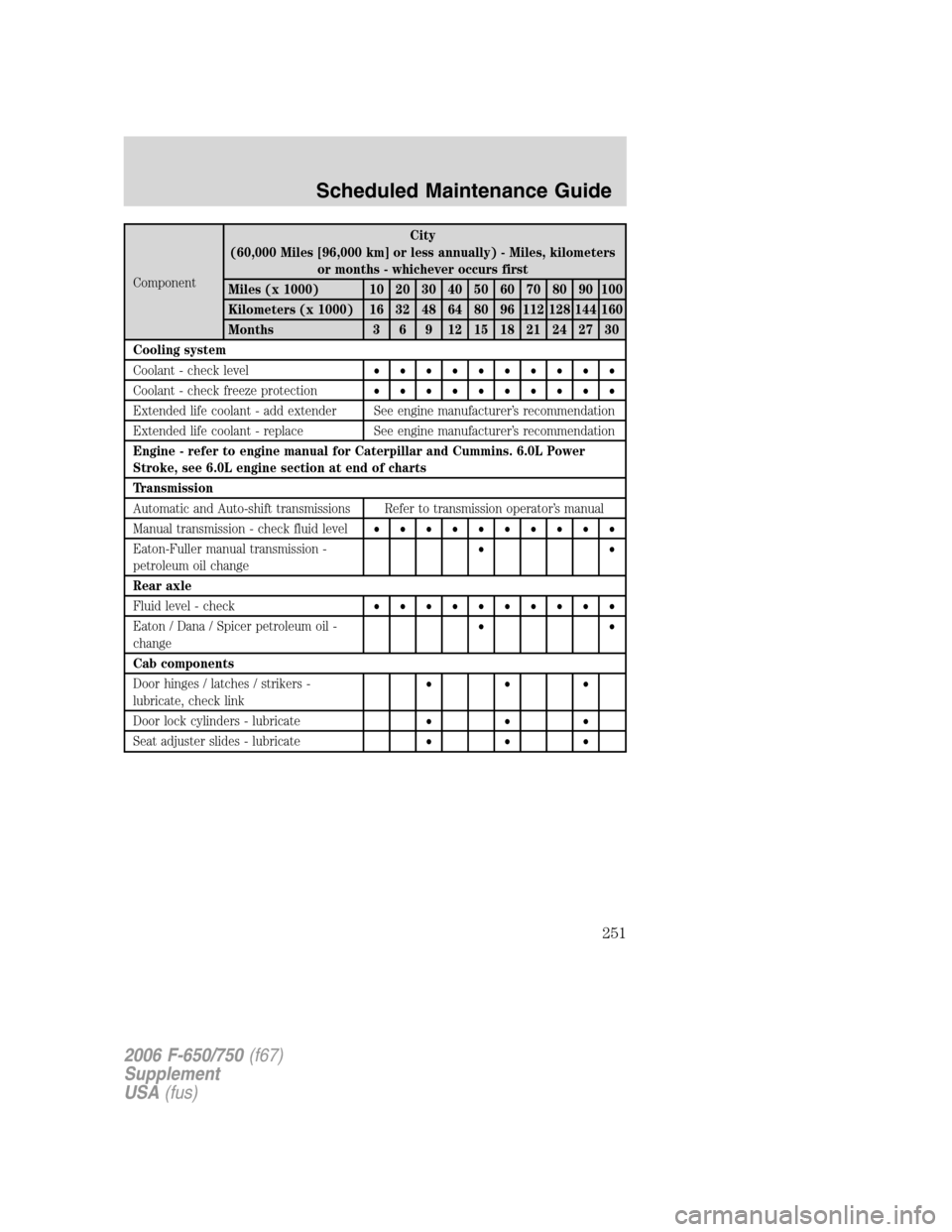

Page 251 of 272
![FORD F650 2006 11.G Owners Manual ComponentCity
(60,000 Miles [96,000 km] or less annually) - Miles, kilometers
or months - whichever occurs first
Miles (x 1000) 10 20 30 40 50 60 70 80 90 100
Kilometers (x 1000) 16 32 48 64 80 96 112](/img/11/5072/w960_5072-250.png "FORD F650 2006 11.G Owners Manual ComponentCity
(60,000 Miles [96,000 km] or less annually) - Miles, kilometers
or months - whichever occurs first
Miles (x 1000) 10 20 30 40 50 60 70 80 90 100
Kilometers (x 1000) 16 32 48 64 80 96 112")
ComponentCity
(60,000 Miles [96,000 km] or less annually) - Miles, kilometers
or months - whichever occurs first
Miles (x 1000) 10 20 30 40 50 60 70 80 90 100
Kilometers (x 1000) 16 32 48 64 80 96 112 128 144 160
Months 3 6 9 12 15 18 21 24 27 30
Cooling system
Coolant - check level••••••••••
Coolant - check freeze protection••••••••••
Extended life coolant - add extender See engine manufacturer’s recommendation
Extended life coolant - replace See engine manufacturer’s recommendation
Engine - refer to engine manual for Caterpillar and Cummins. 6.0L Power
Stroke, see 6.0L engine section at end of charts
Transmission
Automatic and Auto-shift transmissions Refer to transmission operator’s manual
Manual transmission - check fluid level••••••••••
Eaton-Fuller manual transmission -
petroleum oil change••
Rear axle
Fluid level - check••••••••••
Eaton / Dana / Spicer petroleum oil -
change••
Cab components
Door hinges / latches / strikers -
lubricate, check link•••
Door lock cylinders - lubricate•••
Seat adjuster slides - lubricate•••
2006 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
251

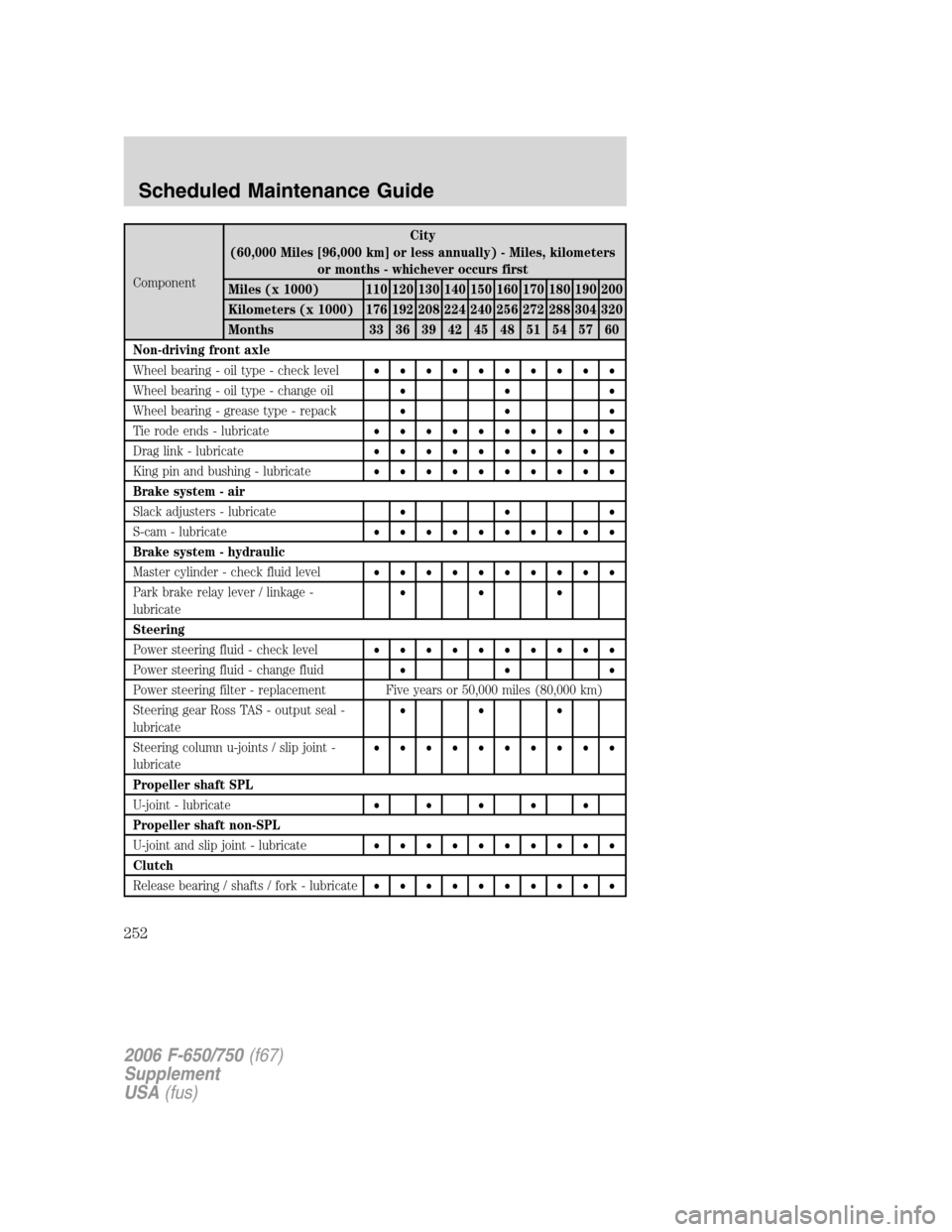

Page 252 of 272
![FORD F650 2006 11.G Owners Manual ComponentCity
(60,000 Miles [96,000 km] or less annually) - Miles, kilometers
or months - whichever occurs first
Miles (x 1000) 110 120 130 140 150 160 170 180 190 200
Kilometers (x 1000) 176 192 208](/img/11/5072/w960_5072-251.png "FORD F650 2006 11.G Owners Manual ComponentCity
(60,000 Miles [96,000 km] or less annually) - Miles, kilometers
or months - whichever occurs first
Miles (x 1000) 110 120 130 140 150 160 170 180 190 200
Kilometers (x 1000) 176 192 208")
ComponentCity
(60,000 Miles [96,000 km] or less annually) - Miles, kilometers
or months - whichever occurs first
Miles (x 1000) 110 120 130 140 150 160 170 180 190 200
Kilometers (x 1000) 176 192 208 224 240 256 272 288 304 320
Months 33 36 39 42 45 48 51 54 57 60
Non-driving front axle
Wheel bearing - oil type - check level••••••••••
Wheel bearing - oil type - change oil•••
Wheel bearing - grease type - repack•••
Tie rode ends - lubricate••••••••••
Drag link - lubricate••••••••••
King pin and bushing - lubricate••••••••••
Brake system - air
Slack adjusters - lubricate•••
S-cam - lubricate••••••••••
Brake system - hydraulic
Master cylinder - check fluid level••••••••••
Park brake relay lever / linkage -
lubricate•••
Steering
Power steering fluid - check level••••••••••
Power steering fluid - change fluid•••
Power steering filter - replacement Five years or 50,000 miles (80,000 km)
Steering gear Ross TAS - output seal -
lubricate•••
Steering column u-joints / slip joint -
lubricate••••••••••
Propeller shaft SPL
U-joint - lubricate•••••
Propeller shaft non-SPL
U-joint and slip joint - lubricate••••••••••
Clutch
Release bearing / shafts / fork - lubricate••••••••••
2006 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
252
Page 253 of 272
![FORD F650 2006 11.G Owners Manual ComponentCity
(60,000 Miles [96,000 km] or less annually) - Miles, kilometers
or months - whichever occurs first
Miles (x 1000) 110 120 130 140 150 160 170 180 190 200
Kilometers (x 1000) 176 192 208](/img/11/5072/w960_5072-252.png "FORD F650 2006 11.G Owners Manual ComponentCity
(60,000 Miles [96,000 km] or less annually) - Miles, kilometers
or months - whichever occurs first
Miles (x 1000) 110 120 130 140 150 160 170 180 190 200
Kilometers (x 1000) 176 192 208")
ComponentCity
(60,000 Miles [96,000 km] or less annually) - Miles, kilometers
or months - whichever occurs first
Miles (x 1000) 110 120 130 140 150 160 170 180 190 200
Kilometers (x 1000) 176 192 208 224 240 256 272 288 304 320
Months 33 36 39 42 45 48 51 54 57 60
Cooling system
Coolant - check level••••••••••
Coolant - check freeze protection••••••••••
Extended life coolant - add extender See engine manufacturer’s recommendation
Extended life coolant - replace See engine manufacturer’s recommendation
Engine - refer to engine manual for Caterpillar and Cummins. 6.0L Power
Stroke, see 6.0L engine section at end of charts
Transmission
Automatic and Auto-shift transmission Refer to transmission operator’s manual
Manual transmission - check fluid level••••••••••
Eaton-Fuller manual transmission -
petroleum oil change••
Eaton-Fuller manual transmission -
synthetic oil change•
Rear axle
Fluid level - check••••••••••
Eaton / Dana / Spicer petroleum oil -
change••
Eaton / Dana / Spicer synthetic oil -
change•
Cab components
Door hinges / latches / strikers -
lubricate, check link•••
Door lock cylinders - lubricate•••
Seat adjuster slides - lubricate•••
2006 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
253

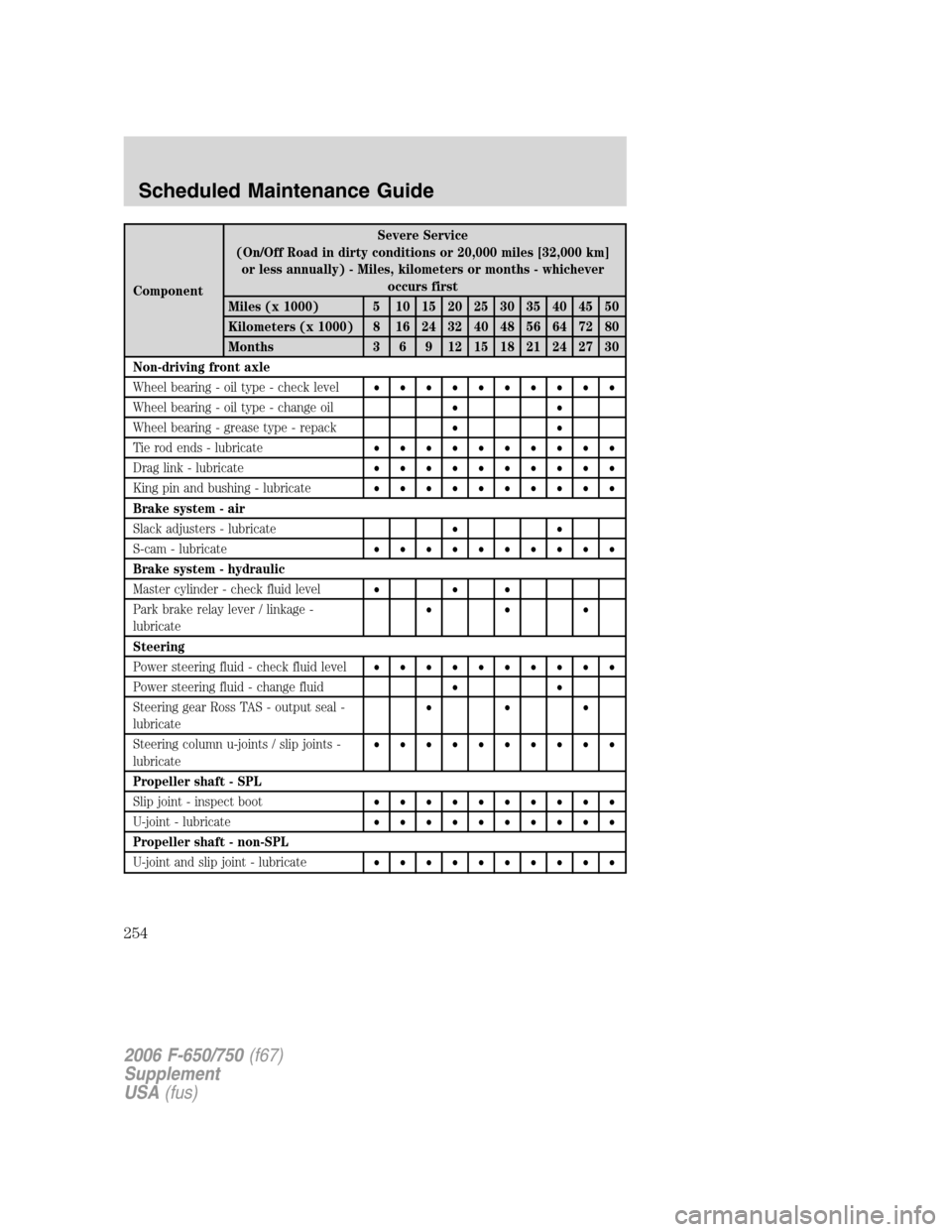

Page 254 of 272
![FORD F650 2006 11.G Owners Manual ComponentSevere Service
(On/Off Road in dirty conditions or 20,000 miles [32,000 km]
or less annually) - Miles, kilometers or months - whichever
occurs first
Miles (x 1000) 5 10 15 20 25 30 35 40 45 5](/img/11/5072/w960_5072-253.png "FORD F650 2006 11.G Owners Manual ComponentSevere Service
(On/Off Road in dirty conditions or 20,000 miles [32,000 km]
or less annually) - Miles, kilometers or months - whichever
occurs first
Miles (x 1000) 5 10 15 20 25 30 35 40 45 5")
ComponentSevere Service
(On/Off Road in dirty conditions or 20,000 miles [32,000 km]
or less annually) - Miles, kilometers or months - whichever
occurs first
Miles (x 1000) 5 10 15 20 25 30 35 40 45 50
Kilometers (x 1000) 8 16 24 32 40 48 56 64 72 80
Months 3 6 9 12 15 18 21 24 27 30
Non-driving front axle
Wheel bearing - oil type - check level••••••••••
Wheel bearing - oil type - change oil••
Wheel bearing - grease type - repack••
Tie rod ends - lubricate••••••••••
Drag link - lubricate••••••••••
King pin and bushing - lubricate••••••••••
Brake system - air
Slack adjusters - lubricate••
S-cam - lubricate••••••••••
Brake system - hydraulic
Master cylinder - check fluid level•••
Park brake relay lever / linkage -
lubricate•••
Steering
Power steering fluid - check fluid level••••••••••
Power steering fluid - change fluid••
Steering gear Ross TAS - output seal -
lubricate•••
Steering column u-joints / slip joints -
lubricate••••••••••
Propeller shaft - SPL
Slip joint - inspect boot••••••••••
U-joint - lubricate••••••••••
Propeller shaft - non-SPL
U-joint and slip joint - lubricate••••••••••
2006 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
254

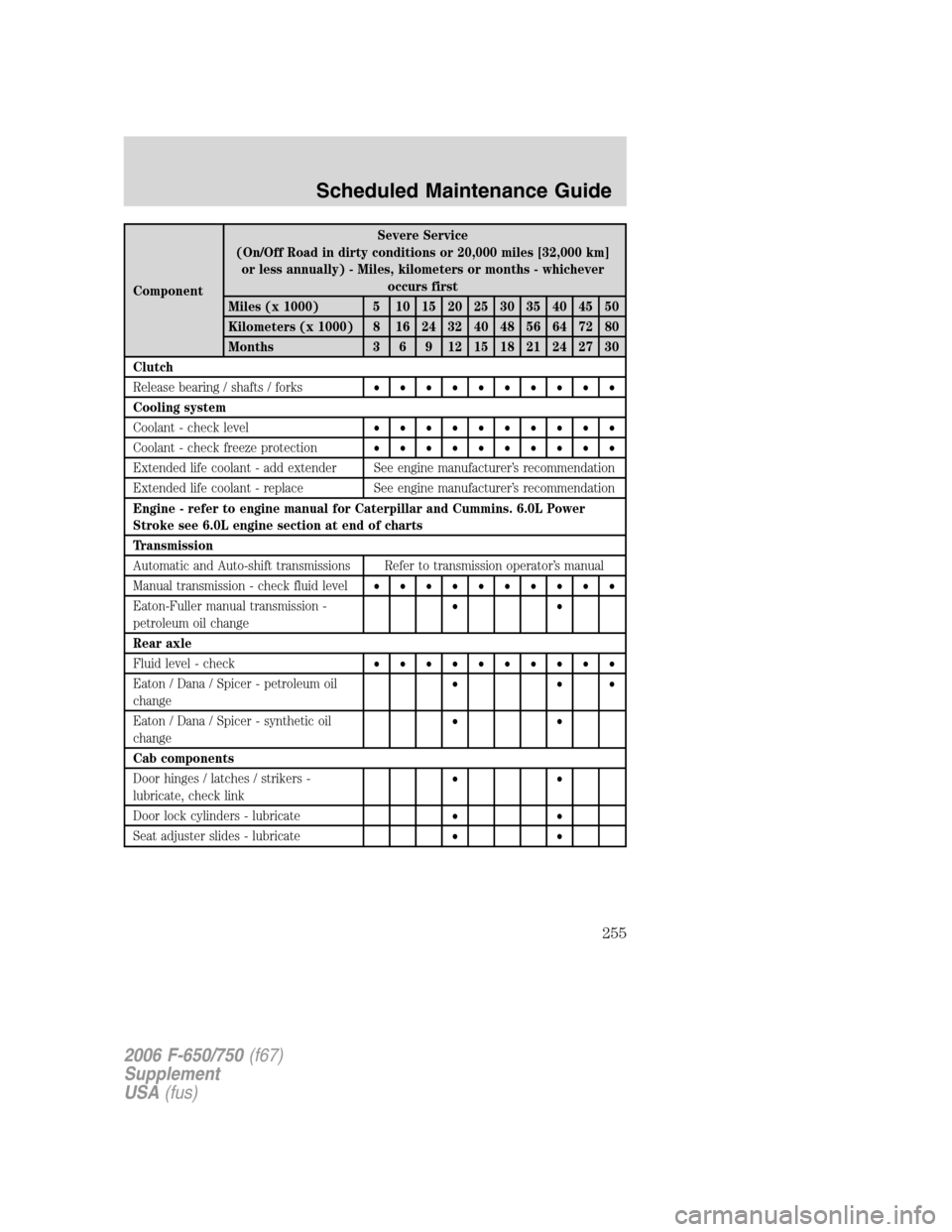

Page 255 of 272
![FORD F650 2006 11.G Owners Manual ComponentSevere Service
(On/Off Road in dirty conditions or 20,000 miles [32,000 km]
or less annually) - Miles, kilometers or months - whichever
occurs first
Miles (x 1000) 5 10 15 20 25 30 35 40 45 5](/img/11/5072/w960_5072-254.png "FORD F650 2006 11.G Owners Manual ComponentSevere Service
(On/Off Road in dirty conditions or 20,000 miles [32,000 km]
or less annually) - Miles, kilometers or months - whichever
occurs first
Miles (x 1000) 5 10 15 20 25 30 35 40 45 5")
ComponentSevere Service
(On/Off Road in dirty conditions or 20,000 miles [32,000 km]
or less annually) - Miles, kilometers or months - whichever
occurs first
Miles (x 1000) 5 10 15 20 25 30 35 40 45 50
Kilometers (x 1000) 8 16 24 32 40 48 56 64 72 80
Months 3 6 9 12 15 18 21 24 27 30
Clutch
Release bearing / shafts / forks••••••••••
Cooling system
Coolant - check level••••••••••
Coolant - check freeze protection••••••••••
Extended life coolant - add extender See engine manufacturer’s recommendation
Extended life coolant - replace See engine manufacturer’s recommendation
Engine - refer to engine manual for Caterpillar and Cummins. 6.0L Power
Stroke see 6.0L engine section at end of charts
Transmission
Automatic and Auto-shift transmissions Refer to transmission operator’s manual
Manual transmission - check fluid level••••••••••
Eaton-Fuller manual transmission -
petroleum oil change••
Rear axle
Fluid level - check••••••••••
Eaton / Dana / Spicer - petroleum oil
change•••
Eaton / Dana / Spicer - synthetic oil
change••
Cab components
Door hinges / latches / strikers -
lubricate, check link••
Door lock cylinders - lubricate••
Seat adjuster slides - lubricate••
2006 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
255
Page 256 of 272
![FORD F650 2006 11.G Owners Manual ComponentSevere Service
(On/Off Road in Dirty Conditions or 20,000 miles [32,0000 km]
or less annually) - Miles, kilometers or months - whichever
occurs first
Miles (x 1000) 55 60 65 70 75 80 85 90 95](/img/11/5072/w960_5072-255.png "FORD F650 2006 11.G Owners Manual ComponentSevere Service
(On/Off Road in Dirty Conditions or 20,000 miles [32,0000 km]
or less annually) - Miles, kilometers or months - whichever
occurs first
Miles (x 1000) 55 60 65 70 75 80 85 90 95")
ComponentSevere Service
(On/Off Road in Dirty Conditions or 20,000 miles [32,0000 km]
or less annually) - Miles, kilometers or months - whichever
occurs first
Miles (x 1000) 55 60 65 70 75 80 85 90 95 100
Kilometers (x 1000) 88 96 104 112 120 128 136 144 152 160
Months 33 36 39 42 45 48 51 54 57 60
Non-driving front axle
Wheel bearing - oil type - check level••••••••••
Wheel bearing - oil type - change oil•••
Wheel bearing - grease type - repack•••
Tie rod ends - lubricate••••••••••
Drag link - lubricate••••••••••
King pin and bushing - lubricate••••••••••
Brake system - air
Slack adjusters - lubricate•••
S-cam - lubricate••••••••••
Brake system - hydraulic
Master cylinder - check fluid level••••••••••
Park brake relay lever / linkage -
lubricate•••
Steering
Power steering fluid - check level••••••••••
Power steering fluid - change fluid•••
Power steering filter - replacement•
Steering gear Ross TAS - output seal -
lubricate•••
Steering column u-joints / slip joint -
lubricate••••••••••
Propeller shaft SPL
Slip joint - inspect boot••••••••••
U-joint - lubricate••••••••••
Propeller shaft non-SPL
U-joint and slip joint - lubricate••••••••••
2006 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
256

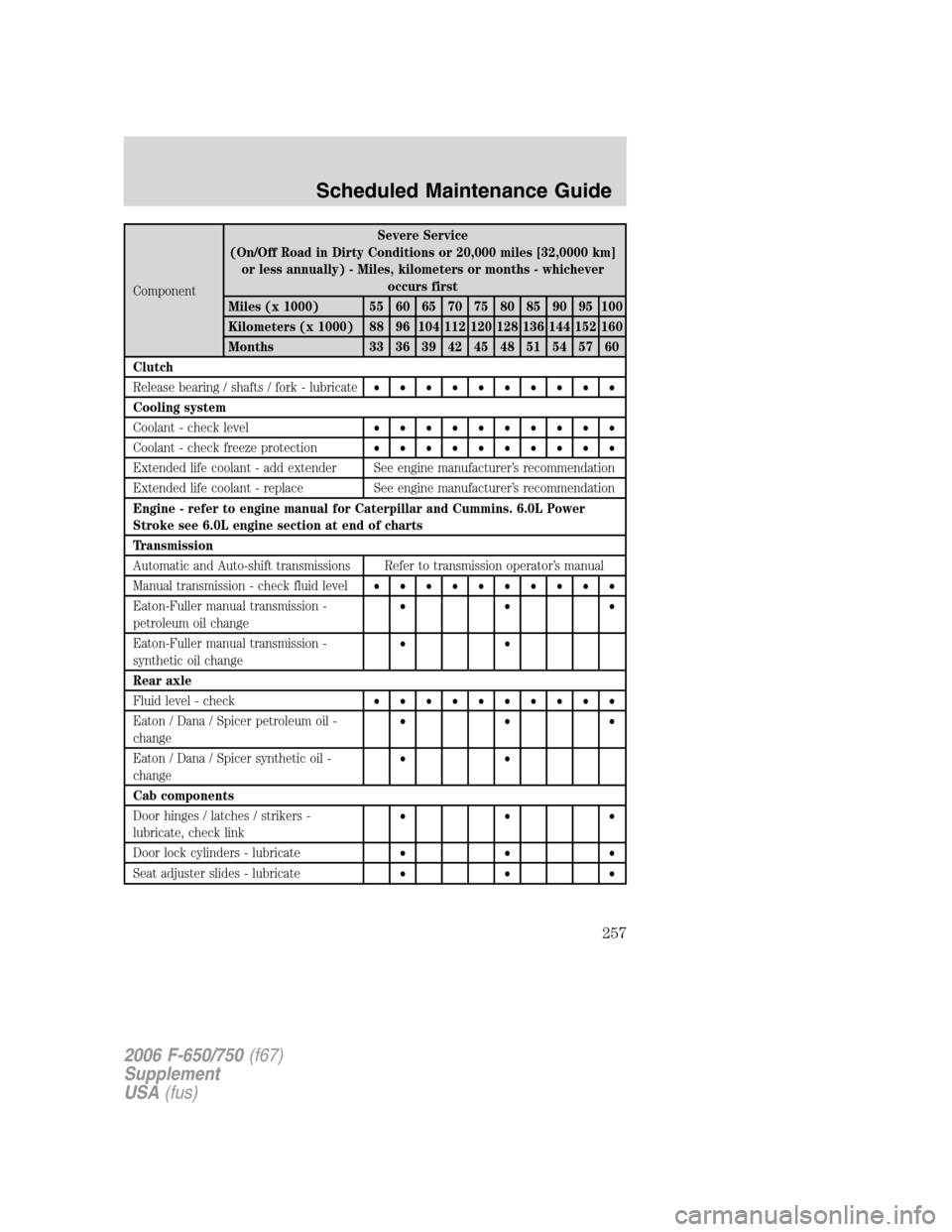

Page 257 of 272
![FORD F650 2006 11.G Owners Manual ComponentSevere Service
(On/Off Road in Dirty Conditions or 20,000 miles [32,0000 km]
or less annually) - Miles, kilometers or months - whichever
occurs first
Miles (x 1000) 55 60 65 70 75 80 85 90 95](/img/11/5072/w960_5072-256.png "FORD F650 2006 11.G Owners Manual ComponentSevere Service
(On/Off Road in Dirty Conditions or 20,000 miles [32,0000 km]
or less annually) - Miles, kilometers or months - whichever
occurs first
Miles (x 1000) 55 60 65 70 75 80 85 90 95")
ComponentSevere Service
(On/Off Road in Dirty Conditions or 20,000 miles [32,0000 km]
or less annually) - Miles, kilometers or months - whichever
occurs first
Miles (x 1000) 55 60 65 70 75 80 85 90 95 100
Kilometers (x 1000) 88 96 104 112 120 128 136 144 152 160
Months 33 36 39 42 45 48 51 54 57 60
Clutch
Release bearing / shafts / fork - lubricate••••••••••
Cooling system
Coolant - check level••••••••••
Coolant - check freeze protection••••••••••
Extended life coolant - add extender See engine manufacturer’s recommendation
Extended life coolant - replace See engine manufacturer’s recommendation
Engine - refer to engine manual for Caterpillar and Cummins. 6.0L Power
Stroke see 6.0L engine section at end of charts
Transmission
Automatic and Auto-shift transmissions Refer to transmission operator’s manual
Manual transmission - check fluid level••••••••••
Eaton-Fuller manual transmission -
petroleum oil change•••
Eaton-Fuller manual transmission -
synthetic oil change••
Rear axle
Fluid level - check••••••••••
Eaton / Dana / Spicer petroleum oil -
change•••
Eaton / Dana / Spicer synthetic oil -
change••
Cab components
Door hinges / latches / strikers -
lubricate, check link•••
Door lock cylinders - lubricate•••
Seat adjuster slides - lubricate•••
2006 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
257
Page 258 of 272
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
2006 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
258
Page 259 of 272
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
2006 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
259

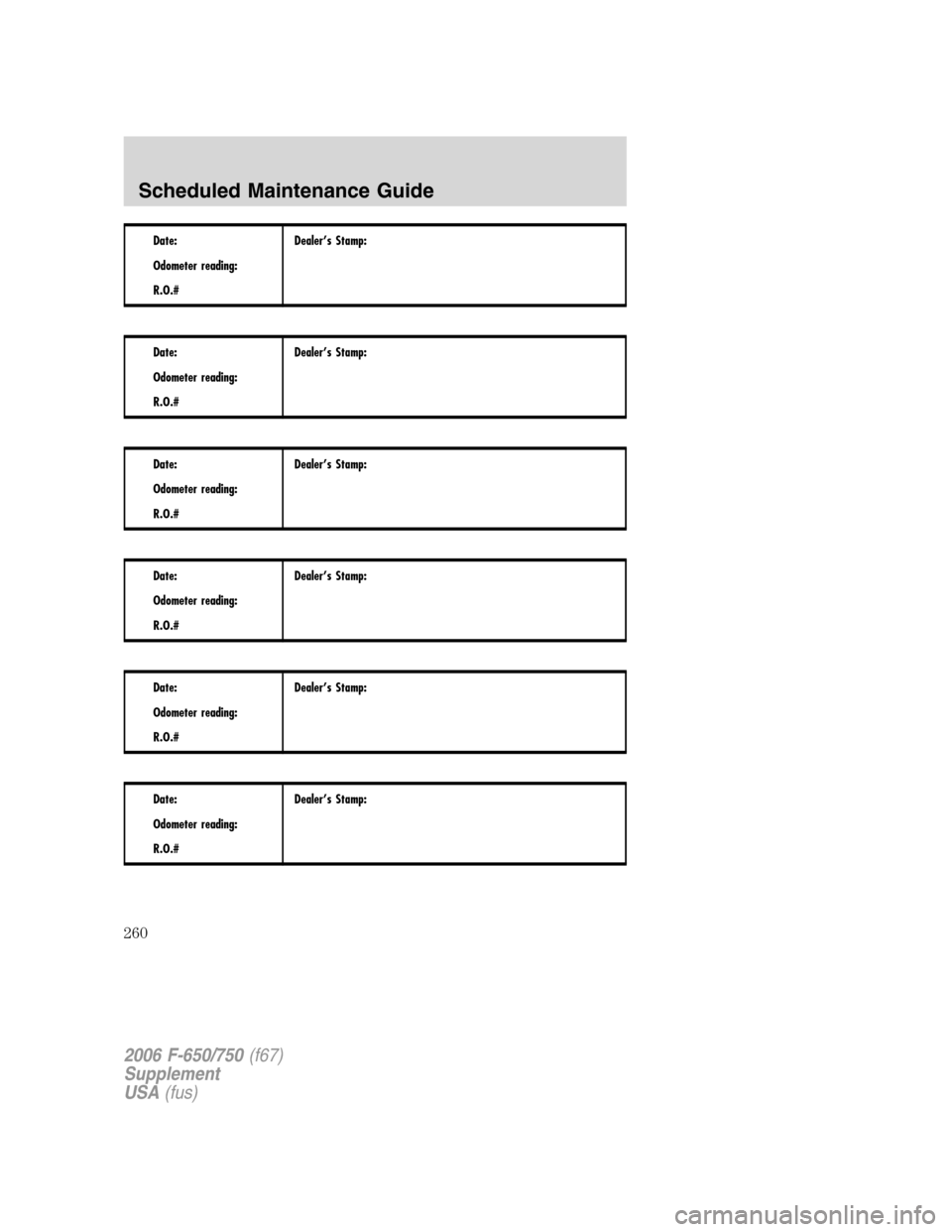

Page 260 of 272
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
2006 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
260
