FORD F650 2006 11.G Owners Manual

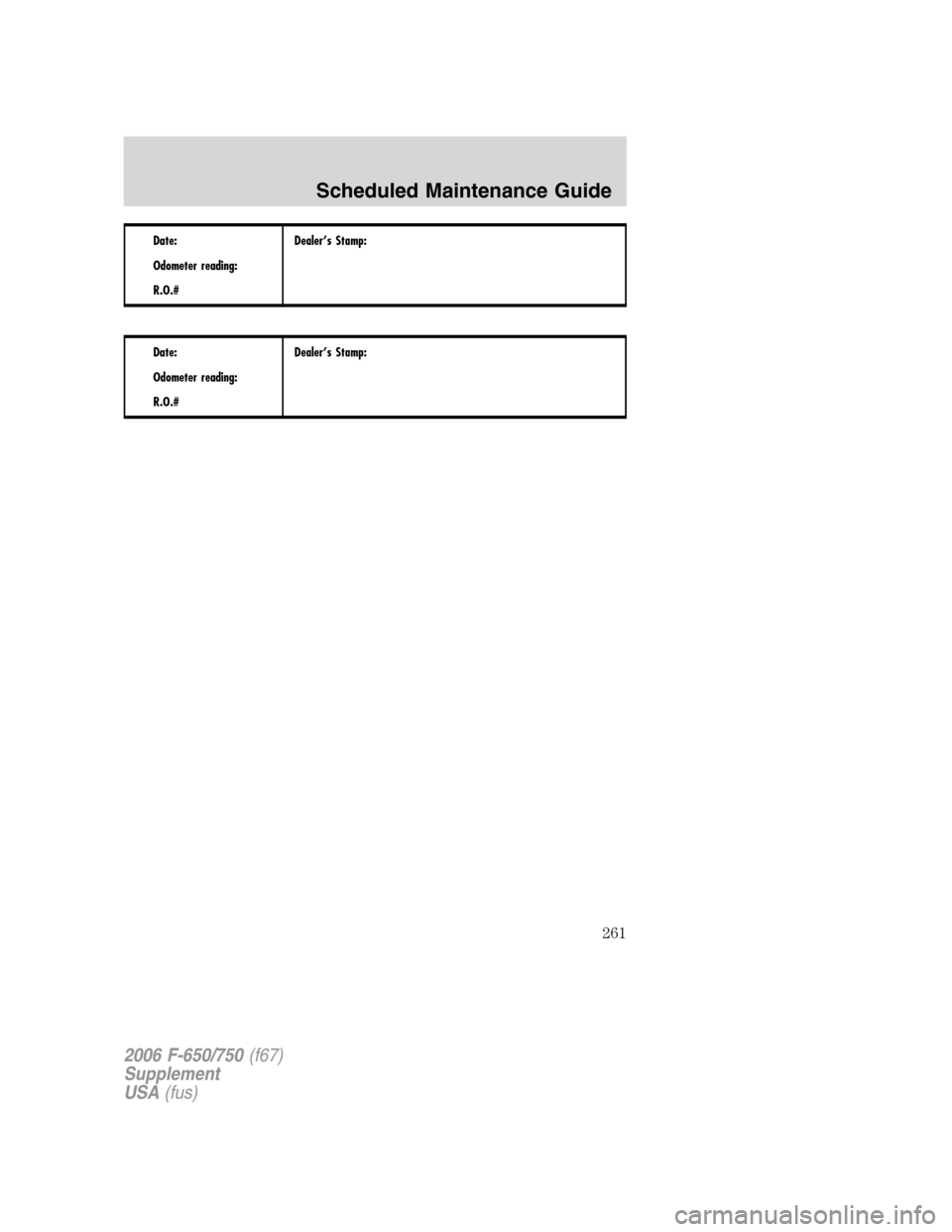

Date:
Odometer reading:
R.O.#Dealer’s Stamp:
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
2006 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
261

6.0 Power Stroke Engine

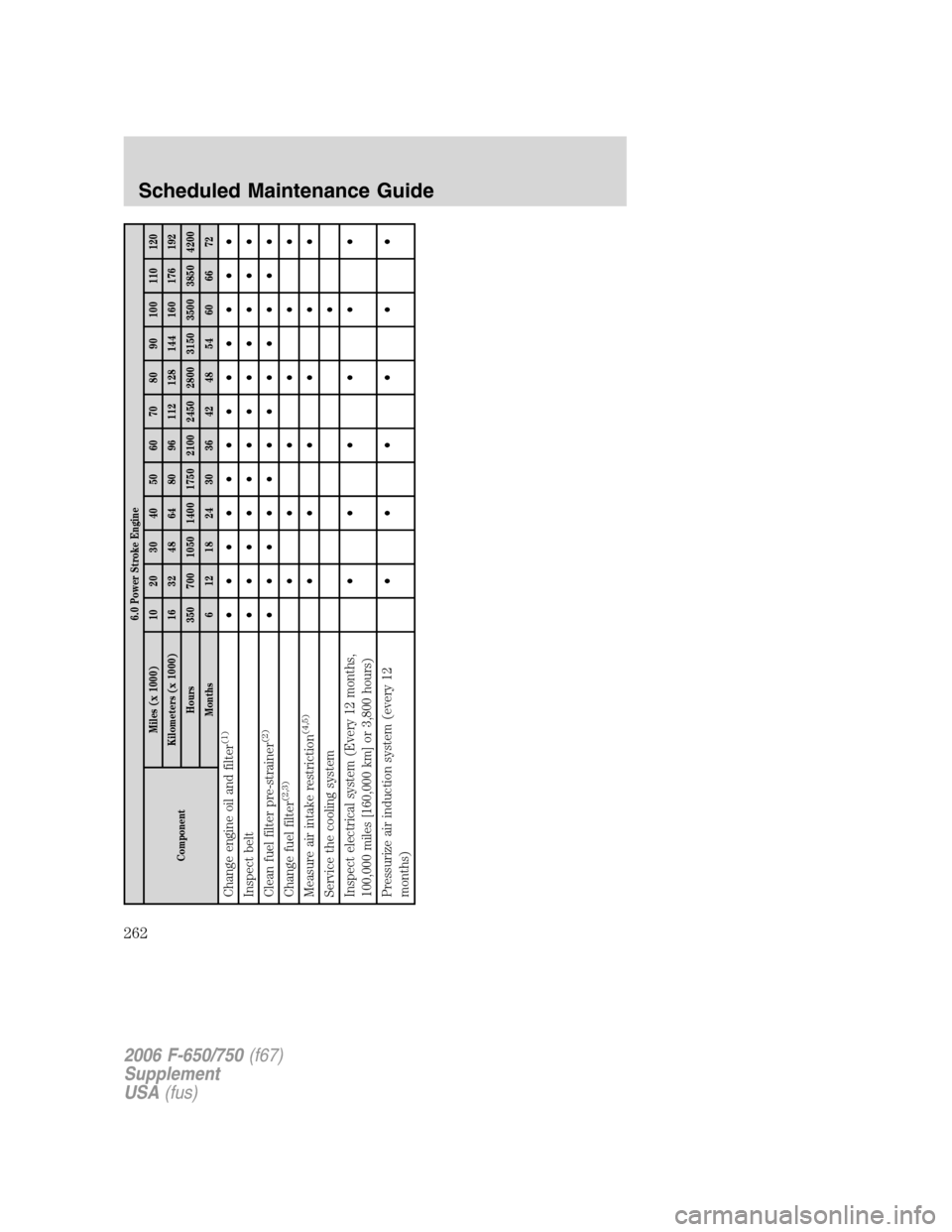

ComponentMiles (x 1000) 10 20 30 40 50 60 70 80 90 100 110 120
Kilometers (x 1000) 16 32 48 64 80 96 112 128 144 160 176 192
Hours 350 700 1050 1400 1750 2100 2450 2800 3150 3500 3850 4200
Months 6 12 18 24 30 36 42 48 54 60 66 72
Change engine oil and filter
(1)
••••••••••••
Inspect belt••••••••••••
Clean fuel filter pre-strainer
(2)
••••••••••••
Change fuel filter
(2,3)
••••••
Measure air intake restriction
(4,5)
••••••
Service the cooling system•
Inspect electrical system (Every 12 months,
100,000 miles [160,000 km] or 3,800 hours)••••••
Pressurize air induction system (every 12
months)••••••
2006 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
262

6.0 Power Stroke Engine

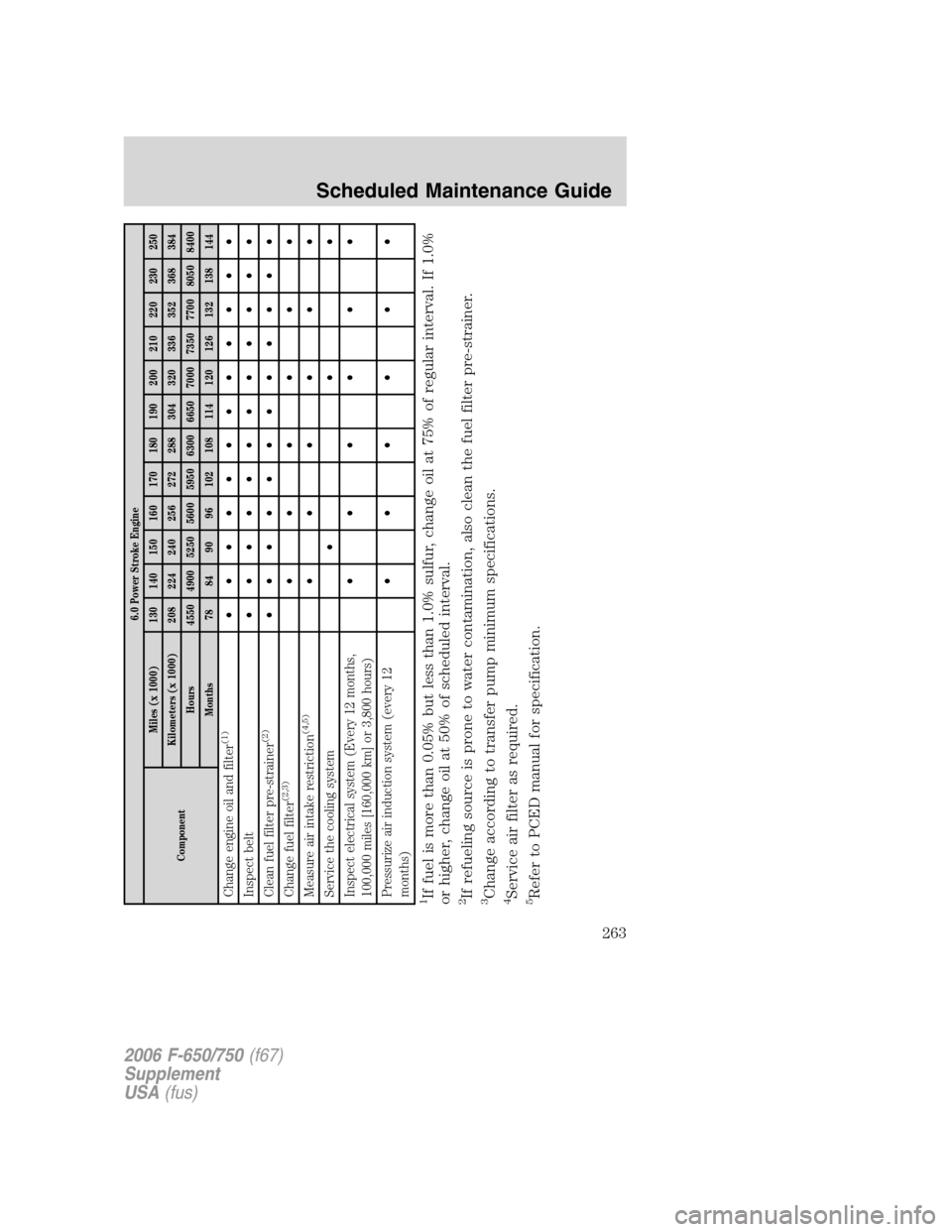

ComponentMiles (x 1000) 130 140 150 160 170 180 190 200 210 220 230 250
Kilometers (x 1000) 208 224 240 256 272 288 304 320 336 352 368 384
Hours 4550 4900 5250 5600 5950 6300 6650 7000 7350 7700 8050 8400
Months 78 84 90 96 102 108 114 120 126 132 138 144
Change engine oil and filter
(1)
••••••••••••
Inspect belt••••••••••••
Clean fuel filter pre-strainer
(2)
••••••••••••
Change fuel filter
(2,3)
••••••
Measure air intake restriction
(4,5)
••••••
Service the cooling system•••
Inspect electrical system (Every 12 months,
100,000 miles [160,000 km] or 3,800 hours)••••••
Pressurize air induction system (every 12
months)••••••
1If fuel is more than 0.05% but less than 1.0% sulfur, change oil at 75% of regular interval. If 1.0%
or higher, change oil at 50% of scheduled interval.2If refueling source is prone to water contamination, also clean the fuel filter pre-strainer.3Change according to transfer pump minimum specifications.4Service air filter as required.5Refer to PCED manual for specification.
2006 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
263

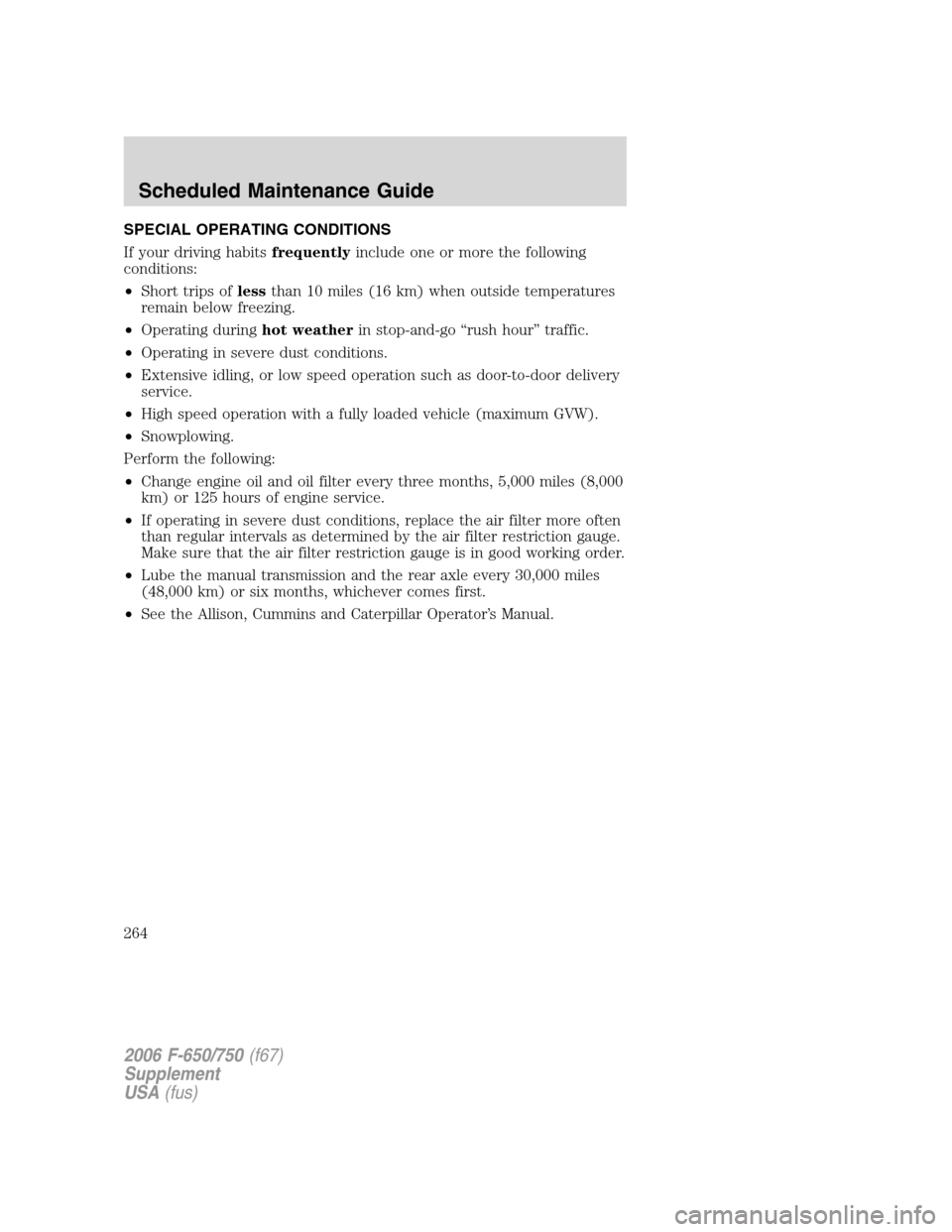

SPECIAL OPERATING CONDITIONS
If your driving habitsfrequentlyinclude one or more the following
conditions:
•Short trips oflessthan 10 miles (16 km) when outside temperatures
remain below freezing.
•Operating duringhot weatherin stop-and-go “rush hour” traffic.
•Operating in severe dust conditions.
•Extensive idling, or low speed operation such as door-to-door delivery
service.
•High speed operation with a fully loaded vehicle (maximum GVW).
•Snowplowing.
Perform the following:
•Change engine oil and oil filter every three months, 5,000 miles (8,000
km) or 125 hours of engine service.
•If operating in severe dust conditions, replace the air filter more often
than regular intervals as determined by the air filter restriction gauge.
Make sure that the air filter restriction gauge is in good working order.
•Lube the manual transmission and the rear axle every 30,000 miles
(48,000 km) or six months, whichever comes first.
•See the Allison, Cummins and Caterpillar Operator’s Manual.
2006 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
264

Date:
Odometer reading:
R.O.#Dealer’s Stamp:
See corresponding mileage in maintenance schedule for services performed.
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
See corresponding mileage in maintenance schedule for services performed.
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
See corresponding mileage in maintenance schedule for services performed.
Date:
Odometer reading:
R.O.#Dealer’s Stamp:
See corresponding mileage in maintenance schedule for services performed.

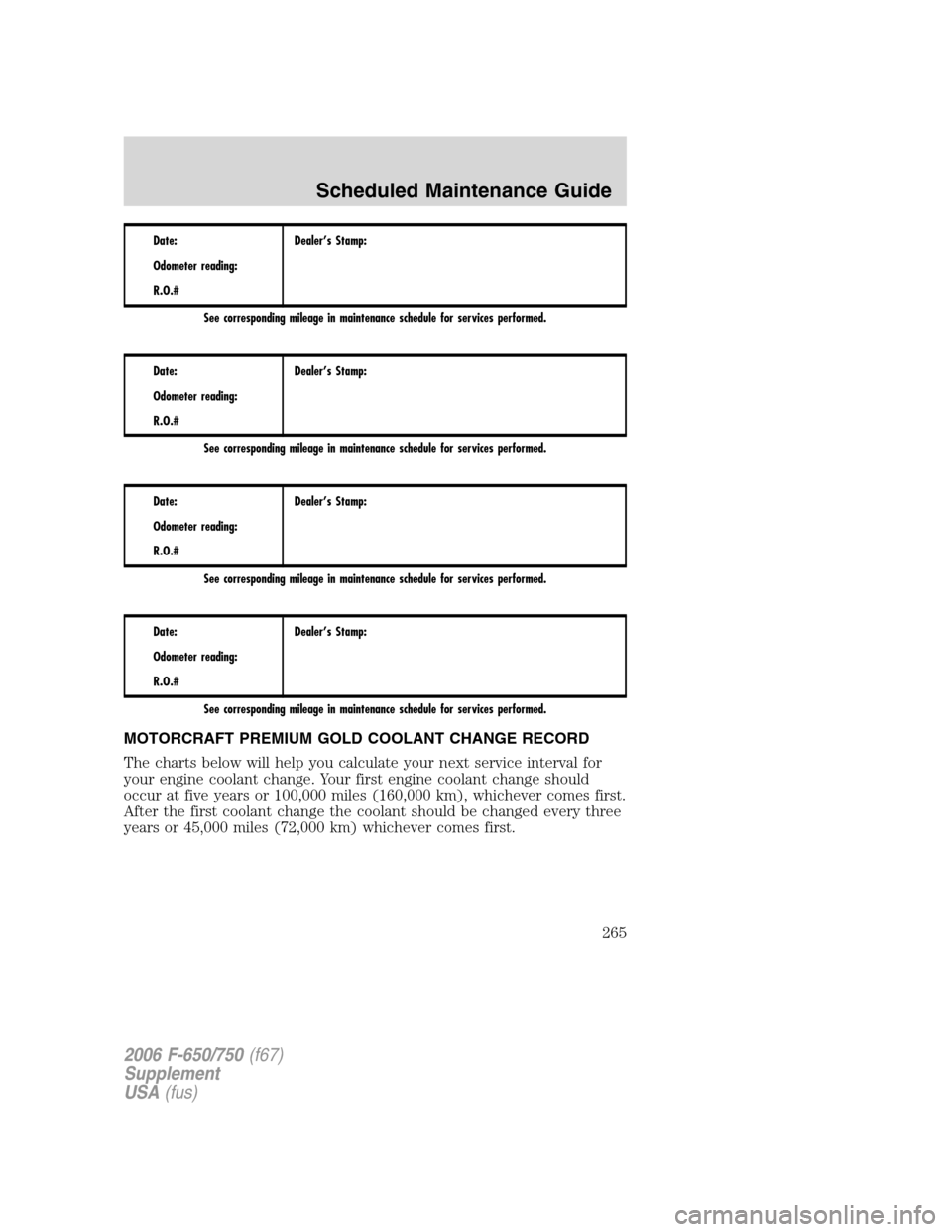

MOTORCRAFT PREMIUM GOLD COOLANT CHANGE RECORD
The charts below will help you calculate your next service interval for
your engine coolant change. Your first engine coolant change should
occur at five years or 100,000 miles (160,000 km), whichever comes first.
After the first coolant change the coolant should be changed every three
years or 45,000 miles (72,000 km) whichever comes first.
2006 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
265

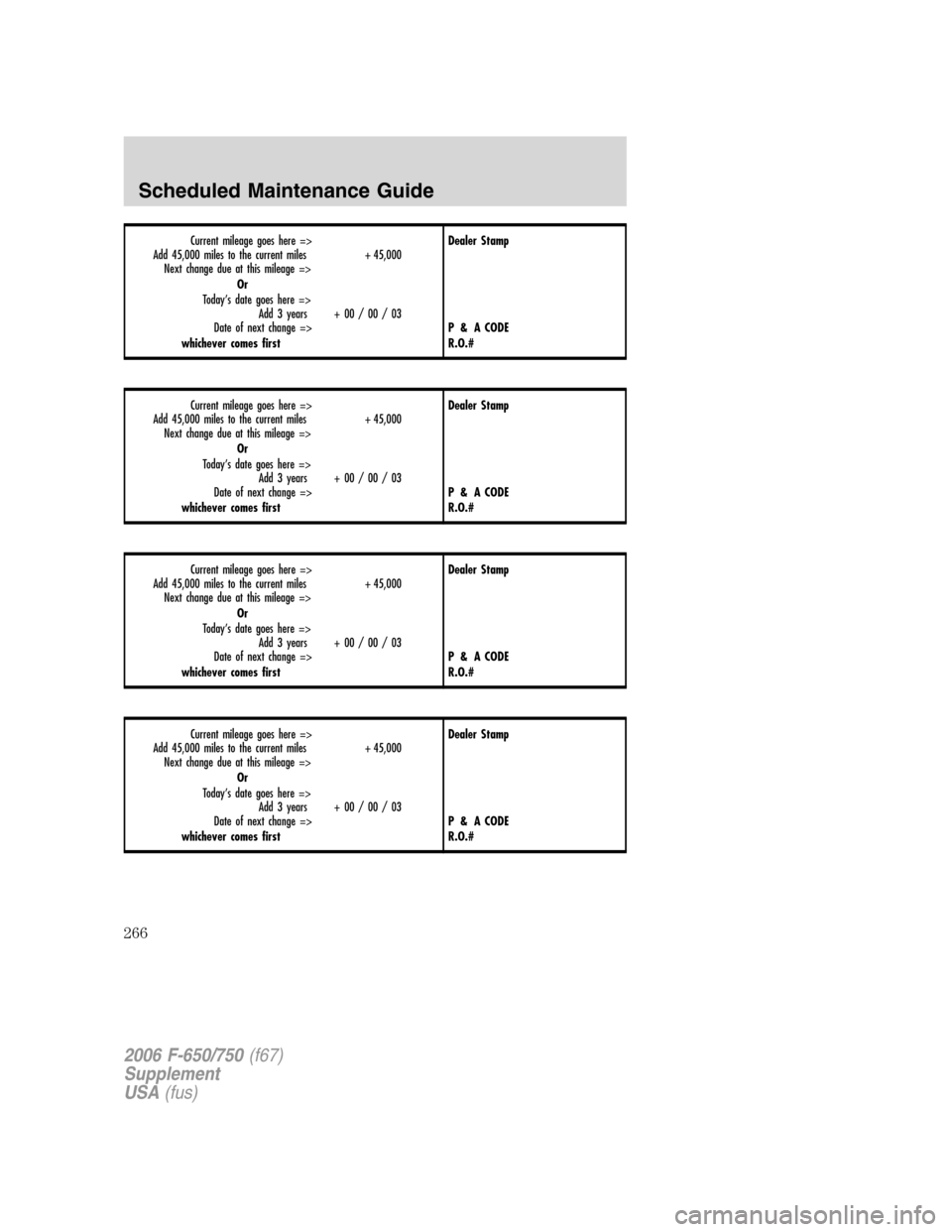

Current mileage goes here =>
Add 45,000 miles to the current miles + 45,000
Next change due at this mileage =>
Or
Today’s date goes here =>
Add3years +00/00/03
Date of next change =>
whichever comes firstDealer Stamp
P & A CODE
R.O.#
Current mileage goes here =>
Add 45,000 miles to the current miles + 45,000
Next change due at this mileage =>
Or
Today’s date goes here =>
Add3years +00/00/03
Date of next change =>
whichever comes firstDealer Stamp
P & A CODE
R.O.#
Current mileage goes here =>
Add 45,000 miles to the current miles + 45,000
Next change due at this mileage =>
Or
Today’s date goes here =>
Add3years +00/00/03
Date of next change =>
whichever comes firstDealer Stamp
P & A CODE
R.O.#
Current mileage goes here =>
Add 45,000 miles to the current miles + 45,000
Next change due at this mileage =>
Or
Today’s date goes here =>
Add3years +00/00/03
Date of next change =>
whichever comes firstDealer Stamp
P & A CODE
R.O.#
2006 F-650/750(f67)
Supplement
USA(fus)
Scheduled Maintenance Guide
266

A
Air conditioning ..........................51
manual heating and air
conditioning system .................51
Air suspension ...........................119
Anti-lock brake system
(see Brakes) ..............................117
Audio system
(see Radio) ................33–34, 39, 44
Automatic transmission ............121
fluid, adding ............................192
fluid, checking ........................192
fluid, refill capacities ..............232
fluid, specification ..................218
Auxiliary power point .................59
Axle ............................132, 170, 207
lubricant specifications ..........218
refill capacities ........................231
B
Battery .......................................186
charging system warning
light ............................................23
jumping a disabled battery ....151
servicing ..................................264
voltage gauge ............................28
BeltMinder ...................................79
Brakes ..........................98, 104, 170
adjustment ..............................173
anti-lock ...........................117–118
anti-lock brake system (ABS)
warning light .....................23, 117
brake warning light ..................23
fluid, checking and adding ...173,
186
fluid, specifications .................218
parking ....................100, 106, 174
Bulbs ............................................55C
Catalytic converter
(see Emission control) .............174
CD-single premium .....................33
Cell phone use ..............................7
Child safety restraints ................83
child safety belts ......................83
Child safety seats ........................86
attaching with tether straps ....90
in front seat ..............................88
in rear seat ................................88
tether anchorage hardware .....90
Child safety seats - booster
seats .............................................84
Cleaning your vehicle
chrome and aluminum
parts .........................................164
engine compartment ..............164
exterior ....................................166
instrument panel ....................165
interior .....................................165
interior trim ............................165
plastic parts ............................164
washing ....................................163
waxing .....................................163
wheels ......................................164
Climate control (see Air
conditioning or Heating) ......50–51
Clutch ................................123, 190
adjusting ..................................191
fluid ..........................................190
operation while driving ..........123
specifications ..........................218
Controls
power seat .................................71
Coolant ......................................181
checking and adding ..............181
refill capacities ........................232
2006 F-650/750(f67)
Supplement
USA(fus)
Index
267

specifications ..........................218
temperature gauge ...................28
Cruise control
(see Speed control) ....................63
Customer Assistance ........143, 159
Ford accessories for your
vehicle .....................................166
Getting assistance outside the
U.S. and Canada .............159, 161
Getting roadside assistance ...143
Getting the service you
need .........................................159
Ordering additional owner’s
literature .................................162
D
Daytime running lamps
(see Lamps) ................................53
Defects, reporting .....................162
Defrost ...................................50–51
windshield ...........................50–51
with heating and air
conditioning system .................51
with standard heating
system .......................................50
Doors
lubricant specifications ..........218
Driving under special
conditions
through water ...........................96
E
Emergencies, roadside
jump-starting ..........................151
Emission control system ..202, 236
catalytic converter ..................174
Engine
cleaning ...................................164lubrication specifications .......218
Engine fan .................................184
Engine oil ..................................177
checking and adding ..............177
oil pressure gauge ....................28
recommendations ...................178
refill capacities ........................232
specifications ..........................218
F
Flashers, hazard ........................144
Fuel ............................................197
calculating fuel economy .......200
capacity ...................................233
choosing the right fuel ...........198
filling your vehicle with fuel ..197
filter, specifications ........194–196
gauge .........................................28
improving fuel economy ........200
running out of fuel ...........95, 199
safety information relating to
automotive fuels .....................197
Fuses ..................................144, 151
G
Gas mileage
(see Fuel economy) .................200
Gauges .........................................28
battery voltage gauge ...............28
engine coolant temperature
gauge .........................................28
engine oil pressure gauge ........28
fuel gauge ..................................28
odometer ...................................28
speedometer .............................28
tachometer ................................28
trip odometer ............................28
H
Hazard flashers .........................144
2006 F-650/750(f67)
Supplement
USA(fus)
Index
268

Headlamps ...................................53
aiming ........................................54
daytime running lights .............53
high beam .................................53
warning chime ..........................23
Heating ..................................50–51
heater only system ...................50
manual heating and air
conditioning system .................51
Hood ..........................................175
I
Ignition .........................................91
chime .........................................23
Infant seats (see Safety seats) ..86
Instrument panel
cleaning ...................................165
lighting up panel and
interior .......................................54
J
Jump-starting your vehicle ......151
K
Keys
key in ignition chime ...............23
positions of the ignition ...........91
L
Lamps
bulb replacement
specifications chart ..................55
cargo lamps ...............................54
daytime running light ...............53
headlamps .................................53
high beams ................................53instrument panel, dimming .....54
interior lamps ...........................55
replacing bulbs ...................55–57
Lane change indicator
(see Turn signal) ........................54
Lights, warning and indicator ....23
air suspension ...........................23
anti-lock brakes (ABS) ....23, 117
brake ..........................................23
charging system ........................23
safety belt .................................23
service engine soon ..................23
traction control off ...................23
turn signal indicator .................23
Lubricant specifications ...........218
M
Manual transmission .................125
lubricant specifications ..........218
Mirrors .........................................61
fold away ...................................63
heated ........................................62
side view mirrors (power) .......61
O
Odometer .....................................28
P
Paint chips, repairing ...............163
Parking brake ....................100, 106
warning light .............................23
Power door locks ........................67
Power mirrors .............................61
Power point .................................59
Power steering ..........................189
fluid, checking and adding ....189
2006 F-650/750(f67)
Supplement
USA(fus)
Index
269

fluid, refill capacity ................232
fluid, specifications .................218
Power Take-Off (PTO)
operation .................................131
Power Windows ...........................59
R
Radio ..........................33–34, 39, 44
Relays ........................................145
Remote entry system
locking/unlocking doors ...........67
Roadside assistance ..................143
S
Safety belts
(see Safety restraints) .........74–76
Safety defects, reporting ..........162
Safety restraints ....................74–76
belt minder ...............................79
cleaning the safety belts ..........82
extension assembly ..................82
for adults .............................75–76
for children ...............................83
lap belt ......................................77
warning light and chime ....23, 78
Safety seats for children ............86
Scheduled Maintenance
Guide .........................................235
Coolant Change Record .........265
General Maintenance
Information .............................235
Seat belts
(see Safety restraints) ...............74
Seats ............................................68
child safety seats ......................86heated ........................................73
Special notice ................................6
Specification chart,
lubricants ...................................218
Speed control ..............................63
Speedometer ...............................28
Starting your vehicle ..................91
jump starting ..........................151
preparing to start your
vehicle .......................................91
Steering .....................................188
Steering wheel
controls ................................58, 63
tilting .........................................58
Suspension ........................119, 204
T
Tachometer .................................28
Temperature control
(see Climate control) ...........50–51
Tires
checking the pressure ............214
Towing
wrecker ....................................155
Traction control
off light ......................................23
Transmission .....................121, 125
automatic operation ...............121
fluid, checking and adding
(automatic) .............................192
fluid, checking and adding
(manual) .................................193
fluid, refill capacities ..............232
lubricant specifications ..........218
manual operation ....................125
Turn signal ..................................54
2006 F-650/750(f67)
Supplement
USA(fus)
Index
270
