Tire sizeLoad
rangeApproved
rim widthsAxle capacity
Front - lb.
(kg)/psi
(kPa)Rear - lb.
(kg)/psi
(kPa)

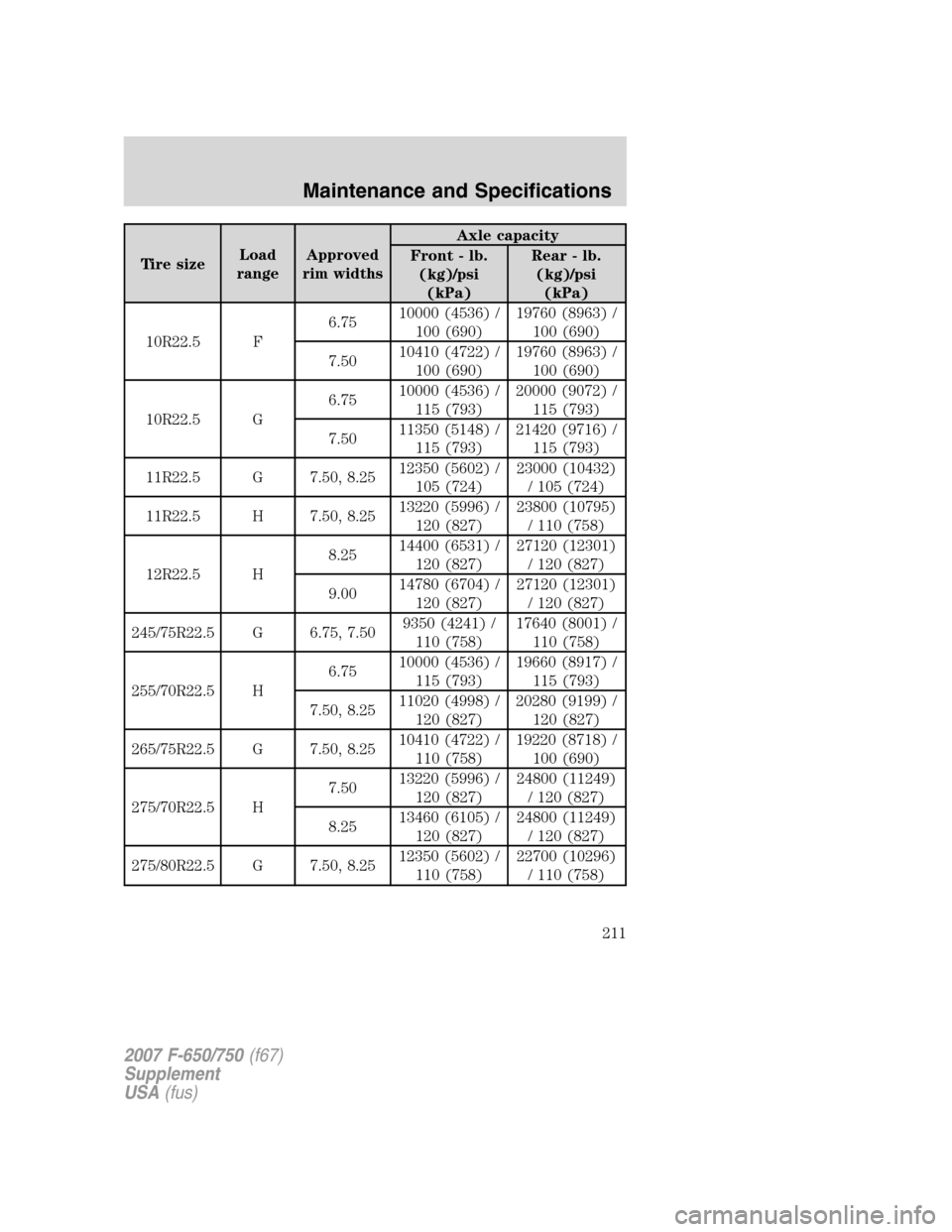

10R22.5 F6.7510000 (4536) /
100 (690)19760 (8963) /
100 (690)
7.5010410 (4722) /
100 (690)19760 (8963) /
100 (690)
10R22.5 G6.7510000 (4536) /
115 (793)20000 (9072) /
115 (793)
7.5011350 (5148) /
115 (793)21420 (9716) /
115 (793)
11R22.5 G 7.50, 8.2512350 (5602) /
105 (724)23000 (10432)
/ 105 (724)
11R22.5 H 7.50, 8.2513220 (5996) /
120 (827)23800 (10795)
/ 110 (758)
12R22.5 H8.2514400 (6531) /
120 (827)27120 (12301)
/ 120 (827)
9.0014780 (6704) /
120 (827)27120 (12301)
/ 120 (827)
245/75R22.5 G 6.75, 7.509350 (4241) /
110 (758)17640 (8001) /
110 (758)
255/70R22.5 H6.7510000 (4536) /
115 (793)19660 (8917) /
115 (793)
7.50, 8.2511020 (4998) /
120 (827)20280 (9199) /
120 (827)
265/75R22.5 G 7.50, 8.2510410 (4722) /
110 (758)19220 (8718) /
100 (690)
275/70R22.5 H7.5013220 (5996) /
120 (827)24800 (11249)
/ 120 (827)
8.2513460 (6105) /
120 (827)24800 (11249)
/ 120 (827)
275/80R22.5 G 7.50, 8.2512350 (5602) /
110 (758)22700 (10296)
/ 110 (758)
2007 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
211

Tire sizeLoad
rangeApproved
rim widthsAxle capacity
Front - lb.
(kg)/psi
(kPa)Rear - lb.
(kg)/psi
(kPa)

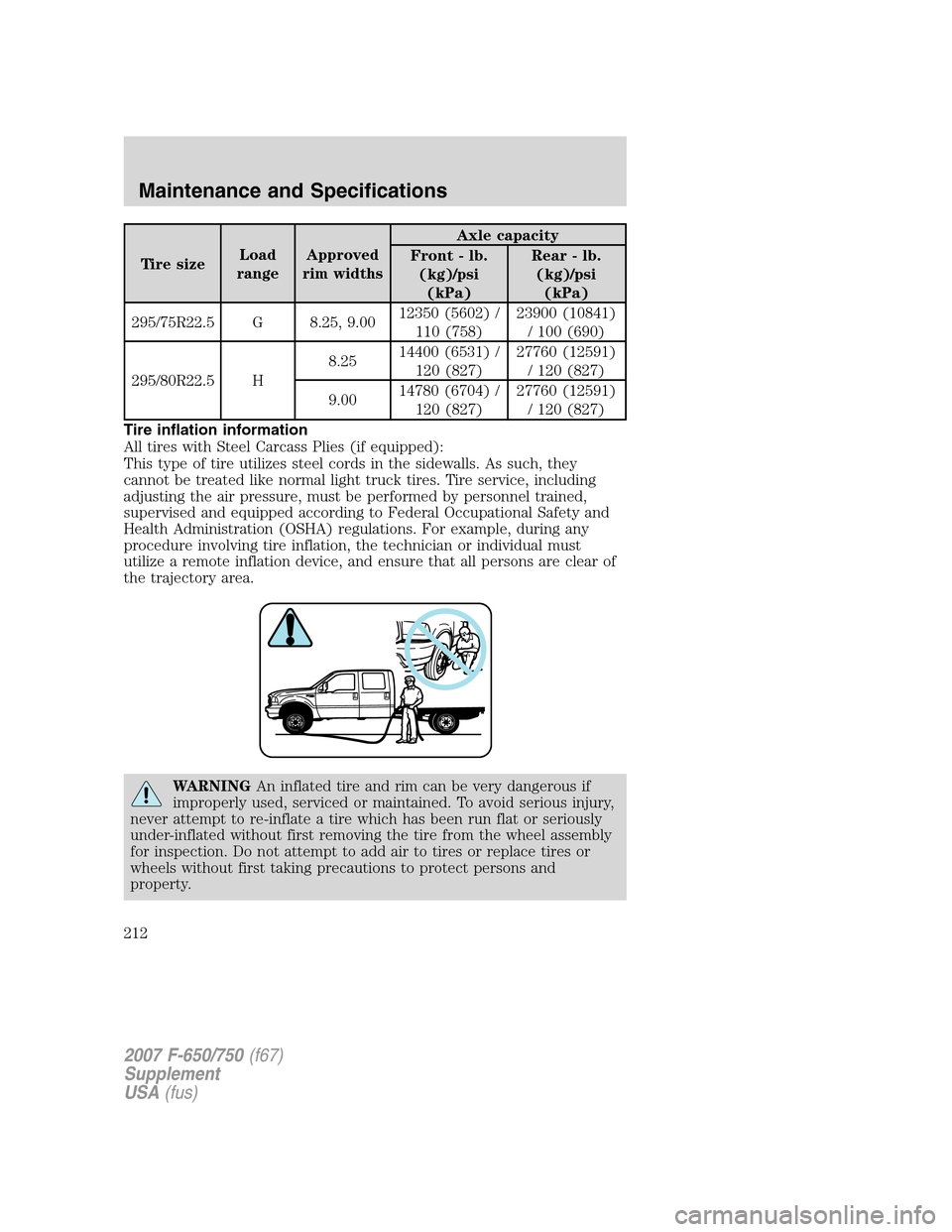

295/75R22.5 G 8.25, 9.0012350 (5602) /
110 (758)23900 (10841)
/ 100 (690)
295/80R22.5 H8.2514400 (6531) /
120 (827)27760 (12591)
/ 120 (827)
9.0014780 (6704) /
120 (827)27760 (12591)
/ 120 (827)
Tire inflation information
All tires with Steel Carcass Plies (if equipped):
This type of tire utilizes steel cords in the sidewalls. As such, they
cannot be treated like normal light truck tires. Tire service, including
adjusting the air pressure, must be performed by personnel trained,
supervised and equipped according to Federal Occupational Safety and
Health Administration (OSHA) regulations. For example, during any
procedure involving tire inflation, the technician or individual must
utilize a remote inflation device, and ensure that all persons are clear of
the trajectory area.
WARNINGAn inflated tire and rim can be very dangerous if
improperly used, serviced or maintained. To avoid serious injury,
never attempt to re-inflate a tire which has been run flat or seriously
under-inflated without first removing the tire from the wheel assembly
for inspection. Do not attempt to add air to tires or replace tires or
wheels without first taking precautions to protect persons and
property.
2007 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
212

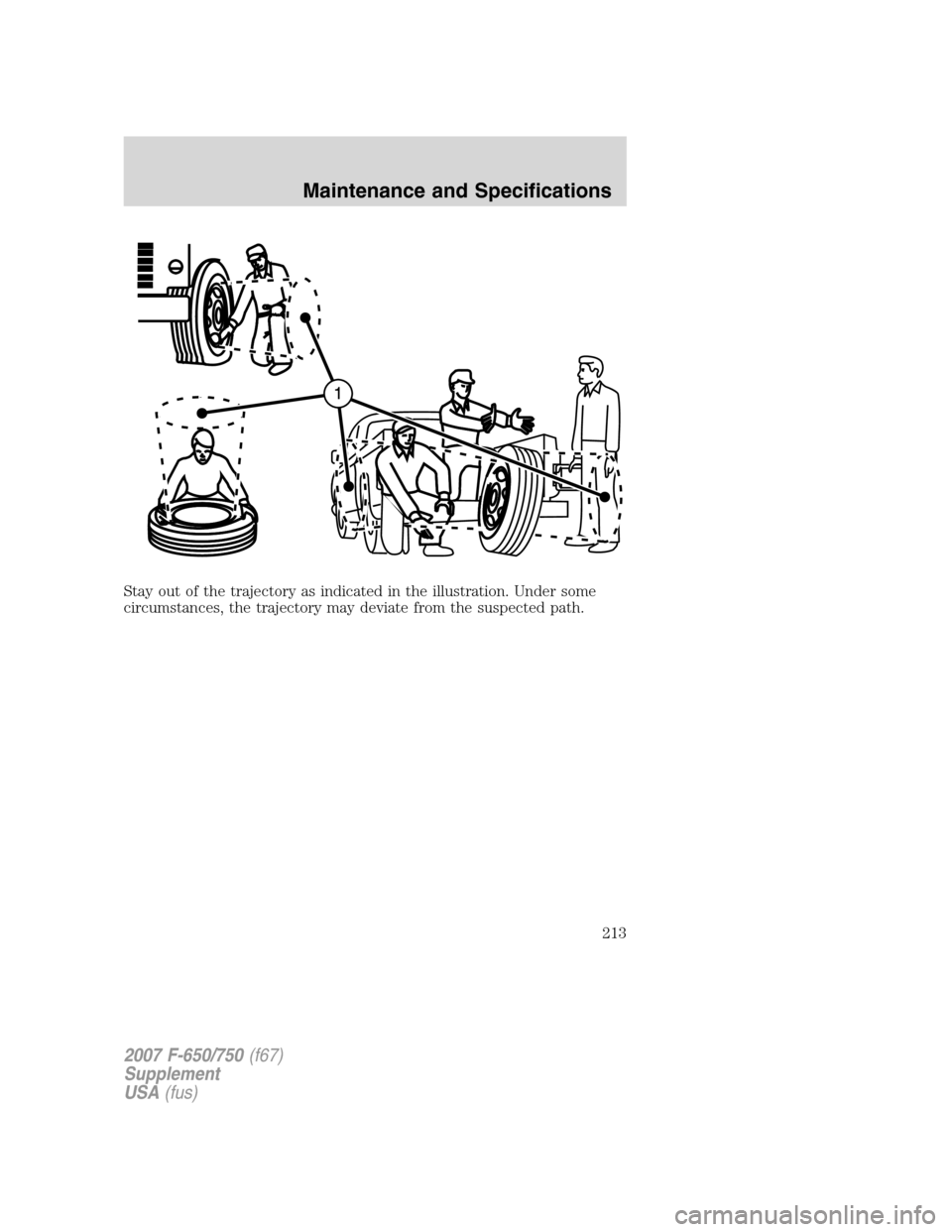

Stay out of the trajectory as indicated in the illustration. Under some
circumstances, the trajectory may deviate from the suspected path.
2007 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
213

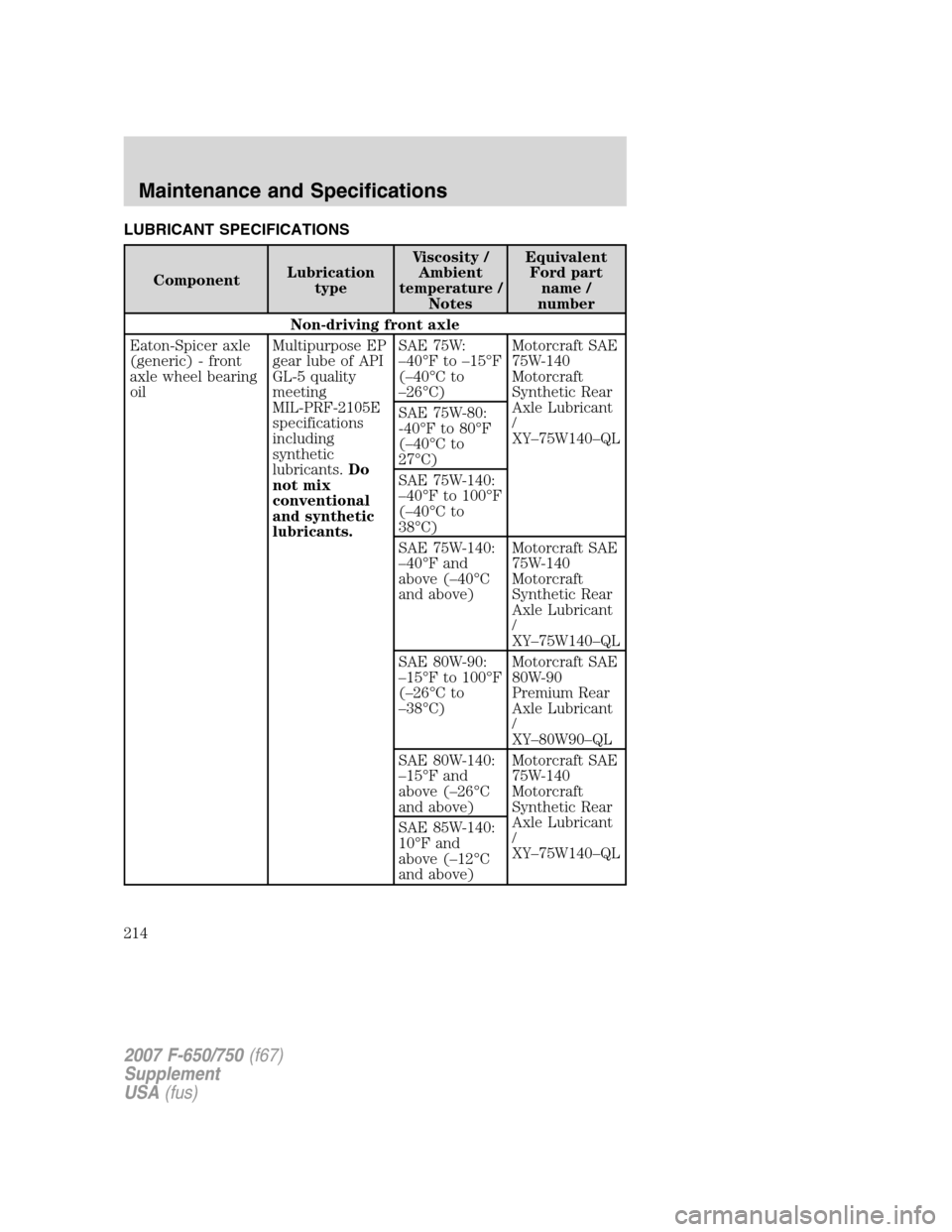

LUBRICANT SPECIFICATIONS
ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name /
number
Non-driving front axle
Eaton-Spicer axle
(generic) - front
axle wheel bearing
oilMultipurpose EP
gear lube of API
GL-5 quality
meeting
MIL-PRF-2105E
specifications
including
synthetic
lubricants.Do
not mix
conventional
and synthetic
lubricants.SAE 75W:
–40°F to –15°F
(–40°C to
–26°C)Motorcraft SAE
75W-140
Motorcraft
Synthetic Rear
Axle Lubricant
/
XY–75W140–QL SAE 75W-80:
-40°F to 80°F
(–40°C to
27°C)
SAE 75W-140:
–40°F to 100°F
(–40°C to
38°C)
SAE 75W-140:
–40°F and
above (–40°C
and above)Motorcraft SAE
75W-140
Motorcraft
Synthetic Rear
Axle Lubricant
/
XY–75W140–QL
SAE 80W-90:
–15°F to 100°F
(–26°C to
–38°C)Motorcraft SAE
80W-90
Premium Rear
Axle Lubricant
/
XY–80W90–QL
SAE 80W-140:
–15°F and
above (–26°C
and above)Motorcraft SAE
75W-140
Motorcraft
Synthetic Rear
Axle Lubricant
/
XY–75W140–QL SAE 85W-140:
10°F and
above (–12°C
and above)
2007 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
214

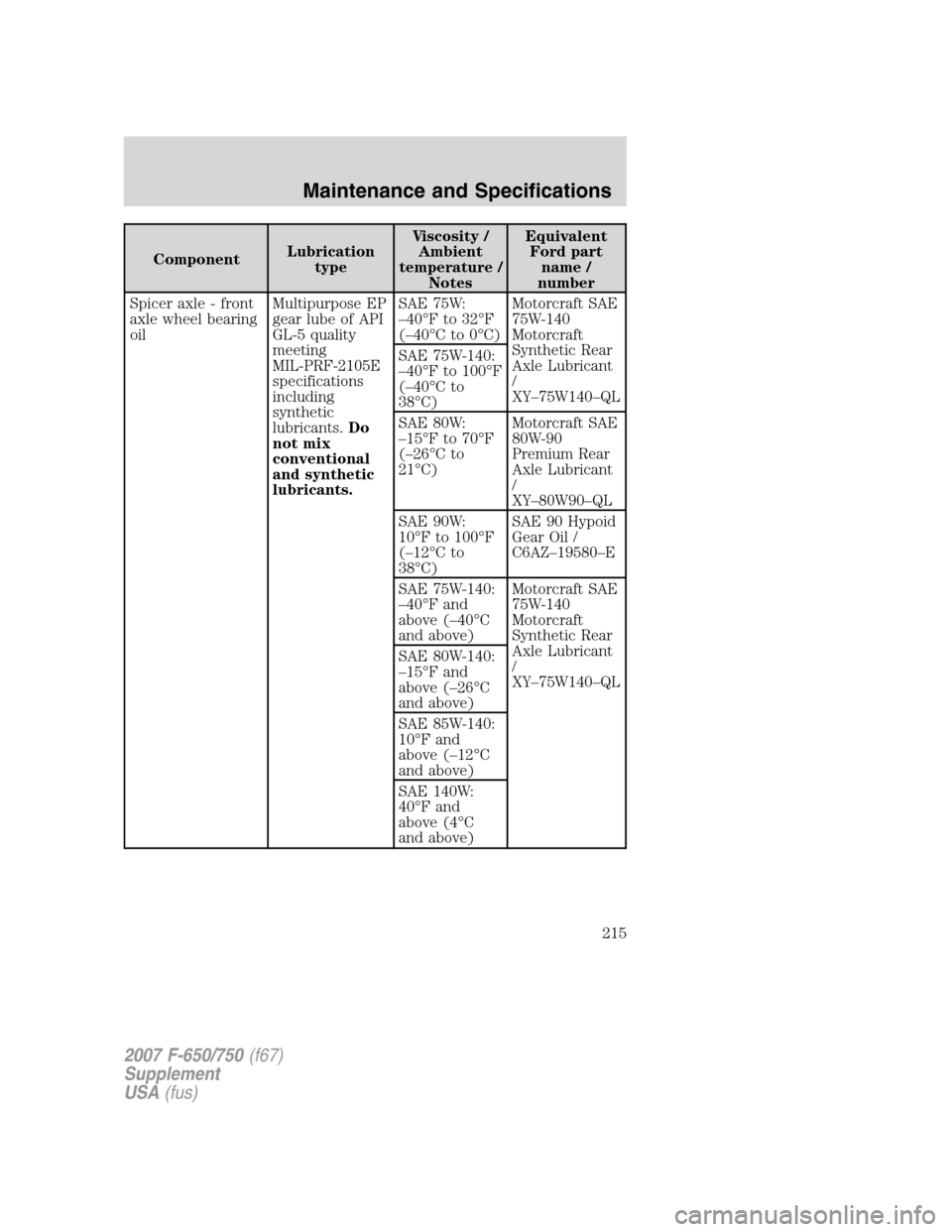

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name /
number
Spicer axle - front
axle wheel bearing
oilMultipurpose EP
gear lube of API
GL-5 quality
meeting
MIL-PRF-2105E
specifications
including
synthetic
lubricants.Do
not mix
conventional
and synthetic
lubricants.SAE 75W:
–40°F to 32°F
(–40°C to 0°C)Motorcraft SAE
75W-140
Motorcraft
Synthetic Rear
Axle Lubricant
/
XY–75W140–QL SAE 75W-140:
–40°F to 100°F
(–40°C to
38°C)
SAE 80W:
–15°F to 70°F
(–26°C to
21°C)Motorcraft SAE
80W-90
Premium Rear
Axle Lubricant
/
XY–80W90–QL
SAE 90W:
10°F to 100°F
(–12°C to
38°C)SAE 90 Hypoid
Gear Oil /
C6AZ–19580–E
SAE 75W-140:
–40°F and
above (–40°C
and above)Motorcraft SAE
75W-140
Motorcraft
Synthetic Rear
Axle Lubricant
/
XY–75W140–QL SAE 80W-140:
–15°F and
above (–26°C
and above)
SAE 85W-140:
10°F and
above (–12°C
and above)
SAE 140W:
40°F and
above (4°C
and above)
2007 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
215

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name /
number

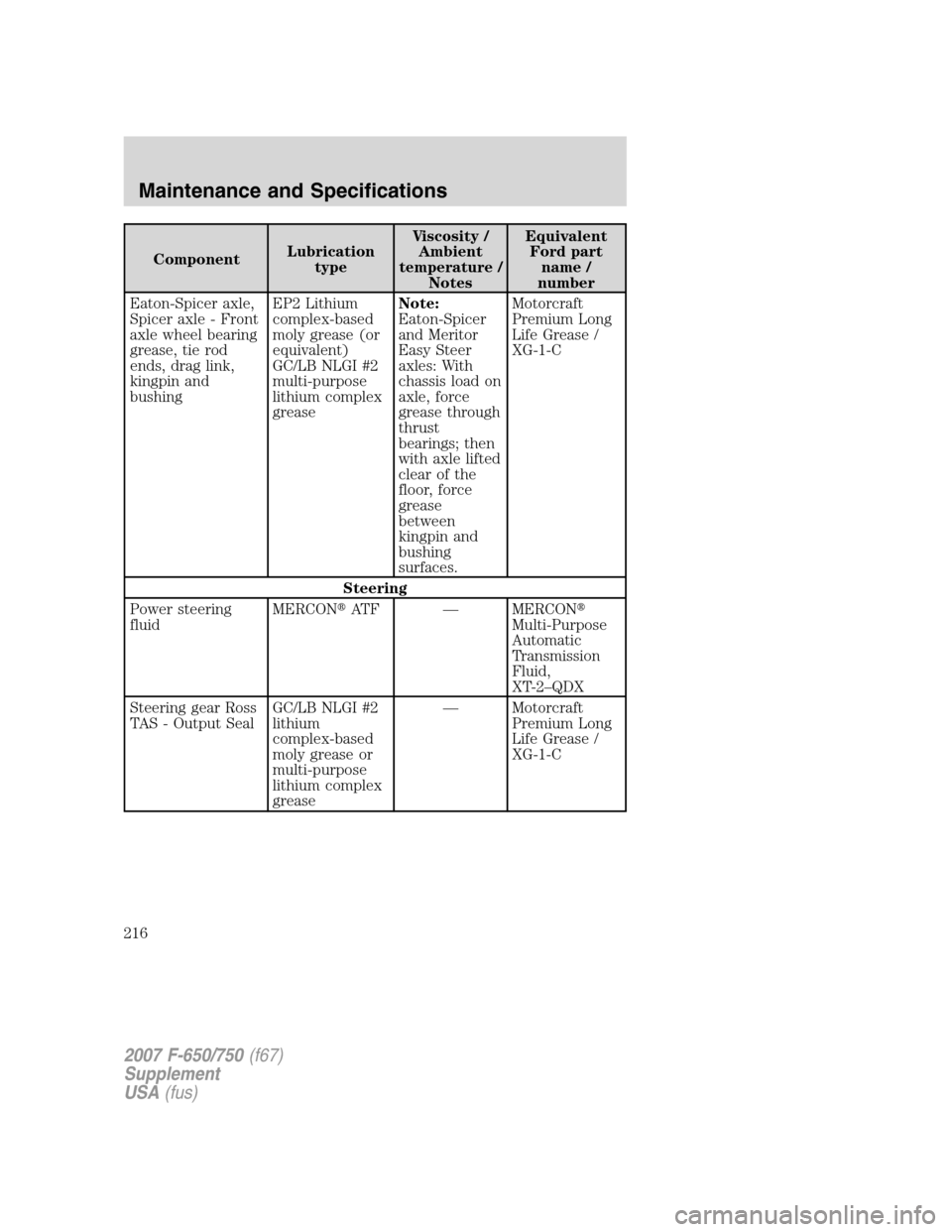

Eaton-Spicer axle,
Spicer axle - Front
axle wheel bearing
grease, tie rod
ends, drag link,
kingpin and
bushingEP2 Lithium
complex-based
moly grease (or
equivalent)
GC/LB NLGI #2
multi-purpose
lithium complex
greaseNote:
Eaton-Spicer
and Meritor
Easy Steer
axles: With
chassis load on
axle, force
grease through
thrust
bearings; then
with axle lifted
clear of the
floor, force
grease
between
kingpin and
bushing
surfaces.Motorcraft
Premium Long
Life Grease /
XG-1-C
Steering
Power steering
fluidMERCON
ATF — MERCON

Multi-Purpose
Automatic
Transmission
Fluid,
XT-2–QDX
Steering gear Ross
TAS - Output SealGC/LB NLGI #2
lithium
complex-based
moly grease or
multi-purpose
lithium complex
grease— Motorcraft
Premium Long
Life Grease /
XG-1-C
2007 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
216

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name /
number

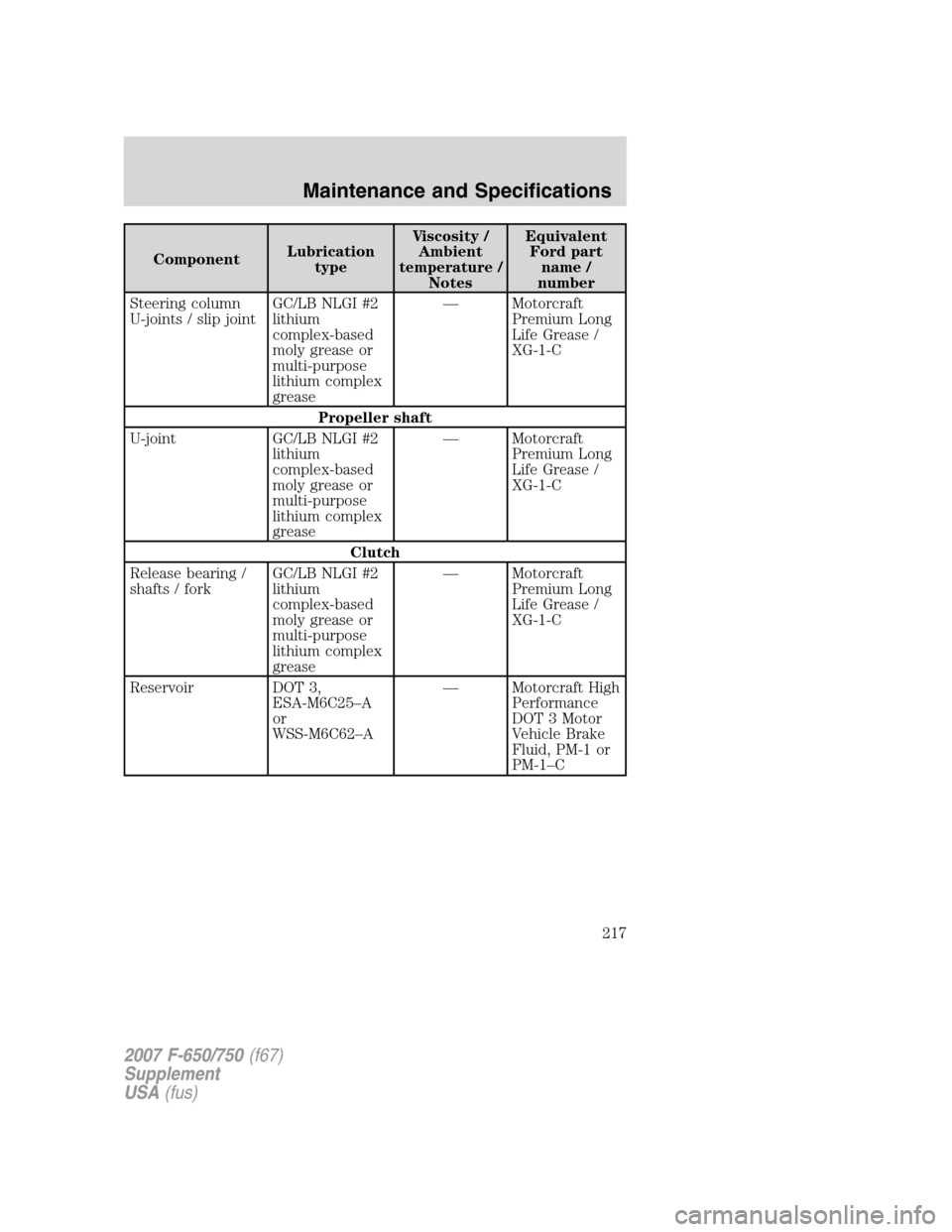

Steering column
U-joints / slip jointGC/LB NLGI #2
lithium
complex-based
moly grease or
multi-purpose
lithium complex
grease— Motorcraft
Premium Long
Life Grease /
XG-1-C
Propeller shaft
U-joint GC/LB NLGI #2
lithium
complex-based
moly grease or
multi-purpose
lithium complex
grease— Motorcraft
Premium Long
Life Grease /
XG-1-C
Clutch
Release bearing /
shafts / forkGC/LB NLGI #2
lithium
complex-based
moly grease or
multi-purpose
lithium complex
grease— Motorcraft
Premium Long
Life Grease /
XG-1-C
Reservoir DOT 3,
ESA-M6C25–A
or
WSS-M6C62–A— Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
Fluid, PM-1 or
PM-1–C
2007 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
217

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name /
number

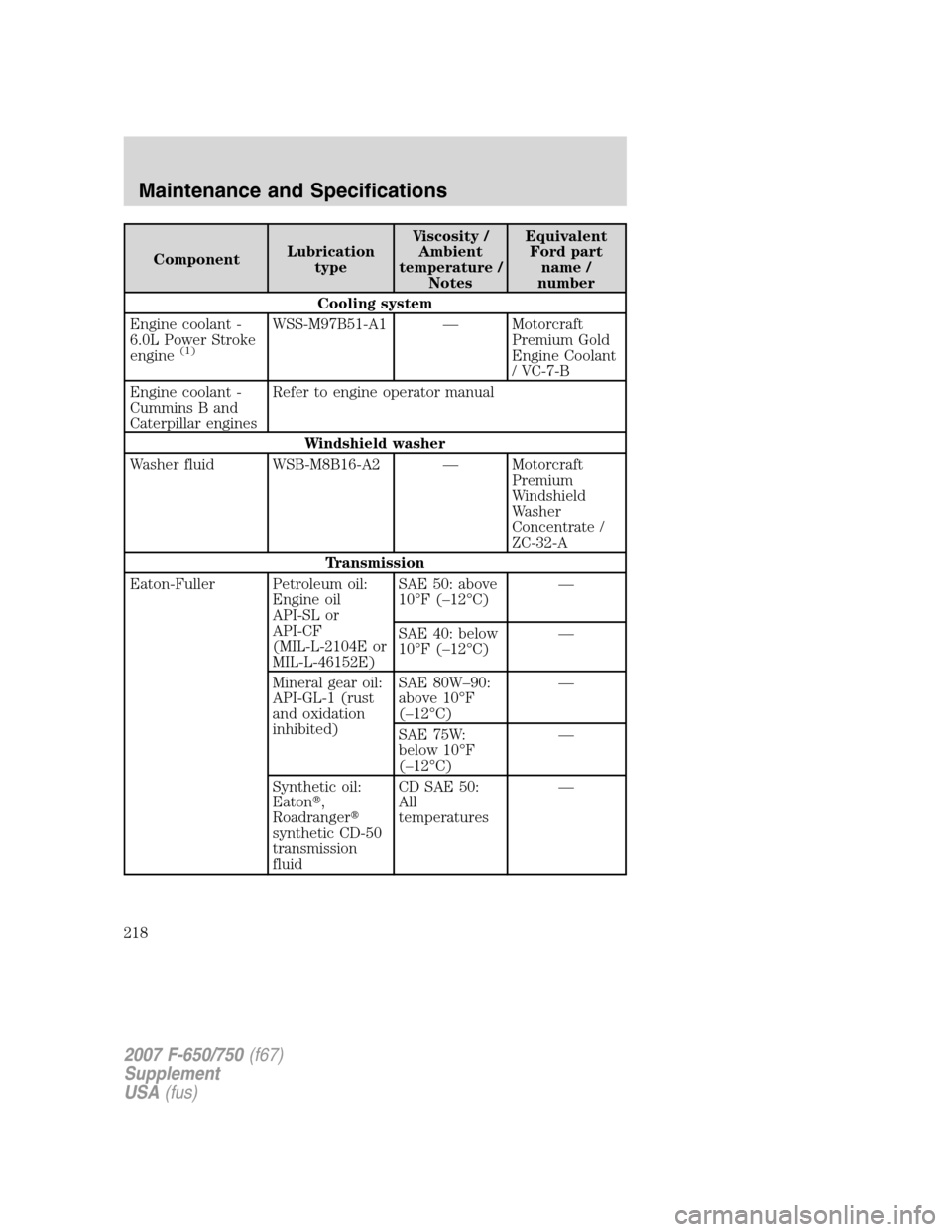

Cooling system
Engine coolant -
6.0L Power Stroke
engine
(1)
WSS-M97B51-A1 — Motorcraft
Premium Gold
Engine Coolant
/ VC-7-B
Engine coolant -
Cummins B and
Caterpillar enginesRefer to engine operator manual
Windshield washer
Washer fluid WSB-M8B16-A2 — Motorcraft
Premium
Windshield
Washer
Concentrate /
ZC-32-A
Transmission
Eaton-Fuller Petroleum oil:
Engine oil
API-SL or
API-CF
(MIL-L-2104E or
MIL-L-46152E)SAE 50: above
10°F (–12°C)—
SAE 40: below
10°F (–12°C)—
Mineral gear oil:
API-GL-1 (rust
and oxidation
inhibited)SAE 80W–90:
above 10°F
(–12°C)—
SAE 75W:
below 10°F
(–12°C)—
Synthetic oil:
Eaton
,
Roadranger

synthetic CD-50
transmission
fluidCD SAE 50:
All
temperatures—
2007 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
218

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name /
number

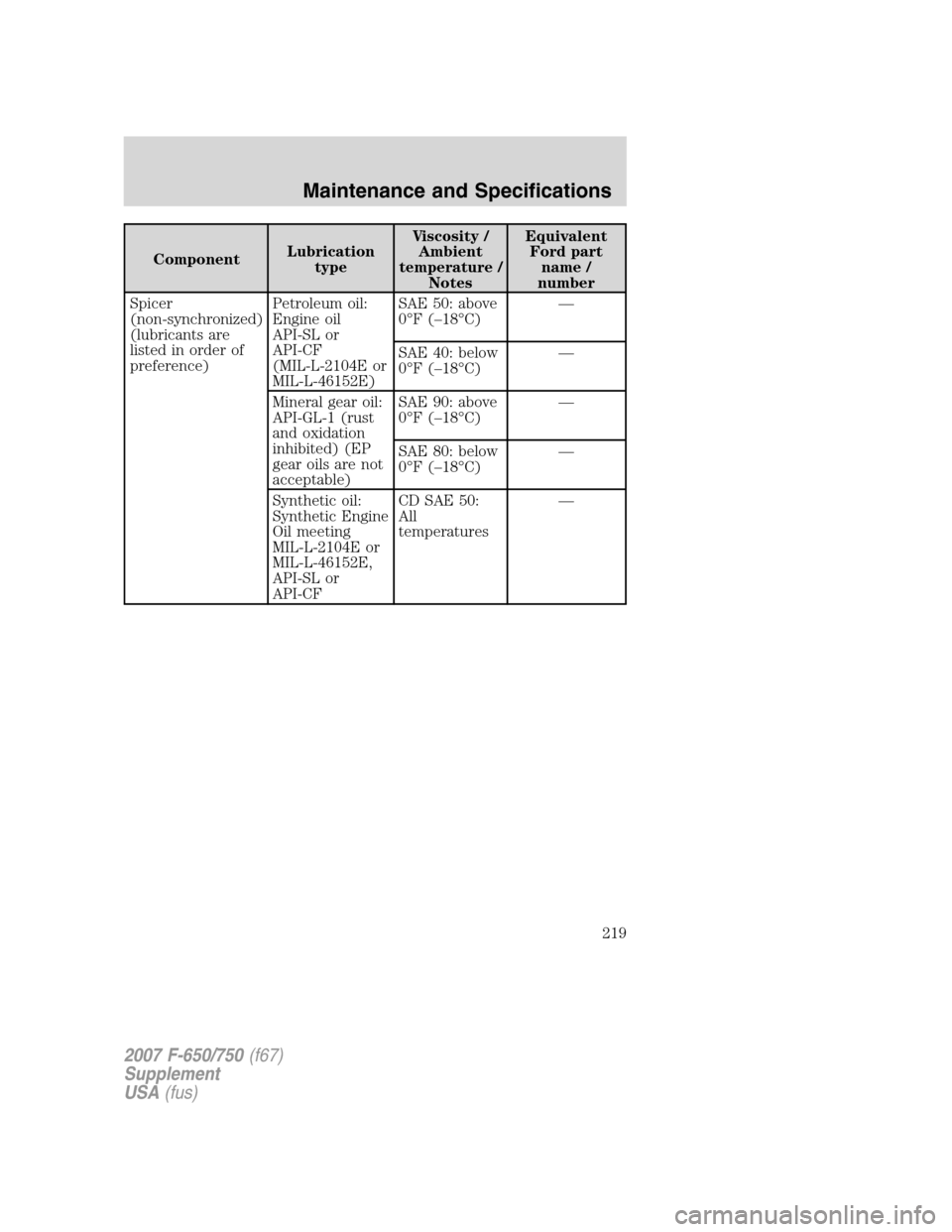

Spicer
(non-synchronized)
(lubricants are
listed in order of
preference)Petroleum oil:
Engine oil
API-SL or
API-CF
(MIL-L-2104E or
MIL-L-46152E)SAE 50: above
0°F (–18°C)—
SAE 40: below
0°F (–18°C)—
Mineral gear oil:
API-GL-1 (rust
and oxidation
inhibited) (EP
gear oils are not
acceptable)SAE 90: above
0°F (–18°C)—
SAE 80: below
0°F (–18°C)—
Synthetic oil:
Synthetic Engine
Oil meeting
MIL-L-2104E or
MIL-L-46152E,
API-SL or
API-CFCD SAE 50:
All
temperatures—
2007 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
219

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name /
number

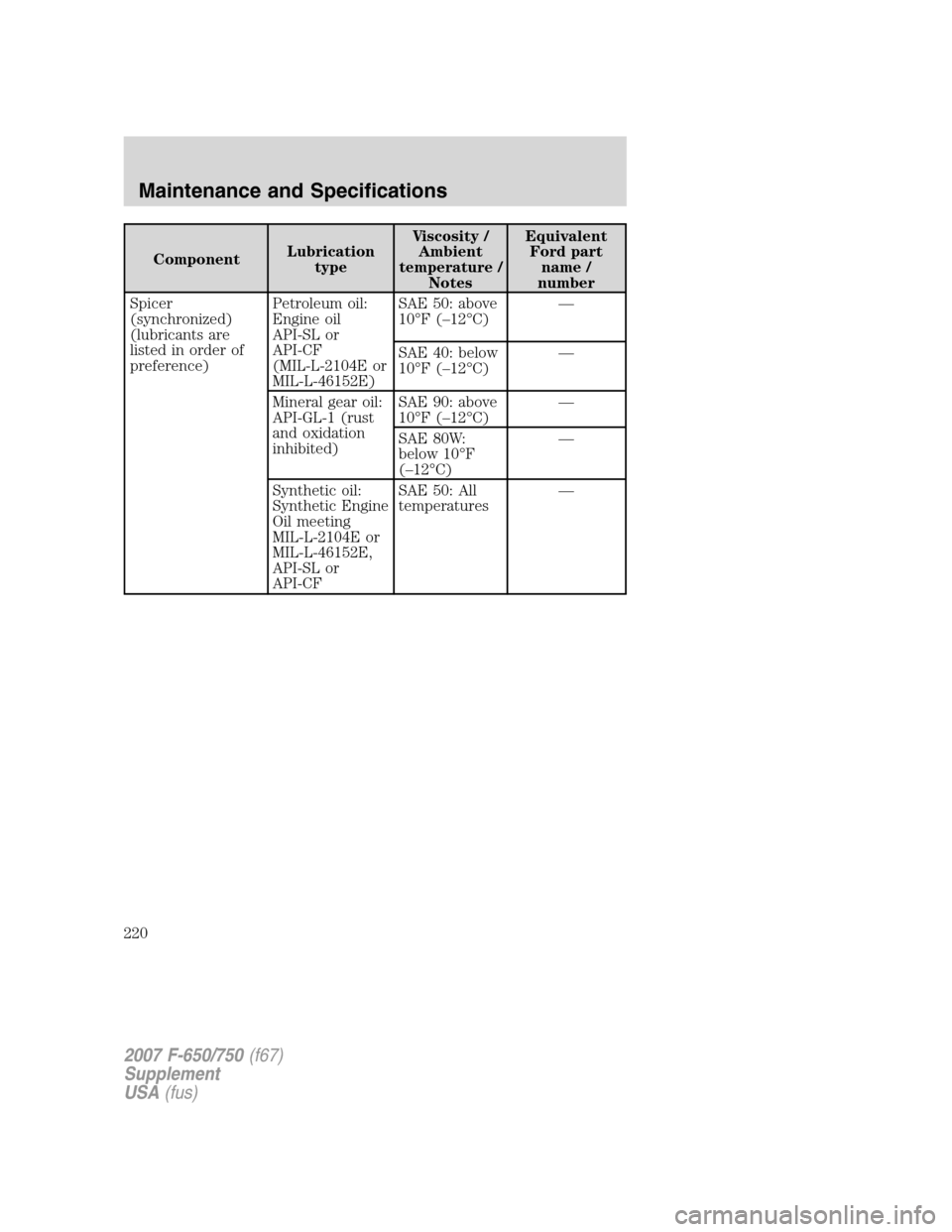

Spicer
(synchronized)
(lubricants are
listed in order of
preference)Petroleum oil:
Engine oil
API-SL or
API-CF
(MIL-L-2104E or
MIL-L-46152E)SAE 50: above
10°F (–12°C)—
SAE 40: below
10°F (–12°C)—
Mineral gear oil:
API-GL-1 (rust
and oxidation
inhibited)SAE 90: above
10°F (–12°C)—
SAE 80W:
below 10°F
(–12°C)—
Synthetic oil:
Synthetic Engine
Oil meeting
MIL-L-2104E or
MIL-L-46152E,
API-SL or
API-CFSAE 50: All
temperatures—
2007 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
