FORD F650 2007 11.G Owners Manual

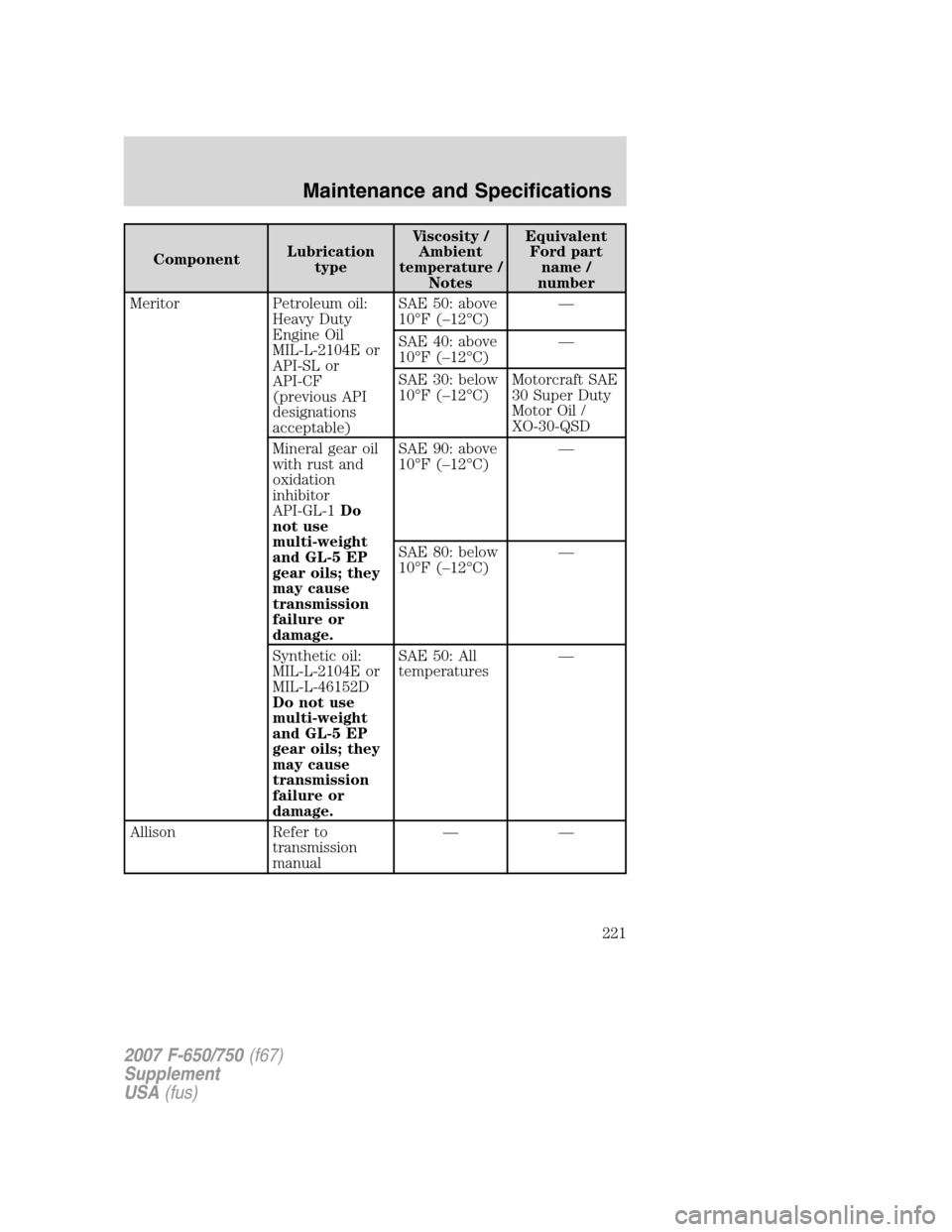

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name /
number
Meritor Petroleum oil:
Heavy Duty
Engine Oil
MIL-L-2104E or
API-SL or
API-CF
(previous API
designations
acceptable)SAE 50: above
10°F (–12°C)—
SAE 40: above
10°F (–12°C)—
SAE 30: below
10°F (–12°C)Motorcraft SAE
30 Super Duty
Motor Oil /
XO-30-QSD
Mineral gear oil
with rust and
oxidation
inhibitor
API-GL-1Do
not use
multi-weight
and GL-5 EP
gear oils; they
may cause
transmission
failure or
damage.SAE 90: above
10°F (–12°C)—
SAE 80: below
10°F (–12°C)—
Synthetic oil:
MIL-L-2104E or
MIL-L-46152D
Do not use
multi-weight
and GL-5 EP
gear oils; they
may cause
transmission
failure or
damage.SAE 50: All
temperatures—
Allison Refer to
transmission
manual——
2007 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
221

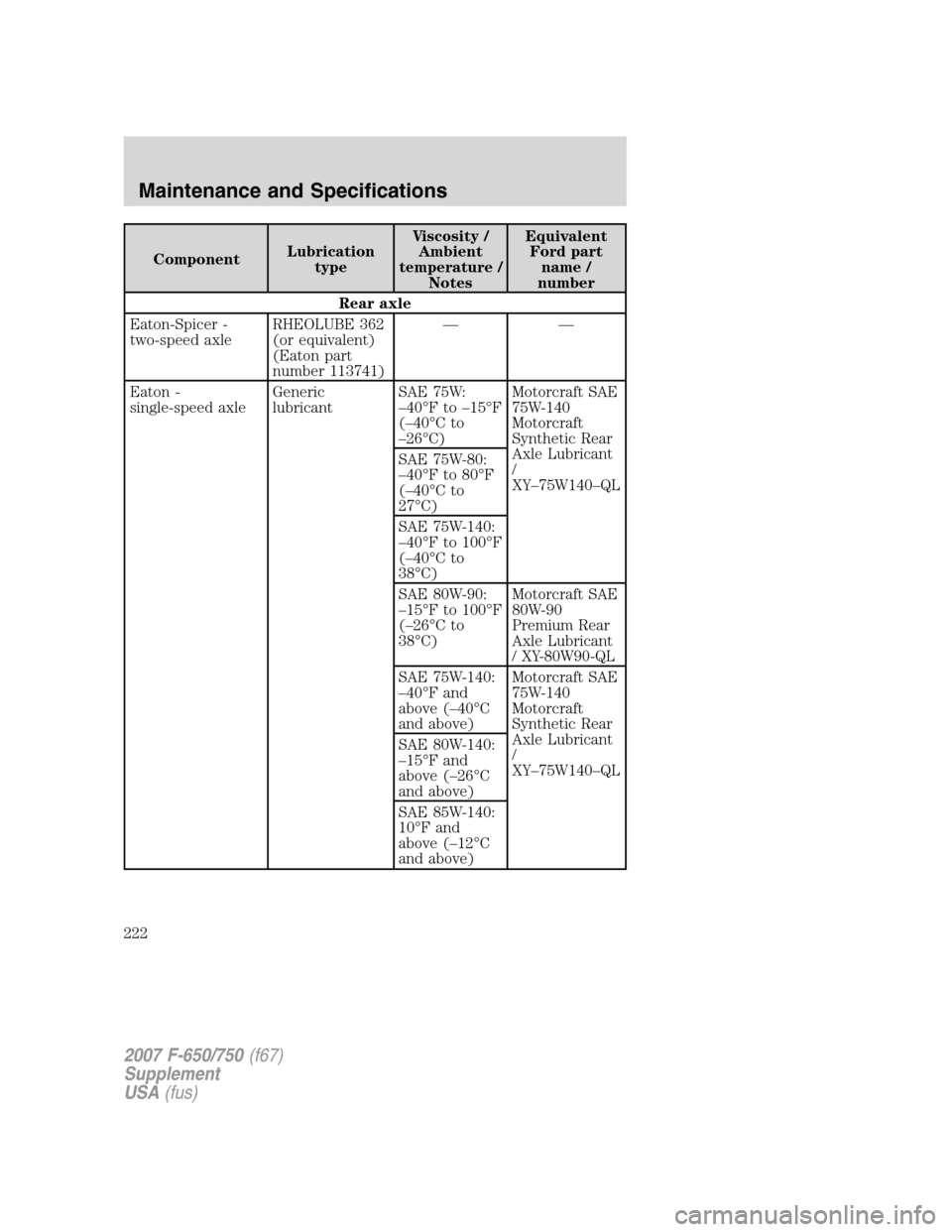

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name /
number
Rear axle
Eaton-Spicer -
two-speed axleRHEOLUBE 362
(or equivalent)
(Eaton part
number 113741)——
Eaton -
single-speed axleGeneric
lubricantSAE 75W:
–40°F to –15°F
(–40°C to
–26°C)Motorcraft SAE
75W-140
Motorcraft
Synthetic Rear
Axle Lubricant
/
XY–75W140–QL SAE 75W-80:
–40°F to 80°F
(–40°C to
27°C)
SAE 75W-140:
–40°F to 100°F
(–40°C to
38°C)
SAE 80W-90:
–15°F to 100°F
(–26°C to
38°C)Motorcraft SAE
80W-90
Premium Rear
Axle Lubricant
/ XY-80W90-QL
SAE 75W-140:
–40°F and
above (–40°C
and above)Motorcraft SAE
75W-140
Motorcraft
Synthetic Rear
Axle Lubricant
/
XY–75W140–QL SAE 80W-140:
–15°F and
above (–26°C
and above)
SAE 85W-140:
10°F and
above (–12°C
and above)
2007 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
222

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name /
number

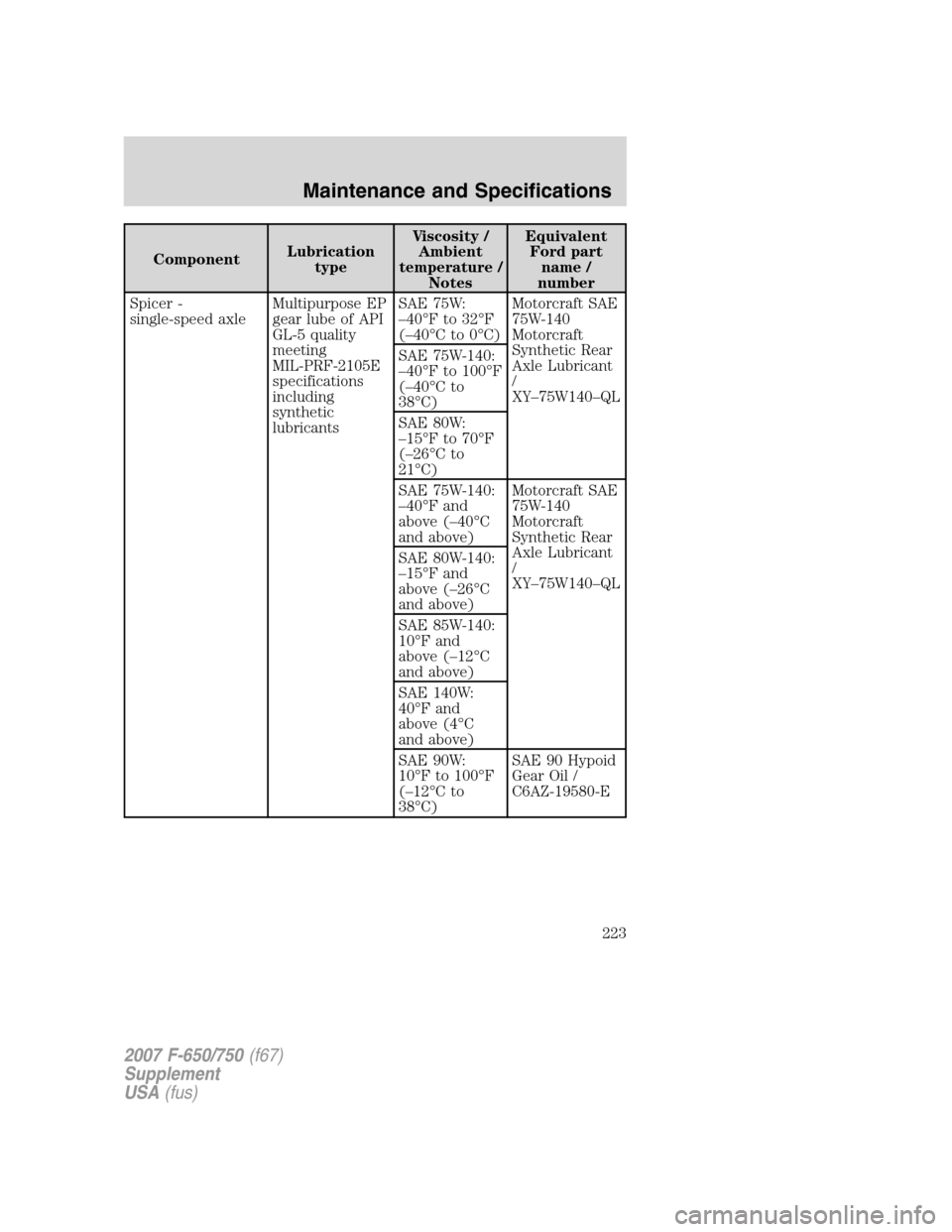

Spicer -
single-speed axleMultipurpose EP
gear lube of API
GL-5 quality
meeting
MIL-PRF-2105E
specifications
including
synthetic
lubricantsSAE 75W:
–40°F to 32°F
(–40°C to 0°C)Motorcraft SAE
75W-140
Motorcraft
Synthetic Rear
Axle Lubricant
/
XY–75W140–QL SAE 75W-140:
–40°F to 100°F
(–40°C to
38°C)
SAE 80W:
–15°F to 70°F
(–26°C to
21°C)
SAE 75W-140:
–40°F and
above (–40°C
and above)Motorcraft SAE
75W-140
Motorcraft
Synthetic Rear
Axle Lubricant
/
XY–75W140–QL SAE 80W-140:
–15°F and
above (–26°C
and above)
SAE 85W-140:
10°F and
above (–12°C
and above)
SAE 140W:
40°F and
above (4°C
and above)
SAE 90W:
10°F to 100°F
(–12°C to
38°C)SAE 90 Hypoid
Gear Oil /
C6AZ-19580-E
2007 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
223

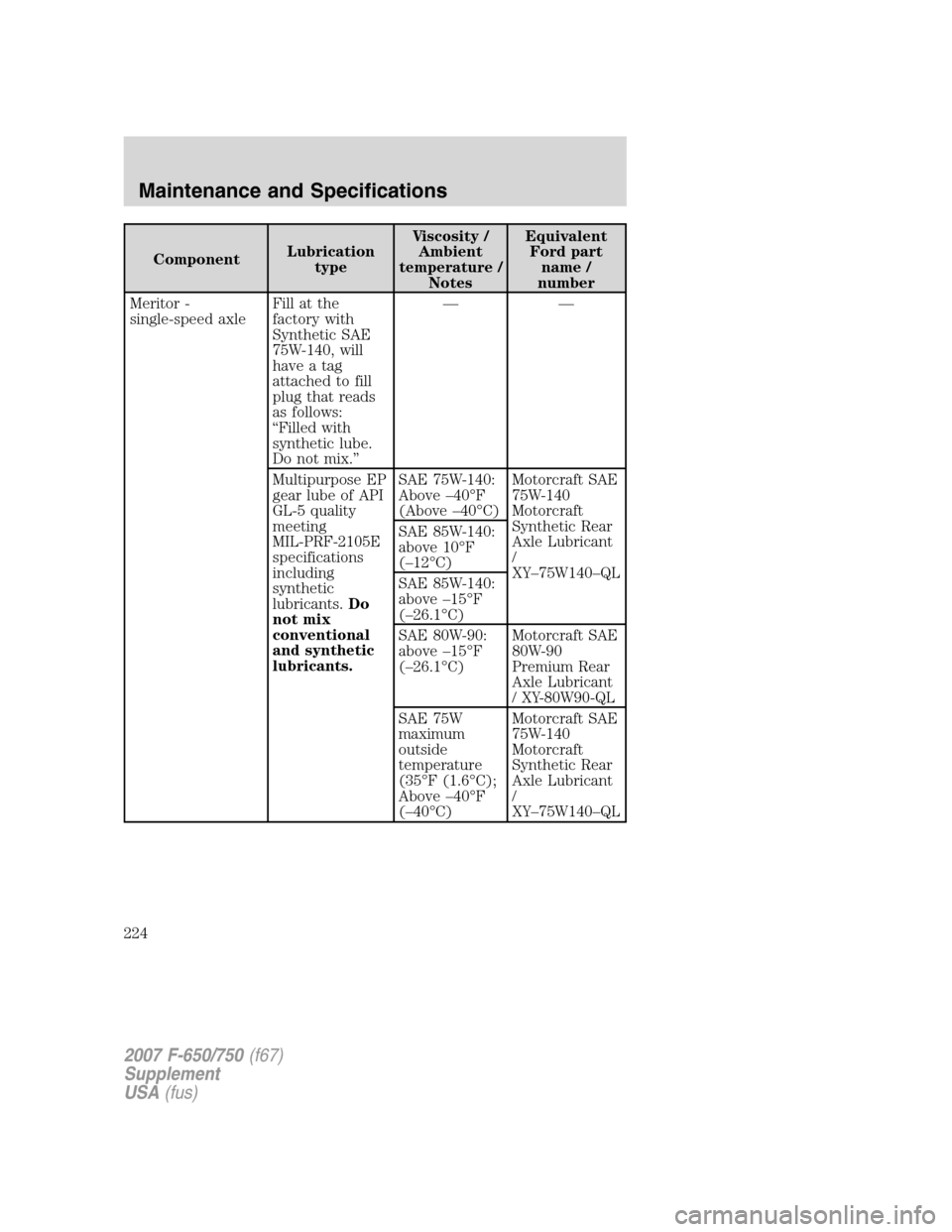

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name /
number
Meritor -
single-speed axleFill at the
factory with
Synthetic SAE
75W-140, will
have a tag
attached to fill
plug that reads
as follows:
“Filled with
synthetic lube.
Do not mix.”——
Multipurpose EP
gear lube of API
GL-5 quality
meeting
MIL-PRF-2105E
specifications
including
synthetic
lubricants.Do
not mix
conventional
and synthetic
lubricants.SAE 75W-140:
Above –40°F
(Above –40°C)Motorcraft SAE
75W-140
Motorcraft
Synthetic Rear
Axle Lubricant
/
XY–75W140–QL SAE 85W-140:
above 10°F
(–12°C)
SAE 85W-140:
above –15°F
(–26.1°C)
SAE 80W-90:
above –15°F
(–26.1°C)Motorcraft SAE
80W-90
Premium Rear
Axle Lubricant
/ XY-80W90-QL
SAE 75W
maximum
outside
temperature
(35°F (1.6°C);
Above –40°F
(–40°C)Motorcraft SAE
75W-140
Motorcraft
Synthetic Rear
Axle Lubricant
/
XY–75W140–QL
2007 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
224

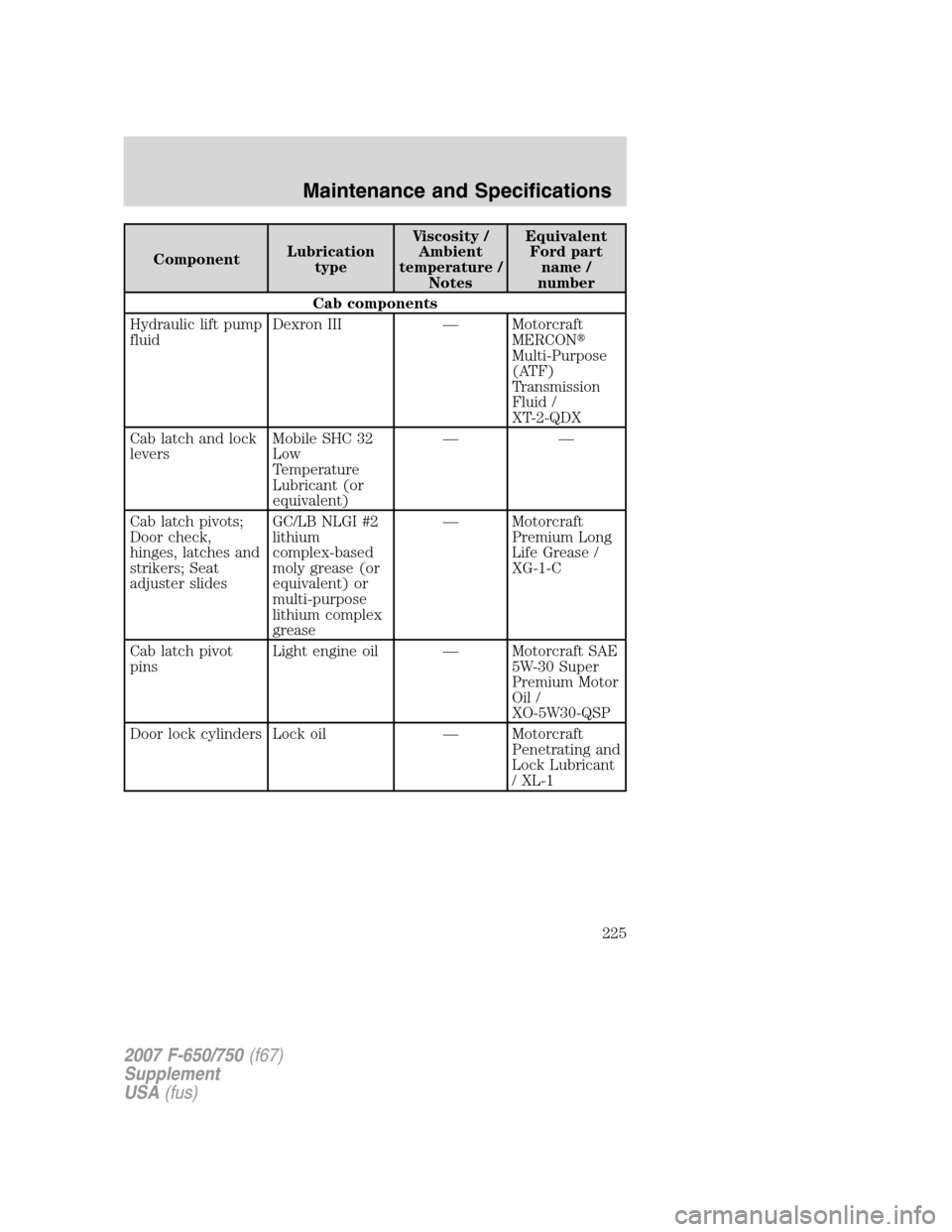

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name /
number
Cab components
Hydraulic lift pump
fluidDexron III — Motorcraft
MERCON

Multi-Purpose
(ATF)
Transmission
Fluid /
XT-2-QDX
Cab latch and lock
leversMobile SHC 32
Low
Temperature
Lubricant (or
equivalent)——
Cab latch pivots;
Door check,
hinges, latches and
strikers; Seat
adjuster slidesGC/LB NLGI #2
lithium
complex-based
moly grease (or
equivalent) or
multi-purpose
lithium complex
grease— Motorcraft
Premium Long
Life Grease /
XG-1-C
Cab latch pivot
pinsLight engine oil — Motorcraft SAE
5W-30 Super
Premium Motor
Oil /
XO-5W30-QSP
Door lock cylinders Lock oil — Motorcraft
Penetrating and
Lock Lubricant
/ XL-1
2007 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
225

ComponentLubrication
typeViscosity /
Ambient
temperature /
NotesEquivalent
Ford part
name /
number

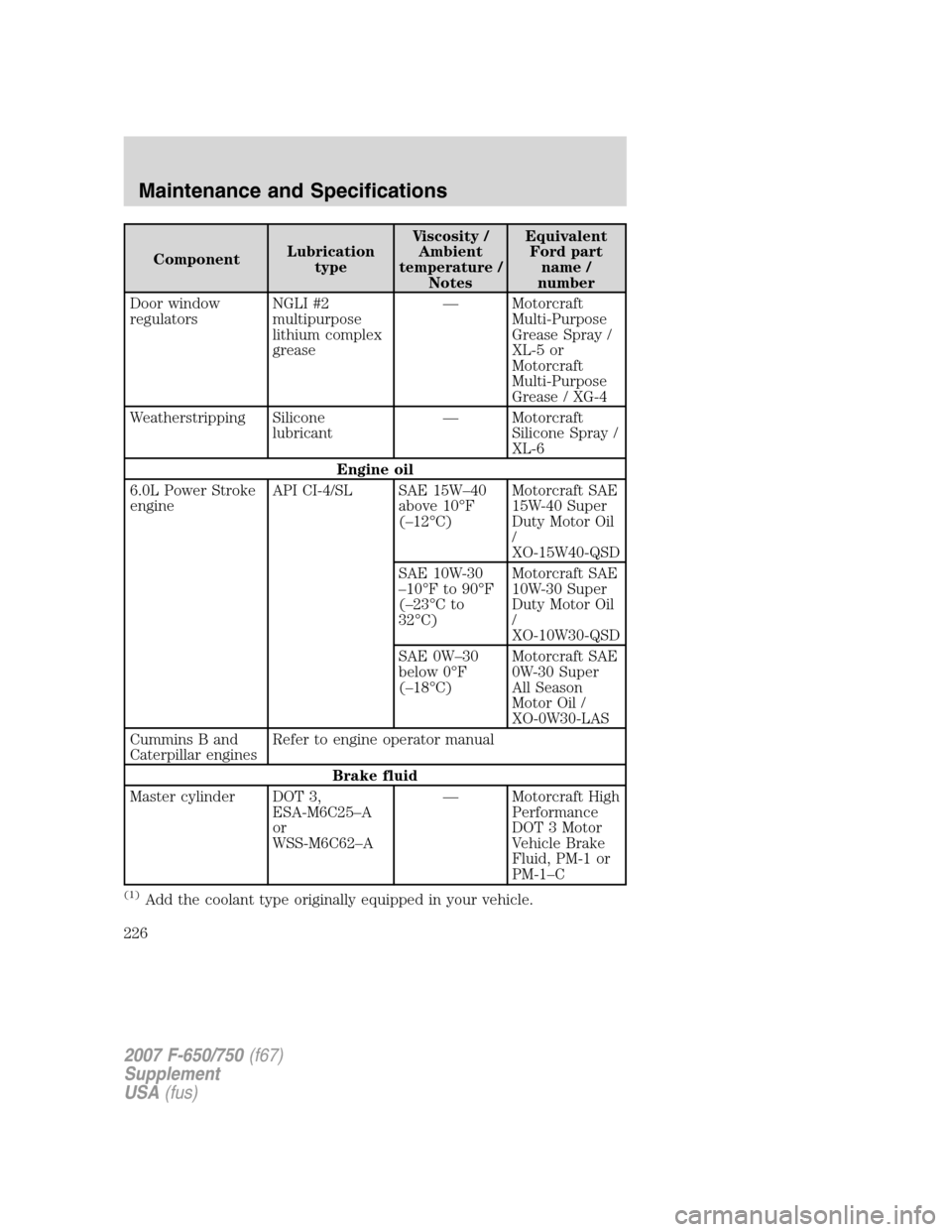

Door window
regulatorsNGLI #2
multipurpose
lithium complex
grease— Motorcraft
Multi-Purpose
Grease Spray /
XL-5 or
Motorcraft
Multi-Purpose
Grease / XG-4
Weatherstripping Silicone
lubricant— Motorcraft
Silicone Spray /
XL-6
Engine oil
6.0L Power Stroke
engineAPI CI-4/SL SAE 15W–40
above 10°F
(–12°C)Motorcraft SAE
15W-40 Super
Duty Motor Oil
/
XO-15W40-QSD
SAE 10W-30
–10°F to 90°F
(–23°C to
32°C)Motorcraft SAE
10W-30 Super
Duty Motor Oil
/
XO-10W30-QSD
SAE 0W–30
below 0°F
(–18°C)Motorcraft SAE
0W-30 Super
All Season
Motor Oil /
XO-0W30-LAS
Cummins B and
Caterpillar enginesRefer to engine operator manual
Brake fluid
Master cylinder DOT 3,
ESA-M6C25–A
or
WSS-M6C62–A— Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
Fluid, PM-1 or
PM-1–C
(1)Add the coolant type originally equipped in your vehicle.
2007 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
226

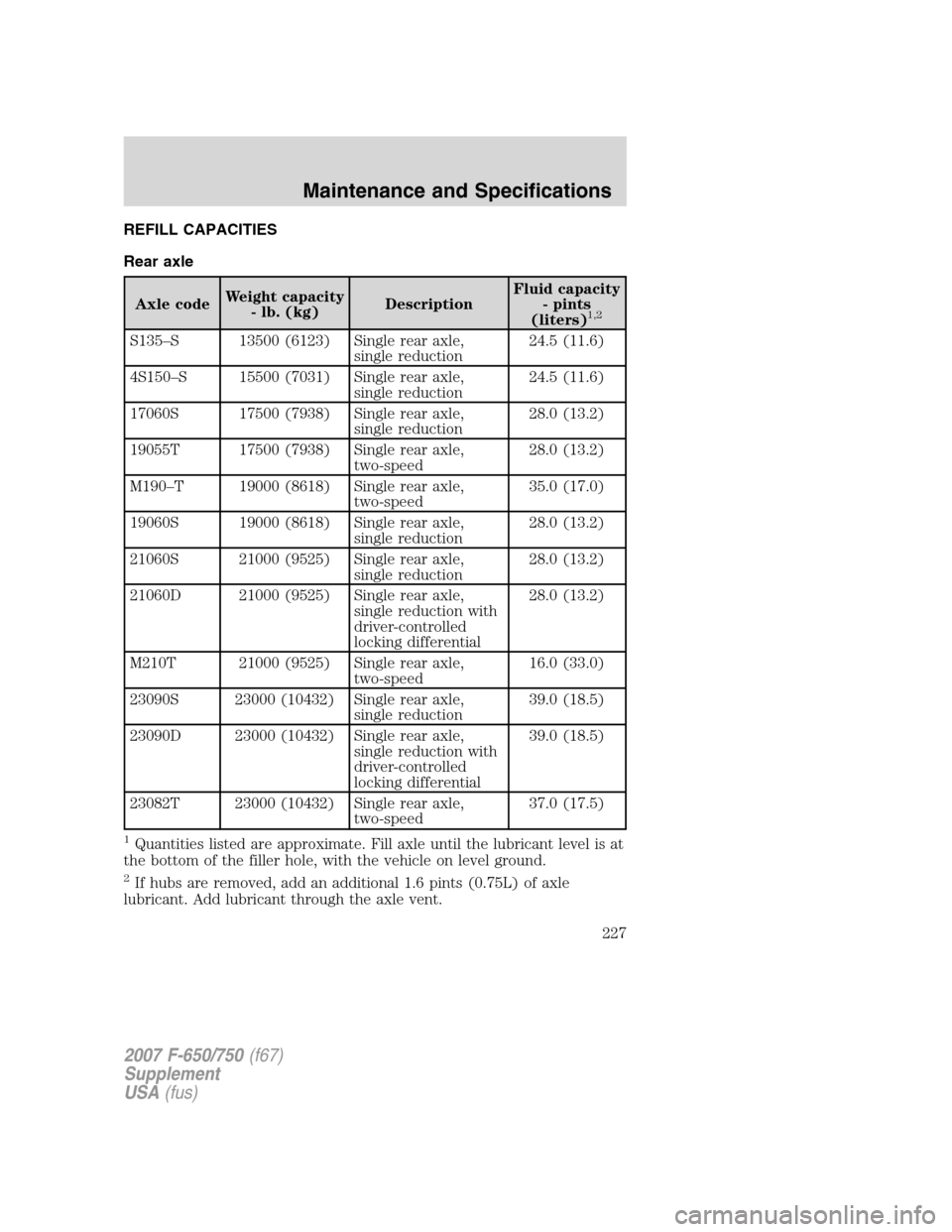

REFILL CAPACITIES
Rear axle
Axle codeWeight capacity
- lb. (kg)DescriptionFluid capacity
- pints
(liters)1,2
S135–S 13500 (6123) Single rear axle,
single reduction24.5 (11.6)
4S150–S 15500 (7031) Single rear axle,
single reduction24.5 (11.6)
17060S 17500 (7938) Single rear axle,
single reduction28.0 (13.2)
19055T 17500 (7938) Single rear axle,
two-speed28.0 (13.2)
M190–T 19000 (8618) Single rear axle,
two-speed35.0 (17.0)
19060S 19000 (8618) Single rear axle,
single reduction28.0 (13.2)
21060S 21000 (9525) Single rear axle,
single reduction28.0 (13.2)
21060D 21000 (9525) Single rear axle,
single reduction with
driver-controlled
locking differential28.0 (13.2)
M210T 21000 (9525) Single rear axle,
two-speed16.0 (33.0)
23090S 23000 (10432) Single rear axle,
single reduction39.0 (18.5)
23090D 23000 (10432) Single rear axle,
single reduction with
driver-controlled
locking differential39.0 (18.5)
23082T 23000 (10432) Single rear axle,
two-speed37.0 (17.5)
1Quantities listed are approximate. Fill axle until the lubricant level is at
the bottom of the filler hole, with the vehicle on level ground.
2If hubs are removed, add an additional 1.6 pints (0.75L) of axle
lubricant. Add lubricant through the axle vent.
2007 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
227

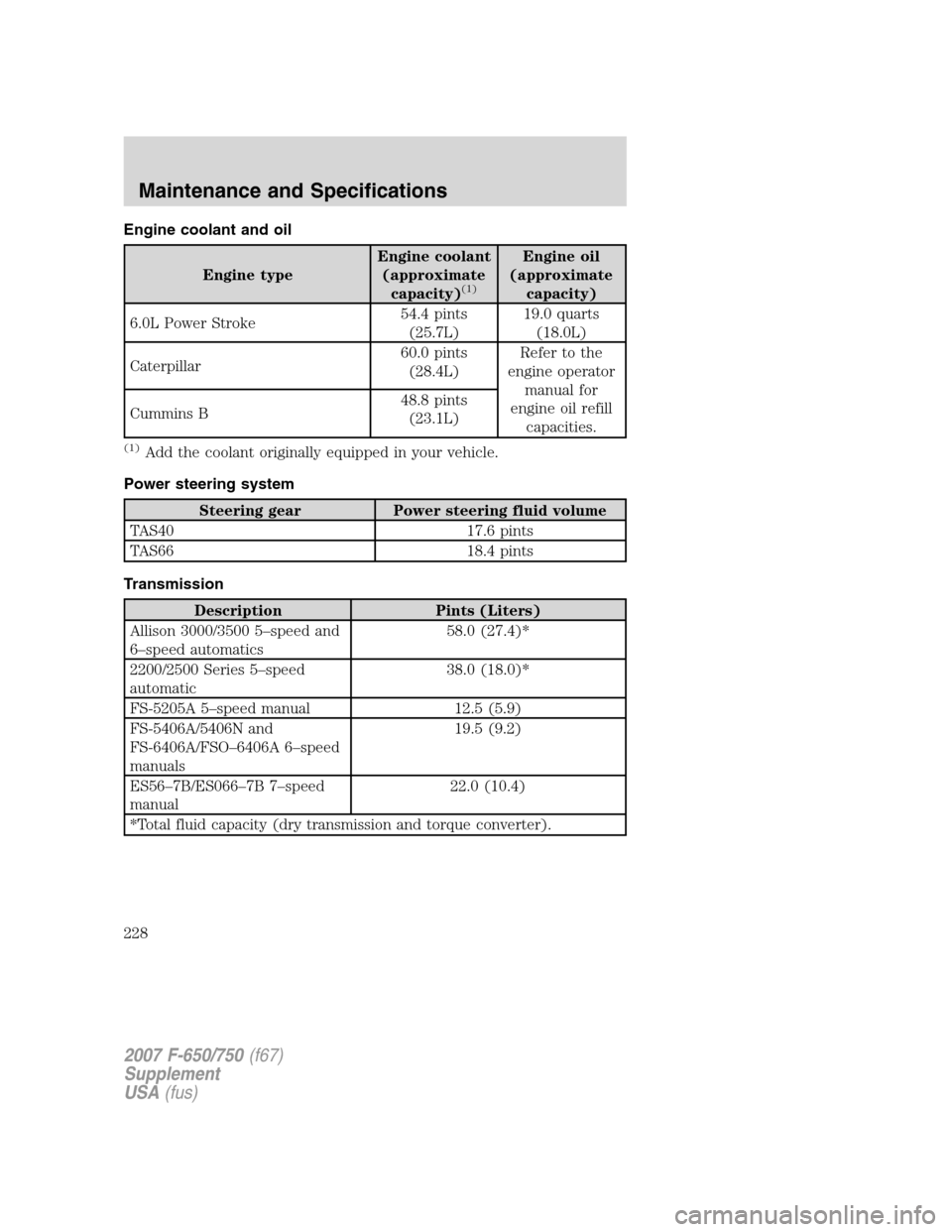

Engine coolant and oil
Engine typeEngine coolant
(approximate
capacity)(1)
Engine oil
(approximate
capacity)
6.0L Power Stroke54.4 pints
(25.7L)19.0 quarts
(18.0L)
Caterpillar60.0 pints
(28.4L)Refer to the
engine operator
manual for
engine oil refill
capacities. Cummins B48.8 pints
(23.1L)
(1)Add the coolant originally equipped in your vehicle.
Power steering system
Steering gear Power steering fluid volume
TAS40 17.6 pints
TAS66 18.4 pints
Transmission
Description Pints (Liters)
Allison 3000/3500 5–speed and
6–speed automatics58.0 (27.4)*
2200/2500 Series 5–speed
automatic38.0 (18.0)*
FS-5205A 5–speed manual 12.5 (5.9)
FS-5406A/5406N and
FS-6406A/FSO–6406A 6–speed
manuals19.5 (9.2)
ES56–7B/ES066–7B 7–speed
manual22.0 (10.4)
*Total fluid capacity (dry transmission and torque converter).
2007 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
228

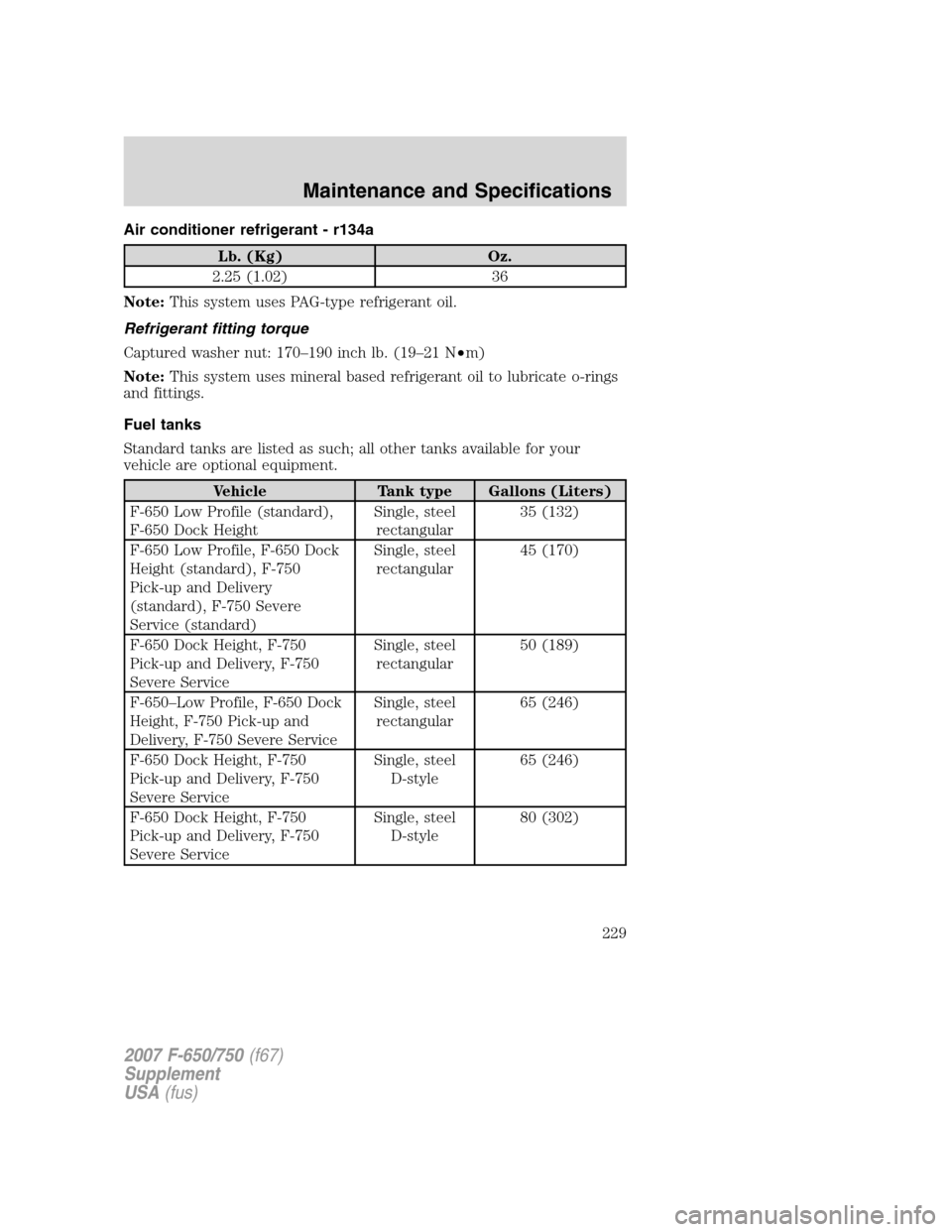

Air conditioner refrigerant - r134a
Lb. (Kg) Oz.
2.25 (1.02) 36
Note:This system uses PAG-type refrigerant oil.
Refrigerant fitting torque
Captured washer nut: 170–190 inch lb. (19–21 N•m)
Note:This system uses mineral based refrigerant oil to lubricate o-rings
and fittings.
Fuel tanks
Standard tanks are listed as such; all other tanks available for your
vehicle are optional equipment.
Vehicle Tank type Gallons (Liters)
F-650 Low Profile (standard),
F-650 Dock HeightSingle, steel
rectangular35 (132)
F-650 Low Profile, F-650 Dock
Height (standard), F-750
Pick-up and Delivery
(standard), F-750 Severe
Service (standard)Single, steel
rectangular45 (170)
F-650 Dock Height, F-750
Pick-up and Delivery, F-750
Severe ServiceSingle, steel
rectangular50 (189)
F-650–Low Profile, F-650 Dock
Height, F-750 Pick-up and
Delivery, F-750 Severe ServiceSingle, steel
rectangular65 (246)
F-650 Dock Height, F-750
Pick-up and Delivery, F-750
Severe ServiceSingle, steel
D-style65 (246)
F-650 Dock Height, F-750
Pick-up and Delivery, F-750
Severe ServiceSingle, steel
D-style80 (302)
2007 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
229

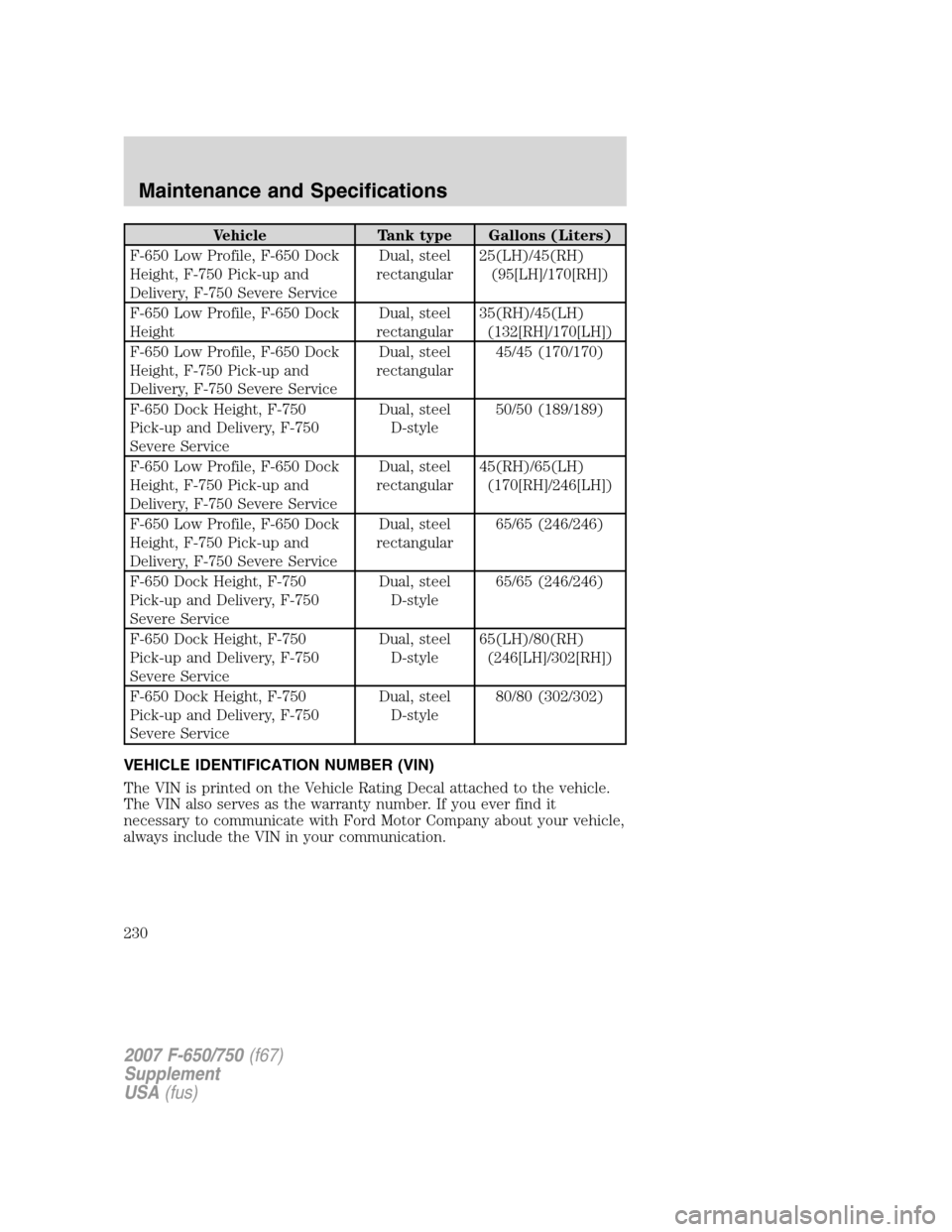

Vehicle Tank type Gallons (Liters)
F-650 Low Profile, F-650 Dock
Height, F-750 Pick-up and
Delivery, F-750 Severe ServiceDual, steel
rectangular25(LH)/45(RH)
(95[LH]/170[RH])
F-650 Low Profile, F-650 Dock
HeightDual, steel
rectangular35(RH)/45(LH)
(132[RH]/170[LH])
F-650 Low Profile, F-650 Dock
Height, F-750 Pick-up and
Delivery, F-750 Severe ServiceDual, steel
rectangular45/45 (170/170)
F-650 Dock Height, F-750
Pick-up and Delivery, F-750
Severe ServiceDual, steel
D-style50/50 (189/189)
F-650 Low Profile, F-650 Dock
Height, F-750 Pick-up and
Delivery, F-750 Severe ServiceDual, steel
rectangular45(RH)/65(LH)
(170[RH]/246[LH])
F-650 Low Profile, F-650 Dock
Height, F-750 Pick-up and
Delivery, F-750 Severe ServiceDual, steel
rectangular65/65 (246/246)
F-650 Dock Height, F-750
Pick-up and Delivery, F-750
Severe ServiceDual, steel
D-style65/65 (246/246)
F-650 Dock Height, F-750
Pick-up and Delivery, F-750
Severe ServiceDual, steel
D-style65(LH)/80(RH)
(246[LH]/302[RH])
F-650 Dock Height, F-750
Pick-up and Delivery, F-750
Severe ServiceDual, steel
D-style80/80 (302/302)
VEHICLE IDENTIFICATION NUMBER (VIN)
The VIN is printed on the Vehicle Rating Decal attached to the vehicle.
The VIN also serves as the warranty number. If you ever find it
necessary to communicate with Ford Motor Company about your vehicle,
always include the VIN in your communication.
2007 F-650/750(f67)
Supplement
USA(fus)
Maintenance and Specifications
230
