To disengage speed control
•Depress the brake pedal or
•Depress the clutch pedal (if
equipped).
Disengaging the speed control will
not erase the previously
programmed set speed or engine
RPM.
Pressing OFF will erase the
previously programmed engine RPM.
CRUISE
RPM
OFF
2008 F-650/750(f67)
Supplement
USA(fus)
Driver Controls
60

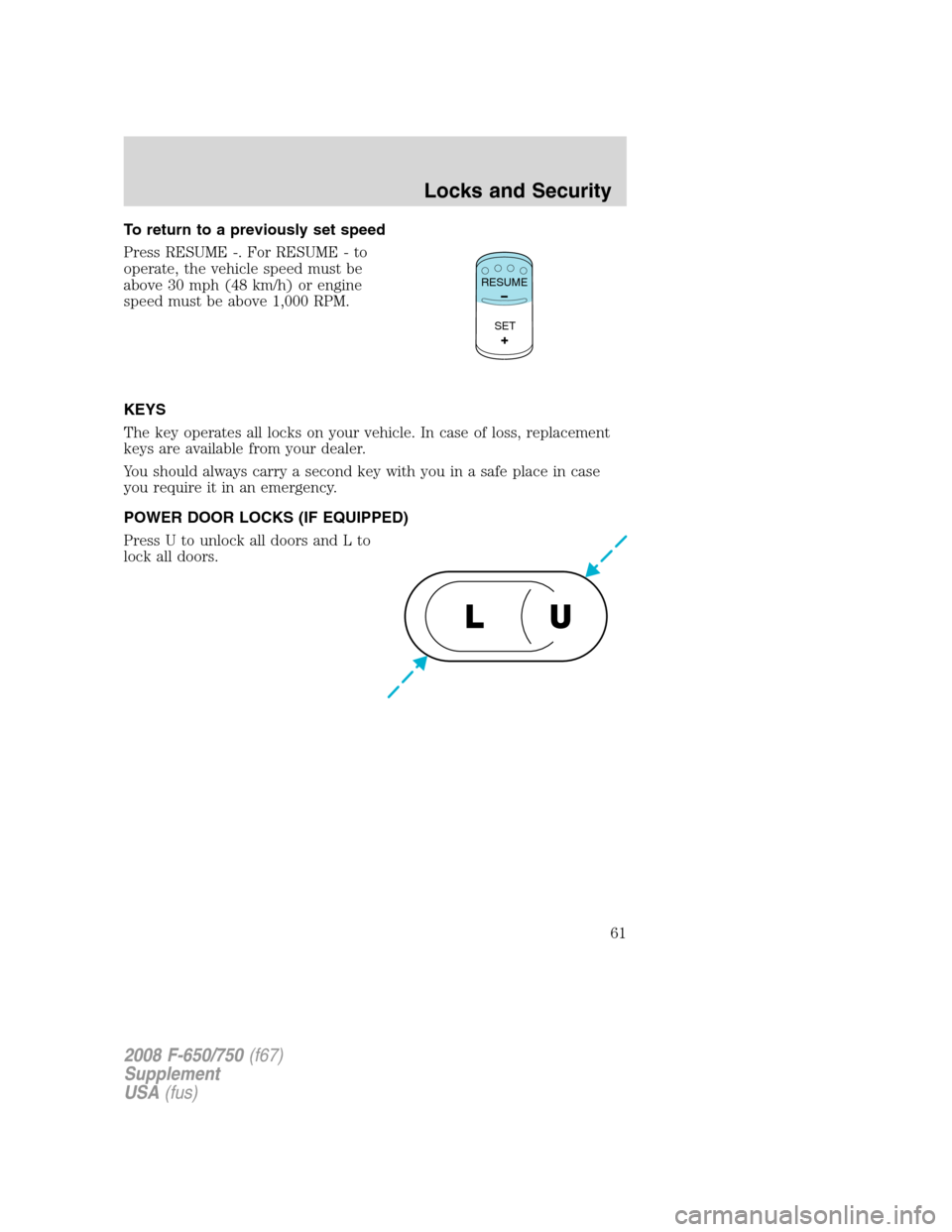

To return to a previously set speed
Press RESUME -. For RESUME - to
operate, the vehicle speed must be
above 30 mph (48 km/h) or engine
speed must be above 1,000 RPM.
KEYS
The key operates all locks on your vehicle. In case of loss, replacement
keys are available from your dealer.
You should always carry a second key with you in a safe place in case
you require it in an emergency.
POWER DOOR LOCKS (IF EQUIPPED)
Press U to unlock all doors and L to
lock all doors.
SET RESUME
U L
2008 F-650/750(f67)
Supplement
USA(fus)
Locks and Security
61

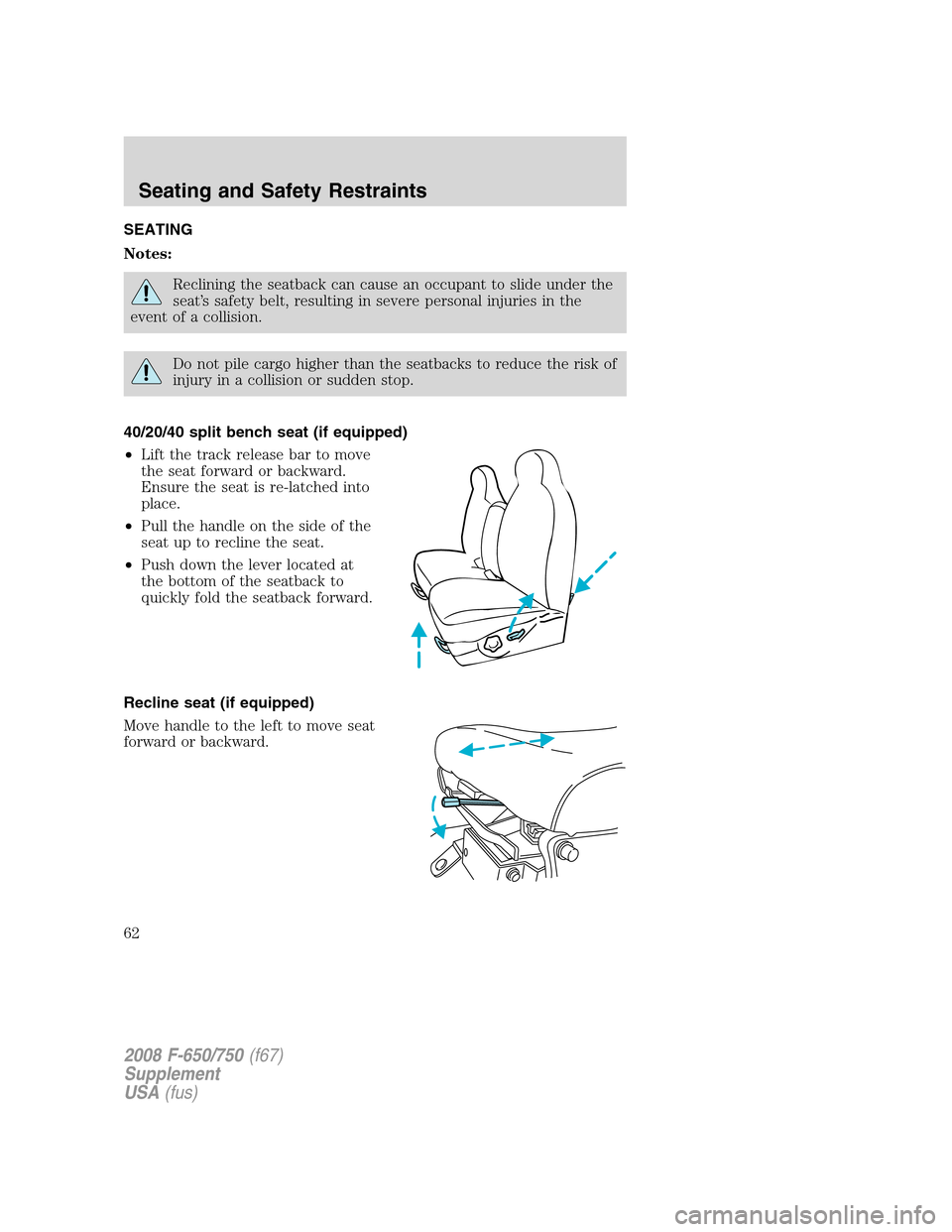

SEATING
Notes:
Reclining the seatback can cause an occupant to slide under the
seat’s safety belt, resulting in severe personal injuries in the
event of a collision.
Do not pile cargo higher than the seatbacks to reduce the risk of
injury in a collision or sudden stop.
40/20/40 split bench seat (if equipped)
•Lift the track release bar to move
the seat forward or backward.
Ensure the seat is re-latched into
place.
•Pull the handle on the side of the
seat up to recline the seat.
•Push down the lever located at
the bottom of the seatback to
quickly fold the seatback forward.
Recline seat (if equipped)
Move handle to the left to move seat
forward or backward.
2008 F-650/750(f67)
Supplement
USA(fus)
Seating and Safety Restraints
62

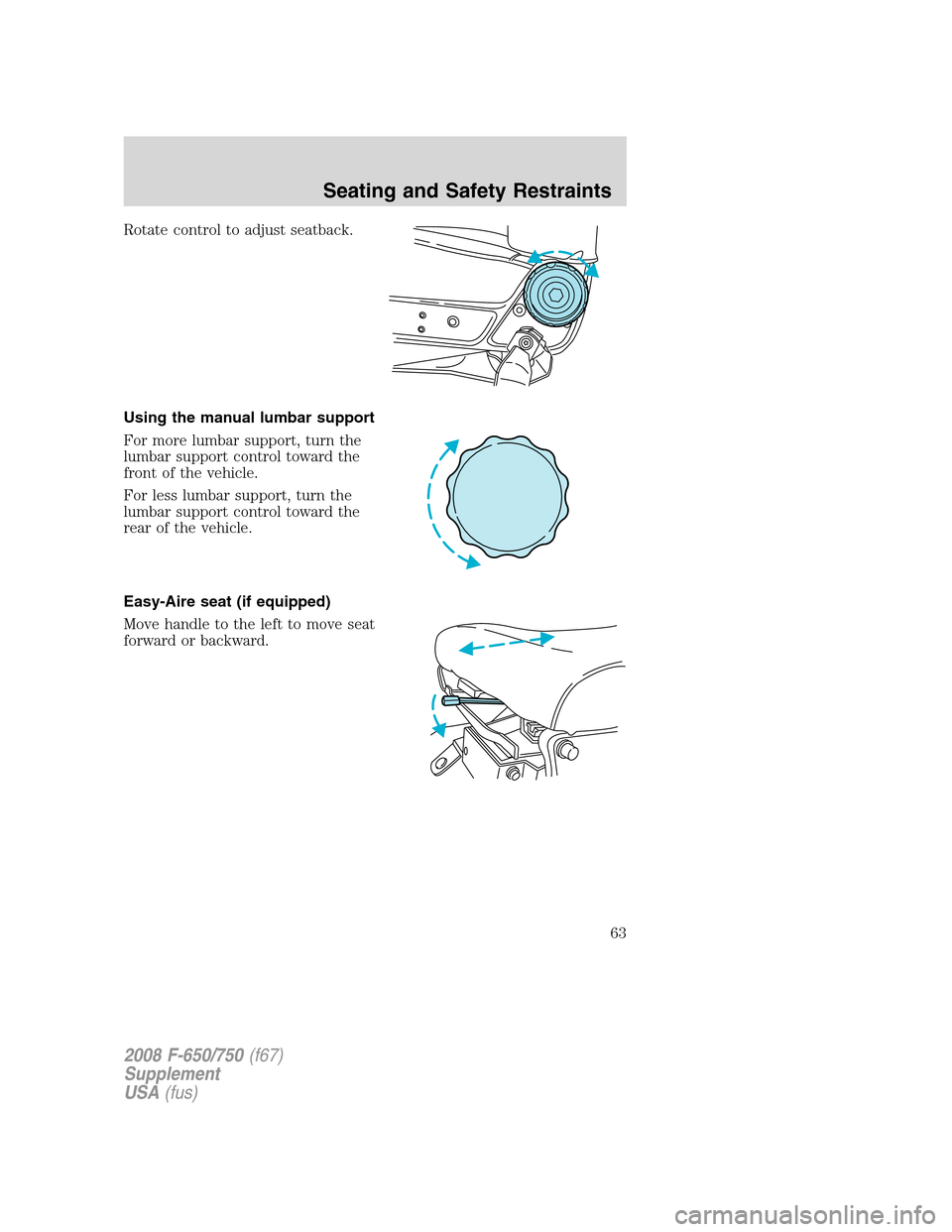

Rotate control to adjust seatback.
Using the manual lumbar support
For more lumbar support, turn the
lumbar support control toward the
front of the vehicle.
For less lumbar support, turn the
lumbar support control toward the
rear of the vehicle.
Easy-Aire seat (if equipped)
Move handle to the left to move seat
forward or backward.
2008 F-650/750(f67)
Supplement
USA(fus)
Seating and Safety Restraints
63

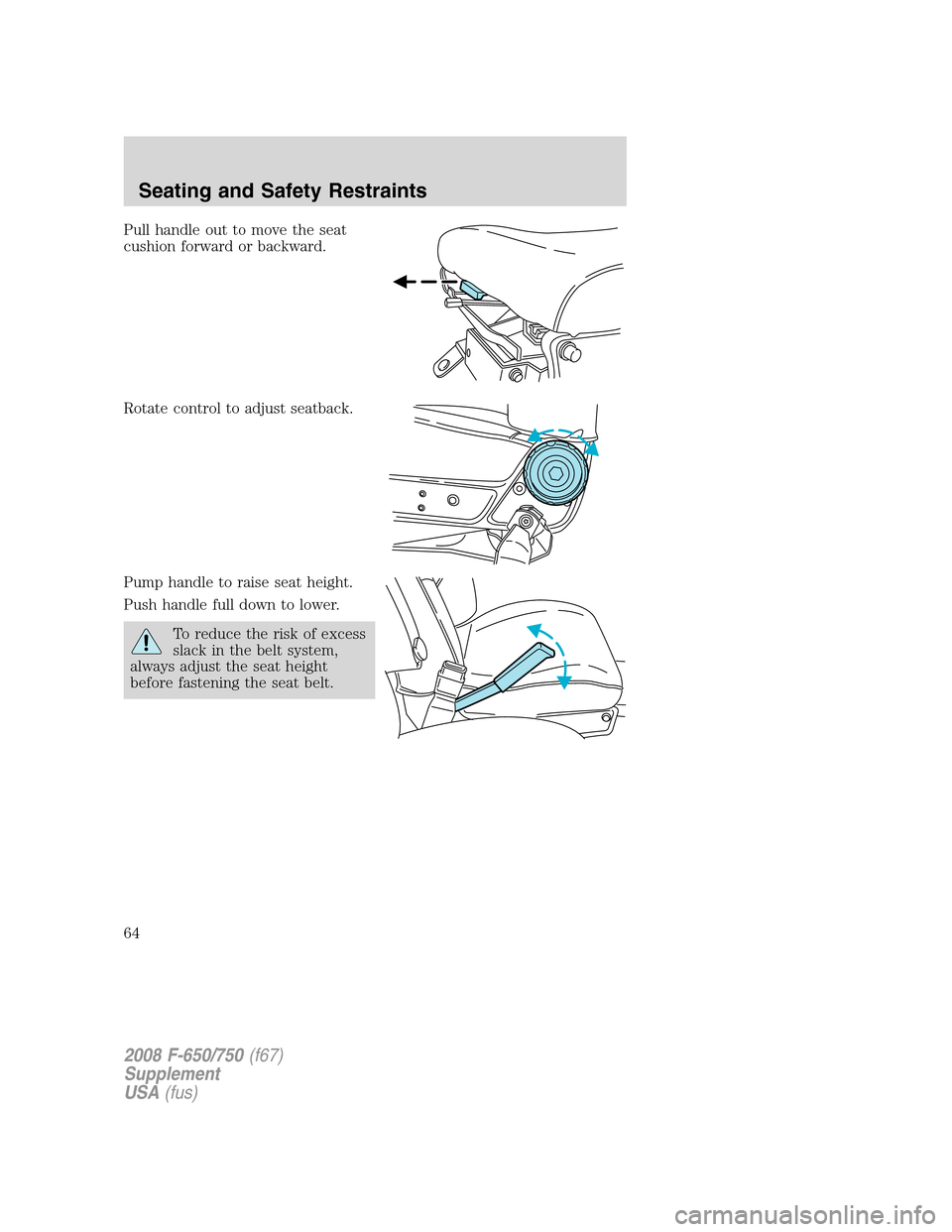

Pull handle out to move the seat
cushion forward or backward.
Rotate control to adjust seatback.
Pump handle to raise seat height.
Push handle full down to lower.
To reduce the risk of excess
slack in the belt system,
always adjust the seat height
before fastening the seat belt.
2008 F-650/750(f67)
Supplement
USA(fus)
Seating and Safety Restraints
64

Adjusting the front power seat (if equipped)
The control is located on the outboard side of the seat cushion.
Press to raise or lower the front
portion of the seat cushion.
Press to raise or lower the rear
portion of the seat cushion.
Press the control to move the seat
forward, backward, up or down.
2008 F-650/750(f67)
Supplement
USA(fus)
Seating and Safety Restraints
65

Air-Ride seat without self-contained pump (if equipped)
Move handle to the left to move seat
forward or backward.
Push up on the switch to raise the
seat height.
Press down on the switch to lower
the seat height.
To reduce the risk of excess slack in the belt system, always
adjust the seat height before fastening the seat belt.
Press up on the switch to increase
the firmness (lumbar support) of
the seatback.
2008 F-650/750(f67)
Supplement
USA(fus)
Seating and Safety Restraints
66

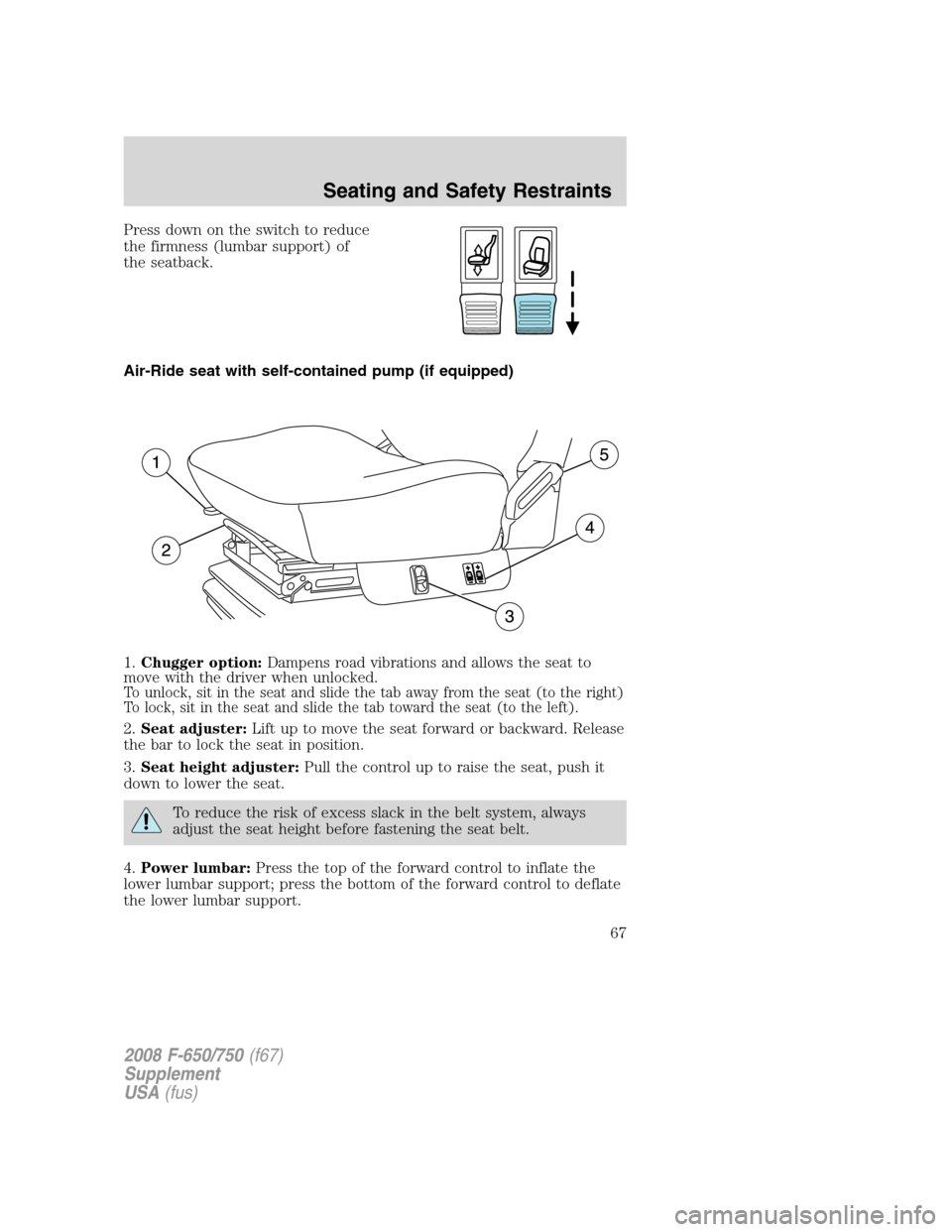

Press down on the switch to reduce
the firmness (lumbar support) of
the seatback.
Air-Ride seat with self-contained pump (if equipped)
1.Chugger option:Dampens road vibrations and allows the seat to
move with the driver when unlocked.
To unlock, sit in the seat and slide the tab away from the seat (to the right)
To lock, sit in the seat and slide the tab toward the seat (to the left).
2.Seat adjuster:Lift up to move the seat forward or backward. Release
the bar to lock the seat in position.
3.Seat height adjuster:Pull the control up to raise the seat, push it
down to lower the seat.
To reduce the risk of excess slack in the belt system, always
adjust the seat height before fastening the seat belt.
4.Power lumbar:Press the top of the forward control to inflate the
lower lumbar support; press the bottom of the forward control to deflate
the lower lumbar support.
2008 F-650/750(f67)
Supplement
USA(fus)
Seating and Safety Restraints
67

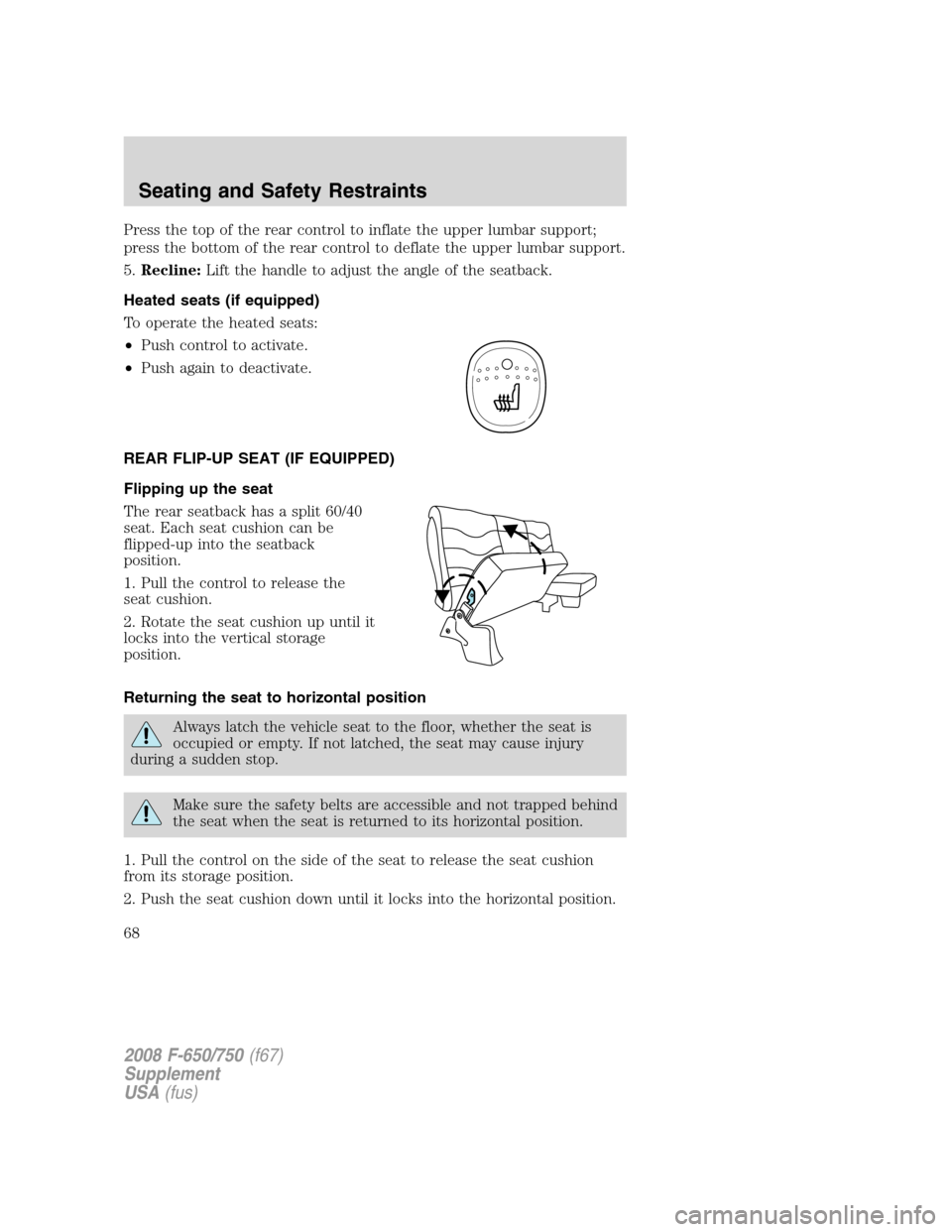

Press the top of the rear control to inflate the upper lumbar support;
press the bottom of the rear control to deflate the upper lumbar support.
5.Recline:Lift the handle to adjust the angle of the seatback.
Heated seats (if equipped)
To operate the heated seats:
•Push control to activate.
•Push again to deactivate.
REAR FLIP-UP SEAT (IF EQUIPPED)
Flipping up the seat
The rear seatback has a split 60/40
seat. Each seat cushion can be
flipped-up into the seatback
position.
1. Pull the control to release the
seat cushion.
2. Rotate the seat cushion up until it
locks into the vertical storage
position.
Returning the seat to horizontal position
Always latch the vehicle seat to the floor, whether the seat is
occupied or empty. If not latched, the seat may cause injury
during a sudden stop.
Make sure the safety belts are accessible and not trapped behind
the seat when the seat is returned to its horizontal position.
1. Pull the control on the side of the seat to release the seat cushion
from its storage position.
2. Push the seat cushion down until it locks into the horizontal position.
2008 F-650/750(f67)
Supplement
USA(fus)
Seating and Safety Restraints
68

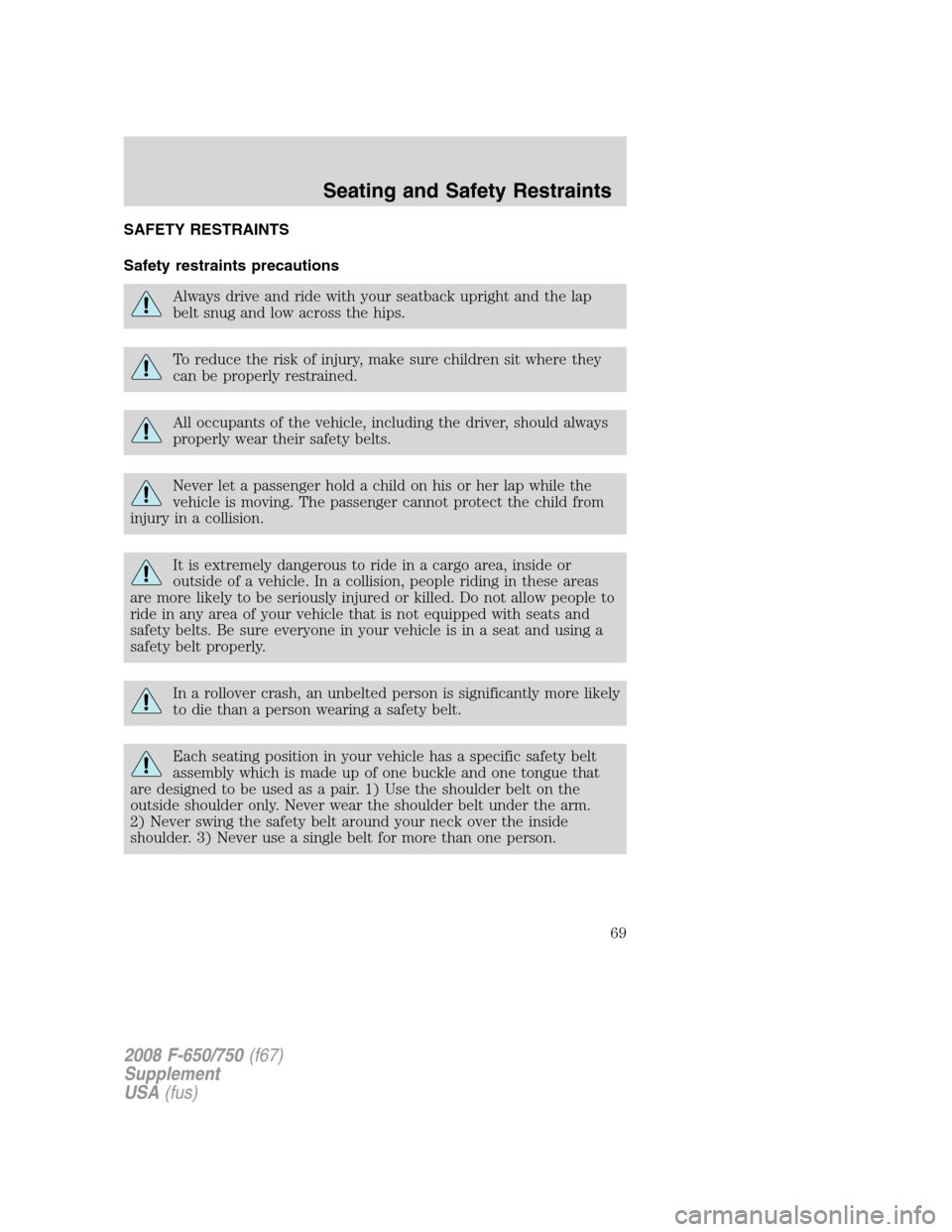

SAFETY RESTRAINTS
Safety restraints precautions
Always drive and ride with your seatback upright and the lap
belt snug and low across the hips.
To reduce the risk of injury, make sure children sit where they
can be properly restrained.
All occupants of the vehicle, including the driver, should always
properly wear their safety belts.
Never let a passenger hold a child on his or her lap while the
vehicle is moving. The passenger cannot protect the child from
injury in a collision.
It is extremely dangerous to ride in a cargo area, inside or
outside of a vehicle. In a collision, people riding in these areas
are more likely to be seriously injured or killed. Do not allow people to
ride in any area of your vehicle that is not equipped with seats and
safety belts. Be sure everyone in your vehicle is in a seat and using a
safety belt properly.
In a rollover crash, an unbelted person is significantly more likely
to die than a person wearing a safety belt.
Each seating position in your vehicle has a specific safety belt
assembly which is made up of one buckle and one tongue that
are designed to be used as a pair. 1) Use the shoulder belt on the
outside shoulder only. Never wear the shoulder belt under the arm.
2) Never swing the safety belt around your neck over the inside
shoulder. 3) Never use a single belt for more than one person.
2008 F-650/750(f67)
Supplement
USA(fus)
Seating and Safety Restraints
