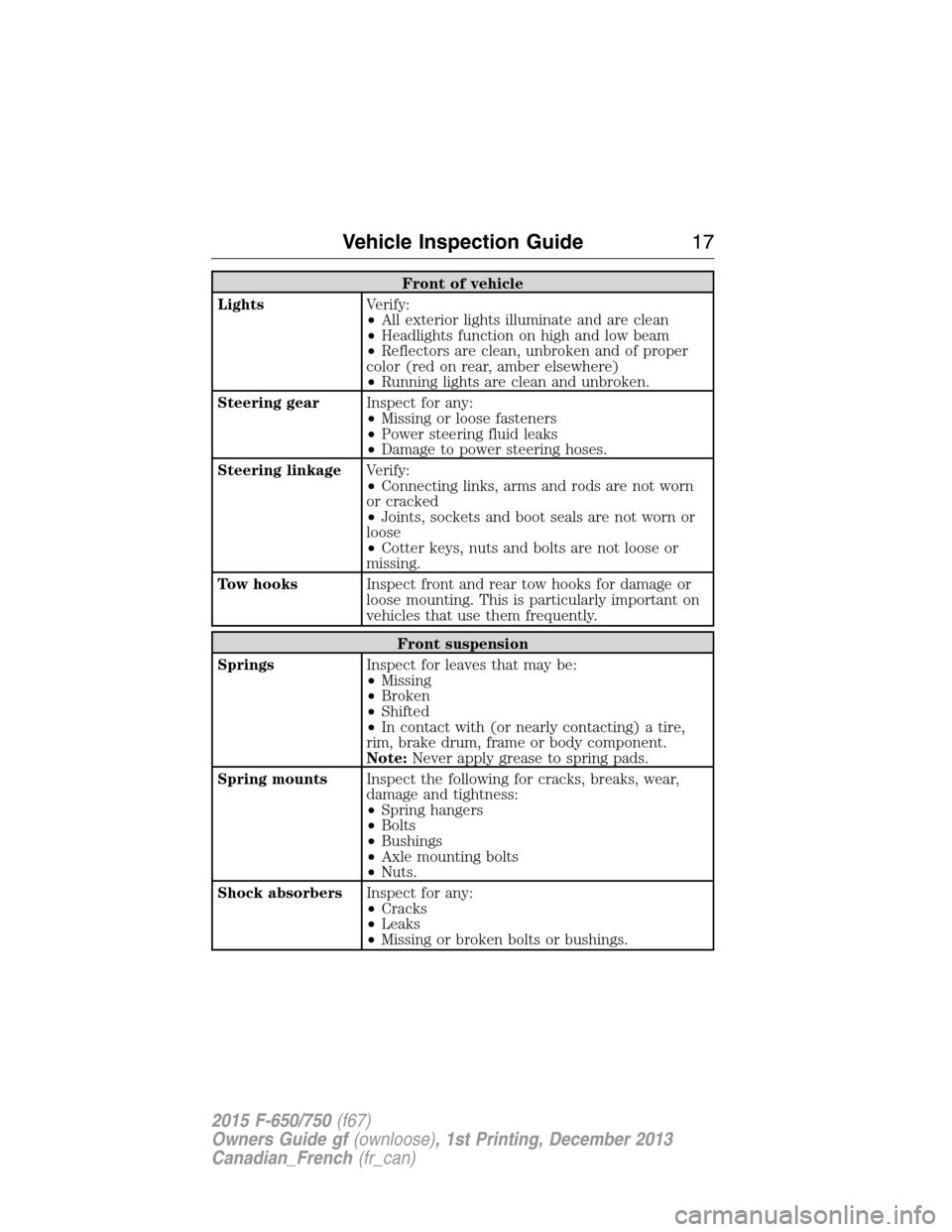

Front of vehicle
LightsVerify:
•All exterior lights illuminate and are clean
•Headlights function on high and low beam
•Reflectors are clean, unbroken and of proper
color (red on rear, amber elsewhere)
•Running lights are clean and unbroken.
Steering gearInspect for any:
•Missing or loose fasteners
•Power steering fluid leaks
•Damage to power steering hoses.
Steering linkageVerify:
•Connecting links, arms and rods are not worn
or cracked
•Joints, sockets and boot seals are not worn or
loose
•Cotter keys, nuts and bolts are not loose or
missing.
Tow hooksInspect front and rear tow hooks for damage or
loose mounting. This is particularly important on
vehicles that use them frequently.
Front suspension
SpringsInspect for leaves that may be:
•Missing
•Broken
•Shifted
•In contact with (or nearly contacting) a tire,
rim, brake drum, frame or body component.
Note:Never apply grease to spring pads.
Spring mountsInspect the following for cracks, breaks, wear,
damage and tightness:
•Spring hangers
•Bolts
•Bushings
•Axle mounting bolts
•Nuts.
Shock absorbersInspect for any:
•Cracks
•Leaks
•Missing or broken bolts or bushings.
Vehicle Inspection Guide17
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

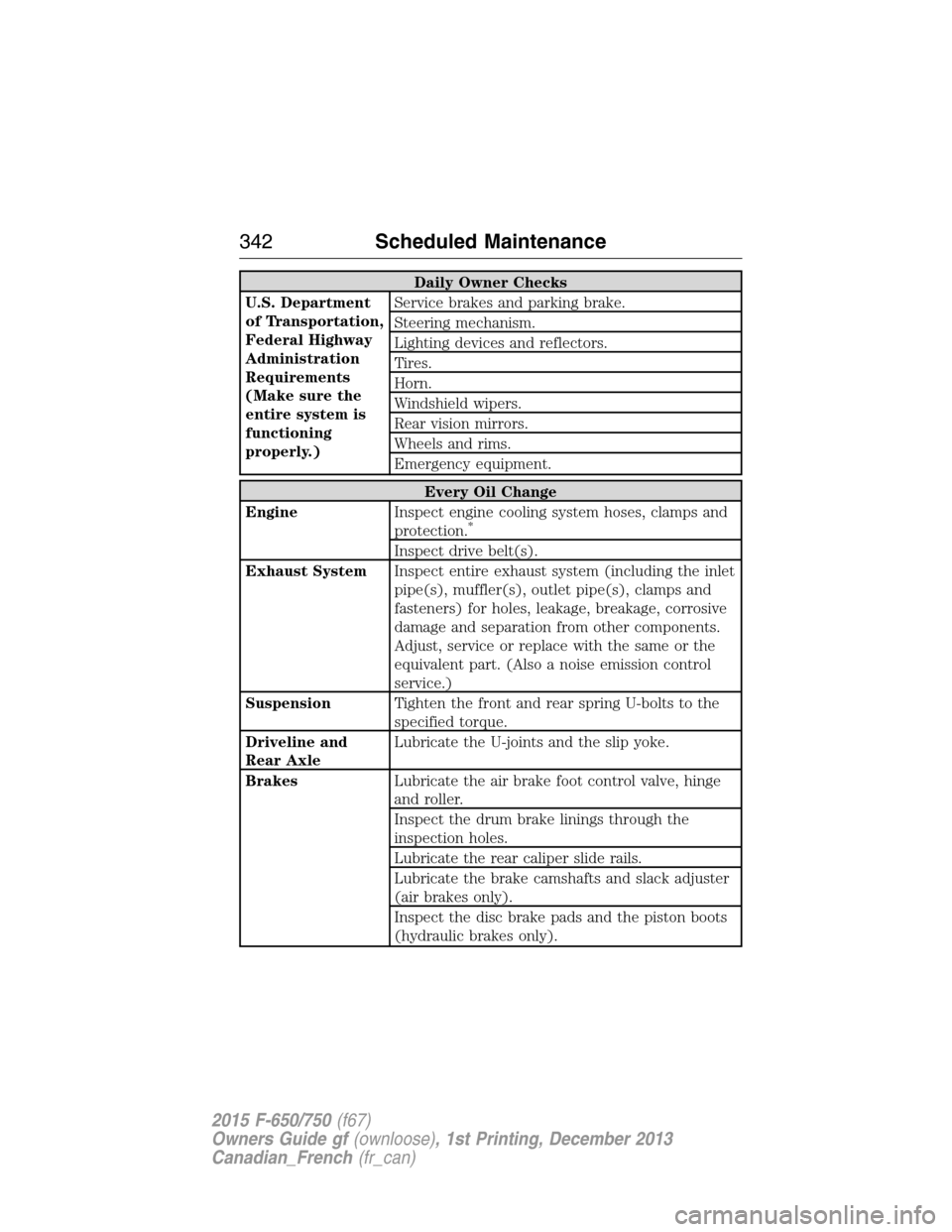

Daily Owner Checks
U.S. Department
of Transportation,
Federal Highway
Administration
Requirements
(Make sure the
entire system is
functioning
properly.)Service brakes and parking brake.
Steering mechanism.
Lighting devices and reflectors.
Tires.
Horn.
Windshield wipers.
Rear vision mirrors.
Wheels and rims.
Emergency equipment.
Every Oil Change
EngineInspect engine cooling system hoses, clamps and
protection.
*
Inspect drive belt(s).
Exhaust SystemInspect entire exhaust system (including the inlet
pipe(s), muffler(s), outlet pipe(s), clamps and
fasteners) for holes, leakage, breakage, corrosive
damage and separation from other components.
Adjust, service or replace with the same or the
equivalent part. (Also a noise emission control
service.)
SuspensionTighten the front and rear spring U-bolts to the
specified torque.
Driveline and
Rear AxleLubricate the U-joints and the slip yoke.
BrakesLubricate the air brake foot control valve, hinge
and roller.
Inspect the drum brake linings through the
inspection holes.
Lubricate the rear caliper slide rails.
Lubricate the brake camshafts and slack adjuster
(air brakes only).
Inspect the disc brake pads and the piston boots
(hydraulic brakes only).
342Scheduled Maintenance
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20000 MILES (32000 KM) OR FEWER
ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 5 10 15 20 25 30 35 40 45 50
Kilometers (x 1000) 8 16 24 32 40 48 56 64 72 80
Months 3 6 9 12 15 18 21 24 27 30
Brake System
Master cylinder - check fluid level (hydraulic brakes)•••
Parking brake relay lever/linkage - lubricate (hydraulic
brakes)•••
S-cam - lubricate (air brakes)••••••••••
Slack adjusters - lubricate (air brakes)••
Steering
Power steering fluid - change••
Power steering fluid - check level••••••••••
Steering column U-joints/slip joints - lubricate••••••••••
Steering gear Ross TAS - output seal - lubricate•••
Driveshaft
Slip joint - inspect boot; U-joint - lubricate (SPL) Every 25000 miles (40000 km) or six months (whichever comes
first)
U-joint and slip joint - lubricate (non-SPL) Every 5000–8000 miles (8000–12000 km) or three months
(whichever comes first)
Clutch
Release bearing/shafts/forks••••••••••
Scheduled Maintenance367
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20000 MILES (32000 KM) OR FEWER
ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 55 60 65 70 75 80 85 90 95 100
Kilometers (x 1000) 88 96 104 112 120 128 136 144 152 160
Months 33 36 39 42 45 48 51 54 57 60
Driveshaft
Slip joint - inspect boot; U-joint - lubricate (SPL) Every 25000 miles (40000 km) or six months (whichever comes
first)
U-joint and slip joint - lubricate (non-SPL) Every 5000–8000 miles (8000–12000 km) or three months
(whichever comes first)
Clutch
Release bearing/shafts/fork - lubricate••••••••••
Transmission
Automatic and Auto-shift See transmission operator’s manual.
Non-Eaton-Fuller manual - check level••••••••••
Eaton-Fuller manual - petroleum oil - change•••
Eaton-Fuller manual - synthetic oil - change••
Rear Axle
Eaton/Dana/Spicer - check level••••••••••
Eaton/Dana/Spicer - petroleum oil - change•••
Eaton/Dana/Spicer - synthetic oil - change••
Meritor - check level Every 5000 miles (8000 km), once a month, or fleet
maintenance interval (whichever comes first). For continuous
heavy-duty operation, check level every 1000 miles (1600 km).
372Scheduled Maintenance
