spark plugs replace FORD F650 2015 13.G Owners Manual

Diesel engine
Tank Type Capacity - Gallons (Liters)
Dual, steel rectangular 35 (RH)/45 (LH)
(132 [RH]/170 [LH])
Dual, steel rectangular 45/45 (170/170)
Dual, steel D-style 50/50 (189/189)
Dual, steel D-style 65 (RH)/45 (LH)
(246 [RH]/170 [LH])
Dual, steel rectangular 65/65 (246/246)
Dual, steel D-style 80/65 (303/246)
MOTORCRAFT® PART NUMBERS
Component 6.8L V10 Engine
Air filter element FA-1889
Oil filter FL-820-S
Battery BH-31-DC (700 CCA)
BH-31-XT (950 CCA)
Spark plugs-platinum
*HJFS–24P/SP–509
Wiper blade WW–2236
*For spark plug replacement, see an authorized dealer. See the
Scheduled Maintenancechapter for the appropriate intervals for
changing the spark plugs.
Note:Replace the spark plugs with ones that meet Ford material and
design specifications for your vehicle, such as Motorcraft or equivalent
replacement parts. The customer warranty may be void for any damage
to the engine if such spark plugs are not used.
VEHICLE IDENTIFICATION NUMBER
The VIN is on the Vehicle Rating Decal attached to the vehicle on the
edge of the driver’s door or B-Pillar. The VIN also serves as the warranty
number. If you ever find it necessary to communicate with Ford Motor
Company about your vehicle, always include the VIN in your
communication.
272Capacities and Specifications
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

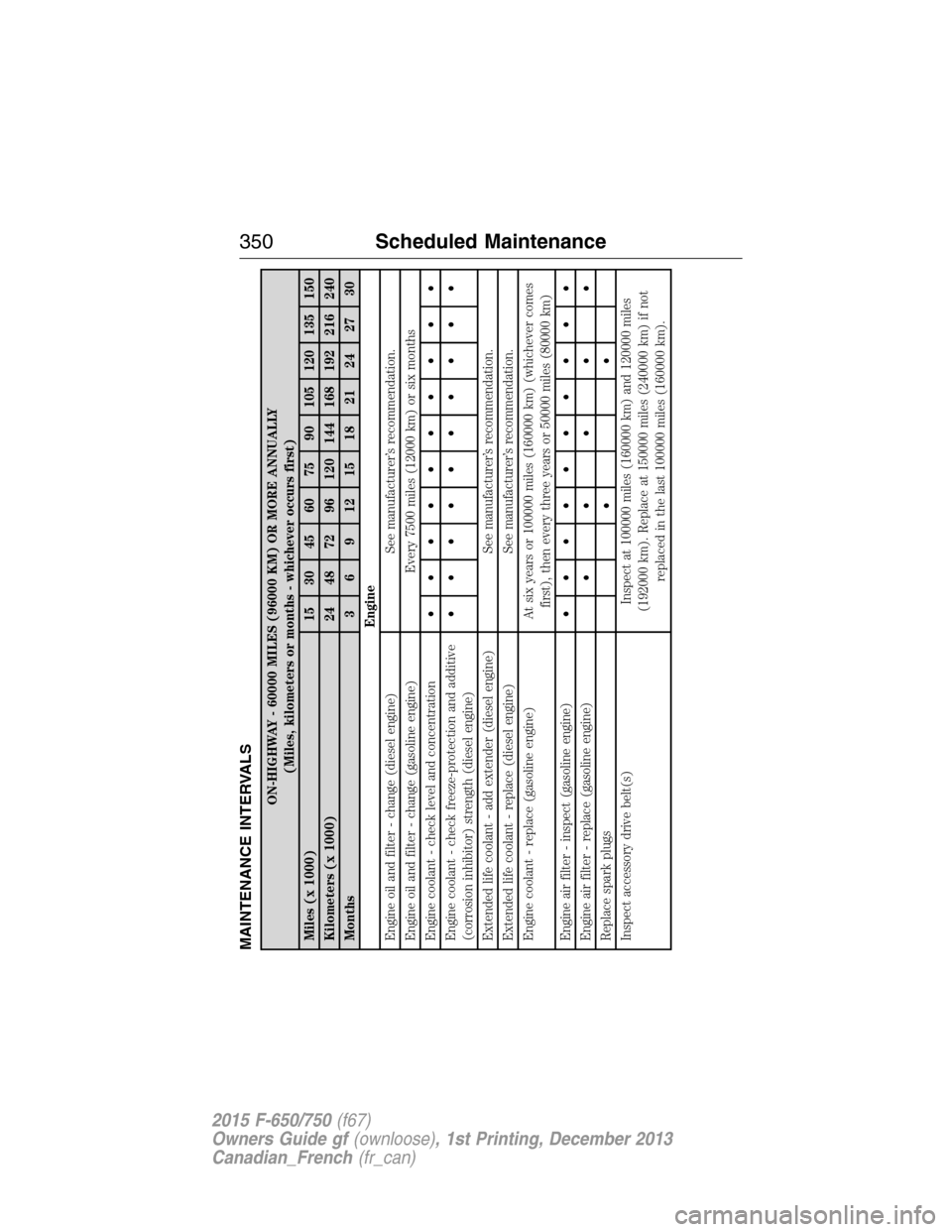

MAINTENANCE INTERVALS
ON-HIGHWAY - 60000 MILES (96000 KM) OR MORE ANNUALLY
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 15 30 45 60 75 90 105 120 135 150
Kilometers (x 1000) 24 48 72 96 120 144 168 192 216 240
Months 3 6 9 12 15 18 21 24 27 30
Engine
Engine oil and filter - change (diesel engine) See manufacturer’s recommendation.
Engine oil and filter - change (gasoline engine) Every 7500 miles (12000 km) or six months
Engine coolant - check level and concentration••••••••••
Engine coolant - check freeze-protection and additive
(corrosion inhibitor) strength (diesel engine)••••••••••
Extended life coolant - add extender (diesel engine) See manufacturer’s recommendation.
Extended life coolant - replace (diesel engine) See manufacturer’s recommendation.
Engine coolant - replace (gasoline engine) At six years or 100000 miles (160000 km) (whichever comes
first), then every three years or 50000 miles (80000 km)
Engine air filter - inspect (gasoline engine)••••••••••
Engine air filter - replace (gasoline engine)•••••
Replace spark plugs••
Inspect accessory drive belt(s) Inspect at 100000 miles (160000 km) and 120000 miles
(192000 km). Replace at 150000 miles (240000 km) if not
replaced in the last 100000 miles (160000 km).
350Scheduled Maintenance
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

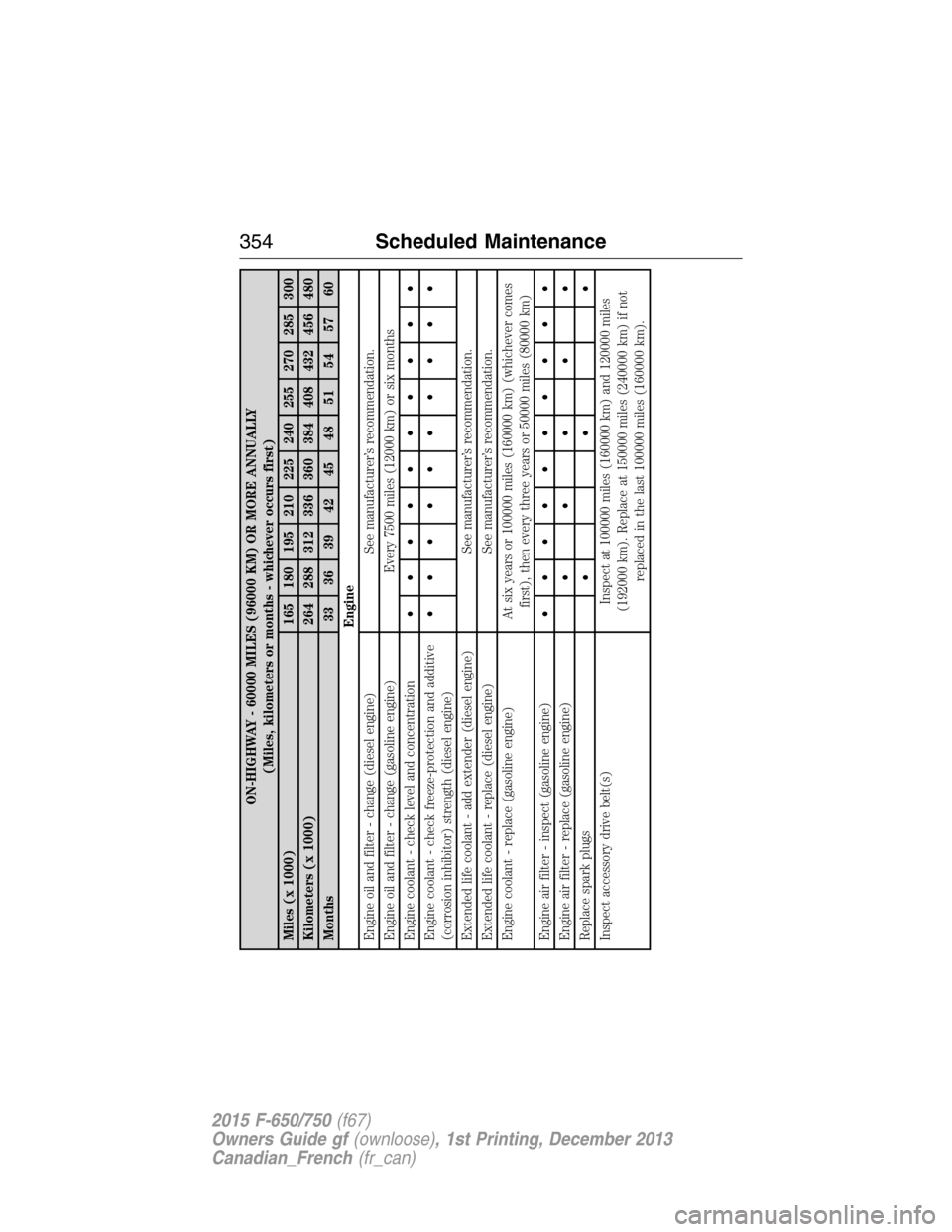

ON-HIGHWAY - 60000 MILES (96000 KM) OR MORE ANNUALLY
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 165 180 195 210 225 240 255 270 285 300
Kilometers (x 1000) 264 288 312 336 360 384 408 432 456 480
Months 33 36 39 42 45 48 51 54 57 60
Engine
Engine oil and filter - change (diesel engine) See manufacturer’s recommendation.
Engine oil and filter - change (gasoline engine) Every 7500 miles (12000 km) or six months
Engine coolant - check level and concentration••••••••••
Engine coolant - check freeze-protection and additive
(corrosion inhibitor) strength (diesel engine)••••••••••
Extended life coolant - add extender (diesel engine) See manufacturer’s recommendation.
Extended life coolant - replace (diesel engine) See manufacturer’s recommendation.
Engine coolant - replace (gasoline engine) At six years or 100000 miles (160000 km) (whichever comes
first), then every three years or 50000 miles (80000 km)
Engine air filter - inspect (gasoline engine)••••••••••
Engine air filter - replace (gasoline engine)•••••
Replace spark plugs•••
Inspect accessory drive belt(s) Inspect at 100000 miles (160000 km) and 120000 miles
(192000 km). Replace at 150000 miles (240000 km) if not
replaced in the last 100000 miles (160000 km).
354Scheduled Maintenance
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

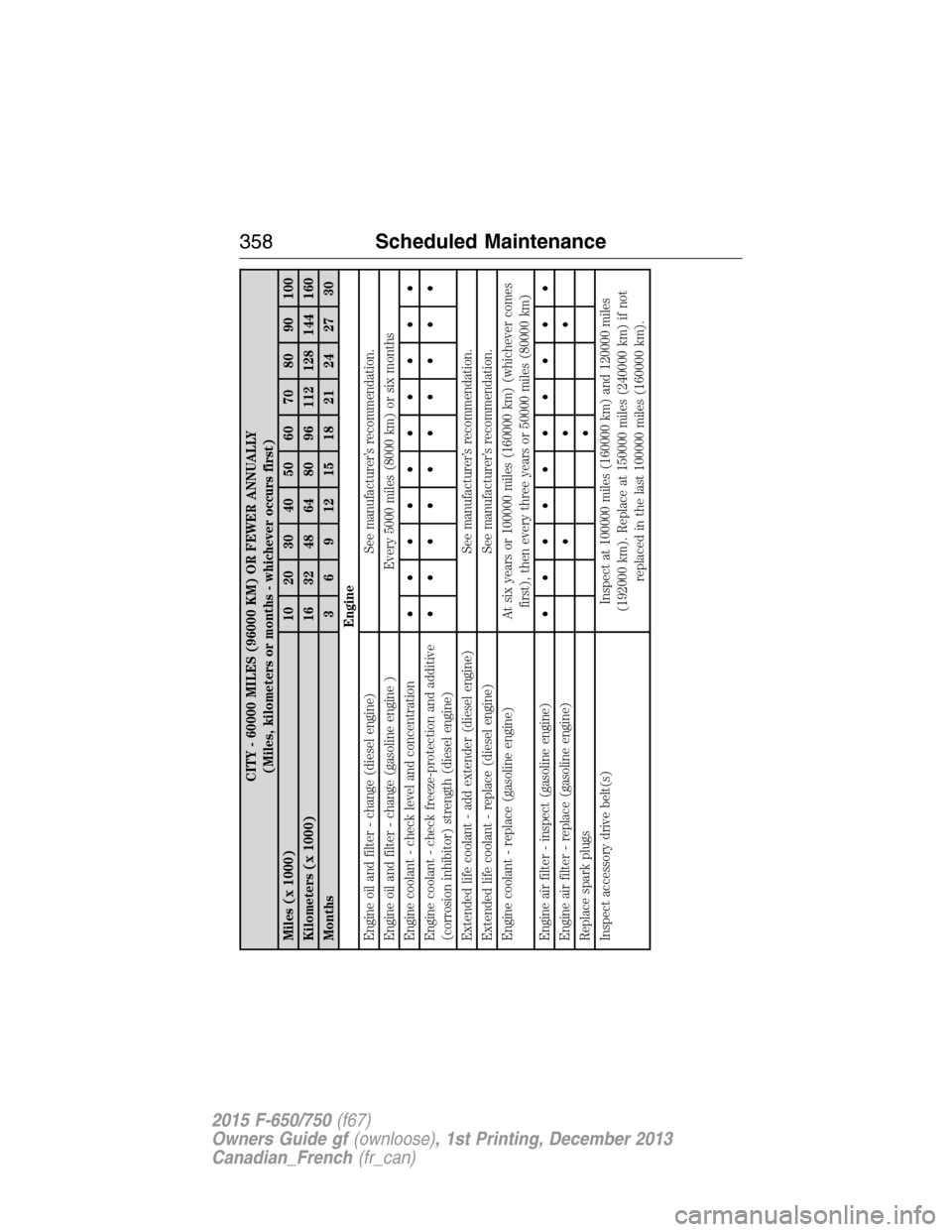

CITY - 60000 MILES (96000 KM) OR FEWER ANNUALLY
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 10 20 30 40 50 60 70 80 90 100
Kilometers (x 1000) 16 32 48 64 80 96 112 128 144 160
Months 3 6 9 12 15 18 21 24 27 30
Engine
Engine oil and filter - change (diesel engine) See manufacturer’s recommendation.
Engine oil and filter - change (gasoline engine ) Every 5000 miles (8000 km) or six months
Engine coolant - check level and concentration••••••••••
Engine coolant - check freeze-protection and additive
(corrosion inhibitor) strength (diesel engine)••••••••••
Extended life coolant - add extender (diesel engine) See manufacturer’s recommendation.
Extended life coolant - replace (diesel engine) See manufacturer’s recommendation.
Engine coolant - replace (gasoline engine) At six years or 100000 miles (160000 km) (whichever comes
first), then every three years or 50000 miles (80000 km)
Engine air filter - inspect (gasoline engine)••••••••••
Engine air filter - replace (gasoline engine)•••
Replace spark plugs•
Inspect accessory drive belt(s) Inspect at 100000 miles (160000 km) and 120000 miles
(192000 km). Replace at 150000 miles (240000 km) if not
replaced in the last 100000 miles (160000 km).
358Scheduled Maintenance
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

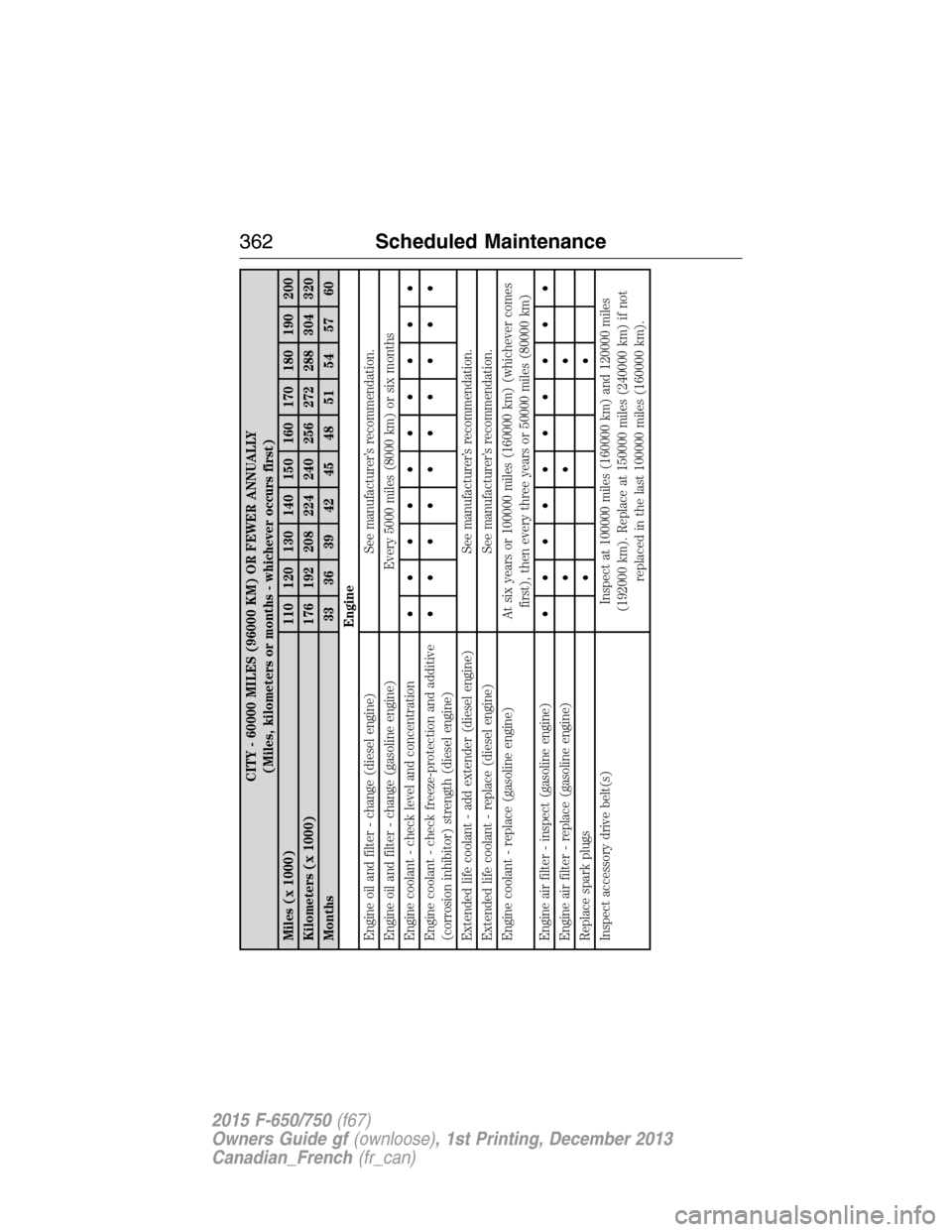

CITY - 60000 MILES (96000 KM) OR FEWER ANNUALLY
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 110 120 130 140 150 160 170 180 190 200
Kilometers (x 1000) 176 192 208 224 240 256 272 288 304 320
Months 33 36 39 42 45 48 51 54 57 60
Engine
Engine oil and filter - change (diesel engine) See manufacturer’s recommendation.
Engine oil and filter - change (gasoline engine) Every 5000 miles (8000 km) or six months
Engine coolant - check level and concentration••••••••••
Engine coolant - check freeze-protection and additive
(corrosion inhibitor) strength (diesel engine)••••••••••
Extended life coolant - add extender (diesel engine) See manufacturer’s recommendation.
Extended life coolant - replace (diesel engine) See manufacturer’s recommendation.
Engine coolant - replace (gasoline engine) At six years or 100000 miles (160000 km) (whichever comes
first), then every three years or 50000 miles (80000 km)
Engine air filter - inspect (gasoline engine)••••••••••
Engine air filter - replace (gasoline engine)•••
Replace spark plugs••
Inspect accessory drive belt(s) Inspect at 100000 miles (160000 km) and 120000 miles
(192000 km). Replace at 150000 miles (240000 km) if not
replaced in the last 100000 miles (160000 km).
362Scheduled Maintenance
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

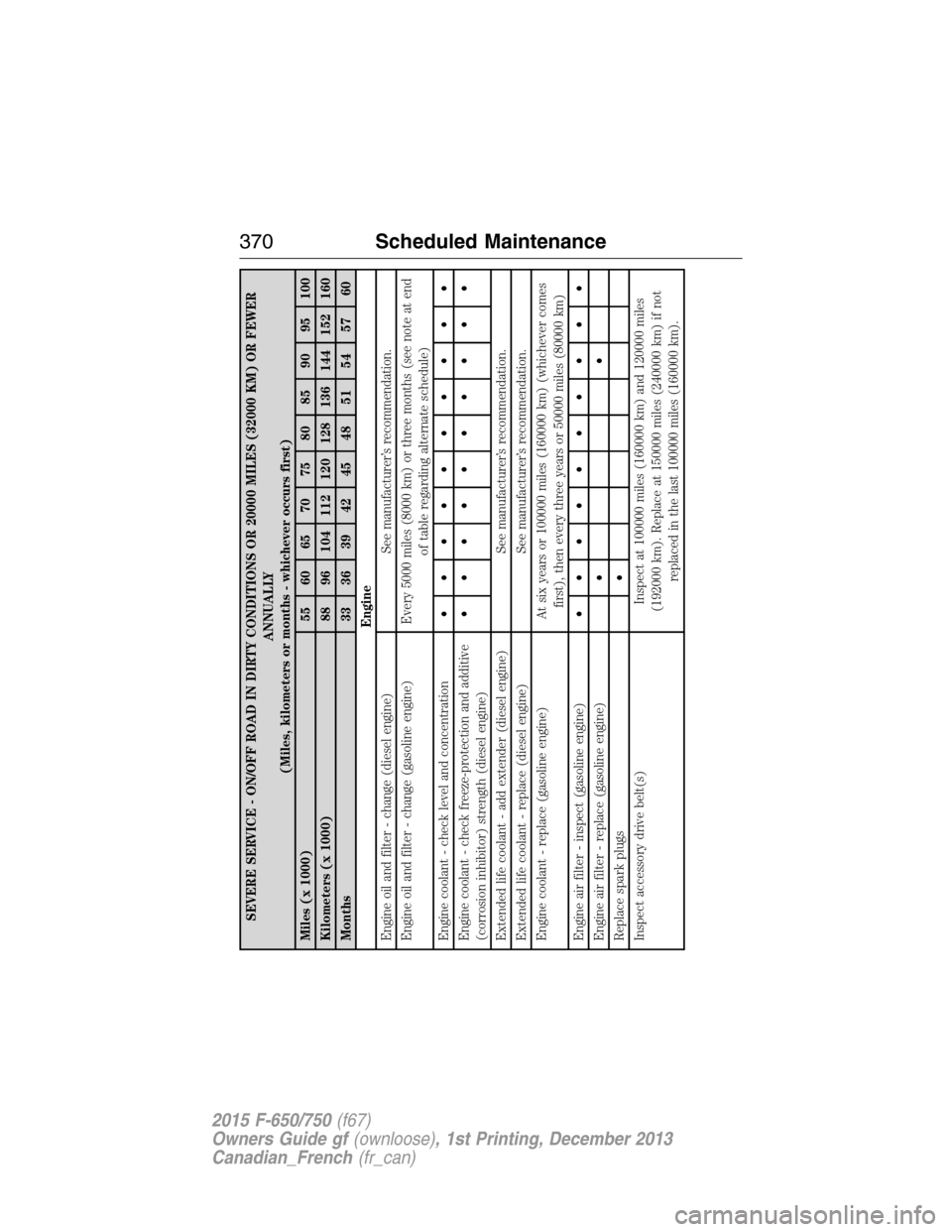

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20000 MILES (32000 KM) OR FEWER
ANNUALLY
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 55 60 65 70 75 80 85 90 95 100
Kilometers (x 1000) 88 96 104 112 120 128 136 144 152 160
Months 33 36 39 42 45 48 51 54 57 60
Engine
Engine oil and filter - change (diesel engine) See manufacturer’s recommendation.
Engine oil and filter - change (gasoline engine) Every 5000 miles (8000 km) or three months (see note at end
of table regarding alternate schedule)
Engine coolant - check level and concentration••••••••••
Engine coolant - check freeze-protection and additive
(corrosion inhibitor) strength (diesel engine)••••••••••
Extended life coolant - add extender (diesel engine) See manufacturer’s recommendation.
Extended life coolant - replace (diesel engine) See manufacturer’s recommendation.
Engine coolant - replace (gasoline engine) At six years or 100000 miles (160000 km) (whichever comes
first), then every three years or 50000 miles (80000 km)
Engine air filter - inspect (gasoline engine)••••••••••
Engine air filter - replace (gasoline engine)••
Replace spark plugs•
Inspect accessory drive belt(s) Inspect at 100000 miles (160000 km) and 120000 miles
(192000 km). Replace at 150000 miles (240000 km) if not
replaced in the last 100000 miles (160000 km).
370Scheduled Maintenance
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)

Safety information ....................287
Safety restraints ........ 42–44, 46–47
Belt-Minder® ............................47
extension assembly ..................46
for adults .......................42–44, 46
for children .........................25, 30
safety belt maintenance ...........50
seat belt maintenance ..............50
warning light and chime ..........47
Safety restraints - LATCH
anchors ........................................36
Safety seats for children ......25, 30
Safety Compliance
Certification Label ....................273
Seat belts (see Safety
restraints) ....................................42
Seats
child safety seats ................25, 30
front seats .................................85
heated ........................................89
Selecting your media source
(USB, Line in, BT audio) .........318
Setting the clock ...............277–278
Spark plugs,
specifications .....................254, 272
Specification chart,
lubricants ...................................255
Starting your vehicle ............93, 95
jump starting ..........................178
Steering .....................................204
Steering wheel ............................53
controls ......................................53
tilting .........................................53
Suspension ........................162, 206
SYNC® AppLink™ ...................313
SYNC® customer support ........286
SYNC® Services ........................305T
Tail lamps
bulb replacement ....................231
Temperature control (see
Climate control) ..........................76
Text messaging .........................298
Text messaging (sending,
downloading, deleting) .....298, 300
Tilt steering wheel ......................53
Tires ...........................................243
Towing .......................................167
trailer towing ..........................167
wrecker ....................................171
Traction control ........................155
Traffic, Directions and
Information ................................305
Transmission .....................122, 126
automatic operation ...............126
brake-shift interlock (BSI) ....127
fluid, checking and adding
(automatic) .............................215
fluid, checking and adding
(manual) .................................218
fluid, refill capacities ..............268
lubricant specifications ..........255
manual operation ....................122
Turn signal ..................................57
U
Upfitter controls .......................164
UREA .........................................110
USB port ....................................282
Using privacy mode ..................294
382Index
2015 F-650/750(f67)
Owners Guide gf(ownloose), 1st Printing, December 2013
Canadian_French(fr_can)
