Door Ajar
Displays when the ignition is on
and any door is not completely
closed.
Electronic Locking Differential (If
Equipped)
E163170
Illuminates when using the
electronic locking differential.
Engine Coolant Temperature
If it illuminates when your vehicle
is moving, this indicates that the
engine is overheating. Stop your
vehicle as soon as it is safe to do so and
switch the engine off. Have your vehicle
checked as soon as possible. See Engine
Coolant Check (page 238). idk
Engine Oil Pressure
If it illuminates with the engine
running, or when you are driving,
this indicates a malfunction.
Stop your vehicle as soon as it is safe to
do so and switch off the engine. Check the
engine oil level.
Note:Do not resume your journey if it
illuminates despite the level being correct.
Have the system checked as soon as
possible.
Exhaust Brake On (If Equipped)
E171217
The exhaust brake indicator light
illuminates when you switch the
exhaust brake on.
Fasten Seatbelt
E71880
Illuminates and a tone sounds
to remind you to fasten your
seatbelt.
High Beam
Illuminates when you switch on
the high beam headlamps. It
flashes when you use the
headlamp flasher.
Hydromax
E146190
If the light illuminates and
remains on when the key is in the
on position or the engine is
running, this indicates inadequate hydraulic
booster pressure or reserve pump system
failure. Stop the vehicle as soon as
possible and have your vehicle checked.
Low Fuel Level
Illuminates when the fuel level
is low or the fuel tank is nearly
empty. Refuel as soon as
possible.
Parking Brake Warning
E208810
Briefly illuminates when you
switch the ignition to the on
position, with the engine off. It
also illuminates when you apply the
parking brake. If the park brake lamp does
not illuminate at these times, seek
immediate service. Vehicles with the power
parking brake option: If the park brake
warning lamp begins to blink after setting
the parking brake, this may indicate a
failure in the parking brake system. Have
the system checked as soon as possible.
Driving extended distances with the
parking brake engaged can cause brake
failure and the risk of personal injury.
Parking Lamps
Illuminates when you switch the
low beam headlamps or the
parking lamps on.
67
Instrument Cluster

Powertrain Malfunction/Reduced
Power/Electronic Throttle Control
(If Equipped)
Illuminates in the event of a
powertrain fault. Have your
vehicle checked as soon as
possible.
Service Engine Soon
If it illuminates when the engine
is running, the on-board
diagnostics system notifies you
that the emission control system requires
service.
If it flashes, engine misfire may be
occurring. An increase in exhaust gas
temperatures can damage the catalytic
converter or other vehicle components.
Avoid heavy acceleration and deceleration
and have your vehicle immediately
serviced.
It illuminates when you switch the ignition
on prior to engine start to check the bulb
and to indicate whether your vehicle is
ready for Inspection and Maintenance
(I/M) testing.
Normally, it illuminates until the engine is
cranked and turns off if no malfunctions
are present. However, if after 15 seconds
it flashes eight times, this indicates that
your vehicle is not ready for inspection and
maintenance (I/M) testing.
See Catalytic Converter (page 116).
Stability Control Indicator (If Equipped)
E138639
Flashes during operation.
If it does not illuminate when you switch
the ignition on, or remains on when the
engine is running, this indicates a
malfunction. Have your vehicle checked
as soon as possible.
Traction Control Indicator
E138639
Flashes during a traction control
event.
If it does not illuminate when you switch
the ignition on, or remains on when the
engine is running, this indicates a
malfunction. Have your vehicle checked
as soon as possible.
Traction Control System Off
E194301
Illuminates when you switch the
system off.
Trailer Anti-Lock Brake System
(ABS)
E209040
Briefly illuminates when you
switch on the ignition, and only
when you connect a PLC trailer
or a PLC diagnostic tool. If the light fails to
illuminate, remains on after you start the
vehicle or continues to flash, have the
system immediately serviced.
Transmission Tow/Haul
E246592
Illuminates when you switch on
tow/haul. If the light steadily
flashes, have the system
immediately serviced, damage to the
transmission could occur.
Two Speed Axle (If Equipped)
E208809
The two speed axle indicator
comes on when you switch the
low axle range on.
Wait to Start (If Equipped)
Illuminates when you switch the
ignition on as part of the
pre-start system. Wait until the
wait to start indicator turns off before
attempting to start vehicle.
68
Instrument Cluster

WARNING: Do not use starting
fluid, for example ether, in the air intake
system. Such fluid could cause
immediate explosive damage to the
engine and possible personal injury.
Water in Fuel (If Equipped)
Illuminates when the fuel
filter/water separator has a
significant quantity of water in
it.
If the light illuminates when the engine is
running, stop the vehicle as soon as safely
possible, shut off the engine, then drain the
fuel filter/water separator.
Allowing water to stay in the system could
result in extensive damage to, or failure of,
the fuel injection system.
WARNING: Do not drain the
water-in-fuel separator while the engine
is running. Failure to follow this warning
may result in fire, serious injury, death or
property damage.
AUDIBLE WARNINGS AND
INDICATORS
Headlamps On Warning Chime
Sounds when you remove the key from the
ignition and open the driver's door and you
have left the headlamps or parking lamps
on.
Key in Ignition Warning Chime
Sounds when you open the driver's door
and you have left the key in the ignition.
Parking Brake On Warning Chime
Sounds when you have left the parking
brake on and drive your vehicle. If the
warning chime remains on after you have
released the parking brake, have the
system checked by your authorized dealer
immediately.
69
Instrument Cluster

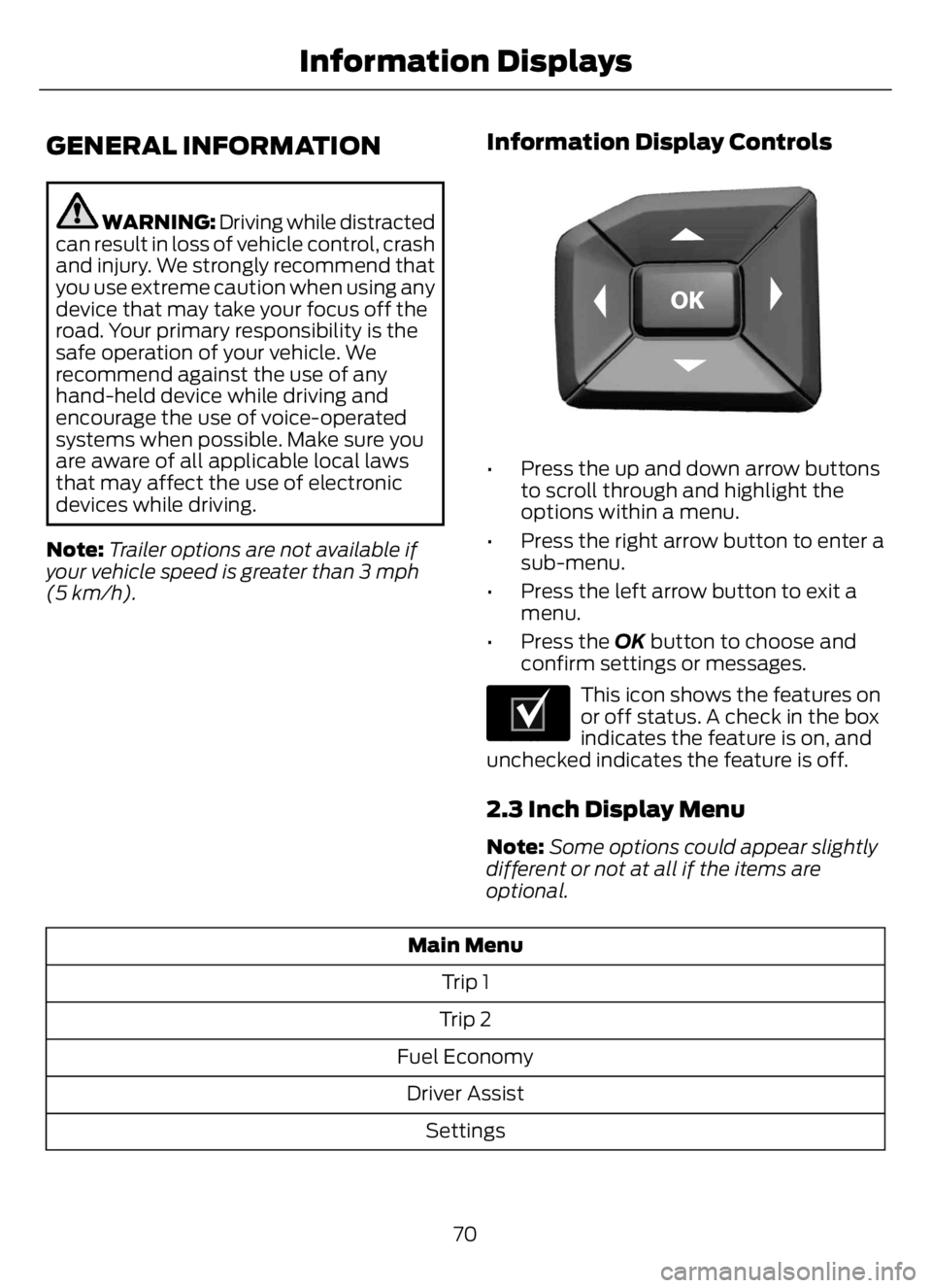

GENERAL INFORMATION
WARNING: Driving while distracted
can result in loss of vehicle control, crash
and injury. We strongly recommend that
you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the
safe operation of your vehicle. We
recommend against the use of any
hand-held device while driving and
encourage the use of voice-operated
systems when possible. Make sure you
are aware of all applicable local laws
that may affect the use of electronic
devices while driving.
Note:Trailer options are not available if
your vehicle speed is greater than 3 mph
(5 km/h).
Information Display Controls
E184451E184451
• Press the up and down arrow buttons
to scroll through and highlight the
options within a menu.
• Press the right arrow button to enter a
sub-menu.
• Press the left arrow button to exit a
menu.
• Press the OK button to choose and
confirm settings or messages.
E204495
This icon shows the features on
or off status. A check in the box
indicates the feature is on, and
unchecked indicates the feature is off.
2.3 Inch Display Menu
Note:Some options could appear slightly
different or not at all if the items are
optional.
Main Menu
Trip 1
Trip 2
Fuel Economy
Driver Assist
Settings
70
Information Displays

Trip 1 or 2
Displays the following of an individual
journey.
• Digital speed.
• Distance.
• Time.
• Distance to empty.
• Average fuel economy.
Note:Hold OK to reset fuel history and
average fuel economy.
Fuel Economy
Displays the following:• Instant fuel economy.
• Average fuel economy.
• Average speed.
• Distance to empty.
Note:Hold OK to reset fuel history and
average fuel economy.
Driver Assist
Displays the following:
• Progressive range select.
• Engine hours.
• Voltmeter.
• Maintenance monitor.
• Oil Temp.
Settings
Settings
Select Your Setting Auto Regen Vehicle
Lighting
Locks
FordPass
Windows
Wiper Controls
Select Your Setting Units Displ. Settings
Temperature
Language
8 Inch Display Menu
Note:Some options could appear slightly
different or not at all if the items are
optional.
71
Information Displays

Main Menu
MyView
Trip/Fuel
Truck Info
Settings
MyView
MyView
Trip 1
Fuel Economy
For more options, press the OK button. Configure MyView
Trip/Fuel
Trip/Fuel
Trip 1
Trip 2
Fuel Economy
Fuel History
Trip 1 or 2
Displays the following of an individual
journey.
• Trip timer.
• Distance to empty.
• Trip odometer.
• Average fuel economy.
Note:Hold OK to reset fuel history and
average fuel economy.Fuel Economy
Displays your instantaneous fuel usage as
a bar graph and average mpg.
Fuel History
Displays your fuel usage based on time.
The graph is updated each minute with the
fuel economy that you achieved during 30
minutes of driving.
72
Information Displays

Truck Info
Truck Info
Gauge View
Digital Speedometer
Engine Information
Maintenance Monitor
Transmission Temperature
• Engine Information - Shows engine hours, engine idle hours and engine oil temp and
oil life.
Settings
Settings
Select Your Setting Lighting Vehicle Advanced
Settings
Easy Entry/Exit
Locks
FordPass
Windows
Wiper Controls
Select Your Setting Measurement
Units Displ.
Settings
Temperature
Units
Tire Pressure
Language
73
Information Displays

INFORMATION MESSAGES
Note: Not all messages will display or be
available depending on your vehicle options
and instrument cluster type. The
information display may abbreviate or
shorten certain messages.
E184451E184451
Press the OK button to acknowledge and
remove some messages from the
information display. The information
display will automatically remove other
messages after a short period of time.
You need to confirm certain messages
before you can access the menus.
Adaptive Cruise Control
Action Message
The radar requires service and is preventing
the adaptive cruise control from engaging. Adaptive Cruise Malfunction
A condition exists such that the adaptive
cruise cannot function properly. Adaptive Cruise Not Available
You have a blocked sensor due to
inclement weather, ice, mud or water in
front of the radar sensor. You can typically
clean the sensor to resolve. Adaptive Cruise Not Available Sensor
Blocked See Manual
The system has disabled the automatic
braking. Verify the system is on, if the
message continues to display have the
system checked as soon as possible. Normal Cruise Active Adaptive Braking Off
The radar requires service and is preventing
the adaptive cruise control from engaging. Front Sensor Not Aligned
74
Information Displays

Action Message
The adaptive cruise has reinstated controls
to the driver. Take control of your vehicle. Adaptive Cruise - Driver Resume Control
Your vehicle speed is too low to activate
the adaptive cruise. Increase your vehicle's
speed to use the system. Adaptive Cruise Speed Too Low to Activate
The adaptive cruise is automatically
adjusting the gap distance and you need to
shift the transmission into a lower gear. Adaptive Cruise Shift Down
Automatic Engine Shutdown
Action Message
The engine is getting ready to shut off. Vehicle Shuts Off In {seconds:#0} Seconds
The engine has shut off to help increase
fuel economy. Vehicle Shut Off to Save Energy
The engine is getting ready to shut off.
Press and hold the OK button to override
the system. Vehicle Shuts Off in {seconds:#0} Seconds
Press Ok to Override
75
Information Displays

Battery and Charging System
Action Message
The charging system requires service. If the
warning stays on or continues to come on,
have the system checked as soon as
possible. Check Charging System
The battery management system detects
an extended low-voltage condition. Your
vehicle will disable various features to help
preserve the battery. Turn off as many of
the electrical loads as soon as possible to
help improve system voltage. If the system
voltage has recovered, the disabled
features will operate again as normal. Low Battery Features Temporarily Turned
Off
The battery management system determ-
ines that the battery is at a low state of
charge. Turn your ignition off as soon as
possible to protect the battery. This
message will clear once you restart your
vehicle and the battery state of charge has
recovered. Turning off unnecessary elec-
trical loads will allow faster battery state-
of-charge recovery. Turn Power Off To Save Battery
Diesel Messages
WARNING: When the Exhaust
Filter Cleaning message appears in the
information display, do not park near
flammable materials, vapors or
structures until filter cleaning is
complete.
76
Information Displays
