Action Message
Your vehicle has entered the cleaning
mode. Various engine actions raises the
exhaust temperature in the diesel particu-
late filter system to burn off the particles,
exhaust soot. After the vehicle burns the
particles off, the exhaust temperature
returns to normal levels. Exhaust Filter Cleaning
The diesel particulate filter is full of
particles, exhaust soot, and you are not
operating the vehicle in a manner that
allows normal cleaning. Drive the vehicle
above 30 mph (48 km/h) until the message
clears. Exhaust Filter Overloaded Drive to Clean
Exhaust Filter Overloaded Clean Now
Exhaust Filter at Limit Clean Now
Exhaust Filter at Limit Drive to Clean Now
The exhaust system temperature exceeded
the intended operating range. If this warning
occurs, a tone sounds, followed by reduced
engine power. The engine shuts down when
your vehicle speed is below 3 mph
(5 km/h). Stop the vehicle as soon as safely
possible. Have the system checked as soon
as possible. Exhaust System Overheated Stop Safely
NOW
In extremely cold weather, typically below
-15°F (-26°C) and if the engine block heater
is not utilized, your engine will not respond
to accelerator pedal movement for a short
period of time. This restriction allows your
engine to properly circulate the oil to avoid
engine damage. Engine Warming Please Wait {seconds:00}
sec
The diesel particulate filter is clean. Exhaust Filter Drive Complete
The diesel filter is clean, operator
commanded regeneration only. Exhaust Filter Cleaned
The manual regeneration process has
stopped, operator commanded regenera-
tion only. Exhaust Filter Cleaning Stopped
The distance you can travel before
depleting the remaining diesel exhaust fluid. DEF Level Low Range: distance
imperial:###0 mi Refill Now
DEF Level Low Range: distance
metric:###0 km Refill Now
77
Information Displays

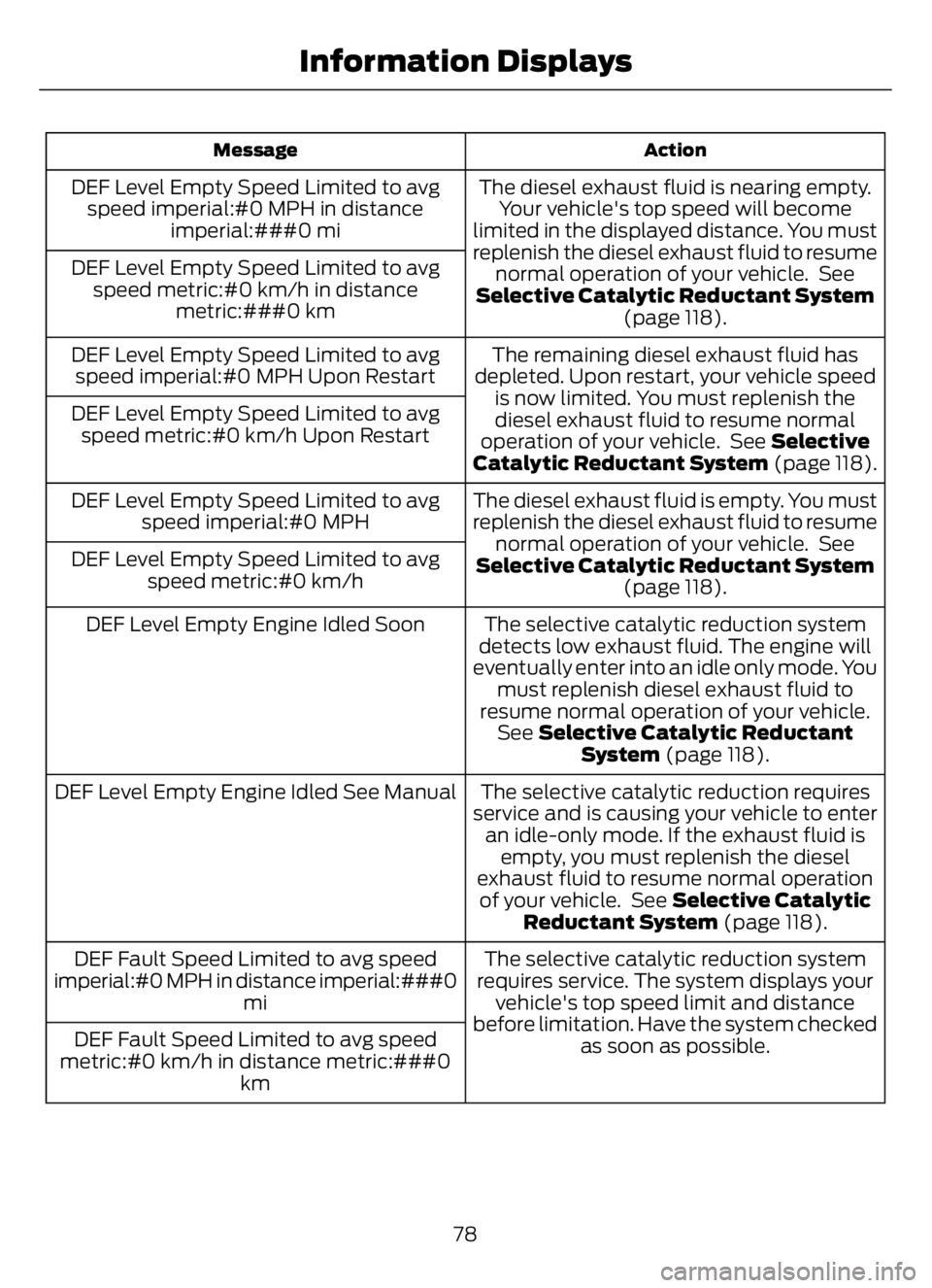

Action Message
The diesel exhaust fluid is nearing empty.
Your vehicle's top speed will become
limited in the displayed distance. You must
replenish the diesel exhaust fluid to resume
normal operation of your vehicle. See
Selective Catalytic Reductant System
(page 118). DEF Level Empty Speed Limited to avg
speed imperial:#0 MPH in distance
imperial:###0 mi
DEF Level Empty Speed Limited to avg
speed metric:#0 km/h in distance
metric:###0 km
The remaining diesel exhaust fluid has
depleted. Upon restart, your vehicle speed
is now limited. You must replenish the
diesel exhaust fluid to resume normal
operation of your vehicle. See Selective
Catalytic Reductant System (page 118). DEF Level Empty Speed Limited to avg
speed imperial:#0 MPH Upon Restart
DEF Level Empty Speed Limited to avg
speed metric:#0 km/h Upon Restart
The diesel exhaust fluid is empty. You must
replenish the diesel exhaust fluid to resume
normal operation of your vehicle. See
Selective Catalytic Reductant System
(page 118). DEF Level Empty Speed Limited to avg
speed imperial:#0 MPH
DEF Level Empty Speed Limited to avg
speed metric:#0 km/h
The selective catalytic reduction system
detects low exhaust fluid. The engine will
eventually enter into an idle only mode. You
must replenish diesel exhaust fluid to
resume normal operation of your vehicle.
See Selective Catalytic Reductant
System (page 118). DEF Level Empty Engine Idled Soon
The selective catalytic reduction requires
service and is causing your vehicle to enter
an idle-only mode. If the exhaust fluid is
empty, you must replenish the diesel
exhaust fluid to resume normal operation
of your vehicle. See Selective Catalytic
Reductant System (page 118). DEF Level Empty Engine Idled See Manual
The selective catalytic reduction system
requires service. The system displays your
vehicle's top speed limit and distance
before limitation. Have the system checked
as soon as possible. DEF Fault Speed Limited to avg speed
imperial:#0 MPH in distance imperial:###0
mi
DEF Fault Speed Limited to avg speed
metric:#0 km/h in distance metric:###0
km
78
Information Displays

Action Message
The selective catalytic reduction system
requires service. Upon restart, your vehicle
speed is now limited. Have the system
checked as soon as possible. DEF Fault Speed Limited to avg speed
imperial:#0 MPH Upon Restart
DEF Fault Speed Limited to avg speed
metric:#0 km/h Upon Restart
The selective catalytic reduction system
requires service. The system displays your
vehicle's top speed limit. Have the system
checked as soon as possible. DEF Fault Speed Limited to avg speed
imperial:#0 MPH
DEF Fault Speed Limited to avg speed
metric:#0 km/h
Have your vehicle checked as soon as
possible. Ignoring this warning message
could lead to reduced drivability and
customer expense, including damage to
the diesel particulate filter. Your new
vehicle warranty may not cover this
damage. Exhaust Filter Over Limit Service Now
The water separator has reached a prede-
termined capacity and needs draining. See
Draining the Fuel Filter Water Trap
(page 232). Water in Fuel Drain Filter
A low fuel pressure condition has occurred
due to cold, low fuel level or fuel filters need
to be changed. See Fuel Quality (page
106). Fuel Pressure Low
Doors and Locks
Action Message
The driver door is not completely closed.
Close the driver door. If the message
continues to display, have the system
checked as soon as possible. Driver Door Ajar
The passenger door is not completely
closed. Close the passenger door. If the
message continues to display, have the
system checked as soon as possible. Passenger Door Ajar
79
Information Displays

Driver Alert
Action Message
Stop and rest as soon as it is safe to do so. Driver Alert Warning Rest Now
Take a rest soon. Driver Alert Warning Rest Suggested
Drivetrain
Action Message
The electronic locking differential requires
service. Have the system checked as soon
as possible. Check Locking Differential
Engine
Action Message
The engine has reduced power to help
reduce high engine temperature. Have the
system checked as soon as possible. Power Reduced to Lower Engine Temp
Fuel
Action Message
An early reminder of a low fuel condition.
Refuel your vehicle. Fuel Level Low
A fuel fill inlet may not be properly closed. Check Fuel Fill Inlet
80
Information Displays

Lane Departure Warning System
Action Message
The system has detected a condition that
has caused the system to be temporarily
unavailable. If the message continues to
display, have the system checked as soon
as possible. Front Camera Temporarily Not Available
The system has detected a condition that
requires you to clean the windshield in order
for it to operate properly. Front Camera Low Visibility Clean Screen
The system requires service, have the
system checked as soon as possible. Front Camera Malfunction Service Required
The system requests you to keep your
hands on the steering wheel. Keep Hands on Steering Wheel
Maintenance
Action Message
Stop your vehicle as soon as safely possible
and turn off the engine. Check the oil level,
if the warning stays on or continues to come
on with your engine running, have your
vehicle checked as soon as possible. Low Engine Oil Pressure
The engine oil life is low and needs to be
changed soon. Change Engine Oil Soon
The engine oil life is low and needs to be
changed immediately. Oil Change Required
The brake fluid level is low, have the system
checked as soon as possible. Brake Fluid Level Low
The brake system requires service. Stop
your vehicle in a safe place. Have the
system checked as soon as possible. Check Brake System
Your vehicle is still in transport or factory
mode. This may not allow some features
to operate properly. Have your vehicle
checked as soon as possible. Factory Mode Contact Dealer
Transport Mode Contact Dealer
The powertrain requires service. See Manual
81
Information Displays

Power Steering
Action Message
The power steering system requires service.
Have the system checked as soon as
possible. Steering Fault Service Now
The power steering system is not working.
Stop your vehicle in a safe place. Have the
system checked as soon as possible. Steering Loss Stop Safely
The power steering system, passive entry
or passive entry start system requires
service. Have the system checked as soon
as possible. Steering Assist Fault Service Required
The steering lock system requires service.
Have the system checked as soon as
possible. Steering Lock Malfunction Service Now
Pre-Collision Assist
Action Message
The system requires service. Have the
system checked as soon as possible. Pre-Collision Assist Not Available
You have a blocked sensor due to
inclement weather, ice, mud or water in
front of the radar sensor. You can typically
clean the sensor to resolve. If the message
continues to appear, have the system
checked as soon as possible. Pre-Collision Assist Not Available Sensor
Blocked
Traction Control
Action Message
The status of the traction control system
after you switched it on. See Using Trac-
tion Control (page 149). Traction Control On
The status of the traction control system
after you switched it off. See Using Trac-
tion Control (page 149). Traction Control Off
82
Information Displays

Transmission
Action Message
You switched the engine off and the shift
selector is in any position other than park
(P). Shift to Park
Displays when the brake pedal needs to be
pressed. Press Brake Pedal
The transmission is overheating and needs
to cool. Stop in a safe place as soon as
possible. Transmission Over Temperature Stop
Safely
Have the system checked as soon as
possible. Transmission Service Required
The transmission is overheating and needs
to cool. Stop in a safe place as soon as
possible. Transmission Too Hot Press Brake
The transmission has limited functionality.
Have the system checked as soon as
possible. Transmission Limited Function See Manual
A reminder to shift into park (P). In addi-
tion, this message is typical after recon-
necting or recharging the battery until you
cycle the ignition to the on mode. See
Changing the 12V Battery (page 246). Transmission Not in Park
Have the system checked as soon as
possible. Transmission Fault Service Now
Displays when the transmission has
adjusted the shift strategy. Transmission Adjusted
Displays when the transmission is adjusting
the shift strategy. Transmission AdaptMode
Transmission is too cold. Wait for it to warm
up before you drive. Transmission Warming Up Please Wait
83
Information Displays

Action Message
Displays when the transmission shift lever
is locked and unable to select gears. Transmission IndicatMode Lockup On
Displays when the transmission shift lever
is unlocked and free to select gears. Transmission IndicatMode Lockup Off
The transmission is overheating and needs
to cool. Stop in a safe place as soon as
possible. Transmission Overheating Stop Safely
84
Information Displays

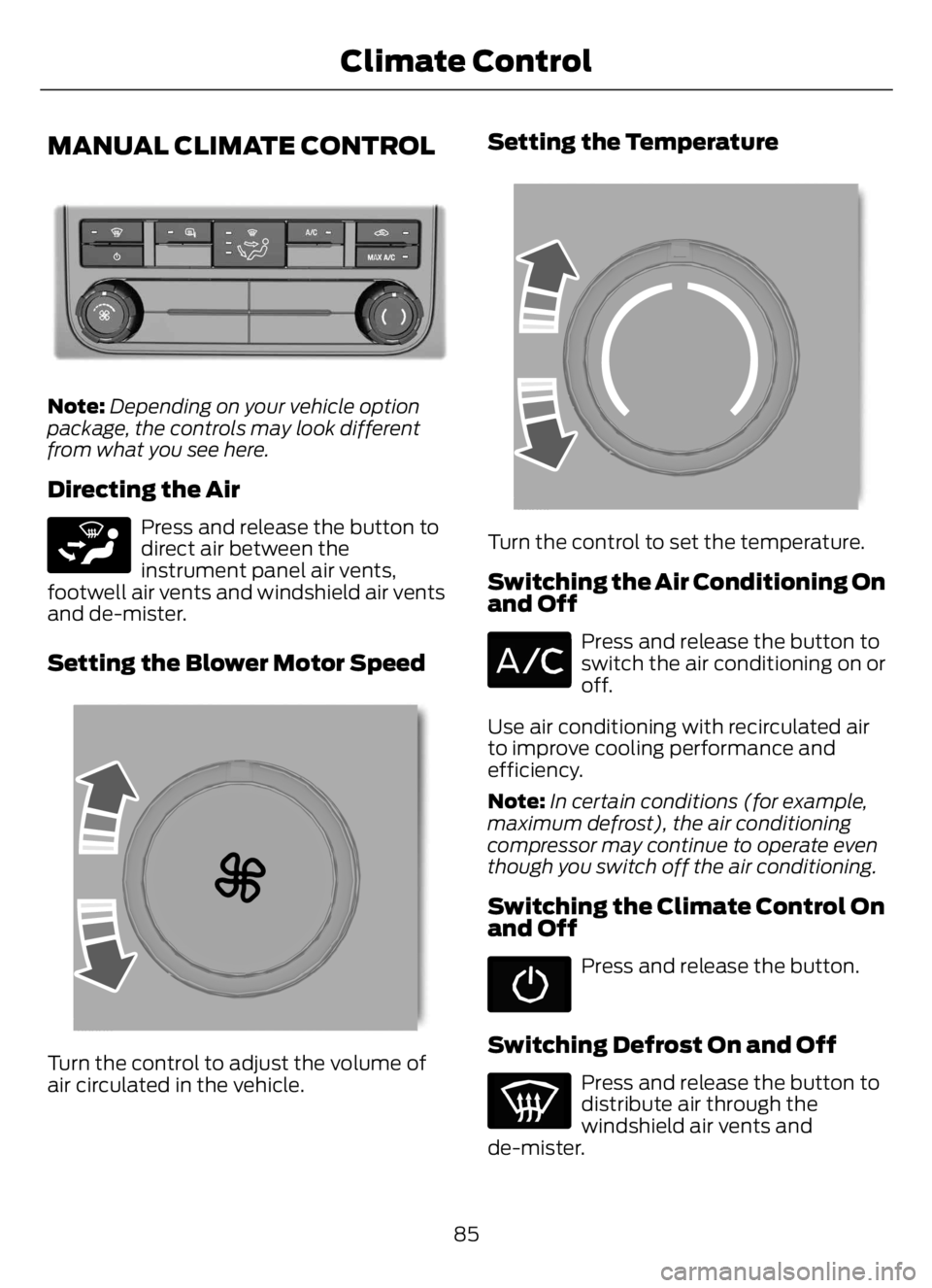

MANUAL CLIMATE CONTROL
E305247E305247
Note:Depending on your vehicle option
package, the controls may look different
from what you see here.
Directing the Air
E265283
Press and release the button to
direct air between the
instrument panel air vents,
footwell air vents and windshield air vents
and de-mister.
Setting the Blower Motor Speed
E2265389E2265389265389
Turn the control to adjust the volume of
air circulated in the vehicle.
Setting the Temperature
E2265862E2265862265862
Turn the control to set the temperature.
Switching the Air Conditioning On
and Off
Press and release the button to
switch the air conditioning on or
off.
Use air conditioning with recirculated air
to improve cooling performance and
efficiency.
Note:In certain conditions (for example,
maximum defrost), the air conditioning
compressor may continue to operate even
though you switch off the air conditioning.
Switching the Climate Control On
and Off
Press and release the button.
Switching Defrost On and Off
Press and release the button to
distribute air through the
windshield air vents and
de-mister.
85
Climate Control

Air directed to the instrument panel and
footwell air vents turns off. You can also
use this setting to defog and clear the
windshield of a thin covering of ice.
Switching Maximum Air
Conditioning On and Off
Press and release the button for
maximum cooling.
The left-hand and right-hand settings set
to LO, recirculated air flows through the
instrument panel air vents, air conditioning
turns on and the blower motor adjusts to
the highest speed.
Switching Recirculated Air On and
Off
Press and release the button to
switch between outside air and
recirculated air.
The air currently in the passenger
compartment recirculates. This may
reduce the time needed to cool the interior
(when used with A/C) and reduce
unwanted odors from entering your vehicle.
Note:Recirculated air may turn off (or
prevent you from switching on) in all air flow
modes except MAX A/C to reduce the risk
of fogging. Recirculation may also turn on
and off in various air distribution control
combinations during hot weather in order
to improve cooling efficiency.
HINTS ON CONTROLLING THE
INTERIOR CLIMATE
General Hints
Note:Prolonged use of recirculated air may
cause the windows to fog up.
Note:You may feel a small amount of air
from the footwell air vents regardless of the
air distribution setting.Note:To reduce humidity build-up inside
your vehicle, do not drive with the system
switched off or with recirculated air always
switched on.
Note:Do not place objects under the front
seats as this may interfere with the airflow
to the rear seats.
Note:Remove any snow, ice or leaves from
the air intake area at the base of the
windshield.
Note:To improve the time to reach a
comfortable temperature in hot weather,
drive with the windows open until you feel
cold air through the air vents.
Quickly Heating the Interior
1. Adjust the blower motor speed to the
highest speed setting.
2. Adjust the temperature control to the
highest setting.
3. Direct air to the footwell air vents.
Recommended Settings for
Heating
1. Adjust the blower motor speed to the
center setting.
2. Adjust the temperature control to the
midway point of the hot settings.
3. Direct air to the footwell air vents.
Quickly Cooling the Interior
1. Switch MAX A/C on.
2. Drive with the windows open for a short
period of time.
Recommended Settings for
Cooling
1. Adjust the blower motor speed to the
center setting.
2. Adjust the temperature control to the
midway point of the cold settings.
86
Climate Control
