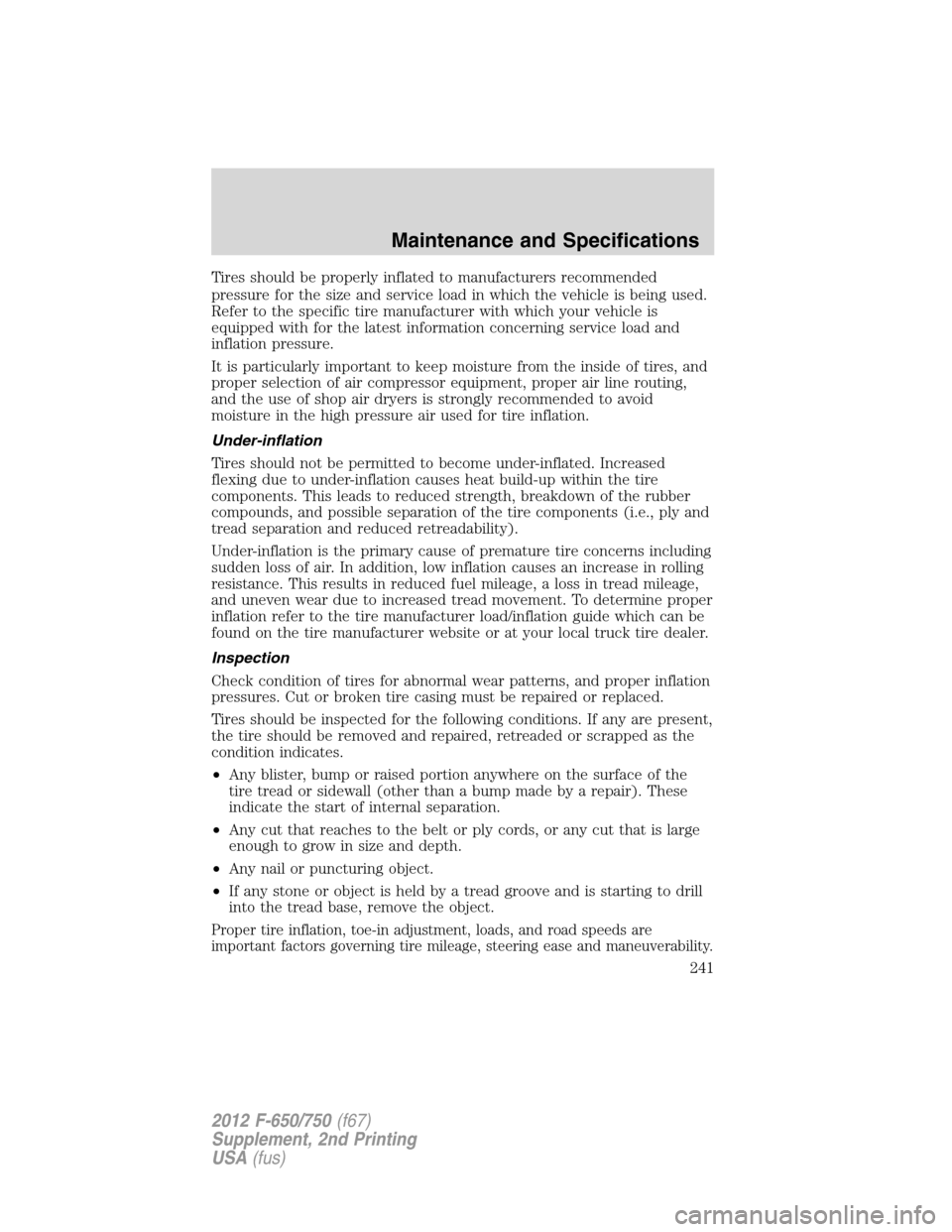

Tires should be properly inflated to manufacturers recommended
pressure for the size and service load in which the vehicle is being used.
Refer to the specific tire manufacturer with which your vehicle is
equipped with for the latest information concerning service load and
inflation pressure.
It is particularly important to keep moisture from the inside of tires, and
proper selection of air compressor equipment, proper air line routing,
and the use of shop air dryers is strongly recommended to avoid
moisture in the high pressure air used for tire inflation.
Under-inflation
Tires should not be permitted to become under-inflated. Increased
flexing due to under-inflation causes heat build-up within the tire
components. This leads to reduced strength, breakdown of the rubber
compounds, and possible separation of the tire components (i.e., ply and
tread separation and reduced retreadability).
Under-inflation is the primary cause of premature tire concerns including
sudden loss of air. In addition, low inflation causes an increase in rolling
resistance. This results in reduced fuel mileage, a loss in tread mileage,
and uneven wear due to increased tread movement. To determine proper
inflation refer to the tire manufacturer load/inflation guide which can be
found on the tire manufacturer website or at your local truck tire dealer.
Inspection
Check condition of tires for abnormal wear patterns, and proper inflation
pressures. Cut or broken tire casing must be repaired or replaced.
Tires should be inspected for the following conditions. If any are present,
the tire should be removed and repaired, retreaded or scrapped as the
condition indicates.
•Any blister, bump or raised portion anywhere on the surface of the
tire tread or sidewall (other than a bump made by a repair). These
indicate the start of internal separation.
•Any cut that reaches to the belt or ply cords, or any cut that is large
enough to grow in size and depth.
•Any nail or puncturing object.
•If any stone or object is held by a tread groove and is starting to drill
into the tread base, remove the object.
Proper tire inflation, toe-in adjustment, loads, and road speeds are
important factors governing tire mileage, steering ease and maneuverability.
Maintenance and Specifications
241
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

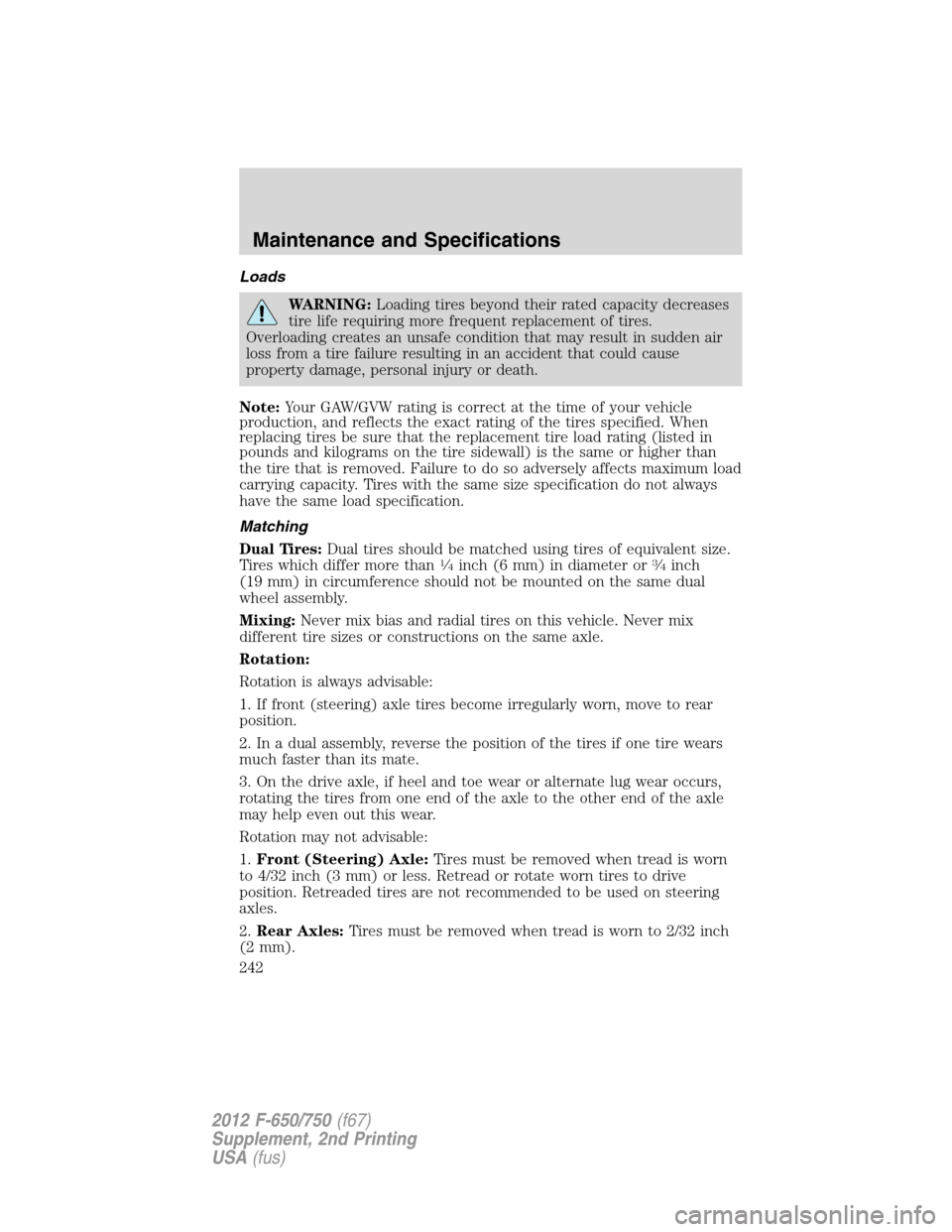

Loads
WARNING:Loading tires beyond their rated capacity decreases
tire life requiring more frequent replacement of tires.
Overloading creates an unsafe condition that may result in sudden air
loss from a tire failure resulting in an accident that could cause
property damage, personal injury or death.
Note:Your GAW/GVW rating is correct at the time of your vehicle
production, and reflects the exact rating of the tires specified. When
replacing tires be sure that the replacement tire load rating (listed in
pounds and kilograms on the tire sidewall) is the same or higher than
the tire that is removed. Failure to do so adversely affects maximum load
carrying capacity. Tires with the same size specification do not always
have the same load specification.
Matching
Dual Tires:Dual tires should be matched using tires of equivalent size.
Tires which differ more than
14inch (6 mm) in diameter or34inch
(19 mm) in circumference should not be mounted on the same dual
wheel assembly.
Mixing:Never mix bias and radial tires on this vehicle. Never mix
different tire sizes or constructions on the same axle.
Rotation:
Rotation is always advisable:
1. If front (steering) axle tires become irregularly worn, move to rear
position.
2. In a dual assembly, reverse the position of the tires if one tire wears
much faster than its mate.
3. On the drive axle, if heel and toe wear or alternate lug wear occurs,
rotating the tires from one end of the axle to the other end of the axle
may help even out this wear.
Rotation may not advisable:
1.Front (Steering) Axle:Tires must be removed when tread is worn
to 4/32 inch (3 mm) or less. Retread or rotate worn tires to drive
position. Retreaded tires are not recommended to be used on steering
axles.
2.Rear Axles:Tires must be removed when tread is worn to 2/32 inch
(2 mm).
Maintenance and Specifications
242
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

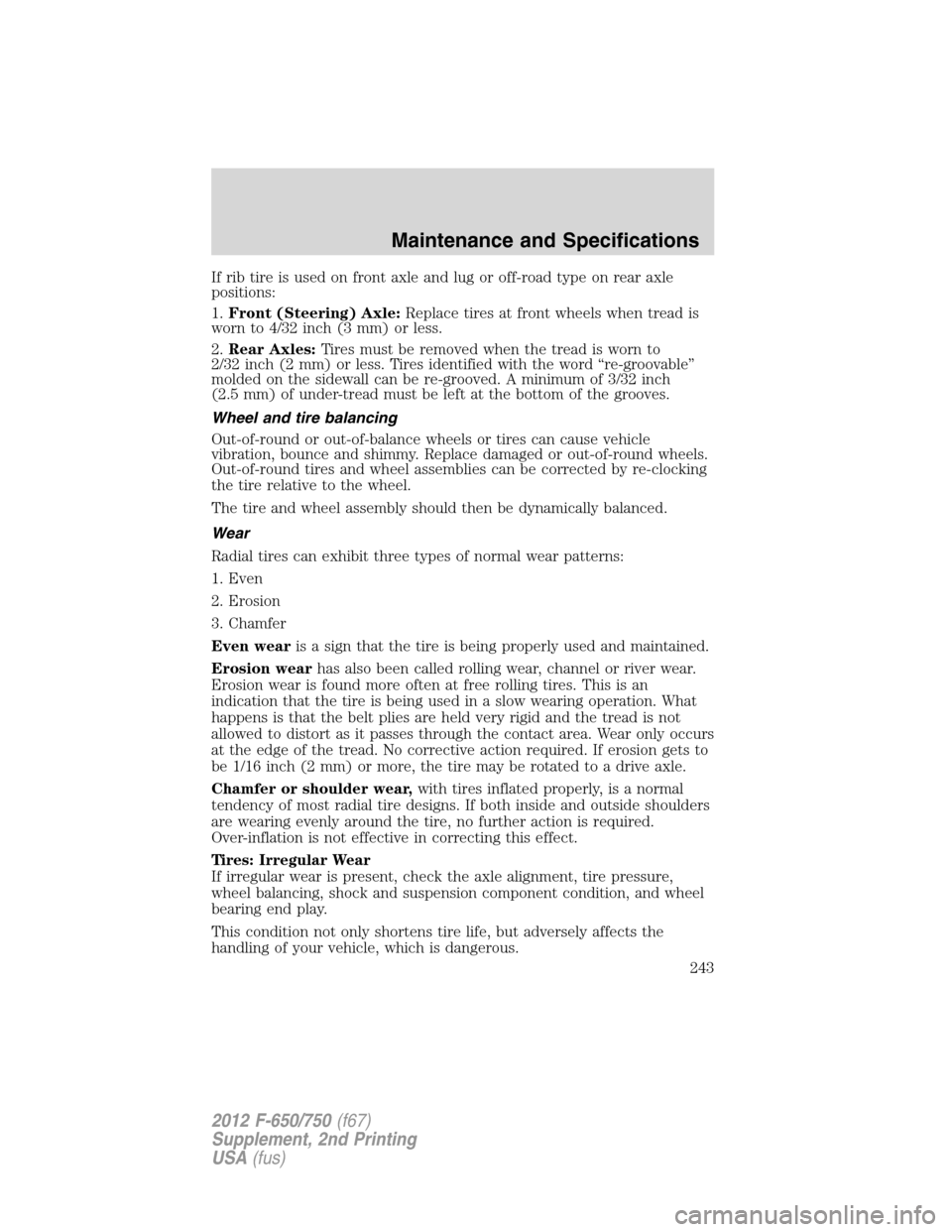

If rib tire is used on front axle and lug or off-road type on rear axle
positions:
1.Front (Steering) Axle:Replace tires at front wheels when tread is
worn to 4/32 inch (3 mm) or less.
2.Rear Axles:Tires must be removed when the tread is worn to
2/32 inch (2 mm) or less. Tires identified with the word “re-groovable”
molded on the sidewall can be re-grooved. A minimum of 3/32 inch
(2.5 mm) of under-tread must be left at the bottom of the grooves.
Wheel and tire balancing
Out-of-round or out-of-balance wheels or tires can cause vehicle
vibration, bounce and shimmy. Replace damaged or out-of-round wheels.
Out-of-round tires and wheel assemblies can be corrected by re-clocking
the tire relative to the wheel.
The tire and wheel assembly should then be dynamically balanced.
Wear
Radial tires can exhibit three types of normal wear patterns:
1. Even
2. Erosion
3. Chamfer
Even wearis a sign that the tire is being properly used and maintained.
Erosion wearhas also been called rolling wear, channel or river wear.
Erosion wear is found more often at free rolling tires. This is an
indication that the tire is being used in a slow wearing operation. What
happens is that the belt plies are held very rigid and the tread is not
allowed to distort as it passes through the contact area. Wear only occurs
at the edge of the tread. No corrective action required. If erosion gets to
be 1/16 inch (2 mm) or more, the tire may be rotated to a drive axle.
Chamfer or shoulder wear,with tires inflated properly, is a normal
tendency of most radial tire designs. If both inside and outside shoulders
are wearing evenly around the tire, no further action is required.
Over-inflation is not effective in correcting this effect.
Tires: Irregular Wear
If irregular wear is present, check the axle alignment, tire pressure,
wheel balancing, shock and suspension component condition, and wheel
bearing end play.
This condition not only shortens tire life, but adversely affects the
handling of your vehicle, which is dangerous.
Maintenance and Specifications
243
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

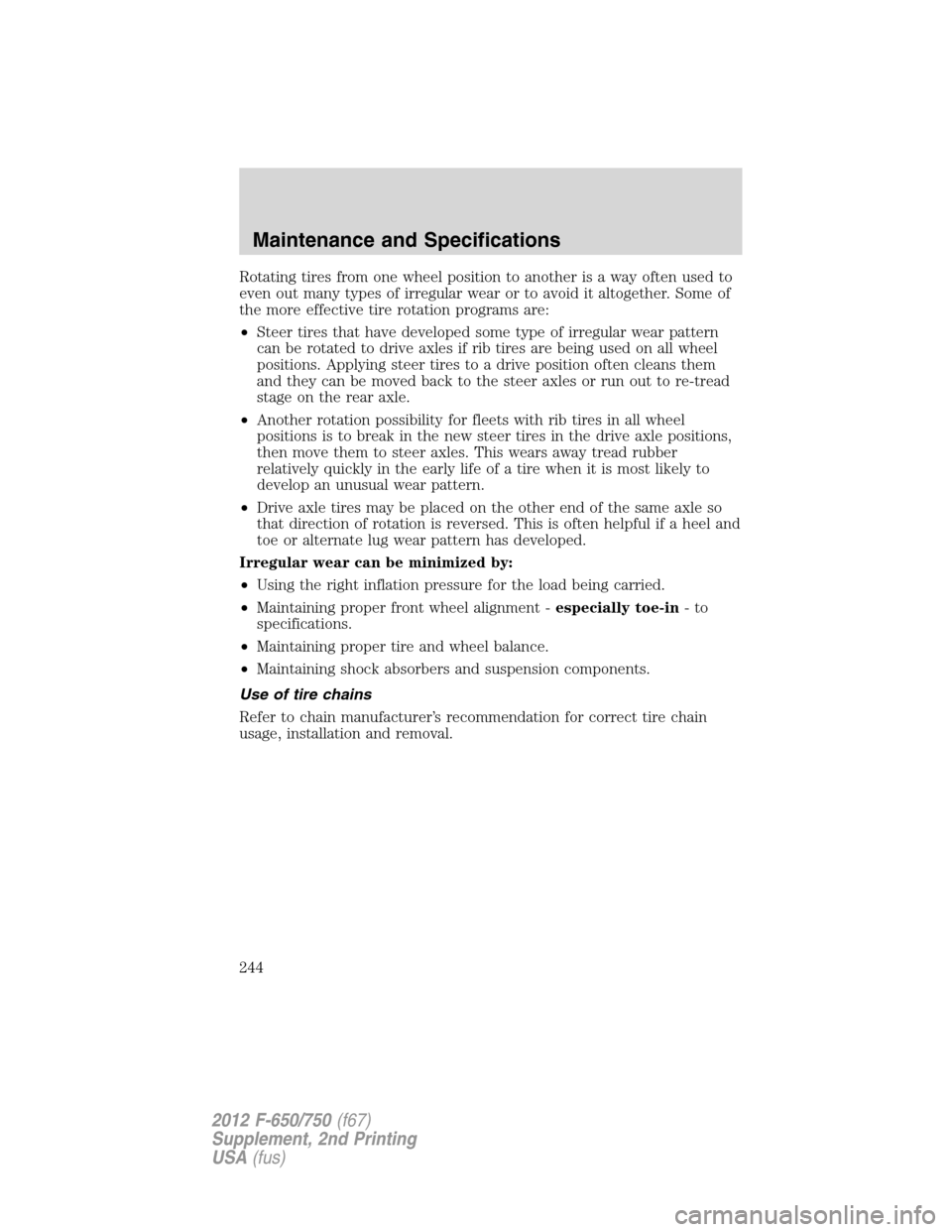

Rotating tires from one wheel position to another is a way often used to
even out many types of irregular wear or to avoid it altogether. Some of
the more effective tire rotation programs are:
•Steer tires that have developed some type of irregular wear pattern
can be rotated to drive axles if rib tires are being used on all wheel
positions. Applying steer tires to a drive position often cleans them
and they can be moved back to the steer axles or run out to re-tread
stage on the rear axle.
•Another rotation possibility for fleets with rib tires in all wheel
positions is to break in the new steer tires in the drive axle positions,
then move them to steer axles. This wears away tread rubber
relatively quickly in the early life of a tire when it is most likely to
develop an unusual wear pattern.
•Drive axle tires may be placed on the other end of the same axle so
that direction of rotation is reversed. This is often helpful if a heel and
toe or alternate lug wear pattern has developed.
Irregular wear can be minimized by:
•Using the right inflation pressure for the load being carried.
•Maintaining proper front wheel alignment -especially toe-in-to
specifications.
•Maintaining proper tire and wheel balance.
•Maintaining shock absorbers and suspension components.
Use of tire chains
Refer to chain manufacturer’s recommendation for correct tire chain
usage, installation and removal.
Maintenance and Specifications
244
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

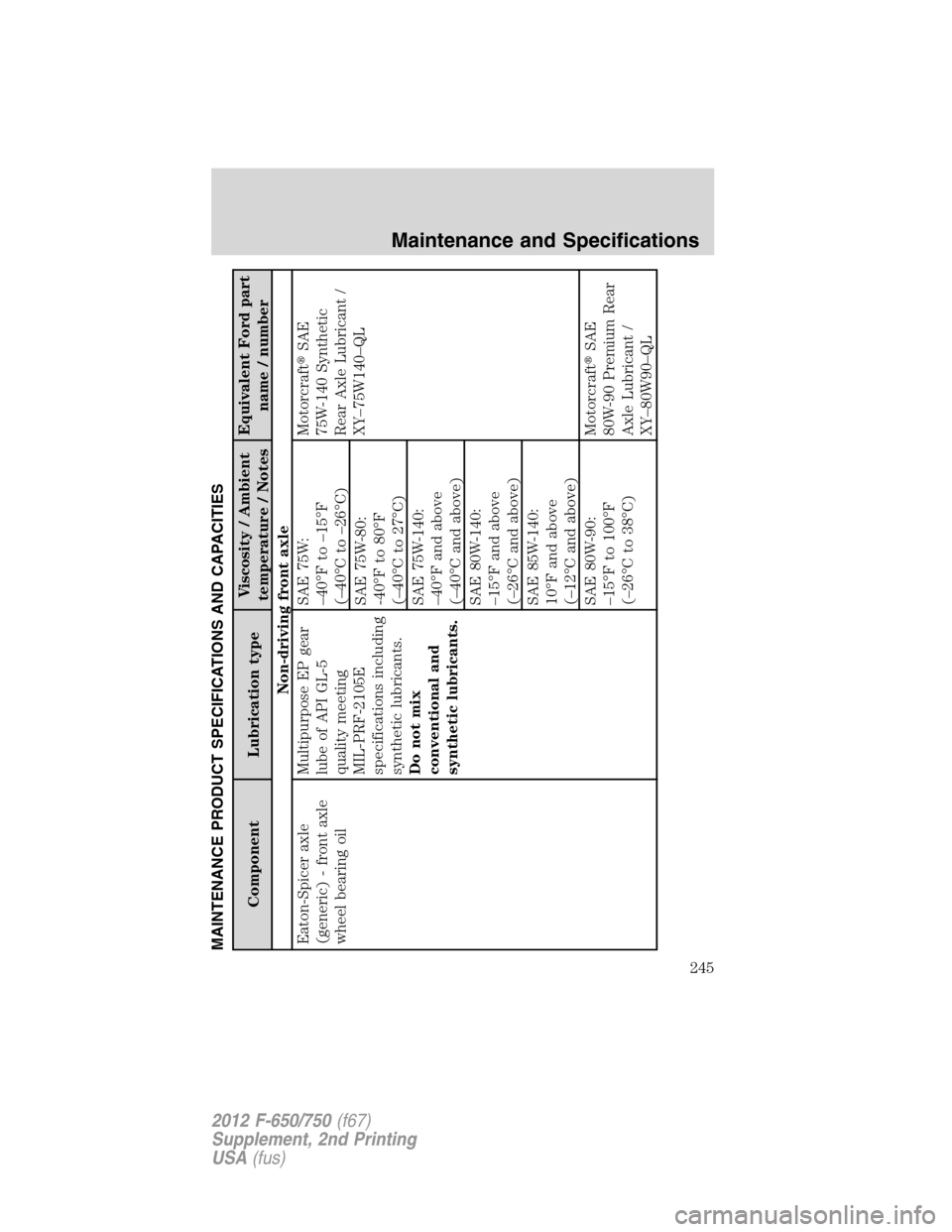

MAINTENANCE PRODUCT SPECIFICATIONS AND CAPACITIES
Component Lubrication typeViscosity / Ambient
temperature / NotesEquivalent Ford part
name / number
Non-driving front axle
Eaton-Spicer axle
(generic) - front axle
wheel bearing oilMultipurpose EP gear
lube of API GL-5
quality meeting
MIL-PRF-2105E
specifications including
synthetic lubricants.
Do not mix
conventional and
synthetic lubricants.SAE 75W:
–40°F to –15°F
(–40°C to –26°C)MotorcraftSAE
75W-140 Synthetic
Rear Axle Lubricant /
XY–75W140–QL
SAE 75W-80:
-40°F to 80°F
(–40°C to 27°C)
SAE 75W-140:
–40°F and above
(–40°C and above)
SAE 80W-140:
–15°F and above
(–26°C and above)
SAE 85W-140:
10°F and above
(–12°C and above)
SAE 80W-90:
–15°F to 100°F
(–26°C to 38°C)MotorcraftSAE
80W-90 Premium Rear
Axle Lubricant /
XY–80W90–QL
Maintenance and Specifications
245
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

Component Lubrication typeViscosity / Ambient
temperature / NotesEquivalent Ford part
name / number

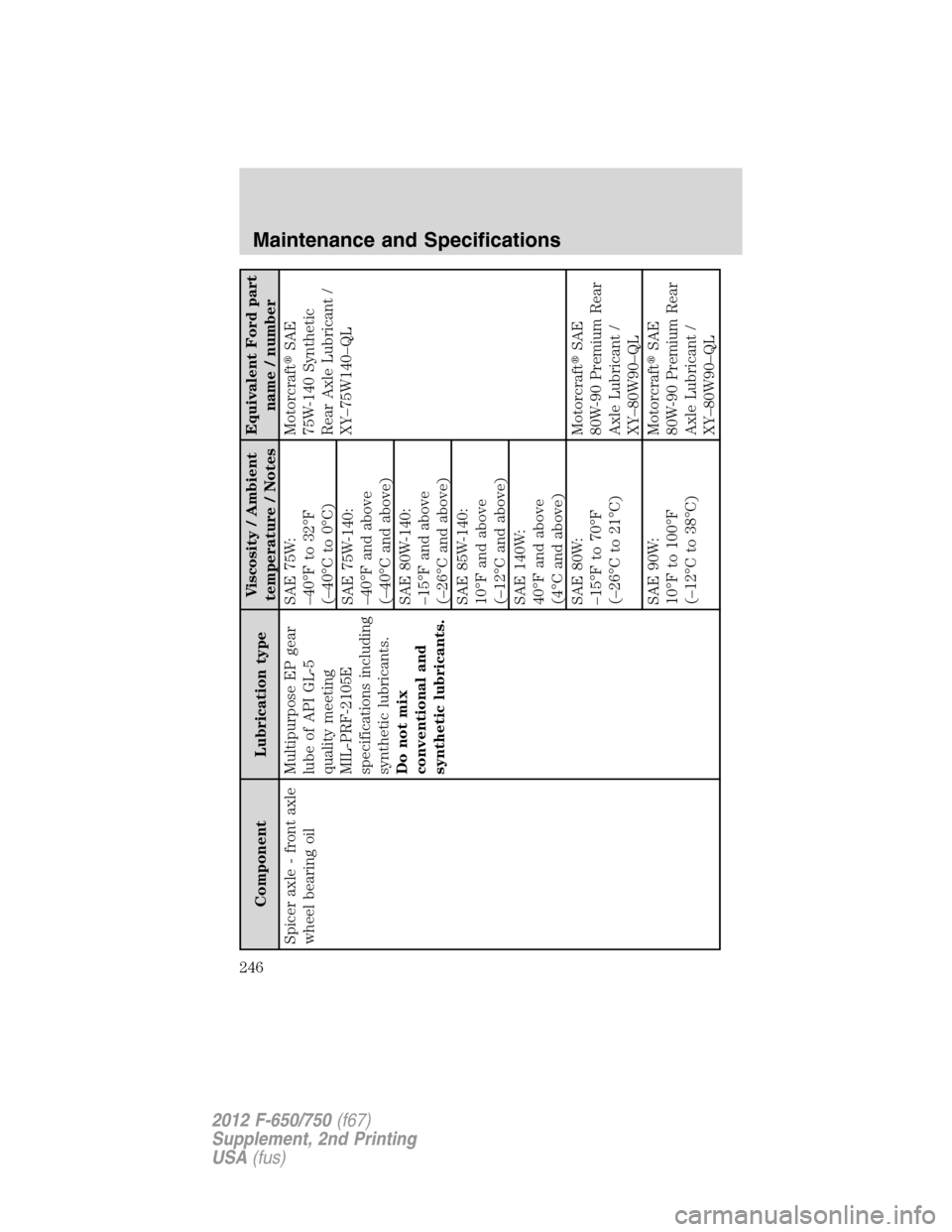

Spicer axle - front axle
wheel bearing oilMultipurpose EP gear
lube of API GL-5
quality meeting
MIL-PRF-2105E
specifications including
synthetic lubricants.
Do not mix
conventional and
synthetic lubricants.SAE 75W:
–40°F to 32°F
(–40°C to 0°C)MotorcraftSAE
75W-140 Synthetic
Rear Axle Lubricant /
XY–75W140–QL
SAE 75W-140:
–40°F and above
(–40°C and above)
SAE 80W-140:
–15°F and above
(–26°C and above)
SAE 85W-140:
10°F and above
(–12°C and above)
SAE 140W:
40°F and above
(4°C and above)
SAE 80W:
–15°F to 70°F
(–26°C to 21°C)MotorcraftSAE
80W-90 Premium Rear
Axle Lubricant /
XY–80W90–QL
SAE 90W:
10°F to 100°F
(–12°C to 38°C)MotorcraftSAE
80W-90 Premium Rear
Axle Lubricant /
XY–80W90–QL
Maintenance and Specifications
246
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

Component Lubrication typeViscosity / Ambient
temperature / NotesEquivalent Ford part
name / number

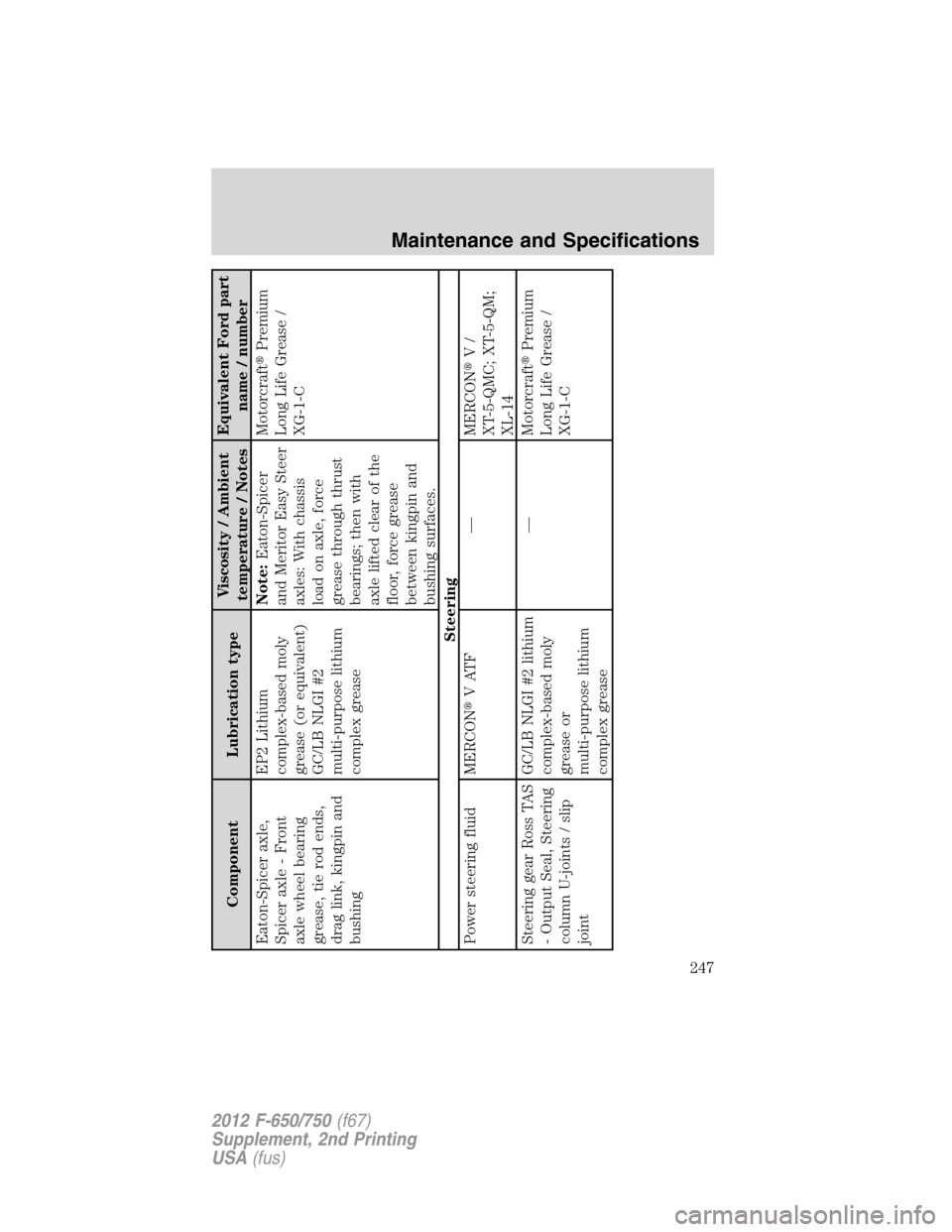

Eaton-Spicer axle,
Spicer axle - Front
axle wheel bearing
grease, tie rod ends,
drag link, kingpin and
bushingEP2 Lithium
complex-based moly
grease (or equivalent)
GC/LB NLGI #2
multi-purpose lithium
complex greaseNote:Eaton-Spicer
and Meritor Easy Steer
axles: With chassis
load on axle, force
grease through thrust
bearings; then with
axle lifted clear of the
floor, force grease
between kingpin and
bushing surfaces.MotorcraftPremium
Long Life Grease /
XG-1-C
Steering
Power steering fluid MERCONV ATF — MERCONV/
XT-5-QMC; XT-5-QM;
XL-14
Steering gear Ross TAS
- Output Seal, Steering
column U-joints / slip
jointGC/LB NLGI #2 lithium
complex-based moly
grease or
multi-purpose lithium
complex grease— MotorcraftPremium
Long Life Grease /
XG-1-C
Maintenance and Specifications
247
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

Component Lubrication typeViscosity / Ambient
temperature / NotesEquivalent Ford part
name / number

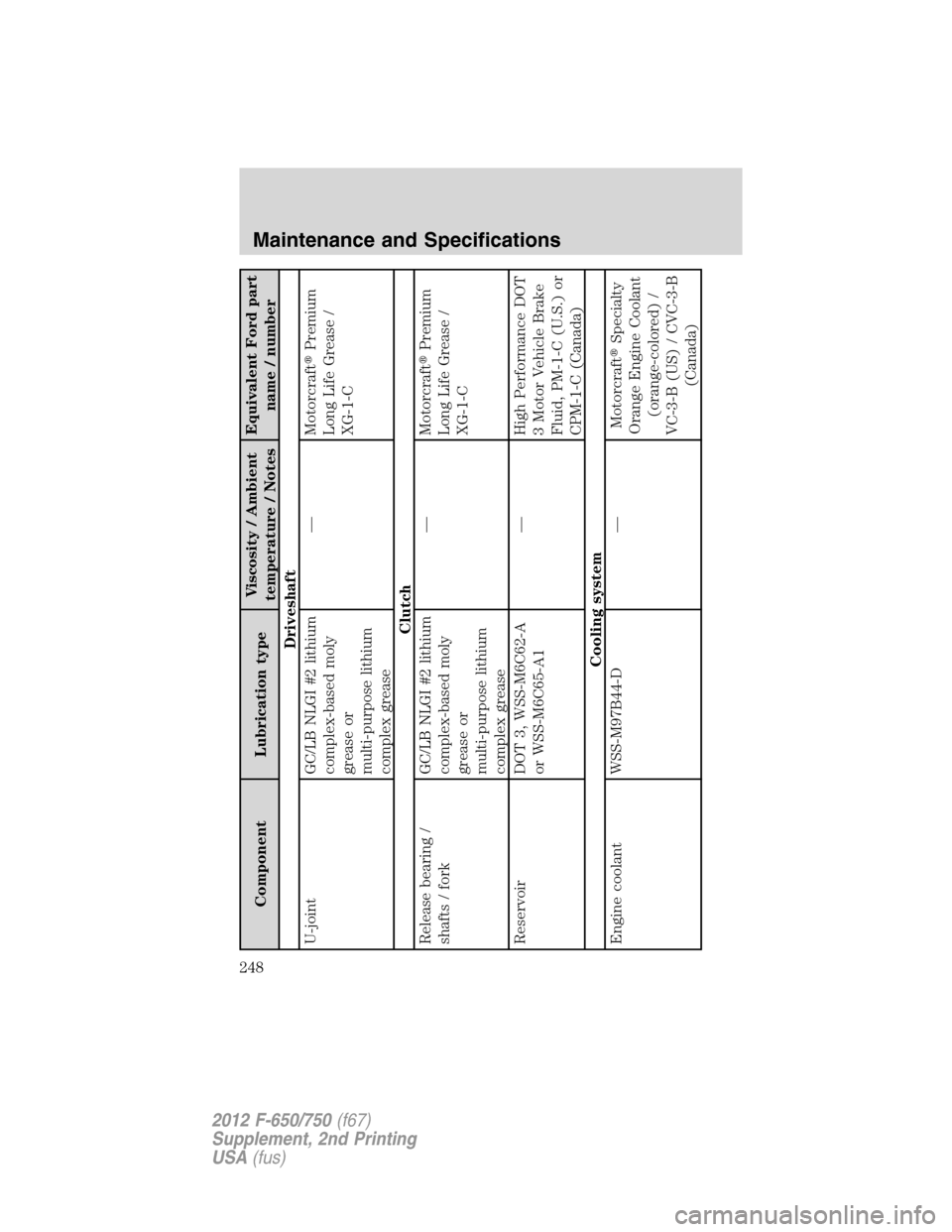

Driveshaft
U-joint GC/LB NLGI #2 lithium
complex-based moly
grease or
multi-purpose lithium
complex grease— MotorcraftPremium
Long Life Grease /
XG-1-C
Clutch
Release bearing /
shafts / forkGC/LB NLGI #2 lithium
complex-based moly
grease or
multi-purpose lithium
complex grease— MotorcraftPremium
Long Life Grease /
XG-1-C
Reservoir DOT 3, WSS-M6C62-A
or WSS-M6C65-A1— High Performance DOT
3 Motor Vehicle Brake
Fluid, PM-1-C (U.S.) or
CPM-1-C (Canada)
Cooling system
Engine coolant WSS-M97B44-D — MotorcraftSpecialty
Orange Engine Coolant
(orange-colored) /
VC-3-B (US) / CVC-3-B
(Canada)
Maintenance and Specifications
248
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

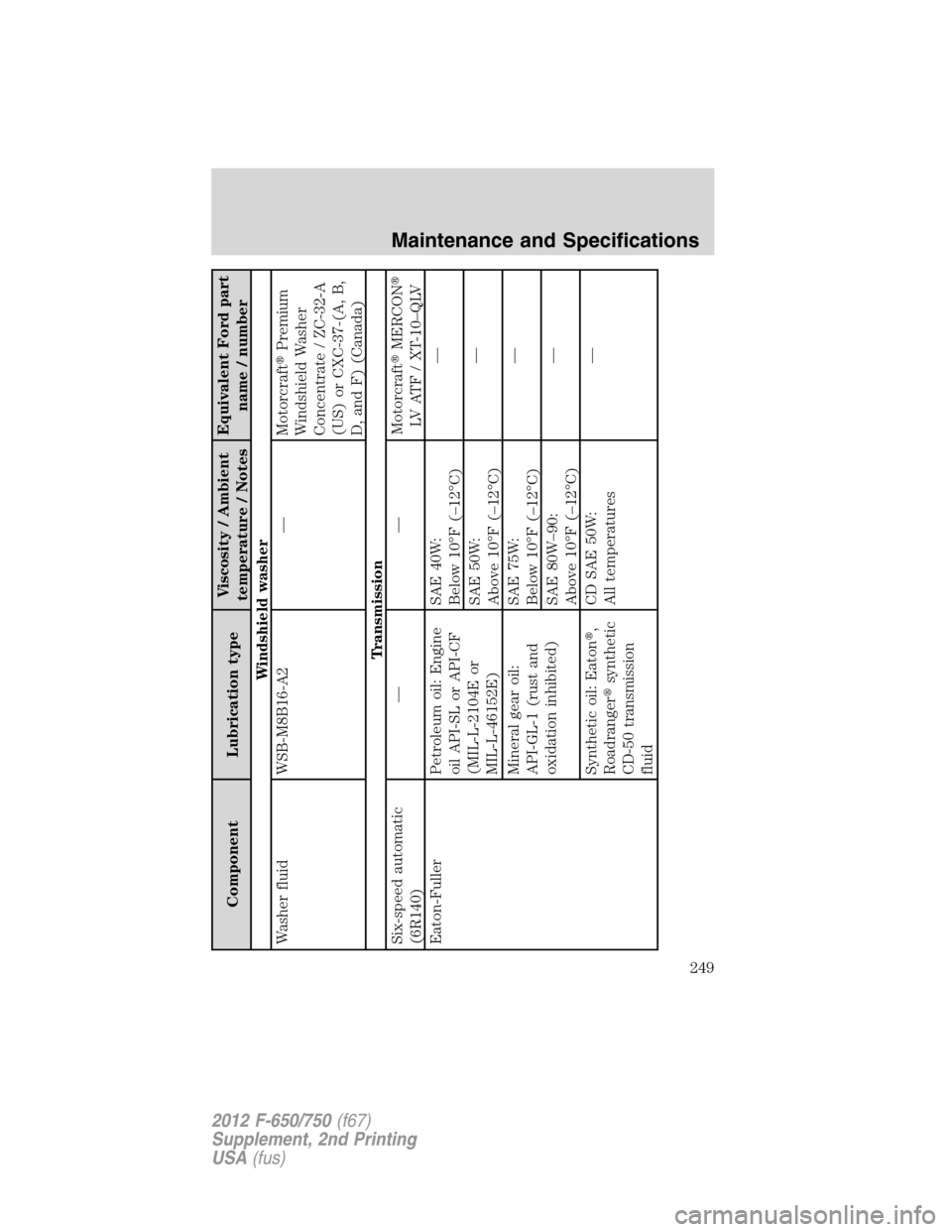

Component Lubrication typeViscosity / Ambient
temperature / NotesEquivalent Ford part
name / number
Windshield washer
Washer fluid WSB-M8B16-A2 — MotorcraftPremium
Windshield Washer
Concentrate / ZC-32-A
(US) or CXC-37-(A, B,
D, and F) (Canada)
Transmission
Six-speed automatic
(6R140)— — MotorcraftMERCON
LV ATF / XT-10–QLV
Eaton-Fuller Petroleum oil: Engine
oil API-SL or API-CF
(MIL-L-2104E or
MIL-L-46152E)SAE 40W:
Below 10°F (–12°C)—
SAE 50W:
Above 10°F (–12°C)—
Mineral gear oil:
API-GL-1 (rust and
oxidation inhibited)SAE 75W:
Below 10°F (–12°C)—
SAE 80W–90:
Above 10°F (–12°C)—
Synthetic oil: Eaton,
Roadrangersynthetic
CD-50 transmission
fluidCD SAE 50W:
All temperatures—
Maintenance and Specifications
249
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)

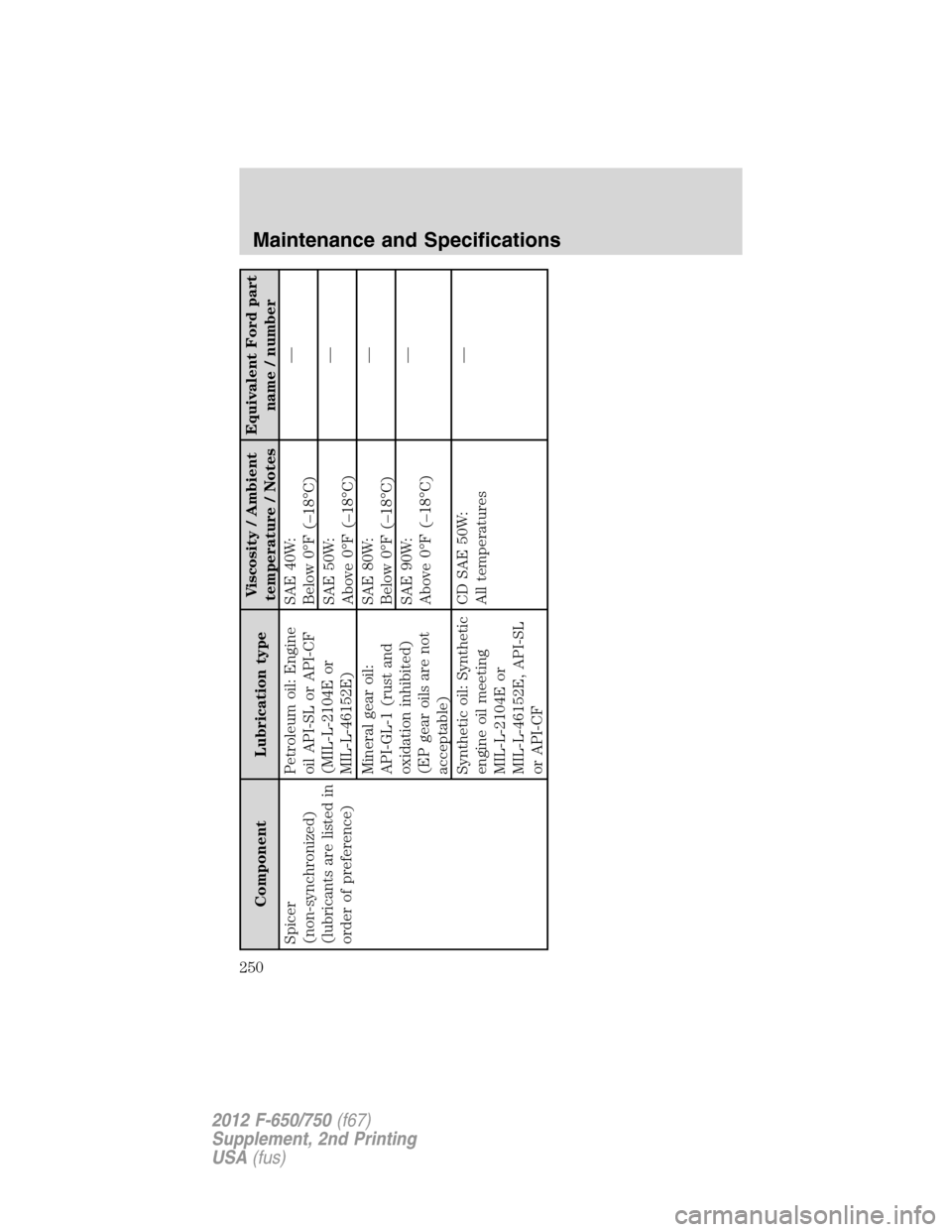

Component Lubrication typeViscosity / Ambient
temperature / NotesEquivalent Ford part
name / number
Spicer
(non-synchronized)
(lubricants are listed in
order of preference)Petroleum oil: Engine
oil API-SL or API-CF
(MIL-L-2104E or
MIL-L-46152E)SAE 40W:
Below 0°F (–18°C)—
SAE 50W:
Above 0°F (–18°C)—
Mineral gear oil:
API-GL-1 (rust and
oxidation inhibited)
(EP gear oils are not
acceptable)SAE 80W:
Below 0°F (–18°C)—
SAE 90W:
Above 0°F (–18°C)—
Synthetic oil: Synthetic
engine oil meeting
MIL-L-2104E or
MIL-L-46152E, API-SL
or API-CFCD SAE 50W:
All temperatures—
Maintenance and Specifications
250
2012 F-650/750(f67)
Supplement, 2nd Printing
USA(fus)
