FORD F750 2013 12.G Owners Manual

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20000 MILES (32000 KM) OR FEWER
ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 5 10 15 20 25 30 35 40 45 50
Kilometers (x 1000) 8 16 24 32 40 48 56 64 72 80
Months 3 6 9 12 15 18 21 24 27 30
Cab Components
Door hinges/latches/strikers/lock cylinders - lubricate••
Seat adjuster slides - lubricate••
Diesel Exhaust Fluid (DEF) System
Check and refill DEF system••••••••••
Note:If your vehicle is equipped with a gasoline engine, the engine oil and filter changes should
observe the normal schedule unless conditions, such as low-speed operation or stationary use, exist
where a schedule based on engine hours is recommended. In this type of schedule, the engine oil
and filter should be replaced every 250 engine hours.
310Scheduled Maintenance
2013 F-650/750(f67)
Owners Guide gf, 2nd Printing, March 2013
USA(fus)

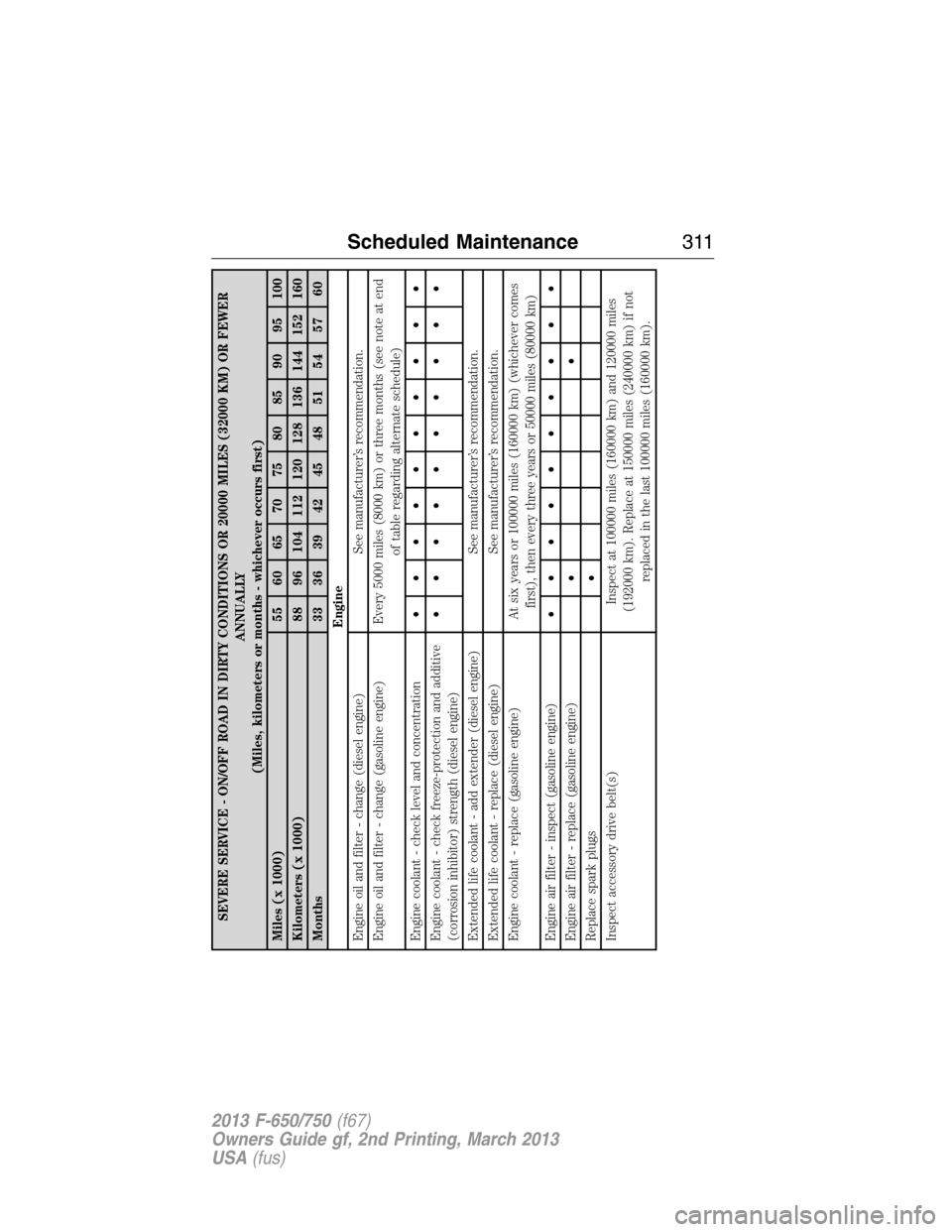

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20000 MILES (32000 KM) OR FEWER
ANNUALLY
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 55 60 65 70 75 80 85 90 95 100
Kilometers (x 1000) 88 96 104 112 120 128 136 144 152 160
Months 33 36 39 42 45 48 51 54 57 60
Engine
Engine oil and filter - change (diesel engine) See manufacturer’s recommendation.
Engine oil and filter - change (gasoline engine) Every 5000 miles (8000 km) or three months (see note at end
of table regarding alternate schedule)
Engine coolant - check level and concentration••••••••••
Engine coolant - check freeze-protection and additive
(corrosion inhibitor) strength (diesel engine)••••••••••
Extended life coolant - add extender (diesel engine) See manufacturer’s recommendation.
Extended life coolant - replace (diesel engine) See manufacturer’s recommendation.
Engine coolant - replace (gasoline engine) At six years or 100000 miles (160000 km) (whichever comes
first), then every three years or 50000 miles (80000 km)
Engine air filter - inspect (gasoline engine)••••••••••
Engine air filter - replace (gasoline engine)••
Replace spark plugs•
Inspect accessory drive belt(s) Inspect at 100000 miles (160000 km) and 120000 miles
(192000 km). Replace at 150000 miles (240000 km) if not
replaced in the last 100000 miles (160000 km).
Scheduled Maintenance311
2013 F-650/750(f67)
Owners Guide gf, 2nd Printing, March 2013
USA(fus)

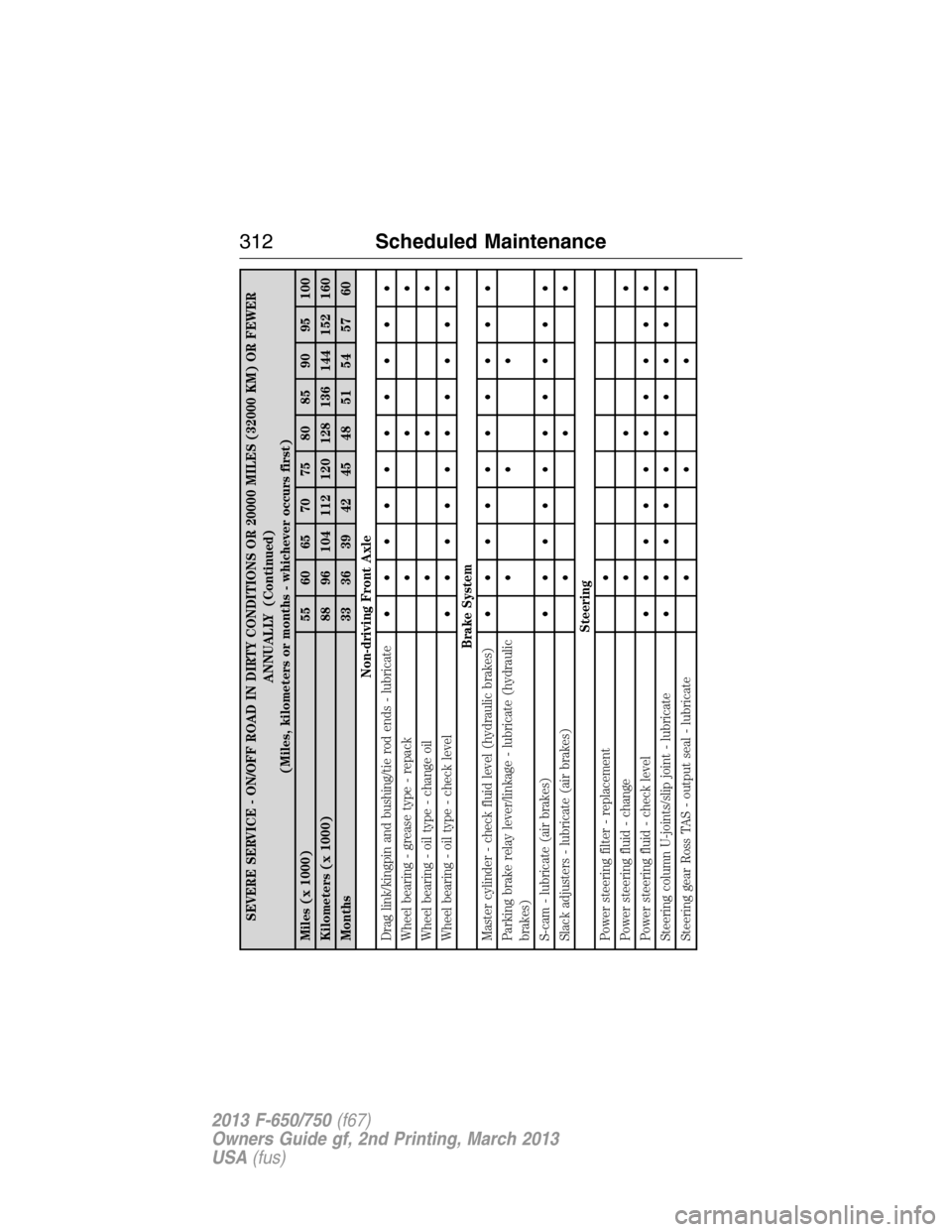

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20000 MILES (32000 KM) OR FEWER
ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 55 60 65 70 75 80 85 90 95 100
Kilometers (x 1000) 88 96 104 112 120 128 136 144 152 160
Months 33 36 39 42 45 48 51 54 57 60
Non-driving Front Axle
Drag link/kingpin and bushing/tie rod ends - lubricate••••••••••
Wheel bearing - grease type - repack•••
Wheel bearing - oil type - change oil•••
Wheel bearing - oil type - check level••••••••••
Brake System
Master cylinder - check fluid level (hydraulic brakes)••••••••••
Parking brake relay lever/linkage - lubricate (hydraulic
brakes)•••
S-cam - lubricate (air brakes)••••••••••
Slack adjusters - lubricate (air brakes)•••
Steering
Power steering filter - replacement•
Power steering fluid - change•••
Power steering fluid - check level••••••••••
Steering column U-joints/slip joint - lubricate••••••••••
Steering gear Ross TAS - output seal - lubricate•••
312Scheduled Maintenance
2013 F-650/750(f67)
Owners Guide gf, 2nd Printing, March 2013
USA(fus)

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20000 MILES (32000 KM) OR FEWER
ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 55 60 65 70 75 80 85 90 95 100
Kilometers (x 1000) 88 96 104 112 120 128 136 144 152 160
Months 33 36 39 42 45 48 51 54 57 60
Driveshaft
Slip joint - inspect boot; U-joint - lubricate (SPL) Every 25000 miles (40000 km) or six months (whichever comes
first)
U-joint and slip joint - lubricate (non-SPL) Every 5000–8000 miles (8000–12000 km) or three months
(whichever comes first)
Clutch
Release bearing/shafts/fork - lubricate••••••••••
Transmission
Automatic and Auto-shift See transmission operator’s manual.
Non-Eaton-Fuller manual - check level••••••••••
Eaton-Fuller manual - petroleum oil - change•••
Eaton-Fuller manual - synthetic oil - change••
Rear Axle
Eaton/Dana/Spicer - check level••••••••••
Eaton/Dana/Spicer - petroleum oil - change•••
Eaton/Dana/Spicer - synthetic oil - change••
Meritor - check level Every 5000 miles (8000 km), once a month, or fleet
maintenance interval (whichever comes first). For continuous
heavy-duty operation, check level every 1000 miles (1600 km).
Scheduled Maintenance313
2013 F-650/750(f67)
Owners Guide gf, 2nd Printing, March 2013
USA(fus)

SEVERE SERVICE - ON/OFF ROAD IN DIRTY CONDITIONS OR 20000 MILES (32000 KM) OR FEWER
ANNUALLY (Continued)
(Miles, kilometers or months - whichever occurs first)
Miles (x 1000) 55 60 65 70 75 80 85 90 95 100
Kilometers (x 1000) 88 96 104 112 120 128 136 144 152 160
Months 33 36 39 42 45 48 51 54 57 60
Meritor - filter change Every 100000 miles (160000 km)
Meritor - petroleum oil - change Every 25000 miles (40000 km) or annually (whichever comes
first)
Meritor - synthetic oil - change Every 100000 miles (160000 km) or annually (whichever comes
first)
Cab Components
Door hinges/latches/strikers/lock cylinders - lubricate•••
Seat adjuster slides - lubricate•••
Diesel Exhaust Fluid (DEF) System
Check and refill DEF system••••••••••
Note:If your vehicle is equipped with a gasoline engine, the engine oil and filter changes should
observe the normal schedule unless conditions, such as low-speed operation or stationary use, exist
where a schedule based on engine hours is recommended. In this type of schedule, the engine oil
and filter should be replaced every 250 engine hours.
314Scheduled Maintenance
2013 F-650/750(f67)
Owners Guide gf, 2nd Printing, March 2013
USA(fus)

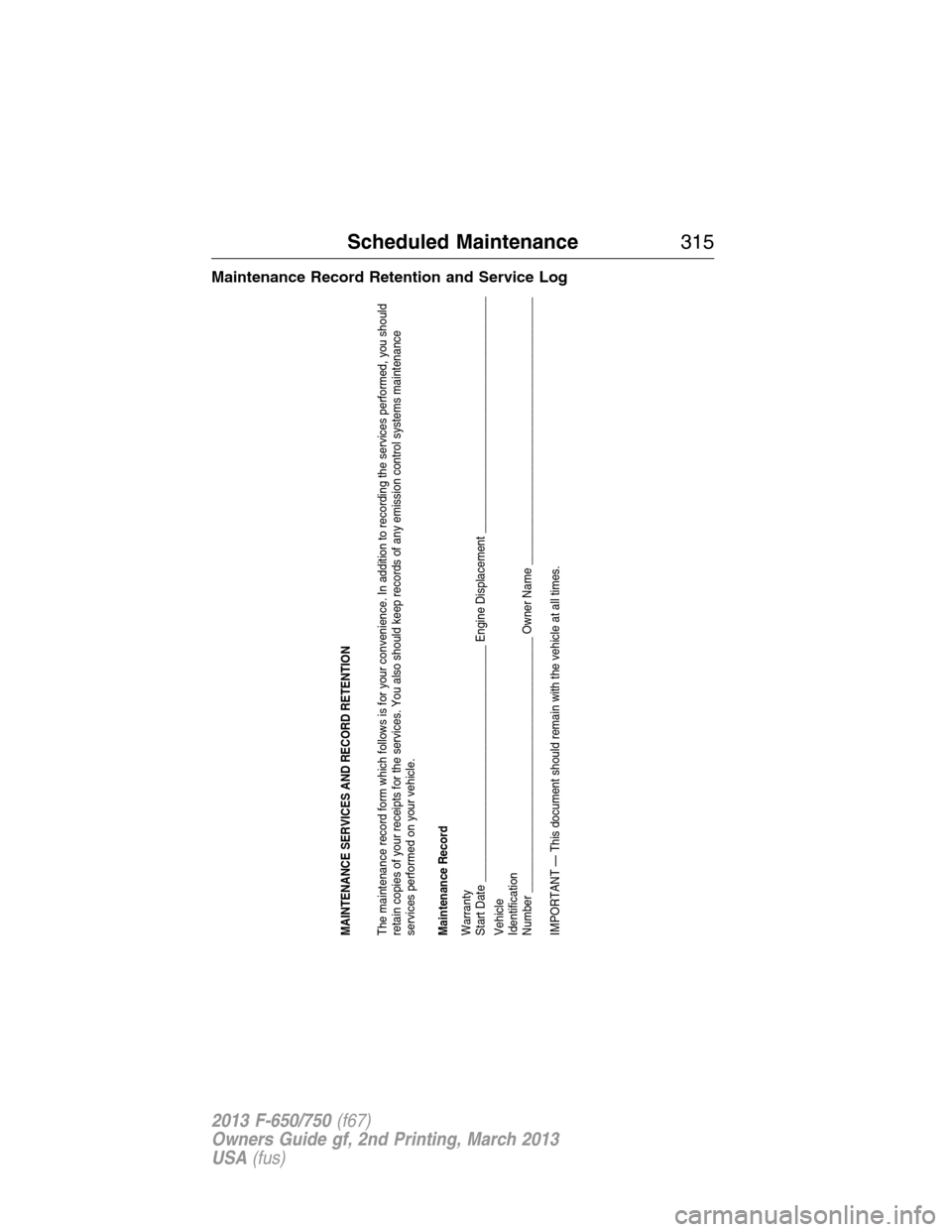

Maintenance Record Retention and Service Log
MAINTENANCE SERVICES AND RECORD RETENTION
The maintenance record form which follows is for your convenience. In addition to recording the services performed, you should
retain copies of your receipts for the services. You also should keep records of any emission control systems maintenance
services performed on your vehicle.
Maintenance Record
Warranty
Start Date ______________________________________ Engine Displacement ______________________________________
Vehicle
Identification
Number _________________________________________ Owner Name ___________________________________________
IMPORTANT — This document should remain with the vehicle at all times.
Scheduled Maintenance315
2013 F-650/750(f67)
Owners Guide gf, 2nd Printing, March 2013
USA(fus)

DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
316Scheduled Maintenance
2013 F-650/750(f67)
Owners Guide gf, 2nd Printing, March 2013
USA(fus)

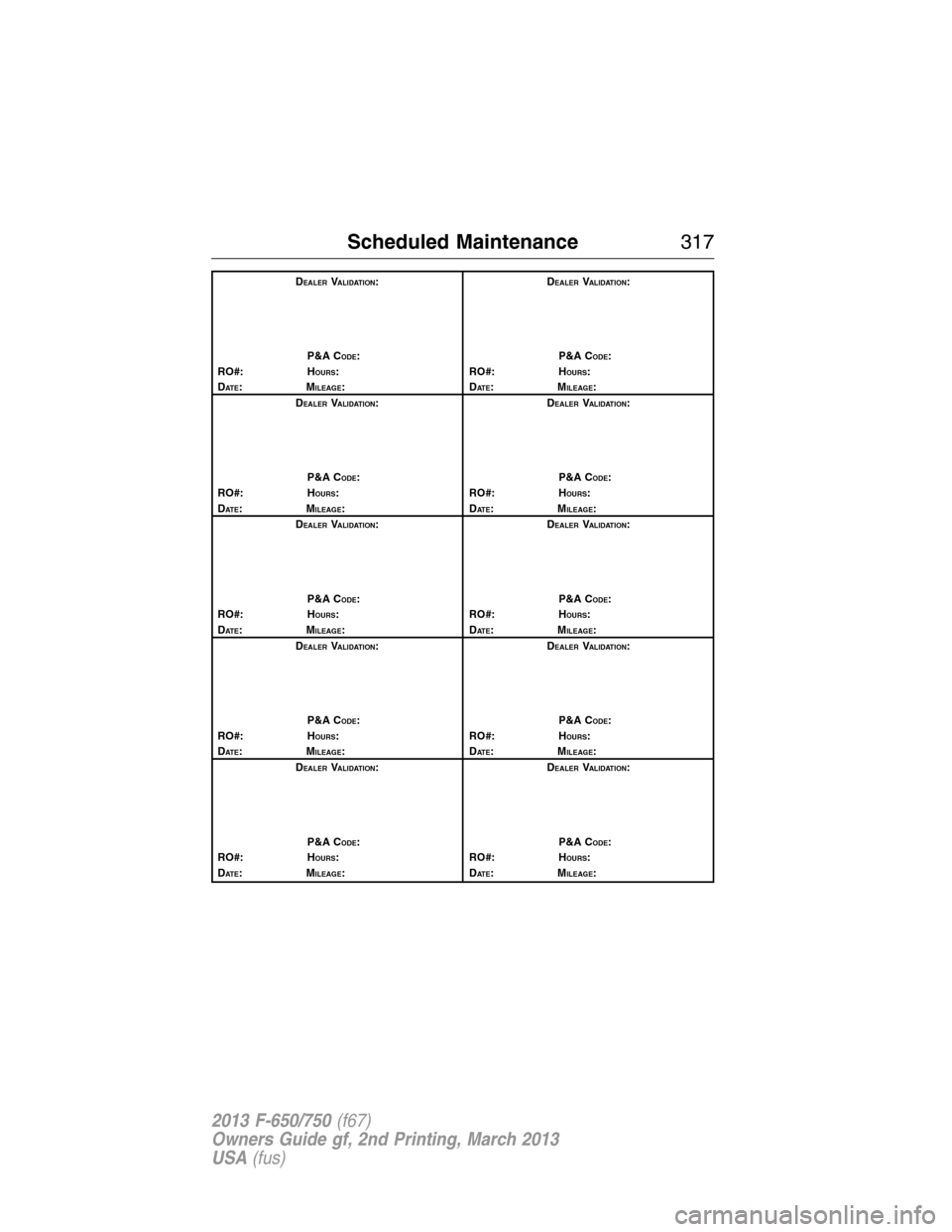

DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
Scheduled Maintenance317
2013 F-650/750(f67)
Owners Guide gf, 2nd Printing, March 2013
USA(fus)

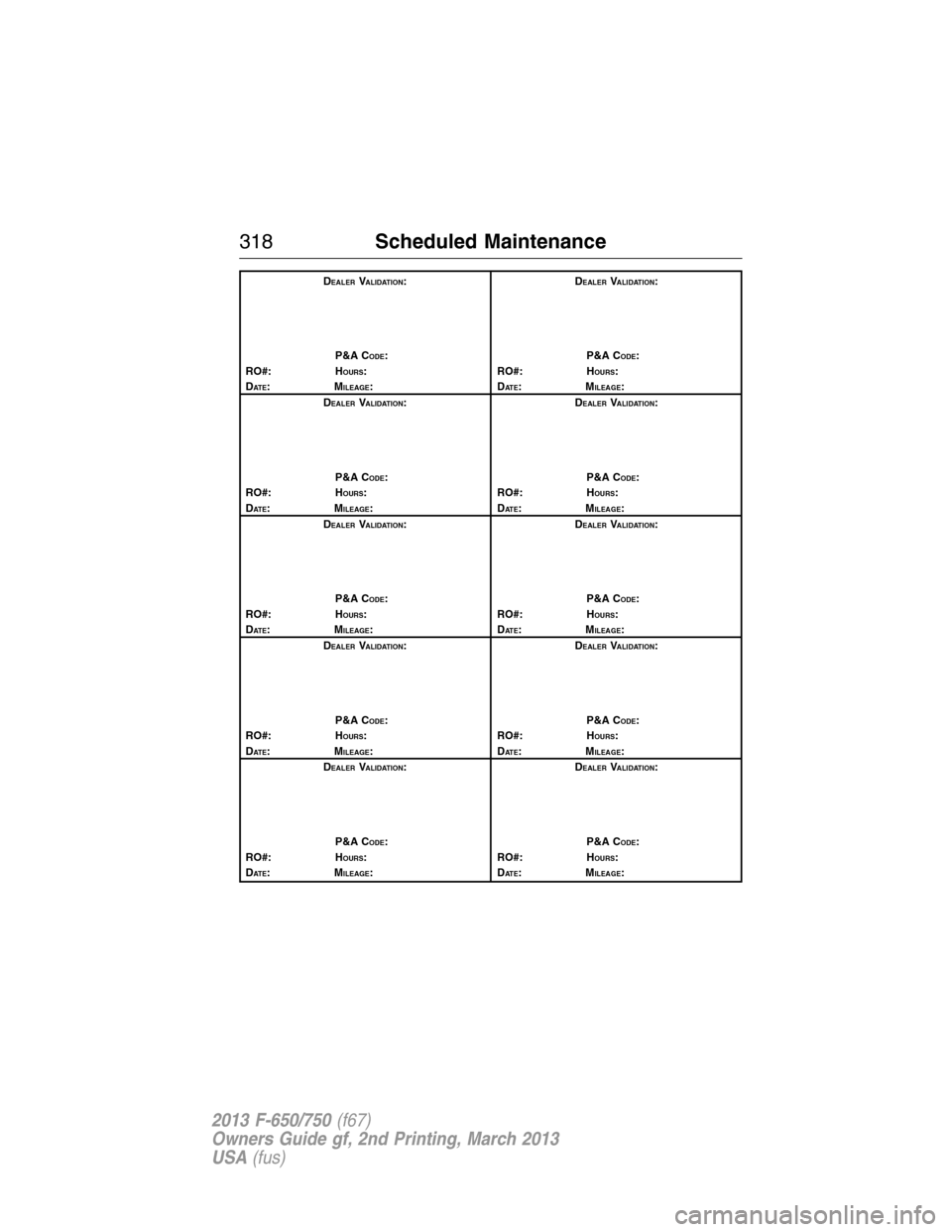

DEALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:D
EALERVALIDATION:
P&A C
ODE:
RO#: HOURS:
DAT E:MILEAGE:
318Scheduled Maintenance
2013 F-650/750(f67)
Owners Guide gf, 2nd Printing, March 2013
USA(fus)

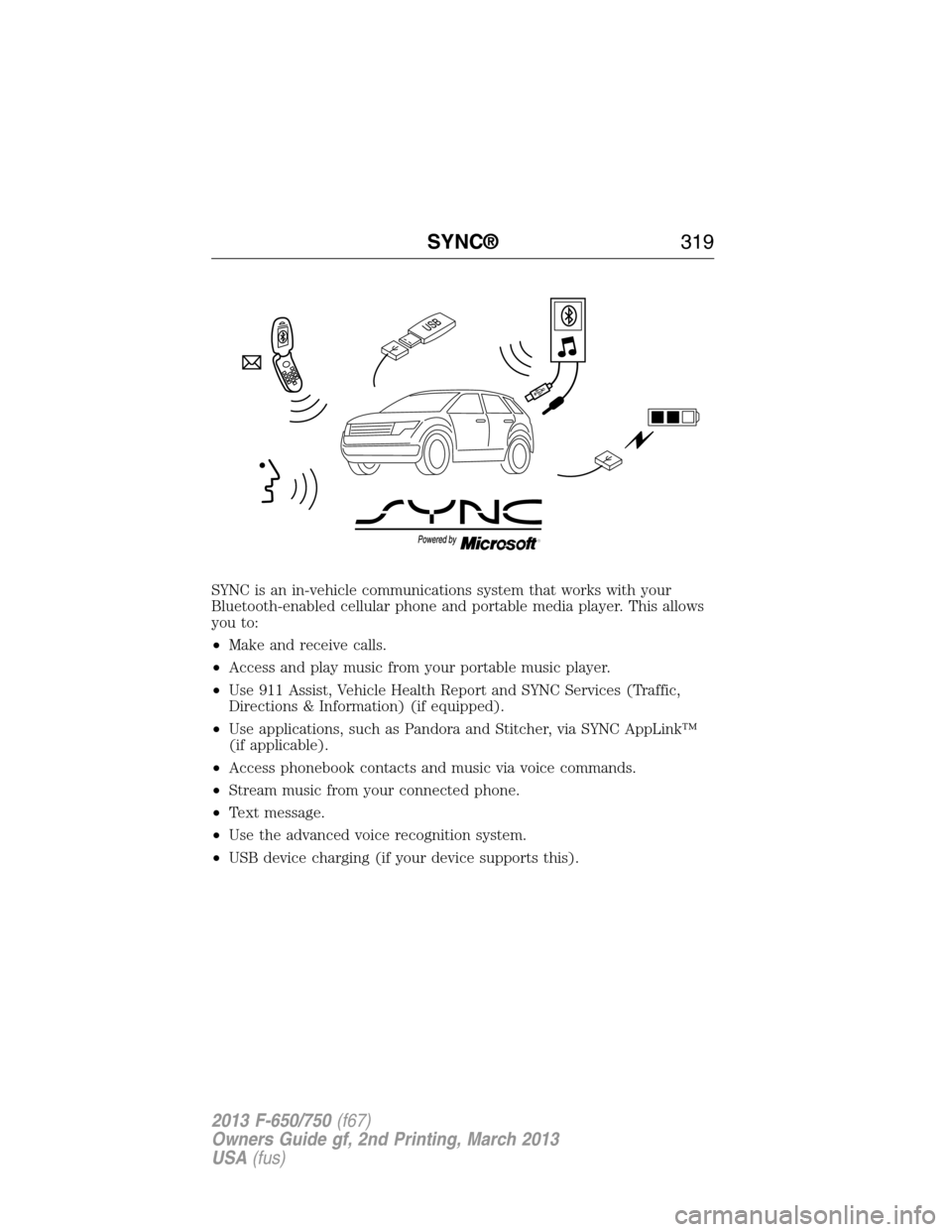

SYNC is an in-vehicle communications system that works with your
Bluetooth-enabled cellular phone and portable media player. This allows
you to:
•Make and receive calls.
•Access and play music from your portable music player.
•Use 911 Assist, Vehicle Health Report and SYNC Services (Traffic,
Directions & Information) (if equipped).
•Use applications, such as Pandora and Stitcher, via SYNC AppLink™
(if applicable).
•Access phonebook contacts and music via voice commands.
•Stream music from your connected phone.
•Text message.
•Use the advanced voice recognition system.
•USB device charging (if your device supports this).
SYNC®319
